STRIKEMASTER Lithium 40v User manual

OWNER’S MANUAL
READ ALL SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATING
Model No.
Lithium 40v (LFVL-8)
Lithium 40v (LFVL-10)
Lithium 40v Lite (LFVLF-8)
Lithium 40v Lite (LFVLF-10)
Model No.
Lithium 40v Lite
(LFVLF-8) (LFVLF-10)
Model No.
Lithium 40v
(LFVL-8)(LFVL-10)

STRIKEMASTER®LITHIUM 40v CONTENTS
PRODUCT SPECIFICATIONS ................................................................ 01
QUICK START ................................................................................ 02-04
SAFETY INFORMATION .................................................................. 05-06
Instructions regarding BATTERY charging, information regarding ambient temperature range for tool and BATTERY
use and storage, and the recommended ambient temperature range for the CHARGING SYSTEM during charging.
SYMBOLS ......................................................................................... 08

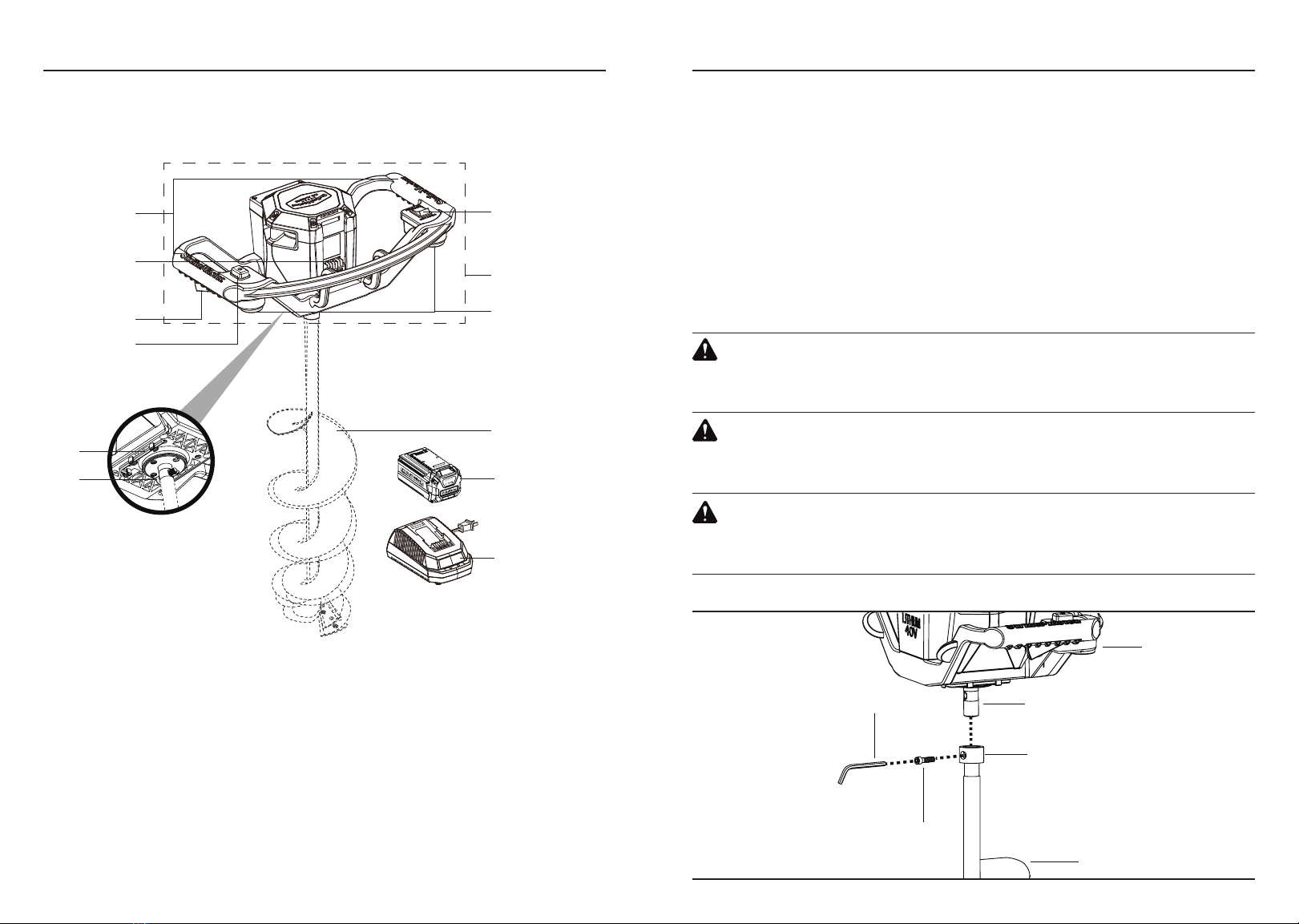

KNOW YOUR ICE AUGER ..................................................................... 09
ASSEMBLY .................................................................................... 10-11
OPERATION ....................................................................................... 12
MAINTENANCE .................................................................................. 13
TROUBLESHOOTING ........................................................................... 14
WARRANTY ........................................................................ BACK COVER
PRODUCT SPECIFICATIONS
COMPONENTS
• StrikeMaster Lithium 40v Powerhead
• StrikeMaster Lithium 40v Battery (5 AMP-LFV-B)
• StrikeMaster Lithium 40v Battery Charging Base (LFV-CB)
• StrikeMaster Spiral and Blade Cover
TOTAL WEIGHT
Lithium 40v 8”Auger..........................................................................................................24 lbs.
Lithium 40v 10”Auger .......................................................................................................27 lbs.
Pro Lithium 40v Lite 8”Auger .............................................................................................21 lbs.
01 02
EXTREME COLD WEATHER OPERATION
The Lithium-Ion Battery can be used in temperatures down to (-4°F/ -20°C). If your Battery is not performing correctly, put the
Battery on the Powerhead, free spin auger out and above ice for 30 to 90 seconds depending on how cold the unit is (the
colder the unit, the more time to warm up).After this sequence the Battery will warm up and begin operating normally.
NOTE:
Always store Battery in a warm location.
IMAGE 5
IMAGE 6
IMAGE 4
IMAGE 2
Model No.
Lithium 40v 5 Amp Battery (LFV-B)
Lithium 40v Battery Charging Base (LFV-CB)
Lithium 40v (LFVL-8/LFVL-10)
Lithium 40v Lite (LFVLF-8)(LFVLF-10)
STRIKEMASTER®LITHIUM 40v

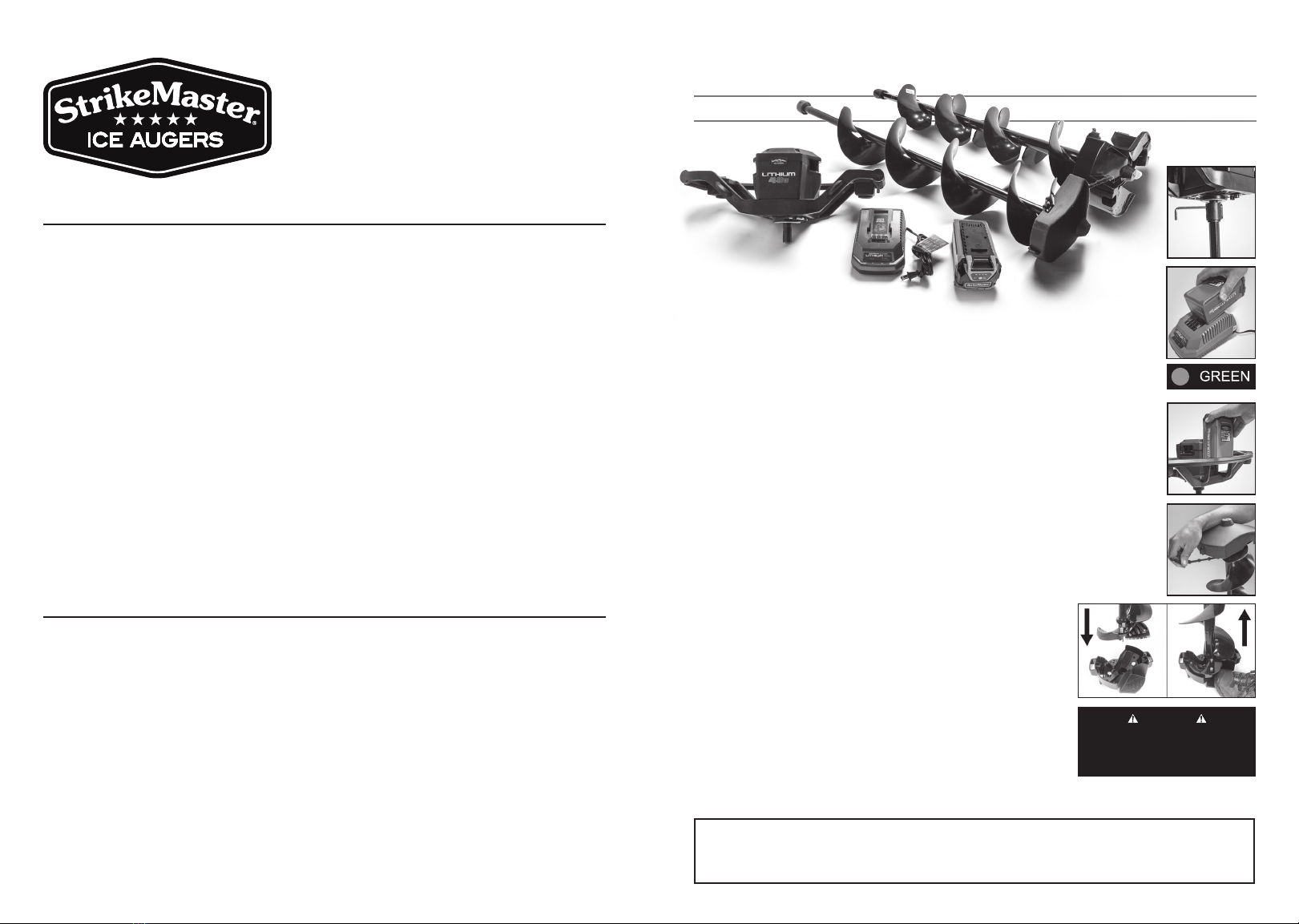

QUICK START
ASSEMBLY
1. Remove all Lithium 40v contents from carton: Powerhead (A),
Battery Charging Base (B), Battery (C) and Auger Spiral (D),(Image1).
Remove protective film from the top of the Powerhead.
2. Connect Powerhead to spiral, using collar bolt and hex wrench.
a. Collar bolt is located inside collar bolt threads at top of spiral (Image 2).
b.Two Hex wrench's are included: One is stored on the bottom of the Powerhead.
The other is taped to the mid-point of the spiral. Remove hex wrench from spiral
before operating.
3. Slide Battery onto Battery Charging Base using the channels on both sides guide.
Press down until you hear it click in place. Leave Battery on Battery Charging Base
until fully charged (Image 3).
NOTE: Battery is not fully charged when first removed from box.
4. When Battery Charging Base indicator shows green, your Battery is fully charged (Image 4).
5. Once Battery is fully charged remove from Battery Charging Base. Slide battery onto
Powerhead using the channels on both sides as a guide, pressing down until you
hear it click in place (Image 5).
6. Remove blade cover from bottom of spiral and stow in a safe place (Image 6).
Blades are extremely sharp, use caution. Your StrikeMaster Lithium 40v is ready for use.
7. Magnetic Snap Cover is hands free.Push-in to Attach,Use the Foot Pads When Detaching (Image 7).
Blades are extremely sharp, use caution. Your StrikeMaster Lithium 40v Lite is ready for use.
FORWARD/ REVERSE
Your new StrikeMaster Lithium 40v has a forward and reverse capability.The
Forward/Reverse position needs to be selected when the spiral is at rest.
If switched during use the auger spiral will maintain its current direction until
it comes to a complete stop.
Example:While drilling a hole in the forward position if switch is accidentally engaged
into reverse during drill cycle, the spiral will continue in forward until the power buttons
are released and the spiral comes to a complete stop.
LED WORK-LIGHTS
Your New StrikeMaster Lithium 40v has two LED lights on the bottom side of
the Powerhead to illuminate the cutting area.The lights will turn on when the
operating lock lever and POWER button are engaged.The LED lights will remain
on for 30 seconds after POWER button is released.
IMAGE 1
IMAGE 7
IMAGE 3
(D)
(C)
(B)
(A)
REGISTERYOUR PRODUCT ONLINETO ACTIVATEYOUR WARRANTY
www.rapala.com/content/rapala-brand-warranties/strikemaster-warranty.html
WARNING
Always keep hands, feet, hair
and loose clothing away from
the rotating auger. Failure to do
so may cause serious injury.

03 04
STRIKEMASTER®LITHIUM 40v
BATTERY CHARGING BASE QUICK START
1. Remove Lithium 40v Battery Charging Base from carton (Image 1). Plug in.
2. Unpack Battery, slide Battery onto Battery Charging Base using the channels on both
sides as a guide (Image 2). Press down until you hear it click in place. Leave Battery on
Battery Charging Base until fully charged.
NOTE: Battery is not fully charged when first removed from box and will not charge until
Battery's core temperature is above 32 °F/2°C
3. When Battery Charging Base indicator shows green, your Battery is fully charged (Image 3).
Your StrikeMaster Lithium 40v Battery is ready for use.
Your StrikeMaster Lithium 40v Battery Charging Base has built in“Smart Charging
Technology”.The chart below shows you the correct charging procedure/occurrences that
could be experienced while charging.
REGISTERYOUR PRODUCT ONLINETO ACTIVATE YOUR WARRANTY
www.rapala.com/content/rapala-brand-warranties/strikemaster-warranty.html
IMAGE 2
IMAGE 3
IMAGE 1
5 AMP
5 AMP
Compatible
with Lithium 40v
5 amp Lithium Ion Battery
( LFV-B)
Model No.
Lithium 40v Battery Charging Base (LFV-CB)
STRIKEMASTER®LITHIUM 40v
BATTERY QUICK START
STRIKEMASTER LITHIUM 40v 5 AMP HOUR BATTERY
1. Remove StrikeMaster Lithium 40v Battery from carton (Image 1).
2. Unpack Battery Charging base,slide Battery onto Battery Charging Base using the
channels on both sides as a guide. Press down until you hear it click in place.
Leave Battery on Battery Charging Base until fully charged (Image 2).
NOTE: Battery is not fully charged when first removed from box and will not charge until
Battery's core temperature is above 32
°F/2°C
3. When Battery Charging Base indicator shows green, your Battery is
fully charged (Image 3).
4. Once Battery is fully charged remove from Battery Charging Base.Slide battery onto
Powerhead using the channels on both sides as a guide, pressing down until you hear it
click in place (Image 4). Y
our StrikeMaster Lithium 40v is ready for use.
BATTERY CARE AND MAINTENANCE
1. Store Battery in a warm, dry location (35°F/ 2°C – 100°F/ 38°C).
2. IN SEASON
A. Keep Battery fully charged.
B. Store on a plugged in Battery Charging Base in a warm,dry location (35°F/ 2°C – 100°F/ 38°C).
3. OFF SEASON
A. Charge Battery to full.
B. Store Battery in a warm, dry location (35°F/ 2°C – 100°F/ 38°C), off of Battery Charging Base.
C. If Battery is stored for a period longer than 6 months, Battery should be recharged back to full before use.
REGISTERYOUR PRODUCT ONLINETO ACTIVATEYOUR WARRANTY
www.rapala.com/content/rapala-brand-warranties/strikemaster-warranty.html
IMAGE 1
EXTREME COLD WEATHER OPERATION
The Lithium-Ion Battery can be used in temperatures down to (-4°F / -20°C). If your Battery is not performing correctly, put the
Battery on the Powerhead, free spin auger out and above ice for 30 to 90 seconds depending on how cold the unit is
(the colder the unit, the more time to warm up).After this sequence the Battery will warm up and begin operating normally.
NOTE: Always store Battery in a warm location.
IMAGE 2
IMAGE 3
IMAGE 4
5 AMP
( LFV-B)
Model No.
Lithium 40v 5 Amp Battery (LFV-B)

GENERAL POWER TOOL SAFETY WARNINGS
WA R N I N G
READ ALL SAFETY WARNINGS, INSTRUCTIONS AND SPECIFICATIONS PROVIDED WITH POWER TOOL.
Failure to follow all instructions listed below may result in electric shock, re and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery operated
(cordless) power tool.
1) WORK AREA SAFETY
A) Keep work area clean and well lit.Cluttered or dark areas invite accidents.
B) Do not operate power tools in explosive atmospheres,such as in the presence of flammable liquids,gases or
dust. Power tools create sparks which may ignite the dust or fumes.
C) Keep children and bystanders away while operating a power tool.Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
A) Power tool plugs must match the outlet.Never modify the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.
B) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed or grounded.
C) Do not expose power tools to rain or wet conditions.Water entering a power tool will increase the risk of electric shock.
D) Do not abuse the cord.Never use the cord for carrying, pulling or unplugging the power tool.Keep cord away
from heat,oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
E) When operating a power tool outdoors,use an extension cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
F) If operating a power tool in a damp location is unavoidable,use a RESIDUAL CURRENT DEVICE (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
NOTE: The term "RESIDUAL CURRENT DEVICE (RCD)" may be replaced by the term "ground fault circuit interrupter
(GFCI)"or "earth leakage circuit breaker (ELCB)".
3) PERSONAL SAFETY
A) Stay alert, watch what you are doing and use common sense when operating a power tool.Do not use a power
tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
B) Use personal protective equipment.Always wear eye protection. Protective equipment such as a dust mask, non-
skid safety shoes,hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
C) Prevent unintentional starting.Ensure the switch is in the off-position before connecting to power source and/or
battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing
power tools that have the switch on invites accidents.
D) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
E) Do not overreach.Keep proper footing and balance at all times.This enables better control of the power tool in
unexpected situations.
F) Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts.
Loose clothes, jewelry or long hair can be caught in moving parts.
G) If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can reduce dust-related hazards.
H) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury within a fraction of a second.
05
4) POWER TOOL USE AND CARE
A) Do not force the power tool.Use the correct power tool for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
B) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
C) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool
before making any adjustments,changing accessories, or storing power tools.Such preventive safety measures
reduce the risk of starting the power tool accidentally.
D) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool.Power tools are dangerous in the hands of untrained users.
E) Maintain power tools and accessories.Check for misalignment or binding of moving parts,breakage of parts
and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
F) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
G) Use the power tool,accessories and tool bits etc.in accordance with these instructions,taking into account the
working conditions and the work to be performed. Use of the power tool for operations different from those
intended could result in a hazardous situation.
H) Keep handles and grasping surfaces dry, clean and free from oil and grease.Slippery handles and grasping
surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) BATTERY TOOL USE AND CARE
A) Recharge only with the charger specified by the manufacturer.A charger that is suitable for one type of battery
pack may create a risk of fire when used with another battery pack.
B) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk
of injury and fire.
C) When battery pack is not in use,keep it away from other metal objects,like paper clips,coins, keys, nails, screws
or other small metal objects,that can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
D) Under abusive conditions,liquid may be ejected from the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes,additionally seek medical help.Liquid ejected from the battery may cause
irritation or burns.
E) Do not use a battery pack or tool that is damaged or modified.Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk of injury.
F) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above
265°F/130°C may cause explosion.
G) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at temperatures outside the specified range may damage
the battery and increase the risk of fire.
6) SERVICE
A) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
B) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer
or authorized service providers.
06

07 08
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING Indicates an potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION Indicates an potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
Some of the following symbols may be used on this product. Please study them and learn their meaning.Proper
interpretation of these symbols will allow you to operate the product batter and safer.
SYMBOL NAME MEANING
SAFETY ALERT Indicates a potentially personal injury hazard.
READ OWNER’S MANUAL To reduce risk of injury, user must read and understand owner’s
manual before using this product.
EYE PROTECTION Always wear eye protection with side shields marked to
comply with ANSI Z87.1.
EAR PROTECTION (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
V VOLTS Voltage
or d.c. DIRECT CURRENT Type or a characteristic of current.
RPM NO LOAD SPEED Rotational speed at no load.
Item Storage Temperature Charging Temperature Use Temperature
Battery 32 °F (0 °C) ~ 113 °F (45°C) 39 ˚F (4 °C) ~ 104 ˚F (40˚C) Same as the whole machine
Charging Base 32 °F (0 °C) ~ 113 °F (45°C) 39 ˚F (4 °C) ~ 104 ˚F (40˚C) —
Powerhead 1.4 ˚F (-17 ˚C) ~ 113 ˚F (45 ˚C) — 1.4 ˚F (-17 ˚C) ~ 113 ˚F (45 ˚C)

09
KNOWYOUR ICE AUGER
The safe use of this product requires an understanding of the information on the product and in this owner’s
manual as well as a knowledge of the project you are attempting. Before using this product,familiarize yourself
with all operating features and safety rules.
DIRECTION CONTROL SWITCH (FORWARD/REVERSE)
Your ice auger has a direction control switch (forward/reverse) for changing the direction of auger.
OPERATING LOCK LEVER
Setting this operating lock lever in the OFF position helps reduce the possibility of accidental starting when not
in use.When you want to use this auger, you must pull up on the operating lock lever (deadman’s switch) lock-
out trigger first.Then, press down the POWER button. Keeping both engaged simultaneously.
LED WORKLIGHTS
The two LED worklights,located on the bottom of the two handles, illuminate when the operating lock lever and
POWER button are engaged.This provides extra light for increased visibility. LED lights remain on for 30 seconds
after switches are released.
BATTERY CONNECTOR
The battery connector is used to connect Powerhead with the Battery.
HANDLE DIRECTION CONTROL SWITCH
(FORWARD/REVERSE)
POWERHEAD
LED WORK LIGHTS
AUGER SPIRAL
40V 5AH BATTERY
40V BATTERY CHARGING BASE
OPERATING LOCK LEVER
POWER BUTTON
HEX WRENCH
COLLAR BOLT
BATTERY
CONNECTOR
10
ASSEMBLY
PACKING LIST
1 Powerhead
1 Collar Bolt
2 Hex Wrenches
1 40v Lithium Battery
1 40v Battery Charging Base (Model# LFV-CB/LFV-CBEU)
1 Auger Spiral
UNPACKING
Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list
are included.
Inspect the product carefully to make sure no breakage or damage occurred during shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
If any parts are damaged or missing,please call 1-877-572-7278 (Monday - Friday / 8am - 4:30pm CST)
for assistance.
WA R N I N G
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.
Do not use this product if it is not completely assembled or if any parts appear to be missing or damaged.Use of a
product that is not properly and completely assembled could result in serious personal injury.
WA R N IN G
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.
If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product
with damaged or missing parts could result in serious personal injury.
WA R N IN G
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.
Do not attempt to modify this product.Any such alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal injury.
KNOW THE PARTS OF THE POWERHEAD
POWERHEAD
DRIVE SHAFT
COLLAR
COLLAR BOLT
HEX WRENCH
AUGER SPIRAL

11
ASSEMBLY
NOTE:The StrikeMaster Lithum 40v comes with two hex wrenches: One is stored on the bottom of the Powerhead.
The other is taped to the the mid-point of the spiral. Remove hex wrench from spiral before operating.
1. Unscrew the collar bolt from auger spiral with hex wrench.
2. The large and small holes from each component must line up before installing the bolt.
Push down and twist to line up holes.
3. It is recommended to grease inside collar and transmission output shaft on the Powerhead. Standard
automotive wheel bearing grease is suggested. Insert drive shaft into auger and install collar bolt.
4. Insert collar bolt into the large hole, passing through the drive shaft threads into the small hole of the auger.
Make sure collar bolt is tight.Some wiggle is normal between the Powerhead and auger. Check and tighten
often. Be sure collar bolt/head counter sinks past the outside face of the plastic collar.
WA R N IN G
IT IS RECOMMENDED THAT THE COLLAR BOLT BE CHECKED AND TIGHTENED IF NEEDED BEFORE
AND AFTER EVERY USE.
TO INSTALL/REMOVE THE BATTERY
TO INSTALL THE BATTERY
1. Remove StrikeMaster Lithium 40v Battery from carton.
2. Slide Battery onto Battery Charging Base using the channels on both sides as a guide.
Press down until you hear it click in place. Leave Battery on Battery Charging Base until
fully charged (Image 1).
NOTE: Battery is not fully charged when first removed from box.
3. When Battery Charging Base indicator shows green,your Battery is fully charged
(Image 2).
4. Once Battery is fully charged remove from Battery Charging Base. Slide battery onto
Powerhead using the channels on both sides as a guide, pressing down until you
hear it click in place (Image 3).
TO REMOVE THE BATTERY
Depress the unlocking button on the Battery. Remove the Battery from the Powerhead.
WA R N IN G
BATTERY MUST BE FULLY CHARGED BEFORE FIRST USE.
BATTERY UNLOCKING
BUTTON
POWERHEAD
BATTERY
IMAGE 2
12
OPERATION
TO OPERATE POWER BUTTON - ON AND OFF
NOTE: The StrikeMaster Lithium 40v is powered using the Lithium 40v Ion Battery supplied with the unit.
1. Make sure your footing is secure and that you have the unit in the vertical position firmly in your hands.
2. Place Directional Control Switch in Forward position.
3. Pull up the operating lock lever (deadman’s switch), then press the POWER button.The auger will start drilling
and the LED worklights will turn on. LED lights will stay on for 30 seconds after power button is released.
4. To stop the auger, release the POWER button and the operating lock lever.
5. In the event your auger gets stuck during operation,reposition your feet and place Directional Control Switch to
Reverse position.This should release spiral from obstruction.
6. When the auger is not in use, remove the Battery for best performance.
NOTE: If you are planning to use the Battery multiple times in a single outing,it is ideal to remove the battery and
place in a warm location.This is especially important in cold weather conditions.
WA R N IN G
Keep the operating lock lever and POWER button pressed while using the ice auger.
FORWARD/REVERSE
1. Depress the direction control switch to the forward side.The auger will rotate clockwise.
2. Depress the direction control switch to the reverse side.The auger will rotate counter-clockwise.
3. The unit must come to a complete stop to change direction.
WA R N IN G
KEEP POWERHEAD CLEAR OF WATER.
2
1
FORWARD/ REVERSE NOTE: Forward/ Reverse
position needs to be selected when the spiral is
at rest.The auger spiral will maintain its current
direction until it comes to a complete rest.
Example: While drilling a hole in the forward position
if switch is accidentally engaged into reverse during
drill cycle, the spiral will continue in forward until the
power buttons are released and the spiral comes to a
complete stop.
IMAGE 3
IMAGE 1

13
MAINTENANCE
Read the maintenance schedule and observe these recommendations to extend the life of your ice auger.
Good maintenance is essential for safe, economical, and trouble-free operation. To help you properly care for
your Powerhead, the following pages include a maintenance schedule, routine inspection procedures, and
simple maintenance procedures using basic hand tools. Other service tasks that are more difficult, or require
special tools, are best handled by professionals and are normally performed by a technician or other
qualified mechanic.
The maintenance schedule applies to normal operating conditions. If you operate your Powerhead under
unusual conditions, such as sustained high-load, or use in unusually wet conditions, consult StrikeMaster®
customer service for recommendations applicable to your individual needs and use.
MAINTENANCE AND SCHEDULE
MAINTENANCE ITEM BEFORE EACH DAYS USE EVERY 400-500 COMPLETE
CHARGES/CYCLES
CHECK BOLTS AND NUTS X —
BATTERY CHARGE X —
PACK REPLACE — X
CYCLE
One complete use from full charge to no charge. (If used to 75% charge, it counts as 25% of cycle.
TRANSPORTING YOUR ICE AUGER
Remove the Battery when transporting the auger.
LONG-TERM STORAGE
If your ice auger will not be run for more than one month, prepare it for long-term storage.
1. Charge the battery to full and leave it off of the ice auger. DO NOT leave the Battery on the
Battery Charging Base.
2. Remove the auger from the Powerhead and apply a thin layer of grease to the driveshaft.
3. Remove all debris from Auger and Powerhead.
4. Keep in a dry, moisture-free area.
14
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE REMEDY/ACTION
Powerhead will not turn on Power Switch not Hold Power Switch for five seconds
depressed properly
Powerhead will not start and Battery too cold Remove Battery from the unit and place
the Battery indicates a in a warm location (inside a jacket pocket,
full charge vehicle or a small cooler with a warmer)
Powerhead starts then stops Battery low on power Charge Battery
Battery may be slightly Remove Battery from the unit and place
under temperature in a warm location (inside a jacket pocket,
vehicle or a small cooler with warmer.
In the event of the auger not operating or stalling during use the user may hear audible signals.To determine
what the audible signal is keep the operating lock lever (deadman’s switch) and POWER button engaged and
count number of beeps, then refer to the chart below.
STATEMENT BEEP TIME SOLUTION
Protection Over Current 1 Release trigger, lift and continue cutting
(spiral stoppage during cut) or move and cut in new location
Protection Voltage Battery Low 7 Recharge Battery
Place Battery in warm location
Protection High Temperature 13 Release trigger,
Let unit rest for five minutes
Battery Is Too Cold 6 Warm Battery to above -4°F, or try
running unit without any load until
Battery warms

2YEAR LIMITED WARRANTY
POWERHEAD WARRANTY
StrikeMaster®hereby warranties this product, to the original purchaser with proof of purchase,
for a period of two (2) years against defects in materials, parts or workmanship. StrikeMaster,
at its own discretion will repair or replace any and all parts found to be defective, through
normal use, free of charge to the customer. This warranty is valid only for units which have
been used for personal use that have not been hired or rented for industrial/ commercial use,
and that have been maintained in accordance with the instructions in the owner’s manual
supplied with the product from new.
BATTERY & CHARGING BASE WARRANTY
Battery and Battery Charging Base carries a two (2) year warranty against defects in
workmanship and materials. Batteries must be charged in accordance with the operator’s
manuals directions and regulations in order to be valid.
ITEMS NOT COVERED BY WARRANTY
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect,
accident, improper maintenance, or alteration; or
2.The unit, if it has not been operated and/or maintained in accordance with the owner’s
manual; or
3.Normal wear, routine maintenance, normal deterioration of finish due to use or
exposure.
REGISTERYOUR PRODUCT ONLINETO ACTIVATEYOUR WARRANTY
www.rapala.com/content/rapala-brand-warranties/strikemaster-warranty.html
TRANSPORTATION CHARGES
Transportation charges for the movement of any power equipment unit or attachment are the
responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation charges
for any part submitted for replacement under this warranty unless such return is requested in
writing by StrikeMaster®.
©2022 StrikeMaster, Inc. 0723
Suite 100, 935 Aldrin Drive, Eagan, MN 55121
USA CUSTOMER SERVICE EMAIL:
[e-mail]
TOLL-FREE HELPLINE: 1-877-572-7278
(Monday - Friday / 8am - 4:30pm CST)
www.strikemaster.com
1350 Phillip Murray Ave, Oshawa, ON L1J 6Z9, Canada
cacustser[email protected]
TOLL-FREE HELPLINE: 905-571-3001
(Monday - Friday / 8am - 4:30pm ET)
LIGNE DE SECOURS: 905-571-3001
(Lundi-Vendredi / 8am - 4:30pm ET)
www.strikemaster.ca
