SunlandOptics GOBOSERVICE DIVUM 50K User manual

INSTRUCTION MANUAL
DIVUM 50K
Goboservice by SunlandOptics SRL
Via Vecchia Provinciale 167 - Archi - 89121 Reggio Calabria (RC)
[phone]
Via 2 June 19/10 - Bonate - 24040 (BG)
[phone]
www.goboservice.com
[email protected]

Divum 50K
-2-
DIVUM 50K
INSTRUCTION MANUAL
Thank you for choosing a Goboservice brand projector! We inform you that this product has been designed
and built to always guarantee you the best performance and to meet your expectations and needs as much as
possible.
Read this instruction manual carefully before operating the product and consult it if any difficulty or doubt
arises.
These instructions for use are an integral part of the delivery of the object. The instructions must be kept for
at least ten (10) years in a known place easily accessible to all interested persons.
Knowledge of and compliance with the contents of this manual are essential to ensure the correct and safe
installation, use and maintenance of the product.
Goboservice by SunlandOptics SRL declines any responsibility for damage to the equipment or to other
property or persons resulting from installation, use and maintenance not carried out in accordance with the
provisions of this manual, which must always accompany the equipment.Furthermore, Goboservice by
SunlandOptics SRL reserves the right to modify the contents of this instruction manual at any time and
without notice.
ENGLISH

-3-
WWW.GOBOSERVICE.COM
Ist0006 – Rev.0
INDEX
1. SAFE CONDITIONS OF USE.................................................................................................................................. 4
2. CONTENT OF THE SHIPMENT ............................................................................................................................ 7
3. INSTALLING THE PROJECTOR........................................................................................................................... 7
3.1. DIMENSIONS AND WEIGHT............................................................................................................................. 7
3.2. ORIENTATION OF THE PROJECTOR ............................................................................................................. 8
3.3. SAFETY CABLE INSTALLATION.................................................................................................................... 8
3.4. FRONT PANEL VIEW OF THE PROJECTOR................................................................................................. 9
3.5. BACK PANEL VIEW OF THE PROJECTOR................................................................................................... 9
3.6. GOBO ASSEMBLY INSTRUCTIONS ............................................................................................................... 9
3.7. COMMISSIONING DYNAMIC EFFECT........................................................................................................11
3.7.1. DYNAMIC EFFECT CONFIGURATION VIA APP ..................................................................................13
3.8. SHAPER ..................................................................................................................................................................15
3.9. GOBO HOLDER WITH FOCUS MICRO ADJUSTMENT ..........................................................................16
3.9.1. GOBO HOLDER CONFIGURATION VIA APP.........................................................................................18
3.10. IMAGE CHANGE KIT.......................................................................................................................................20
3.10.1. GOBO CHANGE CONFIGURATION VIA APP ......................................................................................22
3.11. DMX CONTROL.................................................................................................................................................26
3.12. POWER SUPPLY ACCESSORIES..................................................................................................................26
4. USE OF THE PROJECTOR....................................................................................................................................27
4.1. CONNECTION OF THE PROJECTOR TO THE ELECTRICITY NETWORK .......................................27
4.2. PROJECTOR ORIENTATION AND FIXING.................................................................................................27
4.3. SIZING AND FOCUSING THE PROJECTED IMAGE ................................................................................28
5. POSSIBLE PROBLEMS - CAUSES AND SOLUTIONS.................................................................................29
6. DIRECTIVES.............................................................................................................................................................29
7. DISPOSAL .................................................................................................................................................................29
8. WARRANTY.............................................................................................................................................................30
9. MAINTENANCE HISTORY .....................................................................................................................................31

Divum 50K
-4-
1. SAFE CONDITIONS OF USE
Please read the following conditions of safe use carefully before performing any operations. The product
described in this manual is a lighting device for projecting a light beam. It is usually used to illuminate, with
a high level of surface brightness, large areas on which to project decorative effects or to reproduce
suggestive and particular projections of logos and images. It is recommended not to use the appliance for
purposes other than those for which it was designed and built. It is intended for indoor and outdoor lighting,
any other use is not foreseen by the manufacturer and therefore relieves it of any liability for damage
deriving from improper and / or incorrect use.
1. INSTALLATION- The installation must be carried out by arranging the space in
which the appliance is to be used so that it is free from any obstacle. For special needs
the luminaire can be fixed with plugs or screws or other anchors suitable for the
material of the surface on which it is to be blocked. Make sure that all the parts
identified for fixing the projector are in suitable conditions to support it and check the
stability of the anchoring point before positioning the projector.
·Make sure all parts for fixing the projector are in good condition.
·Make sure the anchor point is stable before positioning the projector.

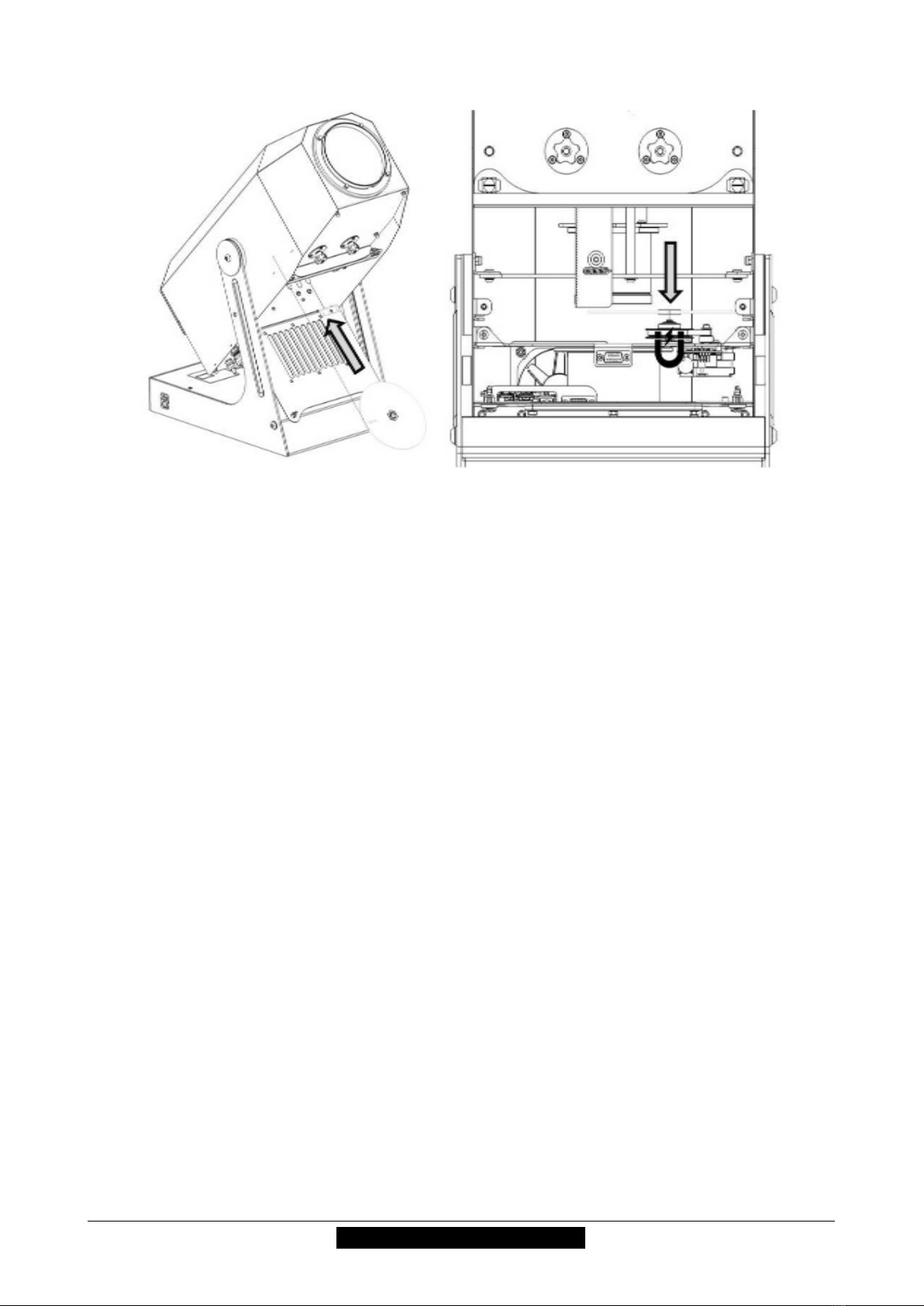

·The safety rope, duly hooked to the appliance and fixed to the support
structure, must be installed in such a way that, in the event of failure of the
primary support system, there is the least possible fall of the appliance. After
any intervention, the safety rope must be replaced with the original spare.
·If the external flexible cable of this appliance is damaged, it must only be
replaced by the manufacturer or its after-sales service or by equally qualified
personnel in order to avoid hazards.
·The power socket is not included. The installation must be carried out by a
qualified person.
2. MINIMUM DISTANCE OF ILLUMINATED OBJECTS- The projector must be
positioned so that the objects hit by the light beam are at least 5m away from the
projector lens.
3. MINIMUM DISTANCE OF FLAMMABLE MATERIALS- The projector must
be positioned so that flammable materials are at least 5m away from any point on the
surface of the fixture.

-5-
WWW.GOBOSERVICE.COM
Ist0006 – Rev.0
Ta
4. MAXIMUM ROOM TEMPERATURE- Place the projector in a place where there
is good air flow. Do not use the projector indoors or in semi-enclosed areas which
could cause a rise in temperature and shorten the life of the device.
Do not use the projector if the ambient temperature (Ta) exceeds 40 ° C.
5. DEGREE OF PROTECTION IP54- The appliance is protected against dust (first
digit 5) and against splashing water (second digit 4).
6. DEGREE OF PROTECTION- The device has an IK09 degree of protection against
any external mechanical impacts.
7. PROTECTION AGAINST INDIRECT CONTACTS (ELECTRIC SHOCK)- It
is mandatory to connect to a power supply system equipped with an efficient earthing
(Class I appliance according to the EN 60598-1 standard).
It is also recommended to protect the power supply lines of the projectors from
indirect contacts and / or short circuits to ground by using suitably sized RCDs.
8. CONNECTION TO THE POWER SUPPLY NETWORK- The connection
operations to the electricity distribution network must be carried out by a qualified
user.
Check that the frequency and voltage of the network correspond to the frequency and
voltage for which the device is designed, as indicated on the electrical data plate.
The power absorbed is also indicated on the same plate.
Refer to the latter to evaluate the maximum number of appliances to be connected to
the power line, in order to avoid overloads.
If the projector is used in a residential environment, in some cases it may be necessary
to take specific measures to avoid electromagnetic interference to radio receivers.
Tc
9. TEMPERATURE OF THE EXTERNAL SURFACE OF THE APPLIANCE-
The maximum temperature that can be reached on the external surface of the
appliance, in conditions of thermal regime, is <60 ° C.
10. MAINTENANCE- Before starting any maintenance or cleaning operation on the
projector, disconnect the power supply from the mains.
After turning off the projector, do not remove any part of the unit before 10 minutes
has elapsed to avoid burns.
The lenses must be compulsorily fitted; they must also, if visibly damaged, be
replaced with original spare parts.
Periodically remove and clean the dust filters located in the two air intakes of the
appliance to allow correct ventilation of the product. In case of deteriorated filters,
contact the manufacturer for replacement with original spare parts.
11. PHOTOBIOLOGICAL SAFETY- ATTENTION. Possible emission of dangerous
optical radiation from this product. Do not look at the light source. It could damage
your eyes.

Divum 50K
-6-
12. DO NOT FIX THE LIGHT SOURCE IN OPERATION- The projector must be
positioned in such a way that the minimum distance of the projector lens from the
human eye is at least 6.27 meters to prevent photobiological risks to the person.
13. CAUTION, RISK OF ELECTRIC SHOCK- The light source contained in this
luminaire must only be replaced by the manufacturer or its assistance service or by
equally qualified personnel.
14. THE PRODUCT IS DESIGNED TO BE USED IN THE FOLLOWING AREAS
Studios, stages, theaters, exhibitions, fairs, events, theme parks, entertainment venues,
architectural lighting and the like.
15. NOT SUITABLE FOR HOME LIGHTING
16. RESIDUAL RISKS- Although the product is built in compliance with all the rules
and precautions, there are residuals of risk linked to some structural aspects and use
of the product. Avoid disassembling the appliance. Maintenance must be carried out
by expert personnel. Place the appliance in visible areas and in such a way that it does
not obstruct the normal passage of people, the risk of impact must be minimized if not
eliminated. Do not place the appliance where it can fall and hit people or animals.
Keep children away from the appliance when it is in operation and in any case
connected to the mains voltage. In case of anomalies in the coating or breakage of the
casing that contains the luminous parts, do not start up and stop using the product. Do
not install the appliance in areas available to minors or people who could be damaged
by proper or improper use. If disconnected from the mains, the appliance does not
represent a danger for people or animals, not even in the event of exposure to rain.
The appliance works with low voltage electricity and this places it in a dangerous area
typical of a household appliance; it must be considered, in any case, a lighting device
and, therefore, an adequate attitude must be adopted at the time of use. The appliance
is designed and built using all safety criteria and suitable materials in order to prevent
dangers and minimize risks. If disconnected from the mains, the appliance does not
represent a danger for people or animals, not even in the event of exposure to rain.
The appliance works with low voltage electricity and this places it in a dangerous area
typical of a household appliance; it must be considered, in any case, a lighting device
and, therefore, an adequate attitude must be adopted at the time of use. The appliance
is designed and built using all safety criteria and suitable materials in order to prevent
dangers and minimize risks. If disconnected from the mains, the appliance does not
represent a danger for people or animals, not even in the event of exposure to rain.
The appliance works with low voltage electricity and this places it in a dangerous area
typical of a household appliance; it must be considered, in any case, a lighting device
and, therefore, an adequate attitude must be adopted at the time of use. The appliance
is designed and built using all safety criteria and suitable materials in order to prevent
dangers and minimize risks. a lighting device and, therefore, an appropriate attitude
must be adopted at the time of use. The appliance is designed and built using all
safety criteria and suitable materials in order to prevent dangers and minimize risks. a
lighting device and, therefore, an appropriate attitude must be adopted at the time of

-7-
WWW.GOBOSERVICE.COM
Ist0006 – Rev.0
use. The appliance is designed and built using all safety criteria and suitable materials
in order to prevent dangers and minimize risks.
2. CONTENT OF THE SHIPMENT
Upon receipt, check that the product has arrived intact in all its parts; otherwise, contact the manufacturer
immediately. Take all the contents out of the box and check for any damage caused by transport. Dispose of
the casing according to the regulations in force.
-N ° 1 Divum 50K projector
-N ° 1 Power cable with 20A mains connector for outdoor applications
-N ° 1 Pendrive containing Instruction Manual and Warranty Terms.
The projector is supplied with the configuration dedicated to the chosen accessory; in the event of an

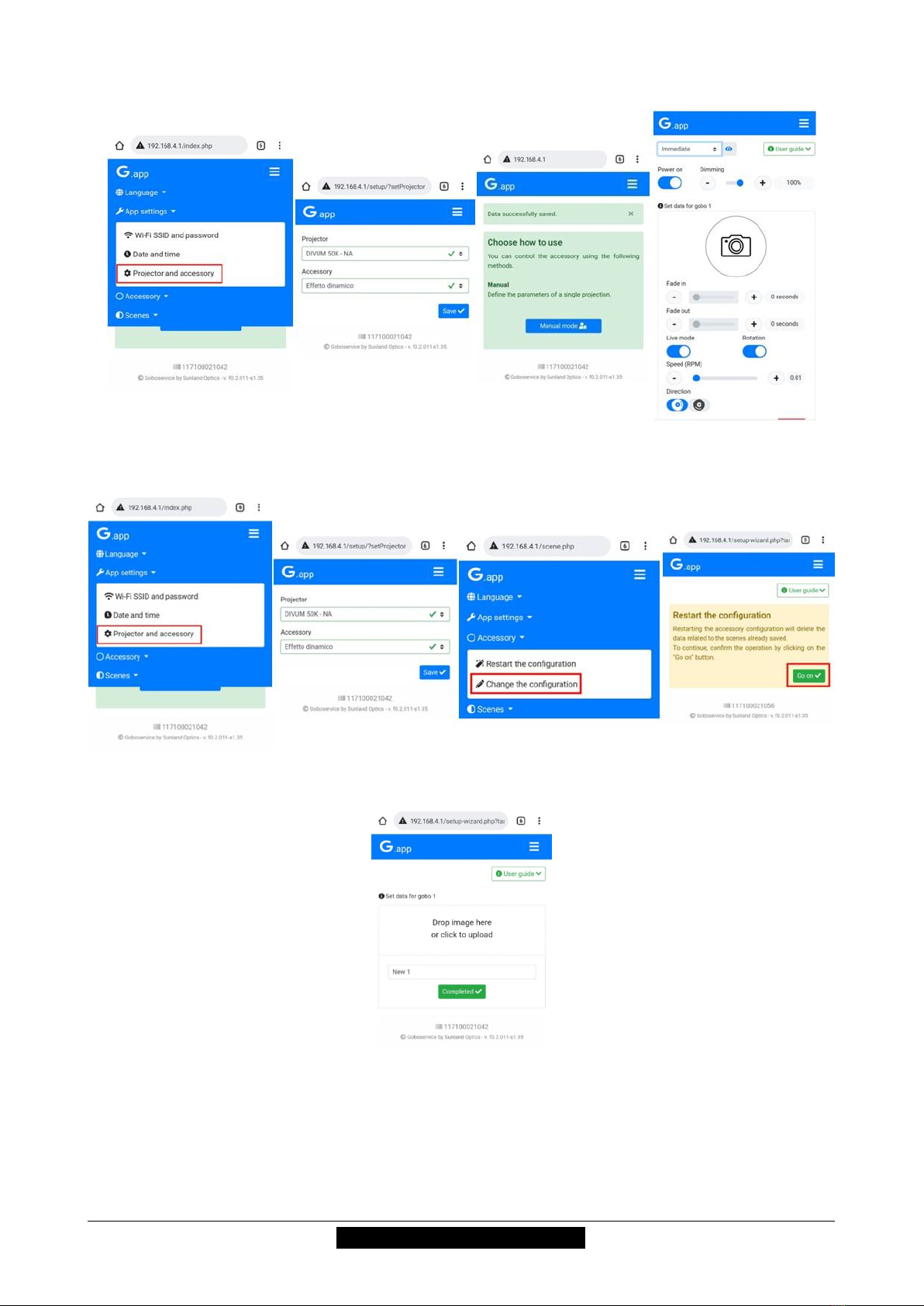

accessory change, the dedicated configuration must be set from the APP.
3. INSTALLING THE PROJECTOR
3.1. DIMENSIONS AND WEIGHT
Fig.1

Divum 50K
-8-
3.2. ORIENTATION OF THE PROJECTOR
Fig.2
InFig.2 the upper part of the projector
is shown in two possible installation
configurations: on the ground and on
the ceiling.
Fig.3
InFig.3 the positioning angles of the
projector fixed to the ground.
Fig.4
InFig.4 the positioning angles of the
projector fixed to the ceiling.
3.3. SAFETY CABLE INSTALLATION
Fig.5
Install the safety wire by passing it inside the fork as
shown inFig.5.

-9-
WWW.GOBOSERVICE.COM
Ist0006 – Rev.0
3.4. FRONT PANEL VIEW OF THE PROJECTOR
Fig.6
InFig.6 the front panel of the projector is shown.
On the front there is a lens with an anti-glare filter,
when the projector is switched on, the light beam
comes out.
3.5. BACK PANEL VIEW OF THE PROJECTOR
InFig.7 the rear panel of the projector is shown.
N PICTURE 1 This is the connector for the power cord.
PICTURE 2 It is a switch that allows the luminaire
and the relative light source to be switched on.
Fig.7
3.6. GOBO ASSEMBLY INSTRUCTIONS
The single gobo is characterized by two characteristic parameters that
make it compatible or not for use in a projector; these parameters
(highlighted inFig.8) I'm:
-the OD (Outer Diameter) which is the physical diameter of the gobo;
-the ID (Inner Diameter) that is the diameter of the circle within which
the image to be projected must be contained.
For the Divum 50K model the gobos must have the following
characteristics: OD = 37.3mm and ID = 25mm. In the case of gobos with
particular graphic characteristics, contact the Goboservice customer
service([email protected]) who will be able to show you the best
configuration.
Fig.8

Divum 50K
-10-
During the installation / replacement of a gobo inside a projector it is essential, for the correct functioning of
the same, to house the gobo so that THE MOST REFLECTIVE SIDE IS ALWAYS FACING THE LIGHT
SOURCE AND THE BLACK / GRAY SIDE AIMED TOWARDS THE OBJECTIVE (seeFig.9). The
respect of this rule allows the use of the gobos in a correct way avoiding their breaking.
Fig.9
LIGHT SOURCE LED
GOBO
TARGET
Once you have understood the mounting direction, open the lower cover of the projector using the special
fixings, unscrew the fixing screws and remove the accessory from the body of the projector; the gobo is
supplied mounted on the ring nut and you simply need to place it on the gobo holder which has magnets that
support the ring nut, then reinsert the accessory and close the bottom cover of the projector, also checking
that everything is correctly mounted.
ATTENTION: Care must be taken not to damage, soil or stain the surfaces of the gobo, as this could lead to
visible scratches in projection or even chips which, with the heat developed during projection, could lead to
the gobo breaking.
The installation / replacement of the gobo must be carried out with the projector switched off and
disconnected from the power line.
Should the gobo need to be replaced after use, wait for the internal components to cool.

-11-
WWW.GOBOSERVICE.COM
Ist0006 – Rev.0
3.7. COMMISSIONING DYNAMIC EFFECT
The accessory consists of two distinct parts (Fig.10):
1. Component 1it is the mechanical part of the accessory, that is, the one that makes the movement
of the effect possible.
2. Component 2 is the animation disc, i.e. the type of effect chosen (e.g. snow effect, musical note
effect, etc.)
Fig.10
To install component 1 inside the projector:
1. Open the bottom cover of the projector by unscrewing the special fixings.
2. Insert component 1 into the projector as inFig.11
3. Tighten the fixing screws of component 1 (Fig.11).
4. Connect the plug (Fig.11)
Fig.11

Divum 50K
-12-
Fig.12
Having component 1 already installed and set up inside the projector, let's see how to mount component 2:
1. Open the bottom cover of the projector by unscrewing its fixings.
2. Position component 2 on component 1 so that the metal washer of the wheel rests on the
flat and magnetic part of the pulley.(Fig.12)
3. Check that all parts are secure, close the bottom cover of the projector again.
ATTENTION: When carrying out these operations it is recommended to use a glove and pay particular
attention to handling the wheel, as it is a very fragile component.

-13-
WWW.GOBOSERVICE.COM
Ist0006 – Rev.0
3.7.1. DYNAMIC EFFECT CONFIGURATION VIA APP
Once the accessory has been installed, it can be configured via the APP, following the steps below:
1. Make WiFi connection with the projector
2. Access the App via the Google Chrome browser
3. Once in the APP, choose the desired language (English has been chosen for this manual)
4. If the accessory is purchased together with the projector, the latter is already configured to work with
it and then it is possible to set the parameters characterizing the dynamic effect, ie speed and direction
of rotation; be careful to have the 'Live mode' active, otherwise the changes you are making are not
visible in real time.

Divum 50K
-14-
5. However, if the accessory is purchased at a later time, the projector must be configured to work
correctly with the new accessory.
At this point, just name the dynamic effect and click on Completed.
Proceed as seen in step 4 to adjust the speed and direction of the Dynamic Effect.

-15-
WWW.GOBOSERVICE.COM
Ist0006 – Rev.0
3.8. SHAPER
It is possible to combine the Shaper accessory (Fig.13). By acting on the four flaps at the base, it is
possible to profile the effect in projection.
Fig.13
To install the profile inside the projector:
1. Open the bottom cover of the projector by unscrewing the special fixings.
2. Insert component 1 into the projector as inFig.14.
3. Tighten the molding fixing screws (Fig.14).
Fig.14
Depending on the position taken by the flaps, you will have the projection view as inFig.15.

Divum 50K
-16-
Fig.15
3.9. CARGO HOLDER WITH FOCUS MICRO ADJUSTMENT
When the pointing direction is not perpendicular to the projection surface, the image may be partially out
of focus. To improve the focus, use the micro adjustment knobs indicated inFig.18.
Fig.16
To install the gobo holder with micro adjustment inside the projector:
1. Open the bottom cover of the projector by unscrewing the special fixings.
2. Insert the gobo holder into the projector as inFig.17.
3. Tighten the fixing screws of the gobo holder (Fig.17).

-17-
WWW.GOBOSERVICE.COM
Ist0006 – Rev.0
Fig.17
Depending on the adjustment of the knobs you will have the desired focus as inFig.18.
Fig.18

Divum 50K
-18-
3.9.1. GOBO HOLDER CONFIGURATION VIA APP
Once the accessory has been installed, it can be configured via the APP, following the steps below:
1. Make WiFi connection with the projector
2. Access the App via the Google Chrome browser
3. Once in the APP, choose the desired language (English has been chosen for this manual)

-19-
WWW.GOBOSERVICE.COM
Ist0006 – Rev.0
4. If the accessory is purchased together with the projector, the latter is already configured to work
with it and then you can proceed with the adjustment of the luminous intensity of the projector
(Dimming function).
5. If, on the other hand, the accessory is purchased at a later time, the projector must first be
configured to work correctly with the new accessory, after which you can proceed as shown in
point 4.

Divum 50K
-20-
3.10. IMAGE CHANGE KIT
The accessory consists of two distinct parts (Fig.19):
1. Component 1 is the mechanical part of the accessory, i.e. the one that makes the movement of the
effect possible.
2. Component 2 is the gobo change wheel, capable of holding up to 4 gobos
Fig.19
To insert the gobos into the wheel it is necessary to extract the clip, insert the gobo fully and reinsert the
clip locking the gobo (Fig.20).
Fig.20
The focus of the gobos depends on the type of gobo. To do this, a template is used which must be inserted
as shown inFig.21; once inserted, using another template, one acts on the single gobo holder ring nut until
the effect is that the firstFig.21offers a minimum of resistance to extraction.
