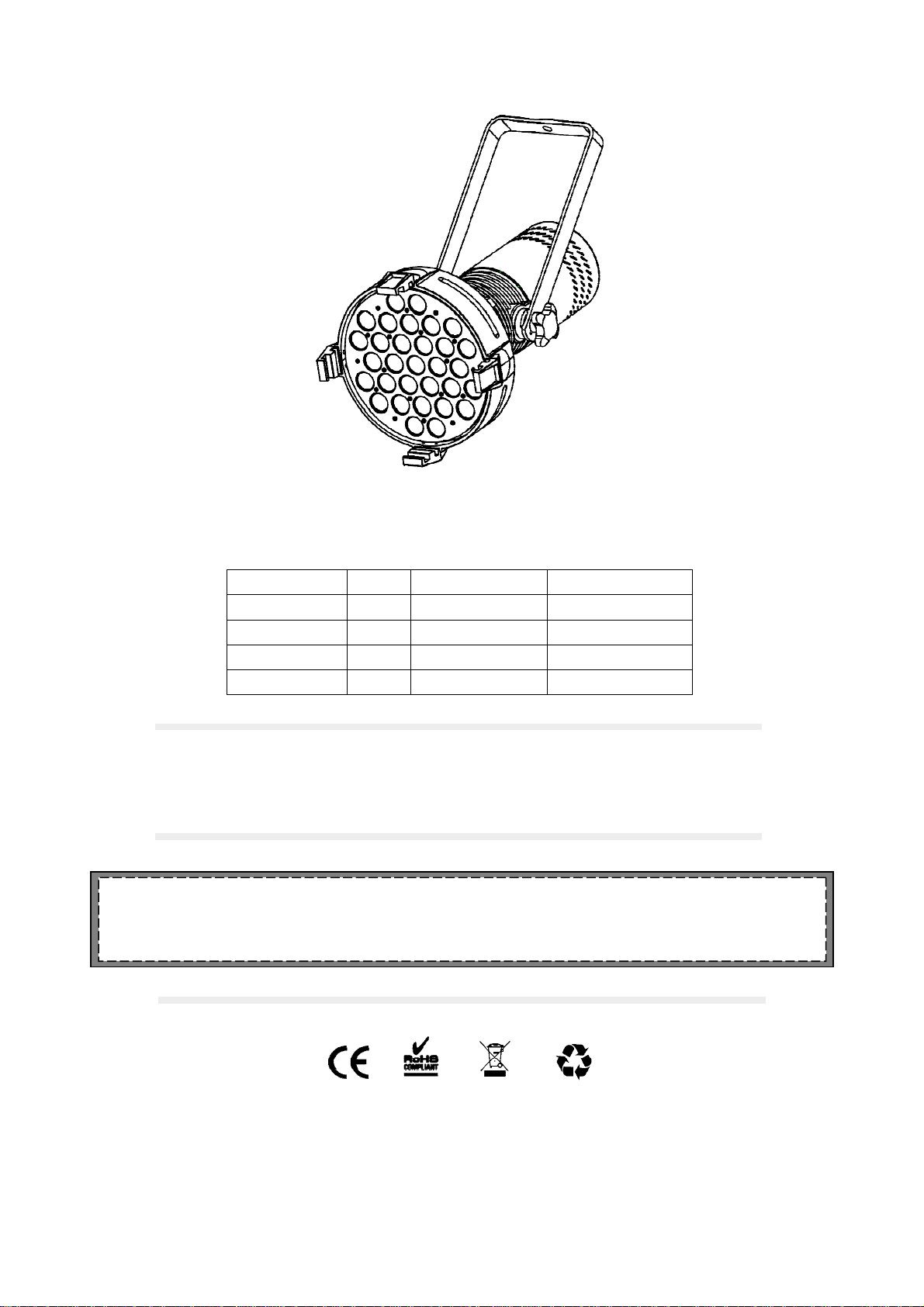

SUPER-CAN LD616-31106 User manual

ED AUTO SHOW PAR IGHT
tem Power LED Chips Color tempture
LD616-31106 310W 31 x Cree-XML 6000~6500K
LD616-31107 310W 31 x Cree-XML 6500~7000K
LD616-37106 370W 37 x Cree-XML 6000~6500K
LD616-37106 370W 37 x Cree-XML 6500~7000K
User Manual
This product manualcontains important information about the safe installation
and use of this product.Please read and followthese instruction carefullyand
keep thismanual in asafe place for future reference.

1
1nderstanding of Product
. SecurityWarning
l When unpacking and before disposing of the carton, check if there is any transportation damage
before using the product. Should there be any damage caused by transportation, consult your
dealer and do not use the apparatus.
l Do not install the product or project the beam onto inflammable surfaces. Minimum distance is 5 M
.
l The product is only intended for installation, operation and maintenance by qualified personnel.
And read the user manual and labels on the lighting carefully before use.
l This equipment is not waterproof,keep it from rain, moisture and liquids.Product should install in a
cool place. Keep away from the wall 50cm.
l Do not look directly at the lamp light (especially for epilepsy), so as not to cause damage to the
eyes!
l Keep the optical system clean. Do not touch the LED lens with bare hands. Do not use any alcohol
liquid or any other liquid to clean the optical system. Use medicinal absorbent cotton to clean it.
l Please do not attempt to dismantle and/or modify the product inner structure. Otherwise, would not
provide 1 year of free warranty.
l Electrical connection must only be carried out by qualified personnel.
l Before installation, ensure that the voltage and frequency of power supply match the power
requirement of the product.
l t is essential that each product is correctly earthed and that electrical installation conforms to all
relevant standards.
l Do not connect this device to any other types of dimmer apparatus.
l Make sure that the power-cord is never crimped or damaged by sharp edges.Never let the
power-cord come into contact with other cables. Only handle the power-cord by the plug.Never pull
out the plug by tugging the power-cord.
l There is no user serviceable parts inside the product, do not open the housing and never operate
the product with the cover removed.
l Place the unit where kids can't reach.
f you have any questions,don't hesitate to consult our dealer or manufacturer.
Important:Beforeanyinstallation, maintenanceand cleaning, please
ensure that the power cut off!

2
.2 Main Technical Parameters
Power supply
Ø Rated Voltage: AC90~240V
Ø Rated Frequency: 50~60Hz ± 10%
Ø Rated Power:
tem Power
LD616-31106 310W
LD616-31107 310W
LD616-37106 370W
LD616-37106 370W
Ø Fuse: AC250V/5A
LED
Ø LED Type:
tem Power LED Chips
LD616-31106 310W 31 x Cree-XML
LD616-31107 310W 31 x Cree-XML
LD616-37106 370W 37 x Cree-XML
LD616-37106 370W 37 x Cree-XML
Ø Drive Current: 10A
Ø Colors: White
Ø Life: 100,000 hours
Control
Ø Control Protocol: nternational standard DMX-512 signal
Ø Channel Protocol: 3 control channels mode. 1CH / 2CH / 3CH modes can be chosen
Ø Control Mode: DMX-512, master-slave mode, static mode and LED
Optical System
Ø Dimming mode: Dimmer 0 means fast Linear dimming.Dimmer 1~8 stands for soft Non-linear
dimming
Ø Dimmer: From 0~100 linear dimming
Ø Lens: Honeycomb type high transparent PMMA second optical lens
Ø Strobe Speed: 1~20Hz
Ø Beam angle: 8° (Or 25° )
Security
Ø Cooling System: Fan
Ø Temperature Protection: 65
Ø Operating Environment: ndoor
Ø Working Temperature:-20°C 40°C
Physical
Ø Dimensions: 410 * 268 * 268 mm
Ø Weight: 7.25kg
Ø Surface Treatment: Die-casting aluminum, high temperature
Black paint
Ø Housing color: Black (Can be customized)
Ø Connection: XLR N/OUT, Power Con N/OUT

3
.3 Product Features
Using the latest LED control technique, This newest intelligent LED Par light can realize intelligent
operation and control through its special menu at the back. t’s more convenient and easy to
operate.This product is designed for professional Car Exhibition, large concerts,wedding scene, small
performances, slow club KTV and various performance occasion. ts main features include:
1) Using United States CREE XML 10Watts white LEDs, high brightness and long life.
2) With mute cooling fan, little noise at work.
3) Professional appearance design and internal structure design, die-casting aluminum lamp holder is
good heat dissipation.
4) Using POWER CON power interface, the power input and output design is more secure and
convenient for install and use.
5) Honeycomb type high transparent PMMA lens makes color mixture more evenly.
6) Static color Settings (STATC).
7) The static power consumption of the control panel is 0.3W, and its efficiency will reach up to 97%.
8) Refresh rate of the lamp is 3Khz, suitable for all kinds of high demand situations.
9) Digital tube display.
10) Linear dimming and nonlinear dimming (D MMER)
11) Overheating automatic protection function.
12) 2 kinds DMX working mode.
13) Master-slave control, multi-units for synchronous control.
14) Compatible LD008 wireless remote control.
.4 Product Packing Information
Following accessories are packed together with the product,please check them carefully upon
unpacking.
Spare parts Name QTY Unit Remark
YO-LD616 Series PAR lighting 1 piece
YO-LD616 Series PAR lighting hanger 2 pieces nstalled on lamp
Hanger screw 2 pieces nstalled on lamp
nstruction Manual 1 piece
Power connect cable 1 piece

4
2Product Installation
2. Power Connection Method
Please connect power as following ：
L（live wire）=brown wire E（earth wire）=yellow/green double color wire N（null line）=blue wire
When connecting power, ensure that the voltage and frequency of power supply match the power
requirement of the product.
This equipment belong to class 1 protection equipment, therefore, the yellow-green double colors wire
must be earthed correctly by qualified personnel. Before installation, ensure that the voltage and
frequency of power supply match the power requirements of product. n power supply and voltage
fluctuation large areas, we suggest you to use 110V or 230V or use voltage regulator to supply power.
After electrical connection, this product will have a few seconds self-check action, self-check finished
can be used.
Important:It isessential that Yellow/green double color wire is correctly
earthed and that electrical installation conforms to all relevant
standards.

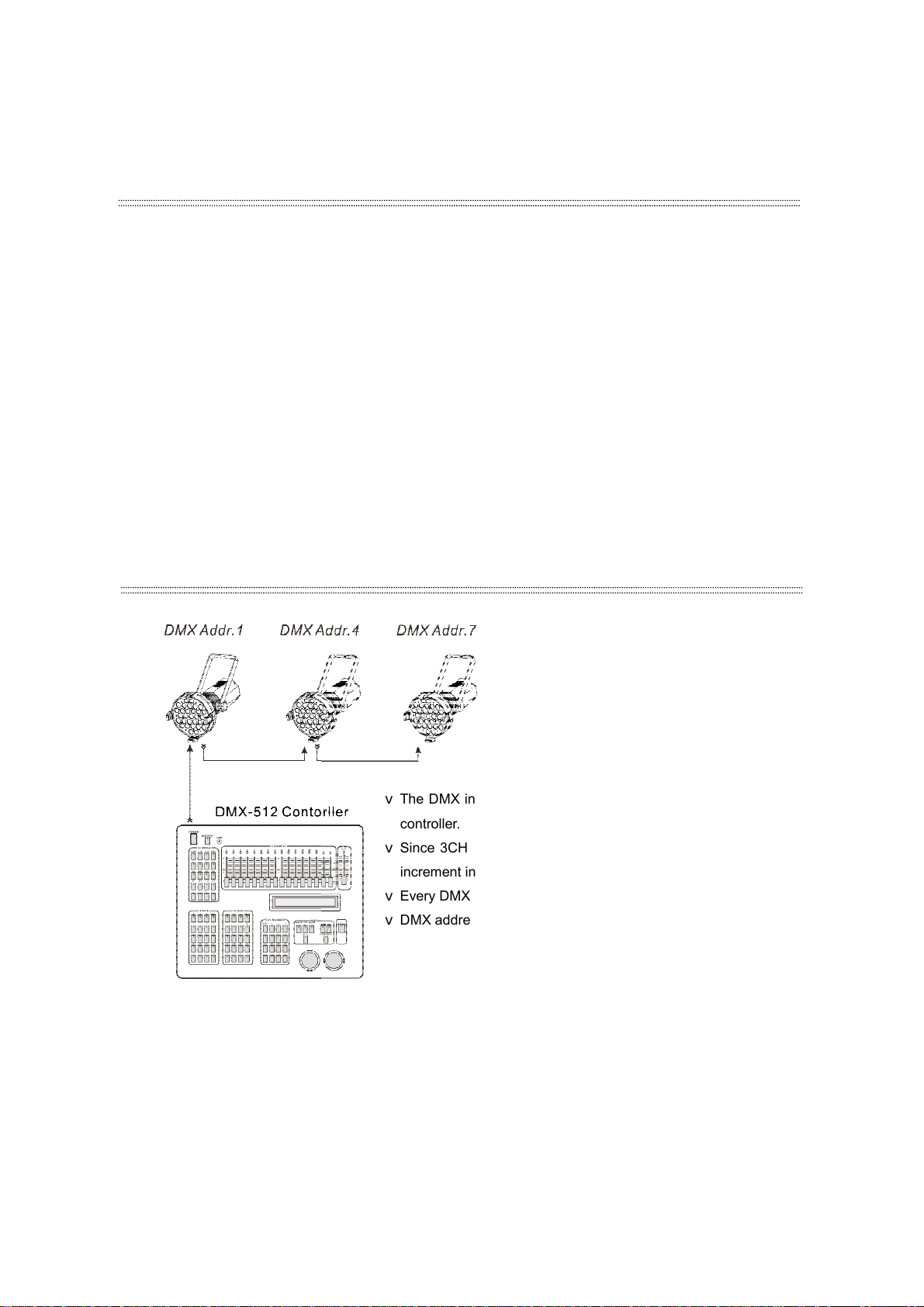

2.2 DMX Connection Method
2.2--1 Set the DMX512 address code (3CH MODE), as below:
v The DMX interface of lamp needs be connected to the DMX
controller.
v Since 3CH MODE has 3 channels, the address code with 3
increment increasing progressively (e.g.,1,4,7,10...).
v Every DMX address code can be reused as needed.
v DMX address code can be any data between 001 and 512.

5
3Operation Method

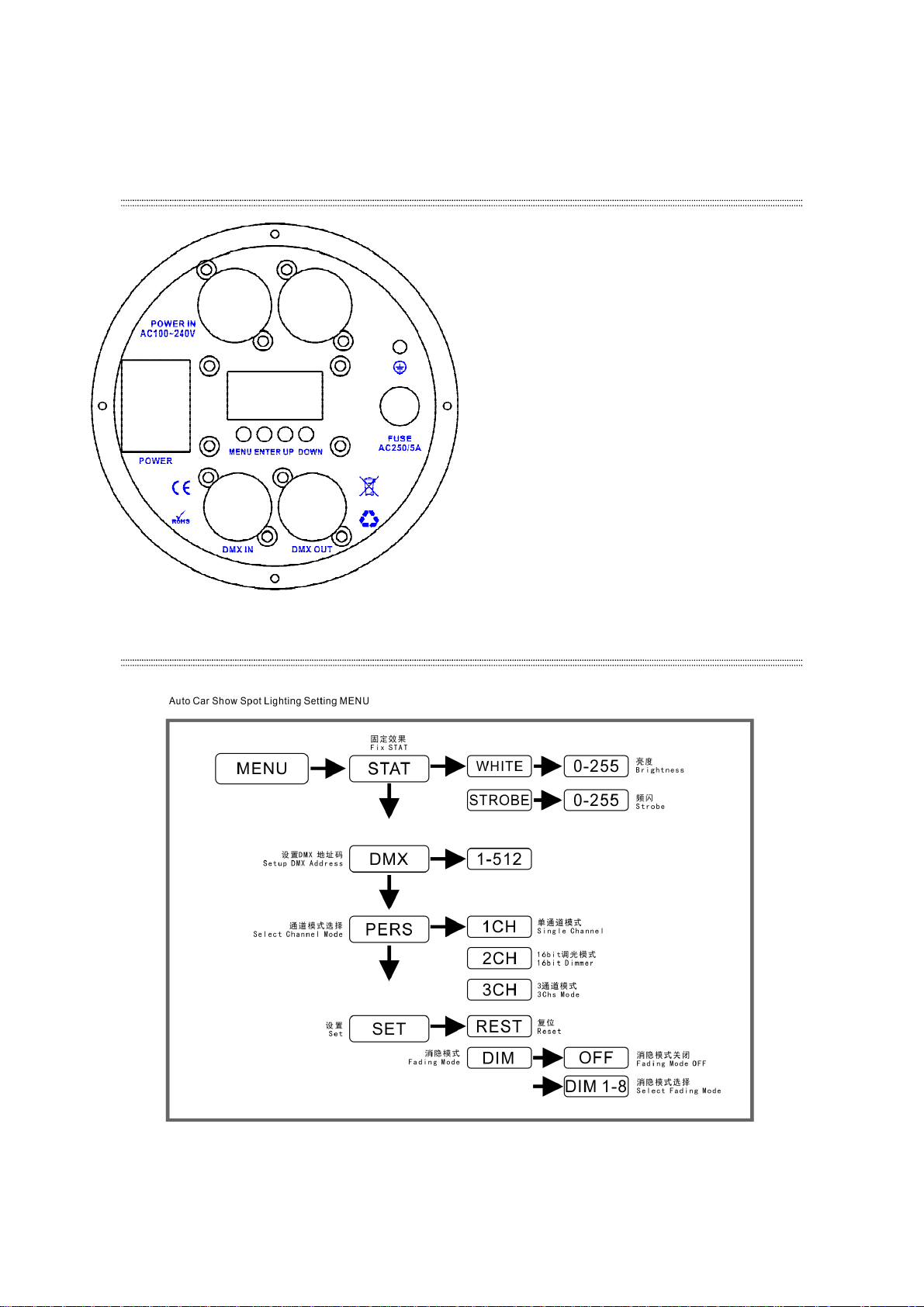

3. Backpanel functions introduction
v POWER ：Power-Con input / output
v DMX：XLR N/OUT
v MENU：Menu button/return button,enter the
menu selection interface or previous menu
v ENTER：Confirmation button,used to confirm
the selected function
v UP/DOWN ：Upward/downward select
function or Parameter increment / decrement
v POWER ON / POWER OFF：Power switch
v FUSE：Fuse holder
3.2 Menu Overview

6
3.3 StaticColor Setting (STATIC)
l Press【MENU】menu to select【STAT】and press【ENTER】 to enter color static setting.
l Press【UP/DOWN】button to adjust the parameters of the brightness.
l After setting lighting fixture's static white, without press 【MENU】to exit, restart the lighting fixture's
power supply. The setting was preserved. Exit menu, static color setting will be removed.
Note:When entered this submenu, the light fixture will automaticallyset
to the data status sent bythe master, otherlight fixtures should be set as
the slave. This time,anyother master lightingfixturesmust be
disconnected.AndDMX512 signalconnection should bedisconnected
as well. Otherwise it will cause uncontrolled phenomenon.
3.4 DMX Address Settings (ADDR)
l Find【DMX】menu and press【ENTER】to enter address code setting.
l Press【UP/DOWN】button to select DMX address code.
l Press【ENTER】to confirm or【MENU】to exit, the selected address code will be automatically saved.
Note:When entered this submenu, the light fixture will automaticallyset
to the data status sent bythe master, otherlight fixtures should be set as
the slave. This time,anyother master lightingfixturesmust be
disconnected.AndDMX512 signalconnection should bedisconnected
as well. Otherwise it will cause uncontrolled phenomenon.

7
3.5 DMX Channel Mode Design (PERS)
l Find【PERS】menu and press【ENTER】to enter DMX channel mode setting.
l Press【UP/DOWN】button to select【1CH / 2CH / 3CH】3 kinds of DMX channel modes.
l Press【ENTER】to confirm or【MENU】to exit.The setting will be automatically saved.
3.6 LinearDimming Speed Setting (DH)
l Find【DH】menu and press【ENTER】to enter linear dimming speed setting.
l Press【UP/DOWN】button to select【D1~D4】10kinds of dimming speed.
l Press【ENTER】to confirm or【MENU】to exit.The setting will be automatically saved.
Note:Under the displayscreen saver state,the digital point onthe right
side of thelast digitalwilltwinkling whenreceiving or sendingsignal,or
elsenot twinkling.

8

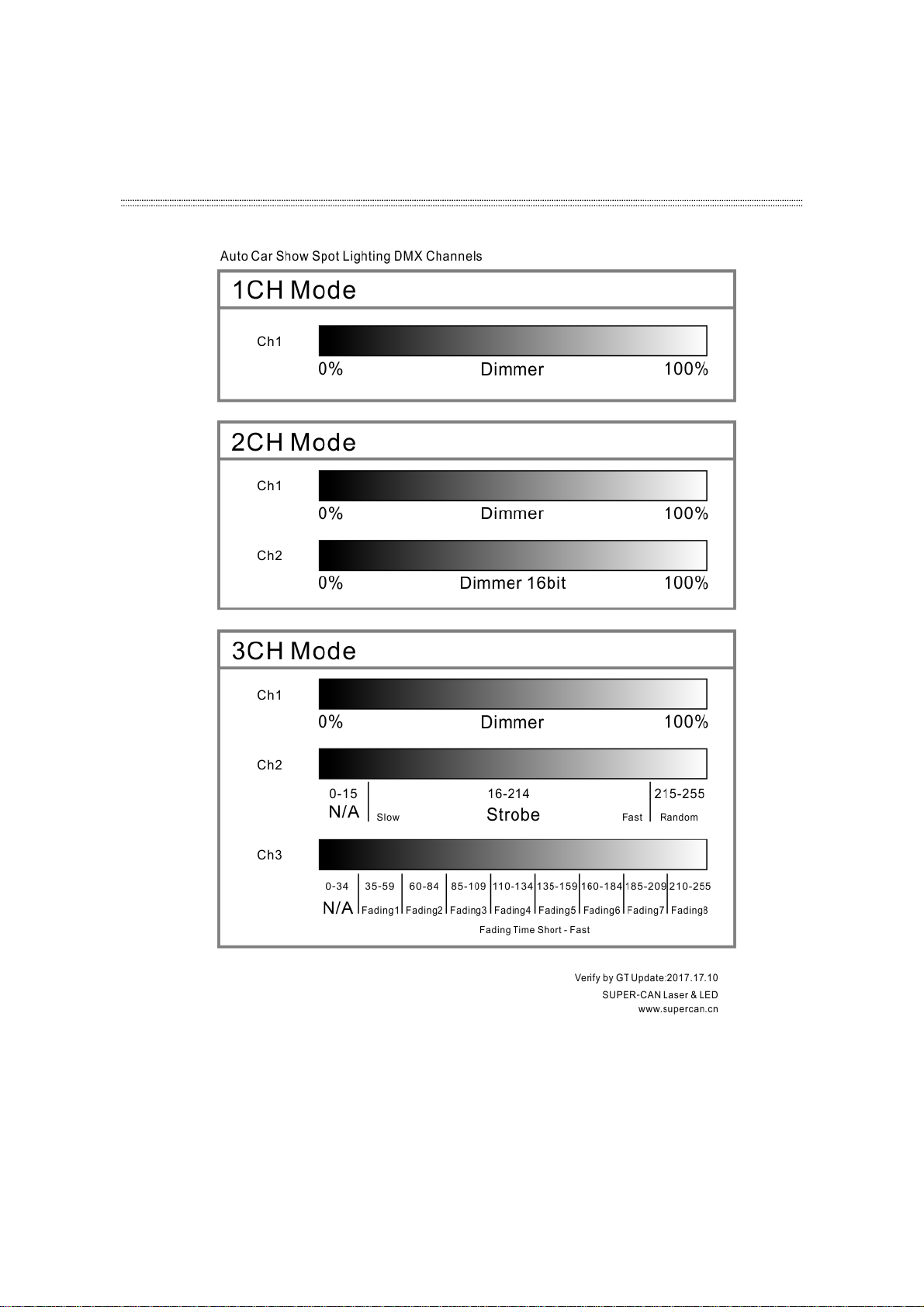

4Control Channel
4. DMX Channel Table

9
5Maintenance
5. Product Maintenance
To prolong the life of the product,it is very important to do maintenance work. The environment is hash
outdoors, or if the product is idle for a long time, damp, smoke or particularly dirty surroundings can
cause greater accumulation of dirt on its LED lens cover, fan vents and housing. So it should be cleaned
to maintain an optimum light output and at the same time to prevent it from corrupted by acid gas.
Cleaning frequency depends on the environment in which the fixture operates.Soft cloth and typical
glass cleaning products should be used for cleaning. t is recommended to clean product at least one
every 20 days.
Friendlynotice: Please donot useanyorganicsolvent, e.g.alcohol to
clean housing of the apparatus, lest cause damage.
5.2 Trouble Shooting
Remark: This product warranty for one year. We provide pay-needed maintenance service after the
warranty. But because of natural and man-made disasters or improper operation caused damage not
under warranty range!
Problems Action
The product doesn't
switch on
Power connection is not correct--Re-connect it.
Power supply is damaged or abnormal. Call a qualified personnel to fix it.
Control section is damaged. Call a qualified personnel to fix it.
Connection of internal circuitry is not correct. Call a qualified personnel to fix it.
The product can turn
on,but LEDs do not emit
light and are out of control
DMX address is wrongly setting up. Resetting it according to instruction book.
DMX Signal wrongly connected. Connect it correctly according to instruction book.
Control section is damaged. Call a qualified personnel to fix it.
The beam appears dim The product is too hot.Take ventilation measures to make it cool.
