Identify your fridge model:
1DS65X
Solar powered fridge
with keypad
1DS65
Solar powered fridge
without keypad
1DG65
Grid powered fridge
without keypad
Connecting your Off-Grid Refrigerator to Grid Power
Safety Warnings
Connecting the Keypad
Setup
Top Tips for Best Performance
Maintenance
Fridge Specifications
3
8
11
13
14
18
20
Customer care
If you have a question about your appliance please contact the company
you purchased from with the serial number and the details of where
and when you bought the appliance.
Connecting to Solar Panels
25
21
Moving
Disposal 25
Solar Panel Installation 26

User Guide 1
Off Grid Refrigerator V1.8
OG65_Version_01 Page 2 of 29
24L1.5mx1
Included:
Included:
0.1
0.2
Crisper Drawer
3 x Shelves
Funnel
Hose Pipe
Indicator Panel
Approximate
water volume:
Use clean
drinkable
water

Only included with fridge model 1DS65X
x1 keypad123
4 5 6
789
0
*
x
$
#
keypad Cable
0.3
x1
Off Grid Refrigerator V1.8User Guide 2
0.4
Power Adaptor
Grid power plugs
may vary depending
on the country
Only included with fridge model 1DG65
Connector
x1
supplied seperately
x1 Twin Solar Panel Cable
Solar Panel(s)
Panel size may vary dependent on location
x1
x1

Off Grid Refrigerator V1.8
R600a Refrigerant Warning
Safety Warnings
- WARNING Risk of Fire / Flammable materials
- WARNING Keep ventilation openings, in the appliance enclosure or in the
built-instructure, clear of obstruction.
- WARNING Do not damage the refrigerant circuit.
- WARNING Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended by
the manufacturer.
- WARNING Do not store explosive substances such as aerosol cans with
a flammable propellant in this appliance.
- WARNING This appliance contains a small quantity of flammable non-
synthetic R600a refrigerant.
- WARNING Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the manufacturer.
- Ensure that the tubing of the refrigerant circuit is not damaged during
transportation and installation.
- Ensure careful installing, handling and disposing to avoid safety hazards.
If accidental damage occurs, keep appliance away from open fires or
devices that produce sparks, unplug the appliance and call an authorised
service agent. Thoroughly ventilate the room in which the appliance is situated
for several minutes.
- Leaking refrigerant may cause eye injuries or could ignite.
- Hydrocarbon refrigerants have excellent refrigerant properties, minimal global
warming potential and no ozone depletion potential.
- Hydrocarbon refrigerants cannot be ‘retrofitted’ to an appliance that has not
been designed and approved to use that type of refrigerant.
-
User Guide 3

User Guide 4
Off Grid Refrigerator V1.8
– WARNING The refrigerator is only intended to operate whilst
– WARNING Observe the polarity of connections ensuring that
the +ve & -ve connections are correct.
– WARNING This product is for indoor use only.
– WARNING When positioning the appliance, ensure the supply cord
is not trapped or damaged.
– WARNING Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
- Do not place electrical items or cooking equipment nearby. Keep away from
substances which could cause ignition and ensure good ventilation is always
available.
- Do not place objects on top of the appliance which are magnetic, heavy or
filled with water.
- If the supply cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
- Always switch off the appliance before cleaning.
- This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Safety Warnings
- Children should be supervised to ensure they do not play with the appliance.
- Containers with flammable gases or liquids can leak at low temperature. There
is a risk of explosion or fire.
- This appliance is intended to be used in household and similar applications
such as:
- staff kitchen area in shops, offices and other working environments
- farm houses and clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
connected directly to a solar panel or provided power adaptor, do not
connect to any other power supply, this unit is only intended to operate
on a safe low voltage.

User Guide 5
Off Grid Refrigerator V1.8
Safety Warnings
OG65_Version_01 Page 4 of 29
Warnings
Do not tilt or place on its side or upside down
Keep dry Avoid direct
sunlight
Keep away from
fire or sources of
heat
Keep level
Keep upright
1.1
1.3
1.4 1.5 1.6
1.2
Top
Top
Top
Top

User Guide 6 Off Grid Refrigerator V1.8
OG65_Ver P- age 5 of 29
Kg
Warnings
Do not place heavy objects
on fridge
Inside use only
12 - 40Vdc
Not for outdoor use
Do not place near magnetic fields
1.7
1.8
1.9
Safety Warnings
110 - 240Vac
110 - 240Vac
12 - 40Vdc
Power Adaptor
Fridge models 1DS65 and 1DS65X Fridge model 1DG65

User Guide 7
Off Grid Refrigerator V1.8
OG65_Ver P- age 6 of 29
Warnings
30mm
30mm
30mm
30mm
30mm
NOTE: Not to scale
1.10
1.11
Safety Warnings

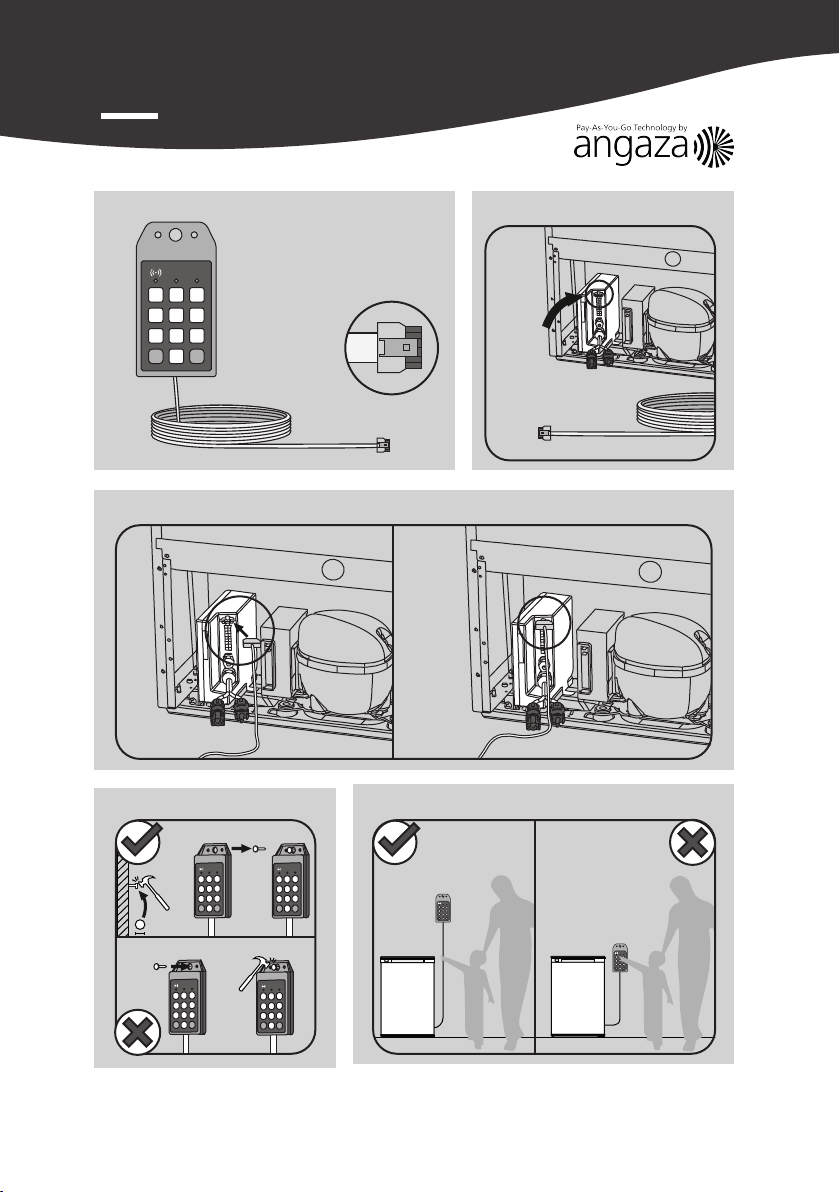

Connecting the Keypad
Model 1DS65X
For other models go to page 11
123
4 5 6
789
0
*
x
$
#
x1
keypad
2.1Bring end of keypad cable
to rear of fridge
Locate
the
connection
point
keypad Cable
keypad Cable
2.0
2.2
Plug the end of the keypad cable in to the corresponding connector..
keypad Cable
1 2 3
4 5 6
7 8 9
0
*
x
$
#
1 2 3
4 5 6
7 8 9
0
*
x
$
#
8
Off Grid Refrigerator V1.8User Guide
Attach a nail to the wall then
hook the keypad on the nail
2.3 2.4
Make sure the keypad is out of reach of children
1 2 3
456
7 8 9
0
*#
x
$
1 2 3
456
7 8 9
0
*#
x
$
1 2 3
456
7 8 9
0
*#
x
$
1 2 3
456
7 8 9
0
*#
x
$
8mm Max.

* 123 456 789 123 01 #
Connecting the Keypad
123
4 5 6
789
0
*
x
$
#
Red Flash (5 second intervals)
Blue Flash
Yellow Light
When key is successfully pressed
When credit has expired
Credit will expire within the next
48 hours
2.4
9
Off Grid Refrigerator V1.8User Guide
2.5 2.6
2.7
Make a payment with
cash or mobile money
1 2 3
4 5 6
7 8 9
0
*
x
$
#
A unique code will be sent to
the customers phone once the
payment has been received
Enter unique code in to the keypad
* 123 456 789 123 01 #
When entering code
include both * and #
* 123 456 789 123 01 #
$

User Guide 10
Off Grid Refrigerator V1.8
Connecting the Keypad
2.9

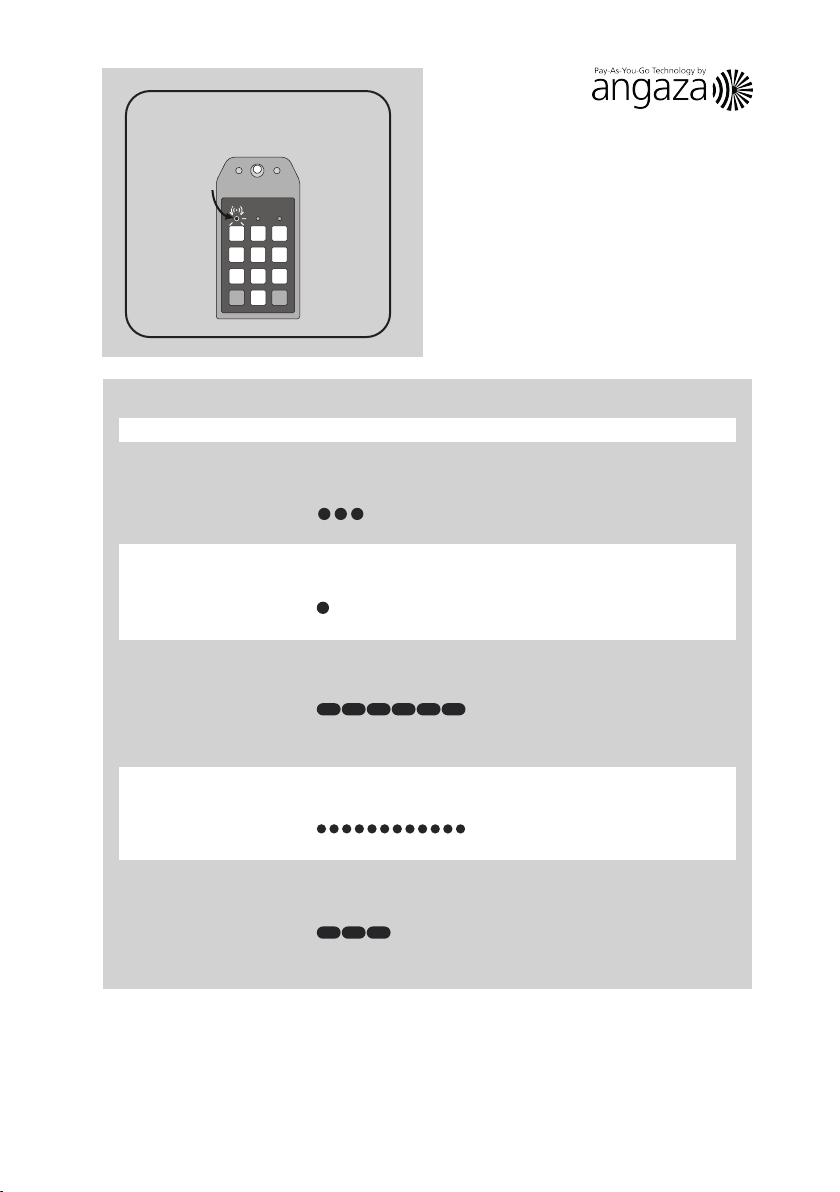

Feedback Visual Description Textual Description
“Keypress Rejected”
“Keycode Accepted
- Message Applied”
“Keycode Rejected
- Invalid”
“Keycode Rejected
- Duplicate Message”
Three short blinks of
blue light on keypad
One short blink of
blue light on keypad
Six long blinks of
blue light on keypad
Three long blinks of
blue light on keypad
Invalid keys pressed - displayed
when keycode entered is
missing the initial "Start" key
or the product is rate-limited.
Valid keys pressed - displayed
when the key pressed is
logical (ie. the keycode began
with the proper "Start" key).
Valid keycode entry -displayed
when the keycode entered is
accepted and credit is applied.
Invalid keycode entry -displayed
when the keycode is not
entered correctly due to invalid
characters or incorrect length.
Repeated code - lets the user
know that the keycode
entered is a valid but
previously entered keycode.
Credit is not applied the
second time.
“Keypress Accepted”
Twelve short blinks of
blue light on keypad
1 2 3
4 5 6
7 8 9
0
*
x
$
#
Blue
Blink
Use table below to check that the
code has been entered correctly
2.8

User Guide 11
Off Grid Refrigerator V1.8
Connecting to Solar Panels Only
Models 1DS65 and 1DS65X
x2
Ensure solar panel(s) is
installed correctly
before continuing
(page 26)

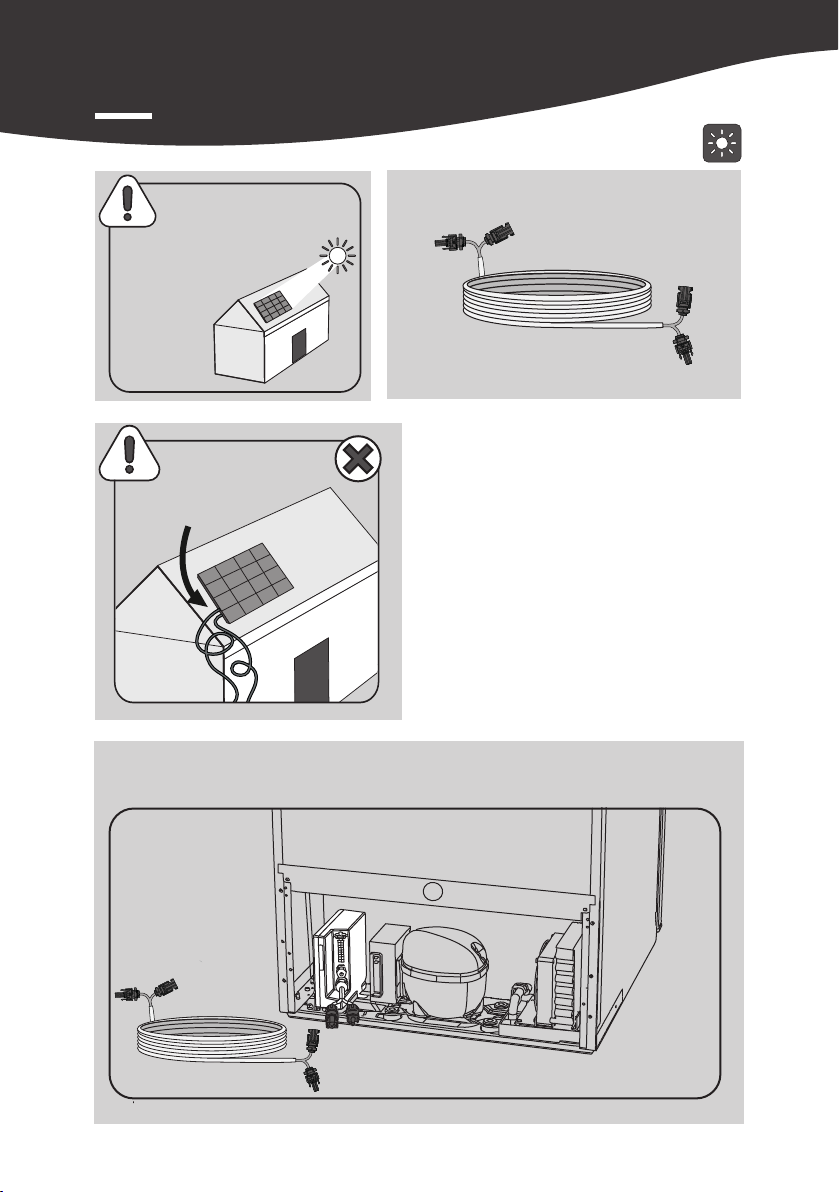

Gather solar panel cable(s) and bring to the back of the fridge.
3.1 2.2
3.4
twin solar panel cable
For Grid power (model 1DG65) go to page 13
x1
3.2
Do not connect
solar panel
cable(s) at
this stage
3.3

User Guide 12
Off Grid Refrigerator V1.8
Solar Connection

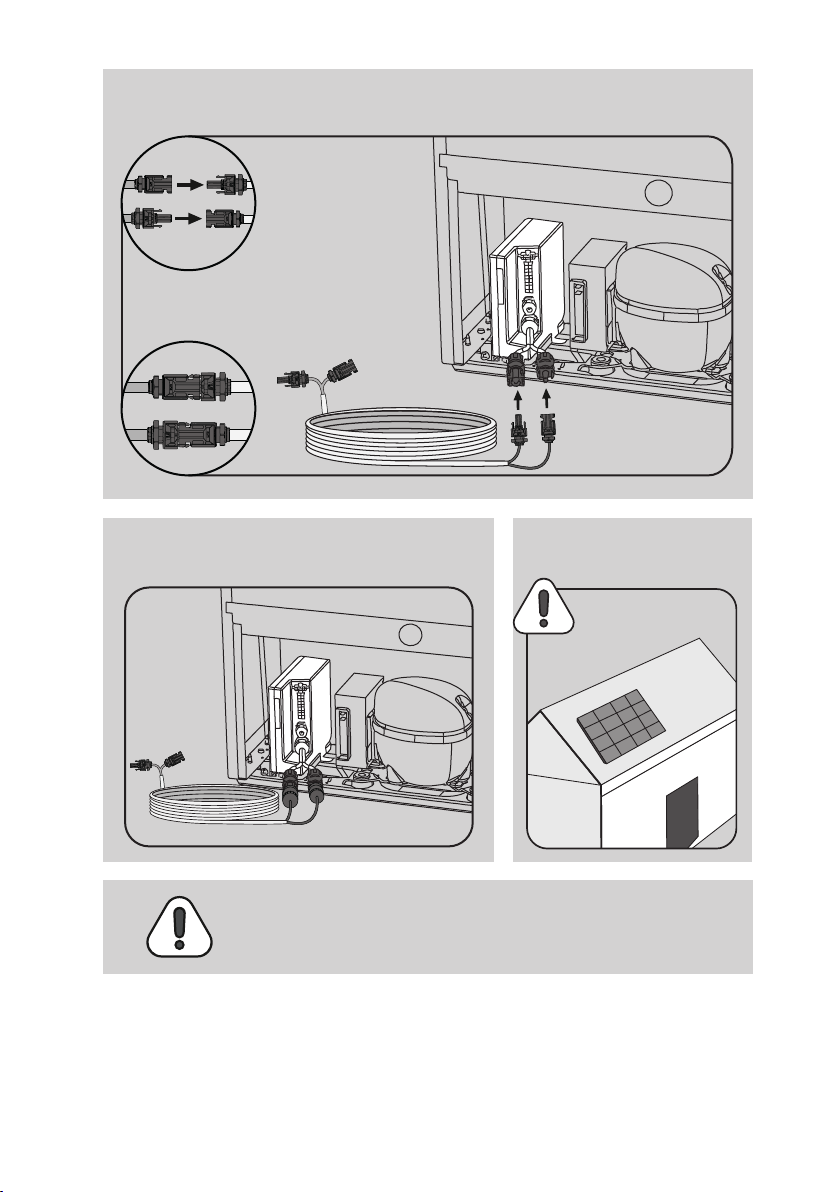

Connect cable(s) to solar
panel(s) following
instructions on page 26
3.7
3.5
Connect the solar cable(s) at the back of the fridge
3.6
Check connection to the back of the fridge
is correct and secure
Leave the solar panels connected to the fridge at all times to
ensure optimal performance. Only disconnect if moving the
fridge to a different location.

User Guide 13
Off Grid Refrigerator V1.8
Connecting to Grid Power
Model 1DG65
4.0 4.1
4.2
x1
Power Adaptor
Grid power plugs
may vary depending
on the country
Locate the power
connection point
at the back of the fridge
If connecting to solar panels go to page 11
Connector
x1
4.3
Plug in to wall socket and turn on
Keep power
adaptor away
from dust &
moisture by
keeping it off
the ground.
Plug connector in to the end
of the power adaptor cable.
Power Adaptor cable
Connector Correct
connection

OG65_Version_01 Page 8 of 29
Open door
Included: Approximate
water volume:
x1 1.5m 24L
5.0
5.1 5.2
5.3
Setup
14
Off Grid Refrigerator V1.8User Guide
Remove filling cap and retain
Locate filling hole
Use clean
drinkable water

OG65_Version_01 Page 9 of 29
Keep hose level
Use clean
drinkable water
Do not allow funnel
line
Fit funnel
(supplied)
Insert approx 150mm
Fill with clean
drinkable water
Setup
5.4
5.5 5.6
5.7 5.8
5.9 5.10
15
Off Grid Refrigerator V1.8User Guide
Push hose into filling hole
above fill line to drop below fill

Setup
OG65_Version_01 Page 10 of 29
STOP
Do not move fridge when full
Fill until water starts Remove hose and
wipe up any spillage
5.11 5.12
5.13
5.14
16
Off Grid Refrigerator V1.8User Guide
to flow out
Replace filling cap

OG65_Version_01 Page 12 of 29
x2
=
Setup
Open door
Allow 2 days for fridge
to cool
Allow fridge to reach recommended operating
temperature before adding food
Close door
Locate indicator panel
Setup
5.15 5.16
5.17 5.18
5.19 5.20
5.21
Blue light comes on when recommended
operating temperature is reached
5.0
When on solar power the green light will
only be lit when the sun is shining on the solar panels.
When on grid power the green light will be lit
continuously whilst power is available.
17
Off Grid Refrigerator V1.8User Guide

Allow space between
containers
Cover food or place in a sealed plastic
container to keep it fresher for longer.
Top Tips to get
Best Performance
6.0
6.1
6.2
Allow warm food to cool
before placing in fridge
Do not place hot food in the fridge Putting hot food into your
fridge makes the inside of
the fridge heat up.
By allowing food to cool first
it will keep your fridge cool
and your food fresher
for longer.
To keep food fresh leave space
to allow cold air to circulate.
Don’t overfill the fridge.
Do not put uncovered food
in the fridge. Closed containers
prevent tastes and smells from
spreading to
other dishes.
18
Off Grid Refrigerator V1.8User Guide
