SWELLPRO FAC User manual

FAC
User Guide
Visit www.swellpro.com for the latest version of this manual and firmware updates for
your drone and accessories.
V1.0 –June 2021

2©2021 SwellPro
Thank you
The FAC camera is a fixed angle waterproof full HD camera designed for SplashDrone 4
to maintain the vision in flight while also features photo shooting & full HD video
recording capability. The FAC camera is extremely compact and lightweight which
won’t affect the flight time during the operation.
Using this manual
This document is designed to be printed or viewed on a computer or mobile device.
Tutorial videos
To watch tutorial videos or download the firmware, please visit SwellPro website
www.swellpro.com

©2021 SwellPro
3
Contents
Thank you..............................................................................................................................................................2
Using this manual..................................................................................................................................................2
Tutorial videos.......................................................................................................................................................2
CONTENTS.................................................................................................................................. 3
PRECAUTION .............................................................................................................................. 4
INSTALLATION ............................................................................................................................ 4
Install the Camera .................................................................................................................................................4
Install SD Card .......................................................................................................................................................5
After Use Casing ....................................................................................................................................................5
CONTROL ................................................................................................................................... 6
Camera Status Indicator ........................................................................................................................................6
Camera Control .....................................................................................................................................................7
APP INTERFACE .......................................................................................................................... 7
SPECIFICATION ......................................................................................................................... 10
Version Information ............................................................................................................................................10

4©2021 SwellPro
Precaution
⚫The FAC camera is a piece of precision electronics with corrosion-resistant
materials which allow for use in harsh marine environments. As with any marine
equipment, trouble-free and lasting operations depend on proper attention and
maintenance of the equipment.
⚫When taking off or landing, slowly proceed to avoid damage to the camera which
can cause by the huge impact when contacting the surface at high speeds. Drop or
crash directly into the water from above will result in significant damage to the
drone and the camera.
⚫After using in seawater, soak and rinse thoroughly with clean fresh water before the
seawater dries out.
⚫If seawater or other sediments form on the camera, soak thoroughly with fresh
water and clean all sediments on the camera before use. For more information,
check the drone’s “Maintenance manual”.
Installation
Install the Camera
1. Unscrew and take off the camera port cover plate
using a hex screwdriver. (equipped with SplashDrone
4)
2. Plug the camera connector into the drone’s gimbal
port and screw it in place with a screwdriver.
󱛻󱛼󱛽Make sure the rubber ring is attached to the camera
connector before you screw the connector.
󱛻󱛼󱛽Make sure the connector plate is clean and free of
any sand or other particles.

©2021 SwellPro
5
3. Aline the holes on the base of the gimbal to the
bottom of the drone, screw in to mount the gimbal.
Make sure the camera is pointing to the front of the
drone.
Install SD Card
1. Open the soft rubber seal on the top of the
camera, insert the Micro SD card in the correct
direction, press the Micro SD card, the "click"
sound indicates that the installation is in place.
2. After installing the Micro SD card, plug the
rubber seal back.
󱛻󱛼󱛽Make sure the rubber seal is tightly plugged in to
ensure waterproofing.
•The FAC camera supports Micro SD cards with a maximum capacity of 128GB.
Since the camera requires fast reading and writing of high-stream video data,
please use Micro SD cards with Class 10 or UHS-1 or above to ensure proper
functioning.
•Do not insert or unplug the Micro SD card during aircraft shooting, as data files may
be damaged or lost.
•Once you are done recording, stop recording and save the file. If you turn off the
power directly before saving the files, the recording file might be damage.
After Use Casing
After using the camera, you can choose not to take off the gimbal camera and put it
directly into the case with the drone. Follow the following steps to make sure the gimbal
camera is properly secure after casing.

6©2021 SwellPro
1. Remove the double-side-glued pad from the
gimbal box and paste the pad into the drone’s
case as showing to the left.
2. After cleaning and drying the gimbal camera
and the aircraft, secure the gimbal camera with
the fixing case, then put the aircraft and other
parts into the case. The case is secure and ready
to be carried or transported.
Control
Camera Status Indicator
There is a camera status indicator on the back of the camera to indicate the camera's
working status. It flashes green or red.

©2021 SwellPro
7
Camera Control
Remote controller
Description
Photo①: press once to take a picture.
Video②: press once to start recording, press
again to stop recording, and save files.
APP Interface
To get into APP’s camera interface: Power on the remote controller, then the aircraft.
Connect the phone to the remote controller’s Wi-Fi hotspot. Then click "Login device".

8©2021 SwellPro
Login device
Camera Interface

©2021 SwellPro
9
Photo Setting Interface
Video Setting Interface

10 ©2021 SwellPro

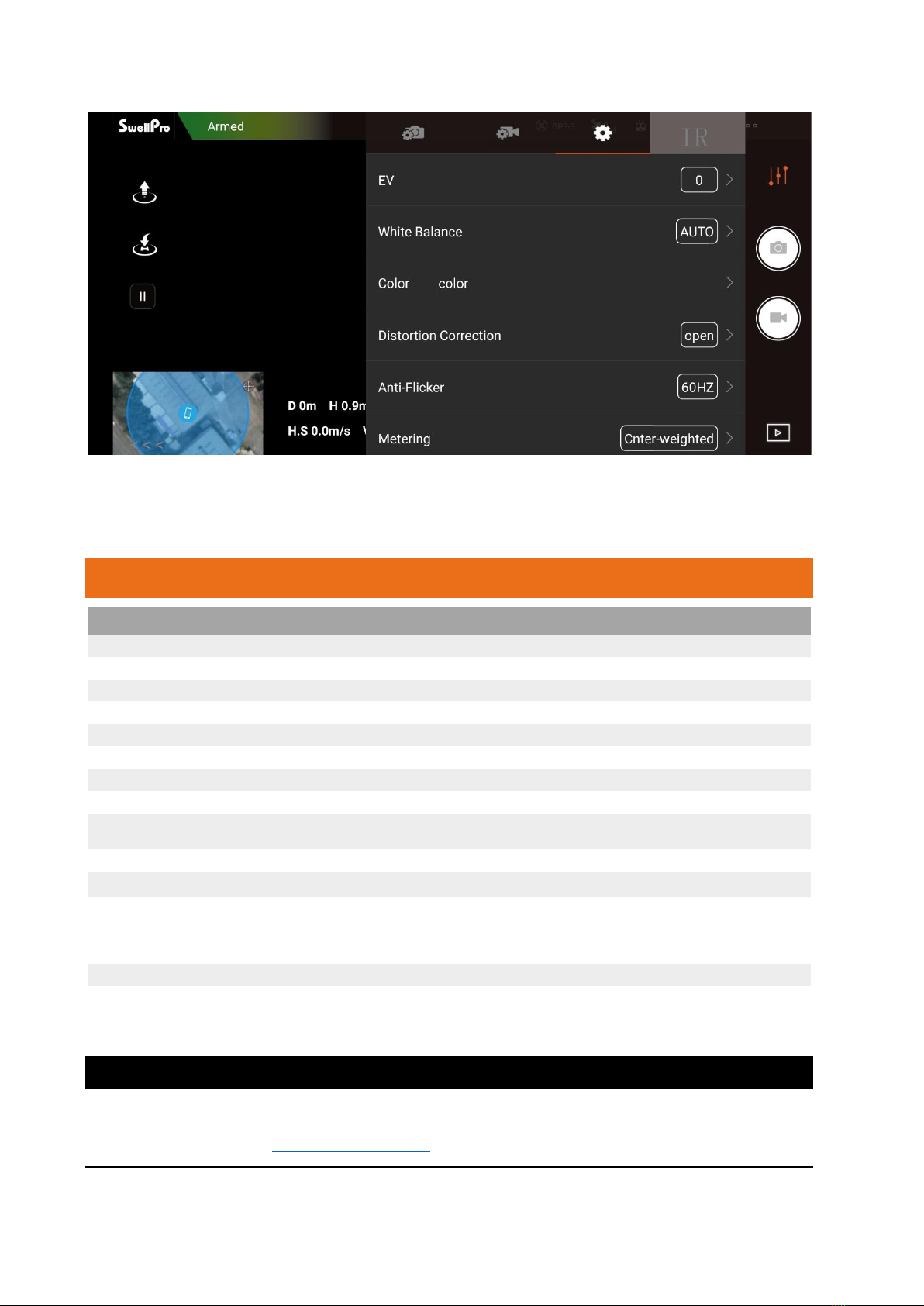

Camera Setting Interface
Specification
FAC
Waterproof Rating:
IP67
Weight:
Approx. 85g
Size:
45*44*40mm
Sensors:
1/2.7" 2M CMOS
Lens:
F2.2mm; f/5.06; FOV: 130°
Burst mode:
3/5/10 pcs
Video resolution:
FHD: 1920*1080 30/60p | HD: 1280*720 120/60p
Max data stream:
30 Mbps
Photo format:
JPEG
Video format:
MP4，MOV
Memory card:
Micro SD card: supports up to 128GB of capacity, write
speeds ≥ 30 MB/s, recommend using Class 10 or
above, or with UHS-1 rating.
Working temperature:
-10°C - 40°C
Version Information
SwellPro products are constantly improving, so as the product user guides. It is
recommended to visit www.swellpro.com to check and download the latest user guide.

©2021 SwellPro
11
Version
1.0 FAC User Guide First Edition
