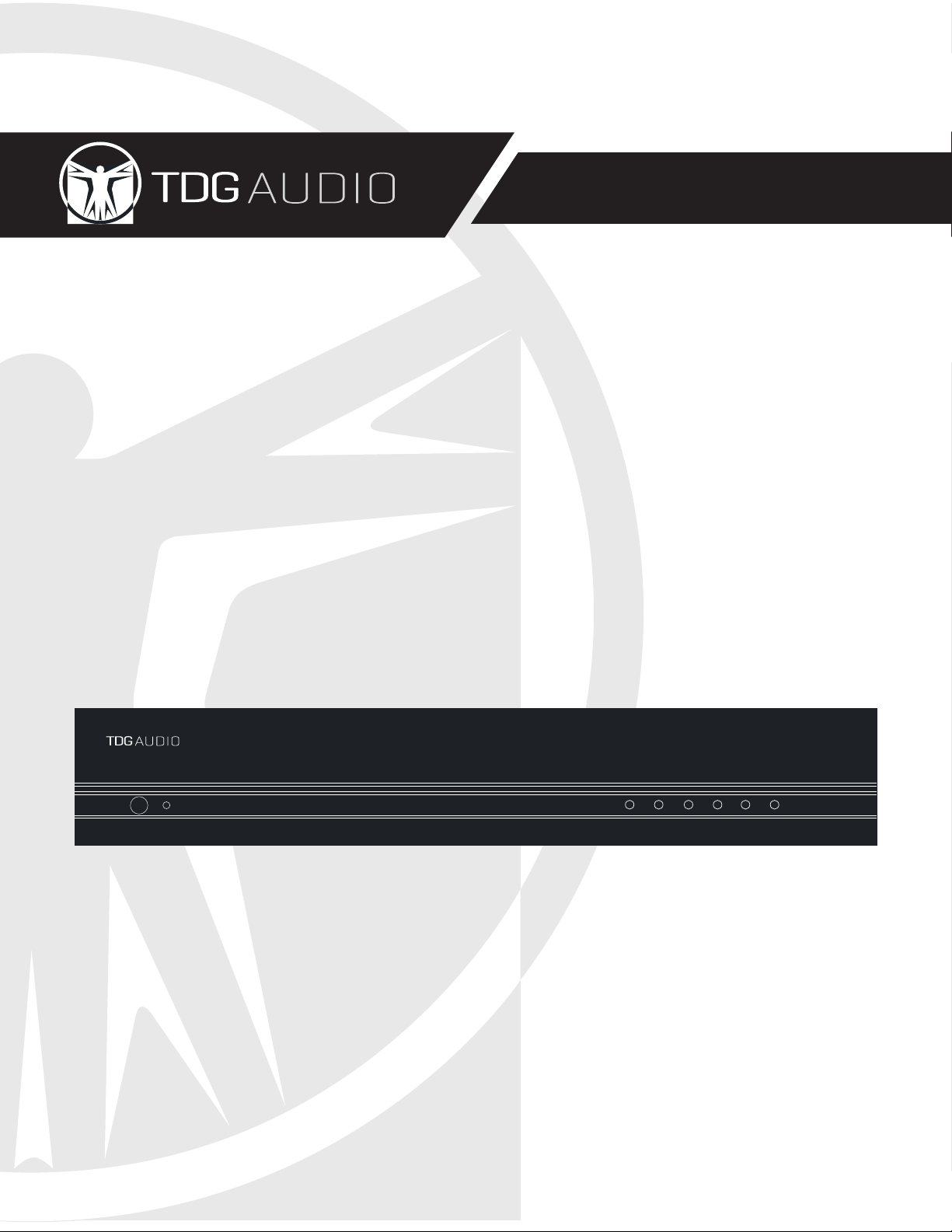

TDG AUDIO DA-1260 User manual

DA-1260
12 Channel x 60 watt
Owner’s Manual
POWER 1-2 3-4 5-6 7-8 9-10 11-12
DA-1260

SAFETY INSTRUCTIONS
Explanation of G aphical Symbols
1. Read Instruction - All the safety and operang
instrucons should be read before the appliance is
operated.
2. Retain Instructions - The safety and operang instrucons
should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the
operang instrucons should be adhered to.
4. Follow Instruction - All operang and other instrucons
should be followed.
5. Water and Moisture - The appliance should not be used
near water - for example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming
pool, etc.
6. Carts and Stands - The appliance should be used only with
a cart or stand that is recommended by the manufacturer
7. Wall or Ceiling Mountin - The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
8. Ventil tio - The appliance should be situated so that
its locaon or posion does not interfere with its proper
venlaon. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface that may block
the venlaon openings; or placed in a built-in installaon,
such as a bookcase or cabinet that may impede the ow of
air through the venlaon openings.
9. Heat - The appliance should be situated away from heat
sources such as radiators, stoves, or other appliances that
produce heat.
10. Power Source - The appliance should be connected
to a power supply only of the type described in the
operang instrucons or as marked on the appliance.
11. Power-Cord Protectio - Power-supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
parcular aenon to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.
12. Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
13. Non-use Periods - The power cord of the appliance
should be unplugged from the outlet when le unused
for a long period of me.
14. Object and Liquid Entry - Care should be taken so
that objects do not fall into and liquids not spilled into
the inside of the appliance.
15. Damage Requiring Service - The appliance should be
serviced by qualied service personnel when:
a. The power-supply cord or the plug has been
damaged; or
b. Objects have fallen onto, or liquid has been
spilled into the appliance; or
c. The appliance has been exposed to rain; or
d. The appliance does not appear to operate
normally or exhibits a marked change in
performance; or
e. The appliance has been dropped, or the
cabinet damaged.
16. Servicing - The user should not aempt to service
the appliance beyond those means described in the
operang instrucons. All other servicing should be
referred to qualied service personnel.
17. Grounding or Polarizatio - The precauons that
should be taken so that the grounding or polarizaon
means of an appliance is not defeated.
SAFETY INSTRUCTIONS
■Explanation of Graphical Symbols
1. Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance
and in the operating instructions should be adhered
to.
4. Follow Instructions - All operating and other
instructions should be followed.
5. Water and Moisture - The appliance should not
be used near water - for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement,
or near a swimming pool, etc.
6. Carts and Stands - The appliance should be used
only with a cart or stand that is recommended by the
manufacturer
7. Wall or Ceiling Mounting - The appliance should
be mounted to a wall or ceiling only as recommended
by the manufacturer.
8. Ventilation - The appliance should be situated so
that its location or position does not interfere with its
proper ventilation. For example, the appliance should
not be situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings; or placed in a
built-in installation, such as a bookcase or cabinet that
may impede the flow of air through the ventilation
openings.
APPLICABLE FOR USA, CANADA OR WHERE
APPROVED FOR USAGE
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE PLUG TO WIDE SLOT, INSERT FULLY.
ATTENTION: POUR EVITER LES CHOCS
ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE
DE LA FICHE DANS LA BORNE CORRESPONDANTE
DE LA PRISE ET POUSSER JUSQU AU FOND.
9. Heat - The appliance should be situated away from
heat sources such as radiators, stoves, or other
appliances that produce heat.
10. Power Source - The appliance should be
connected to a power supply only of the type described
in the operating instructions or as marked on the
appliance.
11. Power-Cord Protection - Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit
from the appliance.
12. Cleaning - The appliance should be cleaned only
as recommended by the manufacturer.
13. Nonuse Periods - The power cord of the appliance
should be unplugged from the outlet when left unused
for a long period of time.
14. Object and Liquid Entry - Care should be taken
so that objects do not fall into and liquids not spilled
into the inside of the appliance.
15. Damage Requiring Service - The appliance
should be serviced by qualified service personnel
when:
a. The power-supply cord or the plug has been
damaged; or
b. Objects have fallen onto, or liquid has been
spilled into the appliance; or
c. The appliance has been exposed to rain; or
d. The appliance does not appear to operate
nomally or exhibits a marked change in
performance; or
e. The appliance has been dropped, or the
cabinet damaged.
16. Servicing - The user should not attempt to service
the appliance beyond those means described in the
operating instructions. All other servicing should be
referred to qualified service personnel.
17. Grounding or Polarization - The precautions
that should be taken so that the grounding or
polarization means of an appliance is not defeated.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert you to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons
The exclamation point within an equilateral triangle
is intended to alert you to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
PORTABLE CART
WARNING
SAFETY INSTRUCTIONS
■Explanation of Graphical Symbols
1. Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
2. Retain Instructions - The safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance
and in the operating instructions should be adhered
to.
4. Follow Instructions - All operating and other
instructions should be followed.
5. Water and Moisture - The appliance should not
be used near water - for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement,
or near a swimming pool, etc.
6. Carts and Stands - The appliance should be used
only with a cart or stand that is recommended by the
manufacturer
7. Wall or Ceiling Mounting - The appliance should
be mounted to a wall or ceiling only as recommended
by the manufacturer.
8. Ventilation - The appliance should be situated so
that its location or position does not interfere with its
proper ventilation. For example, the appliance should
not be situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings; or placed in a
built-in installation, such as a bookcase or cabinet that
may impede the flow of air through the ventilation
openings.
APPLICABLE FOR USA, CANADA OR WHERE
APPROVED FOR USAGE
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE PLUG TO WIDE SLOT, INSERT FULLY.
ATTENTION: POUR EVITER LES CHOCS
ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE
DE LA FICHE DANS LA BORNE CORRESPONDANTE
DE LA PRISE ET POUSSER JUSQU AU FOND.
9. Heat - The appliance should be situated away from
heat sources such as radiators, stoves, or other
appliances that produce heat.
10. Power Source - The appliance should be
connected to a power supply only of the type described
in the operating instructions or as marked on the
appliance.
11. Power-Cord Protection - Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit
from the appliance.
12. Cleaning - The appliance should be cleaned only
as recommended by the manufacturer.
13. Nonuse Periods - The power cord of the appliance
should be unplugged from the outlet when left unused
for a long period of time.
14. Object and Liquid Entry - Care should be taken
so that objects do not fall into and liquids not spilled
into the inside of the appliance.
15. Damage Requiring Service - The appliance
should be serviced by qualified service personnel
when:
a. The power-supply cord or the plug has been
damaged; or
b. Objects have fallen onto, or liquid has been
spilled into the appliance; or
c. The appliance has been exposed to rain; or
d. The appliance does not appear to operate
nomally or exhibits a marked change in
performance; or
e. The appliance has been dropped, or the
cabinet damaged.
16. Servicing - The user should not attempt to service
the appliance beyond those means described in the
operating instructions. All other servicing should be
referred to qualified service personnel.
17. Grounding or Polarization - The precautions
that should be taken so that the grounding or
polarization means of an appliance is not defeated.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert you to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons
The exclamation point within an equilateral triangle
is intended to alert you to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
PORTABLE CART
WARNING
PORTABLE CART
WARNING
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).
NO USER SERVICABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING:
TO REDUCE THE RISK OF ELETRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
13 For added protection of the TV set during a lightning storm or when the TV set is to be left
unattended for an extended period of time, unplug it from the wall outlet and disconnect
the antenna. This will prevent damage to product due to lightning storms or power line
surges.
14 A TV set and cart combination should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the TV set and cart combination to overturn.
15 Unplug this TV set from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the TV set.
C. If the TV set has been exposed to rain or water.
D. If the TV set does not operate normally by following the operating instructions.
Adjust only those controls that are covered in the operating instructions as improper
adjustment of other controls may result in damage and will often require extensive work
by a qualified technician to restore the TV set to normal operation.
E. If the TV set has been dropped or damaged in any way.
F. When the TV set exhibits a distinct change in performance — this indicates a need for
service.
16 Do not attempt to service this TV set yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
17 When replacement parts are required, have the service technician verify in writing that the
replacement parts he uses have the same safety characteristics as the original parts. Use
of manufacturer’s specified replacement parts can prevent fire, shock, or other hazards.
18 Upon completion of any service or repairs to this TV set, please ask the service technician
to perform the safety check described in the manufacturer’s service literature.
19 When a TV set reaches the end of its useful life, improper disposal could result in a picture
tube implosion. Ask a qualified service technician to dispose of the TV set.
20 Note to CATV system installer.
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building, as close to the
point of cable entry as practical.
PORTABLE CART WARNING
(Symbol provided by RETAC)
Service
65,56,48WP74 English OK1 2/18/03, 1:44 PM5

FEATURES
1. 2U Rack Height.
2. Bridgeable adjoining channels.
3. Independent level control for each channel.
4. Independent circuitry safety protecon for each channel.
5. Pass through bus output allows daisy chaining of mulple ampliers.
6. 3-24v AC/DC remote power on trigger input.
7. 12v control out remote power on trigger for other devices with voltage trigger.
8. Includes rack ears.
FRONT PANEL
Main power switch.
Turns on and o power to amplier.
Main power LED
indicates when
power is on.
Protecon LEDs indicate:
1. Speaker wire short; ashing red LED.
2. When voltage > 0.7V (DC voltage output to speaker
terminal); constant red LED.
3. When current overload; constant red LED.
REAR PANEL
Main bus input allows output
from receivers, CD players,
TVs, or any stereo audio source
to be amplied across all
channels for easy mul-room
applicaons.
Bus outputs allow the bus
inputs to be sent to other
ampliers or a daisy chain
without the need for ‘Y’
cables or spliers.
Independent
level controls
for each
channel.
Independent channel
inputs allow dierent
audio sources to
connect to each
channel.
Individual channel
source selecon.
3-Prong
removable
power plug.
Fuse included.
Slide switch to choose
between dierent trigger
methods to power up the
amplier.
12V output to turn on
other devices when
amplier is powered up.
Connect to projector
screens, powered
drapes, or other devices
with voltage triggers.
3-24V AC/DC
remote power on
trigger input.
Speaker
Level Output
Connectors.
Bridgeable adjoining
channels.
POWER
1-2 3-4 5-6 7-8 9-10 11-12
DA-1260
DA-1260

FUNCTIONS
Level Controls - Allows any of the channels to be adjusted independently to raise or lower the output of each channel.
BUS(L.R)*LINE Switch - Allows each channel to play a variety of dierent inputs. Depending on the switch posion the channel
amplies the signal connected to the BUS input and its own LINE input. Bus switch also includes a L and R posion which is used to
direct the channel to play the le signal from input “L” or right signal from input “R”.
POWER MODE SELECTION
There are three ways to turn the amplier on and o:
1. Manual - Use this selecon when you wish to manually turn the amplier on and o by using the front power buon.
2. Trigger - Use this selecon to turn on the amplier when it receives voltage (3-24V A/C or D/C) from an external source and turns
o once that voltage has stopped. The voltage source must be connected to the trigger-input jack on the back of the amplier.
3. Audio Sense - The amplier will automacally turn on when the amplier’s main input receives an audio signal. At the moment
that either the le or right input jacks receive a signal, the amplier will automacally turn on. Once the signal stops, the amplier
automacally goes into stand-by mode aer 3 minutes.
BRIDGE MODE
To bridge two adjoining channels move the switch marked “BRIDGE” to the “ON” posion. The output of the combined channels can
then be used to power one speaker. Do not connect more than one speaker to the outputs of the bridged channel.
REMOTE POWER ON
3-24V DC/AC Trigger in - 3-24V AC or DC input to trigger power up with voltage from another device, such as a receiver. The voltage
source must be connected to the trigger-input jack on the back of the amplier.
12V DC Control Out - The 12V output jack on the back of the amplier can be used to turn on a variety of components equipped to
be acvated when they receive a 12V DC output.
>102 dB
Frequency Response:
± 0.7dB, 20Hz to 20kHz, 8Ω
± 1.5dB, 20Hz to 20kHz, 4Ω
Input Sensitivity
900mV for 8 ohm rated output
Input Impedance:
>22K Ω
Damping Factor:
>60
Total Harmonic Distortion
<0.2% 20Hz to 20kHz
Fuse Rating
120VVersion: T12A/250V
SPECIFICATIONS
DA-1260
Rated Power Output:
60 Watts per channels at 4Ω
50 Watts per channels at 8Ω
Bridged Power Output:
120 Watts at 8Ω
S/N Ratio: (A-WTD)

LIMITED FIVE-YEAR WARRANTY
TDG Audio warrants to the original retail purchaser only that this TDG Audio product will be free from defects in materials
and workmanship for a period of ve years, provided the product was purchased from a TDG Audio Authorized Dealer.
Defecve products must be shipped, together with proof of purchase, prepaid insured to the TDG Audio Authorized Dealer
from whom they were purchased, or to the TDG Audio factory at the address listed on this installaon instrucon manual.
Freight collect shipments will be refused. It is preferable to ship this product in the original shipping container to lessen the
chance of transit damage. In any case, the risk or loss or damage in transit is to be borne by the purchaser.
If upon examinaon at the Factory or TDG Audio Authorized Dealer it is determined that the unit was defecve in materials
or workmanship at any me during this warranty period, TDG Audio or the TDG Audio Authorized Dealer will, at its opon,
repair or replace this product at no addional charge, except as set forth below. If this model is no longer available and can
not be repaired eecvely, TDG Audio, at its sole opon may replace the unit with a current model of equal or greater value.
In some cases where a new model is substuted, a modicaon to the mounng surface may be required. If mounng
surface modicaon is required, TDG Audio assumes no responsibility or liability for such modicaon.
All replaced parts and product become the property of TDG Audio. Products replaced or repaired under this warranty
will be returned to the original retail purchaser, within a reasonable me, freight prepaid. This warranty does not include
service or parts to repair damage caused by accident, disaster, misuse, abuse, negligence, inadequate packing or shipping
procedures, commercial use, voltage inputs in excess of the rated maximum of the unit, or service, repair or modicaon
of the product which has not been authorized or approved by TDG Audio. This warranty also excludes normal cosmec
deterioraon caused by environmental condions.
This warranty will be void if the serial number on the product has been removed, tampered with or defaced. This warranty
is in lieu of all other expressed warranes. If the product is defecve in materials or workmanship as warranted above,
the purchaser’s sole remedy shall be repair or replacement as provided above. In no event will TDG Audio be liable for
any incidental or consequenal damages arising out of the use or inability to use the product, even if TDG Audio or a TDG
Audio Authorized Dealer has been advised of the possibility of such damages, or for any claim by any other party. Some
states do not allow the exclusion or limitaon of consequenal damages, so the above limitaon and exclusion may not
apply. All implied warranes on the product are limited to the duraon of this expressed warranty. Some states do not
allow limitaon on the length of an implied warranty. If the original retail purchaser resides in such a state, this limitaon
does not apply.
Engineered in the USA | Made in Taiwan | 1 (866) TDG 6321 | www.TDGAUDIO.com
LIMITED
5 YEAR
WARRANTY
DA-1260-05-2022
