Teccpo TDLM4065A User manual

40V Lithium Lawn Mower
Model: TDLM4065A
User Manual
Size：145x210mm

“Click”
b
2
0
1
- 01 -

13
109
11 12
b
a
14
- 02 -

C
A
E
G
D
F
H
B
- 03 -

I
M
O
LK
N
P
J
- 04 -

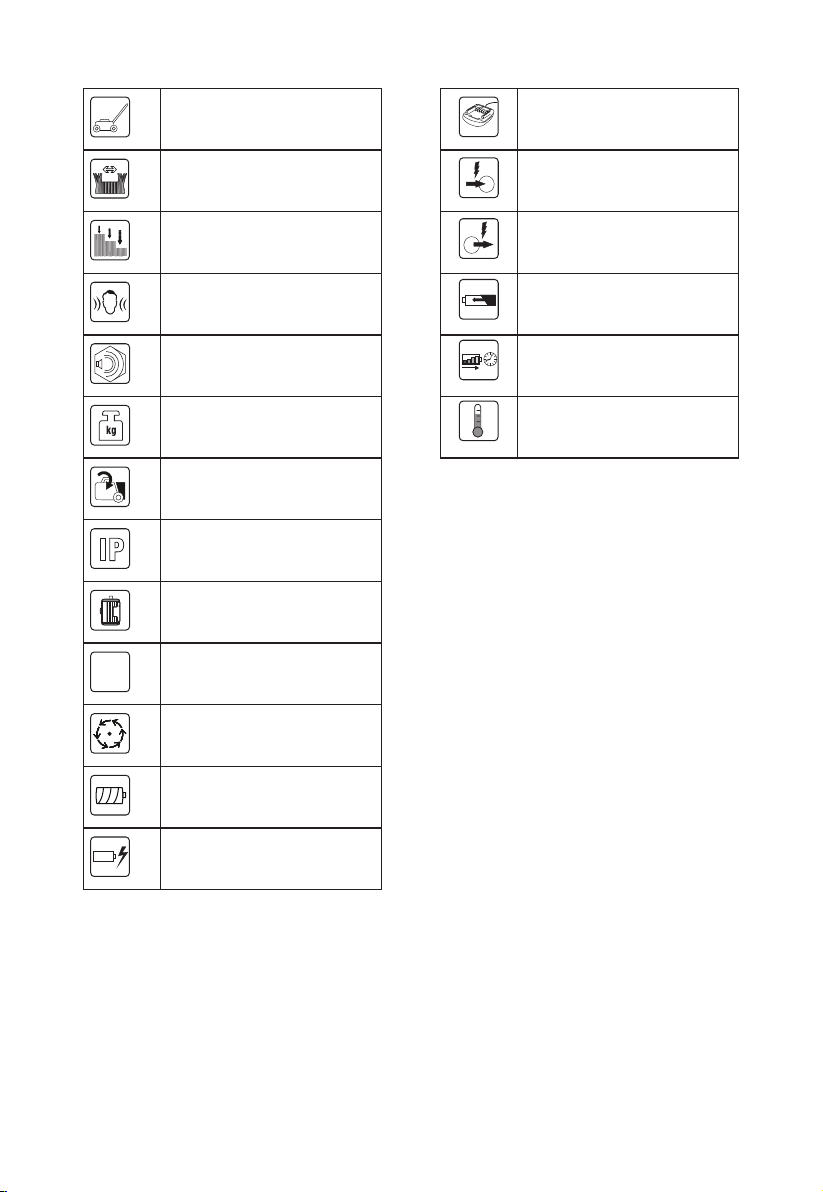

Centra l
36,0 V
DC
15 in
1.0/1.4/1.8/2.2/2.6/3.0in
L
Pa
= 84 dB(A)
L
WA
= 91 dB(A)
16.0 kg
40 L
IPX1
Motor / Engine
40.0 V
max. 3300 / min
Li-Ion Accu
40.0 V / 2.5 A
100 V - 240 V
AC 50 / 60 Hz ;
42 V
1.8 A
1.5 h
0℃~45℃
- 05 -

Please read this document before starting to use the machine. This is essential for safe
working and trouble-free handling.
Comply with the safety andwarninginstructions in this documentationand on the product.
This document is a permanent component of the described product, and should remain with
the machine if it is sold to someone else.
This lawn mower is not intended for use in public grounds, parks, sporting arenas as well as
in agriculture and forestry
The fitted safety devices must not be removed or bypassed, e.g. by tying the safety bar to the
handle bar
Do not use the mower during rain and / or on a wet lawn
The mower must not be used commercially
Contents
About this handbook
Product description
Safety instructions
Assembly
Start up
Operation
Information on working
Storing the battery-operated lawn mower
Storing the battery and charger
Maintenance and care
Disposal
Declaration of Conformity
ABOUT THIS MANUAL
1.
2.
3.
PRODUCT DESCRIPTION
This document describes the battery-operated lawn mower with catcher.
Intended use
This appliance is intended for mowing laws in the private sector.
Any other use is deemed as being not in accordance with its intended use.
Possible misuse
1.
2.
3.
4.
.................................................................................. 07
.................................................................................... 07
..................................................................................... 10
....................................................................................................11
...................................................................................................... 11
................................................................................................... 12
.............................................................................. 13
.................................................. 14
................................................................. 14
............................................................................... 14
.................................................................................................... 15
.......................................................................... 16
- 07 -

Safety and protective devices
Safety bar
The mower is fitted with a safety bar. Simply release it in case of danger. Motor and cutting blade
are then stopped.
Baffle
The baffle protects against objects flying out.
Safety key
To prevent the mower from being switched on unintentionally it has been fitted with a safety key.
Switch the mower off before doing maintenance work and always pull out the safety key.

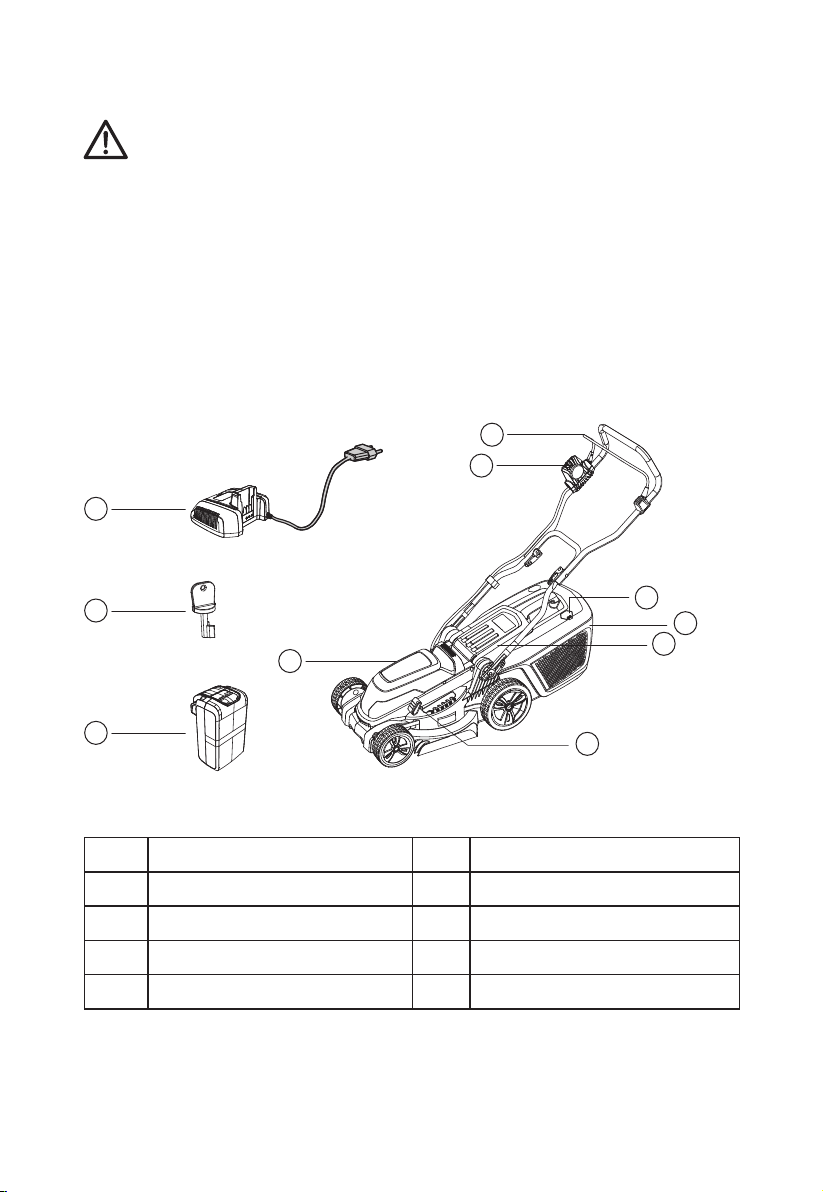

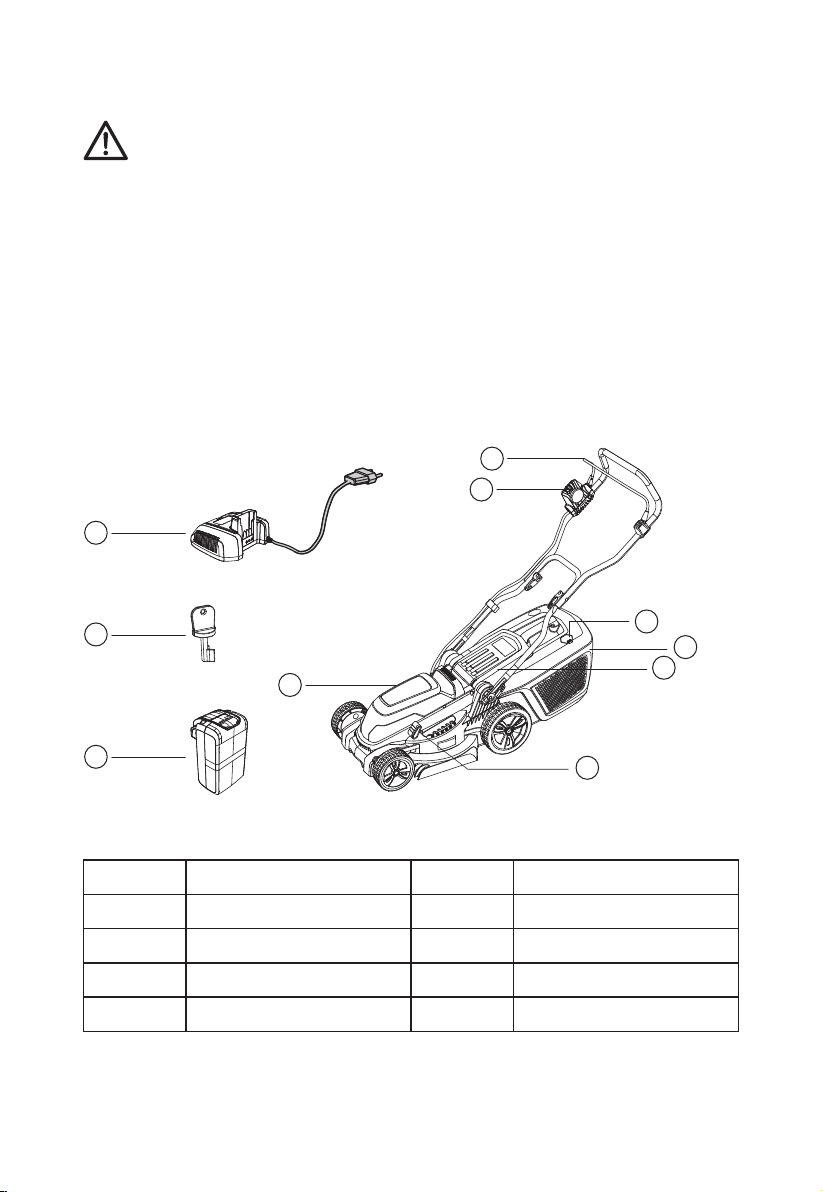

Product overview
CAUTION!
Risk of injury!
Safety and protective devices should not be disabled.
1
2
3
4
5
6
7
8
9
10
Safety bar
Start switch
Fill level indicator
Grass catcher
Baffle plate
Cutting height adjustment
Battery compartment
Battery charger
Safety key
Battery
1
2
3
4
5
6
7
8
10
9
- 08 -

Safety Symbols
Caution! Special care required during use.
Read the instructions before start-up!
Keep other persons away from the danger area!
Danger! Keep hands and feet away from the cutter area!
Keep a distance from the danger area.
Always remove the safety key prior to working on the mower.
Caution! Sharp cutter blades!
Do not reach into the cutter area.
Do not expose to rain or water
Do not burn
Do not dispose of batteries. Return exhausted batteries to your local collection or
recycling point.
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check your Local Authority or retailer for recycling advice.
- 09 -

SAFETY INSTRUCTIONS
The lawn mower operator or user is responsible for accidents
involving other persons and their property.
Electrical safety
The mains voltage must match the mains voltage specifications
of the charger with regard to the technical data, do not use a
different mains voltage
Safety notes for battery and charger
●
●
●
●
●
Safety instructions for operation
●
Do not short-circuit the battery
Protect the mower, battery and charger against moisture
Useonlyoriginal batteriesand chargers from the manufacturer.
Do not open the appliance. Danger of short circuit.
Underabusive conditions, liquidmay be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek medical help.
Remove the safety key when:
▪
▪
▪
▪
Do not throw the battery into an open fire
Only use the battery and charger in areas that are
protected against rain or moisture.
Protect the battery against heat and direct sunlight
Leaving the mower unattended
Inspecting, cleaning or servicing the mower
Inserting the battery
Faults or unusual vibrations occur on the mower
CAUTION!
Risk of injury!
Safety and protective devices should not be disabled.
CAUTION!
Danger risk of fire and explosion!
▪
▪
▪
CAUTION!
Danger risk of injury!
Unintentional start-up can lead to severeinjuries. To prevent
injuries always remove the safety key after switching the
mower off!
- 10 -

●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
ASSEMBLY

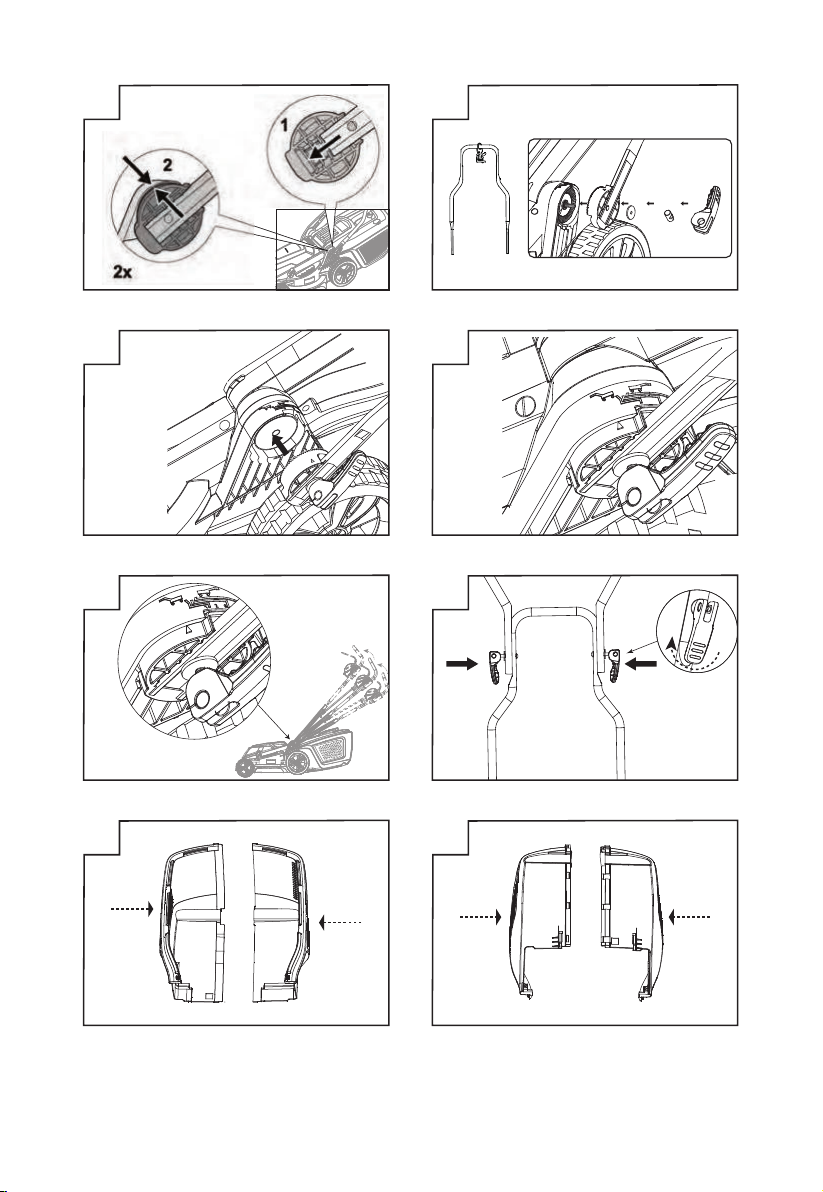

Assemble according to (A~P)
The mower must only be operated after it has been fully assembled!
START-UP
▪
▪
▪
Children, or otherpeoplewhoare not familiar with the operating
instructions, are not allowed to use the machine
Observe local regulationsregardingminimumagerequirements
for operating the machine.
The equipment should be used only if in goodorderand condition
The machine must not be operated if the operator is under the
influence of alcohol, drugs or medication.
Prior to each use check the mower and battery for damage
and have the damaged parts replaced
Remove all foreign objects from the lawn prior to mowing
Wear suitable work clothing:
▪
▪
Always ensure stability when working.
Keep others away from dangerous areas.
Keep body and clothing away from cutting parts.
Workonlywhen there is adequate daylight or artificiallighting.
Always push the mower forward, never move backwards
Never pull the mower toward the body
Do not mow over obstacles (e.g. branches, roots of trees).
Remove grass cuttings only when the motor has stoppedand
the safety key has been removed
Switch the motor off when an area other than the area to be
mowed is crossed
Never lift or carry the mower while the motor is running
Never leave the mowerunattendedwhen it is ready for operation
CAUTION!
Always perform a visual check prior to start-up.
CAUTION!
Do not use damaged batteries. Danger of fire!
CAUTION!
Danger of explosion and fire!
The charger heats up during charging. Do not place it on a flammable surface or in a
flammable environment.
Releasing blockages
Removing clogging
There is danger of coming into contact with foreignobjects
Long trousers
Firmand antislip footwear
- 11 -

Using the battery (1)
The battery is supplied partially charged! Fully charge the battery before the first use.
Before using the machine,make sure the battery is full enough for properly working.
There are battery capacity indicators on the battery pack, you can check the capacity status of
the battery if you press the button
The led lights indication as show the status of the capacity level of the battery:
Notice:When the battery indicator is red,remind users to have low battery power or high
temperature protection inside batteries,you must stop work,Place the battery and charge
it after the battery is cooled.
Charging the battery (2)
The charging system is shown below.
- 12 -
Color:green capacity fully
Color:green capacity 60%
Color:green capacity 30%
capacity empty or high
Color:red temperature alarm
Status indicator led
Charger indicator label
Charging:Green light flicker
Full charge:
The green light is always on
High temperature protection:
Red light flicker
Not rechargeable:
The red light is always on

When the battery state of charging as show:
1.
2.
3.
4.
5.
Notice:
1.
2.
3.
4.

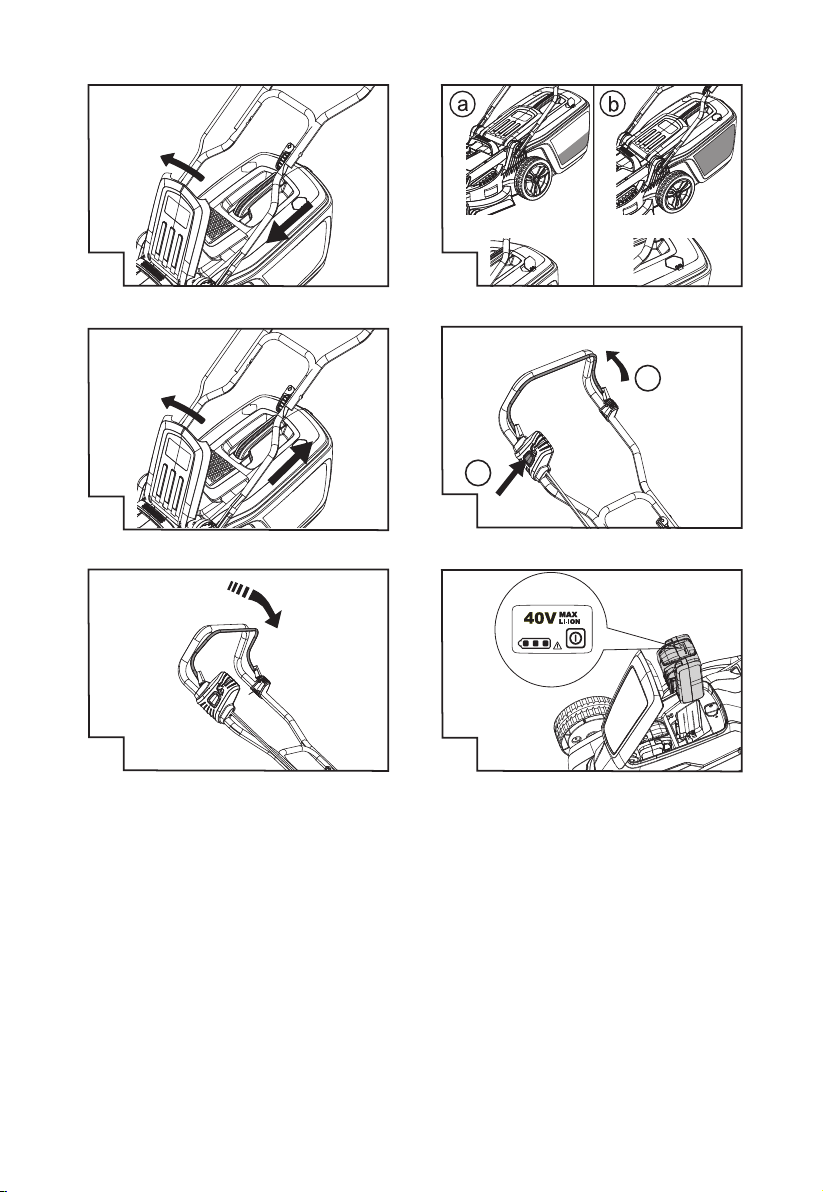

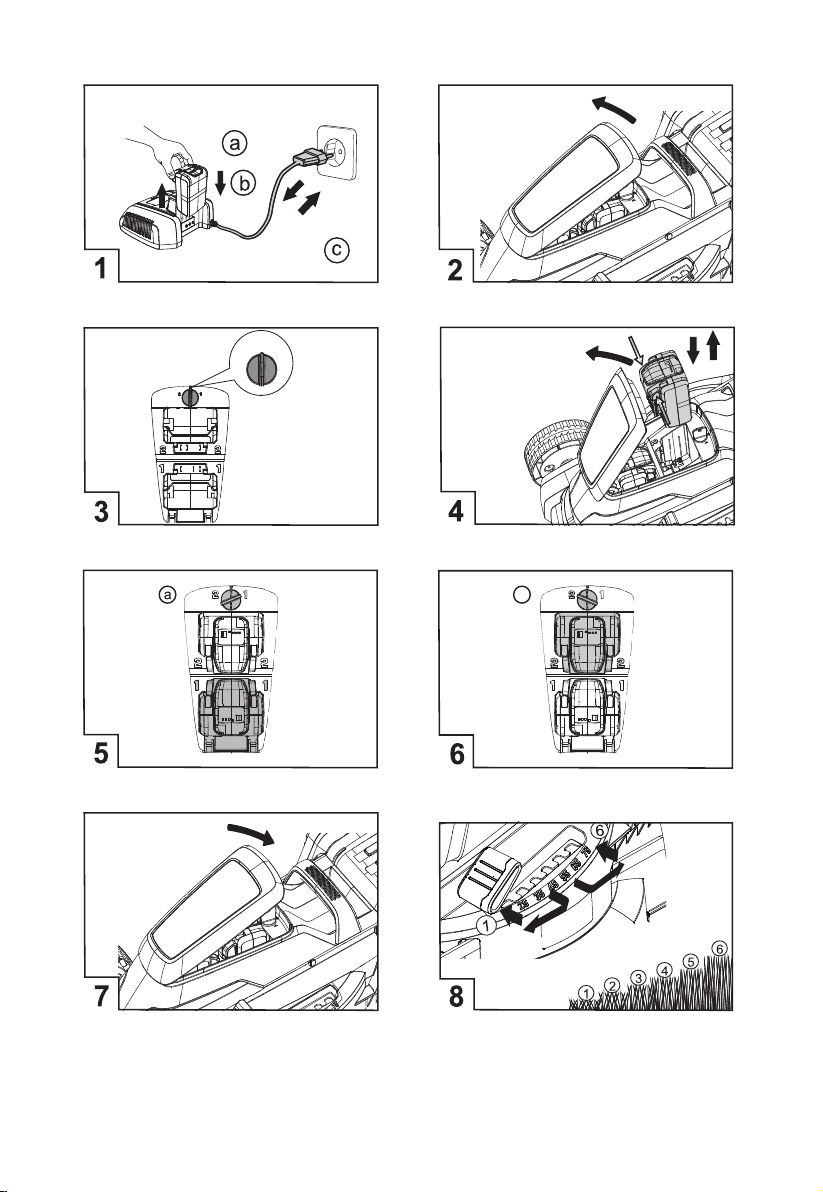

Inserting the battery (2-7)
1.
2.
3.
4.
5.
OPERATION
Adjusting the cutting height (8)
1.
2.
Note: For non-grass collection the mower can be used without the grass box in position,
with the safety guard in the down position.
Emptying the grass catcher (11)
1.
2.
3.
4.
Switching on the motor (12)
The motor of this lawnmower does not accelerate to its full speed immediately when the motor
is started.
Only when you move the lawn mower onto the grass to be mown does it detect the grass and
accelerate the motor to the maximum blade speed, then it remains at the maximum blade
speed.
This audible increase in the motor's noise level is completely normal and means that the lawn
mower is cutting at the optimum blade speed.
Start the lawn mower only on level ground, and not in high grass. The ground must be free from
charged less then 30%(the 3 green lights flicker from right to left)
Have filled 30%(Middle green light flicker,the right green light always on)
Have filled 60%(the left green light flicker,the right 2 green lights always on)
Have filled 100%(press the button , The 3 green light shows)
High temperature protection inside batteries(Battery cooling,Pause charging)
Before charging, please check that the lead wire of the charger is not damaged.
Do not charge in a premature wet environment.
Do not charge immediately after the battery is used. The battery pack will be cooled for a
period of time before charging.
Ambient temperature affects battery charging,Please store it in low temperature environ-
ment. Charging temperature range about 0-45℃.
Pull the batterycover on the mower to open it. (2)
Turn the safety key to 0. (3)
With a slight pressurepush the battery into the batterycompartment up to the stop until the battery
sits firmly on the contact plug of the mower. (4)
Insert the safety keyagainand turn it to 1 or 2. (5,6)
Press once on the battery cover to close it. (7)
To unlock, press the lever to the sideandhold.
Release the leverand slide it forward or backward until it engages in the desired step.
Lift the baffle plate.
Unhook the grass catcherandremove it to the rear.
Empty grass catcher.
Lift up the baffle plate andhang the grass catcher back into the holders. (9)
CAUTION!
Danger risk of injury!
Adjust the cutting height only while motor is switched off and the cutting blade has
stopped!
- 13 -

foreign objects, such as stones. Do not lift or tilt the lawn mower to start it.
1.
2.
3.
4.
Check the charge level of the battery while mowing the lawn (14)
1.
2.
3.
Switching off the motor (13)
1.
2.
3.
INFORMATION ON WORKING
●
●
●
●
●
●
●
●
●
●
●
●
Operating time at 100% battery charge in m² per battery
Cutting reference area is about 200-300 m². There are many factors affecting cutting, such as
speed, grass concentration, tenderness, density, dryness and wetness.
Mowing tips
●
●
●
STORING THE BATTERY-OPERATED LAWN MOWER
Storage
Fold the upper handle bar to save space during storage
●
●
Insert the safety keyagainand turn it (5,6).
Keep the start button pressed (12a).
Pull the safety bar toward the handlebarandhold it there(12b).
Release the start button.
Switching off the motor (13).
Open the batterycompartment (2).
Press the test button on the battery: If the LED lights up green, there is still charge in battery and you
can continuemowing. If the LED lights up red, the battery is dischargedandrequires recharging(14).
Release the safety bar.
Wait until the cutter blade stops.
Turn the safety key to 0. (3)
Observe the localregulations on operatinglawnmowers.
Remove foreignobjects from the workingarea.
Keep othersaway fromdangerous areas.
Use the moweronly if visibility is good
Guide the machine at walkingpace.
Mowonly with a sharp cuttingblade
Do not mowoverobstacles (e.g. branches, roots of trees).
Mowonlyacross slopes. Do not use the mower up or downslopesand not on slopes with more than
a slant of 20 degrees.
Addedcaremust be taken on slopes when changingdirection
The operatingperiod of the lawnmower batterydepends on the condition of the battery, the condition
of the lawnand the setting of the cuttingheight. Frequently switching the mower on and off reduces
the operating time
Optimumoperating time is obtained by frequent mowing of the lawnandmaintaining a short-cut lawn
Lawnmowers do not cut wet grasslands. When theywork, the grass is easy to pile up, so theyneed
to be cleaned up in time.
Constant cuttingheight 3–5 cm, do not cut more thanhalf the height of the lawn
Do not overload the lawnmower! If the motor speed is greatly reduced due to long, heavy grass, raise
the cuttingheight andmowseveral times
Sincewindandsuncandry out the lawn after mowing, mow the lawn in the late afternoon
Always store the mower with the battery and the safety keyremoved
Store the mower in a dryplaceandinaccessible to childrenandunauthorized persons
- 14 -

STORING THE BATTERY AND CHARGER
The battery is protected by a supply voltage against overloading and can therefore remain
connected to the mains power for a lengthy period.
The optimum temperature for storing the battery is between 0 °C and 25 °C.
●
●
●
MAINTENANCE AND CARE
Regularly check the grass catcher system for correct function and wear
After mowing, thoroughly clean the mower with a hand broom or a cloth. Contamination left on
the underside of the mower can impair its proper function
Do not hose down the mower with water! Water can damage the switch as well as the battery
and the electric motor
Regularly check the cutter blade for damage. Resharpened cutter blades must be balanced.
The tightening torque of the blade screw is 20~25N.m
Ensure that all nuts, bolts and screws are tightened and that the machine is in a safe operational
state.
Let the motor cool down before storing the machine in a closed room.
●
DISPOSAL
The packaging, machine and accessories are made from recyclable materials, and must be
disposed of accordingly.
●
●
Store the battery in dry, frost-protected location with an ambient temperature of between 0 °C and
+25 °C and in a charged state of approximately 40~60%
Recharge the battery for approximately 1.5 hours after a 3-month storageperiod
Do not store the batterynear metallic or acidcontainingobjects risk of short-circuiting!
Professionalinspection is necessary:
▪
▪
▪
▪
▪
Dispose of batteries only after they have been discharged
The user is obliged to return the batteries and rechargeable batteries. These can be returned
to points of sale free of charge.
The following possibilities exist for disposal:
▪
▪
- 15 -
CAUTION!
Risk of fire and / or explosion!
Do not store the machine in the vicinity of naked flames or heat sources.
CAUTION!
Danger risk of injury!
Always remove the safety key before carrying out maintenance work!
Always wearworkgloves when carrying out maintenance on the cutter blade! Non-balanced
cutter blades cause serious vibrations and damage the mower!
CAUTION!
Cutting blade and motor shaft may not be aligned if damaged!
Do not dispose of worn-out machines or spent batteries (including rechargeable batteries)
in domestic waste!
After running onto an obstacle
When the motor is blocked
When the cutter blade is bent
When the motor shaft is bent
When the battery is damaged, worn out
By specialist dealers
By a returncentre marked with the CCRsymbol

- 35 -
Índice
Respecto a este manual
Descripción del producto
Advertencias de seguridad
Montaje
Puesta en servicio
Operación y manejo
Información sobre el trabajo
Almacenamiento del cortacésped eléctrico
Almacenamiento de la batería y el cargador
Mantenimiento y cuidados
Eliminación como desecho
Declaración de Conformidad
RESPECTO A ESTE MANUAL
1.
2.
3.
DESCRIPCIÓN DEL PRODUCTO
En la presente documentación se describe el cortacésped eléctrico con recogedor de hierba.
Uso conforme al previsto
Este aparato ha sido diseñadoúnicamente para cortar superficies de césped en recintos privados.
Cualquier uso diferente o excesivo se considerará no conforme al previsto.
Aplicaciones no previstas
1.
2.
3.
4.
............................................................................ 38
........................................................................... 38
........................................................................ 41
.......................................................................................................42
..................................................................................... 43
.................................................................................. 43
...................................................................... 44
............................................... 45
..............................................45
......................................................................... 45
........................................................................ 46
..................................................................... 47
Lea esta documentación antes de proceder a la puesta en servicio. Es condiciónindispensable
para trabajar en condiciones de seguridad y para un manejo óptimo.
Respete las indicaciones de seguridad y advertencias que constan tanto en la documentación
como en el equipo.
La presente documentación es un componente másdelproducto descrito y, porconsiguiente,
en caso de ser vendido o cedido también deberá entregarse la documentación.
Este cortacésped no es apto para el uso en instalacionespúblicas, parques o instalaciones
deportivas, así como tampoco para el uso agrícola o forestal
Está prohibidodesmontar o anular los dispositivos de seguridaddelaparato (p. ej. atar la barra
de seguridad al mango)
No utilice el aparato cuandollueva y / o cuando el césped esté mojado
No está permitido utilizar el aparato con finesprofesionales

- 36 -
Dispositivos de seguridad y de protección
Barra de seguridad
El aparato está equipado con una barra de seguridad. Si se produce una situación de peligro,
suéltela inmediatamente. El motor y la cuchilla se detendrán.
Tapa
La tapa protege de posibles piezas que puedan salir expedidas.
Llave de seguridad
A fin de evitar que el aparato se ponga en marcha de forma accidental, éste está equipado con
una llave de seguridad. Antes de realizar los trabajos de mantenimiento, apague siempre el
aparato y retire la llave de seguridad.
Vista general de las piezas
ATENCIÓN!
Peligro de lesiones!
No se deben desactivar los dispositivos de seguridad y de protección.
1
2
3
4
5
6
7
8
9
10
Barra de seguridad
Interruptor de arranque
Indicador del nivel de llenado
Recogedor de hierba
Tapa paragolpes
Regulación de la altura de corte
Compartimento de la batería
Cargador de batería
Llave de seguridad
Batería
1
2
3
4
5
6
7
8
10
9

- 37 -
Símbolos en la máquina
Atención! Proceda con sumo cuidado
Lea el manual de instrucciones antes de utilizar el aparato!
No permita que se acerquen terceras personas a la zona de peligro!
Atención, peligro! ¡Mantenga las manos y los pies alejados del mecanismo de corte!
Mantenga a una distancia respecto de la zona de peligro.
Antes de realizar cualquier trabajo en el aparato, quite siempre la llave de seguridad
Atención!Cuchillas afiladas!
No introduzca las manos en el mecanismo de corte.
No exponer a la lluvia o el agua
No quemar
No deseche las baterías. Devuelva las baterías gastadas a su colección local o punto de
reciclaje.
Los productos eléctricos usados no se deben tirar con la basura doméstica. Por favor,
recicle en las instalaciones correspondientes. Consulte a su autoridad local o minorista
para obtener consejos de reciclaje.

- 38 -
No cortocircuite la batería
Proteja el aparato, la batería y el cargador contra la humedad
Utilice únicamente baterías y cargadores originalesdel fabricante
del aparato.
No abra la batería. Existe peligro de cortocircuito
En caso de una aplicación incorrecta, puede salir líquido de la
batería. Evite el contacto con el líquido. En caso de contacto
accidental, lávese con agua. Si el líquido entra en contacto
con los ojos, acuda además al médico.
Quite la llave de seguridad:
ADVERTENCIAS DE SEGURIDAD
El operador de la máquina o el usuario es responsable de los
accidentes que afecten a otras personas y su propiedad.
Seguridad eléctrica
La tensión de reddebecoincidirconlos datos indicados para el
cargador en las características técnicas; no utilice una tensión
de red diferente
Instrucciones de seguridad de la batería y el cargador
●
●
●
●
●
Instrucciones de seguridad para el funcionamiento
●
No arroje la batería al fuego
Utilice la batería y el cargador únicamente en lugares
protegidos de la lluvia y la humedad.
Proteja la batería contra el calor y la luz directa del sol
ATENCIÓN!
Peligro de lesiones!
No se deben desactivar los dispositivos de seguridad y
de protección.
ATENCIÓN!
Peligro! Peligro de incendio y explosión!
▪
▪
▪
PRECAUCIÓN!
Atención!Peligro de lesiones!
La puesta en marcha accidental del aparato puede
provocar lesiones muygraves. Para evitar esta circunstancia,
¡quite la llave de seguridad después de apagar el aparato!

- 39 -
▪
▪
▪
▪
▪
▪
▪
No esta permitido utilizar el aparato a los ninos y a los adultos
que no esten familiarizados con este manual de instrucciones
Se han de respetar las disposiciones locales sobre la edad
mínimadel usuario.
El aparato sólodebe utilizarse en perfecto estado técnico
No usar el aparato bajo la influencia de alcohol, drogas o
medicamentos.
Antes de utilizar el aparato, compruebe el estadodelaparato y la
batería y sustituya las piezas deterioradas
Antes de empezar a cortar, extraiga todos los cuerpos extraños
del césped
Utiliceropaapropiada:
▪
▪
Durante el trabajoprestar atención a estar bien afianzado.
Las terceras personas han de mantenerse le- jos de la zona de
riesgo
Mantener el cuerpoy la ropaalejadosdeldis- positivo de corte.
Trabajesólo cuando haya suficiente luz na- tural o artificial
Paracortar, mueva el aparato siempre hacia delante y no vaya
nunca marcha atrás
No acerquenunca el cortacésped al cuerpo
No pasepor encima de objetos (p.ej. ramas o raíces).
Para vaciar el material cortado, detenga el motor y quite siempre
la llave
Para cruzar una superficie distinta a la que se quiere cortar,
apague el motor
1No levante ni transporte nunca el aparato con el motor en marcha
No deje el aparato desatendido cuando esté preparadopara
utilizarse
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
MONTAJE
Montar de acuerdo con (A~P)
¡No utilice el aparato hasta que esté montado completamente!
Pantaloneslargos
Calzadorobusto y antideslizante
Antes de dejar el aparato desatendido
Antes de realizar trabajos de revisión, limpieza o mantenimiento
en el aparato
Antes de montar la batería
Si se produce unaavería o vibracionesanómalas en el aparato
Antes de desbloquear el aparato
Antes de desatascar el aparato
Si se produce contacto con cuerpos extraños
