TEKNIX BIM20DBL User manual

Built-in Microwave Oven
INSTRUCTION MANUAL
BIM20DBL/ BIM20DSS
ead these instructions carefully before using
your microwave oven and keep .
If you follow the instructions, your will provide
you with many years of good service.
Cod:0090300219
THESE INSTRUCTIONS

PRECAUTIONS TO AVOIDPOSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open,as this can result
in harmful exposure to microwave energy. It is important not to break or
tamper with the safety locks.
(b) Do not place any object between the door and the door seal, or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the appliance must
not be used until it has been repaired by a qualified engineer.
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
2
BIM20DBL/ BIM20DSS
240V~/50Hz
1300W
800W
20L
270mm
595x336x384mm
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface could
become degraded. This may affect the lifespan of the appliance and lead to a
risk of danger to the user.
Specifications
The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
This microwave is intended to be used in domestic and similar situations,such as:
– staff kitchen areas in shops, offices and other working environments;
–self-catering environments;
–small hotels, motels and other residential type environments;
– bed and breakfast type environments.

IMPORTANT SAFETY INSTRUCTIONS
WARNING
3
To reduce the risk of fire, electric shock, injury to persons or exposure to excessive
microwave oven energy when using your appliance, follow basic precautions, including
the following:
1. Warning: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
2. Warning: It is hazardous for anyone other
than a qualified person to carry out any
service or repair operation that involves
the removal of a cover giving protection
against exposure to microwave energy.
3. Warning: Children should only use the
microwave under supervision,or when
adequate instructions have been given to
enable the child to use the appliance in a
safe way and understand the hazards of
improper use.
4. Warning: When theappliance is operated
in combination mode, children should use
the oven under adult supervision only, due to
the temperatures generated.
(only for models with grill)
5. Only use utensils suitable for use in
microwave ovens.
6. Theoven should be cleaned regularly and
any food deposits should be removed.
7. Read and follow the specific:"PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
9. If smoke is observed, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage
purposes. Do not store items,
such as bread, biscuits etc. inside the
oven.
12. Remove wire twist-tiesand metalhandles
from paper or plastic containers/bags
before placing them in the oven.
13. Install or locate this oven only in
accordance with the installation
instructions provided.
14. Eggs in the shell and whole hard-boiled
eggs should not be heatedin microwave
ovens since they may explode, even
after microwave heating has ended.
15. Use this appliance only for its intended
purpose as described in manual. Do
not use corrosive chemicals in this
appliance. This oven is specifically
designed to heat. It is not designed for
industrial or laboratory use.
16. If the power cable is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
person in order to avoid a hazard.
17. Do not store or use this appliance
outdoors.

4
18. Do not use this oven near water, in a
wet basement or near a swimming pool.
19. Thetemperature of accessible surfaces
may be high when the appliance is
operating. Keep cable away from heated
surface and do not cover any vents on
the oven.
20. Do not let the cable hang over the edge
of a table or counter.
21. Failure to maintain theovenin a clean
condition could lead to deterioration
of the surface that could adversely affect
the life of the appliance and possibly
result in a hazardous situation.
22. The contents of feeding bottles and
baby food jars must be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns.
23. Microwave heating of beverages can
result in delayed eruptive boiling,
therefore take care when handling the
container.
24. The appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
25. Children should be supervised to ensure
that they do not play with the appliance. This
appliance can be used by children aged 8
years and above and by persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved.
Children must not play with the appliance.
Cleaning and user maintenance must
not be undertaken by children without
supervision.
26.The microwave oven must not be placed in
a cabinet.
27.The microwave is intended for heating food
and beverages. The drying of clothing or
heating of warming pads, slippers, sponges,
damp clothsand similar may lead to risk of
injury, ignition or fire. Never immerse the
appliance in water or other liquid when
cleaning.
The appliance must not be cleaned with a
steam cleaner.
28. Metallic containers for food and beverages
must not be used for microwave cooking.
29. Care should be taken not to displace the
turntable when removing containers from the
appliance.
30. The appliance must not be installed behind a
decorative door, to avoid overheating.
31. Important safety instructions - please read
carefully and keep for future reference.

To Reduce the Risk of Injury to Persons
Earth Installation
DANGER
Electric Shock Hazard Touching some
of the internal components can cause
serious personal injury or death. Do not
disassemble this appliance.
WARNING Electric
Shock Hazard Improper use of the
earth wire can result in electric shock.
Do not plug into a socket until the
appliance is properly installed and
earthed.
CLEANING
Be sure to disconnect the oven from the
power supply before cleaning.
1. Clean the inside of the oven after
using with a slightly damp cloth.
2. Clean the accessories in the usual
way in soapy water.
3. The door frame,seal and
neighbouring parts mustbe cleaned
carefully with a damp cloth when
they are dirty.
1. A short power cable is provided to reduce the
risk of becoming entangled in or tripping overa
longer cable.
2. If a long cable or extension cable is used:
1)The marked electrical rating of the cable or
extension cable should be the same as the
electrical rating of the appliance.
2)The extension cable mustbe earthed.
.
3) A long cable should be placed so that it
will not drape over the surface, where it might be
pulled on by children ortripped overunintentionally.
This appliance must be earthed. In the event of
an electrical short circuit, earthing reduces the
risk of electric shock by providing an escape wire
for the electric current. This appliance is equipped
with an earthed cable and plug. The plug must be
plugged into a socket which is properly
installed and earthed by a qualified electrician.
Consult a qualified electrician or serviceman if the
earthing instructions are not completely
understood or if doubt exists as to whether the
appliance is properly earthed. If it is necessary to
use an extension cable, use an earthed 3-wire
extension cable only.
5
Plug

1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
Materials You Can Use InMicrowave Oven
Type
Aluminum Foil Do not use in a microwave.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food untiljust warm.
Do not use if possible and do not leave oven unattended.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow film to touch food.
Thermometers Microwave-safe only (meat thermometers).
WaxPaper
Use as a cover to prevent splattering and retain moisture.
Browning Dish
Glass Jars
Glassware
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for anyone
other than a competent person
to carry out any service or repair
operation which involves the
removal of a cover giving
protection against exposure to
microwave energy.
See the instructions on "Materials you can use in
microwave ovenor to be avoided in microwave oven."
There may be certain non-metallic utensils which are
not safe to use in microwaves. If in doubt, you can test
the utensil in question following theprocedure below.
Utensil Test:
Oven Cooking
Bags
Paper Plates
and Cups
Paper Towels
Parchment
Paper
Plastic
Cling Film
Dinnerware
6

A) Control Panel
B) Turntable Shaft
C) Turntable Ring Assembly
D) Glass Plate
E) Observation Window
F) Door Assembly
G) Safety Interlock System
Materials to be Avoided In Microwave Oven
Type
Aluminum Tray
Food Cartonwith
metal handle
Metal or Metal-
trimmed Utensils
Metal Twist Ties
Paper Bags
Plastic Foam
Wood
F
G
A
C B
ED
SETTING UP YOUR OVEN

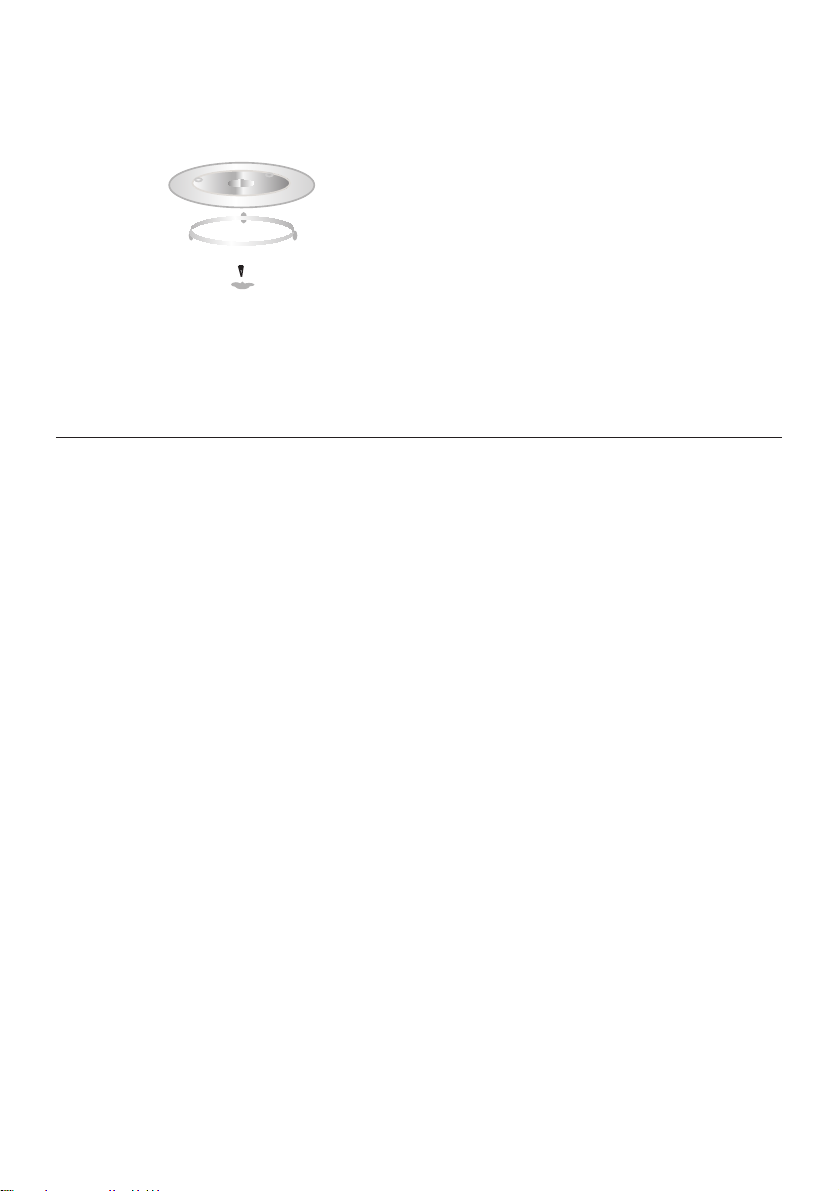

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
1
1
Glass Plate
Turntable Ring Assembly
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Shut off oven power if the door is opened during operation.
7

Installation
1. Remove any protective film found on the microwave oven cabinet surface. Do not
remove the light white Mica cover which is attached to the oven cavity to protect the
magnetron.
2. This oven is intended for built-in use only. It is not intended for counter-top use or
for use inside a cupboard.
3. The appliance can be installed in a 60cm wide wall-mounted cupboard(at least 55cm
deep).
4. The appliance is fitted with a plug and must only be connected to a properly installed
earthed socket.
5. The mains voltage must correspond to the voltage specified on the rating plate.
6. The socket must be installed and connecting cable must only be replaced by a
qualified electrician. If the plug is no longer accessible following installation, an
all-pole disconnecting device must be present on the installation side with a contact
gap of at least3mm.
7. Adapters, multi-way strips and extension leads must not be used. Overloading can
result in a fire risk.
Turntable Ring Assembly
a. Never place the glass plate upside down. The
glass tray should never be restricted.
b. Both glass plate and turntable ring assembly must
always be used during cooking.
c. All food and containers of food must always be
placed on the glass tray for cooking.
d. If glass plate or turntable ring assembly cracks or
breaks, contact your nearest authorised service
provided.
Turntable Installation
Hub (underside)
Glass Plate
Turntable Shaft
8

9
Air out
Air in
600mm
360mm
850mm
Min.550mm
20mm
Back panel
open
45mm
Step 1
Step 2
Step 3 Step 4

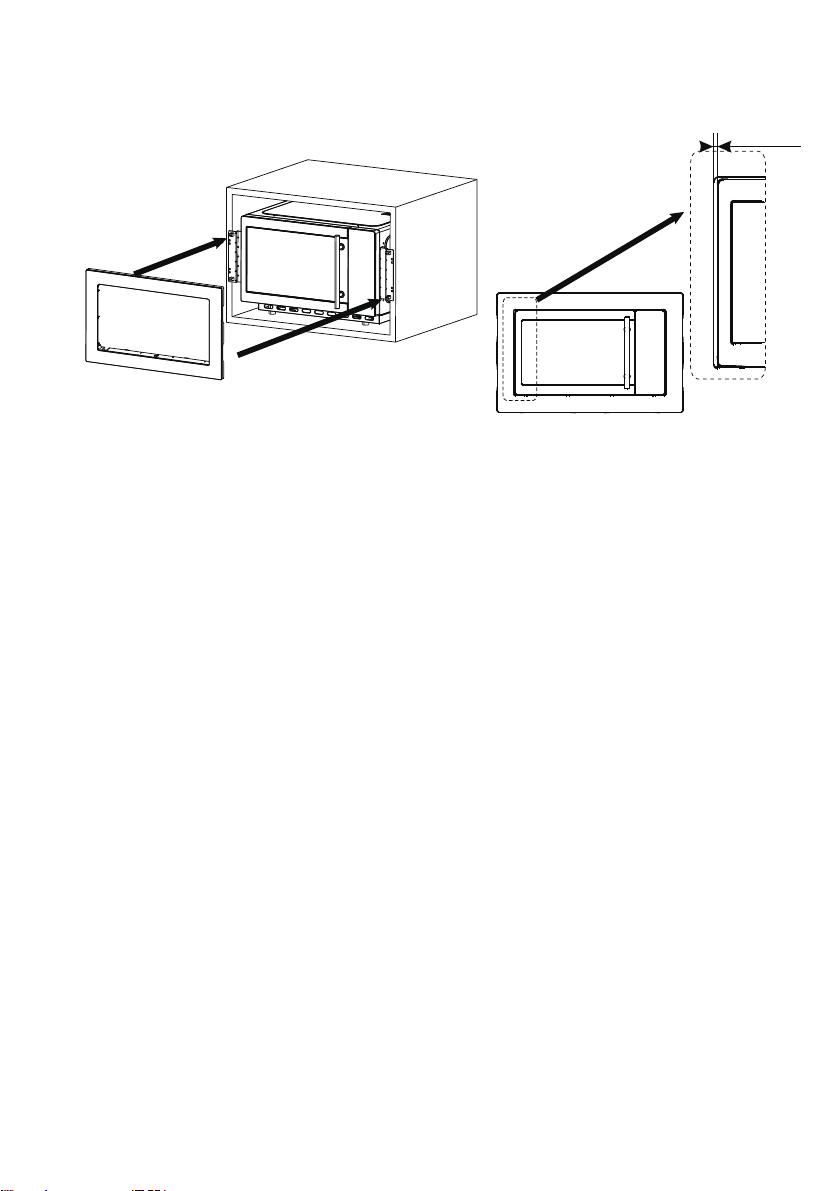

Installation Drawing
560mm

5mm
Installation Warning:
When installing the product, please maintain the width
of Gap A at more than 5mm, to ensure easy and
unrestricted opening of the door.
A
A
10

1) Press " " once the screen display "P100".
2) Turn to adjust the hour figures the input time should be within 0-23
3) Press " Clock " the minute figures will flash.
3) Turn " to adjust the cooking time until the oven displays "20:00".
Operation Instructions
1. Clock Setting
When the microwave oven is , the LED will display "0:00" buzzer will
ring once.
1) Press " Clock " the hour figures will flash.
4) Turn
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
2) Press " " once again to choose 80% microwave power .
5) Press " Clock " to finish clock setting. ":" will flash and the time will .
Note: 1) If the clock is not set, it w not function when .
2) During the process of setting , if you press" ", the oven
will go back to the previous status automatically.
11
2. Microwave Cooking
Press " " the LED will display "P100".Press to choose
the power you want and "P100", "P80" "P50", "P30
" or "P10" will display for each .
" " to start cooking.
Microwave
Microwave
Microwave
START/+30sec.
Microwave
"
"
"to adjust the minute figures, the input time should be within -59.
to set
"
"
"
Then turn cooking time from 0:05 to 95:00. Press
"
STOP/Cancel
4) Press " START/+30sec. "to sta
rt cooking .
Note: the steps for adjusting the time of the coding switch are as follows:

12
Order Microwave
Power
Display
1
2
3
4
5
100%
80%
50%
30%
10%
"Microwave" Pad nstructions
P100
P80
P50
P30
P10
1) Press " " twice and the oven will display "dEF2".
2) Turn to select the defrost time.
3) Press
" "
to start defrosting.
1) Press " " once, and the oven will display "dEF1".
2) Turn to select the weight of food from 100 to 2000 g.
3) Press
" "
to start defrosting.
1)
2) In microwave, cooking or defrost mode, each press of
""
will increase 30 seconds of cooking time.
microwave power, then press
" " to start cooking.
3.
5. Timed Defrost
4. Defrost
Defrost
Defrost
" "
" "
3) From start mode, turn " "
Quick Start
Press START " /+30sec. " to start cooking with 100% power; each additional press
will increase cooking time by 30 seconds up to a maximum of 95 minutes.
START/ +30sec.
START/+30sec.
START/+30sec.
START/+30sec.
anti-clockwise to set cooking time with 100%

13
1) Press to choose the menu, and "A-1" to "A-8" will display
means cake, pizza, soup, meat, pasta, vegetable , potato and reheat .
2) Turn " " to choose the default weight as menu chart.
6. Menu
"" uneM
2) Turn
3) Press to start cooking.
" "
t o select the weight of vegetable till "400" display..
" "
The Menu Chart:
Menu Weight Display
A-2
Pizza
A-3
Soup
A-4
Meat
A-5
Pasta
A-6
Vegetable
Potato
A-8
Reheat
200 g
475 g
200 g
400 g
200 g
400 g
600 g
200 g
400 g
600 g
50 g
100 g
150 g
200 g
250 g
500 g
750 g
A-1
Cake
200 g
475 g
200 g
400 g
200 g
400 g
600 g
200 g
400 g
600 g
50 g
100 g
150 g
200 g
400 g
600 g
250 g
500 g
750 g
600 g
400 g
A-7
200 g 200 g
400 g 400 g
600 g 600 g
3) Press START
"
/+30sec.
"
to start cooking.
E: If you want to use " Menu" to cook vegetable for 400g.
1) Press " Menu " six times till "A-6" display.
START/+30sec.

14

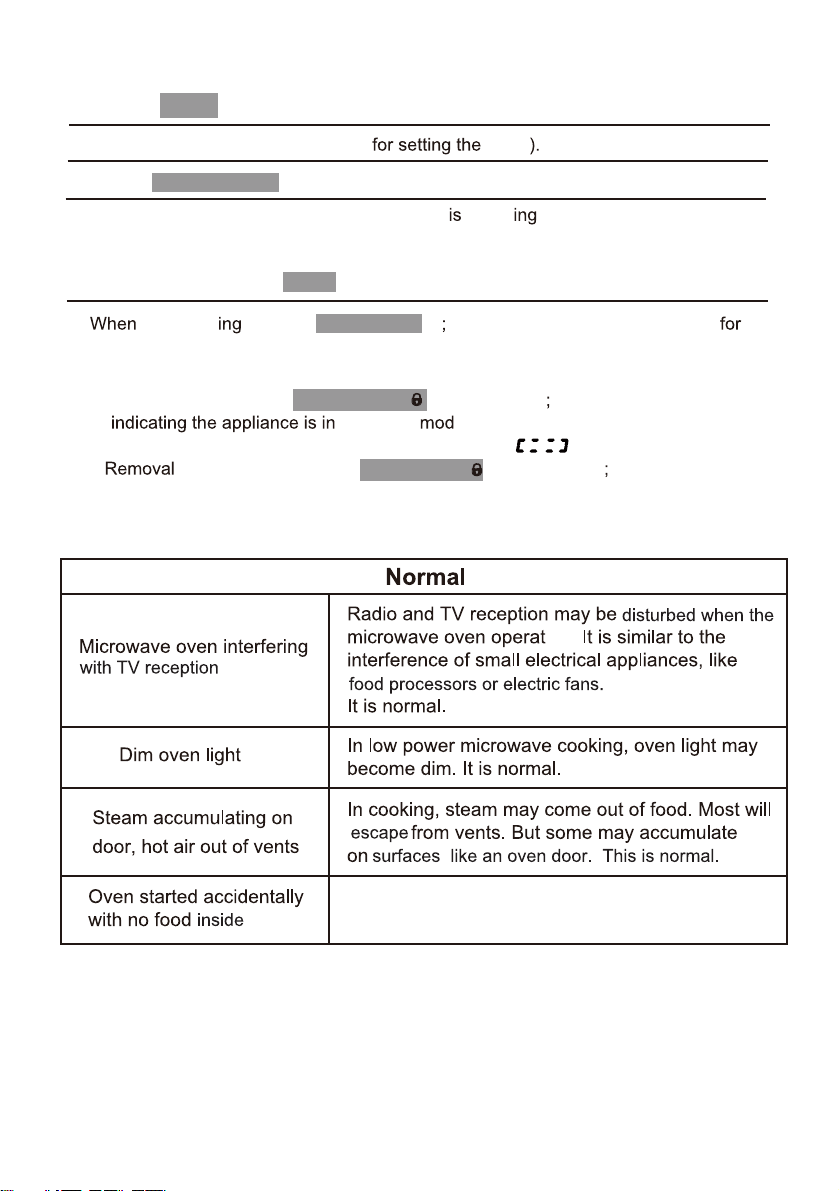

7. Timer
1) Press " Timer " once and the LED will display " 0:00 ".
2) Set timer. (Consult the instruction clock
3) Press
" " to start the timer.
4) The buzzer will ring 5 times when the time count down.
8. Checking Current Functions
1) In cooking state, press " ", the current time will be displayed 3 seconds.
2) microwav , press "
Clock
Microwave " the current power will be displayed 3
seconds.
9. Child Lock Function
Lock: In waiting state, press"
child-lock e and the locked indicator will display if the
"beep" denoting that the lock is released.

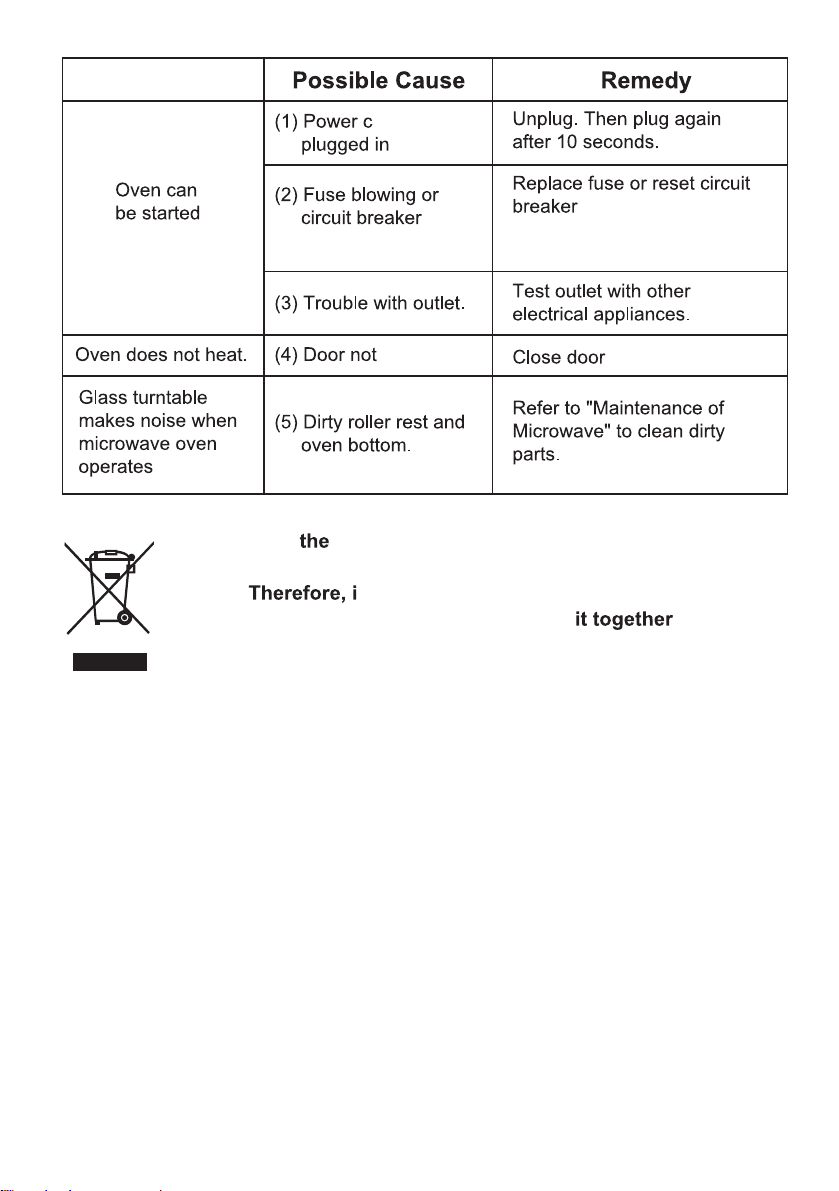

Troubleshooting
It is forbidden to run the unit without any food inside.
It is very dangerous.
START/+30sec.
STOP/ Cancel " for 2 seconds there will be a long beep
time has been set, otherwise, the LED will display " ".
Lock : In locked state, press STOP/
"
Cancel " for 3 seconds there will be a
long
es.

15
According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. f at any time in future you need to dispose
of this product,please do NOT dispose of with
household waste. Please send this product to WEEE collecting
points where available. Contact your local authority for details.
not
able not
correctly.
not working properly.
closed. properly.
Problem
v2
