Thermador PROFESSIONAL VCIB36JP User manual

INSTALLATION MANUAL
For THERMADOR PROFESSIONAL® Custom Insert
MANUEL D'INSTALLATION
Pour hottes encastrées sur mesure PROFESSIONALmc
de THERMADOR
MANUAL DE INSTALACIÓN
Para campanas empotradas a medida PROFESSIONAL®
de THERMADOR
Models/
Modèles/
Modelos:
VCIN36JP
VCIN48JP
VCIN54JP
VCIB36JP
VCIB48JP
VCIB54JP

Table of Contents
This THERMADOR®appliance is made by
BSH Home Appliances Corporation
1901 Main Street, Suite 600
Irvine, CA 92614
Questions?
1-800-735-4328
www.thermador.com
We look forward to hearing from you!
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Advance Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Installation Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Ductwork Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Choosing the Correct Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Blower Motor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Remote Installation (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
VCIN Model Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
VCIB Model Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Installing Filters, Filter Spacers, & Grease Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Before Calling Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Product Data Rating Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Installer Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
To Clean & Protect Exterior Surfaces . . . . . . . . . . . . . . . . . . . . . . . .30
THERMADOR®Service, Parts & Accessories. . . . . . . . . . . . back page

English 1
Safety
IMPORTANT: Save these Instructions for the local
electrical inspector’s use.
INSTALLER: Please leave these Instructions with this unit
for the owner. Show the owner the location of the circuit
breaker or fuse. Mark it for easy reference.
OWNER: Please retain these instructions for future
reference.
Electric Safety
Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
WARNING:
If the information in this manual is not followed exactly,
fire or shock may result causing property damage or
personal injury.
WARNING:
Turn off power circuit at service panel and lock out panel
before wiring this appliance. Requirement: 120 VAC, 60
Hz 15 A. Allow the appliance to cool after the power has
been turned off before servicing the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
• Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
listed on the back page.
• Before servicing or cleaning unit, switch power off at
service panel and lock the service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
WARNING:
Do not repair or replace any part of the appliance unless
specifically recommended in the manuals. Improper
installation, service or maintenance can cause injury or
property damage. Refer to this manual for guidance. All
other servicing should be done by a qualified technician.
WARNING:
IMPROPERGROUNDINGCANRESULTIN
A RISK OF ELECTRIC SHOCK.
Consult a qualified electrician if the
grounding instructions are not completely
understood, or if doubt exists as to whether
the appliance is properly grounded. If the
power cord is too short, have a qualified
electrician install an outlet near the
appliance. DO NOT USE AN EXTENSION
CORD.
WARNING:
Electrical Shock Hazard
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Improper grounding can result in a risk
of electric shock.
• Failure to follow these instructions can
result in death, fire, or electrical shock.

English 2
Grounding Instructions:
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current.
Be sure your appliance is properly installed and grounded
by a qualified technician. Installation, electrical connections
and grounding must comply with all applicable codes.
If required by the National Electrical Code (or Canadian
Electrical Code), this appliance must be installed on a
separate branch circuit.
To reduce the risk of fire or electric shock, do not use this
appliance with any solid-state speed control devices.
Appliance Handling Safety
Related Equipment Safety
Never modify or alter the construction of the appliance. For
example, do not remove panels, wire covers or brackets/
screws.
When cutting or drilling into wall or ceiling, be careful not to
damage electrical wiring and other hidden utilities.
Use a quali¿ed and trained installer.
Safety Codes and Standards
This appliance complies with one or more of the following
Standards:
• UL 858, The Standard for the Safety of Household
Electric Ranges
• UL 923, The Standard for the Safety of Microwave
Cooking Appliances
• UL 507, The Standard for the Safety of Electric Fans
• UL 1026, The Standard for the Safety of Electric
Household Cooking and Food Serving Appliances
• ANSI Z21.1, The American National Standard for
Household Cooking Gas Appliances
• CSA C22.2 No. 64, Household Cooking and Liquid-
Heating Appliances
• CSA C22.2 No. 113, Fans and Ventilators
• CSA C22.2 No. 61, Household Cooking Ranges
It is the responsibility of the owner and the installer to
determine if additional requirements and/or standards
apply to specific installations.
Ventilation Safety
Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
CAUTION:
Unit is heavy and requires at least two
people or proper equipment to move and
install.
Hidden surfaces may have sharp edges.
Use caution when handling the appliance.
Failure to do so may result in property
damage or personal injury.
CAUTION:
For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors. To reduce
the risk of fire, use only metal ductwork.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
• Installation work and electrical wiring must be done
by qualified person(s) in accordance with all
applicable codes and standards, including fire-rated
construction.
• Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer's
guideline and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code
authorities.
• Use only metal ductwork.
• Ducted fans must always be vented to the outdoors.
Do not vent exhaust air into spaces within walls,
ceilings, attics, crawl spaces or garages.
• When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.

English 3
Advance Planning
Before You Begin
Remove all tape and packaging before using the
appliance. Please, recycle the packaging
material, as all THERMADOR®appliance
packaging material is recyclable. Never allow
children to play with packaging material.
Parts Included
1 – 1000 CFM integral blower
(VCIBxxJP models only)
1 – Metal transition with backdraft
damper
2, 3, or 4 – Stainless steel baffle
filters (depending on model size)
2 – Filter spacers
2 or 3 – Grease trays (depending on
model size)
1 – Liner (VCIBxxJP models only)
4 – Side trims (VCINxxJP models
only)
2 or 4 – Halogen lights (installed)
1 – Remote blower adaptor
1 – Fastener assortment
Use & Care Guide, Installation Manual, and Registration
Card
CAUTION:
Before installing, turn power OFF at the service panel.
Lock service panel to prevent power from being turned
ON accidentally.
Tools and Parts Needed
Blower motor (VCINxxJP models only, see Table 5)
Ductwork as necessary (style varies, see Table 4)
Additional sheet metal screws (as necessary for
ductwork installation)
1” (25.4 mm) Strain relief
Aluminum tape (DO NOT use duct tape)
1/2” (13 mm) Conduit if required (follow local codes)
Framing material (as necessary for framework)
Circular saw or jigsaw
Tape measure
Phillips head screwdriver
Protective work gloves
Available Accessories
LINER236 – 36” Custom Hood Liner (VCIN models
only)
LINER248 – 48” Custom Hood Liner (VCIN models
only)
LINER254 – 54” Custom Hood Liner (VCIN models
only)
VCI2REMKS – Remote Control

English 4
General Information
This manual provides the proper installation instructions for two styles of THERMADOR PROFESSIONAL®custom insert
hoods:
VCINxxJP Overall Dimensions
VCINxxJP — 22” (559 mm) in depth and with widths of 33¾” (857 mm), 45¾” (1,162 mm) or 51¾” (1,315 mm). This
model series features brushed stainless-steel filters and halogen lights.
36” 48” 54”
A33¾”
(857 mm) 45¾” (1,162 mm) 51¾” (1,315 mm)
B16ǩ”
(410 mm) 22ǩ” (562 mm) 25ǩ” (640 mm)
C32Ǫ”
(822 mm) 40Ǫ” (1,127 mm) 50Ǫ” (1,280 mm)
Table 1: VCIN Custom Insert Overall Dimensions
Rear View
Top View
B
C
11/16”
(17 mm)
21¾”
(553 mm)
22”
(559 mm)
1
5
8
"
/
(42mm)
1213 16
”
/
(325 mm)
4
5 16
"
/
(110 mm)
A

English 5
VCIBxxJP Overall Dimensions
VCIBxxJP — 24” (610 mm) in depth and with widths of 41½” (1,054 mm), 52½” (1,334 mm) or 58½” (1,486 mm). This
model series features brushed stainless-steel filters, halogen lights, hood liner, and a 1000CFM integral blower.
36 po 48 po 54 po
A40½”
(1,029 mm) 52½” (1,334 mm) 58½” (1,486 mm)
B163/16”
(411 mm) 223/16” (564 mm) 253/16” (640 mm)
C32Ǫ”
(822 mm) 44Ǫ” (1,127 mm) 50Ǫ” (1,280 mm)
Table 2: VCIB Custom Insert Overall Dimensions
Rear View
B
C
14516
”
/
(363 mm)
Top View
21¾”
(553 mm) 24¾”
(629 mm)
A
1
5
8
"
/
(42mm)
4
5 16
"
/
(110 mm)

English 6
Installation Preparation
The custom insert unit is designed for installation inside a
custom-built hood assembly. It is for ducting to the outside.
It cannot be used in conjunction with a recirculation unit.
Hood installation height above a cooktop, rangetop or
range can vary. To obtain the necessary installation height
above a cooktop, rangetop or range, consult the
appliance's installation manual.
NOTICE:
The hood could incur some damage from heat if a
THERMADOR PROFESSIONAL®series range or
rangetop is operated with multiple burners at high settings
under a hood that is installed at minimum clearances.
Hood Width
The hood width should be no less than the width of the
cooking surface. For proper performance, the housing must
cover the entire cooking surface.
Where space is not restricted, a wider hood can be used to
increase capture area.
Distance From Cooking Surface
The installation height ranges from a minimum height of 30”
(762 mm) to a maximum height of 40” (1,016 mm);
however, it is necessary to follow the cooking appliance
manufacturer’s installation instructions for proper hood
height.
Unit Weight
When calculating the load for the housing support system,
be sure to consider the weight of the ventilation unit.
Figure 1: Typical Hood Installation
30” – 40”
(762 – 1,016 mm)
to Countertop
Model Weight
VCIN36JP 60 lb (27.22 kg)
VCIN48JP 73 lb (33.11 kg)
VCIN54JP 82 lb (37.20 kg)
VCIB36JP 96 lb (43.54 kg)
VCIB48JP 111 lb (50.35 kg)
VCIB54JP 122 lb (55.34 kg)
IMPORTANT:
The supplied weights address only the ventilation unit
and blower. Installer must account for weight of any
materials of construction when calculating the total dead
weight load of installation, including but not limited to:
wall, tile, mortar, plaster, brick, finishes, partitions, and
other similarly incorporated architectural and structural
items. It is the responsibility of the owner and the
installer to determine if additional requirements and/or
standards apply to specific installations.
Table 3: Unit Weight with Blowers

English 7
Ductwork Preparation
Ducting Recommendations
Proper performance is dependent upon proper ducting.
Local building codes may require the use of make-up air
systems when using ducted ventilation systems greater
than speci¿ed cubic feet per minute (CFM) of air
movement. The speci¿ed CFM varies from locale to locale.
It is the responsibility of the owner and the installer to
determine if additional requirements and/or standards
apply to specific installations.
DO NOT USE FLEXIBLE DUCT; it creates back pressure/
air turbulence and reduces performance. Always use metal
ductwork with a minimum diameter of 6” (150 mm).
Always install a metal vent cover where the ductwork exits
the house.
COLD WEATHER installations should have an additional
backdraft damper installed to minimize backward cold air
flow and a nonmetallic thermal break to minimize
conduction of outside temperatures as part of the ductwork.
The damper should be on the cold air side of the thermal
break. The break should be as close as possible to where
the ducting enters the heated portion of the house.
MAKE-UP AIR: Local building codes may require the use
of make-up air systems when using ducted ventilation
systems greater than specified CFM of air movement. The
specified CFM varies from locale to locale. It is the
responsibility of the owner and the installer to determine if
additional requirements and/or standards apply to specific
installations.
For safety reasons, ducting should vent directly outdoors
(not into an attic, underneath the house, into the garage or
into any enclosed space). The unit cannot be used in
conjunction with a recirculation unit.
If using a 10" (254 mm) duct, THERMADOR®recommends
not exceeding 150 ft (46 m) of duct.
Keep duct runs as short and straight as possible. Elbows
and transitions fittings reduce air flow efficiency. Back to
back elbows and “S” turns give very poor delivery and are
not recommended.
A short straight length of duct at the inlet of a remote
blower gives the best delivery.
Hoods are supplied with a 10" (254 mm) round transition. A
locally supplied transition is required for other sizes.
Transitions, elbows and wall or roof caps are all factors that
will add more static pressure, therefore increasing your
equivalent duct run. For example, assume you have 30 ft
(9.2 m) of straight 10" (254 mm) duct with two 90° elbows
and an outside wall cap. To calculate the equivalent
straight duct run pressure, you would add 12 ft (12.7 m) for
each elbow, and 5 ft (1.5 m) for the outside wall cap,
increasing your equivalent total run from 30 to 59 ft (9.1 to
17.9 m).
Use Table 4 on page 8 to compute permissible lengths for
duct runs to outdoors.
NOTE:
Do not exceed maximum permissible equivalent lengths.

English 8
Smooth
Straight
6 1.2
7 0.95
8 0.7
10 0.6
3¼" x 10"
Straight N/A 1
3¼" x 14"
Straight N/A 0.7
90° Elbow
Round
612
78
86
45° Elbow
Round
65
74
83
3¼"x 10"
90° Elbow
Round
N/A 5
3¼” x 10"
45° Elbow
Round
N/A 15
3¼"x 10"
Flat Elbow N/A 20
Round to
3¼"x 10"
61
71
3¼"x 10"
to Round
65
73
Round to
3¼"x 10"
90° Elbow
610
78
3¼"x 10"
to Round
90° Elbow
610
75
3¼"x 10"
Center Reverse
Elbow Left
N/A 15
3¼"x 10"
Center Reverse
Elbow Right
N/A 25
3¼"x 10" Left
Reverse Elbow N/A 15
3¼"x 10"
Right Reverse
Elbow
N/A 25
Round
Wall Cap
62
72
82
10 2
Round
Roof Cap
62
72
82
2' Long
3¼"x 10"
Flex
N/A 20
3¼"x 10"
to Round 10 1
7" Inline
Backdraft
Damper
7
3¼"x 10"
Roof Jack
and Shutter
N/A
NOTE: These commonly used installation parts can be purchased
at a local hardware store. THERMADOR® does not manufacture all
these parts.
Duct Piece Size of Duct
Piece (in) Duct Piece Size of Duct Piece (in)
Equivalent
Length (ft)
Equivalent
Length (ft)
EQUIVALENT DUCT LENGTHS FOR COMMONLY USED TRANSITIONS
Table 4: Duct Lengths

English 9
Assembly of the Transition
1. A minimum height clearance of 10¼” (260 mm) is
needed above the hood for transition mounting.
2. Remove transition from inside of hood. Discard
brackets attaching transition to the inside of hood.
3. Align mounting holes at base of transition with the
mounting holes of the 1/2” (13 mm) flange located at
the top or rear of the hood.
4. Fasten transition to hood using two (2) 1” (25.4 mm)
sheet metal screws included with hood.
5. Seal connection between transition and hood with
aluminum tape. DO NOT use duct tape.
6. Remove tape holding damper closed.

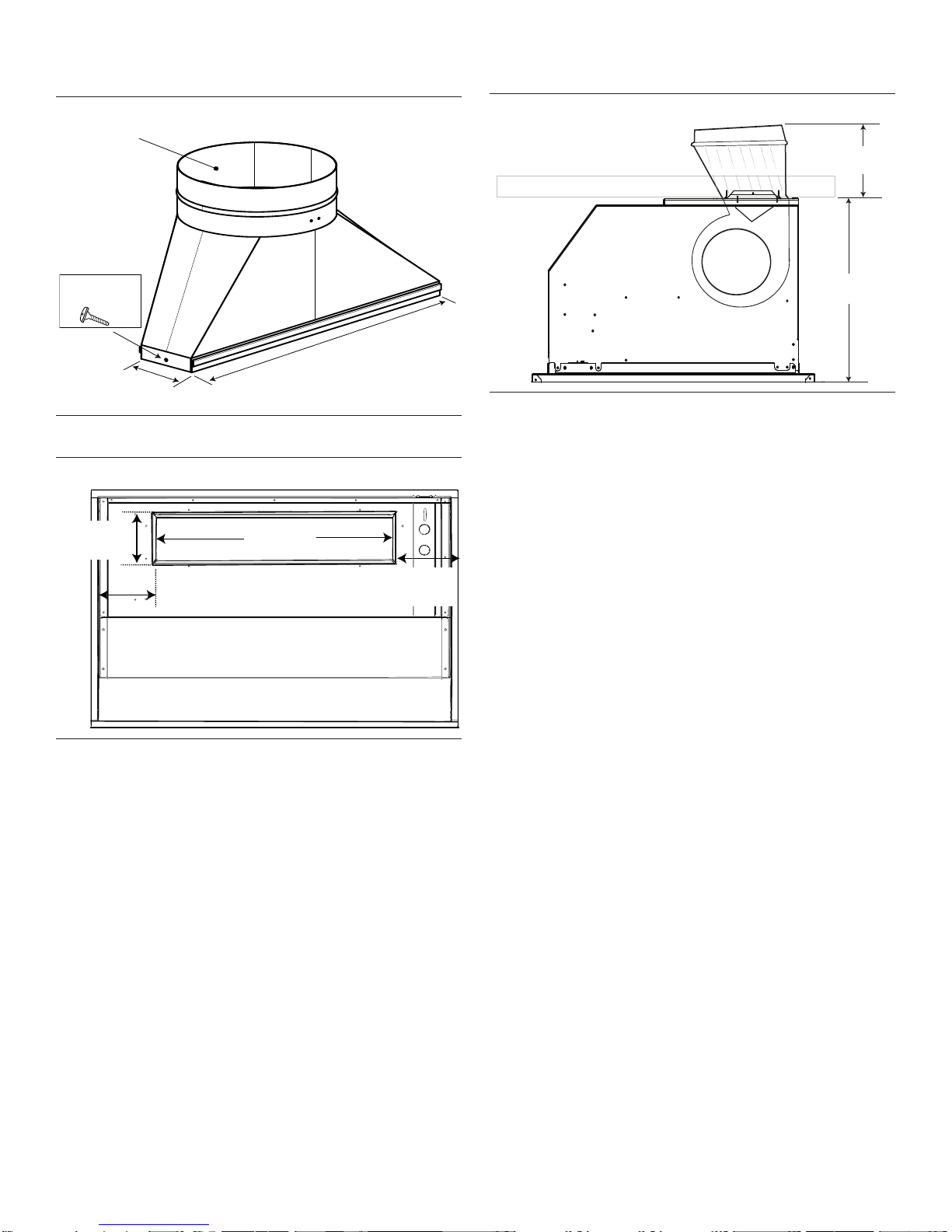

Figure 2: Transition Dimensions
Figure 3: Transition Cutout
10” (254 mm)
Duct
17½” (445 mm)
3
516
(84 mm)
/”
1” (25.4 mm)
screw x2
21¾”
(552 mm)
11¼”
(286 mm)
45/
16
"
(502 mm)
17½”
(444 mm)
Figure 4: Transition Centerline
10¼”
(260 mm)
12
13
/
16
”
(325 mm)

English 10
Electrical Requirements
The unit requires a 120V AC, 60Hz. 15A branch circuit.
The hood should only be connected to a grounded socket
that has been installed according to relevant regulations. If
possible, place the grounded socket directly behind the
chimney paneling. Attach the grounded socket as close to
the appliance as possible and in an accessible location.
• The grounded socket should be connected to its own
circuit.
• If the grounded socket is no longer accessible following
installation of the hood, make sure that an electrical
switch is permanently installed for turning off the
appliance.
When connected to a GFCI-protected supply,
THERMADOR PROFESSIONAL®custom insert hoods are
suitable for use in damp locations that are protected from
outside weather conditions and not subject to saturation
with water and other liquids, but can be subject to
moderate degrees of moisture (such as an outdoor covered
patio or lanai area). Refer to local codes, NEC/CEC, and or
the Authority Having Jurisdiction (AHJ) for additional
information.
Check your local building codes for proper method of
installation. In the U.S., if there are no applicable local
codes, this unit should be installed in accordance with the
National Electric Code ANSI/NFPA No. 70, Current Issue.
In Canada, installation must be in accordance with the CAN
1- B149.1 and .2 - Installation Codes for Gas Burning
Appliances and/or local codes.
The appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of electric
shock by providing a wire that allows the electric current to
escape. This appliance has a cord with a ground wire and
grounded plug. The plug must be plugged into an outlet
that is properly installed and grounded.
Electrical Data:
Data, including the model and serial number, is located on
the product data rating plate inside the appliance, visible

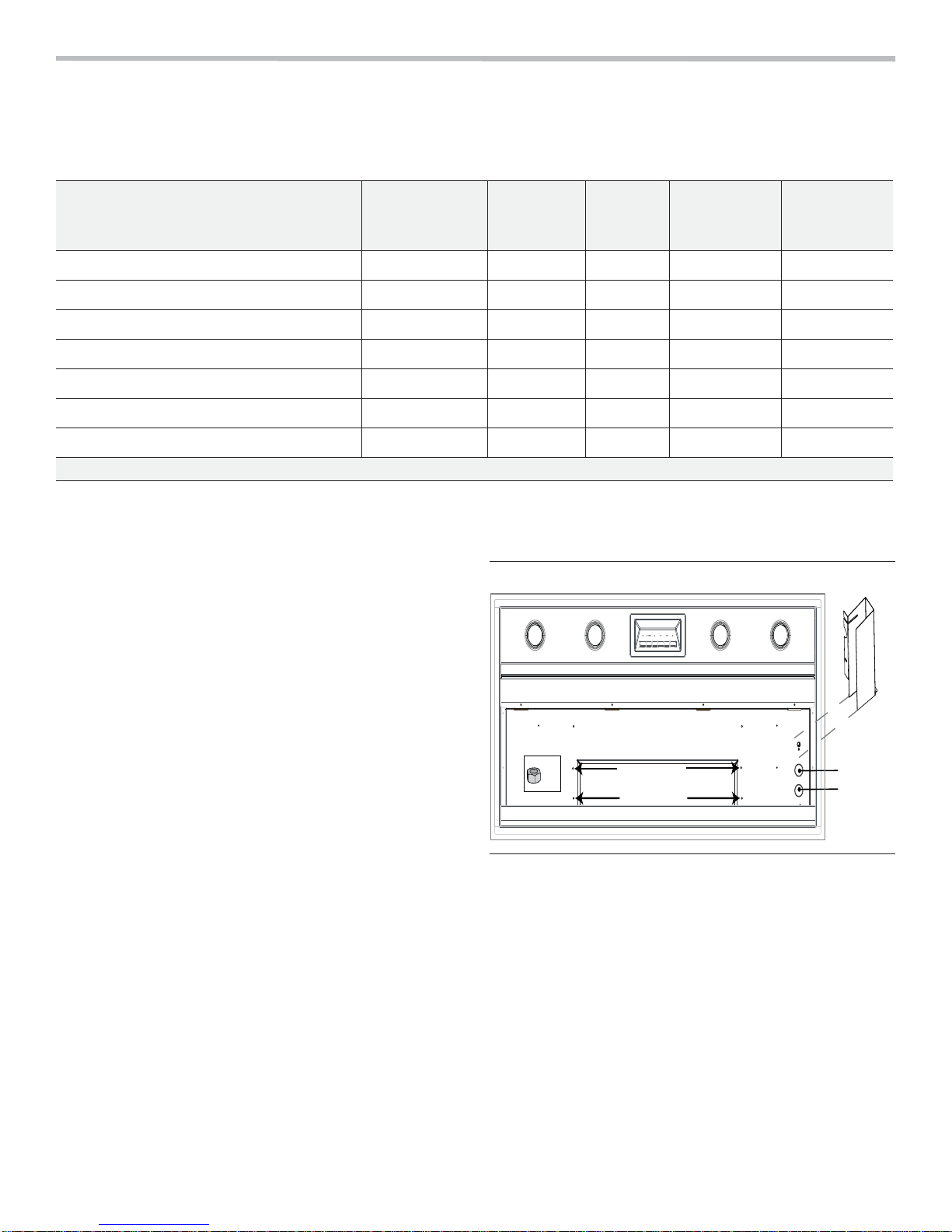

after removal of the filter frame (see Figure 40 on page 29).
Choosing the Correct
Blower
A variety of interior and exterior blower options (Remote,
Inline or Integral) are available for THERMADOR
PROFESSIONAL®custom insert series hoods. If the unit
you have selected does not have a blower included, one
must be purchased separately.
Use only THERMADOR®blowers with THERMADOR
ventilation hoods. See Table 5: Blower & Circuit Breaker
Ratings on page 11, for recommended blowers. Contact
Customer Service for additional options (see the back page
for contact information).
Blower selection will vary based on the volume of air that
needs to be moved and the length and location of the duct
run. For long duct runs with multiple turns and bends,
consider using a more powerful blower. For the most
efficient air-Àow exhaust, use a straight run or as few
elbows as possible (refer to “Ductwork Preparation” on
page 7).
For indoor grill installations, THERMADOR recommends a
minimum of 36" (914 mm) clearance to the bottom of the
ventilation unit and Remote or Inline blowers only.
Integral Blowers
These blowers are integrated into the hood at the time of
installation (included with the VCIB model units).
Remote Blowers
Depending on preference and ducting situation, these
blowers can be mounted on the roof or exterior wall of the
home. An exterior installation may be more appealing to
reduce noise in the kitchen.
Inline Blowers
To minimize noise in the kitchen, these blowers are
mounted along the duct line anywhere between the kitchen
and the exterior wall. If there is easy access to duct line (in
an attic, for example), this may be an appealing option.
WARNING:
The appliance must be grounded.

English 11
Installation Instructions
Blower Motor Installation
Integral blower installation only
1. The blower is attached to the hood using weld studs
provided on the mounting plate. Figure 5 exhibits the
weld stud locations.
2. Guide the motor mounting plate over the studs.
3. Attach four (4) nuts (included with hood) to the weld
studs. Tighten nuts to secure the blower to the hood.
4. Continue to “Wiring the Hood with an Integral Blower”
on page 12.
BLOWER SKU CFM* VOLTAGE
(AC)
BLOWER
CURRENT
(AMPS)
CIRCUIT
BREAKER
(AMPS)
Integral Blower 600 CFM VTN630C 600 120 2.7 15
Integral Blower 1000 CFM VTN1030C 1000 120 5.4 15
Remote Blower 600 CFM VTR630D 600 120 4.2 15
Remote Blower 1000 CFM VTR1030D 1000 120 5.7 15
Remote Blower 1300 CFM VTR1330E 1300 120 8.5 15
Inline Blower 600 CFM VTI610D 600 120 4.2 15
Inline Blower 1000 CFM VTI1010D 1000 120 5.7 15
* CFM= Cubic feet per minute
Table 5: Blower & Circuit Breaker Ratings

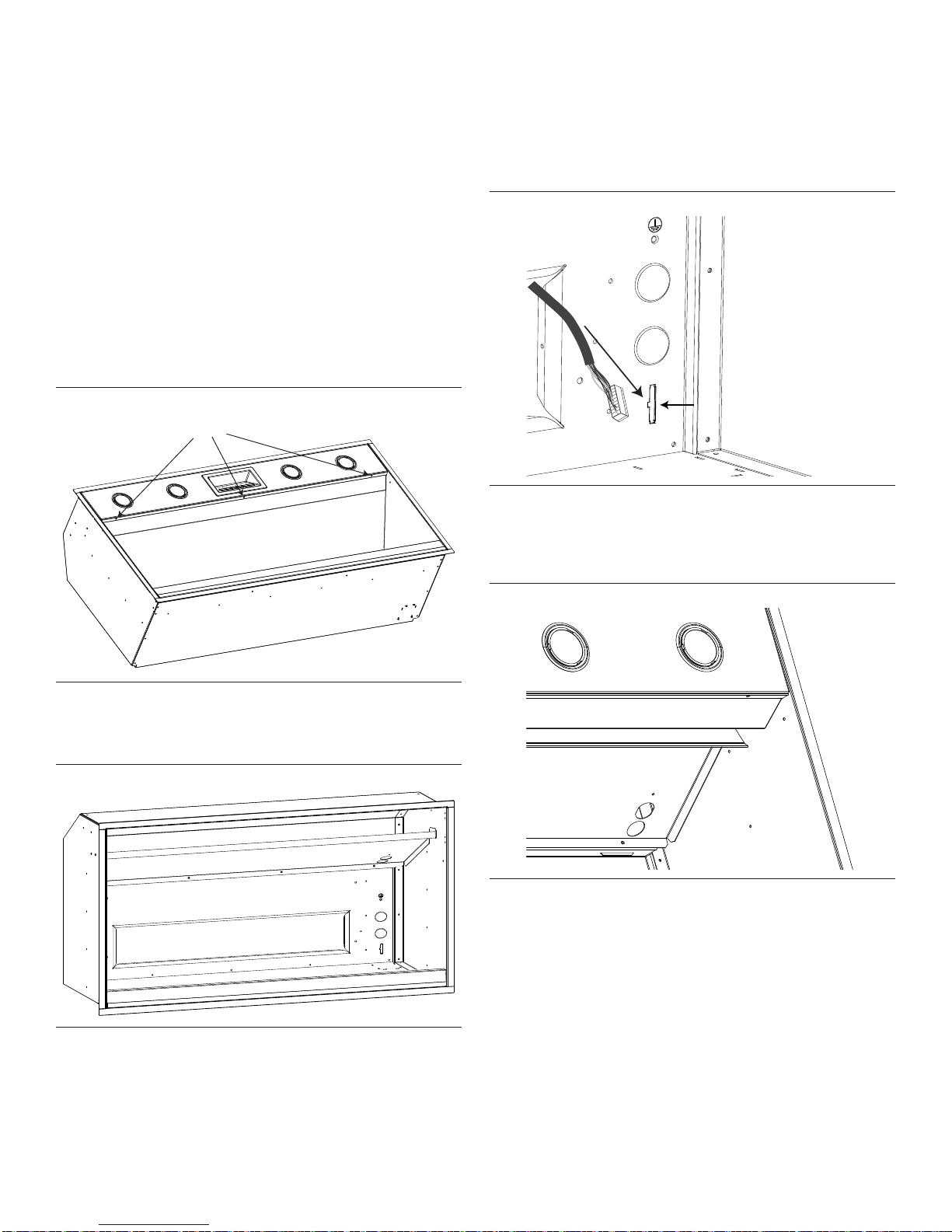

Figure 5: Weld Stud & Junction Box Locations
Knockouts
behind
junction
box
Weld Studs
x4

English 12
Wiring the Hood with an
Integral Blower
Integral Blower models VTN630C and VTN1030C are
integrated into the hood at the time of installation (VCIN
models). For complete installation instructions see the
instructions supplied with the blower unit.
1. Remove junction box channel covering the wires (see
Figure 5 on page 11).
2. Remove circular knockouts (Figure 5 on page 11).
3. Connect the blower’s Molex plug connector to the
connector present inside the hood, as shown in
Figure 7.
4. Install 1” (25.4 mm) conduit connector in junction box.
5. Run black, white, and green wires (#12 AWG) in 1”
(25.4 mm) conduit from the power supply to the
junction box.
6. Connect the power supply wires to the hood wires in
the following order: black to black, white to white, and
green wire to green ground screw on chassis. Use
spring type wire nuts supplied.
• Lost or missing wire nuts should only be replaced
with spring type wire nuts rated for a minimum of
two (2) #18 gauge wires and maximum of four (4)
#14 gauge wires, UL & CSA rated to 600V and
302°F (150°C.)
7. Close the junction box cover.
Figure 6: Integral Blower Model VTN1030C
Figure 7: Wiring the Hood with an Integral Blower
21/4"
(57 mm)
67/8"25"
(635 mm)
63/4"
(171 mm)
87/8"
(225 mm)
41/8"
81/4" (210 mm)
(175 mm)
(105 mm)
From Control Panel
From Blower

English 13
Wiring the Hood with a
Remote Blower
Custom insert models can be installed with remote blowers
(VCIN models). For complete installation instructions see
the instructions supplied with the blower unit.
1. Remove junction box channel covering the wires (see
Figure 5 on page 11).
2. Remove circular knockouts (Figure 5 on page 11).
3. Install 1” (25.4 mm) conduit connectors.
4. Run black, white, and green wires (#12 AWG) in 1”
(25.4 mm) conduit from the power supply to the
junction box.
5. Connect the power supply wires to the hood wires in
the following order: black to black, white to white, and
green wire to green ground screw on chassis. Use
spring type wire nuts supplied.
• Lost or missing wire nuts should only be replaced
with spring type wire nuts, rated for a minimum of
two (2) #18 gauge wires and maximum of four (4)
#14 gauge wires, UL & CSA rated to 600V and
302°F (150°C).
6. Connect the “pigtail” to the connector inside the
junction box.
7. Run five (5) #14 AWG wires in 1” (25.4 mm) conduit
from the remote blower to the second conduit
connector.
8. Connect the remote blower to the pigtail wires as per
Figure 9. Connect the remote blower green (ground)
wire to the ground screw in the junction box. Refer to
the blower installation instructions for further wiring
details.
9. Close the junction box cover.
Figure 8: VTR1330E Remote Blower
Figure 9: Wiring the Hood with a Remote Blower
19
7/8
"
(505 mm)
2
1/8
"
(54 mm)
10"
(254 mm)
2
1/8
"
(54 mm)
20
3/4
"
(527 mm)
12
7/8
"
(327 mm)
12
1/8
"
(308 mm)
6
1/2
"
(165 mm)
1
7/8
"
(48 mm)
13
5/8
"
(346 mm)
dia. 9
7/8
"
(251 mm)

English 14
Wiring the Hood with an
Inline Blower
Both VCIN and VCIB custom insert models can be
installed with inline blowers. For complete installation
instructions see the instructions supplied with the blower
unit.
1. Remove junction box channel covering the wires (see
Figure 5 on page 11).
2. Remove circular knockouts (Figure 5 on page 11).
3. Install 1” (25.4 mm) conduit connectors.
4. Run black, white, and green wires (#12 AWG) in 1”
(25.4 mm) conduit from power supply to junction box.
5. Connect the power supply wires to the hood wires in
the following order: black to black, white to white, and
green wire to green ground screw on chassis. Use
spring type wire nuts supplied.
• Lost or missing wire nuts should only be replaced
with spring type wire nuts, rated for a minimum of
two (2 #18 gauge wires and maximum of four (4)
#14 gauge wires, UL & CSA rated to 600V and
302°F (150°C).
6. Connect the “pigtail” to the connector inside the
junction box.
7. Run five (5) wires (#14 AWG) in 1” (25.4 mm) conduit
from the inline blower to the second conduit connector.
8. Connect the inline blower to the pigtail wires as per
Figure 11. Connect the inline blower green (ground)
wire to the ground screw in the junction box.
9. Close the junction box cover.
Figure 10: VTI1010D Inline Blower
Figure 11: Wiring the Hood with an Inline Blower
121/8 "
(308 mm)
14 3/8
"
(365 mm)
7/8
" (22 mm)
13/4
"
(44 mm)
191/8
"
(486 mm)
ø9
7/8
"
(251 mm)
12
"
(305 mm)
127/8
"
(327 mm)

English 15
Remote Control Installation (optional)
NOTE: When using the Custom Insert with remote the unit
loses the “AUTO” function and the over-temperature heat
sensor described in the Use & Care Guide.
It is recommended that the Remote Control be wired to the
hood after the hood is installed.
1. Access wiring
a) Remove filters, spacers and grease trays.
b) Remove the junction box cover (refer to Figure 5
on page 11).
c) Remove three screws holding stainless steel panel
to canopy.
d) Remove core partition (Figure 13).
2. Connecting the harness to the relay board
a) Insert remote harness end into the mounting hole,
as indicated in Figure 14, until it clicks.
b) Run harness through core partition hole
(Figure 15).
c) Unplug harness from the remote control to the
relay board (Figure 16).
Figure 12: Remove stainless steel panel
Figure 13: Remove core partition
Remove 3x screws
Figure 14: Remote Harness Mounting Hole
Figure 15: Wire Routing through Partition
Harness
Mounting
Hole
Remote
Harness

English 16
d) Plug in harness included in the remote kit
(Figure 16). e) Connect the extension harness to the connector inside the junction box.

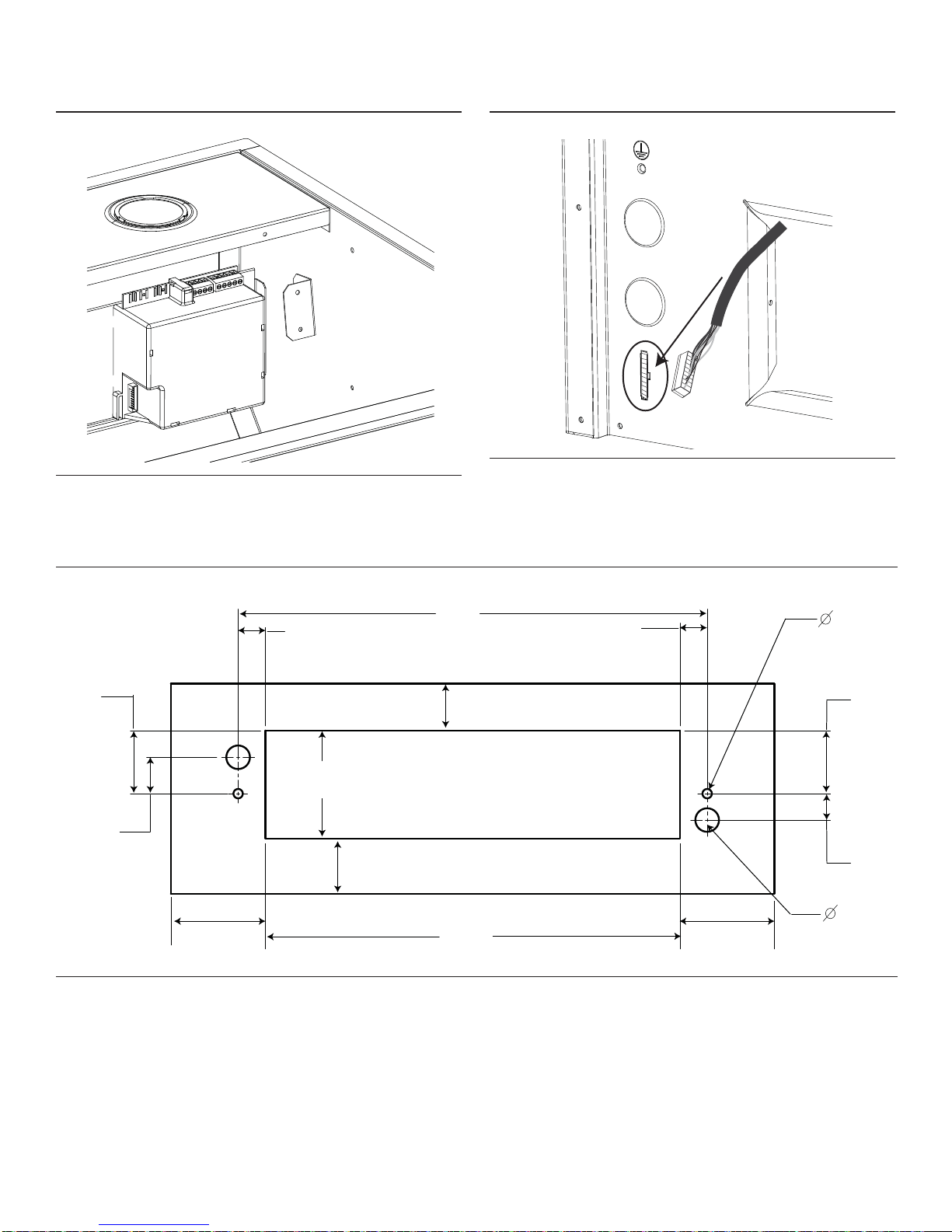

3. Prepare wall or similar surface for installation as shown below in Figure 18.
Figure 16: Relay Board Hookup Figure 17: Pigtail Remote Connection
Figure 18: Wall Cutout (view is shown facing wall)
11¾”
(298 mm)
11
/
16
”
(17 mm)
¼”
(6 mm)
1½”
(40 mm)
(17 mm)
(15 mm)
9
/
16
”
5
/
8
”
1½”
(40 mm)
10
(263 mm)
3
/
8
”
11
/
16
”
(17 mm)
2¾”
(69 mm)
(23 mm)
15
/
16
”
1
(35 mm)
3
/
8
”
1
(35 mm)
3
/
8
”
(10 mm)
3
/
8
”
(5 mm)
3
/
16
”

English 17
4. Connect remote control to extension harness with the included 30 ft (914.4 cm) cable.
5. Insert remote control into cutout. Secure from behind with two (2) nuts onto the weld studs.
6. Reinstall hood components from Figure 12 and Figure 13.

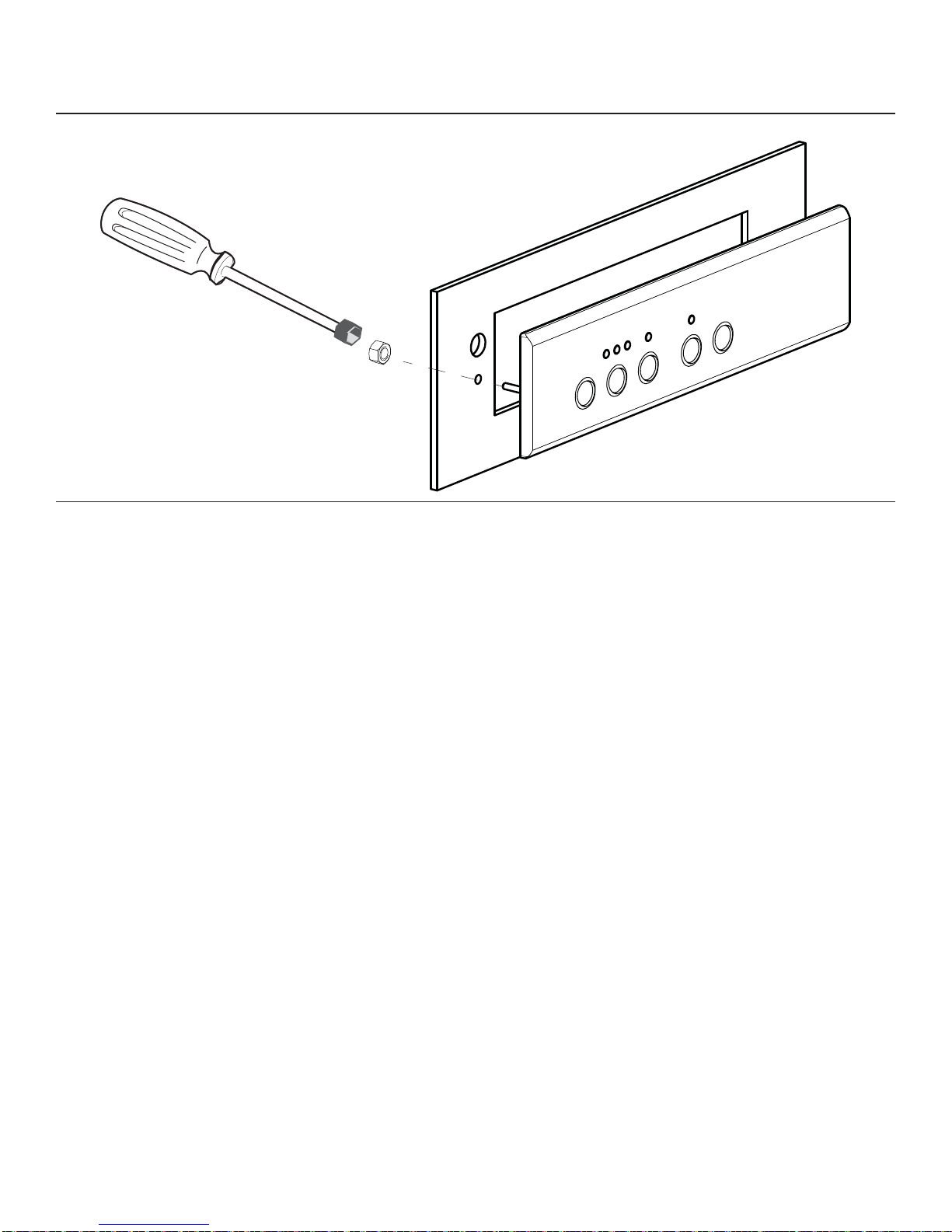

Figure 19: Remote Install

English 18
Preparing VCINxxJP Housing Framework
The unit must be mounted to the surrounding housing. See “Installation Preparation” on page 6 for suggestions on
determining hood height.
When calculating the load for the housing support system, be sure to include the weight of the ventilation unit. See Table 3
on page 6 for unit weight by model.
Build housing in accordance with the dimensions noted in Figure 20 thru Figure 24.
Model A
VCIN36JP 143/16” (360 mm)
VCIN48JP 1913/16” (503 mm)
VCIN54JP 2213/16” (579 mm)
Figure 20: Transition and Conduit Cutout Dimensions
1
1/8
"
(29mm)
A
3
3/
16
"
(81mm)
2
3/8
"
(86mm)
1
7/8
"
(48mm)
Diameter
clearance
holes for 1”
(25.4mm)
conduit to
junction box
7
7/8
"
(200mm)
10¼”
(260mm)
23”
(584mm)
1
7/8
"
(47mm)
Back of Hood
Back of Trim
