THOMSON LDK 23hs mkII User manual

LDK 23hs mkiiLDK 23hs mkii
LDK 23hs mkiiLDK 23hs mkii
LDK 23hs mkii
High Speed Camera System
Operator’s Manual
3922 496 49011 St. 44

Für diese Unterlage behalten wir uns
alle Rechte vor (Gemäß DIN 34).
Technische Änderungen im Zuge der
Weiterentwicklung vorbehalten.
Copyright
FCC Class A Statement
Declaration of Conformity
Copying of this document and giving
it to others, and the use or com-
munication of the contents thereof,
are forbidden without express au-
thority. Offenders are liable to the
payment of damages. All rights are
reserved in the event of the grant of
a patent or the registration of a utility
model or design. Liable to technical
alterations in the course of further
development.
Toute communication ou reproduc-
tion de ce document, toute ex-
ploitation ou communication de son
contenu sont interdites, sauf au-
torisation expresse. Tout man-
quement à cette règle est illicite et
expose son auteur au versement de
dommages et intérêts. Tous nos
droits sont réservés pour le cas de la
délivrance d'un modèle d'utilité. Sous
réserve de modification au cours de
l'évolution technique.
© Thomson Multimedia Broadcast Solutions 2002
We, Thomson Broadcast Solutions Nederland B.V., Kapittelweg 10, 4827 HG Breda, The Netherlands declare under
our sole responsibility that this product is in compliance with the following standards:
EN60065
EN55103-1
EN55103-2
following the provisions of:
a. the Safety Directives 73/23//EEC and 93/68/EEC
b. the EMC Directives 89/336/EEC and 93/68/EEC
: Safety
: EMC (Emission)
: EMC (Immunity)
This product generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause interference to radio communications.
It has been tested and found to comply with the limits for a class A computing device pursuant to Subpart J of part 15
of FCC rules, which are designed to provide reasonable protection against such interference when operated in a com-
mercial environment.
Operation of this product in a residential area is likely to cause interference in which case the user at his own expense
will be required to take whatever measures may be required to correct the interference.

02.35.1 Operator's Manual LDK 23HS mkII - HS camera System i
LDK 23HS MkII
Portable EFP - Studio High Speed Camera system
Operator's Manual
Contents
About this Manual ................................................. ii
Introduction ...................................................... 1-1
Technology ........................................................ 1-2
Features ............................................................ 1-3

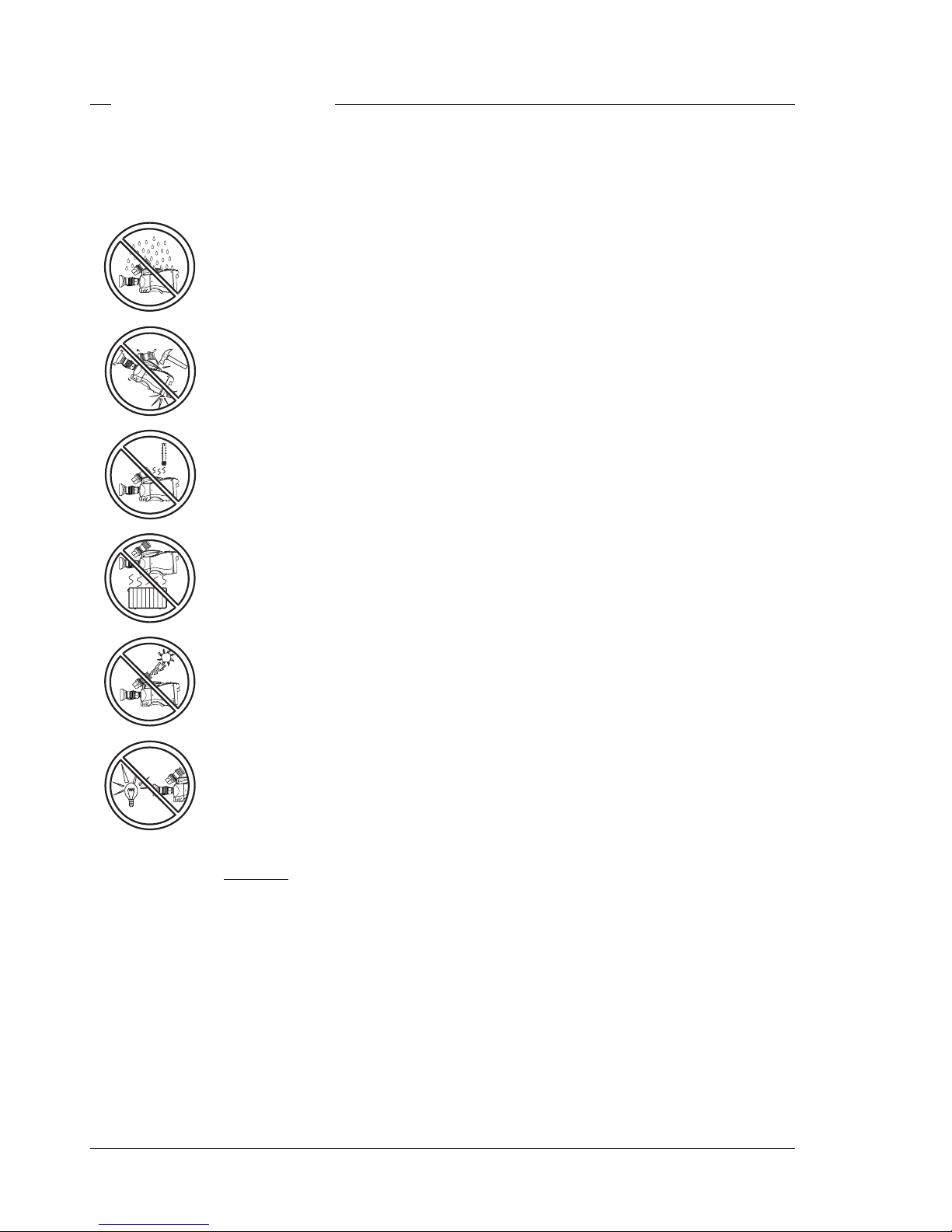

ImportantPrecautions ........................................ 1-4
Assembling the Units....................................... 2-1
TransportCase .................................................. 2-2
Lens ................................................................... 2-3

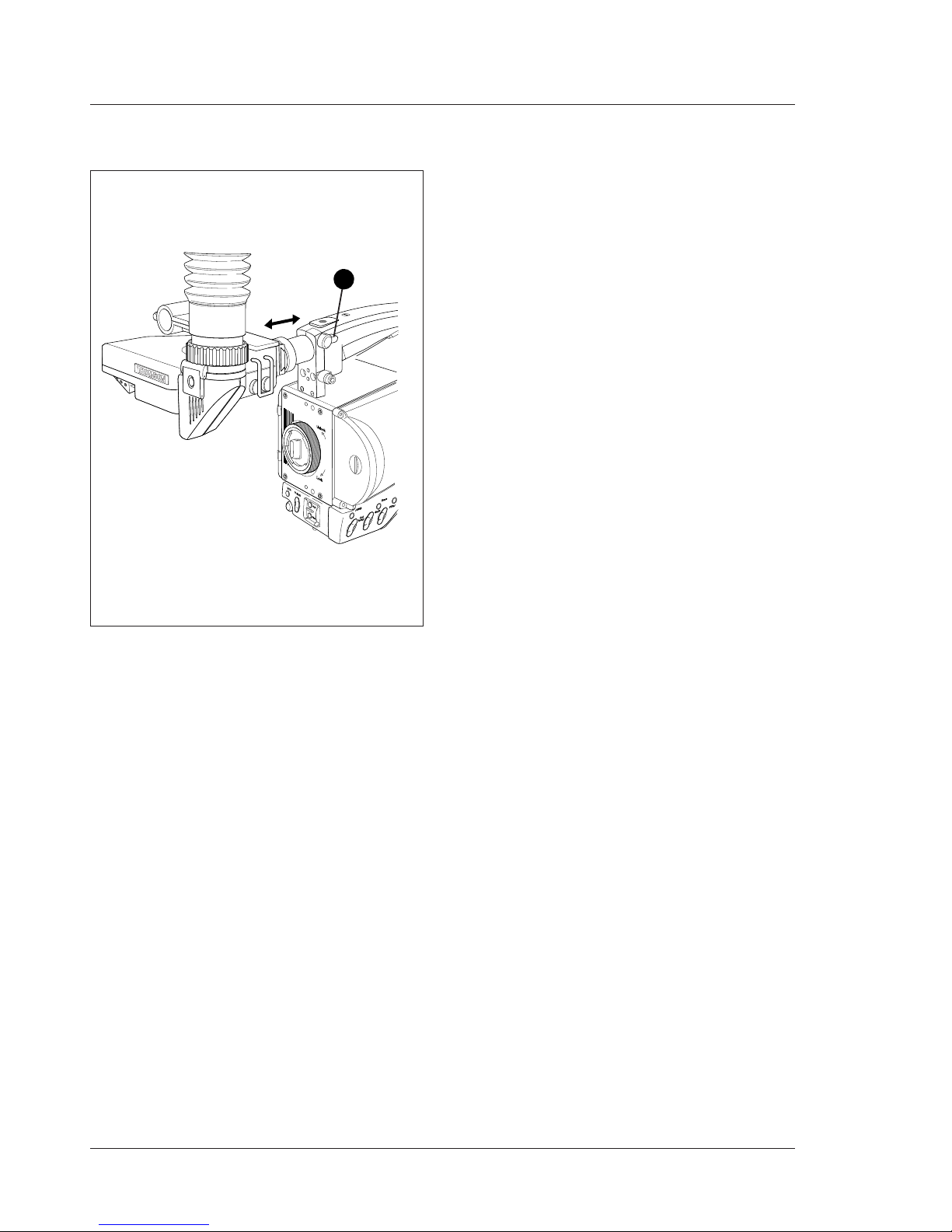

1.5-inchViewfinder ............................................. 2-4

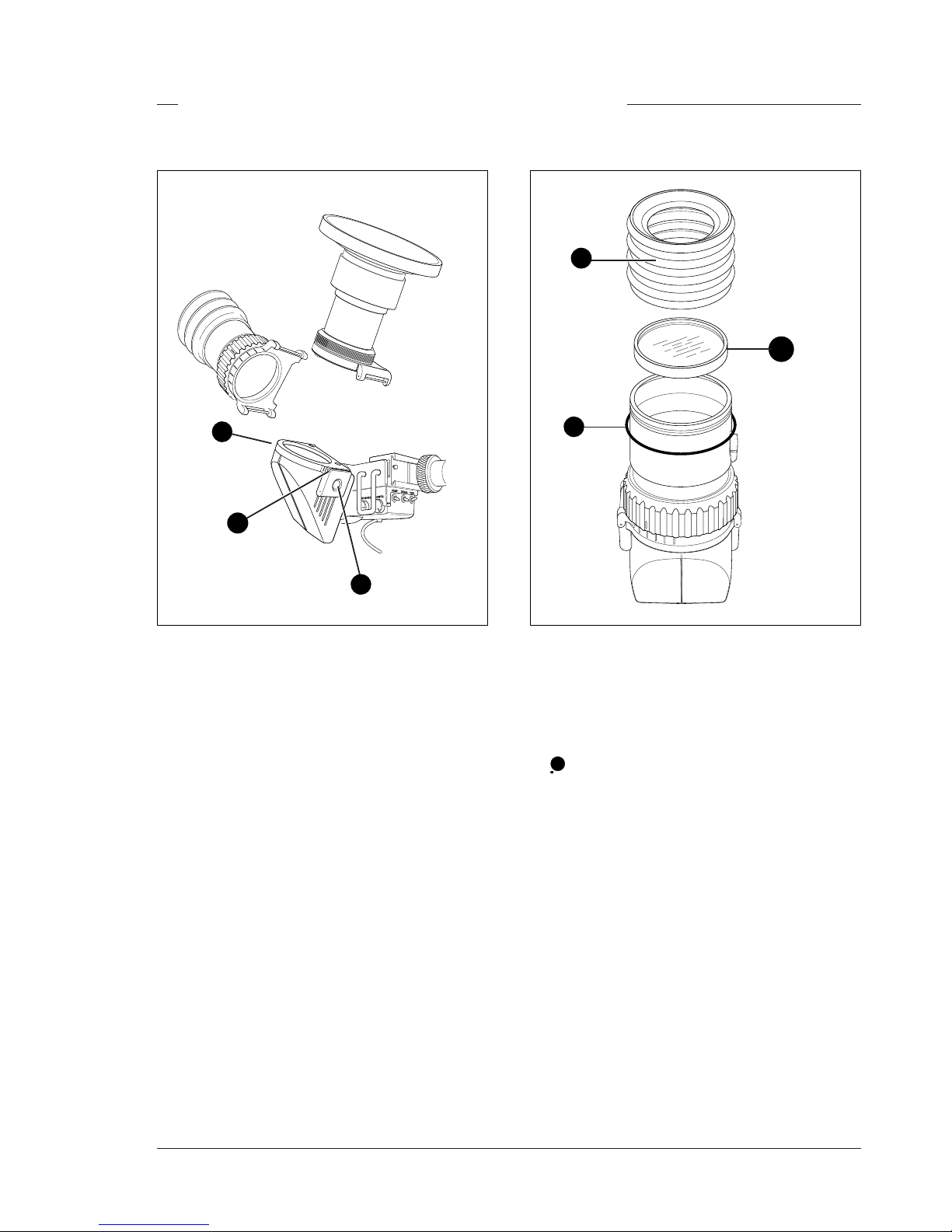

Fitting accessories to the 1.5-inch viewfinder ..... 2-7
Otherviewfinders ............................................... 2-8

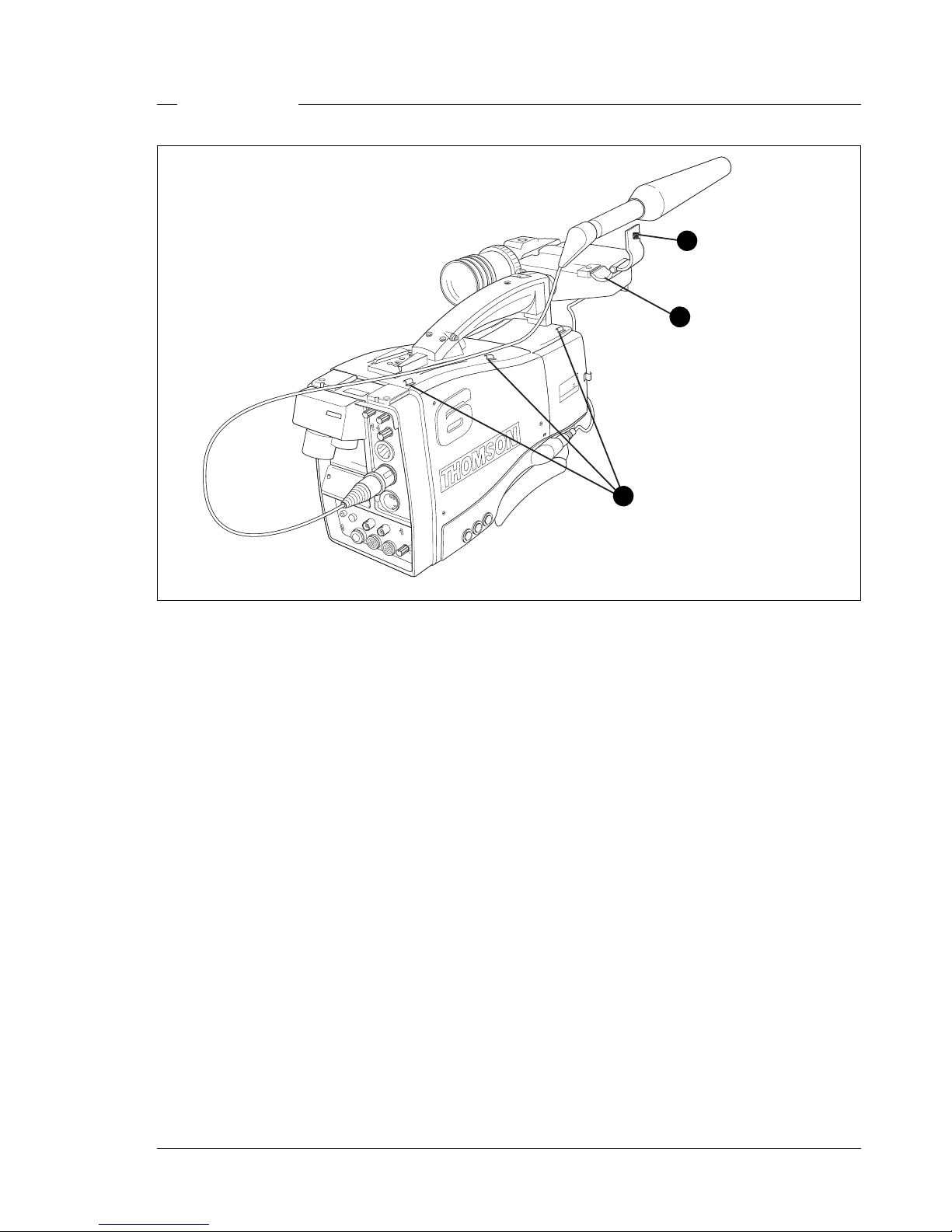

Microphone ........................................................ 2-9
CameraTripod ................................................. 2-10

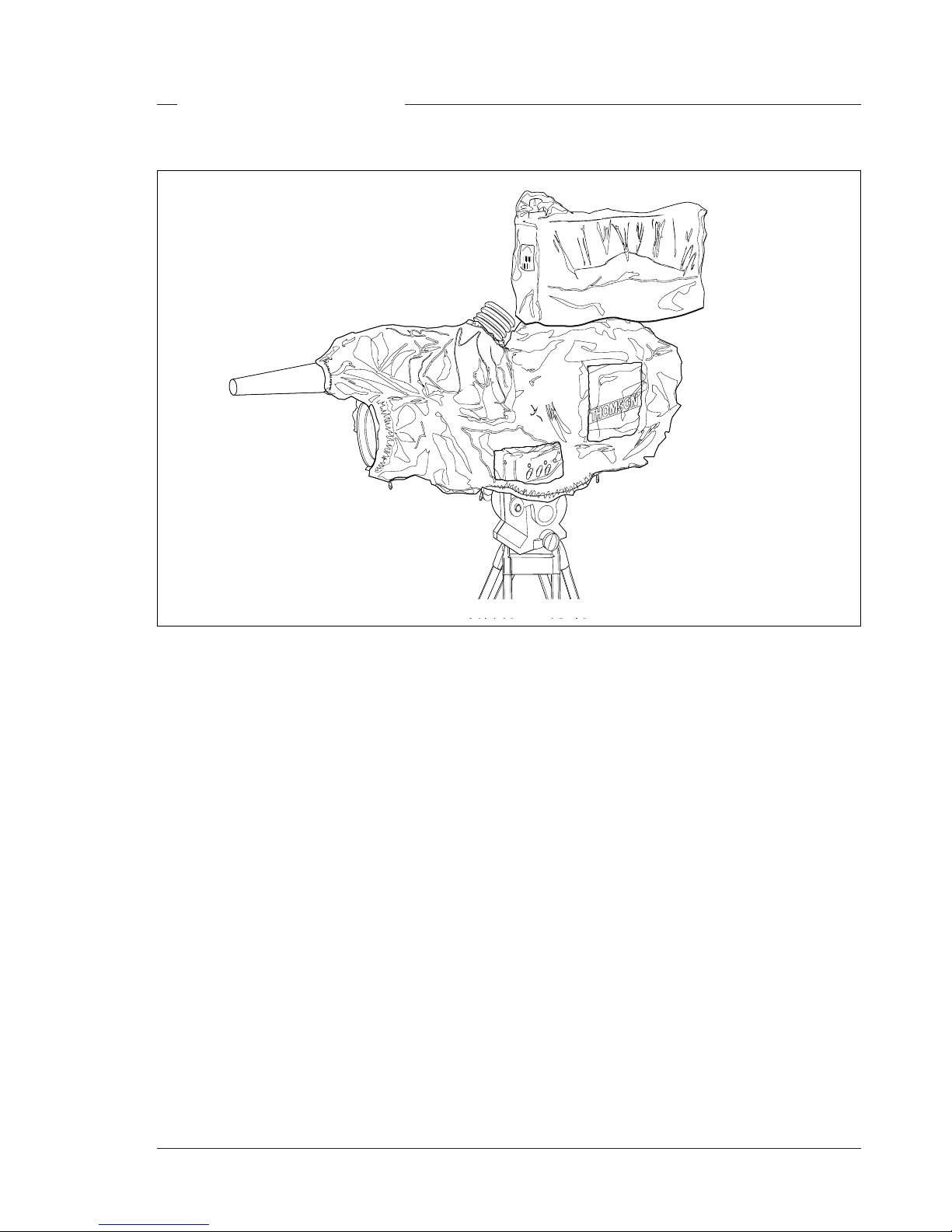

Rain and Off-use Cover .................................... 2-11
SuperXpander .................................................. 2-12
ShoulderPad ................................................... 2-13
Scriptboard ...................................................... 2-13
Top Light .......................................................... 2-14
Configurations ................................................. 3-1
Single camera triax mode .................................. 3-2
Multiple camera mode ........................................ 3-3
HighSpeedRecording........................................ 3-4
High speed system compatibility ...................... 3-5
RequiredSoftwareConfigurations ...................... 3-6
OtherControlFeatures ....................................... 3-7
Two-wire Data Control Bus ................................. 3-7
VideoRouting .................................................... 3-8
Audio/IntercomRouting ...................................... 3-9
Location of Controls and Functions ............... 4-1
PowerSupply ..................................................... 4-2
Video Functions ................................................. 4-3
MonitoringFunctions .......................................... 4-5
Viewfinder .......................................................... 4-7
ViewfinderIndicators .......................................... 4-8
ControlFunctions ............................................... 4-9
Audio / Intercom .............................................. 4-10
Auxiliary Functions .......................................... 4-12
CPU output Functions ...................................... 4-13
Shooting ........................................................... 5-1
Using the Camera .............................................. 5-2
Standard settings ............................................... 5-2
ColourBar .......................................................... 5-3
Gain selection .................................................... 5-3
Optical filter selection ........................................ 5-4
Colour temperatureselection .............................. 5-4
Auto-WhiteBalance ........................................... 5-5
CleanScan ........................................................ 5-5
Artificial light conditions ..................................... 5-6
Operating the Menu System ............................ 6-1
Introduction ........................................................ 6-2
Systems Menu................................................... 6-3
Appendix .......................................................... A-1
MenuStructure ................................................. A-3
Operate Menu ................................................ A-3
SetupMenu ................................................... A-4
VF/Lens Menu ............................................... A-6
Install Menu................................................... A-7
DiagnosticMenu............................................ A-8
Files Menu .................................................... A-8
List of Menu Functions...................................... A-9

ii Operator's Manual LDK 23HS mkII - HS Camera System 02.35.1
About this Manual
This Operator's Manual is part of a complete
documentation set for the camera system which also
includes an Installation and Service Manual.
Purpose of this manual
The purpose of this manual is to present a detailed
descriptionof how to operate the LDK23HS mkIIEFP
-Studio Camera. Itprovidestheinformation necessary
to use the camera system in different configurations
and with various attachments. With this manual it is
possible to discover the operating features of the
camera system and so use it to its full potential. The
manual should be used together with the camera
system to explore and learn about the many
sophisticated control functions available.
Intendedaudience
ThisOperator'sManual can be used byinexperienced
cameraoperatorswhoare newtoThomsonMultimedia
Broadcast Solutions cameras as well as those who
have previous experience of operating cameras. The
guide is so designed that it can be used as an
introduction to those who are new to the camera
system, as a simple procedural guide to those who
wish to setup and start shooting immediately, and as
areference worktobeconsulted asrequiredduringthe
long life of the camera system.
Structure of this manual
Themanualisdividedintosixsectionsandanappendix:
Section 1: Introduction
This section outlines the technology used in the
LDK 23HSmkIIcamerasystem andhowthistranslates
into a practical, useable camera system. It lists the
main features of the camera system and also the
precautions that must be taken into account when
using it.
Section 2: Assembling the Units
Section 2 provides information on the physical
assembly of the camera system and on how
accessoriescanbeusedtoexpandthepossibilitiesof
thecamerasystem.Themountingofaccessoriesand
packing for transport is also explained.
Section 3: Configurations
The LDK 23HS mkII is a multi-functional camera
system and this section describes the various ways
that it can be used in a studio system with other
cameras. Information on the cables, control panels
and the control bus is also provided as is information
on the main video and audio signal paths through the
system.
Section 4: Location of Controls and Functions
Thissectionshows thephysicallocationof the controls
and connectors on the camera system. These are
grouped according to their function so as to provide a
quick reference guide to the operation of a particular
aspect of the camera system.
Section 5: Shooting
This section contains information on the practical use
ofthecamerasystemusing the viewfinder display and
the switches at the front and front-left to control the
camera.
Section 6: Operating the Menu System
Becausethe LDK 23HS mkII offers such awide range
offunctions,thissectiondescribesthestructureof the
control system. It contains procedures for controlling
the menu system and explains how to program the
menu system for your personal preferences. The
menu structure and the methods of function selection
are also explained.
Appendix
The appendix contains a list of the menu functions
available on the camera.

Introduction Operator's Manual LDK 23HS mkII - HS Camera System 1-1
Section 1
Introduction
This section outlines the technology used in the LDK 23HS mkII camera system and how this
translates into a practical, useable camera system. It lists the main features of the camera system
and also the precautions that must be taken into account when using it.
Contents
Technology ........................................................ 1-2
Features ............................................................ 1-3
ImportantPrecautions ........................................ 1-4

1-2 Operator's Manual LDK 23HS mkII - HS Camera System Introduction
Technology
The LDK 23HS mkII is a lightweight EFP/Studio high
speed camera system which uses 2/3" frame transfer
sensors with Dynamic Pixel Management (DPM).
Super Slow Motion
Unique live slow motion capability. The LDK 23 HS
mkII scans at three time the normal rate. Instead of
scanningat50 HzforPALand60 Hz forNTSCtheLDK
23HS mkII scans at 150 Hz for PAL and 180 Hz for
NTSC.
Various preset settings for artificial light conditions
ensure a slow motion picture without pulsing light
effects.
Sensortechnique
Frame Transfer Dynamic Pixel Management allows
the format of the sensors to be switched between 4:3
and 16:9 aspect ratio at the touch of a switch without
loss of horizontal resolution. The 1000 pixels per line
in both formats ensures that there is no loss in
horizontalviewingangle.
Another aspect of the 2/3" DPM sensors is that there
isnolossofvertical resolution between formats. They
haveahighlightcompression/dynamic range of 400%
and a high linear sensitivity over all camera lens
apertures.Theframe transfer technologyensuresthat
there is no lag nor smear.
TheIntelligent ContinuousAutomaticsfacilityprovides
automatic control of black levels and black shading.
Each DPM sensor has two lines of sensor elements
that are protected from incoming light and therefore
give a true indication of black. The black reference
signal that they provide is used in the camera
preprocessorcircuitsto monitor temperature changes
which, if not corrected, would alter the black level. In
this way continuous automatic correction is applied
withoutoperatorintervention.
Film-likecharacteristics
To achieve film-like quality it is necessary to emulate
the softly limiting S-shaped transfer characteristics of
film. This is done by compressing the TV camera's
near linear characteristics above a certain point, the
knee. The pivoting knee circuit of the LDK 23HS mkII
camera system adapts both the knee point and the
compressionratioaccordingto the highlight content of
the picture. Significant highlights lower the knee point
to give more room for compression, while minor
highlights only affect the upper part of the transfer
characteristic. Signals below the knee point remain
unaffected. As a result, compression is only applied
wherenecessary and inproportiontothe highlight,and
the pictures obtained have true film-like quality.
AdvancedTriaxFeatures
The Triax system allows remote control of camera up
to a distance of 800 meters (1000 meter with minor
performance degration). The Triax system uses YUV
transmission.
The communication facilities provide for two-wire or
four-wire high quality intercom signals.
The LDK 23 HS mkII is compatible with the existing
ThomsonMultimedia BroadcastSolutionsSeries9000
UniversalCameraControlsystem.Basestationoutputs
include triple and normal scan serial digital video
signals.
SuperXPander

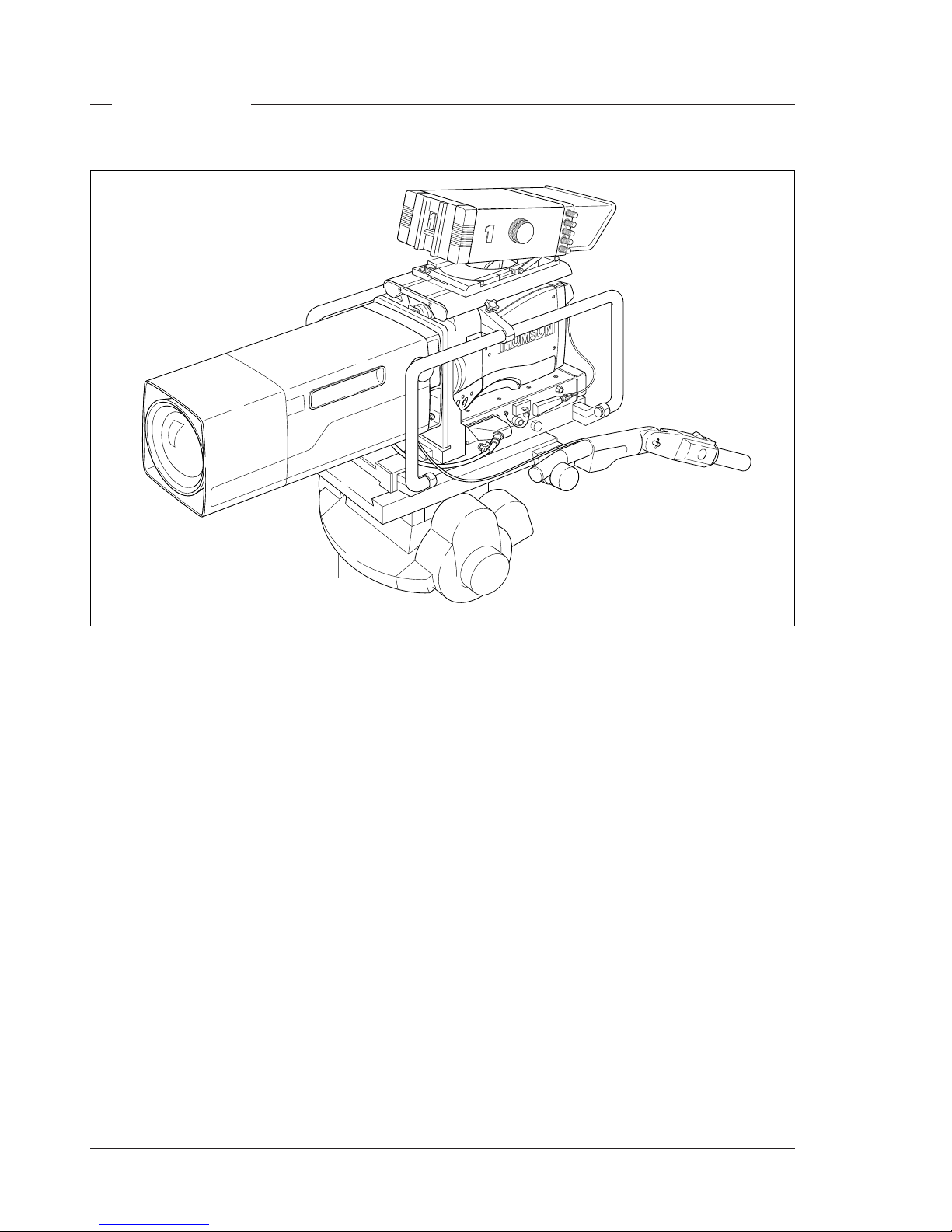

The optional LDK 4482 SuperXpander enables the
camera to be used with large lenses so extending the
camera's use in studio and EFP situations.

Introduction Operator's Manual LDK 23HS mkII - HS Camera System 1-3
Features
• Triplespeed scanningforsuperbslow motionreplay.
• Instant replay through almost any disk based slow-
motion system.
• Various preset settings for artificial light conditions
ensure a slow motion picture without pulsing light
effects.
• DPM Frame Transfer sensors with 1000 horizontal
pixels in 4:3 and 16:9 aspect ratios, and the same
number of vertical lines in both formats.
• No change in horizontal viewing angle - so no wide
angleconvertorsrequired.
• Simple no-compromise switching between 4:3 and
16:9 - future proof concept with no later upgrades
needed for either camera or lenses.
• Automatic selection of correct viewfinder mode for
4:3 and 16:9.
• IntelligentContinuousAutomaticblacklevels,black
shading and video levels - no setup time required.
• Highlightcompressionwitha dynamic range of up to
400%.
• International standard 2/3-inch lens interface.
• 6-position standard filter wheel cassette,
exchangeable.
• Low centre of gravity and optical path for ease of
productionuse.
• Short, lightweight portable camera with integrated
triax system for EFP use.
• Extensive two-wire or four-wire intercom to
internationalstandards.
• Protected, easy-to-operate controls and switches
• Viewfinder status read-out of primary camera
functions
• Clear scan feature allows capture of computer and
other monitor pictures.
• Triax system allows for cable lengths up to 800
meters (1000 meters with minor performance
degration).
• Digital RS 232 data transmission over triax system
for robotics and other applications.

1-4 Operator's Manual LDK 23HS mkII - HS Camera System Introduction
Important Precautions
To ensure continual high performance from the LDK
23HSmkII camera take the followingprecautions into
consideration:
Avoid very damp places. If the
environment is wet or damp a
raincovermustbeused to protect it.
Do not subject the unit to severe
shocks or vibration.
Do not expose the camera to
extremes of temperature.
Do not leave the unit in direct
sunlight or close to heating
appliances for extended periods.
Do not allow sunlight to shine into
theviewfinder.
Avoid extreme highlights as these
can cause various kinds of optical
reflections.
Warnings
If the LDK 23HS mkII is in a wet or damp environment,
a raincover must be used to protect it for personal
safety reasons (EN60065). The raincover LDK6988/
00 protects the camera according to safety specifica-
tion EN60529 up to level IPX3 (spraying water).

Assembling the Units Operator's Manual LDK 23HS mkII - HS Camera System 2-1
Section 2 provides information on the physical assembly of the camera system and on how
accessories can be used to expand the possibilities of the camera system. The mounting of
accessories and packing for transport is also explained.
Section 2
Assembling the Units
Contents
TransportCase .................................................. 2-2
Lens ................................................................... 2-3
1.5-inchViewfinder ............................................. 2-4
Fitting accessories to the 1.5-inch viewfinder ..... 2-7
Otherviewfinders ............................................... 2-8
Microphone ........................................................ 2-9
CameraTripod ................................................. 2-10
Rain and Off-use Cover .................................... 2-11
SuperXpander .................................................. 2-12
ShoulderPad ................................................... 2-13
Scriptboard ...................................................... 2-13
Top Light .......................................................... 2-14

2-2 Operator's Manual LDK 23HS mkII - HS Camera System Assembling the Units
Transport Case
It is important to protect your camera against damage
when transporting it. To do this, a transport case is
available for the camera, lens, viewfinder and some
accessories.
The camera is packed in the transport case as shown
in the figure above. This ensures that the camera is
notdamagedduringtransport.Donotforgettosecure
the straps around the items to keep them in place.
THS 1368
