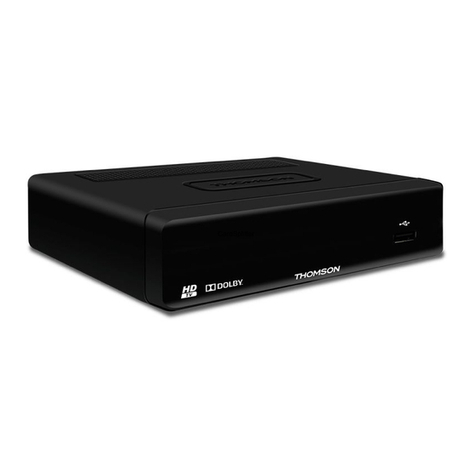

THOMSON THT504 User manual

Digital Terrestrial HD Receiver
User Manual
Manuel d’utilisation
Manuale utente
Manual del usuario
Manual do Utilizador
Instrukcja obsługi
Felhasználói kézikönyv
Ръководство на потребителя
THT504

20 Dec 2016 14:56
This product has been manufactured and sold under the responsibility of STRONG Group. THOMSON
and the THOMSON logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license
by STRONG Group.
Represented by STRONG Ges.m.b.H.
Franz-Josefs-Kai 1
1010 Vienna, Austria
Email: [email protected]
Any other product, service, company, trade name and logo referenced herein are neither endorsed nor
sponsored by Technicolor (S.A.) or its affiliates.

1
English
TABLE OF CONTENTS
1.0 INTRODUCTION 2
1.1 Safety Instructions 2
1.2 Storage 2
1.3 Equipment Set-up 3
1.4 Accessories 3
1.5 Usage of external USB devices 3
2.0 YOUR RECEIVER 4
2.1 DEFAULT PIN: 1234 4
2.2 Front Panel 4
2.3 Rear Panel 4
2.4 Remote control 4
2.5 Installing the batteries 5
2.6 Using the remote control 5
3.0 CONNECTION 6
3.1 Connecting to a terrestrial antenna 6
3.2 Connecting to TV with HDMI cable 6
3.3 Connecting to TV with SCART cable 6
3.4 Connecting to a Digital Audio
Amplier with S / PDIF 6
3.5 Connecting to a digital audio amplier
and TV using HDMI 7
3.6 Connecting to an analogue Audio
Amplier 7
3.7 Connecting a USB storage device 7
4.0 STARTING UP FOR THE FIRST TIME 7
5.0 QUICK GUIDE TO USING YOUR RECEIVER
8
6.0 OPERATION 9
6.1 Changing channels 9
6.2 Info Banner 9
6.3 Selection of audio language 9
6.4 Teletext 10
6.5 Subtitles 10
6.6 Timeshift 10
6.7 EPG (Electronic Programme Guide) 10
6.8 Instant Recording 11
7.0 MAIN MENU 11
7.1 Edit Channel 11
7.2 Installation 13
7.3 System Setup 14
7.4 Tools 17
7.5 Games 18
7.6 Media 18
8.0 TROUBLESHOOTING 21
9.0 TECHNICAL SPECIFICATIONS 22
STRONG declares that this item complies with the basic requirements and other relevant regulations
of directives 2004/108/EC and 73/23/EC, RoHS 2002/95/EC. THOMSON and the THOMSON logo are
trademarks of Technicolor (S.A.) or its aliates and are used under license by STRONG Group. Any other
product, service, company, trade name and logo referenced herein are neither endorsed nor sponsored by
Technicolor (S.A.) or its aliates.
Subject to alterations. In consequence of continuous research and development technical specications, design
and appearance of products may change. HDMI, the HDMI logo and High-Denition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Manufactured
under license from Dolby Laboratories. Dolby Audio and the double-D symbol are registered trademarks of Dolby
Laboratories. All other product names are trademarks or registered trademarks of their respective owners.
© THOMSON 2016. All rights reserved.
20 Dec 2016 14:56

2
1.0 INTRODUCTION
1.1 Safety Instructions
DO NOT INSTALL YOUR RECEIVER:
In a closed or poorly ventilated cabinet; directly on top of or under any other equipment; on a
surface which might obstruct the ventilation slots.
DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES:
-To direct sunlight or any other equipment that generates heat; to rain or intense moisture; to
intense vibration and to any shock which may cause permanent damage to your receiver or
to any magnetic objects, such as loudspeakers, transformers, etc.
-Do not use a damaged power cord. It may cause a re or an electric shock. Do not touch a
power cord with wet hands. It may cause an electric shock.
-When the receiver is not used for a long period of time, you should unplug the power cord
from the wall socket.
-Do not use alcohol or ammonia based liquids to clean the receiver. If you wish, you may clean
your receiver with a soft lint-free cloth slightly made damp with a mild soap solution, and only
after disconnecting from the mains voltage supply. Make sure no foreign objects fall through
the ventilation slots because this could cause re or an electric shock.
-Do not place any objects on top of the receiver because this might prevent proper cooling of
the components inside.
Safety Precautions
-Never try to open the receiver. It is dangerous to touch the inside of the receiver due to high
voltages and possible electrical hazards. Opening the receiver will void the warranty of the
product. Refer all maintenance or servicing to suitably qualied personnel.
-When you are connecting cables, be sure that the receiver is disconnected from the mains
supply voltage. Wait a few seconds after switching o the receiver before you move the
receiver or disconnect any equipment.
-It is a necessity that you only use an approved extension and compatible wiring that is
suitable for the electrical power consumption of the installed equipment. Please ensure that
the electrical power supply corresponds with the voltage on the electrical identication plate
at the back of the receiver.
If the receiver does not operate normally even after strictly following the instructions in the user
manual, it is recommended to consult your dealer or the appropriate service for your country.
1.2 Storage
Your receiver and its accessories are stored and delivered in a packaging designed to protect
against electric shocks and moisture. When unpacking it, make sure that all the parts are
included and keep the packaging away from children. When transporting the receiver from
one place to another or if you are returning it under warranty conditions, make sure to repack

3
English
the receiver in its original packaging with its accessories. Failing to comply with such packaging
procedures could damage the product and void your warranty.
1.3 Equipment Set-up
We recommend you consult a professional installer to set up your equipment. Otherwise, please
follow the instructions below:
-Refer to the user manual of your TV and antenna.
-Make sure that the HDMI cable and outdoor components are in a good condition.
-If you use TV SCART connection, use then well shielded SCART cable.
This manual provides complete instructions for installing and using this receiver. The following
symbols will serve as follow.
Warning Indicates warning information.
Tips Indicates any other additional important or helpful information.
MENU Represents a button on the remote control or the receiver. (Bold
characters)
Move to Represents a menu item within a window. (Italic characters)
1.4 Accessories
-Quick installation guide
-1 remote control
-2x batteries (AAA type)
WARNING: The batteries should not be recharged, disassembled, electrically
short-circuited, be mixed or used with other types of batteries.
If rechargeable accumulators instead of batteries are going to
be used (e.g. NiMH), we recommend using types with low self-
discharge to ensure long time operation of your remote control.
1.5 Usage of external USB devices
-It is recommended to use USB 2.0 storage devices or higher. If your device is not compatible
to USB 2.0 specications, recording, playback and other multimedia functions of the receiver
might not work properly.
-To ensure best performance of your USB storage device please format it via your receiver
(through the menu “Media”) to FAT32 system. Other le systems are not supported by the
receiver. However, it is possible to use already NTFS formatted disks.
-STRONG cannot guarantee compatibility with all types of USB storage devices.
-If you are going to use external USB HDDs (Hard Disk Drives), please consider that power
specications may exceed the supported output of your receiver (max.5 V/800 mA). If so,
please connect your USB HDD to an according external power adapter.
-It is advised not to store important information on USB storage devices used with the receiver.
Always make backups of data on your USB storage device before using it with this receiver.
STRONG will not take responsibility for any loss of information or circumstances caused by
loss of information.

4
2.0 YOUR RECEIVER
2.1 DEFAULT PIN: 1234
2.2 Front Panel
Fig. 1
1. IR sensor Point your remote control towards this sensor.
2. Mode indicator RED indicates that the receiver is in STANDBY mode.
GREEN indicates that the receiver is in OPERATING mode.
3. USB Connector for USB storage devices.
2.3 Rear Panel
Fig. 2
1. ANT IN To connect to your antenna for reception of broadcasted
signals.
2. ANT OUT To connect the terrestrial antenna signal to your TV set.
This connection will allow you to watch digital terrestrial
programmes depending on the tuner of your TV and
local broadcast conditions
3. S / PDIF Coaxial: To connect your receiver to a digital home theatre, AV
receiver or digital audio amplier.
4. HDMI To connect your receiver with your TV set using an HDMI
cable.
5. TV SCART To connect your receiver with your TV set using a SCART
cable.
6. Audio L/R To connect your receiver to an analogue audio amplier.
7. Power cord Your receiver requires a supply voltage of 220 – 240 V AC
(Auto-selectable), 50/60Hz ±5%. Please ensure the local
power specication meets these requirements before
connecting your receiver to the wall outlet.
2.4 Remote control
Fig. 3
1. q Switches the receiver On/Standby
2. Mutes all audio outputs of the receiver
3. PG+/PG- Page up/down in all list modes
4. DTV/VCR No function
5. INFO Opens the current channel information; 2x opens the
current event information and 3x the signal information
6. VOL+/VOL- Increases/decreases the volume level
7. MENU Opens the main menu, in a menu you will get one step
back

5
English
8. EXIT Exits from the menu or sub-menu
9. pq Menu O: Change channel to previous/next.
Menu On: Moves the cursor up/down.
10. tu Menu O: Increases/decreases the volume level.
Menu On: Change settings for specic menus
11. OK Menu O: Displays the current channel list
Menu On: Activates the highlighted menu item.
12. RECORD Records the TV programme to the connected USB
storage device
13. TIMESHIFT Activates the Timeshift function (O/On)
14. 0~9 Enters a channel number in viewing mode or a value
inside the respective menu
15. EPG Opens the EPG (Electronic Programme Guide) in TV
mode
16. RECALL Back to previously watched channel
17. AUDIO Opens the audio language selection
18. TV/RADIO Toggles between TV or RADIO mode
19. FAV Opens the favourite group selection
20. FILE Opens the Media Player list
21. TTX Displays Teletext on the OSD (On Screen Display)
22. SUBTITLE Shows a list of subtitle languages
23. 5 6 Fast rewind/fast forward
24. Coloured buttons For Multimedia and Teletext functions
2.5 Installing the batteries
Fig. 4
Open the cover on the remote control and insert 2x AAA batteries into the compartment.
Correct position of the polar diagram shows the batteries inside the compartment.
1. Open the cover.
2. Insert the batteries.
3. Close the lid.
WARNING: The batteries should not be recharged, disassembled, electrically
short-circuited, be mixed or used with other types of batteries.
2.6 Using the remote control
Fig. 5
To use the remote control, point it towards the front of your receiver. The remote control
supports a range of up to 5 meters distance to the receiver at an angle of up to approx. 30
degrees.

6
NOTE: Managing the receiver will be limited or not possible if there are
obstacles between the remote control sensor (at the front panel
of the receiver) and the remote control. Direct sunlight or very
bright light can reduce or disturb the reception of the remote
control signals.
3.0 CONNECTION
3.1 Connecting to a terrestrial antenna
Fig. 6
To receive broadcasted signals, your terrestrial indoor or outdoor antenna must be connected
to the ANT IN connector on the back of the receiver. Use a properly shielded antenna cable and
suitable connectors.
The ANT OUT connector allows you to loop the antenna signal to a second receiver or TV set.
Please consider that the looped signal might be too weak if you use an active antenna.
NOTE: If the signals at your location are too weak to receive proper
signals with an indoor antenna, we recommend using an outdoor
antenna which can be pointed towards the transmission tower.
Ask your local dealer for more information.
3.2 Connecting to TV with HDMI cable
Fig. 6
The TV set shall be connected with the receiver using a good quality HDMI cable. This
connection gives the highest possible quality.
3.3 Connecting to TV with SCART cable
Fig. 6
Your receiver is also equipped with a SCART connector; alternatively, the TV set can be
connected to the receiver using a good quality SCART cable.
3.4 Connecting to a Digital Audio Amplier with
S / PDIF
Fig. 6
By connecting your receiver to a digital amplier or home theatre system, you can enjoy the
best possible sound quality and multi-channel audio (depending on broadcast). Connect
your Digital Audio Amplier or home theatre system with a suitable cinch cable to the S / PDIF
connector on the back of the receiver.
