NOISE EATERS / LASER AMPLITUDE STABILIZERS
Hide Overview
Click to Enlarge

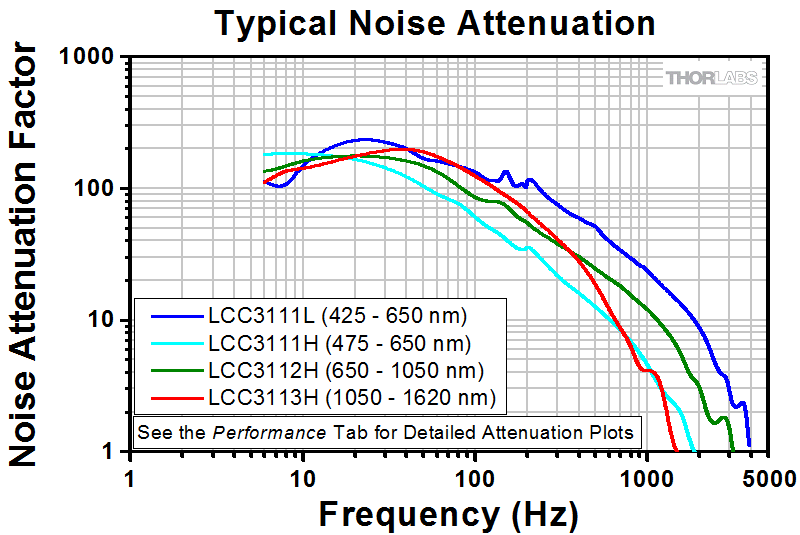

Noise Attenuation Factor is the Ratio of Noise
Amplitude Before and After the Noise Eater
Click for Details

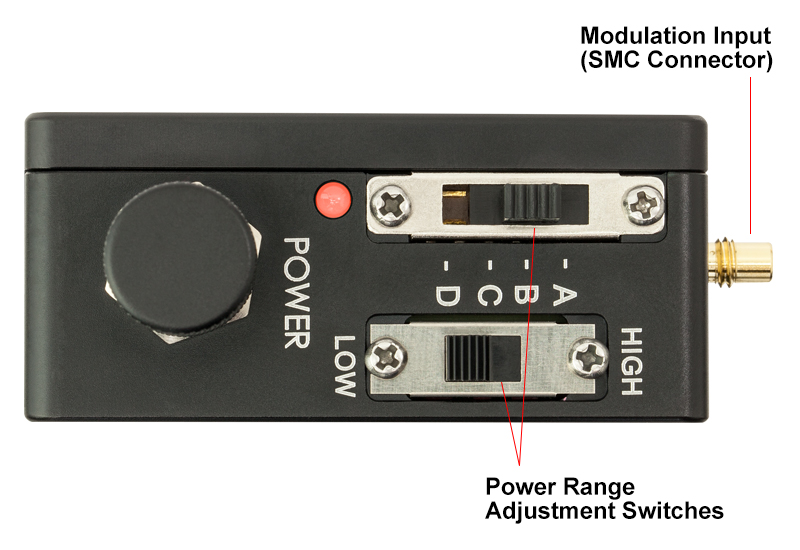

LCC3113H Top View Showing Power Range
Adjustment Switches and Modulation Input
Features
Reduces Laser Intensity Noise
Also Functions as a Variable Attenuator or EO Modulator
Models for use at 425 - 650 nm, 475 - 650 nm, 650 - 1050 nm, or 1050 - 1620 nm
Maximum Input Power of up to 1 W, Depending on Model, Wavelength, and Beam Size
(See the Operation Tab for Details)
Excellent for Sensitive Experiments such as Optical Tweezers
Ideal for Stabilizing CW Pump Lasers
Thorlabs' Liquid Crystal Noise Eaters / Laser Amplitude Stabilizers are precision instruments for
stabilizing, modulating, and attenuating the power of linearly polarized light. These closed-loop systems are
designed for use with light in the 425 - 650 nm (LCC3111L), 475 - 650 nm (LCC3111H), 650 - 1050 nm
(LCC3112H), or 1050 - 1620 nm (LCC3113H) wavelength range. We offer noise eater models for low
(<100 mW) or high (<1 W) power use, all with external modulation inputs. See the Specs tab for details.
Noise Reduction
Utilizing a liquid crystal amplitude modulator, combined with a photodiode for power measurement and a
feedback control circuit, the noise eaters can eliminate intensity noise in linearly polarized light, achieving
amplitude stabilization of within 0.05% of a selected output power. The input power can be set to one of
several ranges using the switch(es) on the top of the unit. The potentiometer is then adjusted to select the

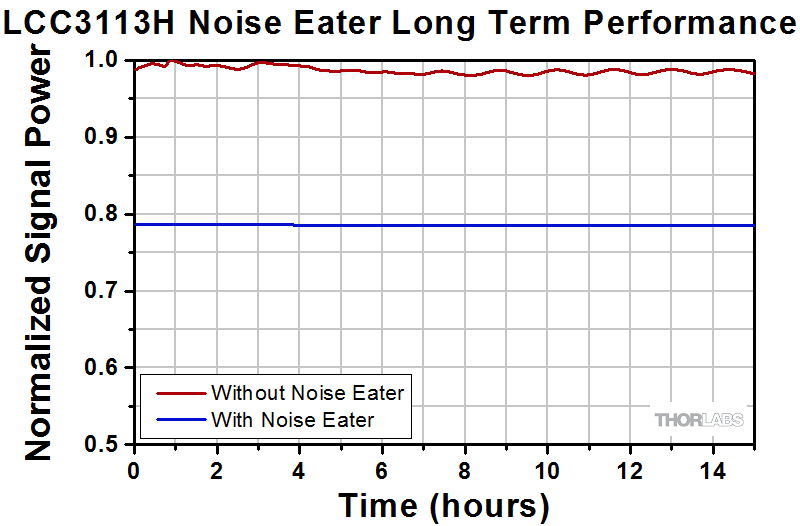

output power (see the Operation tab for more information). Long-term performance and frequency characterization for each noise eater model are shown on
the Performance tab.
OVERVIEW
Laser Amplitude Stabilizer / Variable Attenuator
Models with Wavelength Ranges Covering 425 - 1620 nm Available
Closed-Loop Feedback System
►
►
►
LCC3111H
Front
Back
LCC3111H
Noise Eater with
Half-Wave Plate in
CRM1 Rotation Mount
Application Idea
LCC3111H - July 7, 2016
Item # LCC3111H was discontinued on July 7, 2016. For informational purposes, this is a copy of the
website content at that time and is valid only for the stated product.

Thorlabs.com - Noise Eaters / Laser Amplitude Stabilizers
https://www.thorlabs.com/newgrouppage9_pf.cfm?guide=10&category_id=95&objectgroup_id=6107[7/7/2016 8:29:39 AM]
Hide Specs
Power Attenuation and Modulation
These noise eaters are also capable of continuously attenuating and modulating the laser output using the liquid crystal retarder and integrated polarizer.
Unlike most attenuators available, Noise Eaters attenuate the laser power rapidly without the use of any mechanical components. The noise eater’s attenuation
capabilities can be controlled via the onboard potentiometer or electrical modulation input.
Thorlabs’ Noise Eaters are post mountable in two orientations via 8-32 (M4) tapped holes. They also feature 4-40 tapped holes on the front and back for 30
mm Cage System compatibility and an SM1-threaded (1.035"-40) rear aperture for Ø1" Lens Tube compatibility.
Product Line Note
Our LCC3112H and LCC3113H Noise Eaters are switchable between low
and high power mode, for operation at up to 8 W/cm² input power density.
All other performance characteristics are similar between the different noise
eater models. See the table to the left for details.
Noise Eaters Product Line Overview
Item # LCC3111L LCC3111H LCC3112H LCC3113H
Modulation Input
Low Power Operation Only
High Power Operation Only
Switchable Low/High
Power Operation
Item # LCC3111L(/M) LCC3111H(/M) LCC3112H(/M) LCC3113H(/M)
Wavelength Range 425 - 650 nm 475 - 650 nm 650 - 1050 nm 1050 - 1620 nm
Noise Attenuation Performance Specs
Output Power Stabilitya±0.05%
Noise Attenuation Frequency
RangebDC - 1.8 kHz DC - 2.5 kHz DC - 1.4 kHz
Noise Attenuation Amplitude
Range 0.1% to 50% of Input Signal
Noise Attenuation Factorc>150 at 10 Hz, 80 at 60 Hz
20 at 400 Hz, 4 at 1 kHz >150 at 10 Hz, 80 at 60 Hz 10 at 400 Hz, 1.5 at 1 kHz
Output Power Attenuation Factor
Ranged1 - 40 1 - 5
Internal Polarizer Blocking
Damage
Threshold (Maximum Power
Attenuation)
1 W/cm210 W/cm2
Attenuation Control Onboard Potentiometer (10 Turns) or Modulation Input
Optical Specs

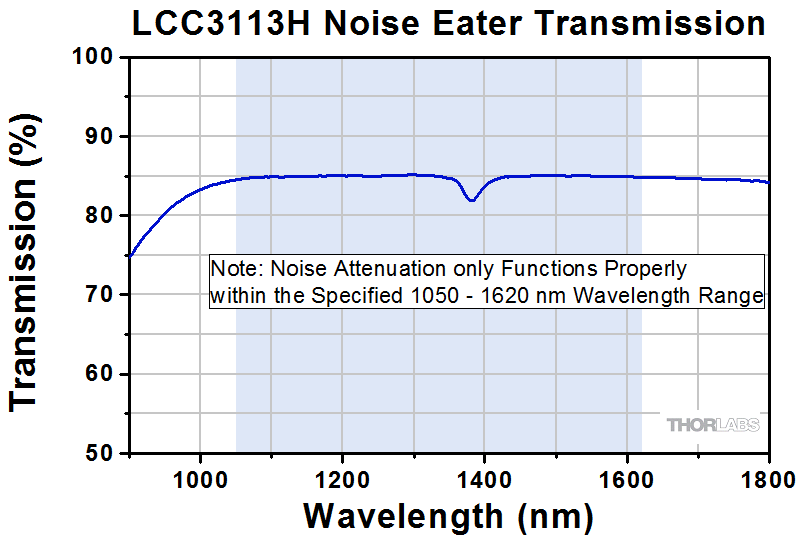

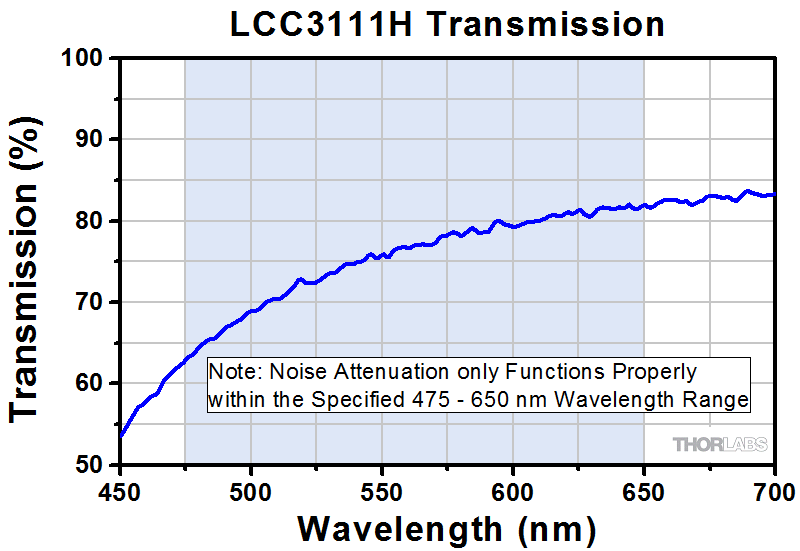

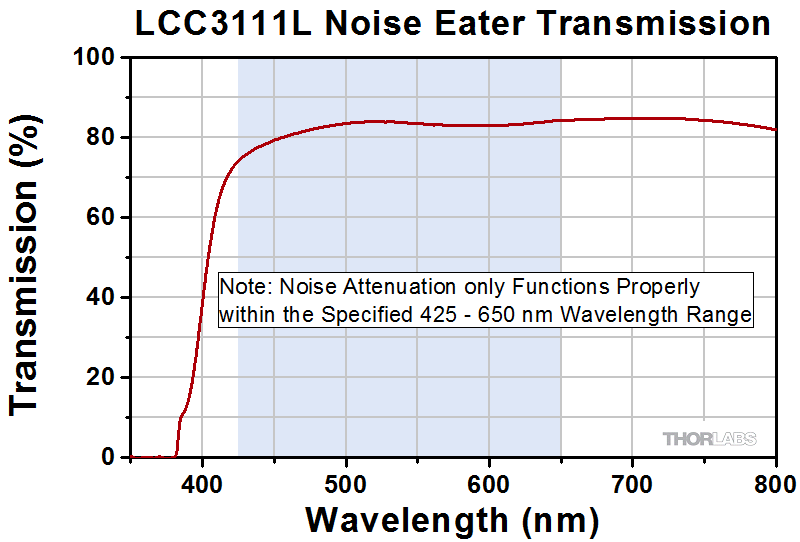

Transmission (Click for Plot) >85% at 635 nm >80% at 635 nm >85% at 780 nm >85% at 1550 nm
Power Level Switching Four Position Power Range
Switch Three Position Power Range Switch High/Low Power Mode Switch and Four Position Power Range Switch
Maximum Input Power See the Max Powers at Various Wavelengths section on the Operation tab
Minimum Input Power 0.5 mW 30 mW 0.5 mW
Damage Threshold (CW)e0.8 W/cm28 W/cm2
Input Aperture Ø5 mm
Input Beam Diameter Ø4 mm (Max)f
Output Beam Displacement 1 mm Vertically (in the Direction of Input Polarization)
Beam Divergence 5 mrad (Max)
SPECS

Thorlabs.com - Noise Eaters / Laser Amplitude Stabilizers
https://www.thorlabs.com/newgrouppage9_pf.cfm?guide=10&category_id=95&objectgroup_id=6107[7/7/2016 8:29:39 AM]
Hide Performance
Angle of Incidence ±2° (Max)
Input Polarization Tolerance ±3°
Wavefront Distortion ≤λ/4 at 635 nm ≤λ/2 at 635 nm ≤λ/2 at 635 nm
AR Coating Ravg <0.5% from 400 - 650 nm Ravg <0.5% from 650 -
1100 nm
Ravg <0.5% from 1050 -
1620 nm
Modulation Performance Specs
Modulation Input SMC Connector, 0 - 2.5 V, 10 kΩ Input Impedance
Minimum Extinction Ratiog512.6 7.7 6.5
Minimum Rise / Fall Timeh0.65 ms / 7.3 ms 0.75 ms / 11.5 ms 2.8 ms / 25 ms
General Specs
Mounting Options Two 8-32 (M4) Tapped Holes for Post Mounting 30 mm Cage System Compatible
Ø1" Lens Tube Compatible
Operating Temperature Range 15 °C to 45 °C
RMS value over 8 hours
These Noise Eaters are designed to operate down to DC frequency. However, due to external factors (e.g. ambient temperature, vibration, spatial
and/or polarization stability of the light source), the noise attenuation factor below 10 Hz is difficult to measure and quantify. Therefore our
specifications are guaranteed at 10 Hz and above.
Noise attenuation factor is the ratio of noise amplitude before and after the noise eater. It was tested at 100 mW input power with a noise amplitude
of 5% of the input power level. The nominal noise attenuation frequency range can reach up to 2.5 kHz, depending on the model. See detailed noise
attenuation plots on the Performance tabs for more information. The noise eater might not be able to completely eliminate high frequency noise in
certain cases, such as a laser source that contains spikes or step-like output power fluctuations.
Range of output power adjustment for a given input power level
Max input power density and laser damage threshold are wavelength-independent. Additionally, the absolute maximum input power varies with
wavelength; see the Operation tab for details.
Specified for a 1/e2beam diameter
Extinction ratio is the ratio of the signal power at minimum attenuation to the signal power at full attenuation.
Rise time is measured on the rising edge of the output intensity from 10% to 90% of full output power.
Noise Eater Performance Graphs
In the graphs below, noise attenuation was measured as one of three parameters was varied: input power level, input signal modulation (noise) amplitude, and
output signal attenuation. The graphs show that the noise eaters provide consistent performance regardless of changes in these parameters.
Graph Definitions

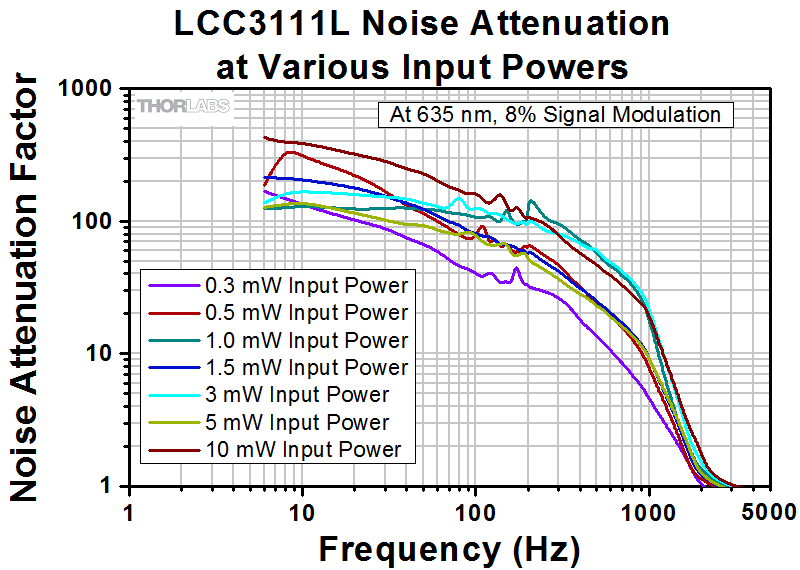

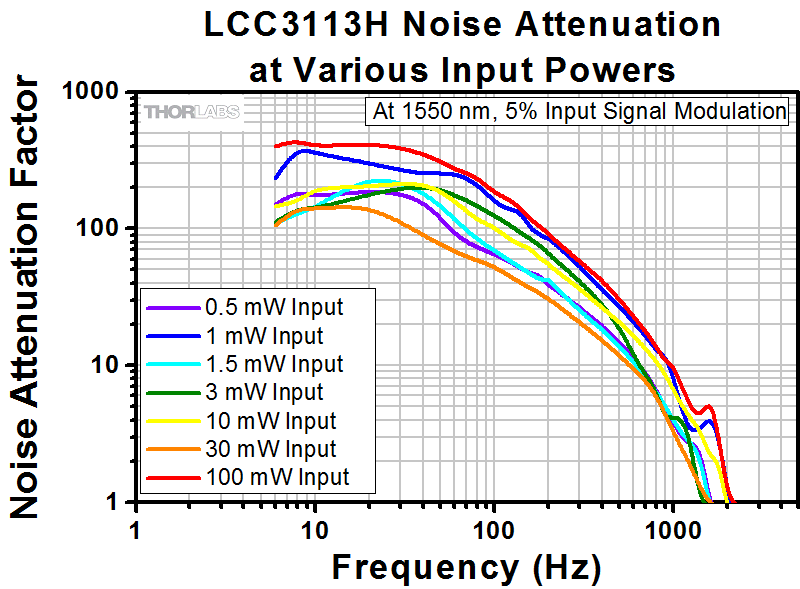

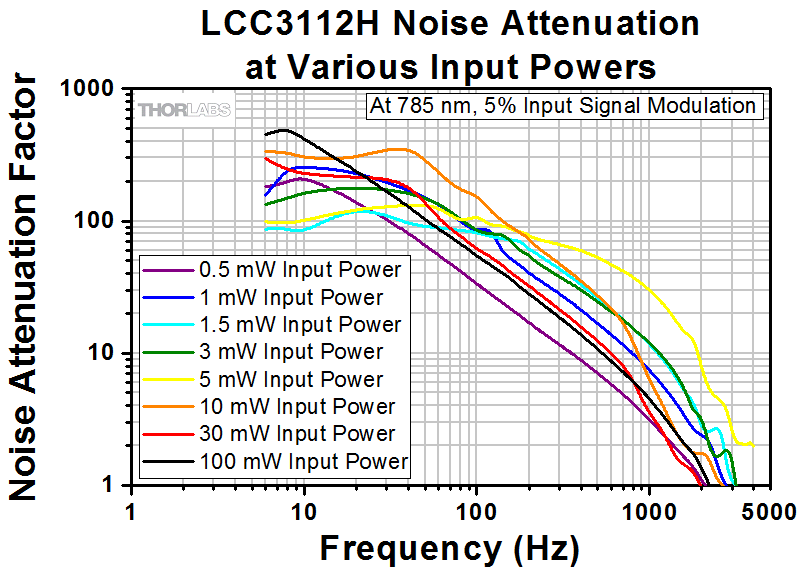

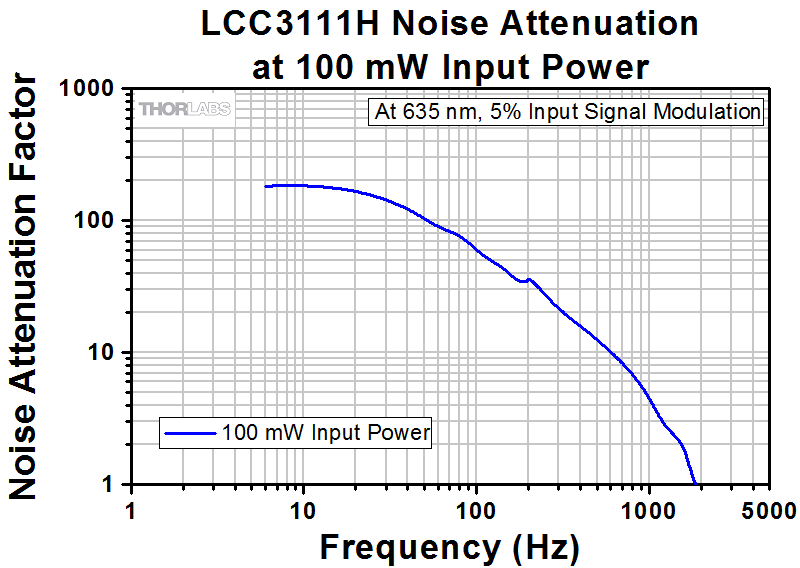

Noise Attenuation at Various Input Power Levels
Noise attenuation factor is the ratio of noise amplitude before and after the noise eater. In these graphs, the attenuation factor was measured for several
different input power levels, with a fixed signal modulation depth (noise amplitude). The graphs below show that the noise eaters provide consistent
performance regardless of input power level.

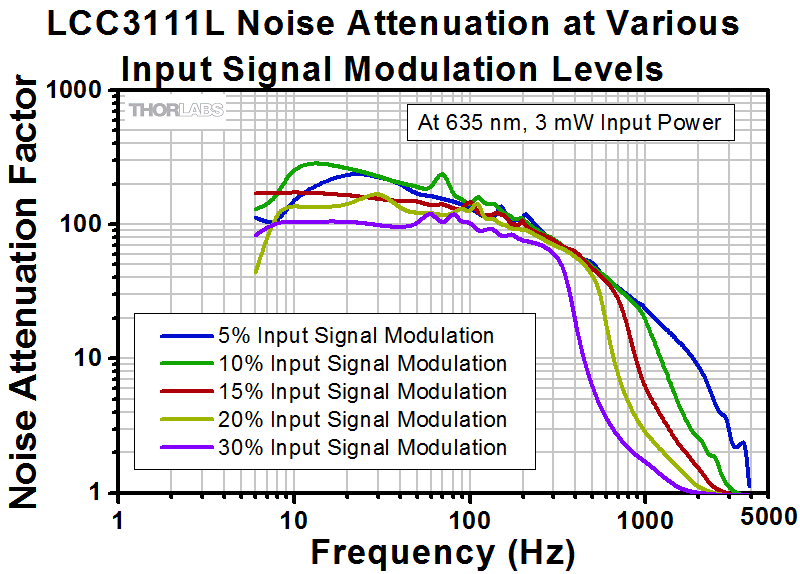

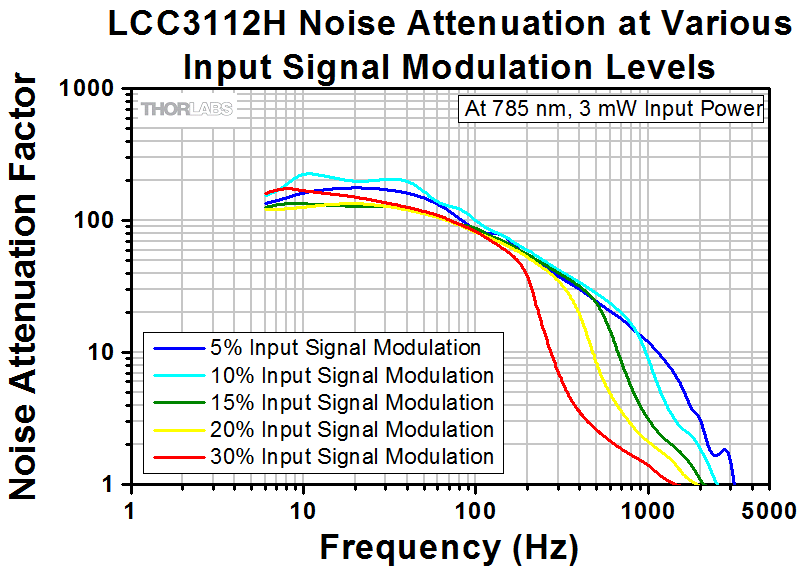

Noise Attenuation at Various Input Signal Modulations
In these graphs, the input signal was modulated with a sine wave to simulate noise. The attenuation factor was measured at a variety of modulation
depths (noise amplitudes). The graphs below show that the noise eater provides consistent performance even at large noise levels.

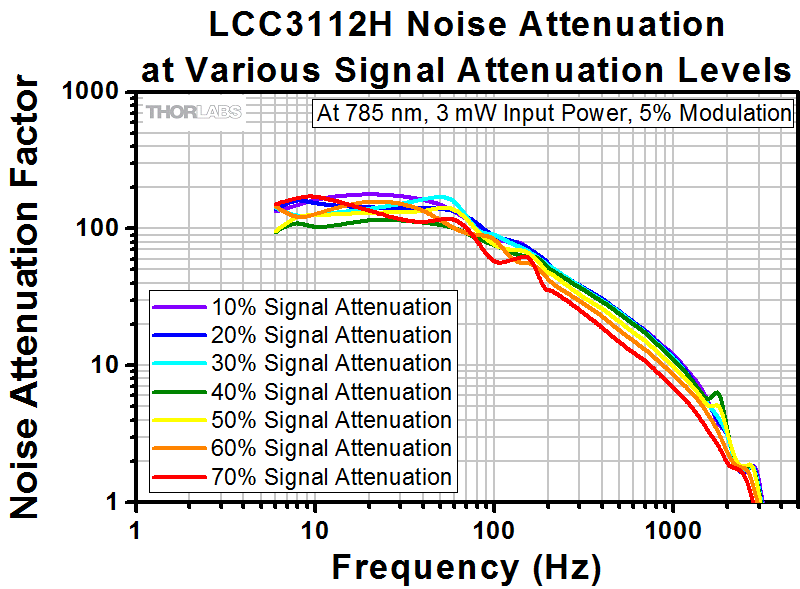

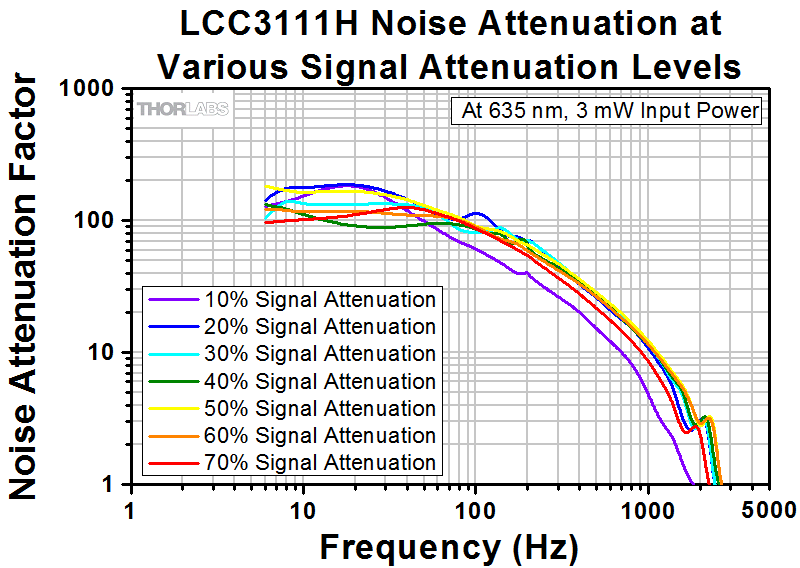

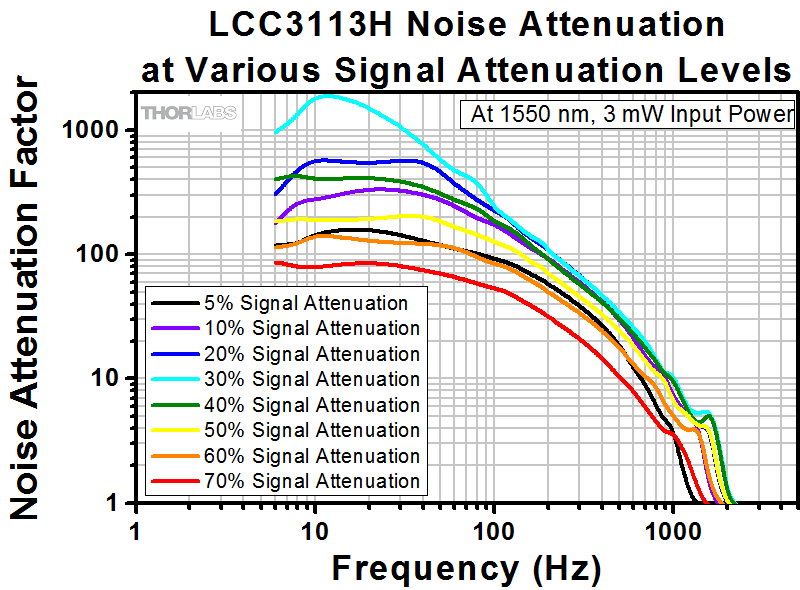

Noise Attenuation at Various Output Signal Power Levels
Since the noise eater uses a liquid crystal modulator as the optical control element, the noise attenuation is achieved by attenuating the laser beam
when noise appears. Our noise eaters are carefully designed to optimize the noise attenuation performance without needing to severely attenuate the
signal. These graphs demonstrate that the specified noise attenuation can be reached with a cost of only 5% - 10% overall attenuation of the output
power, and further increases in attenuation does not significantly improve the noise attenuation.

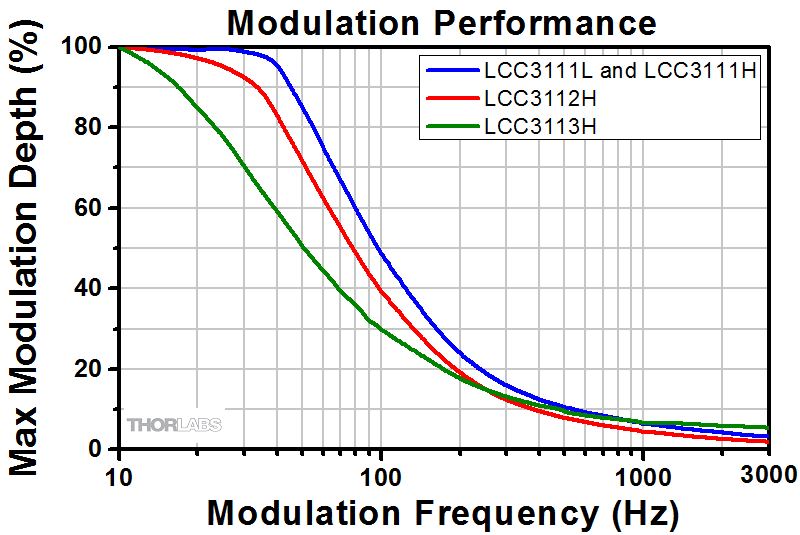

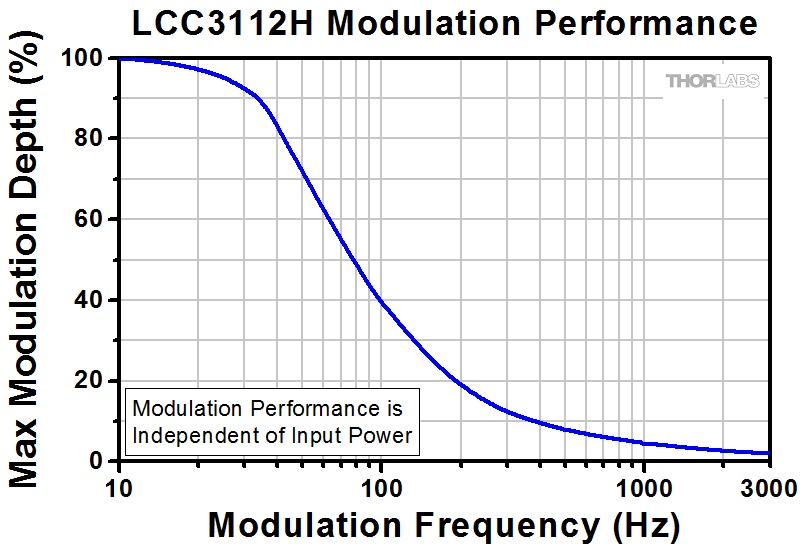

Modulation Performance
Noise eaters with a modulation input can also be used as EO modulators. In these graphs, a sine wave with a 2.5 V amplitude and an increasing
frequency was used to modulate a noiseless input beam. The graphs show that the maximum modulation depth decreases with increasing modulation
frequency. Further testing has demonstrated that the modulation performance is consistent for a given noise eater model, regardless of the laser beam's
input power.
PERFORMANCE

Thorlabs.com - Noise Eaters / Laser Amplitude Stabilizers
https://www.thorlabs.com/newgrouppage9_pf.cfm?guide=10&category_id=95&objectgroup_id=6107[7/7/2016 8:29:39 AM]
Hide Operation

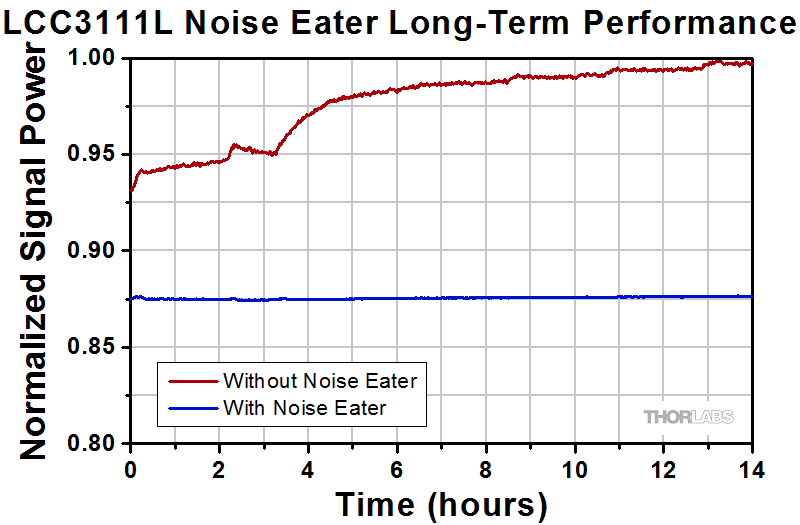

LCC3111L: Low Power Noise Eater for Visible (425 - 650 nm)
Click here to download raw data.
Item #
Noise Attenuation Modulation
Performance Long-Term Noise Attenuation Transmissionvs. Input Power vs. Noise Amplitude vs. Signal Attenuation
LCC3111L(/M)

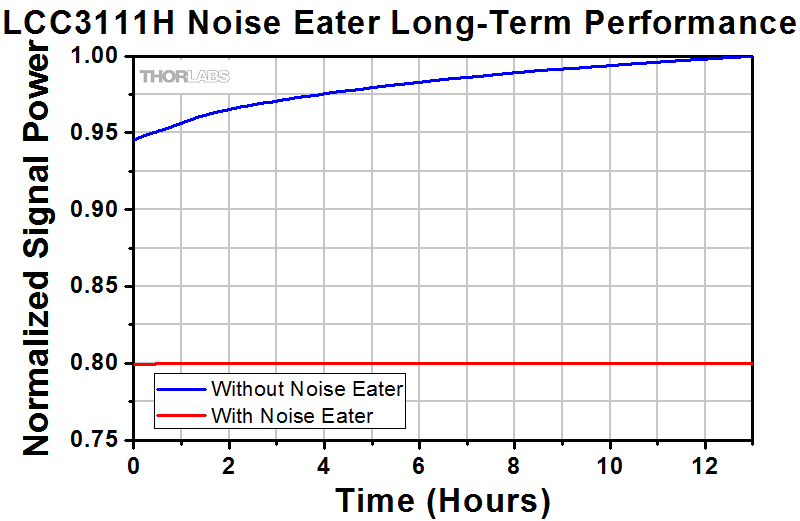

LCC3111H: High Power Noise Eater for Visible (475 - 650 nm)
Click here to download raw data.
Item #
Noise Attenuation Modulation
Performance Long-Term Noise Attenuation Transmissionvs. Input Power vs. Noise Amplitude vs. Signal Attenuation
LCC3111H(/M)

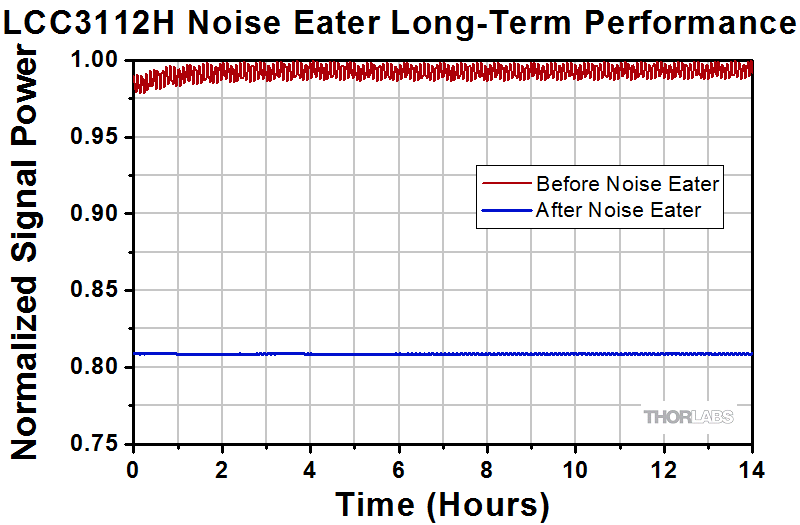

LCC3112H: High/Low Power Noise Eater for NIR (650 - 1050 nm)
Click here to download raw data.
Item #
Noise Attenuation Modulation
Performance Long-Term Noise Attenuation Transmissionvs. Input Power vs. Noise Amplitude vs. Signal Attenuation
LCC3112H(/M)
LCC3113H: High/Low Power Noise Eater for IR (1050 - 1620 nm)
Click here to download raw data.
Item #
Noise Attenuation Modulation
Performance Long-Term Noise Attenuation Transmissionvs. Input Power vs. Noise Amplitude vs. Signal Attenuation
LCC3113H(/M)
Noise Eater Operation
OPERATION

Thorlabs.com - Noise Eaters / Laser Amplitude Stabilizers
https://www.thorlabs.com/newgrouppage9_pf.cfm?guide=10&category_id=95&objectgroup_id=6107[7/7/2016 8:29:39 AM]
Click to Enlarge
Click to Enlarge

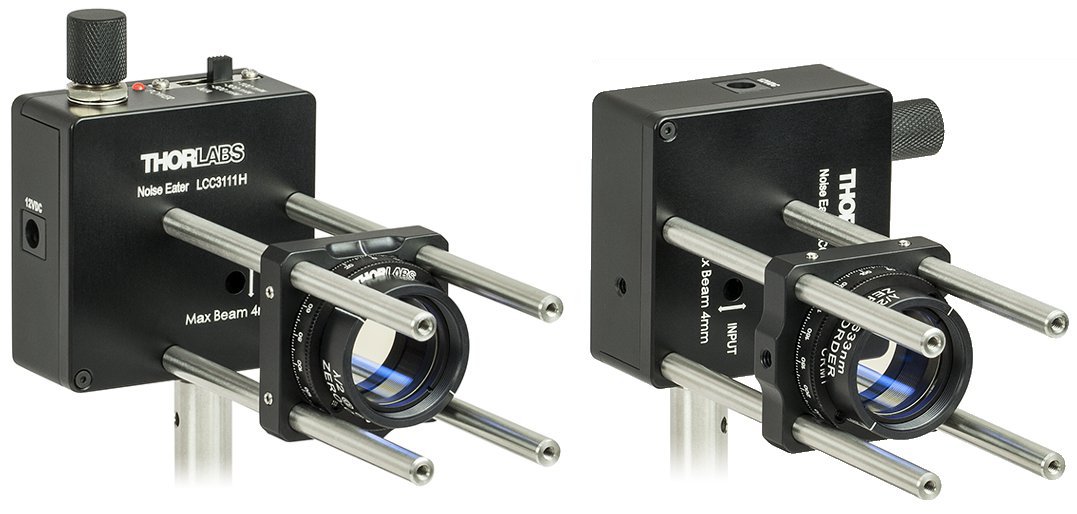

The Noise Eater can be post mounted in two different orientations to
match the input light's direction of polarization. A CRM1 Cage
Rotation Mount and four ER2 Cage Rods can mount a half-wave plate
for fine tuning the polarization alignment.
Click to Enlarge
Click to Enlarge
SMC Modulation Input
Jack
Click to Enlarge
Click to Enlarge
Top View Showing Power Range Adjustment
Switches
Thorlabs’ Liquid Crystal Noise Eater is a precision instrument for stabilizing, attenuating, and modulating laser power. The noise eater
consists of a variable attenuator (liquid crystal wave plate and polarizer), a calibrated beamsplitter, and a servo controller to control the
modulator, as depicted in the block diagram to the right.
Linearly polarized light is input into the liquid crystal retarder, which, together with the output polarizer, acts as a variable retarder. A beamsplitter then sends a
small part of the beam to a feedback loop consisting of a photodiode and control servo. The servo compares the optical signal to a preset signal level and
applies the appropriate adjustment voltage until the optical signal reaches the desired level.
The noise eater can also be used as a variable attenuator, even without the presence of noise. By adjusting the resistance of the potentiometer, the user can
set the desired output power level.
Mounting and Alignment
The noise eater is designed to work with linearly polarized input light aligned with the
direction of the arrow engraved on the noise eater near the input aperture. Linearly
polarized light and proper alignment of the direction of polarization are important for
achieving the best results from the noise eater.
In order to minimize optical losses, the noise eater does not have an input polarizer. If
the incident light is not linearly polarized, a linear polarizer (such as our LPVIS or
LPNIR ) must be placed before the noise eater to polarize the incident light.
If the incident light is linearly polarized but is not aligned exactly vertically or
horizontally, a half-wave plate can be used before the noise eater to rotate the polarization axis. As shown in the photo to the right, the noise eater’s cage
mount can be used along with a CRM1 cage rotation mount to rotate the half-wave plate, thus aligning the polarization axis with the noise eater.
For post mounting, the noise eater is equipped with two 8-32 (M4) threaded holes. These holes are offset by 90° so that light with a vertical or horizontal
polarization axis can be aligned with the noise eater. The four 4-40 holes on the front of the noise eater can also be used to mount the noise eater in either a
horizontal or vertical orientation using the Thorlabs 30 mm Cage System.
For best performance of the noise eater, it is recommended that the beam be well centered within the input aperture. Due to the optical path inside the noise
eater, the output beam will be shifted down by 1.0 mm if the noise eater is mounted vertically, as shown in the left view in the figure to the right. Similarly, the
output beam will be shifted sideways by 1.0 mm if the noise eater is mounted horizontally, as shown in the right view in the figure to the right.
Modulation
There is an SMC interface at the right side of the noise eater, which can be
used to modulate the attenuation of the noise eater. The modulation input has
a 10 kΩ input impedance. A voltage ranging from 0 to 2.5 V can be input to
modulate the output power from 0 to full output. Before modulating the output
power, first turn the output power level knob clockwise to the end of its travel
(minimum output power setting).
Power Range Adjustment
The selection switch(es) at the top of the noise eater
are used to select the input power range. The power
selector should be set to the lowest value that is still
higher than the actual power of the laser. For
example, if the LCC3111L is being used with a beam
power of 8 mW at 635 nm, the selector should be set
to 10 mW.
The LCC3112H and LCC3113H have two selection
switches at the top of the case, which are used to select the input power range. When the low/high
power switch is set to “LOW”, the input power range can be set from 1 mW to 30 mW; when the status
switch set to “HIGH”, the input power range can be set from 100 mW to 500 mW. The other noise eater models have only one selection switch.
The LCC3111x and LCC3112x noise eaters use a Silicon detector as part of the feedback loop, while the LCC3113H noise eater uses a Germanium detector.
The responsivity of the detectors is different for different wavelengths, and so the power settings on the selector only correspond to the design wavelength of
the detector (635 nm for LCC3111x, 780 nm for LCC3112x, 1550 nm for the LCC3113H). The power range at a given wavelength is inversely proportional to

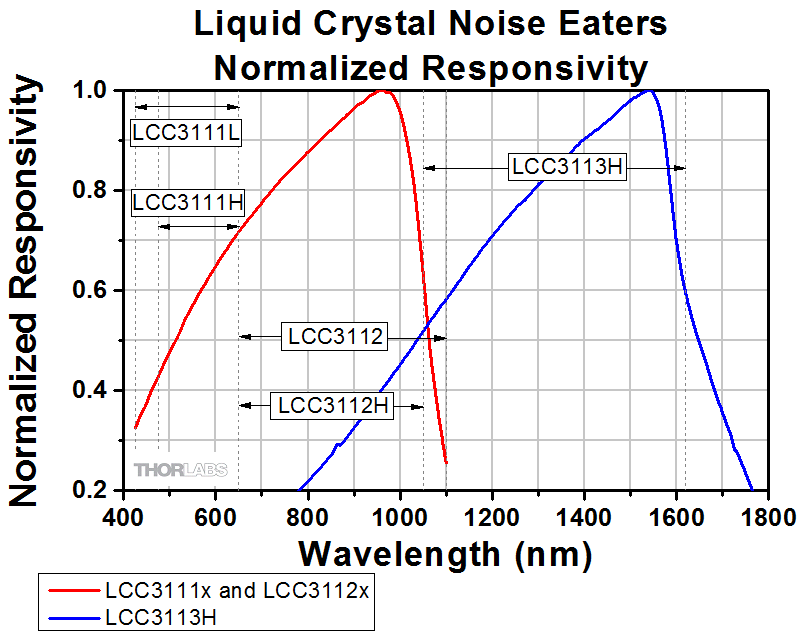

the responsivity (a higher responsivity value will result in a lower power range value). The graph to the right shows the relative responsivity of both detectors

Thorlabs.com - Noise Eaters / Laser Amplitude Stabilizers
https://www.thorlabs.com/newgrouppage9_pf.cfm?guide=10&category_id=95&objectgroup_id=6107[7/7/2016 8:29:39 AM]
LCC3111L Max Power at Various Wavelengths
Switch
Status Max Power at 450 nm Max Power at 550 nm Max Power at 635 nm
1 mW 2 mW 1.5 mW 1 mW
3 mW 6 mW 4.5 mW 3 mW
10 mW 20 mW 15 mW 10 mW
30 mW 60 mW 45 mW 30 mW
LCC3111H Max Power at Various Wavelengths
Switch
Status Max Power at 450 nm Max Power at 550 nm Max Power at 635 nm
100 mW 200 mW 150 mW 100 mW
300 mW 600 mWa450 mW 300 mW
500 mW 1000 mWa750 mWa500 mW
The maximum power levels specified here are for the feedback
electronics, but the maximum input power at these settings is
limited by the damage threshold of the liquid crystal retarder,
which is 8 W/cm2. See the section "Max Powers at Various
Wavelengths," above, for details.
at a range of wavelengths. The tables below show a rough estimate of the power settings at various wavelengths for each model.
The noise eater operates by varying how much of the signal is attenuated in order to reach the target output power and attenuate the noise. Since the noise
eater can attenuate the signal but not amplify it, the clean output beam can only have a power as high as the minimum power level of the noisy signal. In
practice, to remove all noise without unnecessarily attenuating the signal power, the output power level should be set to slightly lower than the minimum power
of the noisy signal. See the operating manual on the Documents tab for more information.
Max Powers at Various Wavelengths
The tables below list the maximum input powers for each noise eater, specified for a variety of input wavelengths and switch settings. Please note that these
maximum power levels correspond to the feedback electronics of the noise eater, and in some cases, the actual maximum input power is instead limited by the
damage threshold of the noise eater. For the high power noise eaters (LCC3111H, LCC3112H, and LCC3113H), this damage threshold is 8 W/cm2, which
corresponds to a maximum input power of 1 W if the input power is distributed evenly across the Ø4 mm clear aperture. For the low power noise eater
(LCC3111L), the damage threshold is 0.8 W/cm2, which corresponds to a maximum input power of 100 mW if the input power is again distributed evenly
across the Ø4 mm clear aperture.
LCC3112H Max Power at Various Wavelengths
Switch
Status Max Power at 650 nm Max Power at 700 nm Max Power at 780 nm Max Power at 900 nm Max Power at 1000 nm Max Power at 1100 nm
Low A 1.2 mW 1.1 mW 1 mW 0.9 mW 0.9 mW 3.3 mW
Low B 3.5 mW 3.3 mW 3 mW 2.6 mW 2.7 mW 10.0 mW
Low C 11.8 mW 11.1 mW 10 mW 8.8 mW 8.9 mW 33.3 mW
Low D 35.5 mW 33.3 mW 30 mW 26.3 mW 26.8 mW 100 mW
High A 120 mW 111 mW 100 mW 86.0 mW 89.3 mW 333 mW
High B 355.5 mW 333 mW 300 mW 258.0 mW 268 mW 999 mWa
High C 600 mWa500 mW 500 mW 430.0 mW 446.6 mW 1650 mWa
The maximum power levels specified here are for the feedback electronics, but the maximum input power at
these settings is limited by the damage threshold of the liquid crystal retarder, which is 8 W/cm2. See the section
"Max Powers at Various Wavelengths," above, for details.
LCC3113H Max Power at Various Wavelengths
Switch
Status Max Power at 1050 nm Max Power at 1150 nm Max Power at 1250 nm Max Power at 1350 nm Max Power at 1450 nm Max Power at 1550 nm Max Power at 1650 nm
Low A 1.9 mW 1.6 mW 1.5 mW 1.2 mW 1 mW 1 mW 1.6 mW
Low B 5.8 mW 4.8 mW 4.1 mW 3.5 mW 3.1 mW 3 mW 4.8 mW
Low C 19.2 mW 16 mW 13.7 mW 11.7 mW 10.4 mW 10 mW 16 mW
Low D 57.6 mW 48 mW 41.1 mW 35.1 mW 31.3 mW 30 mW 48 mW
High A 190 mW 160 mW 137 mW 117 mW 104.7 mW 100 mW 160 mW
High B 500 mW 480 mW 411 mW 351 mW 313.4 mW 300 mW 480 mW
High C 835 mWa800 mWa685 mWa585 mWa520 mWa500 mW 800 mWa
The maximum power levels specified here are for the feedback electronics, but the maximum input power at these settings is limited
by the damage threshold of the liquid crystal retarder, which is 8 W/cm
2
. See the section "Max Powers at Various Wavelengths,"

Thorlabs.com - Noise Eaters / Laser Amplitude Stabilizers
https://www.thorlabs.com/newgrouppage9_pf.cfm?guide=10&category_id=95&objectgroup_id=6107[7/7/2016 8:29:39 AM]
Hide Noise Eaters for 425 - 650 nm or 475 - 650 nm
Noise Eaters for 425 - 650 nm or 475 - 650 nm
LCC3111L is a Low-Power Noise Eater (0.5 mW to 60 mW) with a Modulation Input
LCC3111H is a High-Power Noise Eater (30 mW to 1000 mW) with a Modulation Input
Part Number Description Price Availability
LCC3111L/M Customer Inspired!Noise Eater / EO Modulator for 425 - 650 nm, Metric $1,550.00 Today
LCC3111H/M Customer Inspired!High-Power Noise Eater / EO Modulator for 475 - 650 nm, Metric $1,800.00 Today
LCC3111L Customer Inspired!Noise Eater / EO Modulator for 425 - 650 nm $1,550.00 Today
LCC3111H Customer Inspired!High-Power Noise Eater / EO Modulator for 475 - 650 nm $1,800.00 Today
Hide Noise Eater for 650 - 1050 nm
Noise Eater for 650 - 1050 nm
LCC3112H is a Switchable Low/High-Power Noise Eater (0.5 mW to 60 mW and 50 mW to 1000 mW) with a Modulation Input
Part Number Description Price Availability
LCC3112H/M Customer Inspired!High-Power Noise Eater / EO Modulator for 650 - 1050 nm, Metric $2,010.00 Lead Time
LCC3112H Customer Inspired!High-Power Noise Eater / EO Modulator for 650 - 1050 nm $2,010.00 Lead Time
Hide Noise Eater for 1050 - 1620 nm
Noise Eater for 1050 - 1620 nm
LCC3113H is a Switchable Low/High-Power Noise Eater (0.5 mW to 57.6 mW and 50 mW to 835 mW) with a Modulation Input
Part Number Description Price Availability
LCC3113H/M Customer Inspired!High-Power Noise Eater / EO Modulator for 1050 - 1620 nm, Metric $2,220.00 Today
LCC3113H Customer Inspired!High-Power Noise Eater / EO Modulator for 1050 - 1620 nm $2,220.00 Today
Visit the Noise Eaters / Laser Amplitude Stabilizers page for pricing and availability information:
https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=6107
above, for details.
