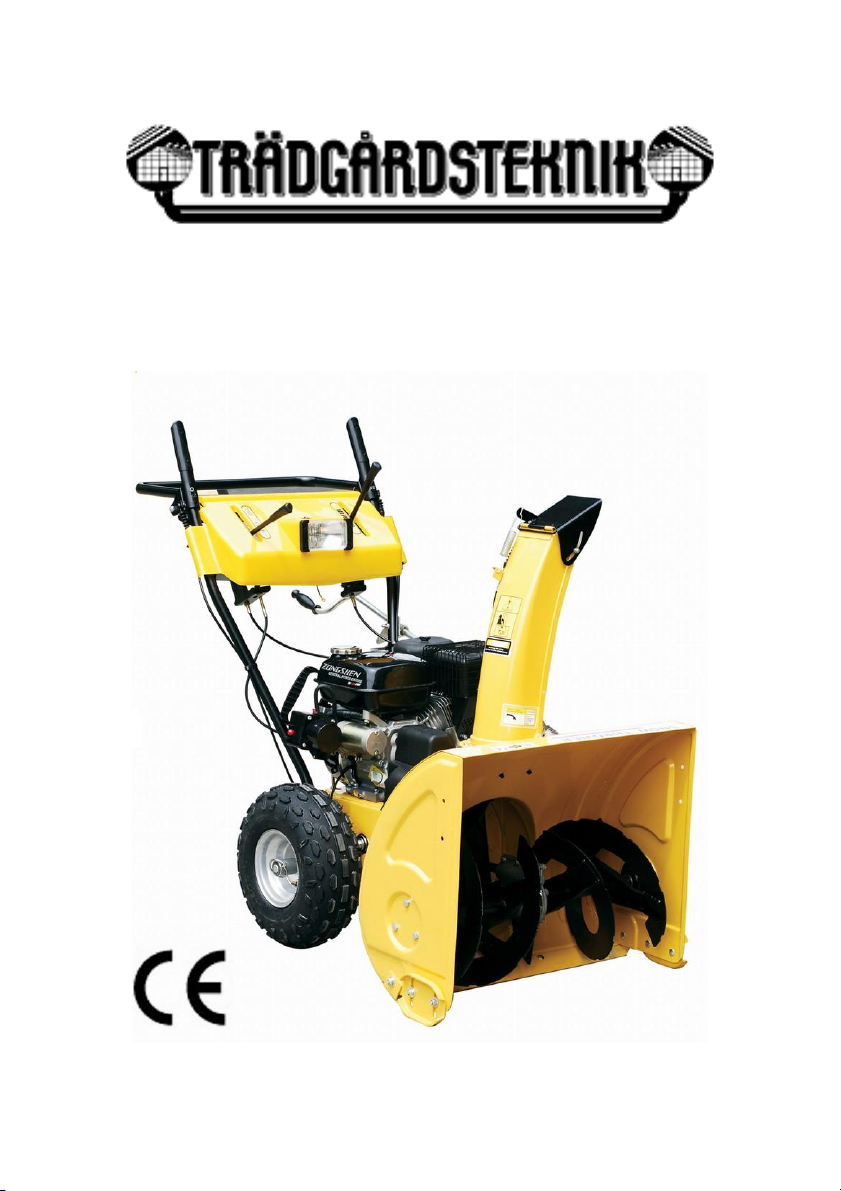

Tradgardsteknik Snoslunga 6,5hk User manual

Snöslunga 6,5hk
Manual

Contents
1. Declaration……………………………………1
2. Assembly………………………………………3
3. Preparation……………………………………4
4. Operation………………………………………8
5. Maintenance……………………………………9
6. Others………………………………………10

1
1. Declaration
Warning：Thank you for using our product;
please read through these instructions to use
this product safely and reliably.
1.1 Read through this manual and keep it handy for later
referral or for contacting the dealer.
1.2 Read through the information related to the snow
thrower and its components.
1.3 It is important to know how to properly use the snow
thrower; you should know how to turn it off before you
begin using it.
1.4 Please follow the safety rules hereunder.
A. Persons under 16 years old are forbidden to use this
machine; adults that don’t know how to operate it
correctly are also forbidden from using the machine.
B. Please keep this machine away from other persons,
especially children and pets, when you use this unit.
C. Focus when operating the machine, especially when
backing away to avoid slipping.
1.5 This device is only used for sweeping snow; if you
use it for another purpose or change its structure, the

2
producer is exempt from the responsibility of replacing
any parts or components for you.
1.6 We shall not be responsible for any human injury or
property damage to any third party caused by incorrect
operation.
1.7 If you are cleaning snow on the road, you must obey
the relevant laws and rules of your locality.
1.8 When you use this snow thrower, you shall wear
protective items such as the warm clothes, anti-slip shoes,
thermal gloves and blinkers.

3
2. Assembly
2.1 Please check that all components are included when you
unpack this device; if any component is missing, please contact
the dealer to get it.
2.2 For mounting the skids, fix the skids onto the four holes on
the large housing with four M8×15 carriage bolts (see Fig. 1).
2.3 For mounting the handrail, mount the handrail components
onto the four mounting holes on the case with four M8×25
hexagonal bolts and four blocks (see Fig. 2).
2.4 For mounting the rocker, pull it through the rocker fixed
seat (see Fig. 3) and through the pinion shaft，fix it onto the
right angle fixed seat with a spring pin (see Fig. 4).
2.5 For mounting the snow outlet, fix it onto the chassis along
its edge with a plate and bolt (see Fig. 5).
2.6 Connect the two power lines on the handrail component
with the two power lines on the main unit; the power for the
lamp will be connected.

4
3. Preparation
3.1 Inspect the area to be cleaned up and remove sleds, bricks
or loose lines prior to using this device.
3.2 Release the clutch that will be used to operate this device
prior to starting the engine.
3.3 You must wear anti-slip shoes to prevent sliding when you
use the snow thrower.
3.4 Gasoline is flammable; take care when you fill it:
A. Use correct gasoline;
B.Don’t fill gasoline when the snow thrower is running or
when the engine is hot;
C. Fill gasoline outdoors; filling up gasoline indoors is
forbidden!
D. Open the oil filling inlet and wipe away spilled gasoline
carefully.
3.5 Use correct anti-freeze engine-oil.
3.6 Adjust the chute to a proper height to avoid cleaning up
sand or gravel on road.
3.7 Don’t adjust this device when running unless the
manufacturer has given special instructions for this.

5
3.8 Don’t sweep snow outdoors until the engine and the snow
thrower have adjusted to the temperature outside.
3.9 As the snow thrown by the snow thrower might be blown
into your eyes, please wear blinkers when you sweep snow.
3.10 Keep your body and clothes off the vent-pipe, heating components
or rotating components of the snow thrower.
3.11 Check the oil tank when you use this device and make
sure there is sufficient gasoline in the oil tank.
3.12 Adjust the clutch line and make sure it is flexible and
reliable.
3.13 Operate this device carefully, especially when you walk
across the road or in reverse, to avoid any accident.
3.14 When the rotator of the snow thrower hits a block, turn off
the engine immediately and unplug the spark plug; then, clean
up the snow and other things in the device; please check if the
device is damaged when you restart it.
3.15 If the snow thrower shakes abnormally during operation,
turn off the engine immediately and inspect it (this is very
important!).
3.16 Don’t adjust or repair the snow thrower before turning off

6
the engine.
3.17 Don’t clean, repair or check the snow thrower until you
are sure that the rotating components of the device have
stopped.
3.18 Don’t use the snow thrower indoors; open your door first
if you are going to turn on the engine indoors to allow the
smoke to exit the room.
3.19 Don’t use this product on an uneven road or place with
steep slopes; take special care when turning the device on a
slope.
3.20 Don’t operate this device if there is no necessary
protection.
3.21 Keep this snow thrower off glass, fences, vehicles, kids
and pets when in use.
3.22 Don’t try to throw the snow beyond the maximum snow
throwing distance of this product.
3.23 Keep the device running at a proper speed when your use
it on a slope, take special care when you are in reverse.
3.24 Make sure there is no person in the path of the snow
thrower when in operation and don’t throw snow onto any

7
person.
3.25 In case the snow thrower fails to throw snow when
working, clean the impeller and the snow chute.
3.26 Only the manufacturer’s parts and spars are permitted to
be installed with this device.
3.27 If you use the snow thrower at night, first check that the
illumination system works properly.
3.28 Don’t carry anyone on the snow thrower.
3.29 Turn off the engine when you are going to stop this
device.
3.30 Please use proper transmission and clutch so that it spins
forward; if you are going to change the gear, release the clutch
first.
3.31 Note the direction of the snow outlet when operating this
device; don’t point it towards anyone.
3.32 The operator must make sure that the snow thrower
does not flip over; don’t use this product on slopes over 20
degrees.
3.33 Clean up the snow in the snow thrower when the snow
cleaning session is complete; it cannot work smoothly when
the snow inside is frozen.

8
4. Operation
Warning! Please read through the security notices in the
part 3 prior to using this device.
4.1 How to start the engine:
A．Open the choke;
B．Turn the start switch (see Fig.6) to“ON”；
C．Pull the line to start the engine:
D．Close the choke when the engine starts;
4.2 How to turn off the engine: you can turn off the engine by
turning the start switch to“OFF”;
4.3 How to shift the snow outlet (see Fig. 7A); Move the lever
forwards and the snow cap will move down; Move the lever
backwards and the snow cap will move up;
4.4 How to adjust the speed lever (see Fig.7B);
A．When you move the lever over the “N” location
forwards, the device will move forwardly; when you
move it further, it will run faster;
B．When you move the lever over the “N” location
backwards, the device will moves backwards; when
you move it further, it will moves back faster;

9
4.5 How to operate the left and right handrail:
A．How to handle the left handrail: the left handrail is used
for controlling the snow mixing and throwing:
When it is released; the device won’t sweep or throw
snow.
When you press it down, the device will sweep or
throw snow.
B．How to handle the right handrail: the right handrail is
used for controlling the drive wheel of the device:
When it is released, the device stops.
When you press it down, the machine moves
（forwards or backwards according to your selection）.
4.6 The interlock of the left and right handrail:
The left and right handrails might be interlocked; press down
the right handrail first and the then the left one; release your
left hand might keep the left handrail pressed.
4.7 For lamp switch : the lamp is on when the switch points to
“－”（this indicator is on）, when the switch points to “O”, the
lamp is off.

10
5. Maintenance
5.1 Inspect the snow thrower regularly to use it safely.
5.2 Don’t put a snow thrower containing oil indoors; if you put
it in indoors, keep it away from fire.
5.3 If you are going to put this snow thrower in the garage,
read through this manual and store it according to the relevant
requirements for storing the snow thrower.
5.4 Re-label security notices if necessary.
5.5 When the snow sweeping is finished, keep the agitating
auger moving for a while to prevent it from freezing.
6. Others
6.1 The importers of this company shall determine the quality
warranty. Within the quality warranty, free maintenance for
your product due to any cause or reasons arising from the
materials and construction of the unit shall be available. If you
desire to have your unit repaired, please contact the distributor
or local agency.
6.2 For any problems with your product, please consult the
following troubleshooting guide to solve the problem. For
further enquiries, please contact the distributor.

11
6.3 This operation manual is prepared based on the latest
model of this unit. The manufacturer may modify it at any time
without prior notice.
Troubleshooting:
Malfunctions
Possible causes
Corrective actions
The engine cannot be
opened
----------------------
Consult engine manual
The unstable running
----------------------
Consult engine manual
Bolt damage
Replace a new bolt
Disjunction
control system or
discharge duct
damage
Shut the engine off and exclude
the malfunction
Incorrect
disjunction control
system adjustment
Adjust terminal pad
The machine cannot
plow out snow
Chute’s jam
Dredge the chute by crabstick
Incorrect
disjunction control
system adjustment
Adjust terminal pad
Belt loose
Tighten the belt or reinstall the
belt
Disjunction
control system
icing
Remove the accumulation
The machine cannot
drive
The friction
rubber of the tyre
was punctured
Replace the friction rubber of the
tyre

12
Abnormal flutter
parts slack or
damaged
Shut off the engine immediately
and tighten the belt and nut
Incorrect
disjunction control
system adjustment
Adjust terminal pad
Gear shifting difficulty
Disjunction
control system
icing
Remove the accumulation
The key technical parameters:
Max length: 98cm
Max width: 63cm
Max height: 90cm
Net weight: 90kg
Max working thickness: 51cm
Max working width: 56cm
Output power (HP/KW): 6.5/4.8
Fuel: gasoline
For the technical parameters of the gasoline engine, see the
relevant user manual.

13
1
2
3
4
5
6
7
A
B
