Videology 20Z404-27XF User manual

Doc # INS-20Z404-27XF
Issue Date: 8/24/2011
Revision: A
Page 1 of 38
Prior to Using This Document: Videology reserves the right to modify the information in this
document as necessary and without notice. It is the user’s responsibility to be certain they possess the
most recent version of this document by going to www.videologyinc.com, searching for the model
number, and comparing revision letters on the respective document, located in the document’s footer.
For technical assistance with this product, please contact the supplier from whom the product was
purchased.
Videology Imaging Solutions, Inc. USA
Videology Imaging Solutions, B.V. Europe
37M Lark Industrial Parkway
Greenville, RI 02828
Tel: [phone]
Fax: [phone]
www.videologyinc.com
Neutronenlaan 4
NL-5405 NH Uden, Netherlands
Tel: [phone]
Fax: [phone]
www.videology.nl
Instruction Manual
20Z404-27XF
IMAGING SOLUTIONS INC.
Original Equipment Manufacturer

Doc # INS-20Z404-27XF
Issue Date: 8/24/2011
Revision: A
Page 2 of 38
Table of Contents
1. Document History ................................................................................................................. 3
2. Specifications ....................................................................................................................... 3
2.1. Lens ............................................................................................................................. 3
2.2. Camera Functions ........................................................................................................... 4
3. Interface.............................................................................................................................. 5
3.1. Pin Assignment .............................................................................................................. 5
3.2. J204 –10 Pin Connector .................................................................................................. 5
3.3. J208 –3 Pin Connector (Remote Control)........................................................................... 5
4. Recommended Circuit for Local Controls ................................................................................... 6
5. Lens Test Condition ............................................................................................................... 7
5.1. Zoom............................................................................................................................ 7
5.2. Focus............................................................................................................................ 7
5.3. Auto Iris........................................................................................................................ 7
6. Dimensions .......................................................................................................................... 8
7. OSD Navigation .................................................................................................................... 9
7.1. OSD (On Screen Display)................................................................................................. 9
7.2. Menus and Operations................................................................................................... 11
7.2.1. MAIN MENU........................................................................................................... 11
7.2.2. FOCUS.................................................................................................................. 11
7.2.3. EXPOSURE ............................................................................................................ 12
7.2.4. BLC...................................................................................................................... 13
7.2.5. WHITE BAL ........................................................................................................... 13
7.2.6. 3D-DNR ................................................................................................................ 14
7.2.7. SPECIAL ............................................................................................................... 14
7.2.8. GENERAL .............................................................................................................. 16
8. Communication Protocol....................................................................................................... 17
9. Communication Format ........................................................................................................ 19
9.1. Parameter of RS-232C................................................................................................... 19
9.2. Packet Structure........................................................................................................... 19
9.3. Bytes of a packet.......................................................................................................... 20
9.4. Check Sum Method ....................................................................................................... 20
9.5. Response from the camera............................................................................................. 21
9.6. Response Time............................................................................................................. 21
9.7. Communication Time Delay............................................................................................ 21
9.8. Communication Advisory ............................................................................................... 21
10. Command List ................................................................................................................. 22
10.1. Response Packet ....................................................................................................... 22
10.1.1. Response Packet Commands.................................................................................... 23
10.1.2. Response Packet Commands –1 .............................................................................. 23
10.1.3. Response Packet Commands –2 .............................................................................. 24
10.2. General Response Packet............................................................................................ 24
10.3. General Control Commands - 1 ................................................................................... 25
10.4. General Control Commands –2 ................................................................................... 26
10.5. Digital Effect and OSD Control Commands .................................................................... 27
10.6. AE Control Command ................................................................................................. 28
10.7. Focus Control Commands ........................................................................................... 29
10.8. Zoom/Focus Operation Commands - 1.......................................................................... 30
10.9. Zoom/Focus Operation Commands -2........................................................................... 31
10.10. Preset Control Commands .......................................................................................... 32
10.11. WB (White Balance) Control Commands ....................................................................... 33
10.12. Privacy Control Commands 1 ...................................................................................... 34
10.13. Privacy Control Commands 2 ...................................................................................... 35
10.14. Key Action Commands - 1 (*NN 75 PP XX YY) ............................................................... 36
10.15. Key Action Commands - 2 (*NN 75 PP XX YY) ............................................................... 37
11. Contact Information ......................................................................................................... 38

Doc # INS-20Z404-27XF
Issue Date: 8/24/2011
Revision: A
Page 3 of 38
1. Document History
2. Specifications
Electrical
20Z404-27XF
21Z404-27XF
Image Sensor
1/4” SONY ExView CCD
Total Pixels (HxV)
811 x 508 410K
795 x 596 470K
Active Pixels (HxV)
768 x 494 380K
752 x 582 440K
Horizontal Resolution
580 TVL
Scanning System
2:1 Interlace
Scanning Frequency (HxV)
15.734 kHz x 59.94 Hz
15.625 kHz x 50 Hz
Sensitivity
Day Mode
Min. illumination 0.5 lux (30IRE)
Night Mode
0.1 lux (30IRE)
DSS
0.00005 lux (128FLD, 30IRE)
Signal To Noise Ratio
> 50dB (AGC Off)
Motion Detection
On/off (4 programmable zones per screen)
Video Output
1.0 Vp-p (75 Ohm, composite)
Power Supply
9.5V~15V (recommended 12.0VDC ±0.5V)
Supplied Current
Startup 1Amp
steady state 240mA
Power Consumption
4.56W (max)
Control Communication
RS-232C
Protocol
Pelco-D/Pelco-P
Environmental
Operating Temperature
-50C ~ 500C (230F ~ 1220F)
Operating Humidity
20% ~ 60% RH
Storage Temperature
-400C ~ 600C (-400F ~ 1400F)
Storage Humidity
90% RH
Mechanical (see section 7)
Dimensions W x H x D
65mm x 62mm x 122mm (2.6” x 2.4” x 4.8”)
Weight
(Net) 325g (11.46 oz)
Lens
Built-in (see section 2.1)
Optical Zoom
27x F=3.6 - 97.2mm (f1.6)
Digital Zoom
10x
Field of View (Degrees)
H 55.21 (wide) 2.12 (tele)
V 42.16 (wide) 1.60 (tele)
2.1. Lens
F1.6 (W) ~ 3.7 (T) (±7％), f = 3.6 ~ 97.2mm (±7％)
High Durability Zoom Lens
Zoom Durability More than 500k at Room Temperature
Focus Durability More than 1,000k at Room Temperature
Iris Durability More than 500k at Room Temperature
Focus Length ∞~ 1.0m (Tele) ~ 0.01m (Wide)
Signal Process Digital Signal Process
Revision
Issue Date
Reason
CN#
Rev A
08-22-11
Initial release
11-0092

Doc # INS-20Z404-27XF
Issue Date: 8/24/2011
Revision: A
Page 4 of 38
Sync System Internal/External
2.2. Camera Functions
Optical Zoom TELE ~ WIDE (Zoom Speed: 4 sec)
Digital Zoom ON / Off (X10 times)
Video Focus Auto / Manual (NEAR ~ FAR) / Push Auto
Manual Mode
White Balance Auto / Indoor / Outdoor / Push Auto / Manual (R&B Gain Level UP/Down)
Special (R or B Gain Level Control)
Shutter Speed Auto / Manual (1/60 ~ 1/ 10000 (NTSC) / 1/50 ~ 1/10000 (PAL)
Iris Control Auto / Manual (Manual Iris Level: UP ~ Down)
Gain Control Auto / Manual (Auto Gain Control: UP ~ Down)
Sharpness Manual (Sharpness UP ~ Down)
Brightness Manual (Brightness UP ~ Down)
Negative Off / On
OSD Function On / Off, English / Chinese
Flickerless Off / On 1 / 100 sec Shutter Set (NTSC)
1 / 120 sec Shutter Set (PAL)
Backlight normal / High / Low (zone selectable)
Day & Night Function Auto / Day / Night
D-Effect Off/V-flip/H-flip
Video Output Levels
Color Reproduction
NTSC
Video Level
0.714 ±0.07V (100 ±10 IRE)
Sync Level
0.286 ±0.035V (40 ±10 IRE)
Burst Level
0.286 ±0.035V (40 ±10 IRE)
PAL
Video Level
700 ±70 mV
Sync Level
300 ±35 mV
Burst Level
300 ±35 mV
COLOR
RED
BLUE
YELLOW
BURST
NTSC
Amplitude (%)
200 ±40%
130 ±40%
115 ±40%
100%(Base)
Phase (°)
103 ±20°
345 ±20°
170 ±20°
180° (Base)
PAL
Amplitude (%)
200 ±40%
130 ±40%
115 ±40%
100%(Base)
Phase (°)
103 ±20°
345 ±20°
170 ±20°
135° (Base)
Zoom Start Zoom Stop
Manual (AF Action is activated for a moment before focus stops)
Manual

Doc # INS-20Z404-27XF
Issue Date: 8/24/2011
Revision: A
Page 5 of 38
3. Interface
3.1. Pin Assignment
TTL Communication (10 Pin Molex Connector)
3.2. J204 –10 Pin Connector
PIN No.
NAME
I/O
COLOR
LEVEL
1
COUT
Output
White
Chroma Out
2
YOUT
Output
Gray
Luminance Out
3
GND
Violet
Video ground
4
VOUT
Output
Blue
CVBS Out 1V ±0.2 Vp-p
5
12V
Input
Green
9V ~ 15V (Recommendation 12±0.5 V)
6
KEY 1
Input
Yellow
7
KEY 2
Input
Orange
8
RXD
Input
Red
CMOS Level 5V ( Low : Max 0.8V , High : Min 3.7V )
9
TXD
Output
Brown
CMOS Level 5V ( Low : Max 0.8V , High : Min 3.7V )
10
GND
Black
Power/Data ground
All other connectors on the camera module are used solely for manufacturing. (Not for user)
3.3. J208 –3 Pin Connector (Remote Control)
PIN No.
NAME
I/O
1
DC OUT
Output
2
GND (for R/C)
3
R/C Data
Input

Doc # INS-20Z404-27XF
Issue Date: 8/24/2011
Revision: A
Page 6 of 38
4. Recommended Circuit for Local Controls
KEY Function
6.8K
8.2K
12K
18K
33K
68K
180K
TELE(+)
0.01uF
KEY 1
6
0.01uF
KEY 2
7
WIDE(-)
NEAR(+)
FAR(-)
MENU
(OSD ON/OFF)
MIRROR
FOCUS
AUTO/
MANUAL
Initial SET
POWER
ON/OFF
BRT(+)
BRT(-)
SHARP(+)
SHARP(-)
NEG/POS
B/W
(FREEZE)
* If you press and hold MENU for over 2 seconds, the OSD will turn off.
Menu mode will be displayed again once Menu is pressed.
Menu is used to select the subcategories.
6.8K
8.2K
12K
18K
33K
68K
180K
B/L
(FLIP/INVERT)

Doc # INS-20Z404-27XF
Issue Date: 8/24/2011
Revision: A
Page 7 of 38
5. Lens Test Condition
5.1. Zoom
5.2. Focus
5.3. Auto Iris
TELE
WIDE
1 sec pause
1 Cycle
RESET
NEAR
FAR
1V pause
1V pause
1V
1 Cycle
3sec
1 Cycle
3sec
6 sec
OPEN
CLOSE

Doc # INS-20Z404-27XF
Issue Date: 8/24/2011
Revision: A
Page 8 of 38
6. Dimensions

Doc # INS-20Z404-27XF
Issue Date: 8/24/2011
Revision: A
Page 9 of 38
7. OSD Navigation

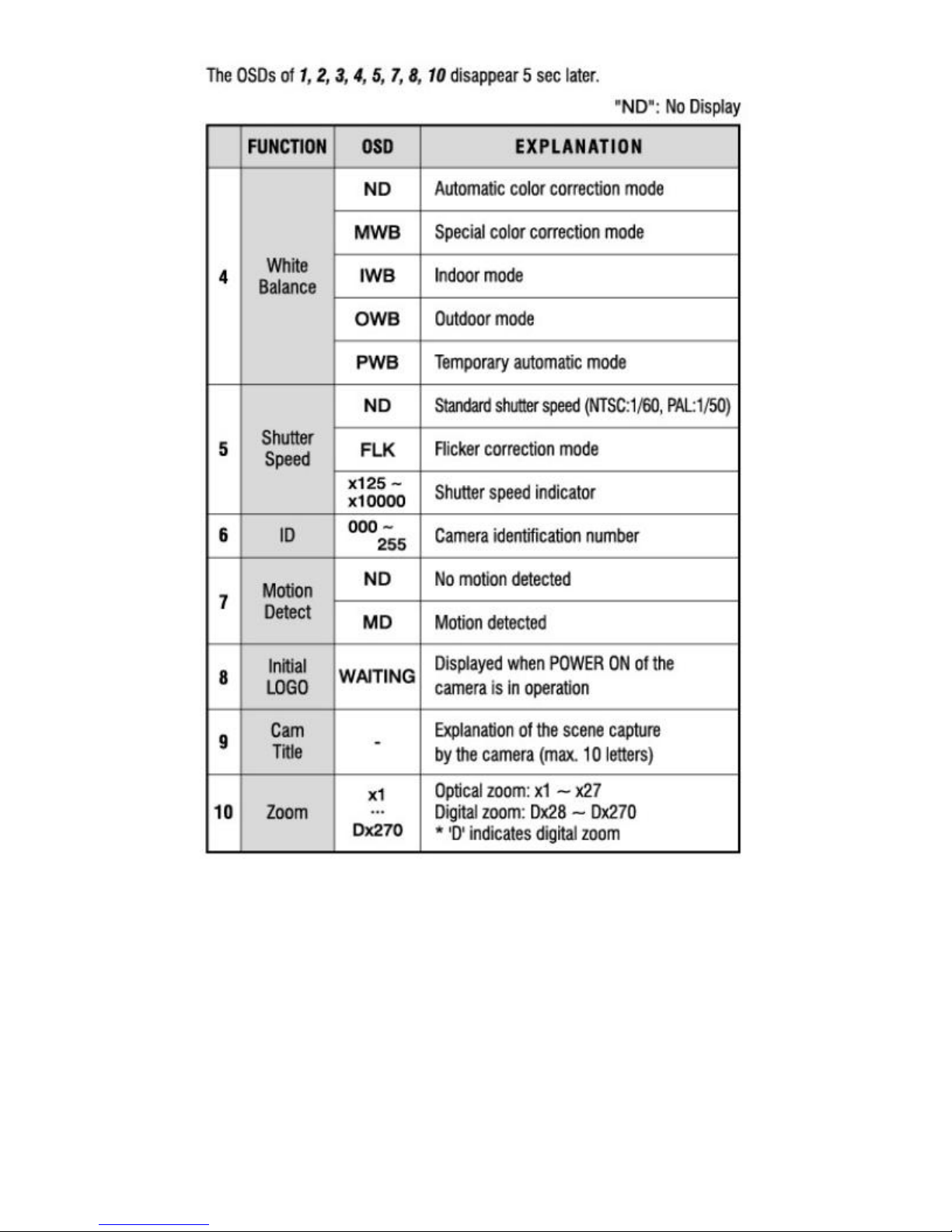

7.1. OSD (On Screen Display)
1) OSD DISPLAY POSITION
2) DESCRIPTION
