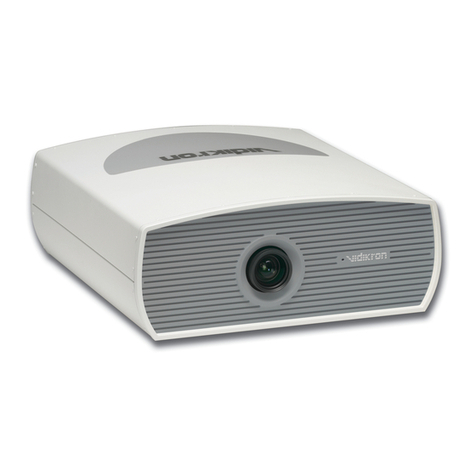

The Vision™ Model 100t has earned the world’s first THX video product
certification, meeting the industry’s most stringent performance and
quality specifications.
Vidikron has equipped the Vision™ Model 100t with our advanced, 3-chip
DLP™ technology featuring 1280 x 720 native resolution. This technology
is integrated into a LightAmp™ engine developed by Vidikron engineers to
produce an amazing 3500 ANSI lumens of light output (CSMS™ Light Output
of 78.5 ft-Lamberts) for the ultimate video performance in rooms with high
ambient light levels.
Vidikron’s exclusive all-digital Imagix™ video processing is integrated into
the projector chassis for the most advanced video scaling and image quality
available. Six lens options with precision optics facilitate a wide range of
projector installation choices, and include generous motorized horizontal
and vertical electronic lens shift capabilities. Multiple discrete inputs,
IntelliWide™ aspect ratio control, two DVI (HDCP compliant) inputs, three
12V triggers and an RS-232 interface for seamless integration with today’s
latest automation control systems are included.
Vidikron’s award-winning CineWide™ with AutoScope™ option eliminates
useless black bars, filling your entire screen with high resolution excitement
when enjoying 2.35:1 superwide movies.
Vision™ Model 100t LightAmp™
DLP™ Home Theater Projector
Going Beyond Home Theater™

Specifications Vision™Model 100t
Projector Type: Digital Light Processing™ (DLP™),
3-chip, 16:9 LightAmp™ DMD’s™
Native Resolution: 1280 x 720 (16:9)
Aspect Ratio: 4:3, Letterbox, 16:9 Anamorphic, IntelliWide™,
IntelliWide™ 2.35, Cinema
Video Standards: NTSC, PAL, ATSC
DTV Compatibility: 480p, 720p, 1080i
Scan Frequency: Horizontal: 15 – 100 KHz
Vertical: 28 – 78 Hz
Picture Size
(16:9 Screen):
Recommended Width: 72 – 120 in.
Maximum Width: 250 in.
Throw Distance
(Factor x Screen Width):
Lens Option A: Fixed 0.64 x width (for rear screen
applications)
Lens Option B: Zoom 1.24–1.42
Lens Option C: Zoom 1.45–1.73
Lens Option D: Zoom 1.85–2.35
(with CineWide 1.42 to 1.75 with 2.35:1 screen)
Lens Option E: Zoom 2.45–3.55
(with CineWide 1.86 to 2.62 with 2.35:1 screen)
Lens Option F: Zoom 3.65–5.70
(with CineWide 2.77 to 4.24 with 2.35:1 screen)
Horizontal and
Vertical Offset:
Horizontal: +/- 10 to 13%
Vertical: 0% to 13% above center of screen;
0% to 80% below center of screen
(Lens options B – F with ceiling mount. Vertical specifications are with
horizontal shift at center. Horizontal specifications are with no vertical shift
used. Amount of available shift varies per lens. Contact Vidikron technical
support for installation details.)
Light Output: CSMS™* Specifications: Home Theater
Calibration: 2631 ANSI Lumens;
78.5 Foot-Lamberts (fL).
3500 ANSI Lumens
Contrast Ratio: CSMS* Contrast Ratio: 228:1; 2000:1 ANSI
Lamp: 275W UHP
Estimated Lamp Life: 2000 hours
Inputs : (1) Composite; (2) S-Video; (1) Component;
(2) HD - R (Pr), G (Y), B (Pb), H, V; (2) DVI w/HDCP
Control Options: Discrete infrared remote, (1) RS-232,
9-pin Connector
Screen Trigger/Masking
Outputs:
(3) 12V DC, 1/8A
Power Requirements: 100 – 240V AC, 50/60 Hz, 610W
Operating Environment: 40° – 95° F, (5° – 35° C)
0% – 90% Humidity (non-condensing)
Dimensions (w/o feet): Width: 23 5/8 in. (600.00 mm)
Depth: 26 7/8 in. (682.62 mm)
Height: 9 1/2 in. (241.30 mm)
Weight: 65 lbs. (29.48 kg) (without lens)
Regulatory Approvals: Complies with FCC, CE C-Tick
Limited Warranty: Projector: Two (2) years parts and labor from the date
of delivery to the end user.
Lamp Warranty: 1000 hours or six (6) months,
whichever comes first.
Vidikron
2900 Faber Street
Union City, CA 94587
510-324-5900
Fax [phone]
www.vidikron.com
*Cinema Standards Measurement System. See www.vidikron.com for more details. Specifications are subject to change without notice. Optional ceiling mount available.
Vidikron, Vision Series, LightAmp, Intelliwide, Imagix, and CSMS are trademarks owned by Runco, LLC, licensed to Vidikron, a division of Runco International, Inc.
CineWide and AutoScope are trademarks of Runco International, Inc. © 2007 Runco International, Inc. All Rights reserved.
Digital Light Processing, DLP and DMD are trademarks of Texas Instruments. ISF is a registered trademark of Imaging Science Foundation.
THX is a trademark of THX Ltd. which may be registered in some jurisdictions. All rights reserved.
Theater installation courtesy of Cinema Design Group Intl., Boca Raton, FL 02/07
Engineered for ISF®calibration.
A conventional 2.35:1 image
displayed on a 1.78:1 (16:9) screen.
Constant Vertical height and full resolution
are maintained. 100% of pixels are used.
Black bars are eliminated.
Black bars = lost resolution
CineWide™ with AutoScope™
Conventional Method
2:35:1 image area
How it works:
The video processor anamorphically “stretches” the 2.35:1 image vertically to
completely fill the display’s imaging chip’s. This allows all pixels to be used.
2.35:1 Image on a 16:9 imaging chip 16:9 Image Area
VERTICAL
STRETCH
REMOVES
BLACK
BARS
SQUEEZED
APPEARANCE
The anamorphic lens then “stretches” the image width to 2.35:1. Correct
geometry is restored, while 100% of the pixels are now used to maintain
full resolution and eliminate black bars.
STRETCH
CineWide with AutoScope requires the use of a 2.35:1 or similar
aspect ratio superwide screen.
CineWide™ with AutoScope™
Until now, viewing movies presented in the CinemaScope™ 2.35:1 format
has meant the presence of useless black bars on the top and bottom of your
screen. It has also meant a possible loss of resolution because widescreen
digital imaging chips are in the 16:9 widescreen aspect ratio, not nearly as
wide as 2.35:1.
Through the magic of our award winning CineWide with AutoScope
technology and the use of an appropriate screen, constant vertical height
is maintained, filling the entire screen area. When you transition from a
standard 16:9 (1.78:1) widescreen aspect ratio to 2.35:1 Cinema, the picture
simply gets wider — really wide, just as you would experience in a quality
cinema.
