VSS Nederland VSZ-2051-HD User manual

Distributed by
PRINTED IN KOREA
P/N : 388037010
Before installing, operating or adjusting this product,
please read this instruction booklet
carefully and completely.
INSTRUCTION MANUAL
FULL HD MEGA PIXEL
ZOOM CAMERA

The lightning flash with an arrowhead symbol
within an equilateral triangle is intended to alert
the user to the presence of uninsulated
dangerous voltage within the product's enclosure
that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying
the product.
REGULATORY INFORMATION : FCC Part 15 WARNING -
Do not install this equipment in a confined
space such as a bookcase or similar unit.
Disposal of your old appliance
1.
When this crossed-out wheeled bin symbol
is attached to a product it means the product
is covered by the European Directive
2002/96/EC
2.
All electrical and electronic products should
be disposed of separately from the municipal
waste stream via designated collection facilities
appointed by the government or the local
authorities
3. The correct disposal of your old appliance
will help prevent potential negative conse-
quences for the environment and human
health
4.
For more detailed information about disposal
of your old appliance, please contact your
city office, waste disposal service or the shop
where you purchased the product.
To disconnect power from the mains, pull out the main
cord plug. When installing the product, ensure that the
plug
is easily accessible.
WARNING - Wiring methods shall be in accordance with
the National Electric Code, ANSI/NFPA 70.
WARNING - To reduce a risk of fire or electric shock, do
not expose this product to rain or moisture.
CAUTION - This installation should be made by a qualified
service personrel and should conform to all local codes.
CAUTION - To avoid electrocal shock, do not open the
cabinet. Refer servicing to qualified personnel only.
CAUTION - The apparatus should not be exposed to
water (dripping or splashing) and no objects filled with
liquids, such as vases, should be placed on the apparatus.
WARNING - This is a class A product. In a domestic
environment this product may cause radio interference
in which case the user may be required to take adequate
measures.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION :
FCC WARING - This equipment may generate or use
radio frequency energy. Changes or modifications to
this equipment may cause harmful interference unless
the modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference
in which case the user will be required to correct the
interference at his own expense.
- A suitable conduit entries, knock-outs or glands shall
be provided in the cable entries of this product in the
end use.
- Holes in metal, through which insulated wires pass,
shall have smooth well rounded surfaces or shall
be provided with brushings.
03

1. Read these instructions - All these safety and operating
instructions should be read before the product is operated.
2. Keep these instructions - The safety, operating and user
instructions should be retained for future reference.
3. Heed all warnings - All warnings on the product and in
the operating instructions should be adhered to.
5. Do not use this apparatus near water - For example :
near a bath tub, wash bowl, kitchen sink, laundry tub,
in a wet basement, near a swimming pool, etc.
6. Clean only with dry cloth - Unplug this product from
the wall outlet before cleaning. Do not use liquid cleaners.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions. -
Slots and openings in the cabinet are provided for
ventilation, to ensure reliable operation of the product,
and to protect it from overheating. The openings should
never be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product should not
be placed in a built-in installation such as a bookcase
or rack unless proper ventilation is provided and the
manufacturer’s instructions have been adhered to.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
4.
Follow all instructions - All operating and user instructions
should be followed.
9.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
10.
Only use attachments/accessories specified by the
manufacturer.
12. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
04 05
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS
11. Unplug this apparatus during lightning storms or
when unused for long periods of time.

06 07
CONTENTS FEATURES
Features
SPECIAL FUNCTION ..............................
DISPLAY ..............................................
SPECIFICATION ........................................
DRAWING ................................................
TROUBLESHOOTING ................................
26P
28P
29P
32P
33P
FEATURES......................................................
CONTENTS ..................................................
SYSTEM CONFIGURATION..............................
PART NAMES AND FUNCTIONS .....................
CONNECTIONS .............................................
EXTERNAL DEVICE CONNECTIONS................
INSTALLATION OF CAMERA ..........................
MENU OPERATION ........................................
MAIN MENU ..................................................
FOCUS ......................................................
EXPOSURE ...............................................
WHITE BALANCE ......................................
IMAGE ......................................................
INTELLIGENCE .........................................
7P
8P
9P
10P
12P
13P
14P
15P
16P
17P
18P
21P
22P
24P
• 1/3" Panasonic CMOS sensor
• x20 Optical Zoom
• Full HD Resolution
• Day & Night (ICR)
• WDR (Wide Dynamic Range)
• DNR (Digital Noise Reduction, 2D+3D)
• Privacy mask Function
• On Screen Display
• Intelligent motion detection
• HD-SDI/HDMI/CVBS Output
• Multi-Protocol(VISCA, Pelco-D, Pelco-P)

08 09
CONTENTS SYSTEM CONFIGURATION
RS485
RS485
RS485
DVR
Keyboard
TV Monitor
VIDEO
VIDEO
VIDEO
(HDMI)
[Contents 20x] [Optional Remote Controller]
CAMERA
BRACKET HOLDER
SCREW
M2.6*4 CH/BK 4EA
MANUAL
CABLE
··
··
·
·
·
Not used
Far / Right
Tele/ Up
Menu/ Set
Wide / Down
Near / Left

10 11
PART NAMES AND FUNCTIONSPART NAMES AND FUNCTIONS
【1】Camera installation bracket
The braket can be fixed at the top or bottom of the
camera.
【1】【5】【2】【1】
【6】
【3】【4】
【8】
【7】
【1】OSD / Zoom / Focus control
【2】Power LED
【3】HDMI
【4】HD-SDI Out
【5】CVBS Out
【6】AD Key
1: GND
2: AD-key
3: GND
【7】Control Terminal
1: RS-485 (+)
2: RS-485 (-)
3: Motion Detection Out
4: No Connection
5: Ground
6: Day&Night Input (Low : Night, High : Day)
【8】Power : DC12V
POWER
AD KEY VIDEO
DC12V
+ -
+ -
RS-485
HDMI
HD-SDI
M
D
/
N
C
//
D
N
G
N
D

12 13
CONNECTIONS
EXTERNAL DEVICE CONNECTIONS
2
2
3
1
DC12V
DC12V
Basic connection
The peripheral devices (DVR, monitor, lens, etc), DC adaptor
and cables are not supplied.
1. Connecting the monitor.
Make the video signal connection between the camera and the
monitor or time lapse monitor or DVR.
2. Use a commercially available DC12V adaptor.
Connect an DC 12V power source to the DC 12V input terminal
on the back of the camera.
3. Insert the plug of this power cord into a wall outlet.
The POWER indicator will light. Adjust the picture on the monitor
using the Brightness and Contrast controls etc.
To monitor’s Video Input
or Camera Input
POWER
AD KEY VIDEO
DC12V
+ -
+ -
RS-485
HDMI
HD-SDI
M
D
/
N
C
//
D
N
G
N
D
RS-485 COMMUNICATION
Connect to an external controller of RS-485 format.
Motion Detection Out
When the motion detection function is working.
DC3.3V is outputed to OUT pin and GND pin.
Day & Night input
Day/Night mode of the camera can be switched by
signal from an external device.
To use this function, <DAY&NIGHT> setting of the
camera should be set to the <EXT>.
Note : Use a relay unit if the voltage or current of the
connected
device exceeds the ratings.

14 15
MENU OPERATIONINSTALLATION OF CAMERA

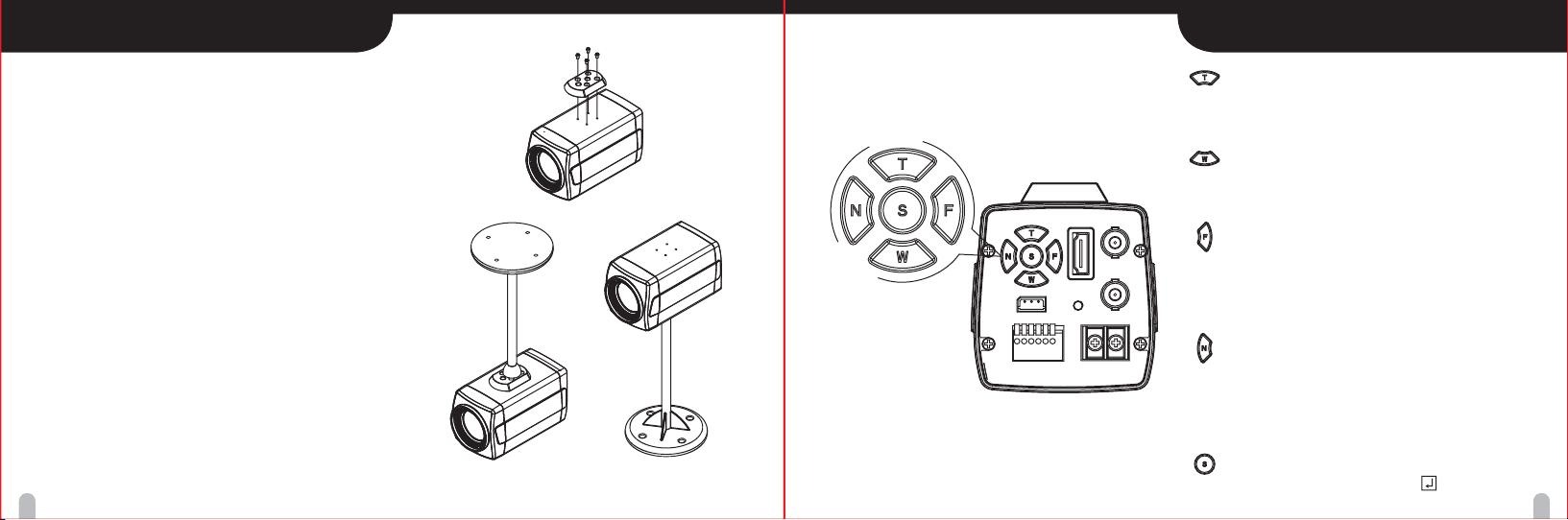

The bracket can be installed to either the top or bottom of
the camera as desired. From changeing the position of
the camera mounting bracket, you should always reuse
the screws that have been removed.
Note :
When using a camera mounting bracket, select a location
that is strong enough to bear the full weight of the camera
and the mounting bracket hold long periods, and install the
camera mounting bracket securely.
This camera utilizes an on-screen user MENU. To set items
on the menu, use the following buttons on the side panel.
Tele(Up) button : Zoom in, Tele (Moves the cursor
upwards. Use this button to select an item or
adjust the parameters.)
Wide(Down) button : Zoom out, Wide (Moves the
cursor downwards. Use
this button to select an
item or adjust the parameters.)
Far(Right) button : Adjust focus in Manual Mode
(Moves the cursor to the right. Use this button to
select or adjust the parameters of the selected
item. The parameter changes each time this
button is pressed.)
Near(Left) button : Adjust focus in Manual Mode
Moves the cursor to the left. Use this button to
select or adjust the parameters of the selected
item. The parameter changes each time this
button is pressed.)
Set button : Executes selections and displays a
submenu for an item with the mark.

FOCUS
FOCUS
MODE
DISTANCE
LENS REFRESH
E.ZOOM
RETURN
AUTO
0.1m
OFF
OFF
- MODE : Select auto focus mode
►AUTO, ONE PUSH, MANUAL
- DISTANCE : Select minimum distance in focus between camera and object.
►0.1 / 0.5 / 0.8 / 1.0 / 3.0 / 6.0 / 10.0 m
- LENS REFRESH : Lens origin calibrated automatically.
►OFF / ON (1 day ~ 10 days)
- E.ZOOM : Select maximum digital zoom magnification.
►OFF / ON (max x2 ~ x19, x21, x23, x25, x28, x32)
MENU
FOCUS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
16 17
FOCUSMAIN MENU
Main Menu
MENU
FOCUS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
Functions can be setup using “Menu Key Command” of Visca protocol.
The menu consists of the “Main Menu” and “Sub Menu”.
The main menu is displayed where 7 camera functions can be selected.
To the push of each main menu selection, the sub-menu is displayed

18 19
EXPOSURE EXPOSURE
EXPOSURE
-MODE : Adjust MODE
► AUTO / IRIS.P / SHUT.P / MANUAL
-AGC : Select Auto Gain Control
► OFF / ON
-SHUT SPEED : Can be set in SHUT.P or MANUAL mode
► AUTO / 1/30(25),1/60(50),1/120(100),1/240,1/500,1/1000,1/2000,1/4000,1/8000, 1/16000,
1/30000,1/60000 sec
- IRIS : Iris level can be set in IRIS.P or MANUAL mode
►AUTO / MANUAL(0 ~ 20)
- DSS : Select maximum DSS(Digital Slow Shutter)
►OFF / x2, x3, x4
- FLICKERLESS : Select Flickerless mode
►OFF / ON (remove screen flicker)
- BRIGHTNESS : Adjust brightness level
►0(dark) ~ 20(bright) steps
- WDR/BLC : Select WDR(Wide Dynamic Range) or BLC(Back Light Compensation)
►WDR
▷WEIGHT : Adjust WDR level.
►0 ~ 3
►BLC
▷AREA : Control BLC area according to light condition.
▷POS-X : Adjust the window X-Axis position
▷POS-Y : Adjust the window Y-Axis position
▷SIZ-X : Adjust the window X-Axis size
▷SIZ-Y : Adjust the window Y-Axis size
* When WDR is ON, ACE and DEFOG function can not turn on.
MENU
FOCUS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
EXPOSURE
MODE
AGC
SHUT SPEED
IRIS
DSS
FLICKERLESS
BRIGHTNESS
WDR/BLC
DAY&NIGHT
RETURN
7
AUTO
ON
AUTO
AUTO
OFF
OFF
OFF

20 21
EXPOSURE WHITE BALANCE
- DAY&NIGHT : Select Day&Night
►AUTO / DAY / NIGHT / EXT
▷Delay : 0 ~ 255 second
▷BURST : OFF / ON
▷THRS : (LOW / MIDDLE / HIGH)
According to daytime, nighttime setting the levels of transition sets to
no changes when it is dark at, higher the step it is set to
▷GAP : LOW / MIDDLE / HIGH
This setting adjusts the margin of change from the setting of light to dark /
daytime to nighttime and dark to light / nighttime to daytime. If this setting
is too low then fluctuation may occur.
WHITE BALANCE
MENU
FOCUS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
WHITE BAL
AWB
CHROMA
RETURN 10
AUTO
- AWB : Select WHITE BALANCE mode
►AUTO / ONE PUSH / MANUAL / INDOOR / OUTDOOR
▷AUTO : Automatically adjusts color according to the available lighting.
▷ONE PUSH : It is a fixed white balance mode that may be automatically readjusted only by
pressing PRESET
▷MANUAL : Color can be corrected when the user increases or decreases “RED GAIN” or “BLUE GAIN”.
►RED GAIN : Adjust R gain value 0 ~ 20
►BLUE GAIN : Adjust B gain value 0 ~ 20
▷INDOOR : Set color temperature to be Indoor light (3700°K)
▷OUTDOOR : Set color temperature to be Outdoor light (5100°K)
- CHROMA : Adjust CHROMA gain value
►0 ~ 20 steps

22 23
IMAGE IMAGE
MENU
FOCUS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
HLC
DNR
MIRROR
SHARPNESS
ACE
FREEZE
RETURN
OFF
AUTO
OFF
6
OFF
OFF
- HLC : Select High Light Compensation.
When extremely bright light is projected to the camera masking is used on the portion to prevent partial
saturation on the monitor.
►OFF / ON
▷ON LEVEL : 0 ~ 20 steps
COLOR : Black, White, Yellow, Cyan, Green, Magenta, Red, Blue
- DNR : Select Digital Noise Reduction
►AUTO / OFF / LOW / MIDDLE / HIGH
- MIRROR : Select a flip mode
►OFF / H / V / H&V
▷H : You can flip the picture horizontally on the screen
▷V : You can flip the picture vertically on the screen
▷H&V : You can flip the picture horizontally & vertically on the screen
- SHARPNESS : Adjust sharpness level
►0 ~ 10 steps
- ACE : Select Digital WDR(Wide Dynamic Range)
►OFF / ON
*When ACE is ON, WDR and DEFOG function can not turn on.
- Freeze : Select real or still mode
►OFF / ON

24 25
INTELLIGENCE INTELLIGENCE
INTELLIGENCE
MENU
FOCUS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
INTELLIGENCE
PRIVACY
MOTION
RETURN
OFF
OFF
-PRIVACY : Hide an area you want to hide on the screen
►OFF / ON
▷MASK# : Select mask area number (0~23)
▷MODE : Mask enable or disable (OFF / ON)
▷X-POS : Adjust the mask X-Axis position
▷Y-POS : Adjust the mask Y-Axis position
▷X-SIZ : Adjust the mask X-Axis size
▷Y-SIZ : Adjust the mask Y-Axis size
▷COLOR : Select mask color(0~13)
▷TRANS : Select mask transparency level (0 ~ 4)
- MOTION : When there is movement of the subject in the screen, there will be an motion detection
►OFF / ON
▷SENSITIVITY : Adjust sensitivity of MD (0 ~ 20 steps) More sensitive to setting to low step
with sensitivity
▷AREA : Designate motion detection area (WHOLE / EACH)
▷AREA# : Setting 3 areas(0~2) of motion detection
▷MODE : Limit and define areas of motion detection
▷X-POS : Adjust the AREA X-Axis position
▷Y-POS : Adjust the AREA Y-Axis position
▷X-SIZ : Adjust the AREA X-Axis size
▷Y-SIZ : Adjust the AREA Y-Axis size
▷TRANS : Adjust color tone of out of selected areas.
▷INTERVAL :No alarm out during interval time even though motion is detected. (0~255s)
▷DWELL : Keep alarm out during dwell time (0~255s)
▷RETURN

26 27
SPECIAL FUNCTION
SPECIAL FUNCTION
SPECIAL FUNC
- DEFECT DET : Compensates for bad pixels that my occur. Occurs when the whole screen is in full black
or if there is bad pixelation and it changes the THRS values until the screen is fixed. (OFF / ON)
*If you use a DC lens what closed IRIS, you do not need to block the lens while operating DEFECT function.
In case of using a DC lens not closed and manual lens, you have to block the lens while operating DEFECT
function.
- DEFOG : Carry out defog function
►OFF / ON
▷LEVEL : Eliminate amount of fog on display screen.
0 ~ 10
* When DEFOG is ON, ACE and WDR function can not turn on.
- SYSTEM : Select NTSC or PAL. (NTSC / PAL)
- HD FORMAT : Select Digital output 1080P or 720P. (1080P / 720P)
- COMM : Set up the camera ID, baud rate, protocol
▷ID : Select the camera ID
►1 ~ 255
▷BAUD RATE : Select serial communication speed
►2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200bps
▷PROTOCOL : Select operating protocol
►VISCA / PELCO-D / PELCO-P / UPDATE
- DEFAULT : All the settings will be restored to the factory default.
MENU
FOCUS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
SPECIAL FUNC
DEFECT DET
DEFOG
SYSTEM
HD FORMAT
COMM
DEFAULT
RETURNN
OFF
OFF
NTSC
1080P
ON

28 29
DISPLAY
SPECIFICATION
DISPLAY
MENU
FOCUS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
DISPLAY
DISP SEL
SET TITLE
RETURN
- DISP SEL : Select display item.
►ID : OFF / ON
►TITLE : OFF / ON
►EZOOM : OFF / ON
- SET TITLE : Select camera title menu (Text edit)
i
Image Sensor
Total Pixels
Active pixels
Scanning system
Sync. System
Resolution
Min. illumination
Video Output
S/N Ratio
Lens type
Zoom Ratio
Focal Length
Aperture Ratio
Focus
Mode
Distance
Lens Refresh
E.Zoom
Exposure
1/3" Panasonic CMOS Sensor (Option:1/2.9" Sony SMOS)
2,010(H) x 1,108(V), 2.2M Pixels
1,944(H) x 1,092(V), 2.1M Pixels
Progressive Scan
Internal
Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps)
Analog : 700TVL
Color : 0.5 lux , BW : 0.1lux
Color DSS : 0.002 lux , BW DSS : 0.001 lux
HD : HD-SDI, HDMI
Analog SD : VBS(without WDR)
more than 50dB (AGC off)
x20 Day & Night Zoom Lens
Optical x20, Digital x32 Zoom
f = 4.7 mm ~ 94.0 mm
F1.6 (wide) ~ F3.5 (tele)
Mode / Distance / Lens Refresh / E.Zoom
Auto / One Push / Manual
0.1 / 0.5 / 0.8 / 1.0 / 3.0 / 6.0 / 10.0 m
Off / 1 ~ 10Day
Off / MAX x2 ~ x32
AUTO / IRIS.P / SHUT.P / MANUAL

30 31
SPECIFICATIONSPECIFICATION
Gain Control (AGC)
Shutter Speed
Iris
Digital Slow Shutter (DSS)
Flickerless
Brightness
WDR/BLC
Day&Night
White Balance
HLC
DNR
Mirror
Sharpness
ACE
Freeze
Intelligent
Privacy Mask
Motion Detection
Special
Defect DET
Defog
Off / On
1/30(25) ~ 1/60,000 sec
0 ~ 20
Off / Max x2 ~ x4
Off / On
0 ~ 20
OFF / WDR / BLC
Auto / Day / Night / Ext
AUTO / One Push / Manual / Indoor / Outdoor
HLC / DNR / Mirror / Sharpness / ACE / Freeze
Off / On
Auto / Off / Low / Middle / High
Off / H / V / H&V
0 ~ 10
Off / On
Off / On
Privacy / Motion Detection
Off / 24 positions
Off / 4 positions
Defect DET / Defog / System / HD Format / Comm / Default
Off / On
Off / On
System
HD Format
Comm
Default
Display
Disp Sel (Off / On)
Set Title
Language
OSD Text
Power Source
Power Consumption
Power Input
Video Output
Operating Temperature
Dimension (W x H x D)
Weight
NTSC / PAL
1080P / 720P
Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200
Protocol : VISCA / Pelco-D / Pelco- P / Update
Off / On
Disp Sel / Set Title
ID / Title / Zoom Ratio
Text Edit
English
0 ~ 9 , A ~ Z , a ~ z
DC12V±10%
500mA
2 pin Terminal
BNC, HDMI Connector
-10℃~ +50℃(Humidity : 20%RH ~ 80%RH)
68.1(W) x 69.5(H) x 129.3(D)
560g

32 33
DRAWING TROUBLESHOOTING
• Nothing appears on the screen.
-Please check the power connection.
-Please check the video signal line connection.
• The video image is not clear.
-Please clean the lens with a clean cloth or brush.
-Please adjust that the screen is not exposed directly to a bright light.
-Please move the camera if necessary.
• The screen is dark.
-Please adjust the contrast feature of the monitor.
-If you have an intermediate device, set the 75 Ω/Hi-Z properly, and check the terminals.
-Please adjust the brightness level.
• The MOTION DETECTION function is not working
-Please check if “MOTION DETECTION” mode is turned on.
-Please check if the MD Sensitivity is too low.
-Please check the setting of the MD AREA.
• The WDR function is not working
-Please check if the WDR Level is too low.
-Please check if the AE Mode is set to MANUAL. The WDR doesn’t work in MANUAL Exposure mode.
• Colors are not quite right.
-Please check if the camera is facing directly into sunlight or fluorescent light.
• The Day&Night function doesn’t work.
- Please check if the AGC of EXPOSURE menu is set to OFF.
- The Auto Day&Night doesn’t work in AGC OFF status.
Trouble shooting
If there are problems in operation, please refer to the items below.
If the problem persists, please contact the agent you purchased this product from.
68.1
68.1
69.5
69.5
76.5
76.5
129.3
129.3
54
54
14
14
2- 1/4"-20 UNC
2- 1/4"-20 UNC

34 35
MEMO
MEMO
