Westinghouse WD32HBR105 User manual

WD32HBR105

The terms HDMI and HDMI High
-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc
in the United States and other countries.

1.
POWER
Switch the TV between On / Standby mode.
2.
SOURCE
Press to select among different input signal sources.
3. MENU
Display the OSD (on screen display) menu.
4.
CH /
Press to select a channel.
5.
VOL +/-
Press to adjust the volume.
6. POWER Indicator
Illuminate blue when the TV is turned on. Illuminate red when the TV is in standby mode.
IR (Infrared Receiver)
Receive IR signals from the remote control.

8. Headphone output
Connect to the Headphones.
2.USB Input
Connect to a USB storage device to play
3. LAN
Network connection port.
4. HDMI Inputs
input device.
5. VGA Input
Connect to a computer or other devices
with a VGA interface.
6. PC Audio Input
Connect to a computer audio output.
7. Antenna Input (75ΩVHF/UHF)
&RQQHFWWRWKHDQWHQQDȍ9+)8+)
VRFNHWZLWKWKH5)FRD[LDOFDEOH
1. Optical Output
Connect a digital sound system to this
jack.
9. COMPONENT/AV Input
&RQQHFWWR$9GHYLFHVZLWKFRPSRVLWH
FRPSRQHQW<3E3UYLGHRDQGDXGLR
RXWSXWVRFNHWV&20326,7(9,'(2DQG
&20321(17<3%35VKDUHZLWK$8',2 ,1/5
USB2
HDMI3
HDMI2 HDMI1 VGALAN
USB1 PC AUDIO
AUDIO PC
1 2 3 5 6 7
4
8
2
4
9

Wall-Mounting Screws
.)dedulcniton(swercsdedaerhtcirtemosi01*6M*4gnisutekcarbASEVehttnuoM
WARNING:
with the installation instruction.
WARNING：
Never place a television set in an unstable location. A television set may fall, causing serious personal injury
or death. Many injuries, particularly to children, can be acoided by taking simple precautions such as:
-Using cabinets or stands recommended by the manufacturer of the television set.
-Only using furniture that can safely support the television set.
-Ensuring the television set is not overhanging the edge of the supporting furniture.
-Not placing the television set on tall furniture(for example, cupboards or bookcases) without anchoring
both the furniture and the television set to a suitable support.
-Not placing the television set on cloth or other materials that may be located between the television
set and supporting furniture.
-Educating children about the dangers of climbing on furniture to reach the television set or its controls.
If your existing television set is being retained and relocated, the same considerations as above should be
applied.
t1.Lay the TV face down on a flat,
cushioned surface to avoid damaging
or scratching.
t2. gnidlohswercsscp4ehtnethgitnU
the stand assembly and remove them.
t3.Attach the wall-mount bracket to
the TV using the mounting holes on
the back of the TV. Mount this TV
according to the instructions included
in the wall-mount bracket.
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a
way that it does not require a safety connection to electrical earth.
The use of apparatus in moderate climates.

1. :Switch the TV between On and Standby
mode.
2. :Mute and restore TV sound.
3. 0~9:Select a program.(ATV/DTV mode)
4. :Enter multiple program channel number
such as 2-1.
5. :Return to the previous viewing
channel.
6. APP:Press to select the desired APP.
7. MENU:Display the main menu.
8. SOURCE:Select among the different input
signal sources:TV/AV/COMPONENT/HDMI1/
HDMI2/HDMI3/VGA/USB.
9. :Allows you to navigate the on
screen display menus and adjust the system
settings to your preference.
10. OK:
11. RETURN:Return to previous menu.
12. EXIT:Exit the on screen display menu.
13. ASPECT:Select the aspect ratio.
settings:Auto/standard/wide/wide zoom/zoom/
(HDMI)/Dot by Dot(VGA).
14. VOL+/-:Adjust the volume.
15. CH :Select the channel.
16. TV:Press to turn to TV mode.
17. :Start playback or pause.
18. :Reverse playback rapidly.
19. :Advance playback rapidly.
20. :Skip to the beginning of the previous
chapter/track/photo.
21. :Skip to the beginning of the next chapter/
track/photo.
22. FREEZE:Freeze the picture.
23. :Stop the playback.
24. ADD/ERASE:Add or delete Favorite channels.
25. FAV:Display the favorite channel list.
26. INFO:Display the present screen information
such as the current channel and input source.
27. MTS:Switch among different audio
channels:STEREO/MONO/SAP.
28. CC:Closed Caption selection:ON/OFF/CC On
Mute.
29. V-CHIP:Set up parental control.
30. P.MODE:Select picture mode:dynamic/movie/
user/standard.
31. S.MODE:Select sound mode:standard/music/
movie/user.
32. CH.LIST:Display program list.
Just Scan

USB2
HDMI3
HDMI2 HDMI1 VGALAN
USB1 PC AUDIO
AUDIO PC

10
En
CUSTOMIZING TV SETTINGS
Initial Setup
Connect the power cord to the power socket after you have completed all the physical
connections. At this stage, the TV will enter Standby Mode and the red LED indicator will
illuminate.
In Standby Mode, press the button on the main unit or on the remote control to turn the TV
on. The red LED indicator will turn blue.
the Arrow buttons to
highlight and select your desired mode and press OK
5
 ,IFKDQQHOVFDQQRWEH
IRXQGWKLVIUDPHZLOOEH
GLVSOD\HGDXWRPDWLFDOO\.
Westinghouse

11
En
To obtain the best result to watching the 4k video on your 4K TV:
1. you need a high-speed internet connection and make sure your network bandwidth meets
2. access to the real 4K media; only 4K media can show the best image on 4K TV, FHD/1080p
the 4k content provider's requirement.
media not as detailed as 4K media.

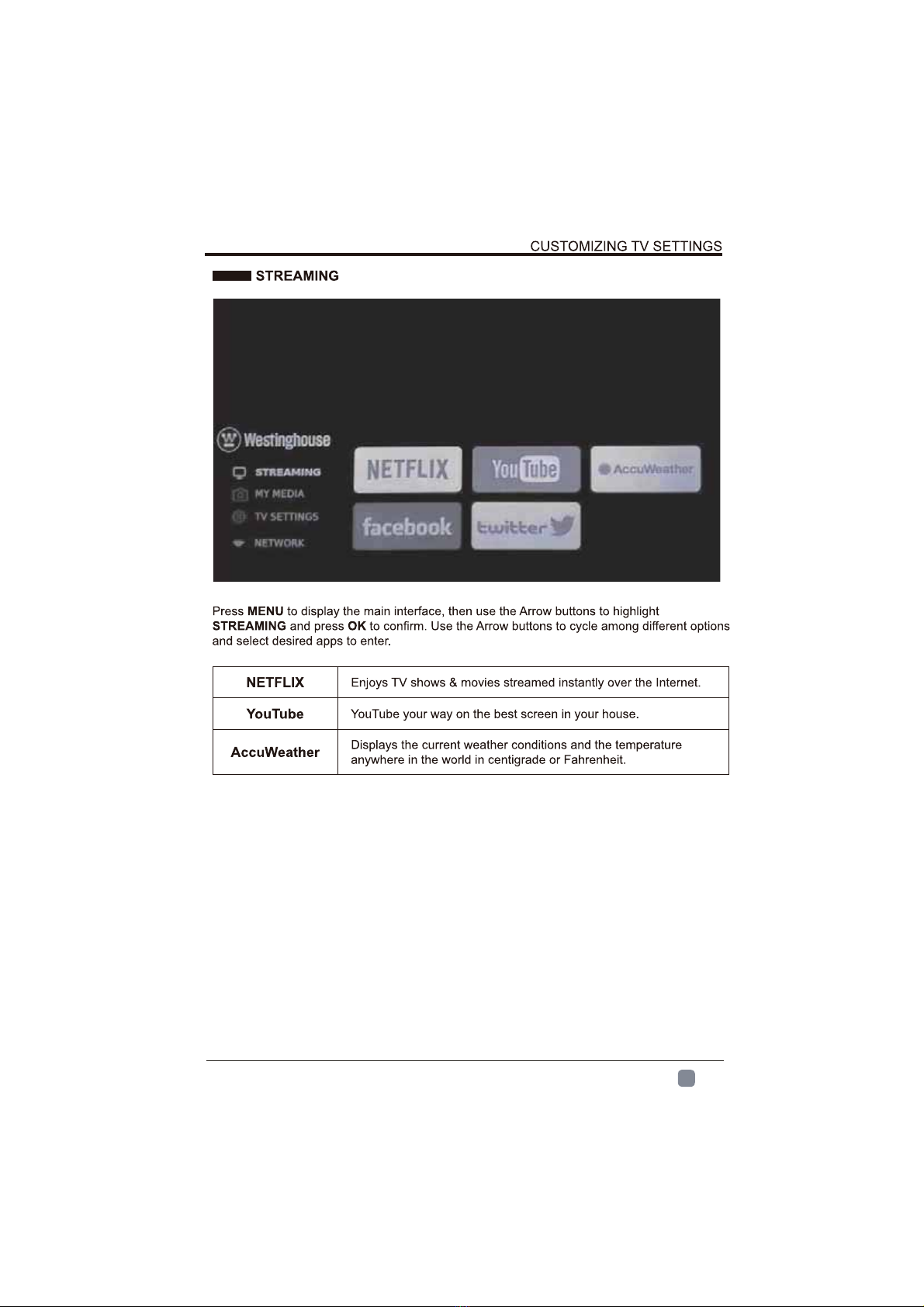

13
En
CUSTOMIZING TV SETTINGS
VIEWING PHOTOS
 Use the Arrow buttons to highlight the PHOTOS option
and press OKWKHQLWZLOOMXPSWRFRQ¿UPWKHLQVHUWHG
drive, press OK to enter.
 After entering PHOTOS, use theArrow buttons to select
WKHSLFWXUH¿OHDQGSUHVVOK to enter.
 $IWHUHQWHULQJWKHSLFWXUH¿OHXVHWKH$UURZEXWWRQVWR
select the desired picture, then press the playing button
to display.
 When the picture is playing, the picture Function Bar
will be displayed. Use the Arrow buttons to select the
desired function available on the bar.
/,67(1,1*72086,&
 Use the Arrow buttons to highlight the MUSIC option
and press OK, then it will jump to confirm the inserted
drive, press OK to enter.
 After entering MUSIC, use the Arrow buttons to select
the music file and press OK to enter.
 After entering the music file, use the Arrow buttons
to select the desired music, then press the playing
button to display.
 When the music is playing, the music Function Bar
will be displayed. Use the Arrow buttons to select the
desired function available on the bar.

14
En
CUSTOMIZING TV SETTINGS
WATCHING VIDEOS
Use the Arrow buttons to highlight the VIDEO option and
press OK
press OK to enter.
After entering VIDEO, use the Arrow buttons to select
OK to enter.
select the desired video, then press the playing button to
display.
When the video is playing, the video Function Bar will be
displayed. Use the Arrow buttons to select the desired
function available on the bar.
TV SETTINGS
Press the MENU button on the main unit or on the remote control to display the main interface.
Then use the Arrow buttons to highlight TV Settings and press OK to enter. Then use the
Arrow buttons to cycle among the following options and select the desired one to enter.

15
En
CUSTOMIZING TV SETTINGS
GENERAL
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press
OK
GENERAL to enter and adjust each option setting.
MENU LANGUAGE
Select the menu language among
English, Français or Español. The
default on-screen menu language is
English.
TRANSPARENCY Select to turn On/Off transparency
function.
ZOOM MODE
Select zoom mode:
Wide/Wide Zoom/Zoom/Just Scan/
Standard/Dot by Dot.
Note: With a different input source,
the zoom mode options may differ.
VGA SETTINGS Adjust advanced option’s setting: H-POS, V-POS, Clock, Phase or Auto.
(only available in VGA mode)
CLOSED CAPTION
CC mode On/Off/CC on Mute.
Basic
Selection CC1/CC2/CC3 CC4/ Text1/.../Text4.
Advanced
Selection Select from Service 1 to Service 6.
Option
Mode, Font Style, Font
Size, Font Edge Style,
Font Edge Color, FG_
Color, BG_Color, FG_
Opacity, BG_Opacity.
DLC Select to turn the dynamic luminance
control On/Off.
RESTORE DEFAULT Restore the TV to factory default
settings.
GENERAL
ENGLISH
MENU LANGUAGE
OFF
TRANSPARENCY
WIDE
ZOOM MODE
VGA SETTINGS
CLOSED CAPTION
OTHER SETTINGS
RESTORE DEFAULT
SOFTWARE UPDATE(USB)

16
En
CUSTOMIZING TV SETTINGS
STANDARD
PICTURE MODE
50
NORMAL
COLOR TEMPERATURE
BRIGHTNESS 50
CONTRAST
COLOR
SHARPNESS
ADVANCED OPTION
TINT
PICTURE Press MENU to display the main interface, use the Arrow
buttons to highlight TV SETTINGS and press OK to
to enter and adjust each option setting.
PICTURE MODE Cycle among picture modes:
Dynamic/Standard/Movie/User.
BRIGHTNESS Increase or decrease the amount of white in
the picture.
CONTRAST Adjust the difference between light and dark
levels in the pictures.
COLOR Control the color intensity.
SHARPNESS Adjust crispness level in edges between light
and dark areas of the picture.
TINT Adjust the balance between red and green levels.
COLOR
TEMPERATURE Cycle among color temperatures: Normal/ Warm/Cool.
ADVANCED
OPTION
Noise Reduction: Reduce the noise level of
the connected device: Off/Weak/Middle/Strong.
50
50
50

17
En
CUSTOMIZING TV SETTINGS
AUDIO
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press OK
AUDIO
to enter and adjust each option setting.
SOUND MODE Allow the selection of an audio- enhancement technique: Standard/
Music/Movie/User.
BASS Control the relative intensity of lower-
pitched sounds.
TREBLE Control the relative intensity of higher-
pitched sounds.
BALANCE Adjust the relative volume of the
speaker in a multiple speaker system.
DIGITAL AUDIO
OUTPUT Select the digital audio output mode between PCM/RAW.
SURROUND SOUND Turn On/Off to provide an enhanced
listening experience.
AUTO VOLUME Turn On/Off to automatically control
volume levels.
AUDIO LANGUAGE Select audio language among:
English, French, Spanish.
NETWORK
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press
OK
NETWORK to enter and adjust each option setting.
NETWORK TYPE
Select Lan and Wireless network, then
connect the TV to the wired network or
search the wireless network through
MY NETWORK Display the current network which you
connect to.
IP ADDRESS Display the current IP address
information.
AUDIO
NETWORK
STANDARD
SOUND MODE
PCM
DIGITAL AUDIO OUTPUT
OFF
SURROUND SOUND
ON
AUTO VOLUME
ENGLISH
AUDIO LANGUAGE
WIRELESS
NETWORK TYPE
NOT CONNECTED
MY NETWORK
0.0.0.0
IP ADDRESS
BASS 50
50
0
TREBLE
BALANCE

18
En
CUSTOMIZING TV SETTINGS
CHANNEL
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press
OK
CHANNEL to enter and adjust each option setting.
AIR/CABLE Select antenna between Air and
Cable.
AUTO SCAN Select the Auto Scan feature to scan
your available cable channels.
FAVORITE Set the selected channel as a favorite
channel.
SHOW/HIDE Show/Hide the selected channel.
CHANNEL NUMBER Display the current channel number.
CHANNEL LABEL Display the current channel label.

19
En
CUSTOMIZING TV SETTINGS
TIME
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press OK
TIME to
enter and adjust each option setting.
SLEEP TIMER
Select a period of time after which the
TV automatically switches to standby
mode:
Off/5/10/…/180/240 min.
OSD TIMER Set the OSD timer:
Off/15s/30s/60s/120s/240s.
TIME ZONE Select a Time Zone:
Central/Mountain/Newfoundland.
DAYLIGHT SAVING
TIME Select to turn daylight saving time On/ Off.
LOCK
Press MENU to display the main interface, use the
Arrow buttons to highlight TV SETTINGS and press OK
LOCK
to enter and adjust each option setting.
Note: the default password is "0000".
CHANGE
PASSWORD
Use 0-9 buttons to input the old password
and then input the new 4-digit password.
SYSTEM LOCK
Select to turn system lock On/Off. The
following options (USA, Canada, RRT Setting
and Reset RRT) will only be accessible when
you turn the system lock on.
USA TV TV Rating: Press OK button to
lock or unlock TV rating.
MPAA Set the MPAA: N/A, G, PG, PG-
13,R, NC-17, X.
CANADA
Canada
English
Select MPAA rating for English-
speaking Canada : E, C, C8+, G,
PG, 14+, 18+.
Canada
French
Select MPAA rating for Quebec
Canada : E, G, 8 ans+, 13 ans+,
16 ans+, 18 ans+.
RRT SETTING Set Rating Region Table.
RESET RRT Select to reset the RRT setting.
CLEAR LOCK Clear all lock settings.
TIME
OFF
SLEEP TIMER
30 S
OSD TIMER
PACIFIC
TIME ZONE
CHANGE PASSWORD
LOCK
USA
CANADA
RRT SETTINGS
RESET RRT
CLEAR LOCK
OFF
DAYLIGHT SAVING TIME
OFF
SYSTEM LOCK
