Whirlpool AWT 7101 D User manual

AWT 7101 D
GB
5019 100 12635
N.B.: The excess of detergent in the dispenser could cause technical problems.
Programme Type of fabric / Degree of soiling / Notes Max.
Load
kg
Detergent and Additives Options Temperature
Selector
°C
Maximum
Technical
Spin
Speed
rpm/min
Recommended
Spin Speed
rpm/min
Programme
duration
approx.
min 2)
Pre-
wash Wash Softener Rinse Hold Half Load
Cotton with
prewash Heavily soiled, hard wearing and temperature stable textiles in cotton and linen (bed linen,
table linen, underwear, shirts etc.). The max. load for heavily soiled laundry is 3.5 kg. 5.0 Yes Yes ❉❉❉
Cold to 90 1000 800 to 1000 135
Cotton Averagely soiled, hard wearing and temperature stable textiles in cotton and linen (bed
linen, table linen, underwear, shirts etc.). 5.0 —Yes ❉❉❉
Cold to 90 1000 800 to 1000 120
Cotton short Lightly soiled textiles in cotton or linen blouses, skirts, dark coloured terry cloth, coloured
linen articles, jeans, etc. 5.0 —Yes ❉❉❉
Cold to 40 1000 600 to 800 70
Rinse + Spin Programme for treating wash with starch or softener. Terminates with an intensive spin
cycle. 5.0 —— ❉❉❉ Cold 1000 600 to 800 30
Spin Programme for Intensive spin cycle. 5.0 —— — —— — 1000 600 to 800 15
Synthetic with
prewash Heavily soiled blouses, skirts, etc. made of polyester (Diolen, Trevira) polyamide (Perlon,
Nylon) or cotton blends. 2.0 Yes Yes ❉❉❉
Cold to 60 800 600 to 800 100
Synthetic Lightly or averagely soiled blouses, skirts, etc. made of polyester (Diolen, Trevira),
polyamide (Perlon, Nylon) or cotton blends. 2.0 —Yes ❉❉❉
Cold to 60 800 1) 600 to 800 90
Synthetic short Lightly soiled blouses, skirts, etc. made of polyester (Diolen, Trevira), polyamide (Perlon,
Nylon) or cotton blends. 2.0 —Yes ❉❉❉
Cold to 40 800 1) 600 to 800 50
Delicate with
prewash Heavily soiled delicate curtains, dresses, skirts, shirts and blouses. 1.5 Yes Yes ❉❉
— Cold to 40 800 1) 600 to 800 55
Delicate Delicate curtains, dresses, skirts, shirts and blouses. 1.5 —Yes ❉❉
— Cold to 40 800 1) 100 to 500 40
Wool Only machine washable woollens with pure new wool label.
If you select the special function “Rinse Hold” do not leave garments to soak for too long. 1.0 —Yes ❉❉
— Cold to 30 800 1) 100 to 500 35
Silk Machine washable silk and viscose articles. No spin drain only. 1.5 —Yes ❉❉
—Cold —100 to 500 40
Spin Programme for gentle spin cycle. 1.5 —— — —— — 800 1) 100 to 500 5
Drain Drain only, without spin cycle. Alternative way of terminating programmes with “Rinse
Hold” setting. —————— — — — 3
PROGRAMME TABLE
Wool
Silk
Rinse Hold Option
1) For improved garment
care, spin speed is
restricted.
2) Programme duration
figures (guideline) are
valid for maximum
temperature wash with no
special functions.

GB
5019 100 12635
Prewash cycle increases programme duration by approx. 15 min. Consumption values were measured in normalized
conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the
values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

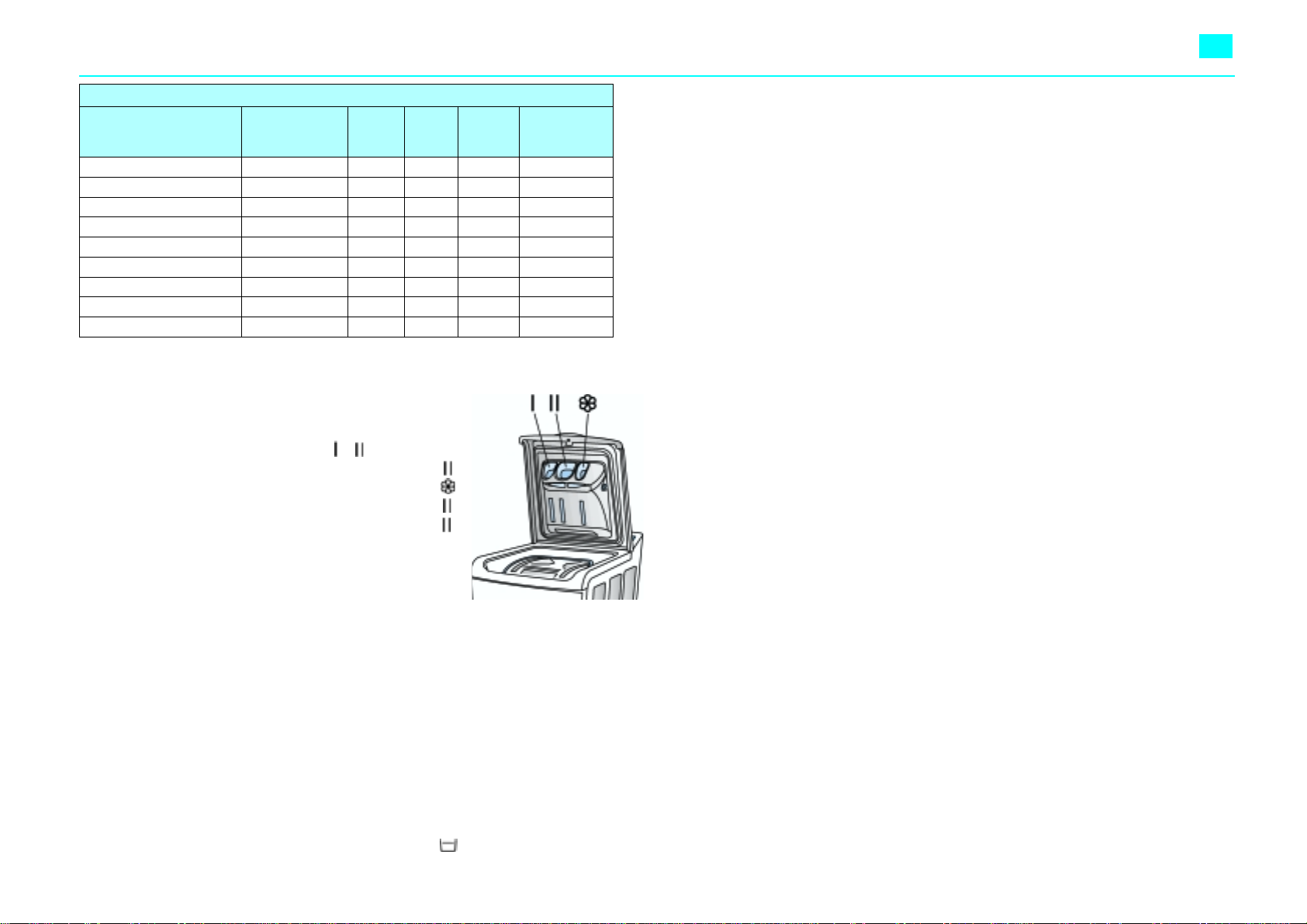

ADDING DETERGENT AND ADDITIVES
Add the detergent and the additives into the dispenser as
follows:
•Programme with pre and main wash
•Main wash programme without prewash
•Fabric softeners and conditioners
•Stain remover agents
•Anti-scale agents (water hardness 4)
Important:
•Be careful not to fill more than the “MAX”level mark.
•For programme with prewash: do not use liquid detergents.
•For programmes without prewash from cold to 40°C, it is
recommended to use a liquid detergent to avoid whitish residues on the coloured laundry.
CLOSE THE DOOR AND SELECT THE PROGRAMME
1. Turn the programme selector knob clockwise to the desired programme.
2. Turn the temperature knob to the required temperature.
3. Turn the spin speed selector to the required setting.
PRESS THE DESIRED SPECIAL OPTION BUTTON(S)
“Rinse Hold”button
•The laundry remains in the last rinse water without progressing to the spin cycle to avoid
creasing and prevent colours from changing.
•This option is particularly recommended for the programmes “Synthetic”or “Delicate”.
•This function is particularly useful if you want to postpone spinning to a later time or when
you do not wish to spin the clothes.
Note: The programme selector knob stops on the position “”.
Terminate the “Rinse Hold”option:
•Press the “Rinse Hold”button again; the programme will terminate automatically with the
spin cycle for the present wash programme.
•If you do not wish to spin the clothes, turn the drain programme and push on the “On/Off”
button again.
“Half Load”button
•Reduces water consumption in the cotton and synthetic programme, above all during
prewash and rinse.
•Especially suitable for lightly soiled or small loads (reduce the detergent quantity).
PROGRAMME START
Open the tap and press the “On/Off”button. The pilot lamp lights up.
DOOR LOCK
During the running programme the door can be opened for adding further laundry.
The door locks automatically in all programmes. If the programme is stopped or the electrical
power supply is terminated, the door lock will open after approximately 1 minute.
Note: If you open the door during the delicate or wool programme, there will be no spinning at
the end of the cycle but only draining. If you want to spin the laundry start the gentle spin
programme.
PROGRAMME END
•The programme selector knob is at the end of the cycle.
1. Press the “On/Off”button.
2. Cancel the special options by pressing the appropriate buttons.
3. Turn the water supply tap off.
4. Wait for the door to unlock (about 1 minute).
5. Open the door and the drum flaps and unload the machine.
SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME
START
1. Press the “On/Off”button to switch off the appliance.
2. Select the new programme, temperature, spin speed and options.
3. Press the “On/Off”button to switch on the appliance.
TO STOP, RESET A PROGRAMME BEFORE THE END
1. Press the “On/Off”button to switch off the appliance.
2. Set the programme selector to “Drain”.
3. Press the “On/Off”button to start the drain programme.
Only open the door when the programme selector is at the end of the cycle and the door is
unlocked (after approximately 1 minute).
CONSUMPTION DATA
Programme Temperature
selector
(°C)
Load
(kg)
Water
(l)
Energy
(kWh)
Programme
Duration
(min)
Cotton 90 5.0 71 1.90 120
Cotton 60 5.0 55 0.95 120
Cotton + Half Load 60 2.5 35 0.95 95
Cotton short 40 5.0 55 0.60 70
Synthetic 60 2.0 57 0.80 90
Synthetic short 40 2.0 49 0.40 50
Delicate 30 1.5 50 0.30 40
Wool 40 1.0 50 0.40 35
Silk 30 1.0 50 0.30 40
