Wiedenmann Mega Twister Wiring diagram

Translation of original
Operating Instructions
Leaf blower
Mega Twister
894.000
From equipment I.D. No. :
Status :
June 2014
894 99 01

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
2

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
3

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
4
Preface
READ THESE OPERATING INSTRUCTIONS CAREFULLY to familiarise yourself
with the correct way to operate and service your machine, and to
prevent personal injury or damage to the machine.
These operating instructions and the adhesive safety signs on your
machine can also be obtained in other languages
(your dealer can order these for you).
THESE OPERATING INSTRUCTIONS ARE a permanent part of your machine and
should be handed over to the new owner if the machine is sold.
MEASUREMENTS in these operating instructions are given in the metric
system. Only use suitable parts and screws. Different wrenches are
required for metric and inch screws.
THE DESIGNATIONS “RIGHT” AND “LEFT” refer to the forward driving
direction of the mounted equipment.
ENTER THE PRODUCT IDENTIFICATION NUMBERS in the appropriate “Technical
data” or “Product - Identification Number” sections. Please ensure
that all figures are accurately entered. These numbers can be of
invaluable assistance for tracing the machine should it be stolen.
Your dealer also needs these numbers when you order spare parts. We
recommend that you additionally file these identification numbers in
a secure place away from the machine.
BEFORE DELIVERY OF THIS MACHINE, your dealer performed a pre-delivery
inspection to ensure optimal performance.
THIS DEVICE DESIGNED EXCLUSIVELY for commercial use and regular
application in the maintenance of greens and parks for the wind
generation through air without particles carried in the air stream
(“SPECIFIED USE“).
Usage for any other purpose beyond this is considered as contrary to
the intended use. The manufacturer accepts no liability for damage
or injury resulting from this improper use. These risks are borne
solely by the user. Compliance with and strict adherence to the
operating, maintenance and repair conditions as specified by the
manufacturer also form essential elements of the intended usage.
FORESEEABLE INCORRECT USE/MISUSE. It is not permitted to use the
attached device to transport persons or things. NO materials may be
poured into the blower via the intake grille.
THIS MACHINE MUST ONLY BE operated, maintained and repaired by persons
familiar with all its particular characteristics and acquainted with
the relevant safety regulations. The relevant accident prevention
regulations, all other generally recognised safety-related,
occupational medicine and road traffic regulations must be adhered
to. Any modifications carried out to this machine without the
express approval of the manufacturer excludes the manufacturer of
all liability for any resulting damage.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
5
TABLE OF CO N T E N T S Page
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
1.0. Safety................................................ 7-16
1.1. Safety Decals.................................. 12-14
1.2. Safety instructions............................ 15
1.3. The safety devices............................. 16
2.0. Assembly...............................................17-24
2.1. General information............................ 17
2.2. Assembling the chassis...........,............. 17
2.3. Assembling the roller unit..................... 18
2.4. Hydraulically adjusting the blow-out nozzle.... 19
2.5. Hydraulically adjusting the
blow-out nozzle using a control valve.......... 20+21
2.6. Attaching the blowout nozzle
electrical adjustment.......................... 22
2.7. Attaching the blowout nozzle................... 23
2.8. Mounting the lower guide bar extension......... 24
2.9. Mounting the upper guide bar extension......... 24
3.0. Transport..............................................25-28
3.1. General information............................ 25
3.2. Transporting Mega Twister...................... 26+27
3.3. Transportation with three-point hitch.......... 28
4.0. Mounting...............................................29-32
4.1. General information............................ 29
4.2. Tractor attachments............................ 29
4.3. Drive shaft adjustment......................... 30
4.4. Supports....................................... 31
4.5. Unscrewing the running safety device........... 31
4.6. Hydraulic connections.......................... 32
5.0. Demounting.............................................33+34
5.1. General information............................ 33
5.2. Removal from tractor........................... 33
5.3. Stowing the hydraulic lines.................... 34
5.4. Removing the universal drive shaft............. 34
5.5. Securing the chassis........................... 34
6.0. Operating..............................................35-37
6.1. General information............................ 35
6.2. Direction of rotation number
of revolutions of the drive.................... 36
6.3. Upper guide position for working............... 36
6.4. Swiveling the blower casing.................... 37
6.5. Setting the blow-out nozzle.................... 37
7.0. Operation..............................................38+39
7.1. General information............................ 38
7.2. Switching on................................... 38
7.3. Blower wheel................................... 38
7.4. Danger zone.................................... 39
7.5. Work / Transport............................... 39

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
6
TABLE OF CO N T E N T S Page
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
8.0. Maintenance............................................40-50
8.1. General information............................ 40
8.2. Intervals of maitenance........................ 41
8.3. Lubricating points............................. 42+43
8.4. Changing the gear oil.......................... 44
8.5. Cleaning....................................... 45
8.6. Hydraulic installation......................... 45
8.7. Hydraulic connection diagram................... 46+47
8.9. Tire pressure.................................. 48
8.10. Disassembly / Disposal......................... 49
8.11. Unauthorized conversion and
spare part manufacture......................... 50
9.0. Equipment..............................................51-53
9.1. Scope of Delivery.............................. 51
9.2. Special equioment.............................. 52+53
10.0. Specification..........................................54-59
10.1. Dimensions, weights and other information...... 54-57
10.2. Metric bolt and cap screw torque values........ 58
10.3. Serial number.................................. 59

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
7
1.0. Safety
Recognize safety information
This is the safety-alert
symbol. When you see this
symbol on your machine or in
this manual, be alert to the
potential for personal injury.
Follow recommended precautions
and safe operating practices.
Follow safety instuctions
Carefully read all safety
messages in this manual and on
your machine safety sings. Keep
safety sings in good condition.
Replace missing or damaged
safety sings. Be sure new
equipment components and repair
pqarts include the curret
safety sings.
Replacement safety sings are
available from your dealer.
Learn how to operate the
machine and to use controls
properly. Do not let anyone
operate without instruction.
Keep your machine in proper
working condition. Unauthorized
modifications to the machine
may impair the fuction and/or
safety and afect machine life.
If you do not understand any
part of this manual and need
assistance, contact your
dealer.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
8
1.0. Safety
Observe road traffic regulations
Always observe local road
traffic regulations when using
public roads.
SCHUTZKLEIDUNG TRAGEN
Wear close fitting clothing and
safety equipment appropriate to
the job.
Prolonged exposure to loud
noise can cause impairment or
loss of hearing.
Wear a suitable hearing
protective device such as
earmuffs or earplugs to protect
against objectionable or
uncomfortable loud noises.
Operating equipment safety
requires the full attention of
the operator. Deo not wear
radio or music headphones while
operating machine.
Stay clear of rotating drivelines
Entanglement in rotating
driveline can cause serious
injury or death.
Keep tractor master shield and
driveline shields in place at
all times. Make sure rotating
shields turn freely.
Wear close fitting clothing.
Stop the engine and be sure PTO
driveline is stopped before
making adjustments,
connections, or cleaning out
PTO driven equipment.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
9
1.0. Safety
Guard and shields
Keep guards and shields in
place all the times. Ensure
that they are in good condition
and installed correctly.
Always disengage the driveline,
shut off engine and remove key
before removing any guards or
shields.
Keep hands, feet and clothing
away from moving parts.
Avoid high - pressure fluids
Escaping fluid under pressure
can penetrate the skin causing
serious injury.
Avoid the hazard by relieving
pressure before disconnecting
hydraulic or other lines.
Tighten all connections before
applying pressure.
Search for leaks with a piece
of cardboard. Protect hands and
body from high pressure fluids.
If an accident occurs, see a
doctor immediately. Any fluid
injected into the skin must be
surgically removed within a few
hours or gangrene may result.
Doctors unfamiliar with this
type of injury should reference
a knowledgeable medical source.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
10
1.0. Safety

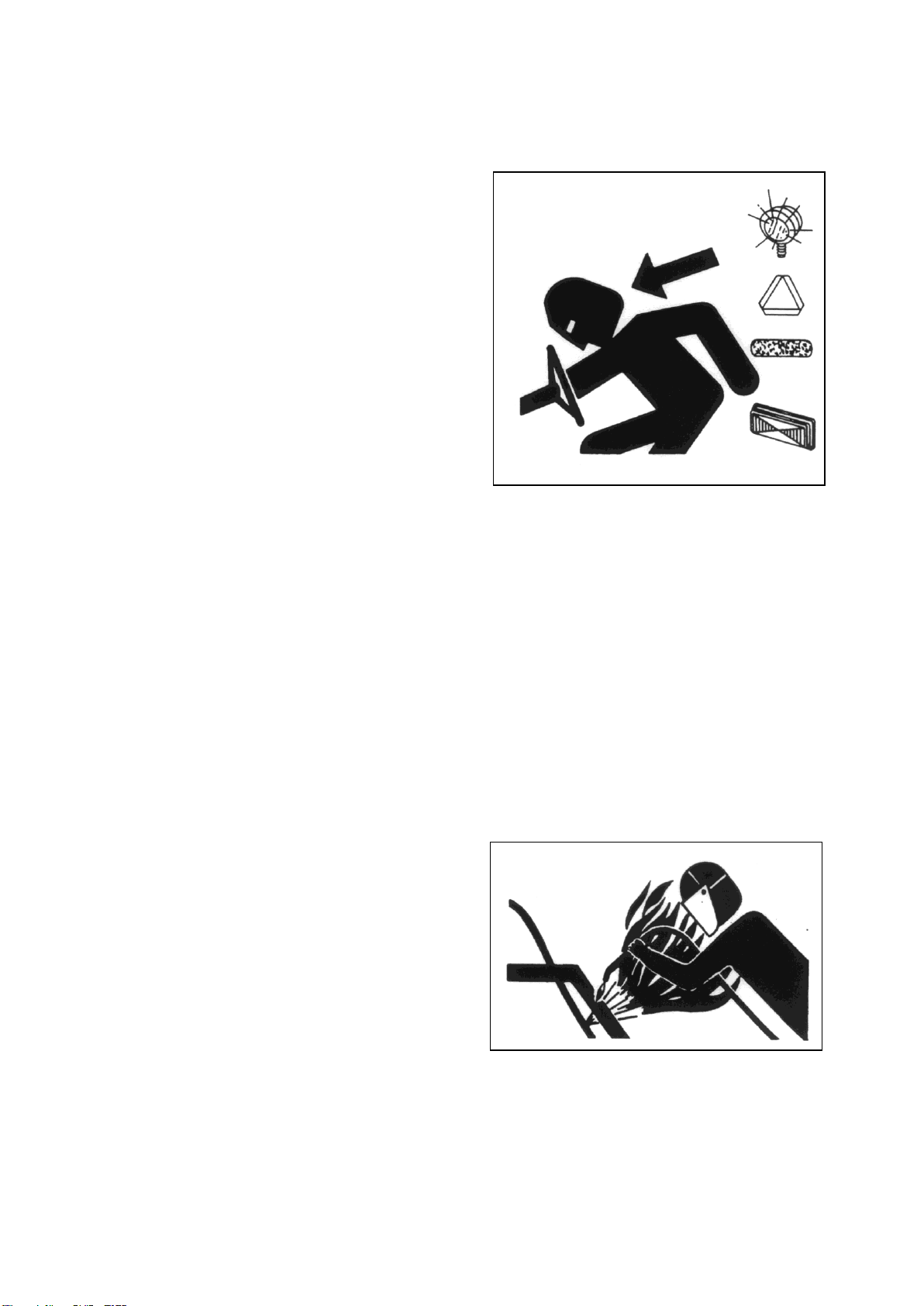

Use safety lights and devices
Prevent collisions between
other road users, slow moving
tractors with attachments or
towed equipment, and self-
propelled machines on public
roads. Frequently check for
traffic from the rear,
especially in turns, and use
hand signals or turn signal
lights.
Use headlights, flashing
warning lights, and turn
signals day and night. Follow
local regulations for equipment
lighting and marking. Keep
lighting and marking visible
and in good working order.
Replace or repair lighting and
marking that has been damaged
or lost.
An implement safety lighting
kit is available from your
dealer.
Avoid heating near pressurized fluid lines
Flammable spray can be
generated by heating near
pressurized fluid lines,
resulting in severe burns to
yourself and bystanders. Do not
heat by welding, soldering,
using a torch near pressurized
fluid lines or other flammable
materials. Pressurized lines
can be accidentally cut when
heat goes beyond the immediate
flamme area.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
11
1.0. Safety
Remove paint before welding or heating
Welding should only be carried
out by persons with a relevant
qualifying certificate i.a.w.
EN287.
Avoid potentially toxic fumes
and dust.
Hazardous fumes can be
generated when paint is heated
by welding, soldering, or using
a torch.
Do all work outside or in a
well ventilated area. Dispose
of paint and solvent properly.
Remove paint before welding or
heatingh:
If you sand or grind paint,
avoid breathing the dust.
Wear an approved respirator.
If you use solvent or paint
stipper with soap and water
before welding. Remove
solvent or paint stripper
containers and other
flammable material from area.
Allow fumes to disperse at
least 15 minutes before
welding or heating.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
12
1.0. Safety
1.1. Safety Decals

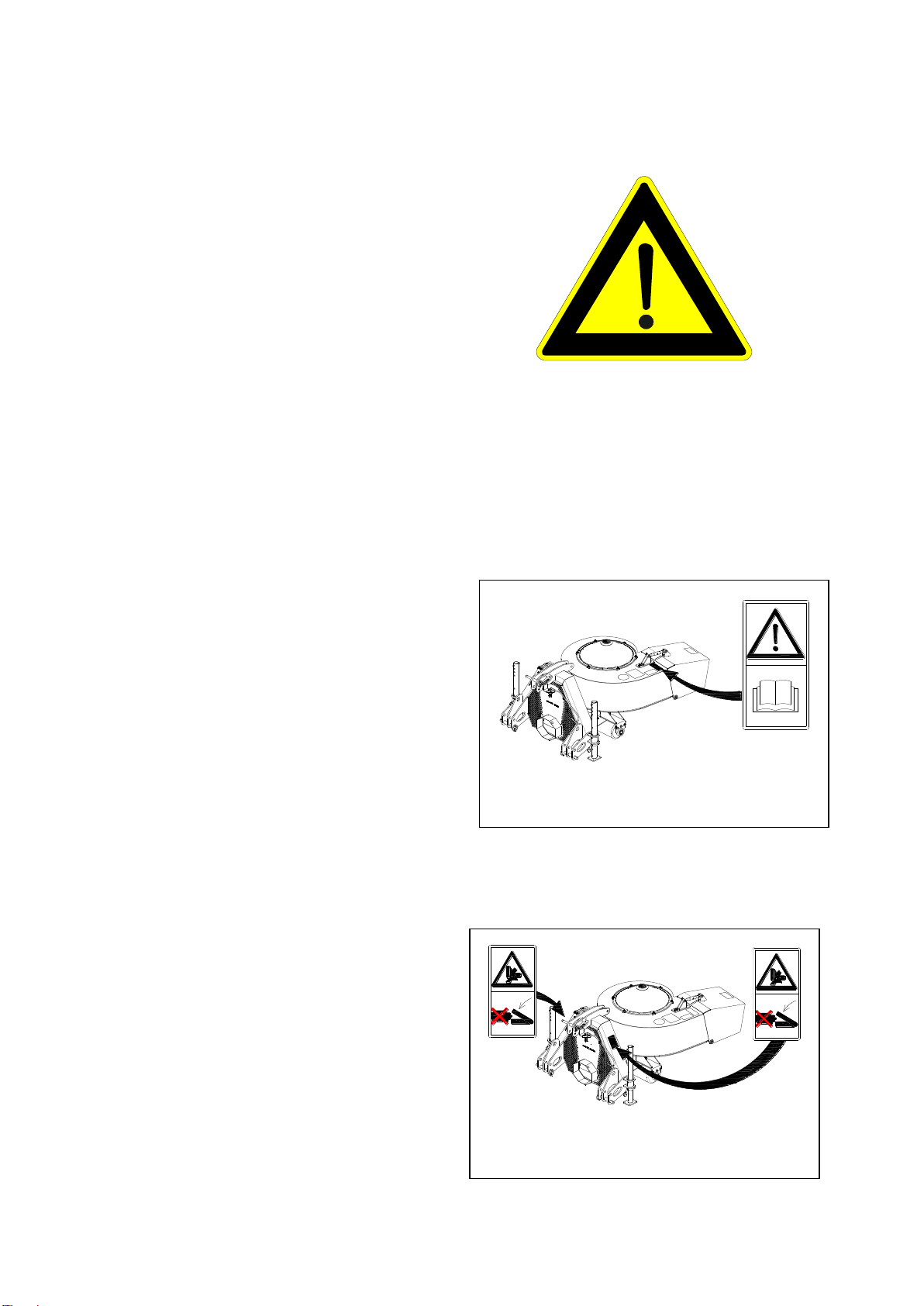

Pictorial safety signs
At several important places,
this machine has safety signs,
which indicate potential danger.
The hazard is identified by a
symbol in a warning triangle.
An adjacent pictograph provides
information on how to avoid
personal injury.
These safety signs, their
placement on the machine and
a brief explanatory text are
shown below.
Operating Instructions
In our operating instructions all
important information necessary
for operating the machine safely
are contained. Carefully observe
all safety rules to avoid
accidents.
Swivelling range
Never reach into areas of
crushing hazard as long
as any parts may move.
894.01
894.02

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
13
1.0. Safety
1.1. Safety Decals
Blower
Never put your hands inside
the blower while the engine
is running.
Blow-out cover
When operating ensure that
sufficient distance is left as
there is a risk of injury from
thrown or flying objects.
Direction of rotation and number of
revolutions of the power take-off shaft
The direction of rotation of the
power take-off shaft must be
absolutely observed. Please
control it during the initial
start-up. The declared number of
revolutions may not be exceeded.
Otherwise there is the risk of
extensive damages to the blower.
894.03
894.04
894.05

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
14
1.0. Safety
1.1. Safety Decals

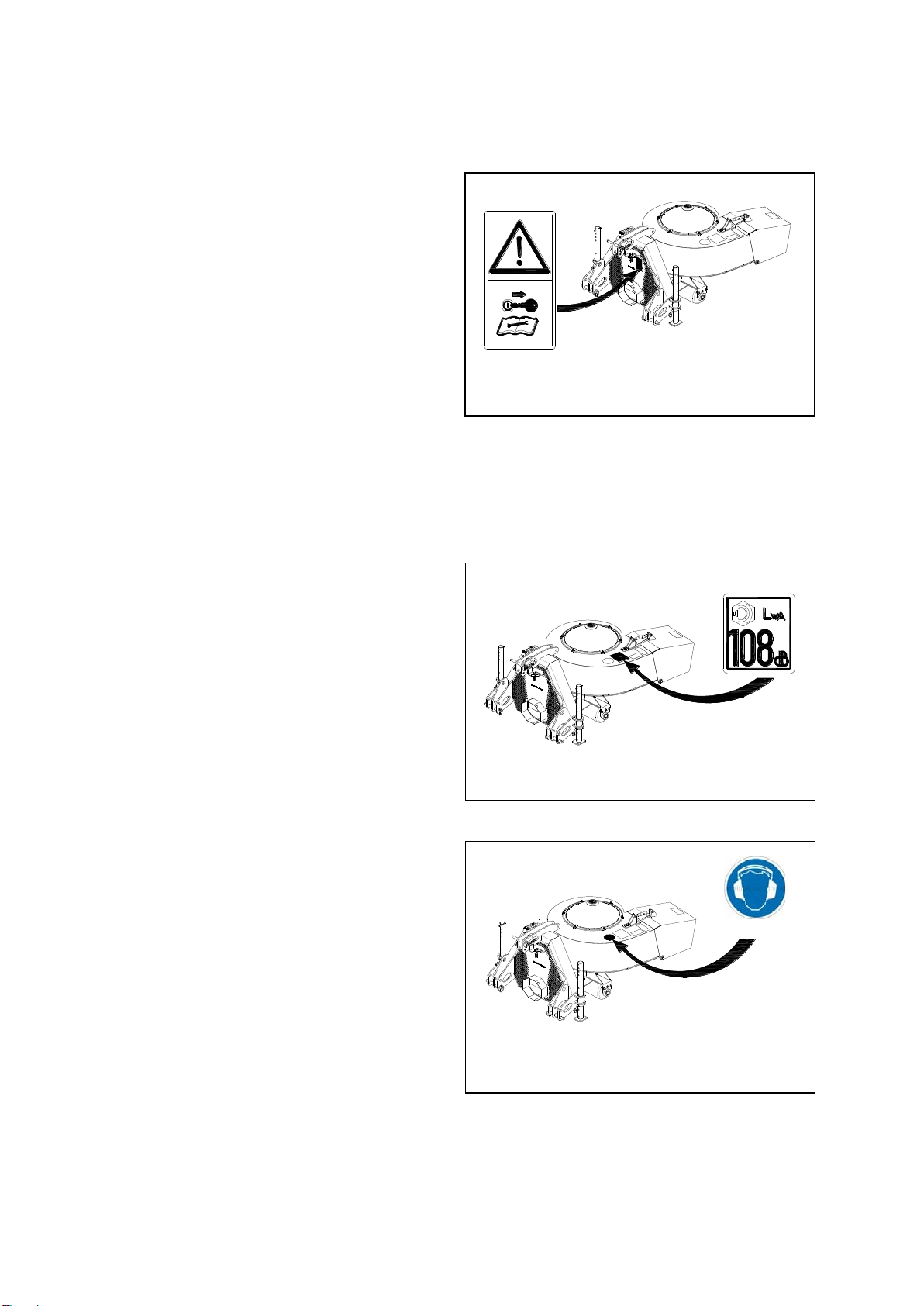

Service
Before performing service
or repair work, turn off
engine and remove key.
Noise level
This decal indicates the value
determined in accordance with
Article 13 of Directive
2000/14/EC
When working for several hours,
we recommend that you wear ear
protectors.
894.06
894.07
894.08

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
15
.0. Safety
1.2. Safety instructions
1. When observing the
operating instructions
also pay attention to
general safety
specifications and rules
for the prevention of
accidents!
2. It is important to
familiarize with all
devices and operating
elements as well as with
their action before
starting service.
Make sure that all
protective devices have
been properly mounted. It
will be too late for this
during operation!
3. On the working area the
user is responsible for
any third parties!
4. Direct everyone out of
the danger zone before
starting.
5. Switch off the drives
immediately if there are
people in the danger
zone.
6. Corresponding
specifications must be
observed on public roads!
7. Before starting pay
attention that nobody is
around (Child!). Make
sure to have a good view!
8. It is forbidden to stand
within the risk area of
the appliance!
9. Any mounting on the
mounted implement must be
done only when the motor
is stopped and the power
take-off shaft is turned
off.
10. Use only the cardan shaft
which is especially
assigned for the mounted
implement.
11. Ensure a sufficient axle
load, for the
steerability of the
tractor must be
maintained.
12. The driving and operating
qualities of the tractor
can be influenced by
mounting the device. The
way of driving must be
adjusted to the
respective conditions of
the terrain and of the
soil. Be particularly
careful when working and
turning on slopes.
13. During all maintenance
works, the machine as
well as the motor of the
mounted implement must be
switched off. Before
starting the machine, all
protective devices must
be mounted.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
16
1.0. Safety
1.3. The safety devices
GENERAL SAFETY SIGN REQUIREMENTS
A safety sign with the following safety practices or similar set of
messages shall be provided on the machine. The label should be
visible to an operator’s position, if possible.
a) Read the operator’s manual.
b) Do not operate the machine without guards, shield, and safety
devices in place and working.
c) Do not operate the machine when children and others are around.
d) Do not allow operation of the machine by untrained personnel.
ATTENTION - DANGER !
Never use Mega Twister without safety equipment. Otherwise, you expose
yourself and others to extreme danger.
Moving parts may cause serious injuries.

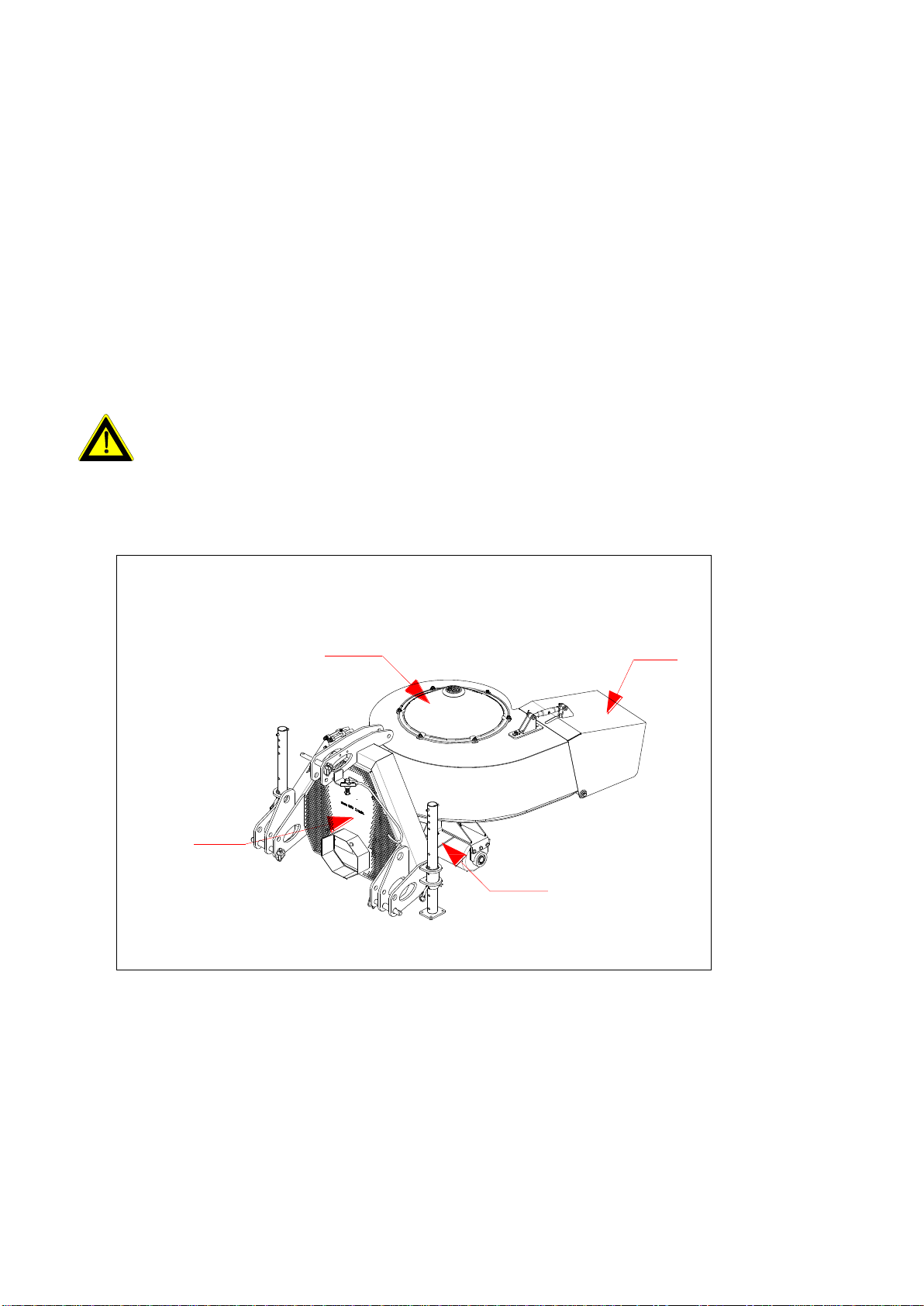

Where to Find Safety Equipment on your Machine
A =Covers, only removable with tools.
C =Blowing nozzle, only removable with
tools
B =Grille, only removable with tools.
BC
894.09
A
A

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of publication.
We reserve the right to make design changes at any time without prior notification
17
2.0. Assembly
2.1. General Information
WARNING:
For all work, the device must
be hitched to the tractor.
Raise the attached device
using the rear hydraulics
until the support legs can be
inserted into one of the
uppermost holes.
- RISK OF INJURY !
For this work, please use your
personal protective equipment
(PSA) such as: gloves,
goggles, ear protectors.

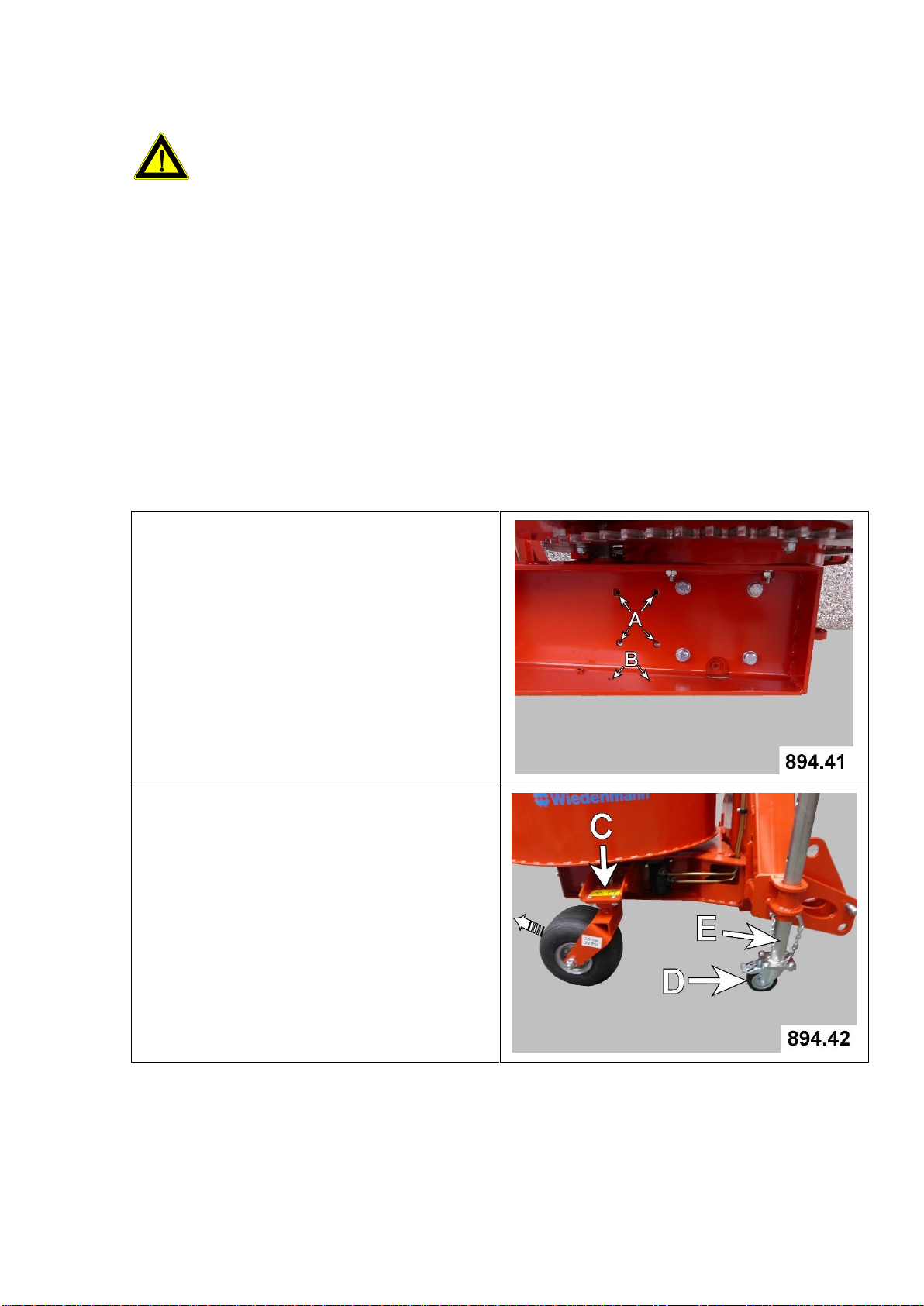

2.2. Assembling the chassis
The attachment points for the
two chassis supports are:
4 threaded holes (A)
2 holes (B)
In image 891.42, the chassis is
mounted to the right (C) and
the locked running wheel is
rotated to the rear.
The fixed roller (D) supplied,
which comprises a brake, should
be attached to the underside of
the support leg (E).

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
18
2.0. Assembly
2.3. Assembling the roller unit

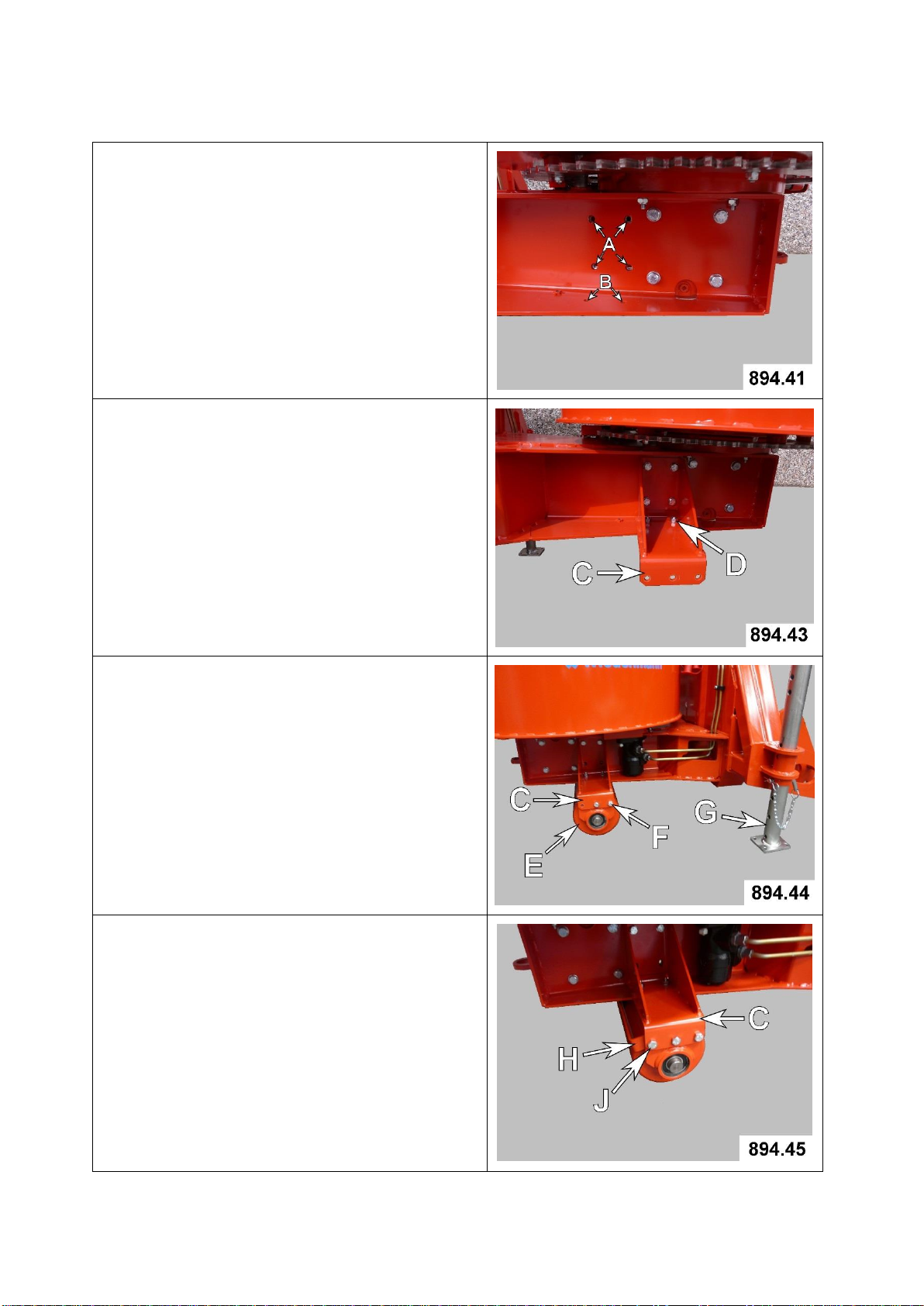

The attachment points for the
roller unit are:
4 threaded holes (A)
2 holes (B)
Fix the bracket (C) on both
sides.
The hexagon screws (D) must be
inserted from below.
Use the bearings to fix both ends
of the roller (E), with two
hexagon screws (F) in each case,
in the front holes of the bracket
(C).
In the roller unit version, NO
fixed rollers are attached to the
support leg (G).
The stripping bowl (H) is fixed
to the bracket (C) a small
distance from the roller with the
remaining hexagon screws (J).

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of publication.
We reserve the right to make design changes at any time without prior notification
19
2.0. Assembly

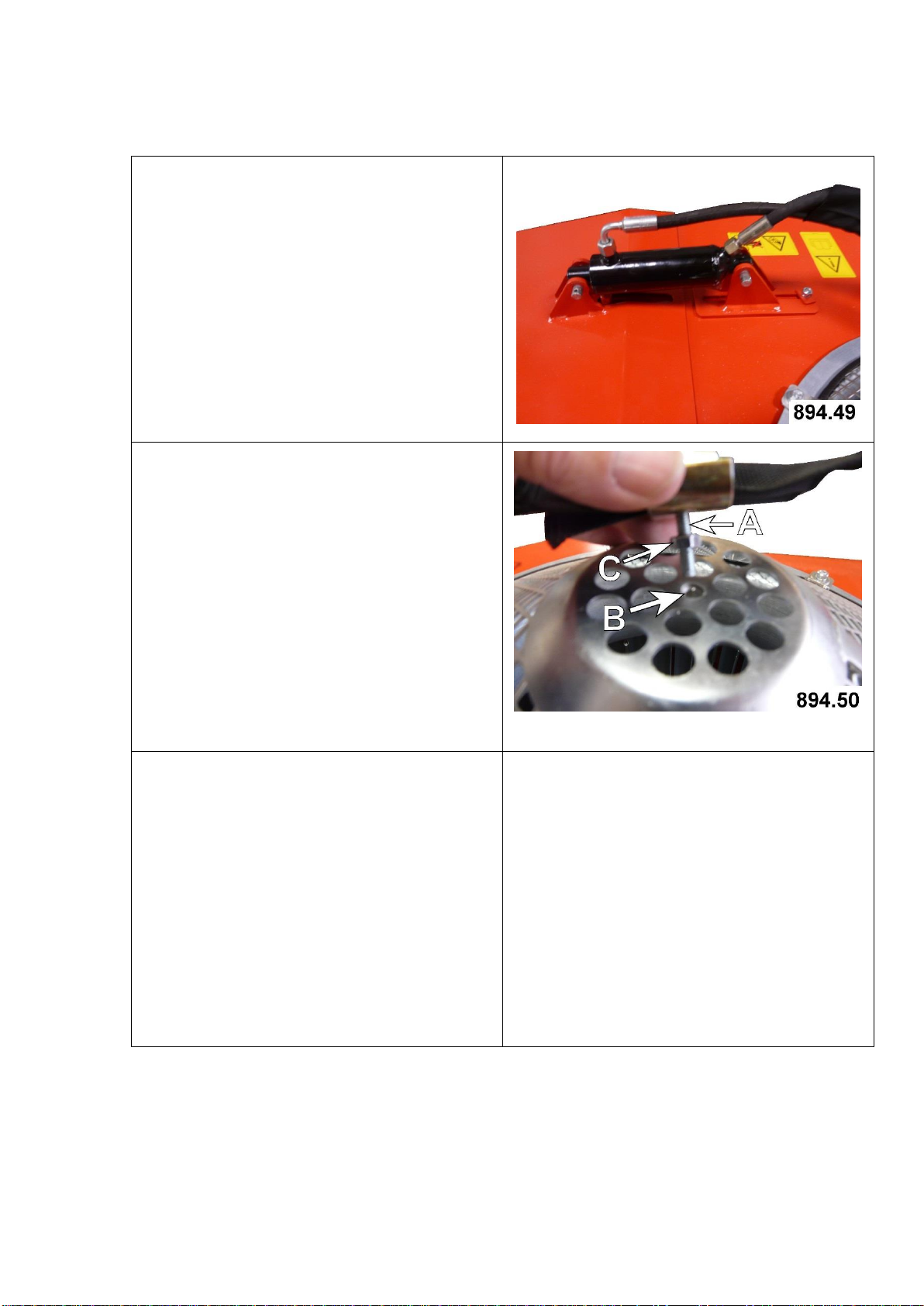

2.4. Hydraulically adjusting the blow-out nozzle
Carried out via an additional
hydraulic cylinder (optional)
Mount the hydraulic cylinder
instead of the mechanical
adjustment.
Secure pin with linch pin.
Screw the hexagon screw (A)
into the thread on the grille
(B).
Turn the hexagon nut (C)
downwards to secure the screw
in place.
It must be possible to easily
move the hydraulic hoses after
they have been fixed using the
two fastening clamps.
When securing the hydraulic
hoses, observe the swinging of
the blower casing.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
20
2.0. Assembly
2.5. Hydraulically adjusting the blow-
out nozzle using a control valve

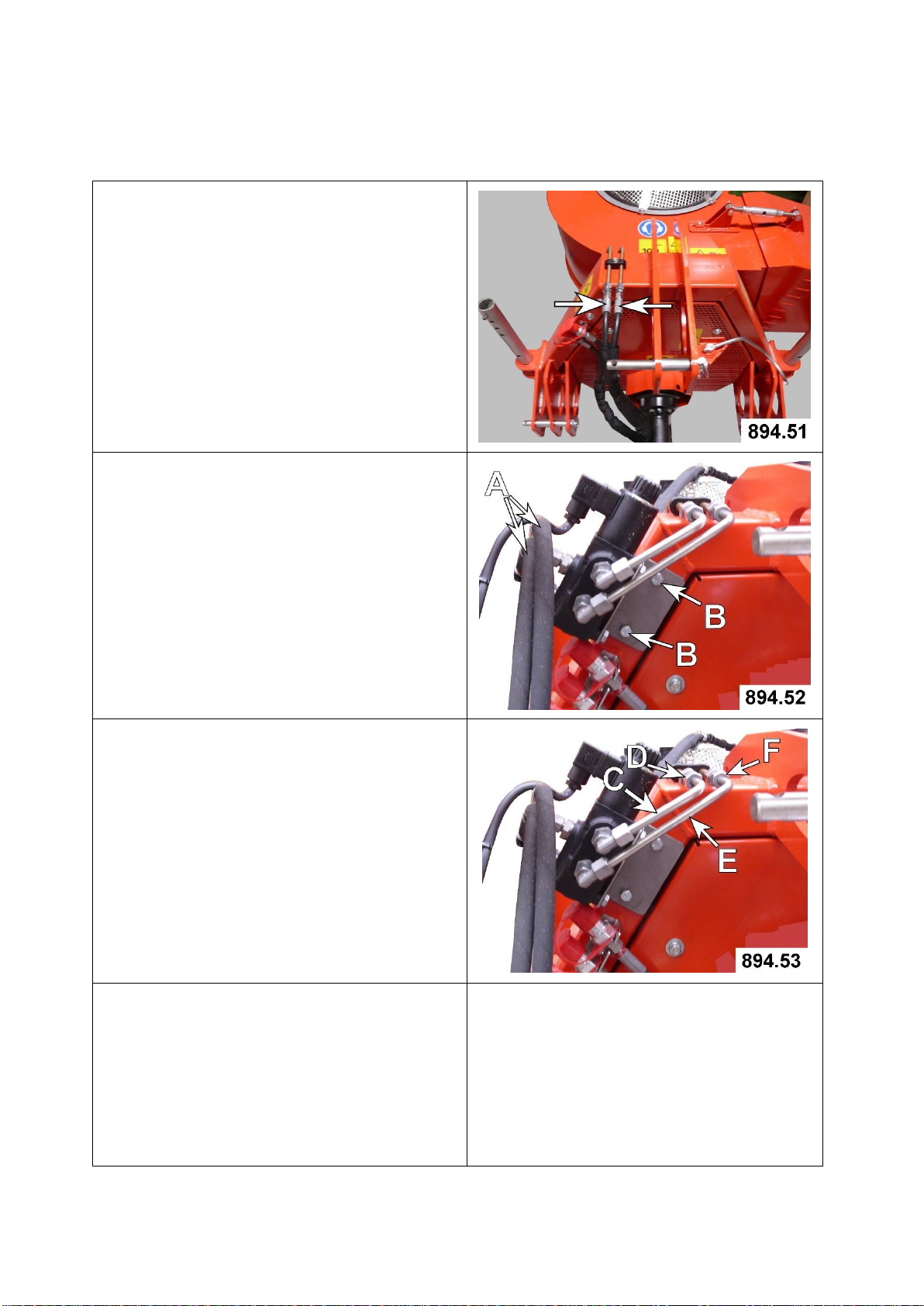

Remove the hydraulic hoses (A)
from the Mega Twister on the
tractor.
Secure the control valve and its
fixing bracket to the available
hexagon screws (B) on the front.
Connect the hydraulic hoses (A)
to the control valve's threaded
connections
Connect the control valve's
hydraulic pipe (C) with the
threaded connection (D).
Connect the control valve's
hydraulic pipe (E) with the
threaded connection (F).
Remove the hydraulic hoses from
the cylinder on the tractor.
