Wiedenmann Terra Spike SL 6 Wiring diagram

Translation of original
operating instructions
Deep Aerator
Terra Spike SL 6
870.000
From machine ID no. :
Version :
June 2015
870 99 09

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
2

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
3

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
4
Introduction
PLEASE READ THESE OPERATION INSTRUCTIONS CAREFULLY in order to familiarize
yourself the correct method of operation and maintenance and in order to
avoid personal injuries or damage to the machine.
This manual and safety decals on your machine may also be available in
other languages (see your dealer to order).
THIS MANUAL SHOULD BE CONSIDERED a permanent part of your machine and should
remain with the machine when you sell it.
MEASUREMENTS in this manual are given in both metric and customary U.S. unit
equivalents. Only use suitable parts and screws. Metric and inch fasteners
may require a specific metric or inch wrench.
RIGHT - HAND AND LEFT - HAND sides refer to the direction of travel the
implement when going forward.
WRITE PRODUCT IDENTIFICATION NUMBERS (P.I.N.) in the Specification or
Identification Numbers section. Please ensure that all numbers are
correctly recorded. to help in tracing the machine should it be stolen.
Your dealer also requires this number when you order spare parts. File the
identification numbers in a secure place away from the machine.
BEFORE DELIVERING THIS MACHINE, your dealer performed a pre-delivery
inspection to ensure best performance.
THIS MACHINE IS DESIGNED EXCLUSIVELY for commercial use and customary
use on
1) sand-based greens or
2) lawns constructed according to guidelines or standards such as
tees or sports fields but with restrictions
in the working depth
to loosen soil that is not stony and not frozen (“INTENDED USE “).
Use in any other way is considered contrary to the intended use. The
manufacturer accepts no liability for damage or injury resulting from this
misuse, and these risks must be borne solely by the user. Using the
equipment in accordance with the specifications also includes observance of
the operating and maintenance conditions as specified by the manufacturer.
PREDICTABLE MISUSE AND ABUSE. Persons and objects must not be transported
with the machine attached. Use on stony or frozen soil is a misuse and
may result in major damage such as breakage of the front roller
arms.
THIS MACHINE SHOULD BE OPERATED, serviced and repaired only by persons
familiar with all its particular characteristics and acquainted with the
relevant safety requirements (accident prevention). The accident prevention
regulations, all other generally recognized regulations on occupational
health and safety, and the road traffic regulations must be observed at all
times. Any unauthorized modifications carried out on this machine will
relieve the manufacturer of all liability for any resulting damage or
injury.
NOTE THE INSTRUCTIONS for driving on public roads:
"This machine is not suitable for travel on Highways or public roads. It
requires additional equipment for this (lighting kit, warning signs for
slow vehicles/SMV sign, reflectors). Please contact us if you wish to
purchase this optional equipment “

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
5
C O N T E N T S Page
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
1.0. Safety...................................................... 6&15
1.1. Safety Decals....................................... 11&13
1.2. Safety Equipment.................................... 14
1.3. Safety instructions................................. 15
2.0. Assembly.................................................... 16&17
2.1. General............................................. 16
2.2. Unpacking and setting up the TERRA SPIKE............ 16&17
2.3. Attaching the swather............................... 18+19
3.0. Transport................................................... 20&22
3.1. General............................................. 20
3.2. Transporting the TERRA SPIKE........................ 21&22
4.0. Connecting to the Tractor................................... 23&25
4.1. General............................................. 23
4.2. Attaching the Terra Spike to a tractor.............. 24
4.3. Adjusting the PTO Shaft............................. 25
5.0. Detaching from Tractor...................................... 26&27
5.1. General............................................. 26
5.2. Before parking...................................... 26&27
5.3. Parking TERRA SPIKE with rear roller................ 27
6.0. Before Using................................................ 28&35
6.1. General............................................. 25
6.2. Indicator and adjustment components................. 29
6.3. Mounting the tines.................................. 30&31
6.4. Adjusting the TERRA SPIKE........................... 32&33
6.5. Installing drive.................................... 33&34
6.6. Raising the rear roller............................. 35
7.0. Operation................................................... 36&39
7.1. General............................................. 36
7.2. Correct sequence for engaging....................... 36
7.3. Faults and remedies................................. 37&38
7.4. Setting scraper..................................... 39
7.5. Clamp fastener for hood............................. 39
8.0. Service..................................................... 40&51
8.1. General............................................. 40
8.2. Maintenance and inspection list..................... 41
8.3. Lubrication......................................... 42
8.3.1. Points for manual lubrication....................... 42
8.4. Cleaning the TERRA SPIKE............................ 43
8.5. Locking safety cover................................ 44
8.6. Replacing the rubber parts.......................... 44&45
8.7. Changing tines...................................... 46
8.8. Replacing the tool head............................. 47
8.9. Checking and tensioning power transmission belt..... 48
8.10. Changing drive belt................................. 49&51
8.11. Adjusting the angular position...................... 52&54
8.12. Replacing the rubber part
for the downholder carrier........................ 55+56
8.13. Replacing the rubber part
for the angle adjustment.......................... 56
8.12. Disassembly / Disposal.............................. 57
8.13. Unauthorized modification and
spare part manufacturing............................ 58
9.0. Equipment................................................... 59
9.1. Equipment supplied.................................. 59
9.2. Optional equipment.................................. 59
10.0. Specifications.............................................. 60&63

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
6
1.0. Safety Measures

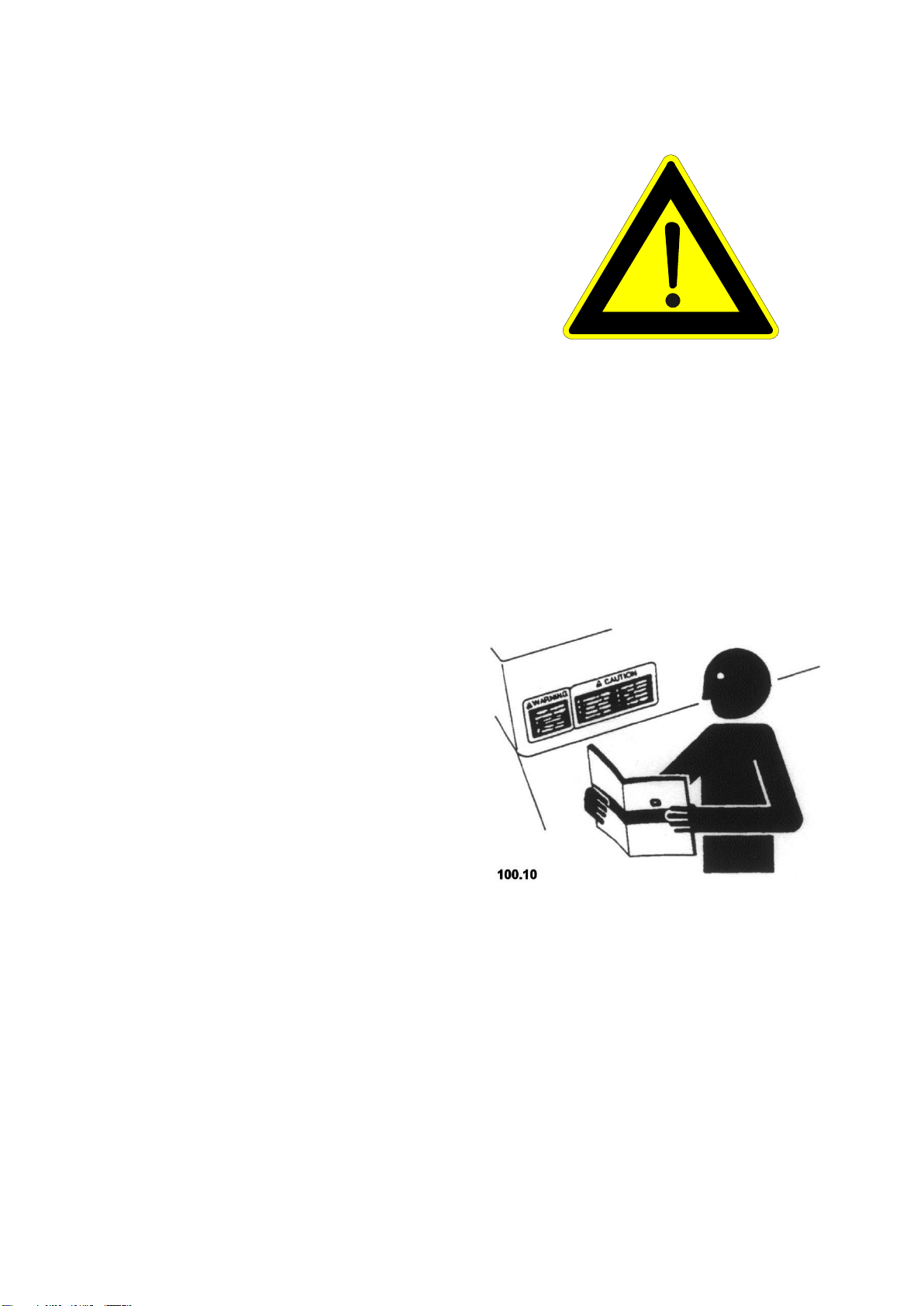

RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol. When you
see this symbol on your machine or in this
manual, be aware of the potential for
personal injury.
Please observe all safety instructions and
the general accident prevention
regulations.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this
manual and warning signs on your
machine. Keep warning signs in good
condition. Replace missing or damaged
warning signs. Make sure that new
equipment, components and replacement
parts include the current warning signs.
Replacement warning signs are available
from your dealer.
Learn how to operate the machine and
use the controls properly. Do not let
anyone operate without instruction.
Keep your machine in proper working
condition. Unauthorized modifications to
the machine may impair the function
and/or safety and affect machine life.
If you do not understand any part of this
manual and need assistance, contact
your dealer.

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
7
1.0. Safety Measures
OBSERVING ROAD TRAFFIC REGULATIONS
Always observe local road traffic regulations
when using public roads.
WEAR PROTECTIVE CLOTHING
Wear tight-fitting clothing and appropriate
protective equipment when working with the
machine.
Prolonged exposure to loud noise can cause
impairment or loss of hearing.
Wear a suitable hearing protective device
such as earplugs to protect against
objectionable or uncomfortably loud noises.
Operating equipment safely requires the full
attention of the operator.
Do not wear radio or music headphones
while operating the machine.
GUARD AND SHIELDS
Keep guards and shields in place all the
times. Ensure that they are in good condition
and installed correctly.
Always disengage the drive components, turn
off engine and remove key before removing
any guards or shields.
Keep hands, feet and clothing away from
moving parts.

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
8
1.0. Safety Measures
STAY CLEAR OF ROTATING DRIVE SHAFTS
Inattentiveness in the area of rotating drive
shafts can have serious, or even fatal,
consequences.
Keep all drive shaft guards in place at all
times. Make sure rotating shields can turn
freely. Wear close fitting clothing. Stop the
engine and make sure PTO shaft is stopped
before making adjustments, connections, or
cleaning out PTO-driven equipment.
Avoid high-pressure fluids
High-pressure fluids which leak under high
pressure can penetrate the skin and cause
serious injury.
For this reason, always depressurize the
system before disconnecting lines. Tighten all
connections before applying pressure.
Hydraulic oil escaping from a small leak is
virtually invisible, therefore search for leaks
with a piece of cardboard. Protect hands and
body from high pressure fluids.
If an accident occurs, see a doctor
immediately. Any fluid injected into the skin
must be surgically removed within a few
hours or gangrene may result.
Doctors unfamiliar with this type of injury
should check a reliable medical reference.

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
9
1.0. Safety Measures
USE SAFETY LIGHTS AND DEVICES
Avoid collisions with other road users. Slow
moving tractors with attachments or towed
equipment and machines are a particular
hazard on public roads. Frequently check for
traffic from the rear, especially in turns, Use
hand signals or turn signal lights for safe
operation in traffic. Use headlights, flashing
warning lights, and turn signals day and
night. Follow local regulations for equipment
lighting and marking. Always keep the safety
devices in good condition. Replace or repair
lighting and marking that has been damaged
or lost. An implement safety lighting kit is
available from your dealer.
AVOIDING HEAT DEVELOPMENT IN
THE AREA OF PRESSURE LINES
Highly flammable liquid mist can be caused
by heat development near pressure lines.
resulting in severe burns to yourself and
bystanders. Do not heat by welding,
soldering, or use a welding torch near
pressurized fluid lines or other flammable
materials. Pressurized lines can be
accidentally cut if heat goes beyond the
immediate flame area.

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
10
1.0. Safety Measures
Remove paint before welding or heating
Welding must be conducted only by persons
with appropriate qualifications.
Avoid potentially toxic fumes and dust.
Hazardous fumes can be generated when
paint is heated by welding, soldering, or using
a torch.
Do all work outside or in a well ventilated
area. Dispose of paint and solvent properly.
Remove paint before welding or heating:
If you sand paint, avoid breathing the dust.
Wear an approved respirator.
If you use solvent or paint stripper, clean
with soap and water before welding.
Remove solvent or paint stripper
containers and other flammable material
from area. Allow fumes to disperse at least
15 minutes before welding or heating.

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
11
1.0. Safety Measures

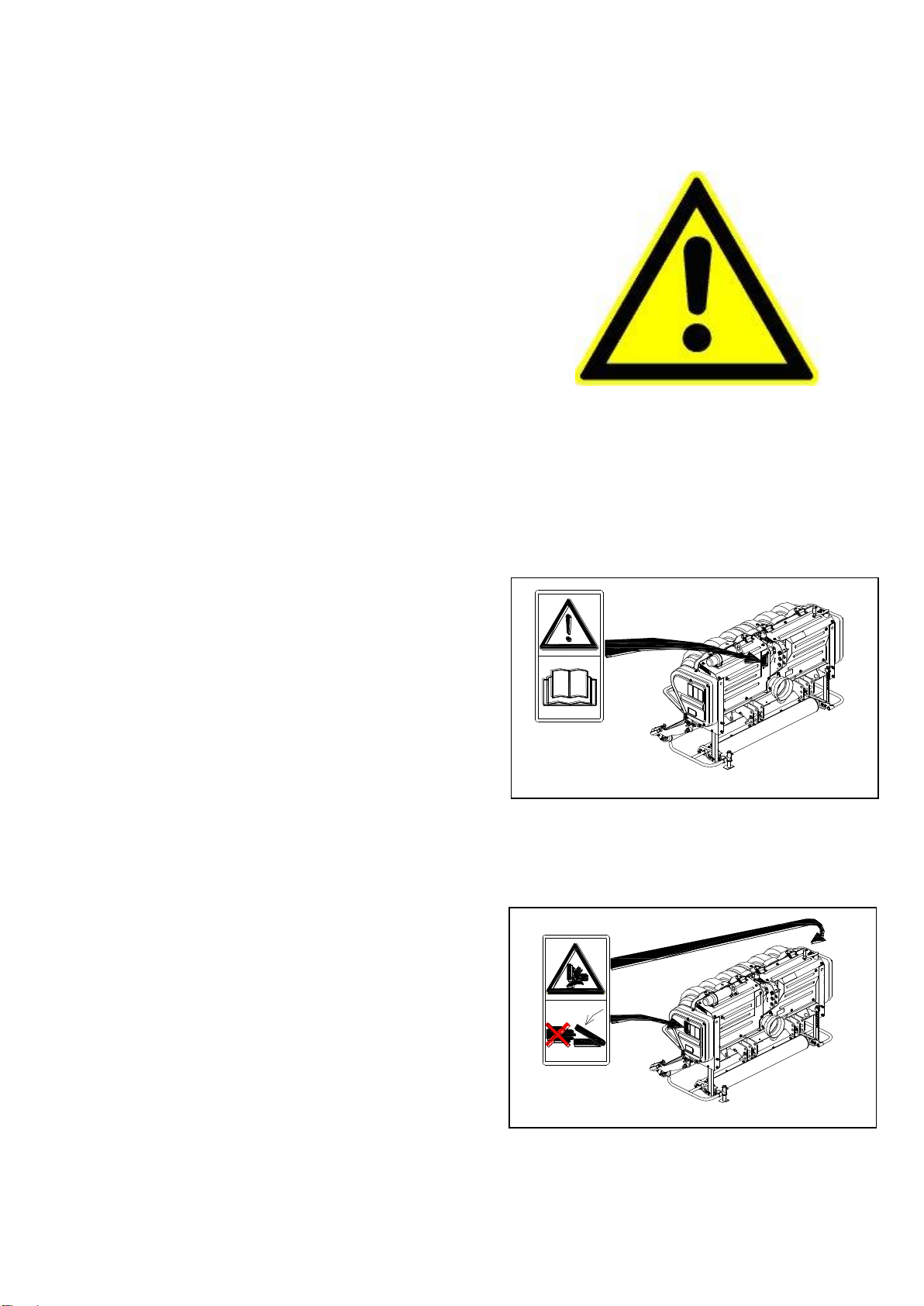

1.1. Safety Decals
Pictorial warning signs
Warning signs are attached to
several important places on this
machine to indicate potential
danger. The hazard is identified
by an exclamation point in a
warning triangle. An adjacent
symbol shows information on how
to avoid personal injury. These
safety signs, their placement on
the machine and a brief
explanatory text are shown below.
Operator’s manual
This operator’s manual contains
all important information
necessary for safe machine
operation.
Carefully observe all safety
rules to avoid accidents.
Protectors
Never reach into areas of
crushing hazard as long as any
parts may move.
870.01
870.02

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
12
1.0. Safety Measures
1.1. Safety Decals
Parking position
Before parking fix rear roller
with ring pins and secure it.
Tines
Never touch moving parts of the
machine. Wait until they have
come to a complete standstill.
870.03
870.04

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
13
1.0. Safety Measures
1.1. Safety Decals
Tines
Be careful to avoid injury to
foot.
Service
Before performing service
or repair work, turn off
engine and remove key.
Operation
Do not climb onto the
machine while the engine
is running.
RISK OF FALLING !
870.06
870.07
870.05
423.07

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
14
1.0. Safety Measures
1.2. Die Sicherheits-Einrichtungen
ALLGEMEINE ANFORDERUNGEN ZUR SICHERHEITSKENNZEICHNUNG
Eine Sicherheitskennzeichnung mit folgenden Sicherheitspraktiken oder ähnlichen
Mitteilungen soll an der Maschine angebracht werden. Das Label soll möglichst von der
Arbeitsposition aus sichtbar sein.
a) Lesen Sie die Bedienungsanleitung.
b) Die Maschine nicht ohne Schutz, Schutzschilder und richtig platzierte und
funktionsfähige Sicherheitsvorrichtungen betreiben.
c) Die Maschine nicht betreiben, wenn Kinder oder andere in der Nähe sind.
d) Lassen Sie nicht zu, daß die Maschine von Personen betrieben wird, die hier nicht
eingewiesen sind.
ACHTUNG GEFAHR ! Betreiben Sie den TERRA SPIKE nie ohne
Sicherheitseinrichtungen. Sonst setzen Sie sich und andere
höchsten Gefahren aus.
Schwerste Verletzungen durch bewegte Teile können die
Folge sein.
Die Position der Sicherheitseinrichtungen an Ihrer Maschine.
A =Bolted-on fenders on right and left
as spacers.
C = Cover removable with ring
wrenches only.
B = Back roller with arms locked with
ring pin and secured.
D= Protective cover for universal-joint
shaft connection can be only
removed with tools
870.08
A
B
A
C
C
D
C
C
C

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
15
1.0. Safety Measures
1.3. Safety instructions
Besides the information in
these operating
instructions, please also
observe all generally
applicable safety and
accident-prevention
standards!
Familiarize yourself with
all equipment and
operating elements and
their functions before
starting work. Ensure that
all protective equipment
has been properly
installed - it is too late
to do this when you have
started work!
During work operation, the
user is responsible for
the safety of third
parties!
During operation on public
highways, the relevant
traffic regulations must
be observed.
Before moving off, ensure
that the immediate area of
the machine is clear, e.g.
no children nearby. Ensure
that your visibility is
not impaired!
Keep clear of the danger
zone of the machine!
Always ensure there is
sufficient front-axle
load; the steering
capability of the vehicle
must be maintained.
Do not exceed the max.
authorized axle load of
the tractor.
Attach and remove the
machine on flat, solid
ground only.
- RISK OF TIPPING OVER!
Use only cardan shafts
prescribed for the machine
which is being mounted.
Special care should be
taken when working and
turning on a slope.
- RISK OF TIPPING OVER!
Switch off the machine and
the tractor motor when
performing any maintenance
work.
The driving and operating
characteristic of the
tractor may be affected by
installation of the Terra
Spike. Always adapt your
driving style to match the
terrain and ground
conditions.

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
16
2.0. Assembly
2.1. General
Check whether all connection
parts necessary for complete
delivery are there.
Attach and remove the machine
on flat, solid ground only.
For this work, please use your
personal protective equipment
(PSA) such as:
gloves,
goggles,
ear protectors.
ATTENTION DANGER :
Be careful when cutting through
the tension straps. There is a
risk of being injured when the
straps are cut.
2.2. Unpacking and setting up the Terra Spike
ATTENTION DANGER :
Use only forklift trucks,
cranes or lifting equipment
with a sufficient load-bearing
capacity.

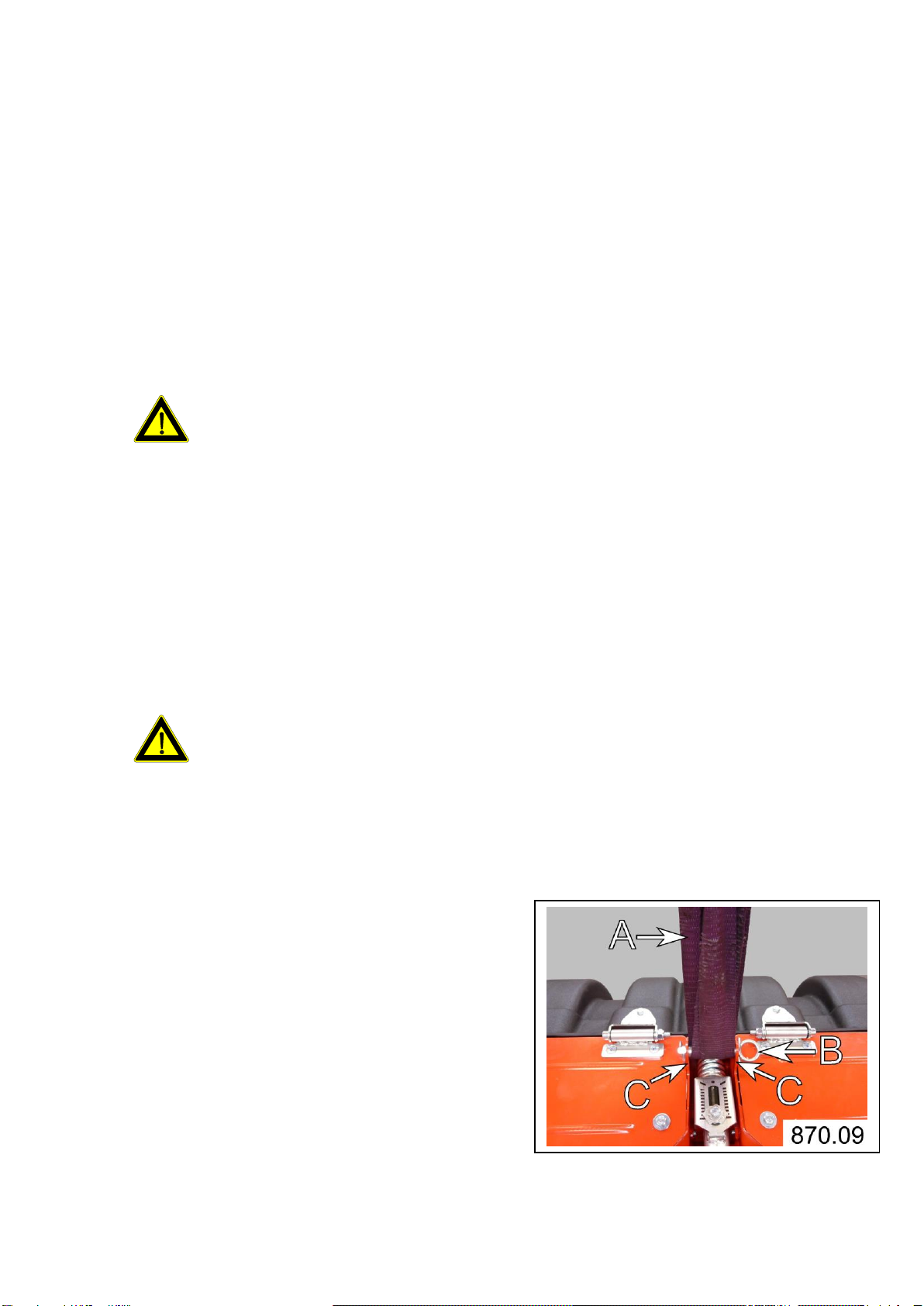

1. While the Terra Spike is
still standing on the
shipping floor, attach a
sling (A) or similar lifting
gear.
2. For this purpose, insert the
upper link pin (B) into the
brackets (C) and secure with
a folding plug.
3. Only now can all the
fastenings to the shipping
floor be loosened or removed.

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
17
2.0. Assembly
2.2. Unpacking and setting up the Terra Spike

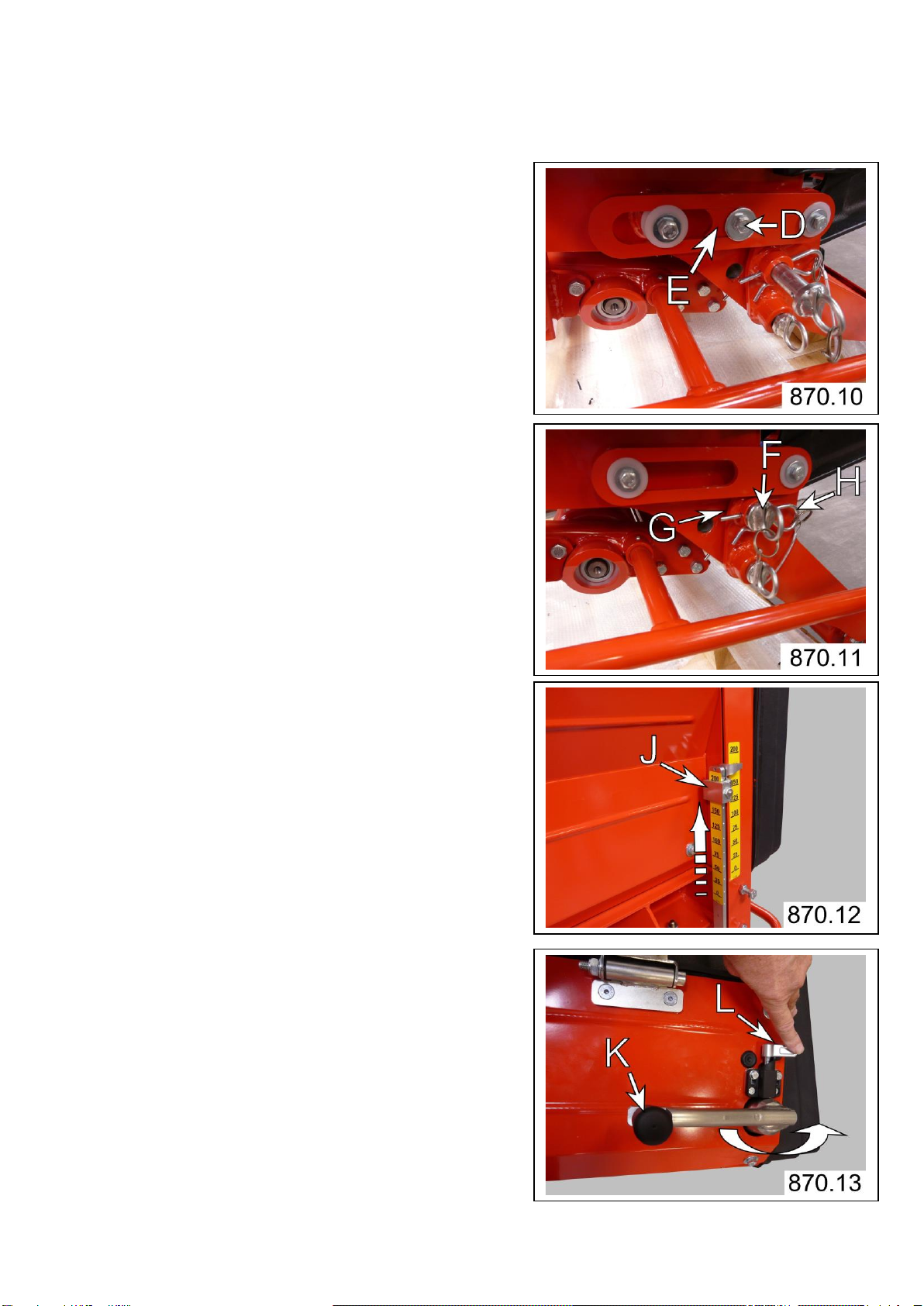

4. The hex bolt (D) and the
intermediate piece (E) must
be removed on both sides of
the Terra Spike. These parts
have been installed only for
shipping.
5. Raise the Terra Spike until
the pin (F) can be inserted
in the rear hole (G) in order
to secure the rear roller.
The pin (F) is secured with a
cotter pin (H).
6. Move the pointer (J) into
the uppermost position 200 on
the scale.
7. To lower the front roller,
unlock the handle (K). For
this purpose, turn the spring
bolt (L) outwards.
8. Turn the handle (K)
counterclockwise until the
front roller has reached the
0-position.
NOTE
All work is carried out on the
machine in this state.

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
18
2.0. Assembly
2.3. Installing the swather
CAUTION!
Only carry out conversion work
when mounted.
Lower the Terra Spike on the
fully lowered front roller.
Switch off the tractor and
secure it against
unintentional starting.
To remove the roller and to
attach the swather, raise the
rear roller (see Chapter 6.6.).
Two people are required for the
conversion.
1. Remove the folding plug (A)
2. Remove the washers (B).
3. With one hand, hold the
roller by the handle and
pull back the pin (C) with
the other hand.
4. Put away and store the
roller when it is clean.

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
19
2.0. Assembly
2.3. Mounting the swather
Park the swather behind the
Terra Spike.
5. With one hand, grasp the
transverse frame of the
swather and lift between
the arm brackets.
6. With the other hand, push
the pin (C) through the
brackets and the bearing
bushing to secure.
7. Slide the washers (B) on
the pin and secure
everything with the folding
plug (A).

All information, illustrations and specifications in this manual are based on the latest information
available at the time of publication. We reserve the right to make changes at any time without notice.
20
3.0. Transport
3.1. General
ATTENTION DANGER:
° TERRA SPIKE is delivered
fastened to a pallet.
° Only use a forklift with
sufficient load-carrying
capacity.
° Keep well clear of hoisted
loads. If the load falls
it may cause fatal injuries.
Improper transport and mounting
of TERRA SPIKE may cause:
Injury to persons
Damage to property.
Pay special attention to the
driving direction when
lifting the TERRA SPIKE with
the shipment frame
(See item 3.2.1.).
We will not accept any
liability for damage resulting
from improper handling.
