Wildfire VioStorm Series User manual

Operation Manual
Ultraviolet LED Lighting Fixtures
VS-60
VS-120
TM
VIOSTORM
English

Table of Contents
Introduction 3
SafetyInformation 3
Specifications 4
Setup & Operation 5
Unpacking 5
Optional Accessories 5
Installation 5
Local Mode Operation 5
DMX Mode Operation 6
RDMFunctions 6
Graphical Menu Tree 7
Maintenance 9
Optic Change/Replacement 9
SoftwareUpdates 9
Cleaning 9
Troubleshooting 9
Diagrams 10
Isometric & Line Views VS-60 10
Isometric & Line Views VS-120 11

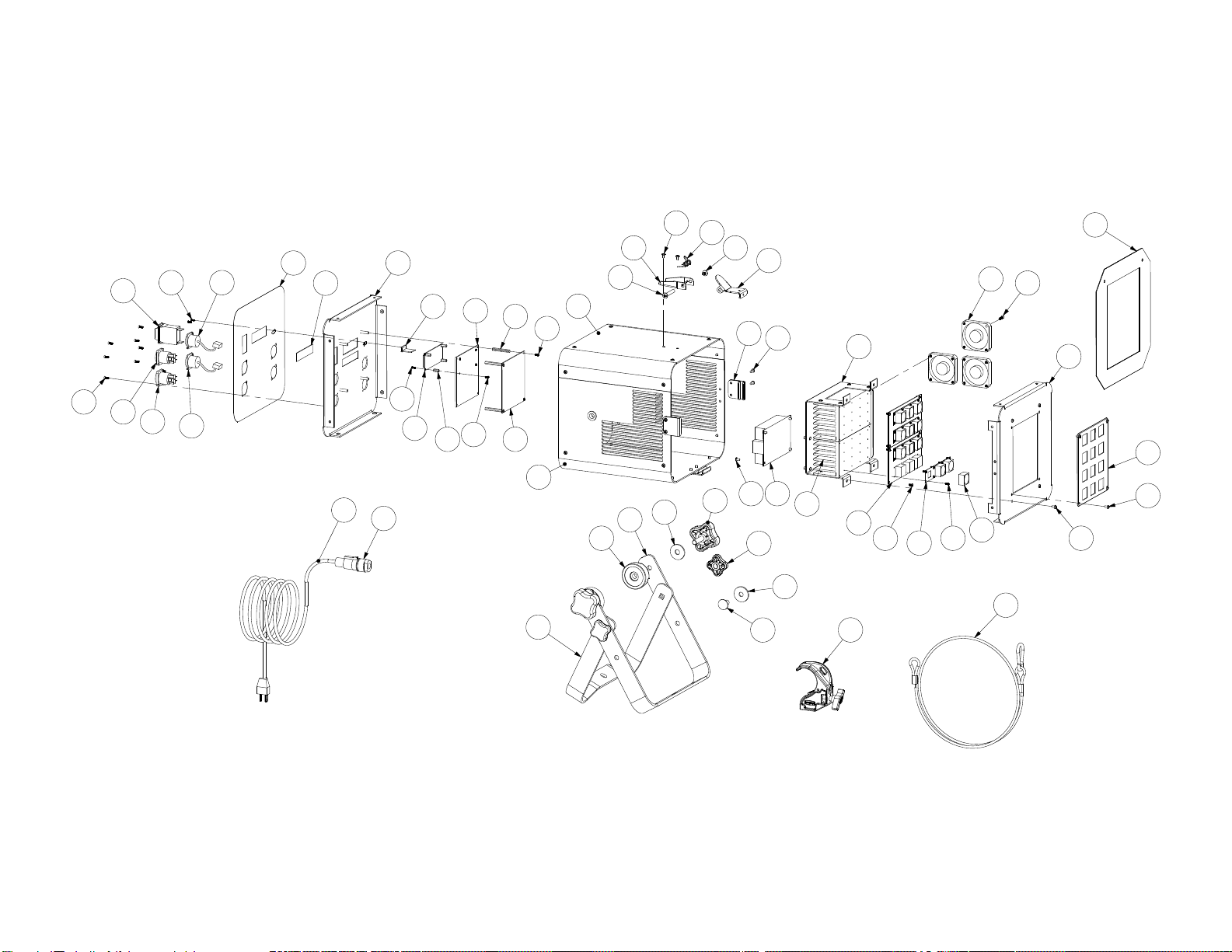

Exploded View VS-60 12
PartListVS-60 13
Exploded View VS-120 14
PartListVS-120 15

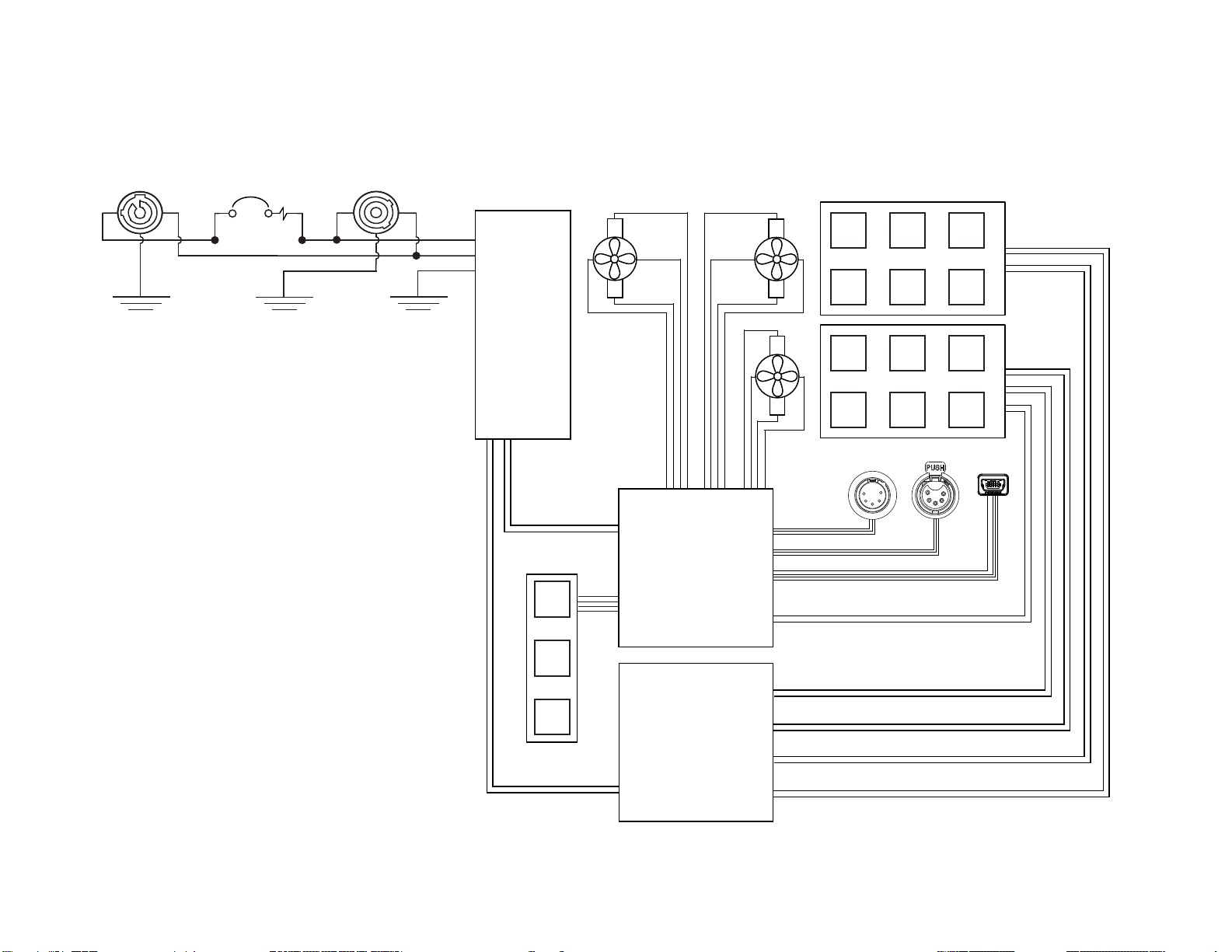

SchematicVS-60 16
Schematic VS-120 17

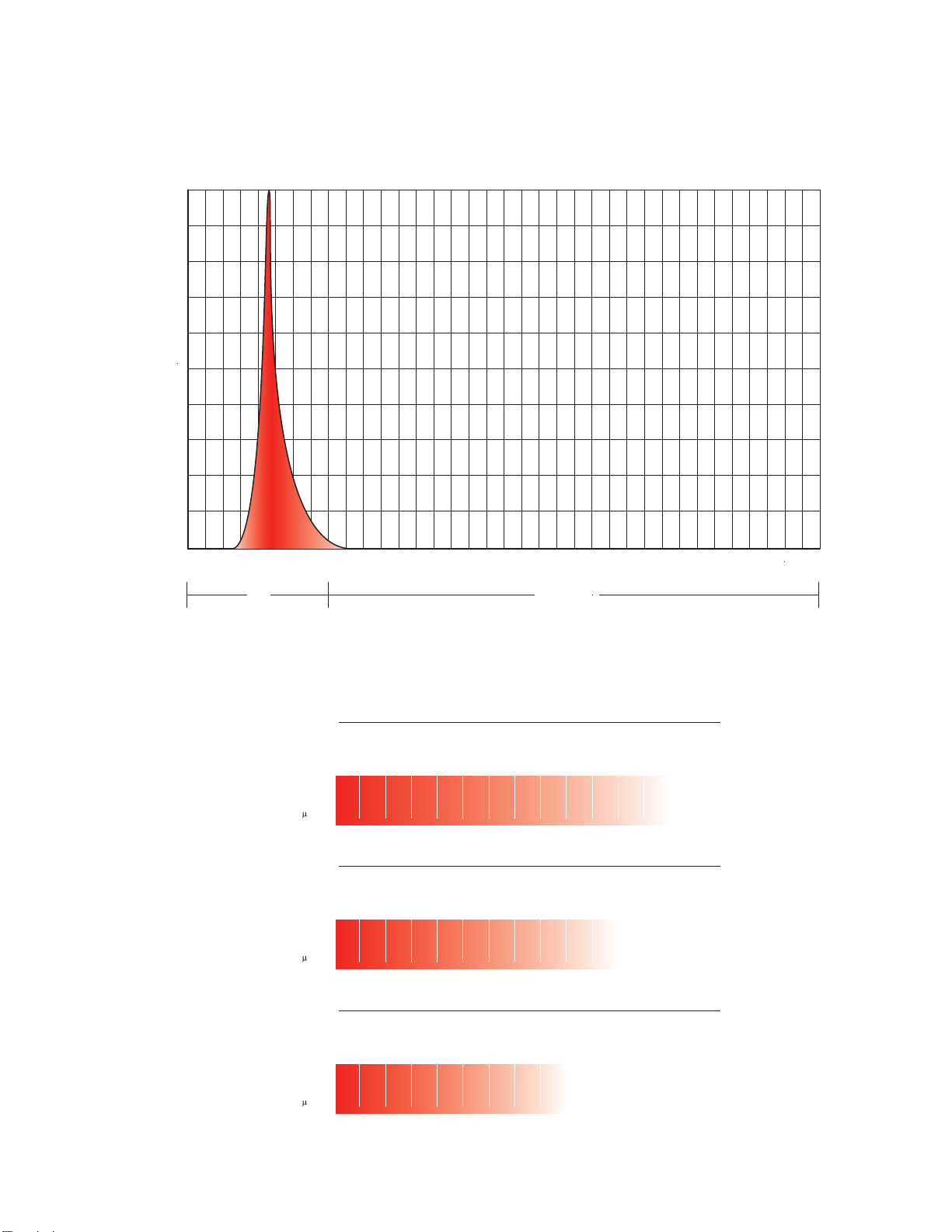

Spectral Output & Photometrics VS-60 18
Spectral Output & Photometrics VS-120 19
Limited Warranty 20
2

Introduction
Congratulations on your purchase of a Wildfire VioStorm Series UV-A Lighting Fixture. VioStorm fixtures
combine true 365nm Long Throw performance, with the control and efficiency of LED's. Featuring Wildfire’s
intuitive new Trias DMX/RDM Control System and versatile interchangeable optics, VioStorm UV lighting is just
the right combination of power performance and control for a perfect black light storm. Please take a moment to
read this manual thoroughly before attempting to operate the fixture. Improper set-up, use or servicing may
cause damage to the fixture and void the unit’s warranty.
Safety Information
RISK GROUP 3 - WARNING - THIS FIXTURE EMITS ULTRAVIOLET RADIATION (UV) AT A PRIMARY
WAVELENGTH OF 365NM, AVOID EYE AND SKIN EXPOSURE AT DISTANCES SHORTER THAN 3.3’ (1m).
DO NOT LOOK INTO THE BEAM DIRECTLY AT DISTANCES SHORTER THAN 11’ (3.3m) OR VIEW THE
BEAM DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION
OUTPUT.
CAUTION – WHEN USED IN ACCORDANCE WITH THE MANUFACTURERS OPERATING INSTRUCTIONS,
NO HAZARDS EXIST TO MOST PEOPLE AT DISTANCES GREATER THAN 11’ (3.3m) FROM THE FIXTURE.
HOWEVER, INDIVIDUALS SUFFERING FROM A RANGE OF SUNLIGHT EXPOSURE DISORDERS,
APHAKIC AND PSEUDOAPHIKIC, OR THOSE INDIVIDUALS RECEIVING PHOTOSENSITIVE MEDICATION
MAY RECEIVE DISCOMFORT IF EXPOSED TO ULTRAVIOLET LIGHT.
CAUTION – NOT FOR RESIDENTIAL USE. DRY LOCATIONS ONLY.
3

Specifications
Housing:
5052 aluminum with stainless steel hardware
Finish: Flat black powder coat
Mounting:
Fully adjustable yoke with three height positions and integrated removable floor stand
UV Light Source:
VS-60: Six 10W 365nm UV LED emitters
VS-120: Twelve 10W 365nm UV LED emitters
Peak Irradiance:
VS-60: 25,800 µW/cm² of 365nm UV at 1’ with optics
VS-120: 52,000 µW/cm² of 365nm UV at 1’ with optics
LED Life:
20,000Hr. at 25° C
Optics: Molded Silicone 10°, 24° or 40°
Operating Temperature:
-10° to 115° F / -20° to 45° C
Humidity:
0-95% non-condensing
Power Connections:
Neutrik PowerCON 1 Input and Output
Power Linking:
VS-60: Eight units at 120VAC
VS-120: Four units at 120VAC
Power Cord:
9’ 14/3 SOW with PowerCON 1 and male Edison
DMX Connections:
Neutrikl Gold, 5-pin XLR Male, 5-pin XLR Female
DMX Channels:
Three (2 Dimming, 1 Effects)
Operation Modes:
Two (DMX 512 and Local)
USB Connection:
Amphenol Rugged Mini-B USB Female
Power Supply:
UL Listed Universal Voltage Input
Input Voltage:
100-240 VAC
Input Current
VS-60: 0.88 Amps Max
VS-120: 1.73 Amps Max
Frequency:
50-60Hz.
Power Factor:
0.97
Power Consumption:
VS-60: 86 Watts
VS-120: 170 Watts
Circuit Protection:
7 Amp hydraulic magnetic breaker switch
Accessory Frame:
7.5” / 19.05cm
10” / 25.4cm
Weight: VS-60: 10.35 lbs. / 4.69 kg.
VS-120: 13.35 lbs. / 6.05 kg
Protection Rating:
IP-20
Safety Listing:
ETL #5004307
4

Setup & Operation
Unpacking
Unpack the fixture and carefully inspect for any signs of physical damage. Report any damage to Wildfire or
your local distributor immediately. Included with each unit should be the following items:
1. Twenty clamp, designed to attach the fixture to a 11/2” to 2” pipe truss
2. Safety Cable, provided to secure the fixture when mounted on a pipe truss
3. 6’ Power Cable
4. 3’ USB Cable
5. PowerCON 1 Power-Out Connector
6. Operation Manual and Warranty Registration Card
Optional Accessories
Contact Wildfire or your local distributor for pricing on the following optional accessories:
1. 7.5” and 10” Barn Doors
2. 10° Spot Optic Set
3. 24° Spot Optic Set
4. 40° Spot Optic Set
Installation
The fixture is equipped with a yoke assembly for mounting. The yoke may be fitted with either a pipe clamp
(included) for mounting on a pipe truss or a baby bail block or junior pin for mounting on a light stand.
If the fixture is mounted on a pipe truss, be sure to use the included safety cable, looping it through the yoke
assembly and around the pipe truss. This will prevent the fixture from falling and possibly causing injury in the
event that the pipe clamp was not securely tightened.
To adjust the angle of the fixture, loosen the knobs on either side of the unit slightly, rotate to desired angle and
tighten. Care should be taken to support the front of the fixture while loosening the knobs to prevent the fixture
from rotating forward possibly causing injury.
The fixture comes standard with a 7.5” (VS-60) or 10” (VS-120) bracket assembly for attaching barn doors and
other accessories. When using accessories, be sure to attach the safety cable provided by the accessory
manufacturer to the fixture yoke assembly.
Plug the fixture into the appropriate power source. If you are controlling the fixture with a lighting control board,
you will need to make sure it is plugged into a non-dim circuit. If the fixture is plugged into a dimmable circuit, it
will not operate.
Local Mode Operation
To operate the fixture in local mode, turn the fixture ON by pushing the power/breaker switch to the ON position.
Set the Control Source menu selection to “Local.” Set the Dimmer menu selection to the desired output level (0
– 100%). Set the Effect menu selection to the effect you want.
Effects Settings:
Setting Function Description
OFF No Effects All LED's static at the brightness set on the Dimmer setting
Strobe 1-60 Strobe Adjustable strobe of all LED's at the brightness set on the Dimmer setting
Flash 1-60 Flash Adjustable flash of all LED's at the brightness set on the Dimmer setting
Pulse 1-60 Pulse Adjustable pulse of all LED's at the brightness set on the Dimmer setting
Random 1-66 Random Adjustable random strobe of all LED's at the brightness set the Dimmer setting
5

DMX Mode Operation
To operate the fixture in DMX mode, turn the fixture ON by pushing the power/breaker switch to the ON position.
Connect the fixture to a DMX control device such as a lighting control board or lighting control software. Set the
Control Source menu selection to “DMX”. If the fixture is receiving valid DMX data, you will see three dots
flashing in lower the right hand corner of the display. Next from the DMX Address menu selection set the
starting DMX address you want to use (1-510). The DMX starting address selected will be the Effects channel.
The following two addresses in numerical order are 8 bit and 16-bit dimming control.
Effects Channel Settings:
Data Value Function Description
0-9 No Effects All LED's static at the brightness set on the dimmer channels
10-69 Strobe Adjustable Strobe of all LED's at the output set on the dimmer channels
70-129 Flash Adjustable Flash of all LED's at the output set on the dimmer channels
130-189 Pulse Adjustable Pulse of all LED's at the output set on the dimmer channels
190-255 Random Adjustable Random Strobe of all LED's at the output set on the dimmer channels
RDM:
Remote Device Management is a protocol enhancement to DMX512 that allows bidirectional communication
between a system controller and attached RDM-compliant devices over a standard DMX line. This allows for
remote configuration, status monitoring, and management of the connected RDM devices. VioStorm fixtures are
compliant with RDM protocol and are capable of displaying, setting and or monitoring the following parameters:
DMX Address Monitor and remotely set DMX starting address.
Temperature Monitor current LED module temperature with over temperature warning at 55C
Fan RPM Monitor current RPM for fans A & B with fan failure warnings at 0 RPM
Device ID Display fixtures device ID
In both DMX and Local mode if no buttons are pressed for 60 seconds the display will go dark. To reactivate the
display, press any button.
The lamp timer function records the total number of hours the fixture has been on. To reset this, select the Lamp
Timer menu selection and then press the UP or DOWN button for 10 seconds.
VioStorm fixtures are equipped with automatic high temperature protection circuitry that shuts the LED’s off if
the temperature exceeds 70° C. Once it cools to 65° C the LED’s will turn back on.
6

VioStorm
Revision 1.1
UP
DOWN
Control Source
Local
SELECT
Home Menu
>Control Source
Local>
UP
DOWN
DMX Address
510
SELECT
>DMX Address
510>
UP
DOWN
Dimmer (Local)
7%
SELECT
>Dimmer (Local)
7%>
UP
DOWN
Effect (Local)
Off
SELECT
>Effect (Local)
Off>
UP
DOWN
Lamp Hours
25
SELECT
Pressing UP or DOWN for 6
seconds resets lamp hours
>Lamp Hours
25>
UP
DOWN
Next Page
Graphical Menu Tree
Temperature
25C
SELECT
Pressing UP or DOWN
has no function.
>Temperature
25C>
UP
DOWN
When DMX Signal is present
3 dots flash on display
Control Source
Local ...>
When DMX Signal is present
3 dots flash on the display
DMX Address
510 ...>
Pressing UP or DOWN adjusts
this selection when Control
Source is set to Local
Pressing UP or DOWN has no
function when Control Source
is set to DMX
Dimmer (Local)
7%>
Effects Selections are:
Off, Strobe 1-60, Flash 1-60,
Pulse 1-60 and Random 1-66
Effect (Local)
Off>
Pressing UP or DOWN
adjusts this selection.
Pressing UP or DOWN
adjusts this selection.
Pressing UP or DOWN adjusts
this selection when Control
Source is set to Local
Pressing UP or DOWN has no
function when Control Source
is set to DMX
When the temperature exceeds
70C the LED’s will will shut off.
Once it cools to 65C the LED’s
will turn back on
RDM: Display temperature
and overtemp warning at 55C
RDM: Displays lamp hours
RDM: Display and set DMX
address
7
Control Source Selections are:
Local and DMX

Fan RPM
A-4000 B-4000
SELECT
Pressing UP or DOWN
has no function.
>Fan RPM
A-4000 B-4000>
UP
DOWN
Program Update
Confirm
SELECT
Once the Bootloader Mode
is invoked the fixture will
turn the LED’s off and wait
for the update. When the
installation is complete it
will return to the home menu
and resume normal operation
>Program Update
Confirm>
UP
Returns to Home Menu
Graphical Menu Tree
Device ID
0X57466E228870
SELECT
Pressing UP or DOWN
has no function.
>Devive ID
0X57466E228870>
UP
DOWN
Bootloader Mode
waiting for file
UP
RDM: Display RPM for both
fans and 0 RPM warning.
RDM: Display Device ID
8
To exit Bootloader Mode
without updateing the
software turn the fixture
power switch OFF

Maintenance & Troubleshooting
Optic Change/Replacement
To change the optics, unplug the fixture. Remove any accessories from the front. Position the fixture on the
yoke stand so that it is pointed up. Remove the optic bezel from the front of the fixture, exposing the optics.
Remove the 16 (VS-60) or 32 (VS-120) small screws holding the optic plates to the LED module(s). Lift the
optics and plate’s straight up and off of the module. To replace reverse these steps. The following optic sets are
available for the VioStorm series fixtures. Contact Wildfire or your local distributor for pricing
Part # Description VS-60 VS-120
124-030 10° Spot Optic Set 1 Set 2 Sets
124-031 24° Spot Optic Set 1 Set 2 Sets
124-032 40° Spot Optic Set 1 Set 2 Sets
Software Updates
The VioStorm Series control software version is displayed on the home menu screen as seen below in Fig.1.
When updates to this software are available they can be downloaded directly from the Wildfire website at:
www.wildfirefx.com/resources/downloads/. You will need to download the complete bootloader/install program
group and save it to your desktop. Follow the instructions provided to update the software.
Fig. 1
Cleaning
For best performance the fixture fan vents should be kept free of dirt and dust. At no time should any cleaning
chemicals or abrasives be used to clean any part of the fixture. Do not spray or apply any liquid directly to any
part of the fixture. Always unplug the fixture before cleaning. For normal cleaning, a dry soft cloth should be
used to wipe any surface free from dust and light dirt.
Troubleshooting
The fixture will not turn on: – Check to make sure there is power to the fixture. Make sure the power/breaker
switch on the back of the fixture has not been tripped. If you have checked all of the above and the fixture still
won’t turn on, contact Wildfire technical support at [phone] or your local distributor
The fixture turns on but there is no UV light output: Make sure the fixture is set to the correct Control Source
setting for your mode of operation. (DMX or LOCAL) If you are running the fixture in local mode make sure the
Dimmer menu selection is not turned all the way down. If you are running the fixture in DMX mode, make sure
the dimmer channels on your lighting control device are not all the way down. If you have checked all of the
above and the fixture still won’t turn on, contact Wildfire technical support at [phone] or your local
distributor.
9

Isometric & Line Views VS-60
10
Diagrams
901-113-03 VS-60 Line
11.31
7.50
14.54
7.56
8.96
16.97
17.34
9.33
10.24

Isometric & Line Views VS-120
11
Diagrams
901-114-01 VS-60 Line
13.81
10.00
17.51
15.12
7.81
11.23
11.43
11.80
17.89

Exploded View VS-60
12
900-113-03 VS-60 Exploded
31
35
46 23
47
22
51
39
40 19
38
41
10 36
33
23
12
813
9
1
11
47 29
30 27
28
45
16
47 4
47
5
244
67
22 34
21 23
3
42
47
24 26 14
15 43
20
25
18
17
37
48 49
50

Part List VS-60
13
# QTY. PART # PART NAME
1 1 104-068-03 Housing, Bottom, VS-60
2 2 112-006 Fan, 24VDC, 60 x 60 x 10 mm
3 1 104-062-03 Cover, Housing, Front, VS-60
4 1 110-035 Power Supply, 48VDC, 160W
5 1 104-100-02 Bracket Heat Sink, VS Series
6 1 104-102-03 Heat Sink, VS Series
7 1 117-001-02 6-UV LED Module MCPCB
8 1 115-009-02 Board, DMX/RDM Controller Rev. 2
9 1 115-011-01 Board Display, 2x16 Red,OLED
10 1 115-010-01 Board, 3 Button Touch Control, Rev. 1
11 1 104-069-02 Housing, Top, VS-60
12 4 121-067 Standoff, 3/16” Hex M-F, 4-40 x 1-1/2 AL
13 1 116-009-02 Board, 4 Channel LED Driver Rev. 2
14 2 103-006-02 Spacer, Yoke Assembly
15 1 104-016-01 Bracket, Switch Rod, Retaining
16 3 104-101-02 Bracket, Accessory, VS Series
17 2 121-029 Bolt, Carriage, 3/8-16 x 3/4”
18 2 121-063 Washer, 1.250 OD, .375ID, .125Thk, Neoprene
19 1 106-030 Connector, 5 Pin XLR, Male
20 2 120-001 Knob, Yoke Adjustment
21 2 104-103-02 Plate, Optic, VS Series
22 8 121-001 Screw, M, PHL, PH, 4-40 x 1/4” 18-8 SS
23 26 121-090 Screw, PHL, PH, 2-56 x 1/4”18-8 SS
24 1 107-003 Cord, Power, Black, 16 AWG, 8ft
25 2 120-004 Knob, Floor Stand Bracket
26 1 106-050 Connector, PowerCON 1, Power IN
# QTY. PART # PART NAME
27 1 104-077-03 Base, Accessory, Safety Catch
28 1 104-078-02 Latch Accessory, Safety Catch
29 1 104-098-02 Spring, Double Torsion
30 1 121-027 Bolt, Barrel, M, COM, PH, .25 x 1.5” 18-8 SS
31 1 121-026 Screw, M, COM, PH, 10-32, .25” 18-8 SS
32 2 121-032 Rivet Nut, Blind, 3/8”-16
33 1 104-063-04 Cover, Housing, Rear
34 6 124-030 (031)(032) Reflector, LT-150F
35 4 121-071 Standoff, 3/16” Hex, THD, F-F 2-56 x 7/16”
36 1 106-060 Connector, Mini-B USB, Female
37 1 104-104-01 Bracket, Yoke Stand, VS-60
38 1 106-031 Connector 5 Pin XLR, Female
39 1 106-051 Receptacle, PowerCON 1, Power IN
40 1 106-053 Receptacle, PowerCON 1 Power OUT
41 1 128-017-03 Lable, Control VS-60
42 1 104-106-01 Bezel, Optic, VS-60
43 2 121-060 Washer, Flat, 1.25” OD, 13/32” ID, .13 THK., 18-8 SS
44 8 121-009 Screw, M, PHL, FH, 6-32 x 5/8” 18-8 SS
45 6 121-007 Screw, M, PHL, PH, 6-32 x 3/8” 18-8 SS
46 8 121-002 Screw, M, PHL, FH 4-40 x 3/8” 18-8 SS
47 34 121-005 Screw, M, PHL, PH, 6-32 x 1/4” 18-8SS
48 1 147-021 Clamp, Twenty, Black
49 1 147-002 Cable, Safety, 1/8”
50 1 146-020-02 Frame Diffusion, VS-60
51 1 105-001 Circuit Breaker, Carling, 3A
52 1 105-004 Hexseal, APM, Curcuit Breaker (Optional)

Exploded View VS-120
14
900-114-02 VS-120 Exploded
13
7
1
3
9
5
4
47
34
37
39
36
10
35
38
33
32
11
17
18
27
16
12
12
26
25
19
15
12 20
22 23 21
31
28
29
50
49
51
41
42 48 43
46
44
45
211 614
12
10 8
10
24
30
10

Part List VS-120
15
# QTY. PART # PART NAME
1 1 114-112-01 Cover Housing, Front, VS-120
2 2 117-001-02 6-UV LED Module MCPCB
3 12 121-009 Screw, M, PHL, FH, 6-32 x 5/8” 18-8 SS
4 1 104-114-01 Bracket Heat Sink, VS Series
5 2 104-102-03 Heat Sink, VS Series
6 4 104-103-02 Plate, Optic, VS Series
7 1 104-116-01 Bezel, Optic, VS-120
8 1 110-035 Power Supply, 48VDC, 160W
9 3 112-006 Fan 24VDC, 60 x 60 x 10mm
10 38 121-005 Screw, M, PHL, PH, 6-32 x 1/4” 18-8 SS
11 12 121-001 Screw, M, PHL, PH, 4-40 x 1/4” 18-8 SS
12 42 121-090 Screw, PHL, PH, 2-56 x 1/4” 18-8 SS
13 1 146-021-01 Frame Diffusion, VS-120
14 12 124-030, (031)(032) Optic, Silicone, 10, 24 or 40 Degree
15 1 128-018-01 Label, Control, VS-120
16 1 115-011-01 Board Display, 2x16 Red, OLED
17 4 121-067 Standoff, 3/16” Hex M-F, 4-40 x 1-1/2” AL
18 1 115-009-02 Board, DMX/RDM Controller Rev. 2
19 1 115-010-01 Board, 3 Button Touch Control Rev. 1
20 1 106-030 Connector, 5 Pin XLR, Male
21 1 106-031 Connector, 5 Pin XLR, Female
22 1 106-051 Receptacle, PowerCON 1, Power-In
23 1 106-053 Receptacle, PowerCON 1, Power-Out
24 1 105-002 Circuit Breaker, Carling, 5A
25 1 104-113-01 Cover Housing, Rear, VS-120
26 1 106-060 Connector, Mini-B, USB, Female
# QTY. PART # PART NAME
27 4 121-071 Standoff, 3/16” Hex, THD, F-F, 2-56 x 7/16”
28 1 106-050 Connector, PowerCON 1, Power-In
29 1 107-003 Cord, Power, 16 AWG, 8’ Black
30 1 116-009-02 Board, 4 Channel LED Driver, Rev. 2
31 8 121-002 Screw, M, PHL, FH, 4-40 x 3/8” 18-8 SS
32 1 104-110-01 Housing, Bottom, VS-120
33 1 104-111-01 Housing, Top, VS-120
34 3 104-101-02 Bracket, Accessory, VS Series
35 1 104-077-03 Base, Accessory, Saftey Catch
36 1 104-098-02 Spring, Double Torsion
37 1 104-078-02 Latch, Accessory, Safety Catch
38 1 121-027 Bolt Barrel, M, COM, PH, .25” x 1.5” 18-8 SS
39 1 121-026 Screw, M, COM, PH, 10-32, .25” 18-8 SS
40 2 121-032 Rivet Nut, Blind, 3/8”-16
41 2 103-006-02 Spacer, Yoke Assembly
42 1 104-036-01 Yoke, VS-120
43 2 120-001 Knob, Yoke Adjustment
44 2 121-063 Washer, Neoprene 1.25” OD, .375” ID, .125 Thk.
45 2 121-029 Bolt Carriage, 3/8”-16 x 3/4”, 18-8 SS
46 2 120-004 Knob, Floor Stand Bracket
47 6 121-007 Screw, M, PHL, PH, 6-32 x 3/8” 18-8 SS
48 2 121-060 Washer, Flat, 1.25” OD, 13/32” ID, .13” Thk., 18-8 SS
49 1 147-021 Clamp, Twenty, Black
50 1 147-002 Cable, Safety, 1/8”
51 1 104-115-02 Bracket, Yoke Stand, VS-120
52 1 105-004 Hexseal, APM, Curcuit Breaker (Optional)

Schematic, VS-60 Series
16
DMX IN DMX OUT USB
2
1
34
51
2
5
43
LN
AC INPUT
G
48VDC POWER SUPPLY
48VDC OUTPUT
POWER SWITCH / CIRCUIT BREAKER AC OUTPUT
AC INPUT
DMX CONTROL BOARD
FAN A
+-
P T
FAN B
+-
P T
FAN C
+-
P T
USB DMX DMX
CH 3 CH 2 CH 1
CH 4
LED DRIVER BOARD
THERMISTOR
48VDC INPUT 48VDC INPUT
LED MODULE 1
CAPACITIVE TOUCH CONTROL SWITCH
UP
DOWN
SELECT
TOUCH
12VDC FANS

Schematic, VS-120 Series
17
DMX IN DMX OUT USB
2
1
34
51
2
5
43
LN
AC INPUT
G
48VDC POWER SUPPLY
48VDC OUTPUT
DMX CONTROL BOARD
FAN A
+-
P T
FAN B
+-
P T
FAN C
+-
P T
USB DMX DMX
CH 3 CH 2 CH 1
CH 4
LED DRIVER BOARD
THERMISTOR
48VDC INPUT 48VDC INPUT
LED MODULE 2
LED MODULE 1
CAPACITIVE TOUCH CONTROL SWITCH
UP
DOWN
SELECT
TOUCH
12VDC FANS
POWER SWITCH / CIRCUIT BREAKER AC OUTPUT
AC INPUT

Spectral Output Graph
18
Photometrics Chart
UV-A VISIBLE LIGHT
0
10%
20%
PERCENTAGE OF TRANSMISSION
WAVELENGTH /NM
30%
40%
100%
90%
80%
70%
60%
50%
320 330 340 350
360
370 380 390
400
410 420 430 440 450 460 470 480 490 500 510 520 530 540 550 560
570
580 590 600
610
620
630
640 650
660
670
680
Model VS-60S 10 Spot
°
Distance in Feet /Meters
0.90
0.27
1,248
1.70
0.52
312
3.50
1.07
78
5.20
1.58
34.6
7.00
2.13
19.5
8.70
2.65
12.4
10.50
3.20
8.6
12.20
3.72
6.3
14.00
4.27
4.8
15.70
4.79
3.8
17.50
5.33
3.1
19.20
5.85
2.5
21.00
5.85
2.1
Model VS-60WS 24 Wide Spot
Distance in Feet /Meters
1.43
0.64
804
4.30
1.31
201
8.50
2.59
50.2
12.80
3.90
22.3
17.00
5.18
12.5
21.30
6.49
12.5
25.50
7.77
8.0
29.80
9.08
5.5
34.00
10.36
4.1
38.30
11.67
3.1
42.50
12.95
2.4
°
Model VS-60F 40 Flood
Distance in Feet /Meters
3.60
1.10
650
7.30
2.22
162.5
14.60
4.45
40.6
21.80
6.64
18.0
29.10
8.87
10.1
36.40
11.09
6.5
43.70
13.32
4.5
51.00
15.54
3.3
58.20
17.74
2.5
°
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Irradiance W/cm2
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Irradiance W/cm2
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Irradiance W/cm2
5 / 1.52
10 / 3.05
20 / 6.10
30 / 9.14
40 / 12.19
50 / 15.24
60 / 18.29
70 / 21.33
80 / 24.38
90 / 27.43
100 / 30.48
110 / 33.53
120 / 36.57
5 / 1.52
10 / 3.05
20 / 6.10
30 / 9.14
40 / 12.19
50 / 15.24
60 / 18.29
70 / 21.33
80 / 24.38
90 / 27.43
100 / 30.48
5 / 1.52
10 / 3.05
20 / 6.10
30 / 9.14
40 / 12.19
50 / 15.24
60 / 18.29
70 / 21.33
80 / 24.38
All peak UV-A irradiance measurements taken at beam center using UVX Digital Radiometer and a calibrated 365nm sensor

Spectral Output Graph
19
Photometrics Chart
UV-A VISIBLE LIGHT
0
10%
20%
PERCENTAGE OF TRANSMISSION
WAVELENGTH /NM
30%
40%
100%
90%
80%
70%
60%
50%
320 330 340 350
360
370 380 390
400
410 420 430 440 450 460 470 480 490 500 510 520 530 540 550 560
570
580 590 600
610
620
630
640 650
660
670
680
Model VS-120S 10 Spot
°
Distance in Feet /Meters
0.90
0.27
2400
1.70
0.52
600
3.50
1.07
150
5.20
1.58
66.6
7.00
2.13
37.5
8.70
2.65
24.0
10.50
3.20
12.2
12.20
3.72
9.3
14.00
4.27
7.4
15.70
4.79
6.0
17.50
5.33
4.9
19.20
5.85
4.1
21.00
5.85
3.5
Model VS-120WS 24 Wide Spot
Distance in Feet /Meters
1.43
0.64
1525
4.30
1.31
381
8.50
2.59
95.3
12.80
3.90
42.3
17.00
5.18
23.8
21.30
6.49
15.2
25.50
7.77
10.5
29.80
9.08
7.7
34.00
10.36
5.9
38.30
11.67
4.7
42.50
12.95
3.8
°
Model VS-120F 40 Flood
Distance in Feet /Meters
3.60
1.10
1325
7.30
2.22
331
14.60
4.45
82.8
21.80
6.64
36.8
29.10
8.87
20.7
36.40
11.09
13.2
43.70
13.32
9.2
51.00
15.54
6.7
58.20
17.74
5.1
°
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Irradiance W/cm2
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Irradiance W/cm2
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Irradiance W/cm2
5 / 1.52
10 / 3.05
20 / 6.10
30 / 9.14
40 / 12.19
50 / 15.24
60 / 18.29
70 / 21.33
80 / 24.38
90 / 27.43
100 / 30.48
110 / 33.53
120 / 36.57
5 / 1.52
10 / 3.05
20 / 6.10
30 / 9.14
40 / 12.19
50 / 15.24
60 / 18.29
70 / 21.33
80 / 24.38
90 / 27.43
100 / 30.48
5 / 1.52
10 / 3.05
20 / 6.10
30 / 9.14
40 / 12.19
50 / 15.24
60 / 18.29
70 / 21.33
80 / 24.38
All peak UV-A irradiance measurements taken at beam center using UVX Digital Radiometer and a calibrated 365nm sensor

Wildfire, Inc. Three Year Limited Warranty
Wildfire, Inc. warrants to the original owner or retail customer, that for a period of three years
from the date of delivery of any Wildfire Fixture; whether used in a portable or permanent
installation, such fixtures will be free from defects in material and workmanship under normal
use and conditions.
Warranty does not cover any product or part of a product that has been subjected to accident,
negligence, alteration, abuse or misuse and excludes any accessories or parts not supplied by
Wildfire. Warranty does not cover expendable parts such as fuses, lamps, glass or any
components warranted directly to the owner by the original manufacturer. This warranty does
not extend to products not manufactured by Wildfire.
Wildfire’s responsibility under this warranty shall be to repair or replace at Wildfire’s discretion
such parts as determined to be defective upon Wildfire’s inspection. Wildfire will not assume
any responsibility for any labor expended or materials used to repair any equipment without
Wildfire’s prior written authorization.
Wildfire, Inc. shall not be responsible for any incidental, general or consequential damages to
property, damage for loss of use, time profits or income, or any other charges.
The owners’ obligation during the warranty period is to notify Wildfire of any suspected defect,
to obtain a return authorization number, and to return the product freight and insurance
prepaid to the following address:
Wildfire Service, 2908 Oregon Court Suite G1, Torrance, CA 90503
[phone] [phone]
Collect shipments for freight allowances or shipments without return authorization numbers
will not be accepted.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL OTHER WARRANTIES
EXPRESSED OR IMPLIED INCLUDING THE WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE AND ALL OTHER OBLIGATIONS AND
LIABILITIES ON WILDFIRE’S PART. THERE ARE NO WARRANTIES WHICH EXTEND
BEYOND THE DESCRIPTION ON THE FACE HEREOF. THE OWNER ACKNOWLEDGES
THAT NO OTHER REPRESENTATIONS WERE MADE TO HIM WITH RESPECT TO THE
QUALITY AND FUNCTION OF THE GOODS SOLD.
This written warranty is intended as a complete and exclusive statement of the terms thereof.
Prior dealings or trade usage shall not be relevant to modify, explain or vary this warranty.
Acceptance of, or acquiescing in, a course of performance under this warranty shall not
modify the meaning of their agreement even though either party has knowledge of the
performance and a chance to object.
This limited warranty gives you specific legal rights and you may also have other rights which
vary from state to state. If any action or preceding results from this warranty, the prevailing
party will be entitled to all costs and attorney fees incurred in defending or prosecuting such
actions.
