Yaesu FT-60R Manual

1
©2005 VERTEX STANDARD CO., LTD. EH017M90B
Technical Supplement
Specifications ....................................................................................................................................................................2
Exploded View & Miscellaneous Parts .......................................................................................................................4
Block Diagram ..................................................................................................................................................................5
Circuit Description ..........................................................................................................................................................7
Alignment ..........................................................................................................................................................................9

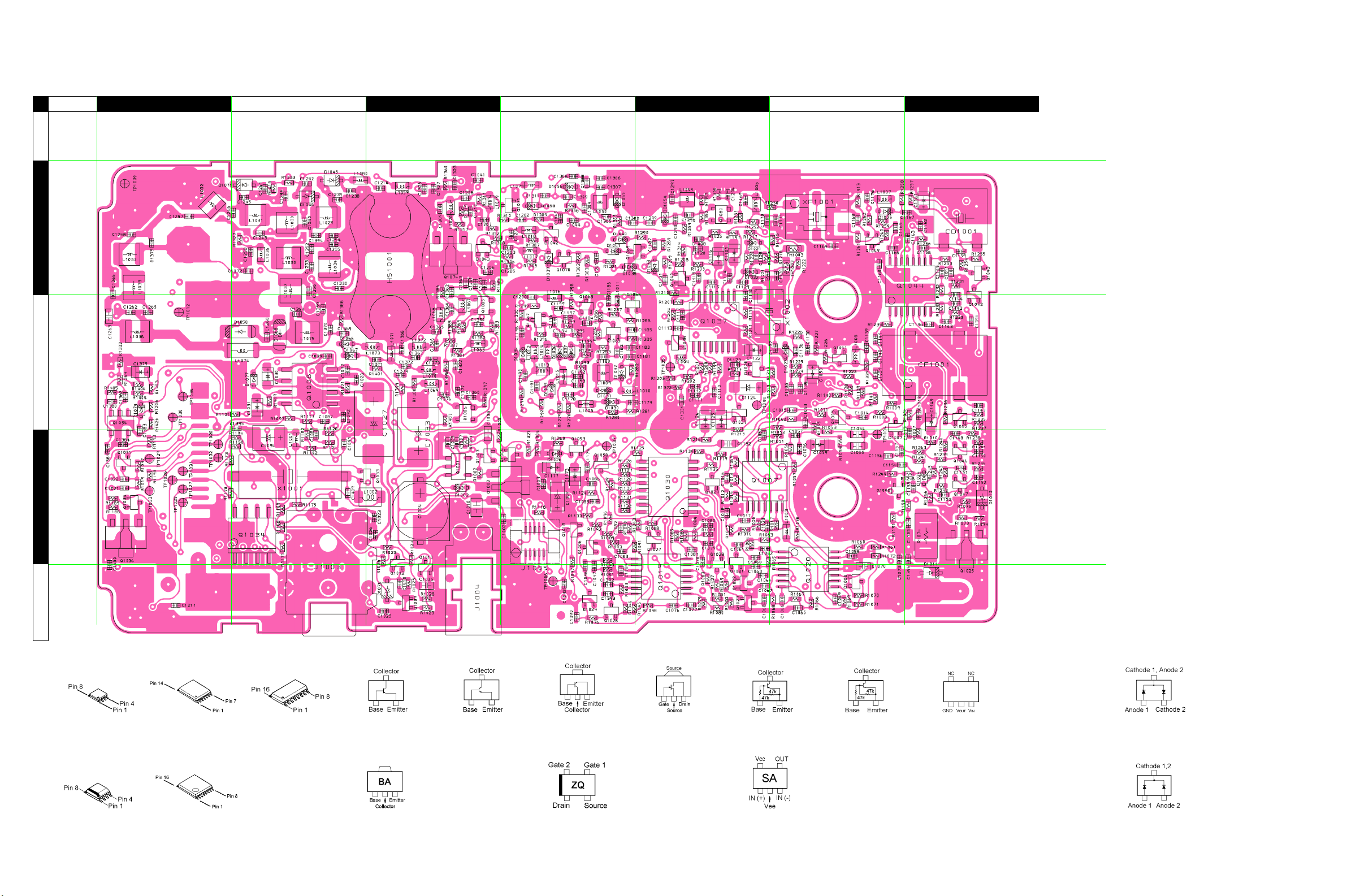

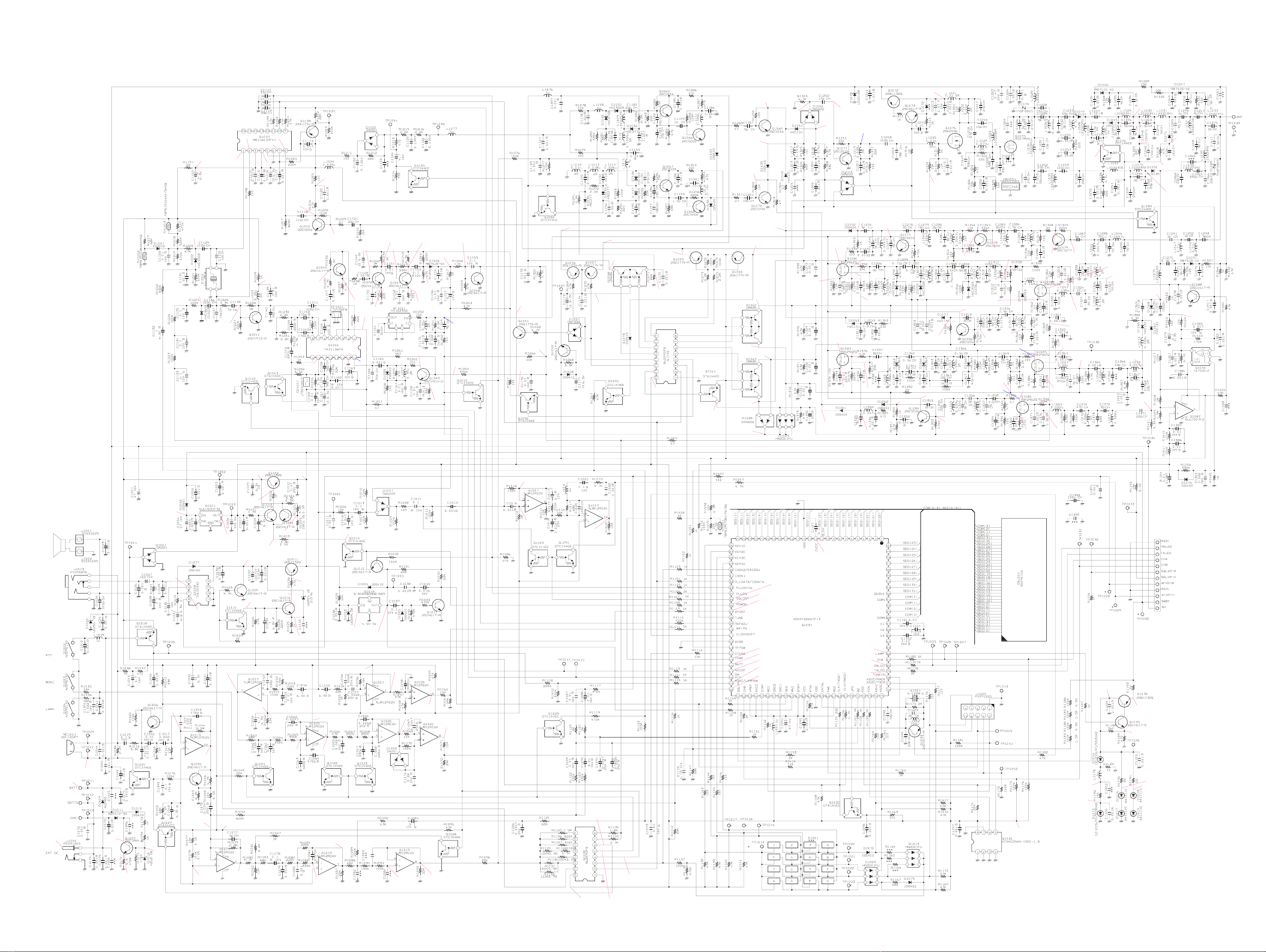

Board Units (Schematics, Layouts & Parts)
MAIN Unit ................................................................................................................................................................ 13
VR Unit ...................................................................................................................................................................... 47
Introduction
This manual provides the technical information necessary for
servicing the FT-60R VHF/UHF Dual Band Transceiver.
Servicing this equipment requires expertise in handing sur-
face-mount chip components. Attempts by non-qualified per-
sons to service this equipment may result in permanent dam-
age not covered by the warranty, and may be illegal in some
countries.
Two PCB layout diagrams are provided for each double-sided
board in this transceiver. Each side of the board is referred to
by the type of the majority of components installed on that
side (“Side A” or “Side B”). In most cases one side has only
chip components (surface-mount devices), and the other has
either a mixture of both chip and leaded components (trim-
mers, coils, electrolytic capacitors, ICs, etc.), or leaded compo-
nents only.
While we believe the information in this manual to be correct,
VERTEX STANDARD assumes no liability for damage that
may occur as a result of typographical or other errors that may
be present. Your cooperation in pointing out any inconsisten-
cies in the technical information would be appreciated.
Contents
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
International Division
8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
FT-60R

2
Specifications
General
Frequency Ranges: RX 108 - 137 MHz (Air Band),
(Cellular Blocked) 137 - 520 MHz (AM/FM),
700 - 999.990 MHz (FM)
TX 144-148 MHz, 430-450 MHz
Channel Steps: 5/10/12.5/15/20/25/50/100 kHz
Frequency Stability: ±5 ppm @ 14 °F to 140 °F (–10 °C to +60 °C)
Repeater Shift: ±600 kHz (144 MHz), ±1.6/5.0/7.6 MHz (430 MHz)
Emission Type: F2 (F2D), F3 (F3E)
Antenna Impedance: 50 W
Supply Voltage: Nominal: 7.2 V DC, Negative Ground
(Negative Ground) Operating: 6.0 ~ 16.0 V DC (EXT DC Jack)
11.0 ~ 16.0 V DC (EXT DC Jack with Charging)
Current Consumption: 125 mA (Receive)
(Approx. @7.2 V) 45 mA (144 MHz, Standby, Saver Off)
47 mA (430 MHz, Standby, Saver Off)
19 mA (Standby, Saver On)
0.8 mA (Auto Power Off)
1.5 A (5 W TX, 144 MHz)
1.6 A (5 W TX, 430 MHz)
Operating Temperature: –4 °F to 140 °F (–20 °C to +60 °C)
Case Size: 2.3” (W) x 4.3” (H) x 1.2” (D) (58 x 109 x 30 mm) (W/O knob, antenna, and belt clip)
Weight: 13.05 Oz (370 g) with FNB-83, and antenna
Transmitter
RF Power Output: 5.0 W (High) / 2.0 W (Middle) / 0.5 W (Low) (Approx.)
Modulation Type: Variable Reactance F2 (F2D), F3 (F3E)
Maximum Deviation: ±5.0 kHz (F2D, F3E)
Spurious Emission: At least 60 dB down (@ High and Middle power)
At least 40 dB down (@ Low power)
Microphone Impedance:2kW
Receiver
Circuit Type: Double-Conversion Superheterodyne
Intermediate Frequencies: 1st: 47.25 MHz, 2nd: 450 kHz
Sensitivity : 0.8 µV TYP for 10 dB SN (108-137 MHz, AM)
(Cellular Blocked) 0.2 µV for 12 dB SINAD (137-140 MHz, FM)
0.16 µV for 12 dB SINAD (140-150 MHz, FM)
0.2 µV for 12 dB SINAD (150-174 MHz, FM)
0.3 µV TYP for 12 dB SINAD (174-300 MHz, FM)
0.8 µV for 10 dB SN (300-336 MHz, AM)
0.25 µV for 12 dB SINAD (336-420 MHz, FM)
0.2 µV for 12 dB SINAD (400-470 MHz, FM)
0.25 µV for 12 dB SINAD (470-520 MHz, FM)
0.5 µV TYP for 12 dB SINAD (800-900 MHz, FM)
0.8 µV TYP for 12 dB SINAD (800-999.990 MHz, FM)
Selectivity: 12 kHz/35 kHz (–6 dB /–60 dB)
AF Output: 400 mW @ 8 W for 10 % THD (@ 7.5 V)
Specifications are subject to change without notice, and are guaranteed within the 144 and 430 MHz amateur bands only.
Frequency ranges will vary according to transceiver version; check with your dealer.

3
Exploded View & Miscellaneous Parts
Screw List
RA0321900
RUBBER CAP
RA0611600
WINDOW
RA0210600
RUBBER PACKING
(x2 pcs)
RA0209900
KNOB
RA0209800
KNOB
RA0209700
VOLUME KNOB
G6090160
LCD
RA0322000
RUBBER
RA032090B
LCD HOLDER
RA0324700
INTER CONNECTOR
RA0324800
REFLECTOR SHEET
RA0211200
INTER CONNECTOR
RA0107000
TERMINAL PLATE R
(x2 pcs)
VR-Unit
RA0595200
HOLDER
RA0322800
TERMINAL PLATE
RA0110200
HOLDER RUBBER
CP7970001
BELT CLIP ASSY
RA0613500
RUBBER KNOB
RA0599500
FRONT CASE ASSY
(W/ MIC SHEET,
PACKING PAD(YER),
SP NET,LIGHT GUIDE,
DOUBLE FACE(WINDOW))
RA021020A
RUBBER PACKING
RA0111400
RING NUT (x2 pcs)
RA021080A (Lot. 5-)
SPACER
RA0210800 (Lot. 1-4)
SPACER
RA0318700
BLIND SHEET
CP7969001
REAR CASE ASSY
(W/ SMA CNNECTOR)
M4090142B
SPEAKER
RA055770B (Lot. 31-)
LATCH NAIL C
RA0123500 (Lot. 1-30)
LATCH NAIL B
CAUTION
The mic element must be desoldered and
removed from the PCB on order to rein-
stall its protective rubber cover.
Therefore, be careful
not to remove this
cover unless mic ele-
ment replacement is
necessary.

Non-designated parts are available only as part of
a designated assembly.
Qty.
14
2
2
2
VXSTD P/N
U9900068
U9900063
U9900051
U02206007
No.




Description
TAPTITE SCREW M2X4NI#3
TAPTITE SCREW 2X3.3NI
TAPTITE SCREW M2X4B#3
SEMS SCREW SM2.6X6B















RA0616500
SPONGE RUBBER
CP7968001
PANEL ASSY
RA0618700
PAD (x2 pcs)
MAIN-Unit

4
Exploded View & Miscellaneous Parts
Note

5
Block Diagram

6
Block Diagram
Note

7
Circuit Description
VHF Reception
Incoming VHF signal is passed through the low-pass fil-
ter network, antenna switching diode D1066 (HVC131)
and D1068 (RLS135), and low-pass filter network to the
RF amplifier Q1085 (3SK296ZQ). The amplified RF sig-
nal is passed through band-pass filtered again by varac-
tor-tuned resonators L1060, L1061 and L1062, and D1063,
D1064, and D1065 (all HVC365), then applied to the 1st
mixer Q1083 (3SK296ZQ) along with the first local signal
from the PLL circuit.
The first local signal is generated between 191.25 MHz
and 195.25 MHz by the VHF VCO, which consists of Q1067
(2SC5006), switching diodes D1034, D1035 (both
HSC277), and varactor diodes D1036, D1037 (both
HVC365) according to the receiving frequency.
UHF Reception
Incoming UHF signal is passed through the low-pass fil-
ter network, antenna switching diodes D1060 and D1082
(both HSC277), and Low-pass filter network to the RF am-
plifier Q1081 (3SK296ZQ). The amplified RF signal is
passed through band-pass filtered again by varactor-tuned
resonators L1049, L1050 and L1051, and D1054, D1055,
and D1056 (all HVC350B), then applied to the 1st mixer
Q1080 (3SK296ZQ) along with the first local signal from
the PLL circuit.
The first local signal is generated between 382.75 MHz
and 402.75 MHz by the UHF VCO, which consists of Q1065
(2SC5006) and varactor diodes D1030 (HVC375B), D1031
(HVC350B) and switching diode D1032 (HSC277) accord-
ing to the receiving frequency.
IF and Audio Circuits
The 47.25 MHz first IF signal is applied to the monolithic
crystal filters XF1001 which strip away unwanted mixer
products, and the IF signal is applied to the first IF ampli-
fier Q1049 (2SC4915). The amplified first IF signal is then
delivered to the FM IF subsystem IC Q1044 (TA31136FN),
which contains the second mixer, limiter amplifier, noise
amplifier, and FM detector.
The second local signal is generated by 46.8 MHz crystal
X1002 and Q1041 (2SC4915), produces the 450 kHz sec-
ond IF signal when mixed with first IF signal within Q1044
(TA31136FN).
The 450 kHz second IF signal is applied to the ceramic
filter CF1001 which strip away unwanted mixer products
to the ceramic discriminator CD1001 which removes any
amplitude variations in the 450 kHz IF signal before de-
tection of speech.
The detected audio passes through the de-emphasis net-
work, low-pass filter consisting of Q1007 (NJM12902V)
and associated circuitry, and high-pass filter consisting of
Q1007 (NJM12902V) and associated circuitry. The filtered
audio signal is applied to the audio volume, then passes
through the AF ampplifire Q1008 (TDA7233D) and MIC/
SP jack to the internal speaker or an external speaker.
Squelch Control
When no carrier received, noise at the output of the de-
tector stage in Q1044 (TA31136FN) is amplified and band-
pass filtered by the noise amp section of Q1044
(TA31136FN). The resulting DC voltage is applied to pin
47 of main CPU Q1031 (HD64F2266), which compares
the squelch threshold level to that which set by the SQL
knob.
While no carrier is received, pin 35 of Q1031 (HD64F2266)
remains “low,“ squelch gate Q1005 and Q1091 (both
DTC144EE) to turns off to disable any demodulated au-
dio pass.
Transmit Signal Path
The speech signal from the microphone to AF amplified
Q1019 (NJM12902V). The amplified speech signal passes
through low-pass filter network Q1019 (NJM12902V) to
deviation controlled by Q1030 (BU2090FS).
VHF Transmit Signal Path
The adjusted speech signal is delivered to VHF VCO
Q1067 (2SC5006) which frequency modulates the trans-
mitting VCO made up of D1037 (HVC365).
The modulated transmit signal passes through buffer
amplifier Q1068 and Q1070 (both 2SC5006).
The filtered transmit signal applied to the Pre-Drive am-
plifier Q1071 (2SC5006) and Drive amplifier Q1074
(2SK2596), then finally amplified by Power amplifier
Q1075 (RD07MVS1) up to 5 Watts. This two stages pow-
er amplifier's gain is controlled by the APC circuit.
The 5 Watts RF signal passes through low-pass filter net-
work, antenna switch D1050 (RLS135), and another low-
pass filter network, and then deliver to the ANT jack.
UHF Transmit Signal Path
The adjusted speech signal is delivered to UHF VCO
Q1065 (2SC5006) which frequency modulates the trans-
mitting VCO made up of D1030 (HVC375).
The modulated transmit signal passes through buffer
amplifier Q1066 and Q1069 (both 2SC5006).
The filtered transmit signal applied to the Pre-Drive am-
plifier Q1071 (2SC5006) and Drive amplifier Q1074
(2SK2596), then finally amplified by Power amplifier
Q1075 (RD07MVS1) up to 5 Watts. This two stages pow-
er amplifier's gain is controlled by the APC circuit.

8
Circuit Description
The 5 Watts RF signal passes through high-pass filter and
high-pass filter network, antenna switch D1044 (RLS135),
and another low-pass filter network, and then deliver to
the ANT jack.
TX APC Circuit
A portion of the Power amplifier output is rectified by
D1051 (UHF: D1046 and D1047) (all RB751S), then de-
livered to APC Q1054 (TA75S01F), as a DC voltage which
is proportional to the output level of the power amplifier.
The APC Q1054 (TA75S01F) is compared the rectified DC
voltage from the power amplifier and the reference volt-
age from the main CPU Q1031 (HD64F2266), to produce
a control voltage, which regulates supply voltage to the
Drive amplifier Q1074 (2SK2596) and Power amplifier
Q1075 (RD07MVS1), so as to maintain stable output power
under varying antenna loading condition.
PLL
A portion of the output from the VCO Q1065 (UHF:
2SC5006) and Q1067 (VHF: 2SC5006), passes through
buffer amplifier Q1066 (UHF), Q1068 (VHF), and Q1040
(all 2SC5006) programmable divider section of the PLL
IC Q1037 (MB15A01PFV1), which divided according to
the frequency dividing data that is associated with the set-
ting frequency input from the main CPU Q1031
(HD64F2266). It is then sent to the phase comparator.
The 11.7 MHz frequency of the reference oscillator circuit
made up of X1002 is divided by the reference frequency
divider section of Q1037 (MB15A01PFV1) into 2340 or
1872 parts to become 5 kHz or 6.25 kHz comparative ref-
erence frequencies, which are utilized by the phase com-
parator.
The phase comparator section of Q1037 (MB15A01PFV1)
compares the phase between the frequency-divided os-
cillation frequency of the VCO circuit and comparative
frequency and its output is a pulse corresponding to the
phase difference. This pulse is integrated by the charge
pump and loop filter of Q1037 (MB15A01PFV1) into a
control voltage (VCV) to control the oscillation frequency
of the VCOs.

9
Alignment
Introduction
The FT-60R is carefully aligned at the factory for the spec-
ified performance across the amateur band. Realignment
should therefore not be necessary except in the event of a
component failure. Only an authorized Vertex Standard
representative should perform all component replacement
and service, or the warranty policy may be void.
The following procedures cover the adjustments that are
not normally required once the transceiver has left the fac-
tory. However, if damage occurs and some parts subse-
quently are replaced, realignment may be required. If a
sudden problem occurs during normal operation, it is like-
ly due to component failure; realignment should not be
done until after the faulty component has been replaced.
We recommend that servicing be performed only by au-
thorized Vertex Standard service technicians who are ex-
perienced with the circuitry and fully equipped for repair
and alignment. If a fault is suspected, contact the dealer
from whom the transceiver was purchased for instructions
regarding repair. Authorized Vertex Standard service tech-
nicians realign all circuits and make complete performance
checks to ensure compliance with factory specifications
after replacing any faulty components.
Those who do undertake any of the following alignments
are cautioned to proceed at their own risk. Problems
caused by unauthorized attempts at realignment are not
covered by the warranty policy. Also, Vertex Standard
reserves the right to change circuits and alignment proce-
dures in the interest of improved performance, without
notifying owners.
Under no circumstances should any alignment be attempt-
ed unless the normal function and operation of the trans-
ceiver are clearly understood, the cause of the malfunc-
tion has been clearly pinpointed and any faulty compo-
nents replaced, and realignment determined to be abso-
lutely necessary.
Required Test Equipment
The following test equipment (and familiarity with its use)
is necessary for complete realignment. Correction of prob-
lems caused by misalignment resulting from use of im-
proper test equipment is not covered under the warranty
policy. While most steps do not require all of the equip-
ment listed, the interactions of some adjustments may re-
quire that more complex adjustments be performed after-
wards.
Do not attempt to perform only a single step unless it is
clearly isolated electrically from all other steps. Have all
test equipment ready before beginning and, follow all of
the steps in a section in the order presented.
RF Signal Generator with calibrated output level at 500
MHz
Deviation Meter (linear detector)
In-line Wattmeter with 5% accuracy at 500 MHz
50-Ohm 10-W RF Dummy Load
8-Ohm AF Dummy Load
Regulated DC Power Supply adjustable from 6 to 15
VDC, 2A
Frequency Counter: 0.2-ppm accuracy at 500 MHz
AF Signal Generator
AC Voltmeter
DC Voltmeter: high impedance
UHF Sampling Coupler
SINAD Meter
Alignment Preparation & Precautions
A 50-Ohm RF load and in-line wattmeter must be con-
nected to the main antenna jack in all procedures that call
for transmission; alignment is not possible with an anten-
na. After completing one step, read the next step to see if
the same test equipment is required. If not, remove the
test equipment (except dummy load and wattmeter, if
connected) before proceeding.
Correct alignment requires that the ambient temperature
be the same as that of the transceiver and test equipment,
and that this temperature be held constant between 68 ~
86° F (20° ~ 30° C). When the transceiver is brought into
the shop from hot or cold air, it should be allowed some
time to come to room temperature before alignment.
Whenever possible, alignments should be made with os-
cillator shields and circuit boards firmly affixed in place.
Also, the test equipment must be thoroughly warmed up
before beginning.
Note: Signal levels in dB referred to in the alignment pro-
cedure are based on 0dBµ = 0.5µV.

10
Alignment
Test Setup
Set up the test equipment as shown below for transceiver
alignment, and apply 9.9 V DC power to the transceiver.
Refer to the drawings for Alignment Points.
PLL Reference Frequency
1. Tune the frequency to 435.050 MHz, then set the trans-
mit power level to “LOW.”
2. Press the [F/W]key, then press the [BAND(BAND DN)]
key to set the alignment parameter to “A0 REF.xxx,” if
needed.
3. With in five second of appearing the “A0 REF.xxx” on
the display, press the PTT switch to activate the trans-
mitter, adjust the DIAL knob so that the counter fre-
quency reading is 435.050 MHz (±100 Hz).
RF Front-end Tuning
1. Connect the DC voltmeter to TP1015 on the MAIN
unit, then inject a 439.050 MHz signal at a level of +10
dBµ (with 1 kHz modulation @±3.5 kHz deviation)
from the RF signal generator.
2. Tune the frequency to 439.050 MHz.
3. Press the [F/W]key, then press the [BAND(BAND DN)]
key to set the alignment parameter to “A1 TUN.xxx.”
4. With in five second of appearing the “A1 TUN.xxx” on
the display, adjust the DIAL knob so that the DC volt-
meter reaches maximum deflection. The FT-60R’s RF
Front-end has a broad bandwidth. Therefore, prior to
adjustment you must adjust the DIAL knob to set the
frequency to the middle of the band, in step 2, so you
can set peak in the DC voltmeter’s deflection in the
center of the RF passband.
5. Tune the frequency to 145.050 MHz.
6. Inject a 145.050 MHz signal at a level of +10 dBµ (with
1 kHz modulation @±3.5 kHz deviation) from the RF
signal generator.
7. Press the [F/W]key to recall the alignment parameter
to “A1 TUN.xxx.”
8. With in five second of appearing the “A1 TUN.xxx” on
the display, adjust the DIAL knob so that the DC volt-
meter reaches maximum deflection. As in the previ-
ous section, be sure to set the DIAL knob for the center
of the band prior to making this adjustment.
Entering the Alignment Mode
Alignment of the FT-60R is performed using a front pan-
el software-based procedure. To perform alignment of the
transceiver, it must first be placed in the “Alignment
Mode,” in which the adjustments will be made and then
stored into memory.
To enter the Alignment mode:
1. Press and hold in the MONI and LAMP switches turn-
ing the radio on. Once the radio is on, release these
two switches.
2. Press the keypad in the following sequence:
[(MHz)] [0( )SET]
[1(SQ TYP)] [7(P1)] [V/M(PRI)]
3. Press the [F/W]key to cause “A0 REF.xxx” to appear on
the display for five seconds, this signifies that the trans-
ceiver is now in the “Alignment Mode.”

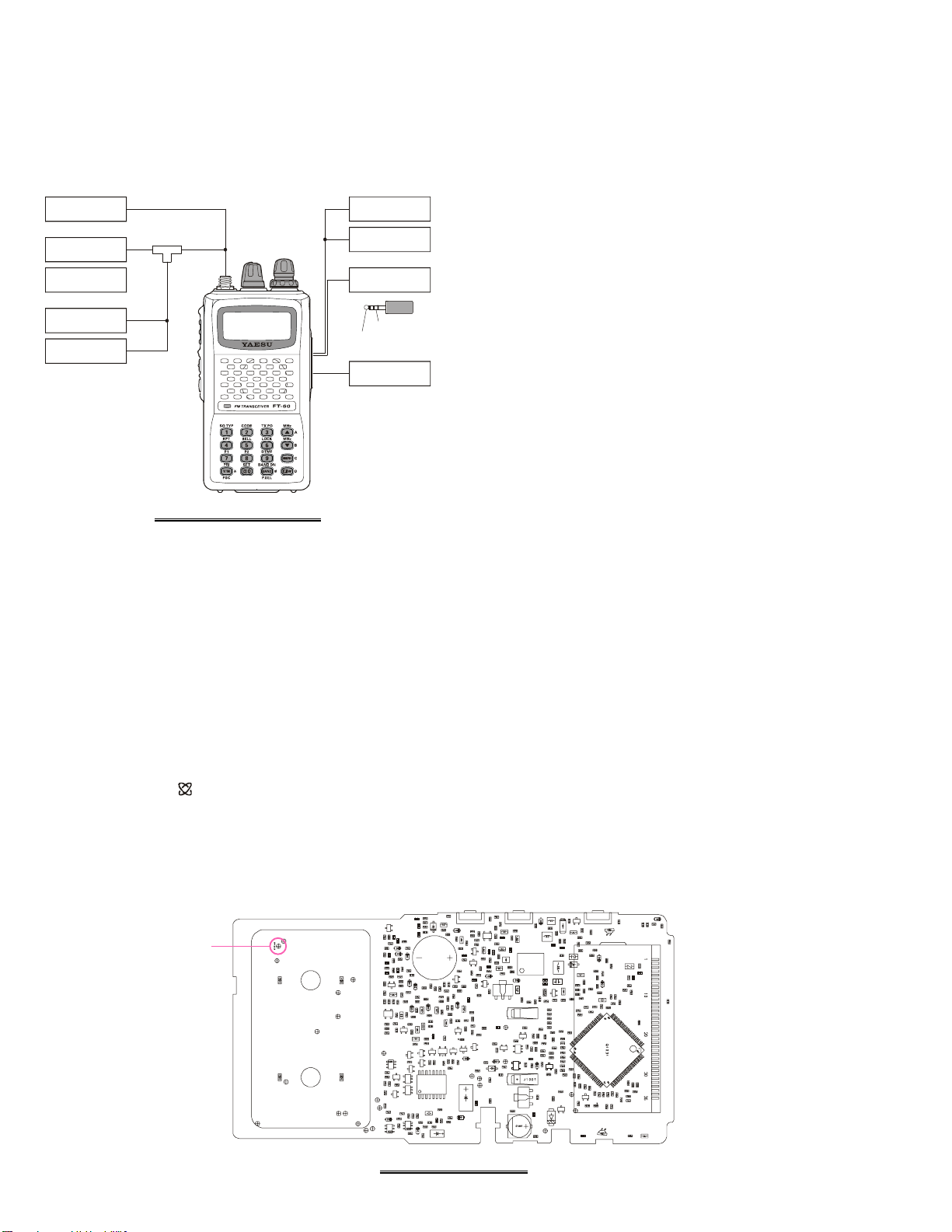

MAIN UNIT TEST POINT
TP1015
FT-60R ALIGNMENT SETUP
8-ohm AF
Dummy Load
RF Signal
Generator
SINAD Meter
In-Line
Wattmeter
Deviation
Meter
50-ohm RF
Dummy Load
Frequency
Counter
AF Signal
Generator
Regulated
9.9 VDC P.S.
AF Signal Input
AF Signal Output

11
TX Power Output
1. Tune the frequency to 440.050 MHz, then set the trans-
mit power level to “LOW.”
2. Press the [F/W]key, then press the [BAND(BAND DN)]
key to set the alignment parameter to “A2 PWR.xxx.”
3. With in five second of appearing the “A2 PWR.xxx” on
the display, press the PTT switch to activate the trans-
mitter, adjust the DIAL knob so that the wattmeter read-
ing is 0.5 Watts (±0.05 Watt).
4. Increase the Transmit power level to “MID.”
5. Press the [F/W]key to recall the alignment parameter
“A2 PWR.xxx.”
6. With in five second of appearing the “A2 PWR.xxx” on
the display, press the PTT switch to activate the trans-
mitter, adjust the DIAL knob so that the wattmeter read-
ing is 2.0 Watts (±0.1 Watt).
7. Increase the Transmit power level to “HIGH.”
8. Press the [F/W]key to recall the alignment parameter
“A2 PWR.xxx."
9. With in five second of appearing the “A2 PWR.xxx” on
the display, press the PTT switch to activate the trans-
mitter, adjust the DIAL knob so that the wattmeter read-
ing is 5.0 Watts (±0.1 Watt).
10. Tune the frequency to 146.050 MHz, then set the trans-
mit power level to “LOW.”
11. Press the [F/W]key to recal the alignment parameter
“A2 PWR.xxx.”
12. With in five second of appearing the “A2 PWR.xxx” on
the display, press the PTT switch to activate the trans-
mitter, adjust the DIAL knob so that the wattmeter read-
ing is 0.5 Watts (±0.05 Watt).
13. Increase the Transmit power level to “MID.”
14. Press the [F/W]key to recall the alignment parameter
“A2 PWR.xxx.”
15. With in five second of appearing the “A2 PWR.xxx” on
the display, press the PTT switch to activate the trans-
mitter, adjust the DIAL knob so that the wattmeter read-
ing is 2.0 Watts (±0.1 Watt).
16. Increase the Transmit power level to “HIGH.”
17. Press the [F/W]key to recall the alignment parameter
“A2 PWR.xxx” again.
18. With in five second of appearing the “A2 PWR.xxx” on
the display, press the PTT switch to activate the trans-
mitter, adjust the DIAL knob so that the wattmeter read-
ing is 5.0 Watts (±0.1 Watt).
TX Deviation
1. Tune the frequency to 440.050 MHz, then set the trans-
mit power level to “LOW.”
2. Inject a 1 kHz audio tone at a level of 80 mV (–20 dBm)
from the audio generator.
3. Press the [F/W]key, then press the [BAND(BAND DN)]
key to set the alignment parameter to “A3 DEV.xxx.”
4. With in five second of appearing the “A3 DEV.xxx” on
the display, press the PTT switch to activate the trans-
mitter, adjust the DIAL knob so that the deviation meter
reading is 4.2 kHz (±0.2 kHz) (EXP version: 4.5 kHz ±
0.2 kHz).
5. Tune the frequency to 146.050 MHz, then set the trans-
mit power level to “LOW.”
6. Press the [F/W]key to recall the alignment parameter
to “A3 DEV.xxx.”
7. With in five second of appearing the “A3 DEV.xxx” on
the display, press the PTT switch to activate the trans-
mitter, adjust the DIAL knob so that the deviation meter
reading is 4.2 kHz (±0.2 kHz) (EXP version: 4.5 kHz ±
0.2 kHz).
DCS TX Deviation
1. Tune the frequency to 440.050 MHz, then activate the
DCS, and set the transmit power level to “LOW.”
2. Press the [F/W]key, then press the [BAND(BAND DN)]
key to set the alignment parameter to “A4 DCS.xxx.”
3. With in five second of appearing the “A4 DCS.xxx” on
the display, press the PTT switch to activate the trans-
mitter (with no microphone input), adjust the DIAL
knob so that the deviation meter reading is 0.7 kHz
(±0.05 kHz).
4. Tune the frequency to 146.050 MHz, then activate the
DCS, and set the transmit power level to “LOW.”
5. Press the [F/W]key to recall the alignment parameter
to “A4 DCS.xxx.”
6. With in five second of appearing the “A4 DCS.xxx” on
the display, press the PTT switch to activate the trans-
mitter (with no microphone input), adjust the DIAL
knob so that the deviation meter reading is 0.7 kHz
(±0.05 kHz).
Alignment

12
CTCSS TX Deviation
1. Tune the frequency to 440.050 MHz, then activate the
CTCSS encoder with a “100 Hz” tone, and set the trans-
mit power level to “LOW.”
2. Press the [F/W]key, then press the [BAND(BAND DN)]
key to set the alignment parameter to “A5 CTC.xxx.”
3. With in five second of appearing the “A5 CTC.xxx” on
the display, press the PTT switch to activate the trans-
mitter (with no microphone input), adjust the DIAL
knob so that the deviation meter reading is 0.7 kHz
(±0.05 kHz).
4. Tune the frequency to 146.050 MHz, then activate the
CTCSS encoder with a “100 Hz” tone, and set the trans-
mit power level to “LOW.”
5. Press the [F/W]key to recall the alignment parameter
to “A5 CTC.xxx.”
6. With in five second of appearing the “A5 CTC.xxx” on
the display, press the PTT switch to activate the trans-
mitter (with no microphone input), adjust the DIAL
knob so that the deviation meter reading is 0.7 kHz
(±0.05 kHz).
S-meter Sensitivity
1. Tune the frequency to 440.050 MHz.
2. Inject a 440.050 MHz signal at a level of –5 dBµV (with
1 kHz modulation @±3.5 kHz deviation) from the RF
signal generator.
3. Press the [F/W]key, then press the [BAND(BAND DN)]
key to set the alignment parameter to “A6 SM U/D.”
4. With in five second of appearing the “A6 SM U/D” on
the display, press the [(MHz)] key.
5. Increase the RF signal generator output level to +23
dBµV.
6. Press the [F/W]key to recall the alignment parameter
to “A6 SM U/D.”
7. With in five second of appearing the “A6 SM U/D” on
the display, press the [(MHz)] key.
8. Tune the frequency to 850.050 MHz.
9. Inject a 850.050 MHz signal at a level of +5 dBµV (with
1 kHz modulation @±3.5 kHz deviation) from the RF
signal generator.
10. Press the [F/W]key to recall the alignment parameter
to “A6 SM U/D.”
11. With in five second of appearing the “A6 SM U/D” on
the display, press the [(MHz)] key.
12.Increase the RF signal generator output level to +31
dBµV.
13. Press the [F/W]key to recall the alignment parameter
to “A6 SM U/D.”
14. With in five second of appearing the “A6 SM U/D” on
the display, press the [(MHz)] key.
Alignment
15. Tune the frequency to 146.050 MHz.
16. Inject a 146.050 MHz signal at a level of –5 dBµV (with
1 kHz modulation @±3.5 kHz deviation) from the RF
signal generator.
17. Press the [F/W]key to recall the alignment parameter
to “A6 SM U/D.”
18. With in five second of appearing the “A6 SM U/D” on
the display, press the [(MHz)] key.
19.Increase the RF signal generator output level to +23
dBµV.
20. Press the [F/W]key to recall the alignment parameter
to “A6 SM U/D.”
21. With in five second of appearing the “A6 SM U/D” on
the display, press the [(MHz)] key.
22. Tune the frequency to 230.050 MHz.
23. Inject a 230.050 MHz signal at a level of –5 dBµV (with
1 kHz modulation @±3.5 kHz deviation) from the RF
signal generator.
24. Press the [F/W]key to recall the alignment parameter
to “A6 SM U/D.”
25. With in five second of appearing the “A6 SM U/D” on
the display, press the [(MHz)] key.
26.Increase the RF signal generator output level to +23
dBµV.
27. Press the [F/W]key to recall the alignment parameter
to “A6 SM U/D.”
28. With in five second of appearing the “A6 SM U/D” on
the display, press the [(MHz)] key.
29. Tune the frequency to 350.050 MHz.
30. Inject a 350.050 MHz signal at a level of –5 dBµV (with
1 kHz modulation @±3.5 kHz deviation) from the RF
signal generator.
31. Press the [F/W]key to recall the alignment parameter
to “A6 SM U/D.”
32. With in five second of appearing the “A6 SM U/D” on
the display, press the [(MHz)] key.
33.Increase the RF signal generator output level to +23
dBµV.
34. Press the [F/W]key to recall the alignment parameter
to “A6 SM U/D.”
35. With in five second of appearing the “A6 SM U/D” on
the display, press the [(MHz)] key.
DC Voltmeter
1. Set the power supply voltage to 9.9 V.
2. Press the [F/W]key, then press the [BAND(BAND DN)]
key to set the alignment parameter to “A7 BAT RV.”
3. With in five second of appearing the “A7 BAT RV” on
the display, press the [HM/RV]key.
To close the alignment mote, just turn the power off by rotating
the VOL knob fully counter clockwise. The next time the trans-
ceiver is turned on, normal operation may resume.

Circuit Diagram
MAIN Unit (Lot. 1 ~ 5)
13
RX: 1.12 V
RX: 1.20 V
RX: 5.01 V
RX: 1.85 V
RX: 2.88 V
RX: 2.88 V
RX: 2.73 V
RX: 2.06 V
RX: 0.71 VRX: 1.69 V
RX: 4.81 V
RX: 0.64 V
RX: 1.79 V
RX: 0.66 V RX: 3.96 V
RX: 3.98 V
RX: 0.94 V
RX: 3.65 V
RX: 2.31 V
RX: 1.84 V
RX AM: 3.95 V
RX AM: 0.79 V RX AM: 0.67 V
RX AM: 1.58 V RX AM: 3.95 V
RX AM: 0.54 V
RX AM: 0.62 V
RX AM: 0.19 V
RX AM: 0.07 V
146 M: +6.7 dBµ
440 M: +3.1 dBµ
230 M: +7.8 dBµ
350 M: +8.6 dBµ
850 M: –3.0 dBµ

146 M: +10.4 dBµ
440 M: +7.0 dBµ
230 M: +11.9 dBµ
350 M: +12.9 dBµ
850 M: –0.5 dBµ

RX: 2.91 V
RX: 2.66 V
RX AM: 4.94 V
RX: 4.07 V
RX: 0.15 V
RX: 0.85 V
RX: 13.5 V
RX: 5.01 V
RX: 12.9 V
RX: 3.01 V
RX: 2.41 V
RX: 2.98 V
RX: 12.8 V
RX: 1.14 V
RX: 0.45 V
RX: 8.64 V
RX: 12.9 V
RX: 12.7 V
RX: 4.07 V
RX: 3.56 V
RX: 0 V
RX: 9.08 V
RX: 2.97 V
RX: 2.08 V
RX: 1.90 V
RX: 2.05 V
RX: 2.05 V
RX: 2.05 V
RX: 2.05 V
RX: 5.01 V
RX: 1.85 V
RX: 1.85 V
RX: 2.09 V
RX: 2.09 V
RX: 2.05 V
RX: 5.01 V
RX: 1.88 V
RX: 1.85 V
RX: 4.85 V
TX: 0 V
RX: 13.6 V
RX: 13.8 V CHG: 13.2 V
CHG: 1.50 V
CHG: 1.90 V
RX: 5.01 V
RX: 1.92 V
RX: 1.90 V RX: 1.86 V
RX: 1.91 V
RX: 1.91 V
RX: 1.91 V
RX: 1.85 V
RX: 2.98 V
RX WIDE: 2.02 V
RX NARROW: 0 V
EAI ON: 0 V
EAI NOR: 4.97 V
RX: 2.98 V
230M: 4.75 V
RX: 4.18 V
850M: 4.93 V
LOW CTCSS TONE ON: 2.05 V
LOW CTCSS TONE OFF: 0 V
146M: 4.88 V
350M: 4.92 V
440M: 4.88 V
RX: 4.30 V
SHIFT ON: 4.19 V
SHIFT ON: 4.24 V
146M TX: 4.81 V
440M TX: 4.86 V
VHF VCO: 4.17 V
UHF VCO: 4.13 V
440M: 2.27 V
350M: 1.77 V
850M: 1.72 V
146M RX: 1.26 V
146M TX: 1.00 V
230M RX: 0.86 V
440M RX: 1.24 V
440M TX: 0.93 V
850M RX: 0.88 V
146M TX: 1.19 V
440M TX: 1.72 V
TX: 2.21 V
TX: 0.74 V
TX: 1.66 V
TX: 3.02 V
146M: +12.4 dBm
440M: +7.8 dBm
146M TX: 8.55 V
440M TX: 8.60 V
146M TX: 2.36 V
440M TX: 2.78 V
RX: 2.34 V
RX: 4.14 V
RX: 0.70 V
RX: 3.90 V
RX: 1.57 V
RX: 1.00 V
RX: 0.40 V
RX: 4.04 V
RX: 1.37 V
RX: 0.18 V
RX: 3.04 V
RX: 0.62 V
RX: 2.21 V
146M: 1.53 V
230M: 0.97 V
RX: 3.94 V
RX: 1.58 V
RX: 0.69 V
RX: 4.75 V
RX: 3.29 V
+1.5 dBµ
RX: 0.84 V
RX: 0.37 V
RX: 2.54 V
RX: 0.24 V
RX: 0.84 V
RX: 2.61 V
RX: 3.69 V
+7.8 dBµ
RX: 0.69 V
RX: 4.55 V
RX: 4.13 V
RX: 2.51 V
RX: 4.80 V
RX: 0.71 V
–2.8 dBµ
RX: 4.65 V
–8.4 dBµ
RX: 4.62 V RX: 0.77 V
RX: 2.71 V
RX: 2.76 V
TX: 0.84 V
146M: 2.06 V
230M: 2.03 V
440M: 0.74 V
350M: 0.69 V
440M: 2.62 V
350M: 2.67 V
TX: 0.81 V
440M: 4.14 V +3.3 dBµ
350M: 3.89 V +0.5 dBµ
440M: 0.19 V
350M: 0.17 V
TX: 0.80 V
TX: 1.67 V
TX: 4.80 V
TX: 2.38 V
TX: 2.41 V
TX: 1.64 V
TX: 1.64 V
RX: 11.5 V
RX: 5.23 V
RX: 2.45 V
RX: 4.43 V
RX: 4.41 V
RX: 3.21 V
RX: 1.94 V
RX: 2.98 V
RX: 1.43 V
RX: 2.96 V
LAMP ON: 2.97 V
LAMP KEY: 1.87 V
MONI KEY: 1.49 V
RX: 2.97 V
PTT ON: 2.91 V
MAX: 1.20 V
RX: 1.88 V
RX: 2.16 V
AF OFF: 2.95 V
POWER ON: 2.97 V
SQL OFF: 0 V
SQL ON: 2.96 V
RX: 2.95 V

Note
MAIN Unit (Lot. 1 ~ 5)
14

15
MAIN Unit (Lot. 1 ~ 5)
Parts Layout (Side A)
BADCFE G
1
3
2
4
BU2090FS
(Q1055)
3SK296ZQ (ZQ)
(Q1081, 1083)
NJU7007F2
(Q1087)
HD64F2266
(Q1031)
RD07MVS1
(Q1075)
UMA8N (A8)
(Q1058, 1062, 1063)
DA221 (K)
(D1001)
DAN222 (N)
(D1028)
2SA1774 (FR)
(Q1051, 1056, 1057,
1059, 1060)
2SC4617 (BR)
(Q1015, 1017,
1073, 1088)
2SC5006 (24)
(Q1077, 1078,
1082, 1084)
2SC5277 (D2)
(Q1079)
2SB1132 (BA)
(Q1011, 1072)
DTA144EE (16)
(Q1032, 1052, 1061)
DTC144EE (26)
(Q1014, 1064,
1076, 1089, 1090)
DAP222 (P)
(D1027)
HN2D01FU (A1)
(D1013, 1029, 1069)
S-80848CNNB
(Q1016)

16
MAIN Unit (Lot. 1 ~ 5)
Parts Layout (Side B)
badcfeg
1
3
2
4
2SA1774 (FR)
(Q1038)
2SC4617 (BR)
(Q1003, 1004, 1006,
1009, 1012, 1026,
1033, 1035, 1045,
1046, 1047, 1048,
1053)
2SC4915 (QY)
(Q1041, 1049)
DTC144EE (26)
(Q1005, 1010, 1021,
1022, 1023, 1024,
1028, 1029, 1039,
1042, 1050, 1091)
TDA7233D
(D1008)
MB15A01PFV1
(Q1037)
TA31136FN
(Q1044)
DA221 (K)
(D1008, 1020)
DAN222 (N)
(D1007, 1042, 1043)
2SD1664 (DA)
(Q1025)
2SK2596 (BX)
(Q1074)
DTA144EE (16)
(Q1018, 1027, 1043)
AT24C256N
(Q1034)
NJM12902V
(Q1007, 1019, 1020)
2SB1132 (BA)
(Q1002, 1036)
NJU7231F30
(Q1001)
TA75S01 (SA)
(Q1054)
3SK296ZQ (ZQ)
(Q1080, 1085, 1086)
BU2090FS
(Q1030)

Circuit Diagram
MAIN Unit (Lot. 6 ~ 9)
17

Note
MAIN Unit (Lot. 6 ~ 9)
18

19
MAIN Unit (Lot. 6 ~ 9)
Parts Layout (Side A)
BADCFE G
1
3
2
4
BU2090FS
(Q1055)
3SK296ZQ (ZQ)
(Q1081, 1083)
NJU7007F2
(Q1087)
HD64F2266
(Q1031)
RD07MVS1
(Q1075)
UMA8N (A8)
(Q1058, 1062, 1063)
DA221 (K)
(D1001)
DAN222 (N)
(D1028)
2SA1774 (FR)
(Q1051, 1056, 1057,
1059, 1060)
2SC4617 (BR)
(Q1015, 1017,
1073, 1088)
2SC5006 (24)
(Q1077, 1078,
1082, 1084)
2SC5277 (D2)
(Q1079)
2SB1132 (BA)
(Q1011, 1072)
DTA144EE (16)
(Q1032, 1052, 1061)
DTC144EE (26)
(Q1014, 1064,
1076, 1089, 1090)
DAP222 (P)
(D1027)
HN2D01FU (A1)
(D1013, 1029, 1069)
S-80848CNNB
(Q1016)

20
MAIN Unit (Lot. 6 ~ 9)
Parts Layout (Side B)
badcfeg
1
3
2
4
2SA1774 (FR)
(Q1038)
2SC4617 (BR)
(Q1003, 1004, 1006,
1009, 1012, 1026,
1033, 1035, 1045,
1046, 1047, 1048,
1053)
2SC4915 (QY)
(Q1041, 1049)
DTC144EE (26)
(Q1005, 1010, 1021,
1022, 1023, 1024,
1028, 1029, 1039,
1042, 1050, 1091)
TDA7233D
(D1008)
MB15A01PFV1
(Q1037)
TA31136FN
(Q1044)
DA221 (K)
(D1008, 1020)
DAN222 (N)
(D1007, 1042, 1043)
2SD1664 (DA)
(Q1025)
2SK2596 (BX)
(Q1074)
DTA144EE (16)
(Q1018, 1027, 1043)
AT24C256N
(Q1034)
NJM12902V
(Q1007, 1019, 1020)
2SB1132 (BA)
(Q1002, 1036)
NJU7231F30
(Q1001)
TA75S01 (SA)
(Q1054)
3SK296ZQ (ZQ)
(Q1080, 1085, 1086)
BU2090FS
(Q1030)
