Zanussi ZWF 16581 W User manual

User
manual
Washing
Machine
ZWF 16581 W
132973873.qxd 24/02/2010 9.32 Pagina 1

2
Content
Safety information - - - - - - - - - - - - - - - - - - -3
Description of the appliance - - - - - - - - - - - -5
Detergent dispenser drawer - - - - - - - - - - - -5
Control panel and functions - - - - - - - - - - - -6
Programme table - - - - - - - - - - - - - - - - - - -7
Programme information - - - - - - - - - - - - - -10
Washing Hints - - - - - - - - - - - - - - - - - - - - -12
Before the first use - - - - - - - - - - - - - - - - -14
Operating Sequence - - - - - - - - - - - - - - - -15
Care and cleaning - - - - - - - - - - - - - - - - - -20
What to do if... - - - - - - - - - - - - - - - - - - - - 22
Technical data- - - - - - - - - - - - - - - - - - - - - 25
Consumption values - - - - - - - - - - - - - - 25-26
Installation instruction - - - - - - - - - - - - - - - 27
Environmental concerns - - - - - - - - - - - - - 31
Thank you for selecting our appliance
We wish you lots of enjoyment with your new appliance and we hope that you will consider our
brand again when purchasing household appliances.
Please read this user manual carefully and keep it throughout the product life cycle as a reference
document. The user manual should be passed on to any future owner of the appliance.
The following symbols are used in this manual:
Important information concerning your personal safety and information on how to avoid
damaging the appliance.
General information and tips
Environmental information
132973873.qxd 24/02/2010 9.32 Pagina 2

3
Safety information
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and
accidents, it is important to ensure that all
people using the appliance are thoroughly
familiar with its operation and safety
features. Save these instructions and make
sure that they remain with the appliance if it
is moved or sold, so that everyone using it
through its life will be properly informed on
appliance use and safety.
General safety
●It is dangerous to alter the specifications or
attempt to modify this product in any way.
●During high temperature wash programmes
the door glass may get hot. Do not touch it!
●Make sure that small pets do not climb into
the drum. To avoid this, please check into
the drum before using.
●Any objects such as coins, safety pins, nails,
screws, stones or any other hard, sharp
material can cause extensive damage and
must not be placed into the machine.
●Only use the advised quantities of fabric
softener and detergent. Damage to the fabric
can ensue if you over-fill. Refer to the
manufacturer’s recommendations of
quantities.
●Wash small items such as socks, laces,
washable belts etc in a washing bag or
pillow case as it is possible for such items to
slip down between the tub and the inner
drum.
●Do not use your washing machine to wash
articles with whalebones, material without
hems or torn material.
●Always unplug the appliance and turn off the
water supply after use.
●Under no circumstances should you attempt
to repair the machine yourself. Repairs
carried out by inexperienced persons may
cause injury or serious malfunctioning.
Contact your local Service Centre. Always
insist on genuine spare parts.
Installation
●This appliance is heavy. Care should be
taken when moving it.
●When unpacking the appliance, check that it
is not damaged. If in doubt, do not use it and
contact the Service Centre.
●All packing and transit bolts must be
removed before use. Serious damage can
occur to the product and to property if this is
not adhered to. See relevant section in the
user manual.
●After having installed the appliance, check
that it is not standing on the inlet and drain
hose and the worktop is not pressing the
electrical supply cable.
●If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely under the appliance.
●Always be sure, that there is no water
leakage from hoses and their connections
after the installation.
●If the appliance is installed in a location
subject to frost, please read the «dangers of
freezing» chapter.
●This appliance is made for use in normal
inside temperature. Manufacturer is not
responsible for freezing damages.
●Any plumbing work required to install this
appliance should be carried out by a
qualified plumber or competent person.
●Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
132973873.qxd 24/02/2010 9.32 Pagina 3

4
Use
●This appliance is designed for domestic use.
It must not be used for purposes other than
those for which it was designed.
●Only wash fabrics which are designed to be
machine washed. Follow the instructions on
each garment label.
●Do not overload the appliance. See the
relevant section in the user manual.
●Before washing, ensure that all pockets are
empty and buttons and zips are fastened.
Avoid washing frayed or torn articles and
treat stains such as paint, ink, rust, and
grass before washing. Underwired bras must
NOT be machine washed.
●Garments which have been in contact with
volatile petroleum products should not be
machine washed. If volatile cleaning fluids
are used, care should be taken to ensure
that the fluid is removed from the garment
before placing in the machine.
●Never pull the power supply cable to remove
the plug from the socket; always take hold of
the plug itself.
●Never use the washing machine if the power
supply cable, the control panel, the working
surface or the base are damaged so that the
inside of the washing machine is accessible.
Child safety
●This washing machine is not intended for
use by young children or infirm persons
without supervision.
●Young children should be supervised to
ensure that they do not play with the
appliance.
●The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children -
danger of suffocation! Keep them out of
children’s reach
●Keep all detergents in a safe place out of
children’s reach.
●Make sure that children or pets do not climb
into the drum. To avoid that they could
remain closed inside the drum, the machine
incorporates special feature.
To disable this device
and restore the
possibility of closing the
door, rotate the button
anti-clockwise until the
groove is vertical.
To activate this device,
rotate the button
(without pressing it)
inside the door
clockwise until the
groove is horizontal. If
necessary use a coin.
132973873.qxd 24/02/2010 9.32 Pagina 4

5
Description of the appliance
Detergent dispenser drawer
Control panel
Door opening handle
Drain pump
Adjustable feet
5
4
3
2
1
1 2
3
4
5
Detergent dispenser drawer
Prewash
Wash
Fabric Softener
Your new washing machine is fitted with an automatic device which detects the laundry amount in
some programmes for cotton and synthetic items and chooses the best cycles for washing in an
economical way. Cycle time duration, energy and water consumptions are proportional to the
amount of each load.
132973873.qxd 24/02/2010 9.32 Pagina 5

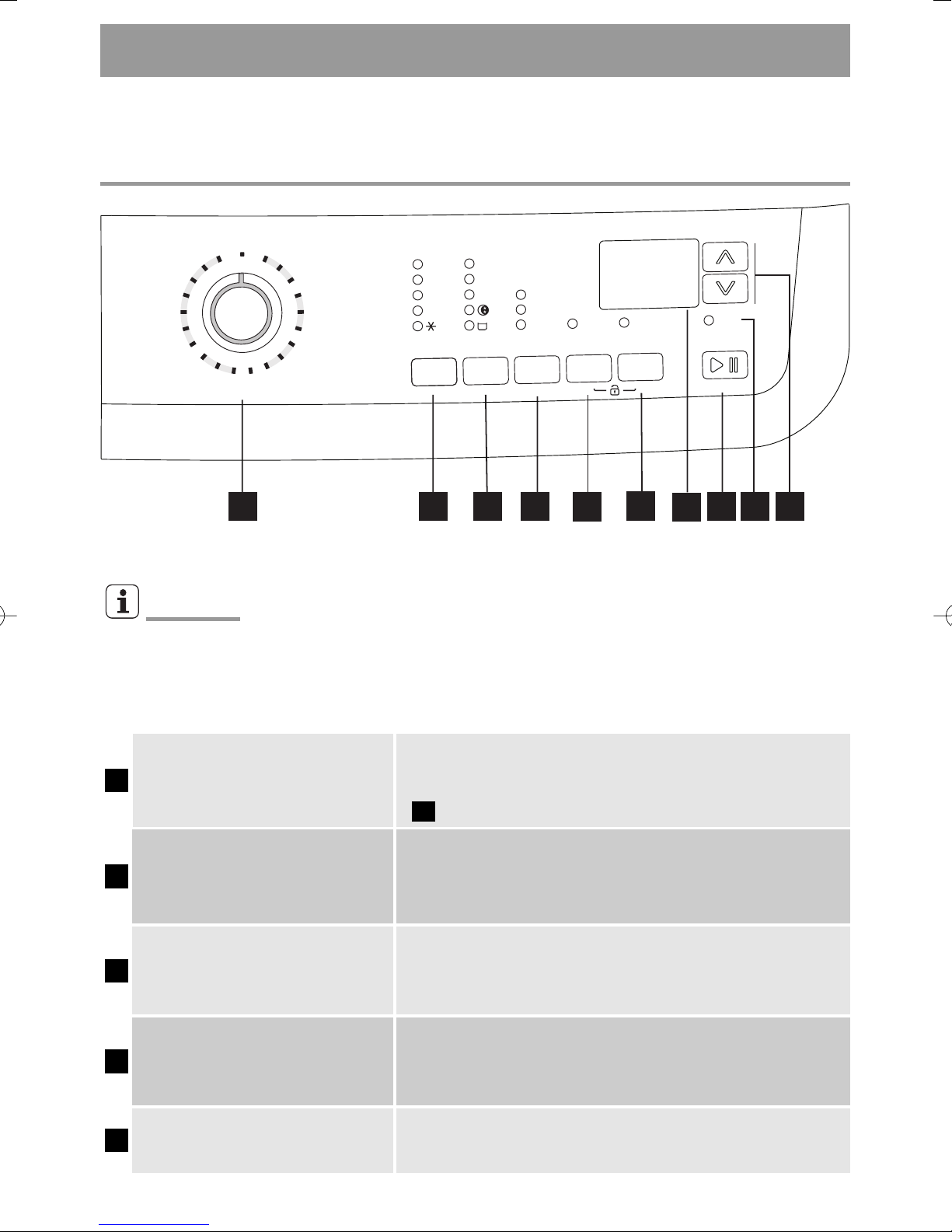

Control panel and functions
6
1 2 3 4 68
57109
Special
95º
60º
40º
30º
1600
900
700
Light
Normal
Heavy
Temp. Spin Soil Level xtra Rinse
asy Iron
Lock
Delay Start
Start/Pause
ZWF16581W
Off CottonSport 40°
Cotton coSport Shoes 40°
Synthetic
Normal
Wool
+Prewash
+Superquick
Normal
Handwash
Silk
Duvet
+Superquick
Delicate
Drain
Spin
Rinse +Prewash
Cottons
Mini 30'
Synthetics
Jetsystem+
Programme selector dial and
On/Off switch
●The programme selector dial allows you to select a
programme and/or to switch the machine on/off. It can be
turned either clockwise or anticlockwise. The light of button
starts to flash.
8
Spin reduction button
●Press the Spin button repeatedly to change the spin speed,
if you want your laundry to be spun at a speed different from
the one proposed by the washing machine. The relevant
light will light up.
Soil level button
●By pressin this button, you can select the soil level option:
Heavy, Normal, Light (see the relevant chapter «Operating
sequence»).
●The relevant light will light up.
1
3
Easy iron button ●Selecting this button the laundry is gently washed and spun
to avoid any creasing. In this way ironing is easier.
5
4
Temperature button
●Press this button repeatedly to change the washing
temperature, if you want your laundry to be washed at a
temperature different from the one proposed by the washing
machine. The relevant light will light up.
2
Information
The control panel is illustrated above. It shows the programme selector dial as well as the different
buttons, the pilot lights and the display. These are represented by relevant numbers which are
explained in the table below.
132973873.qxd 24/02/2010 9.32 Pagina 6

Extra Rinse button ●By pressing this button, the machine performs some
additional rinses.
Start/Pause button
●This button allows you to start the selected programme; the
corresponding green pilot light stops flashing.
●It also interrupts a programme which is running, the
corresponding green pilot light starts to flash.
«Lock» light ●This light indicates that the door is locked
Display
●The display shows the following information: duration of the
selected programme, washing programme phase icons,
delayed start, weight calculation phase, incorrect option
selection, alarm codes, child safety option, heating phase
and end of programme.
7
6
8
9
Delay Start buttons
●By pressing this button, the wash programme can be
delayed from 30 mins - 60 mins - 90 mins, 2 hours and then
by 1 hour up to a maximum of 20 hours .
10
7
Programme table - Proportional programmes
Cotton
95 -
Proportional
White and coloured
cotton (Normally soiled):
Spin red.
Heavy, Light,
Easy iron, Extra rinse
Main wash,
3 rinses
Long spin at the max
speed
Cotton Eco
60- 40
Proportional
White and fast
coloured cotton
(normally or lightly soiled)
Spin red.
Easy iron
Extra rinse
Main wash,
2 rinses
Long spin at the max
speed
Synthetic
60 -
Proportional
Synthetic or mixed
fabrics
Spin red.
Heavy, Light,
Easy iron, Extra rinse
Main wash
3 rinses
Short spin 900 rpm
Programme/
Temperature Type of laundry Options Description of programme
Cycle time duration, energy and water consumptions are proportional to the amount of load.
Important!
When selecting these programmes the «Normal» pilot light illuminates.
132973873.qxd 24/02/2010 9.32 Pagina 7

8
Synthetics
+ SuperQuick
60 -
Synthetic or mixed
fabrics lightly soiled
Spin red.
Easy iron,
Extra rinse
Main wash, 2 rinses
Short spin 900 rpm
Max load: 1.5 Kg
Programme table
Synthetics
+ Prewash
60 -
Synthetic or mixed
fabrics (heavily soiled
items)
Spin red.
Easy Iron
Extra rinse
Prewash at 30°C
Main wash, 3 rinses
Short spin 900 rpm
Max load: 3.5 Kg
Programme/
Temperature Type of laundry Options Description of programme
Cottons
Normal
95 -
White and coloured
cotton cotton (normally
soiled items)
Spin red.
Heavy, Easy iron,
Extra rinse
Main wash, 3 rinses
Long spin at the max
speed
Max load: 7 Kg
Cottons
+ SuperQuick
95 -
White and coloured
cotton (slightly soiled
items)
Spin red.
Easy iron, Extra rinse
Main wash, 2 rinses
Long spin at the max
speed
Max load: 3.5 Kg
Cottons
+ Prewash
95 -
White and coloured
cotton (heavily soiled
cotton items)
Spin red.
Heavy, Easy iron
Extra rinse
Prewash at 30°C
Main wash, 3 rinses
Long spin at the max
speed
Max load: 7 Kg
Synthetics
Normal
60 -
Synthetic or mixed
fabrics
Spin red.
Easy iron,
Extra rinse
Main wash, 3 rinses
Short spin 900 rpm
Max load: 3.5 Kg
Delicate
40-
Delicate fabrics, for
example curtains. Extra Rinse
Main wash, 3 rinses
Short spin 700 rpm
Max load: 3.5 Kg
132973873.qxd 24/02/2010 9.32 Pagina 8

9
Programme table - Special programmes
Programme/
Temperature Type of laundry Options Description of programme
Mini 30’
30
Short cycle for lightly
soiled fabrics
Main Wash, 2 rinses
Short spin 700 rpm
Max load : 2.5 kg
Duvet
30 Short cycle for blankets
Main Wash, 3 rinses
Short spin 700 rpm
Max Load: 2 kg
Silk
30
Silk items to be gentle
washed and spun.
Main wash, 2 rinses
Short spin 700 rpm
Max load: 1 kg
Sport Shoes 40°
40
Short cycle for 1 pair of
sport shoes
Spin Red./
Extra rinse
Main Wash, 3 rinses
Short spin 900 rpm
Max load: 1 pair
Sport 40°
40
Programme for heavily
soiled synthetics items
Spin Red./ ,
Extra rinse
Prewash at 30°C, Main
wash, 3 rinses,
Short spin
Max load: 2.5 kg
Handwash
40 -
Special programme for
hand washing fabrics Spin red., ,
Main wash, 3 rinses
Short spin 900 prm
Max load: 2 kg
Wool
40 -
Programme for wool
«Pure new wool, non-
shrink, machine
washable» label.
Spin red., ,
Main wash, 3 rinses
Short spin 900 rpm
Max load: 2 kg
132973873.qxd 24/02/2010 9.32 Pagina 9

10
Programme table
Programme information
With this programme it is possible to rinse and spin cotton garments
which have been washed by hand.
The machine performs 3 rinses, followed by a final spin at maximum
speed.
The spin speed can be reduced by pressing the button .
3
Drain
For emptying out the water of the last rinse in cotton programmes
with the Rinse Hold and Night Cycle option.
Turn first the programme selector dial to «Off», then select
programme Drain and press the button .
8
Easy Iron
Selecting this button the laundry is gently washed and spun to avoid
any creasing. In this way ironing is easier. Furthermore the machine
will perform additional rinses.
On cotton programmes the spin speed will automatically be reduced
to 900 rpm.
Wool and
Handwash
Washing programme for machine washable wool as well as for hand
washable woollens and delicate fabrics with the «hand washing»
care symbol .
Programme/
Temperature Type of laundry Options Description of programme
Rinse
Separate rinse cycle for
hand washed items of all
fabric.
Spin red.
Easy iron, Extra rinse
3 rinses
Long spin at the max
speed
Drain
For emptying out the last
rinse water in
programmes with the
Rinse Hold or Night
Cycle option.
Draining of water
Spin Separate spin for
cottons. Spin red. Drain and long spin at the
max speed
Rinse
132973873.qxd 24/02/2010 9.32 Pagina 10

11
Spin
Separate spin for hand washed garments and after programmes with
Rinse Hold and Night Cycle option. Before selecting this
programme the selector dial must be turned to «Off». You can
choose the speed by pressing the relevant button to adapt it to the
fabrics to be spun.
Sport 40°
This programme is suitable for washing normally soiled sport items of
cotton or synthetic fabrics. The machine will add automatically a
prewash phase before the main wash to eliminate mud stains.
Note ! We recommend that you do not put the detergent into the
compartment of the detergent drawer. The spin speed is reduced.
Sport Shoes 40°
With this programme it is possible to wash one pair of sport shoes.
The shoes would be gently washed and spun. Washing temperature
40°C.
Note! Do not wash your sport shoes together with laundry.
Off = Cancelling To reset a programme and to switch off the machine turn the selector
dial to «Off». Now a new programme can be selected.
Programme information
Duvet
Washing programme for a single synthetic duvet, blanket, bedspread
etc. The washing temperature is 30°C. The spin is performed at 700
rpm.
Mini 30’
This special short programme is a complete washing cycle for lightly
soiled mixed fabrics /synthetic items or laundry which needs
freshening up. The short spin is performed at 700 rpm. The cycle
duration is about 30 minutes.
Silk
Delicate washing programme suitable for silk and mixed synthetics
items. Washing temperature is 30°C.
The maximum spin speed is automatically reduced to 700 rpm.
132973873.qxd 24/02/2010 9.32 Pagina 11

12
Washing hints
Sorting the laundry
Follow the wash code symbols on each
garment label and the manufacturer’s washing
instructions. Sort the laundry as follows: whites,
coloureds, synthetics, delicates, woollens.
Temperatures
Before loading the laundry
Never wash whites and coloureds together.
Whites may lose their «whiteness» in the
wash.
New coloured items may run in the first wash;
they should therefore be washed separately
the first time.
Make sure that no metal objects are left in
the laundry (e.g. hair clips, safety pins,
pins). Button up pillowcases, close zip
fasteners, hooks and poppers. Tie any belts
or long tapes.
Remove persistent stains before washing.
Rub particularly soiled areas with a special
detergent or detergent paste.
Treat curtains with special care. Remove hooks
or tie them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly
packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more
than one third full.
Washing a maximum load makes the most
efficient use of water and energy.
For heavily soiled laundry, reduce the load
size.
Laundry weights
The following weights are indicative:
90° or 95°
for normally soiled white cottons
and linen (e.g. tea cloths, towels,
tablecloths, sheets...)
50°/60°
for normally soiled, colour fast
garments (e.g. shirts, night
dresses, pyjamas....) in linen,
cotton or synthetic fibres and for
lightly soiled white cotton (e.g.
underwear).
30°-40°-
(Cold)
for delicate items (e.g. net
curtains), mixed laundry including
synthetic fibres and woollens
bearing the label «pure new wool,
machine washable, non-shrink».
1200 gbathrobe
100 gnapkin
700 gquilt cover
500 gsheet
200 gpillow case
250 gtablecloth
200 gtowelling towel
100 gtea cloth
200 gnight dress
100 gladies’ briefs
600 gman’s work shirt
200 gman’s shirt
500 gman’s pyjamas
100 gblouse
100 gmen’s underpants
132973873.qxd 24/02/2010 9.32 Pagina 12

13
Removing stains
Stubborn stains may not be removed by just
water and detergent. It is therefore advisable to
treat them prior to washing.
Blood: treat fresh stains with cold water. For
dried stains, soak overnight in water with a
special detergent then rub in the soap and
water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and
dab the stain; treat several times.
Dried grease stains: moisten with turpentine,
lay the garment on a soft surface and dab the
stain with the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a
rust removing product used cold. Be careful
with rust stains which are not recent since the
cellulose structure will have already been
damaged and the fabric tends to tear.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only).
Grass: soap lightly and treat with bleach
(whites and fast coloureds only).
Ball point pen and glue: moisten with
acetone (*), lay the garment on a soft cloth and
dab the stain.
Lipstick: moisten with acetone as above, then
treat stains with methylated spirits. Remove
any residual marks from white fabrics with
bleach.
Red wine: soak in water and detergent, rinse
and treat with acetic or citric acid, then rinse.
Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the
fabric first with acetone (*), then with acetic
acid; treat any residual marks on white fabrics
with bleach and then rinse thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub with
detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the
choice of detergent and use of the correct
quantities to avoid waste and protect the
environment. Although biodegradable,
detergents contain substances which, in large
quantities, can upset the delicate balance of
nature.
The choice of detergent will depend on the
type of fabric (delicates, woollens, cottons,
etc.), the colour, washing temperature and
degree of soiling.
All commonly available washing machine
detergents may be used in this appliance:
●powder detergents for all types of fabric,
●powder detergents for delicate fabrics (60°C
max) and woollens,
●liquid detergents, preferably for low
temperature wash programmes (60°C max)
for all types of fabric, or special for woollens
only.
The detergent and any additives must be
placed in the appropriate compartments of the
dispenser drawer before starting the wash
programme.
If using concentrated powder or liquid
detergents, a programme without prewash
must be selected.
The washing machine incorporates a
recirculation system which allows an optimal
use of the concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting
the programme.
Any fabric softener or starching additives must
be poured into the compartment marked
before starting the wash programme.
Follow the product manufacturer’s
recommendations on quantities to use and do
not exceed the «MAX» mark in the
detergent dispenser drawer.
132973873.qxd 24/02/2010 9.32 Pagina 13

14
Quantity of detergent to be used
The type and quantity of detergent will depend
on the type of fabric, load size, degree of
soiling and hardness of the water used.
Water hardness is classified in so-called
«degrees» of hardness. Information on
hardness of the water in your area can be
obtained from the relevant water supply
company, or from your local authority.
Follow the product manufacturer's instructions
on quantities to use.
Degrees of water hardness
Follow the product manufacturer's instructions
on quantities to use.
Level
Degrees
German
°dH
French
°T.H.
Characteristic
1 0-7 0-15soft
2 8-14 16-25medium
3 15-21 26-37hard
4> 21 > 37very hard
Before the first use
WARNING!
Ensure that the electrical and water
connections comply with the installation
instructions.
IMPORTANT!
Remove the polystyrene block and any
material from the drum.
IMPORTANT!
We recommend you to run run a cotton cycle
at 95°C, without any laundry in the machine, to
remove any manufacturing residue from the
drum and tub. Pour 1/2 a measure of detergent
into the dispenser drawer and start the
machine.
Child safety lock
This device permits you to leave the appliance
unattended without having the worry that
children might be injured by or cause damage
to the appliance.
This function remains enabled also when the
washing machine is not working.
There are two different ways to set this option:
●before pressing the button : it will be
impossible to start the machine.
●after pressing the button : it will be
impossible to change any other programme
or option.
To enable (or disable) this option press
simultaneously for about 6 seconds the buttons
and until the icon appears
(disappears) on (from) the display.
65
8
8
Use less detergent if:
●you are washing a small load,
●the laundry is lightly soiled,
●large amounts of foam form during washing.
132973873.qxd 24/02/2010 9.32 Pagina 14

15
Operating sequence
1. Load the laundry
Open the door by
carefully pulling the
door handle outwards.
Place the laundry in the
drum, one item at a
time, shaking them out
Select the temperature by pressing the
button
Press this button repeatedly to increase or
decrease the temperature, if you want your
laundry to be washed at a temperature
different from the one proposed by the washing
machine.
For the maximum allowed by each cycle spin
speed, refer to the section «Programme
table».
corresponds to cold wash.
Select the spin speed or Night Cycle or
Rinse Hold option by pressing the button
Press this button repeatedly to change the spin
speed, if you want your laundry to be spun at a
speed different from the one proposed by the
appliance. The relevant light will light up.
When selecting a programme, the light
corresponding to the maximum speed allowed
for that programme will illuminate (refer to the
section «Programme table» for the maximum
allowed by each cycle spin speed).
Night Cycle : by selecting this option, the
machine will not drain the water of the last
rinse, so as not to crease the laundry. As all
spinning phases are suppressed, this washing
cycle is very quiet and it can be selected at
night or in times with a more economical power
rate.
3
2
On some programmes the rinses will be
performed with more water.
When the programme has finished, the display
shows the end of the cycle but the «Lock» light
remains alight and the door locked to
indicate that the water must be emptied out.
Rinse Hold : by selecting this option the
water of the last rinse is not emptied out to
prevent the fabrics from creasing.
When the programme has finished, the display
shows the end of the cycle but the light
remains lit and the door locked to indicate that
the water must be emptied out.
To empty out the water please read the steps
on the «At the end of the cycle» paragraph.
Select the Soil Level option by pressing the
button
Press the «Soil Level» button repeatedly, to
increase or decrease the cycle time duration
for cotton and synthetic. The relevant light will
light up.
IMPORTANT!
Not all the soil levels are compatible and
can be selected with any programme.
Heavy
Select this option for heavily soiled laundry.
The washing intensity will be increased and the
washing time will be prolonged by about 10
minutes.
Normal:
Select this option for normally soiled laundry .
Depending on the selected programme, the
corresponding «Normal » light will
illuminate by default.
4
9
9
132973873.qxd 24/02/2010 9.32 Pagina 15

16
Operating sequence
Light:
Select this option for slightly soiled items that
have been used or worn for a short time.
The washing intensity will be decreased and
the washing time will be reduced by few
minutes.
Select the Easy Iron option by pressing the
button
By selecting this button the laundry is gently
washed and spun to avoid any creasing. In this
way ironing is easier. Furthermore the machine
will perform some additional rinses. This
function can be used for cotton and synthetic.
Select the Extra Rinse option by pressing
the button
The machine performs some additional rinses.
This option is recommended for people who
are allergic to detergents, and in areas where
the water is very soft.
IMPORTANT!
If an option is chosen that is not allowed with
the selected programme, the red pilot light of
the button will flash 3 times.
9. Display
The display shows the following information:
Duration of the selected programme
After selecting a programme, the duration is
displayed in hours and minutes (for example
2.05). The duration is calculated automatically
on the basis of the maximum recommended
load for each type of fabric.
After the programme
has started, the time
remaining is updated
every minute.

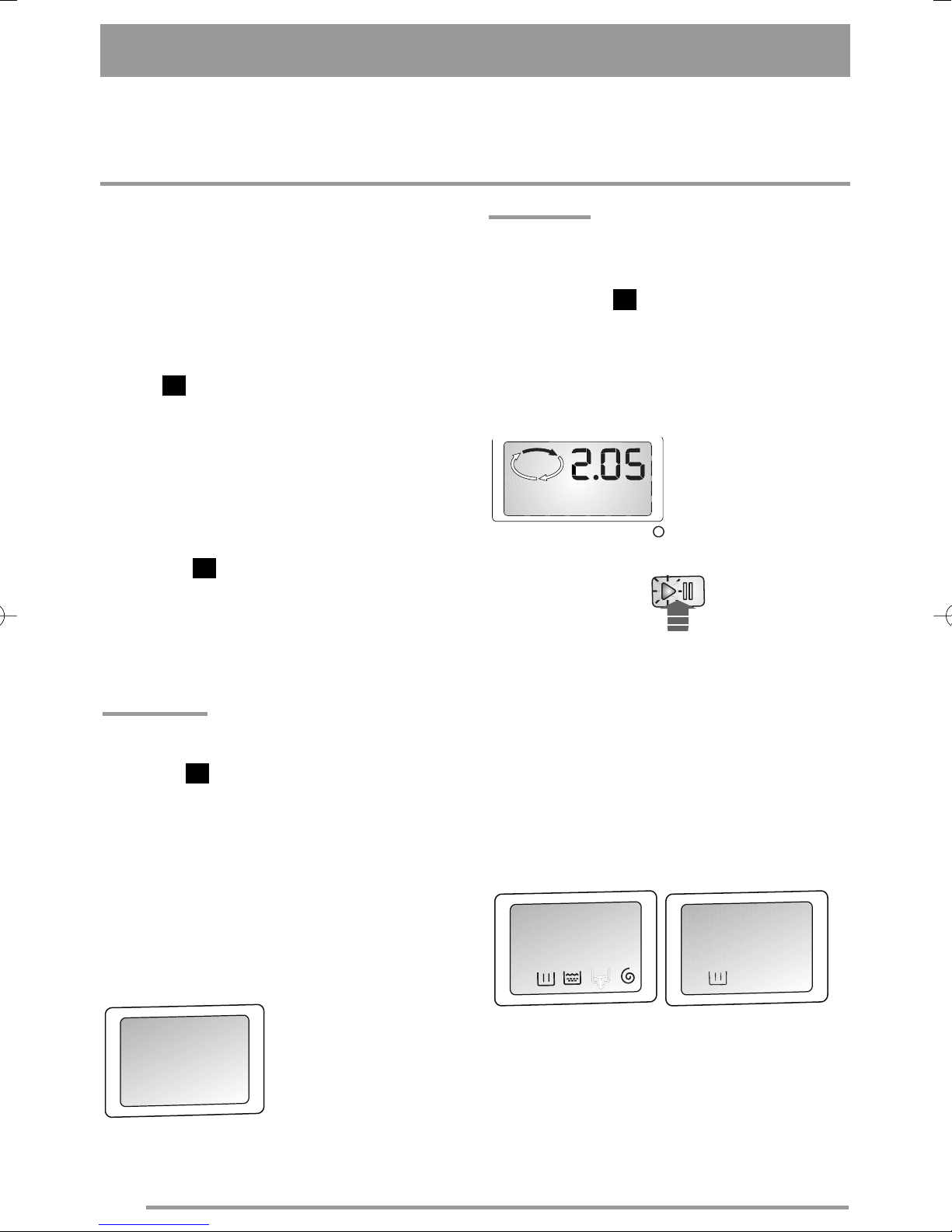

2.05
8
6
5
ATTENTION!
When selecting the «proportional»
programmes, the diplay shows the washing
duration of the maximum recommended load.
After the button has been pressed, an
arrows animation appears on the display
indicating that the appliance is calculating the
laundry amount and the real duration. During
this time, the washing duration shown
decreases.
When the calculating phase has finished, the
arrows animation disappears from the display
and the washing time is adjusted to the real
load.
Washing programme phase icons
By selecting the wash programme, the washing
programme phase icons corresponding to the
various phases making up the programme are
shown in the bottom of the display.
After the machine has started, only the running
icon stays on. When the programme has
finished, three flashing zero «0.00»is
displayed.
2.05
2.05
Start/Pause
Lock
8
132973873.qxd 24/02/2010 9.32 Pagina 16

17
Operating sequence
Delayed start
The set delay (20 hours max) set by means of
the relevant button appears on the display for a
few seconds, then the duration of the
previously selected programme is displayed.
The delay time value
decreases by one unit
every hour and then,
when 1 hour remains,
the time decreases every
minute.

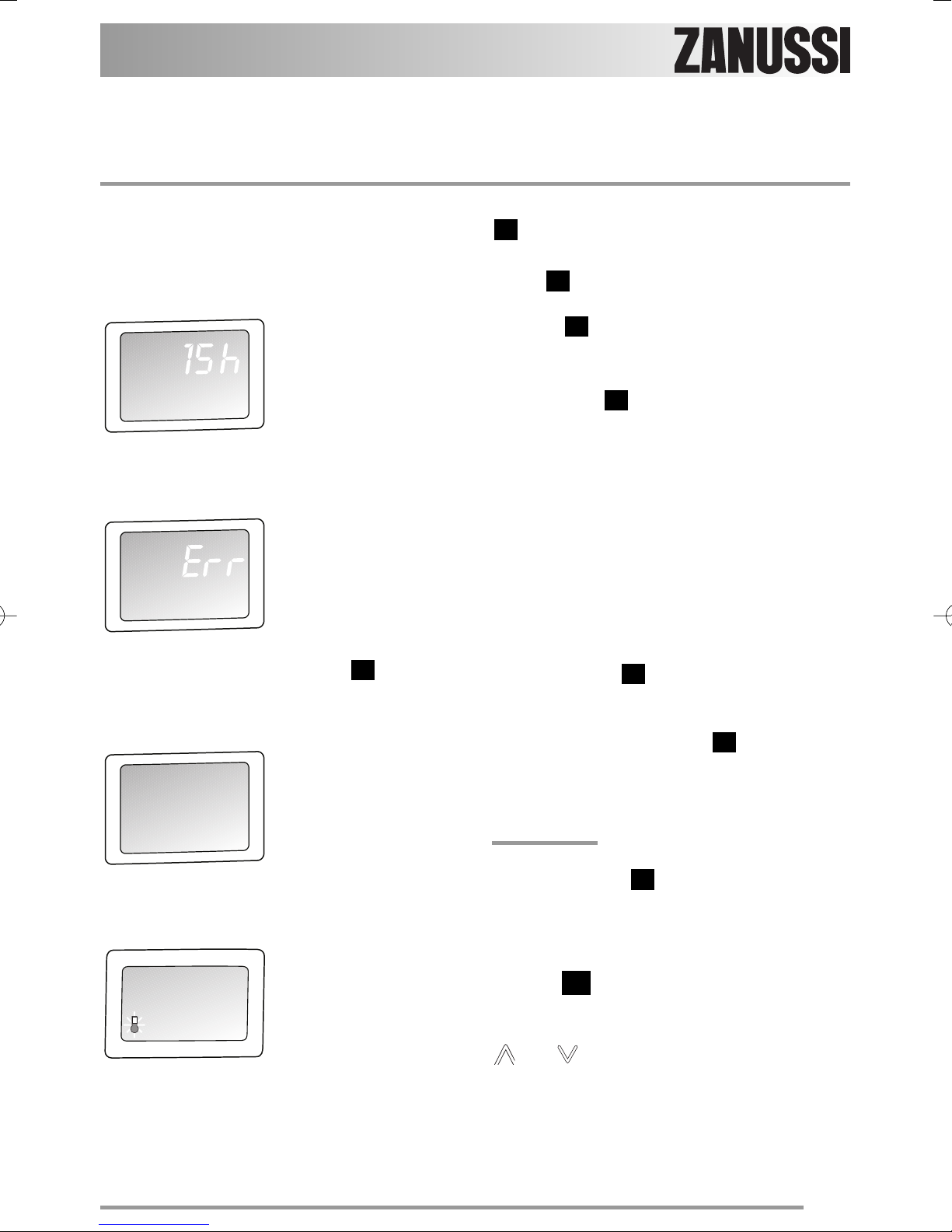

Incorrect option selection
If an option which is not
compatible with the set
wash programme is
selected, the message
Err is displayed for a few seconds and the
integrated red light of the button starts
flashing.
Alarm codes
In the event of
operating problems,
some alarm codes can
be displayed, for
example E20 (see
paragraph “What to do if...”).
Heating phase
During the washing
cycle the display shows
a temperature icon
illuminated to indicate
that the appliance has
started the heating phase of the water in the tub.
2.05
E20
8
Start the machine by pressing the button
To start the selected programme, press the
button ; the corresponding green pilot light
stops flashing.
The light illuminates to indicate that the
appliance starts operating and the door is
locked.
The pilot light indicates if the door can be
opened:
●light on: the door cannot be opened.
The appliance is operating or there is water
left in the tub. Attention! If the door is
locked do not try to open it!
●light off: the door can be opened.
The washing programme is finished.
●flashing light: the door is opening in a few
minutes.
To interrupt a programme which is running,
press the button : the corresponding green
pilot light starts to flash. To restart the
programme from the point at which it was
interrupted, press the button again.
If you have chosen a delayed start, the
machine will begin the countdown.
IMPORTANT!
If an incorrect option is selected, the red pilot
light of the button flashes for 3 times and
the message Err is displayed for a few
seconds.
Select the Delay Start by pressing the
buttons
Before you start the programme, if you wish to
delay the start, press repeatedly the buttons
and , to select the desired delay.
The selected delay time value (up to 20 hours)
will appear on the display for a few seconds,
then the duration of the programme will appear
again.
10
8
8
8
9
9
8
8
132973873.qxd 24/02/2010 9.32 Pagina 17

18
You must select this option after you have set
the programme and before you press the
button .
The wash programme can be delayed from 30
mins - 60 mins - 90 mins, 2 hours and then by
1 hour up to a maximum of 20 hours by means
of this button.
Selecting the delayed start:
●Select the programme and the required
options.
●Select the delay start.
●Press the button : the machine starts its
hourly countdown.
The programme will start after the selected
delay has expired.
Cancelling the delayed start:
You can cancel the delay time at any moment,
before you press the button . If you have
already pressed it, and you wish to cancel the
delay time, proceed as follows:
• set the washing machine to PAUSE by
pressing the button ;
• press the buttons until the symbol 0’ is
displayed.
• press the button again to start the
programme.
IMPORTANT!
The door will be locked throughout the delay
time. If you need to open the door, you must
first set the washing machine to PAUSE by
pressing the button , wait until the pilot light
has gone off. After you have closed the
door, press the button again.
Note!
The Delay Start cannot be selected with
Drain programme.
8
9
8
8
10
8
8
8
8
Altering an option or a running programme
It is possible to change a few options before
the programme carries it out.
Before you make any change, you must pause
the washing machine by pressing the button
.
Changing a running programme is possible
only by resetting it. Turn the programme
selector dial to «Off» and then to the new
programme position. Start the new programme
by pressing the button . again.
The washing water in the tub will not empty
out.
Interrupting a programme
Press the button to interrupt a programme
which is running, the corresponding light starts
to flash. Press this button again to restart the
programme.
Cancelling a programme
Turn the selector dial to «Off» to cancel a
programme which is running. Now you can
select a new programme.
Opening the door after the programme has
started
First set the machine to pause by pressing the
button .
If the light flashes and goes off, the door
can be opened. If it remains lit, this means that
the water level is too high.
In this case the door can not be opened.
If you cannot open the door but you need to
open it you have to switch the machine off by
turning the selector dial to «Off». After a few
minutes the door can be opened (pay attention
to the water level and temperature!).
9
8
8
8
8
Operating sequence
132973873.qxd 24/02/2010 9.32 Pagina 18

19
After this procedure, it will be necessary to set
the programme and the options again and then
to press the button .

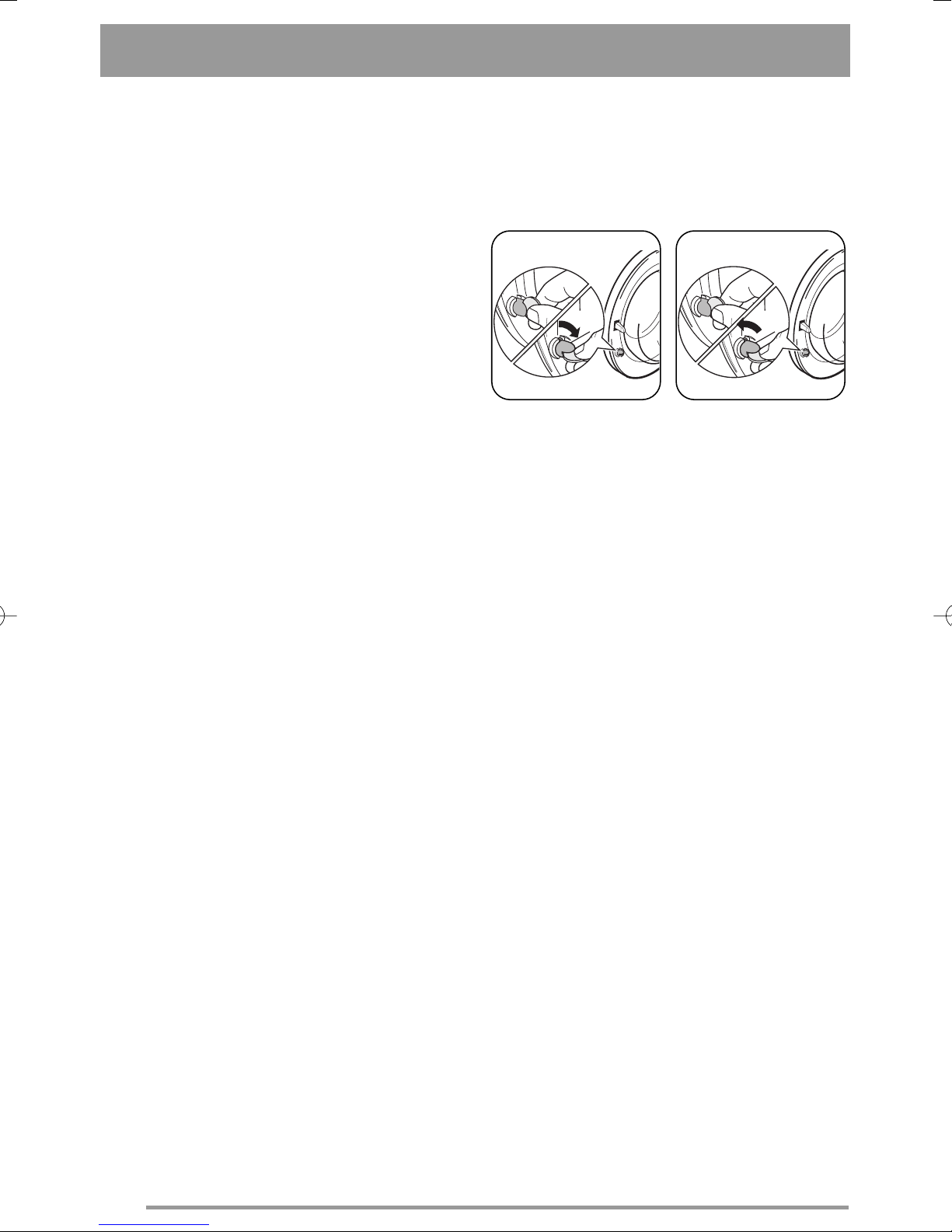

At the end of the cycle
The machine stops automatically. The light of
the button goes off, the pilot light goes
off and on the display will appear three flashing
«0.00».The door can be opened.
If the «Rinse hold» or «Night Cycle»
option has been selected, the light remains
alight: the door is locked to indicate that the
water must be emptied out before opening the
door.
The display will show three flashing zeros
«0.00».
To empty out the water:
1. turn the programme selector dial to «Off»
2. select the Drain or Spin programme
3. reduce the spin speed if needed, by means
of the relevant button
4. press the button
5. at the end of programme, the display shows
three flashing zero «0.00»and the light
goes off (and it will be possible to open the
door).
Turn the programme selector dial to «Off» to
switch the machine off.
Remove the laundry from the drum and
carefully check that the drum is empty.
If you do not intend to carry out another wash,
close the water tap.
Leave the door open to prevent the formation
of mildew and unpleasant smells.
9
8
9
98
8
Stand by: once the programme has finished
after a few minutes the energy saving system
will be enabled. The brightness of the display is
reduced. By pressing any button the appliance
will come out of the energy saving status.
Operating sequence
132973873.qxd 24/02/2010 9.32 Pagina 19

20
IMPORTANT!
You must DISCONNECT the appliance from
the electricity supply, before you can carry out
any cleaning or maintenance work.
Descaling
The water we use normally contains lime. It is
a good idea to periodically use a water
softening powder in the machine. Do this
separately from any laundry washing, and
according to the softening powder
manufacturer's instructions. This will help to
prevent the formation of lime deposits.
Maintenance Wash
With the use of low temperature washes it is
possible to get a build up of residues inside the
drum.
We recommend that a maintenance wash be
performed on a regular basis.
To run a maintenance wash:
●The drum should be empty of laundry.
●Select the hottest cotton wash programme.
●Use a normal measure of detergent, must be
a powder with biological properties.
External cleaning
Clean the exterior cabinet of the appliance with
soap and water only, and then dry thoroughly.

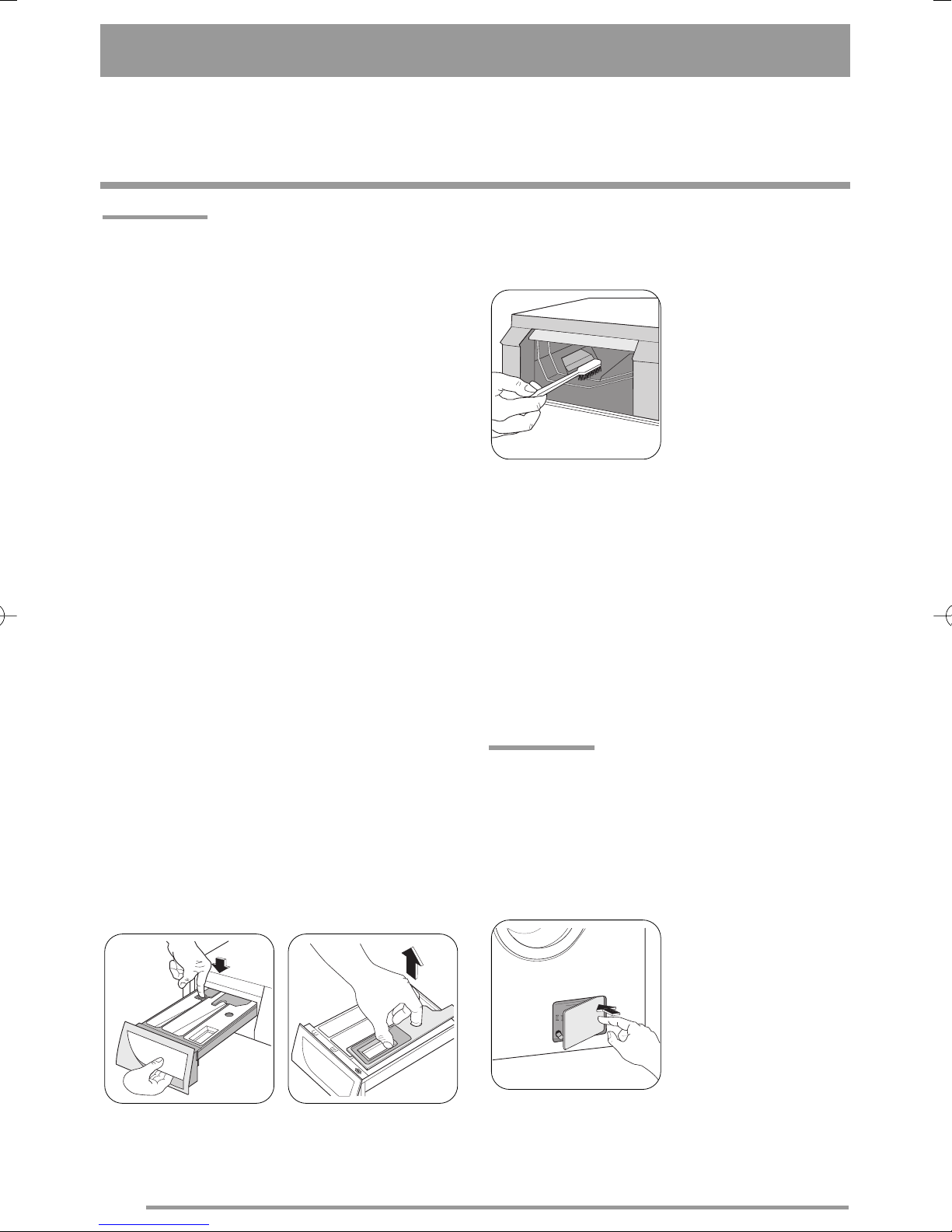

Cleaning the dispenser drawer
The washing powder and additive dispenser
drawer should be cleaned regularly.
To aid cleaning, the top part of the additive
compartment should be removed. Remove the
drawer by pressing the catch downwards and
by pulling it out. Flush it out under a tap, to
remove any traces of accumulated powder.
Cleaning the drawer recess
Having removed the
drawer, use a small
brush to clean the
recess, ensuring that
all washing powder
residue is removed
from the upper and
lower part of the recess.
Replace the drawer and run the rinse
programme without any clothes in the drum.
Cleaning the pump
The pump should be inspected if
●the machine does not empty and/or spin
●the machine makes an unusual noise during
draining due to objects such as safety pins,
coins etc. blocking the pump.
●a problem with water draining is detected (see
chapter “What to do if...” for more details).
IMPORTANT!
Before opening the pump door, switch the
appliance off and remove the mains plug from
the socket.
Proceed as follows:
●Unplug the appliance.
●If necessary wait until the water has cooled
down.
●Open the pump door.
●Place a container
close to the pump to
collect any spillage.
●Pull out the
emergency emptying
hose, place it in the
container and remove
its cap.
●When no more water comes out, unscrew the
pump cover by turning it anti-clockwise and
remove the filter. Use pliers, if necessary.
Care and cleaning
132973873.qxd 24/02/2010 9.32 Pagina 20
