Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible
location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children aged 3 years and under must be kept away from this
appliance when it is in operation at all times.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when the door
is open.
•If the appliance has a child safety device, this should be
activated.
•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
General Safety
•Do not change the specification of this appliance.
2 www.zanussi.com

•Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
•The operating water pressure at the water entry point from the
outlet connection must be between 0.5 bar (0.05 MPa) and 8
bar (0.8 MPa).
•The ventilation opening in the base must not be covered by a
carpet, mat, or any floor covering.
•The appliance must be connected to the water mains using the
new supplied hose sets, or other new hose sets supplied by
the Authorised Service Centre.
•Old hose sets must not be reused.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre or
similarly qualified persons to avoid an electrical hazard.
•Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
•Do not use high pressure water sprays and/or steam to clean
the appliance.
•Clean the appliance with a moist cloth. Use only neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
Safety instructions
Installation
The installation must comply with
relevant national regulations.
• Remove all the packaging and the transit
bolts.
• Keep the transit bolts in a safe place. If the
appliance is to be moved in the future they
must be reattached to lock the drum to
prevent an internal damage.
• Always take care when moving the appliance
as it is heavy. Always use safety gloves and
enclosed footwear.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied
with the appliance.
• Do not install or use the appliance where the
temperature can be less than 0°C or where
it is exposed to the weather.
• The floor area on which the appliance is to
be installed must be flat, stable, heat
resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Do not install the appliance directly above a
floor drain.
• Adjust the feet to have the necessary space
between the appliance and the flooring.
• Do not install the appliance where the
appliance door cannot be fully opened.
• Do not put a container to collect possible
water leakage under the appliance. Contact
the Authorised Service Centre to ensure
which accessories can be used.
Electrical connection
• The appliance must be earthed.
• Always use a correctly installed shockproof
socket.
www.zanussi.com 3

• Make sure that the parameters on the rating
plate are compatible with the electrical
ratings of the mains power supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Should
the mains cable need to be replaced, this
must be carried out by our Authorised
Service Centre.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• Do not touch the mains cable or the mains
plug with wet hands.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• This appliance complies with the E.E.C.
Directives.
Water connection
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not
used for a long time, where repair work has
been carried out or new devices fitted (water
meters, etc.), let the water flow until it is
clean and clear.
• Ensure that there are no visible water leaks
during and after the first use of the
appliance.
• Do not use an extension hose if the inlet
hose is too short. Contact the service centre
for the replacement of the inlet hose.
• You can extend the drain hose to maximum
400 cm. Contact the service centre for the
other drain hose and the extension.
Use
WARNING!
Risk of injury, electric shock, fire,
burns or damage to the appliance.
• This appliance is for household use only.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Make sure that all metal objects are removed
from the laundry.
• Do not wash fabrics which are heavily soiled
with oil, grease or other greasy substances.
It can damage rubber parts of the washing
machine. Prewash such fabrics by hand
before loading them into the washing
machine.
• Do not touch the glass door while a
programme is in operation. The glass can
get hot.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
electrical and water supplies.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent children
or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with
local requirements for the disposal of Waste
Electrical and Electronic Equipment (WEEE).
4 www.zanussi.com

Product description
Appliance overview
1 2 3
5
6
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Feet for levelling the appliance
Control panel description
Wool/Handwash
Delay Start
Duvets
87621 3 4 5
1On / Off button (On/Off)
2Programme selection touchpad
3Temperature selection touchpad
4Spin selection touchpad
5Options selection touchpad
6Start/Pause touchpad
7Indicators:
Child lock indicator
Extra rinse indicator
Door locked indicator
8Delay start touchpad
www.zanussi.com 5

Programme Chart
Programme
Temperature
range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
30' @ 30°
30 °C 3 kg 800 rpm A short cycle for synthetic and delicate items with light soil level or for items to freshen up.
Cottons
90 °C - Cold
8 kg
1400 rpm White cotton and coloured cotton. Normal soil and light soil.
Cotton Eco1)
60 °C - 40 °C
8 kg
1400 rpm White cotton and fast-coloured cotton. Normal soil. The energy consumption decreases and the time of the washing
programme is extended.
Synthetics
60 °C - Cold
3 kg
1200 rpm Synthetic items or mixed fabric items. Normal soil.
Delicates
40 °C - Cold
3 kg
1200 rpm Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normal soil.
Wool/Handwash
40 °C - Cold
1,5 kg
1200 rpm Machine washable wool, hand washable wool and
other fabrics with «hand washing» care symbol2).
Duvets
60 °C - Cold
3 kg
800 rpm Special programme for one synthetic blanket, duvet, bedspread and so on.
Mix 20°
20 °C
2 kg
1200 rpm Special programme for cotton, synthetic and mixed fabrics with light soil. Set this programme to decrease the energy
consumption. Make sure that the detergent is for low tem-
perature in order to have good washing results3).
1) Standard programmes for the Energy Label consumption values. According to regulation 1061/2010, these programmes are re-
spectively the «Standard 60°C cotton programme» and the «Standard 40°C cotton programme». They are the most efficient programmes in
terms of combined energy and water consumption for washing normally soiled cotton laundry.
The water temperature of the washing phase may differ from the temperature declared for the selected programme.
2) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but
this is normal for this programme.
3) No temperature indicator is on .
Programme options compatibility
Pro-
gramme 1)
30' @ 30° ■■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■ ■ ■
6 www.zanussi.com

Pro-
gramme 1)
■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■■ ■ ■
1) When you set this option, we recommend that you decrease the quantity of the laundry. It is possible to keep the full load but the washing
results can be unsatisfactory. Recommended load: cotton: 4 kg, synthetics and delicates: 1,5 kg.
Consumption values
Stated values are obtained in laboratory conditions with relevant standards. Different
causes can change the data: the quantity and type of laundry and ambient temperature.
Water pressure, the supply voltage and the temperature of inlet water may also affect
the washing programme duration.
Technical specifications may be changed without prior notice to improve the quality of
product.
Programmes Load
(kg) Energy consump-
tion (kWh)
Water con-
sumption
(litre)
Approxi-
mate pro-
gramme
duration
(minutes)
Remaining
moisture
(%)1)
Cottons
60°C 8 1,35 70 159 53
Cottons
40°C 8 0,87 69 158 53
Synthetics
40°C 3 0,60 56 103 35
Delicates
40°C 3 0,55 59 81 35
Wool/Handwash2)
30°C 1,5 0,45 62 75 30
Standard cotton programmes
www.zanussi.com 7

Programmes Load
(kg) Energy consump-
tion (kWh)
Water con-
sumption
(litre)
Approxi-
mate pro-
gramme
duration
(minutes)
Remaining
moisture
(%)1)
Standard 60°C cotton 8 0,96 52 244 53
Standard 60°C cotton 4 0,73 40 210 53
Standard 40°C cotton 4 0,62 41 196 53
1) At the end of spin phase.
2) Not available for some models.
Off Mode (W) Left On Mode (W)
0.48 0.48
The information given in the chart above is compliant with the EU Commission regulation 1015/2010
implementing directive 2009/125/EC .
Options
Temperature
With this option you can change the default
temperature.
Indicator = cold water.
The indicator of the set temperature comes on.
Spin
With this option you can change the default
spin speed.
The indicator of the set speed comes on.
Additional spin options:
No Spin
• Set this option to deactivate all spin phases.
Only the drain phase is available.
• The related indicator comes on.
• Set this option for very delicate fabrics.
• The rinses phase uses more water for some
washing programmes.
Rinse Hold
• Set this option to prevent the laundry
creases.
• The related indicator comes on.
• There is a water in the drum when the
programme is completed.
• The drum turns regularly to prevent the
laundry creases.
• The door stays locked. You must drain the
water to unlock the door.
To drain the water refer to ‘At the
end of the programme’.
Quick
With this option you can decrease the
programme duration.
Use this option for items with light soil or items
to refresh.
The related indicator comes on.
Intensive
With this option you can wash very soiled
laundry.
8 www.zanussi.com

The washing cycle lasts longer with this option.
The related indicator comes on.
Easy Iron
The appliance carefully washes and spins the
laundry to prevent the creases.
The appliance decreases the spin speed, uses
more water and adapts the programme duration
to the type of laundry.
The related indicator comes on.
Rinse Only
With this option you can perform only a last
rinse of a selected washing programme.
If you set also the Extra Rinse function ( ) the
appliance adds two or more rinses.
The related indicator comes on.
Drain & Spin
With this option you can perform the spin and
drain cycle.
This spin phase is suitable to the washing
programme you set.
If you set also the No Spin ( )
option, the appliance only drains.
Delay Start
With this option you can delay the start of a
programme by 9, 6 or 3 hours.
The indicator of the set value is on.
Extra Rinse
With this option you can add some rinses to a
washing programme.
Use this option for persons allergic to
detergents and in areas where the water is soft.
The related indicator comes on.1)
Settings
Permanent Extra Rinse
With this option you can permanently have an
extra rinse when you set a new programme.
• To activate/deactivate this option touch
the buttons and at the same time until
the indicator comes on/goes off.
Child Lock
With this option you can prevent that the
children play with the control panel.
• To activate/deactivate this option, touch
the buttons and at the same time until
the indicator comes on/goes off.
Activate this option after you touch the button
: the buttons are locked (except for the
button ) .
This option stays active even when
you switch off the appliance.
Acoustic signals
The acoustic signals operate when:
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic signals,
touch the buttons and at the same time
for 4 seconds.
If you deactivate the acoustic
signals, they continue operate when
the appliance has a malfunction.
1) See in "Settings" how to activate this option.
www.zanussi.com 9

Before first use
1. Connect the mains plug to the mains
socket.
2. Open the water tap.
3. Put a small quantity of detergent in the
compartment for washing phase.
4. Set and start a programme for cotton at the
highest temperature without laundry.
This removes all possible dirt from the drum and
the tub.
Daily use
WARNING!
Refer to Safety chapters.
Loading the laundry
Open the water tap. Connect the mains plug to
the mains socket.
1. Pull the door handle to open the appliance
door.
2. Put the laundry in the drum, one item at a
time.
3. Shake the items before you put them in the
appliance.
Make sure not to put too much laundry in the
drum. Refer to max. loads indicated in
"Programme chart".
4. Close the door.
CAUTION!
Make sure that no laundry stays
between the seal and the door.
There is a risk of water leakage or
damage to the laundry.
Washing heavily oiled, greasy stains
could cause damage rubber parts of
the washing machine.
Using detergent and additives
1. Measure out the
detergent and the
fabric conditioner.
2. Put the detergent
and the fabric
conditioner into the
compartments.
3. Carefully close the
detergent drawer.
Detergent compartments
Detergent compartment for wash-
ing phase.
If you use liquid detergent, put it
immediately before you start the
programme.
Compartment for liquid additives
(fabric conditioner, starch).
CAUTION!
Do not exceed the
MAX level.
Flap for powder or liquid detergent.
Liquid or powder detergent
1.
A
The default position of the flap is A(powder
detergent).
10 www.zanussi.com

2. To use liquid detergent:
1. Remove the drawer. Push the drawer
edge in the place with the arrow (PUSH) to
remove the drawer easily.
3.
B
2. Adjust the flap in position B.
3. Put back the drawer in the recess.
When you use the liquid detergent:
• Do not use gelatinous or thick
liquid detergents.
• Do not put more liquid then 120
ml.
• Do not set the delay start.
When the flap is in position B and you want to
use powder detergent:
1. Remove the drawer.
2. Adjust the flap in position A.
3. Put back the drawer in the recess.
• Measure out the detergent and the fabric
conditioner.
• Put the detergent and the fabric conditioner
into the compartments.
• Carefully close the detergent drawer.
Activating the appliance
Press and hold for a couple of seconds the
On/Off button to activate or deactivate the
appliance.
A tune sounds when the appliance is activated.
Setting a programme
1. Touch the programme button and set the
programme:
• The indicator of the button flashes
slowly.
2. If necessary, change the temperature and
the spin speed or add available options.
When you activate an option, the indicator
of the set option comes on.
If you set something incorrect, the
indicator of the button flashes
red three times.
Starting a programme without the delay
start
Touch the button .
• The indicator of the button stops to
flash and stays on.
• The programme starts, the door locks,
the indicator is on.
The drain pump can operate for a
short time at the beginning of the
washing cycle.
Starting a programme with the delay
start
The start of the programme can be delayed by
9, 6 or 3 hours.
1. Touch the button Delay Start to choose
the delay you want to set.
The indicator of the selected delay is on.
2. Touch the button :
• The appliance starts the countdown.
• When the countdown is completed, the
programme starts automatically.
You can cancel or change the set of
the delay start before you touch the
button . After touching the
button you can only cancel the
delay.
www.zanussi.com 11

To cancel the delay start:
1. Touch the button to set the appliance
to pause.
2. Touch the button Delay Start until the
indicator of the set delay goes off.
Touch the button again to start the
programme immediately.
Interrupting a programme and changing
the options
You can change only some options before they
operate.
1. Touch .
The indicator of this button flashes.
2. Change the options.
3. Touch again.
The programme continues.
Cancelling a programme
1. Press the button for some seconds to
cancel the programme and to deactivate the
appliance.
2. Press the same button again to activate the
appliance. Now, you can set a new washing
programme.
Before starting the new programme
the appliance could drain the water.
In this case, make sure that the
detergent is still in the detergent
compartment, if not fill the detergent
again.
Opening the door
While a programme or the delay start operates,
the appliance door is locked. The indicator
is on.
CAUTION!
If the temperature and level of the
water in the drum are too high, you
cannot open the door.
To open the door during the first minutes
of the cycle or when the delay start
operates:
1. Touch the button to pause the
appliance.
2. Wait until the indicator goes off.
3. You can open the door.
4. Close the door and touch the button
again. The programme (or the delay start)
continues.
At the end of the programme
• The appliance stops automatically.
• The acoustic signal operates (if it is
activated).
• The indicator of the button goes off.
• The door lock indicator goes off.
• You can open the door.
• Remove the laundry from the appliance.
Make sure that the drum is empty.
• Press the button for some seconds to
deactivate the appliance.
• Close the water tap.
• Keep the door and the detergent drawer
ajar, to prevent the mildew and odours.
The washing programme is completed,
but there is water in the drum:
• The drum turns regularly to prevent the
creases in the laundry.
• The indicator flashes to remind you to
drain the water.
• The door lock indicator is on. The
indicator of button flashes. The door
stays locked.
• You must drain the water to open the door.
Draining the water:
1. To drain the water.
• Touch the button . The appliance
drains the water and spins with the
maximum spin speed for selected
washing programme.
• Alternatively, touch the button to
change the spin speed and then touch
the button . The appliance drains the
water and spins. If you set , the
appliance only drains.
2. When the programme is completed and the
door lock indicator goes off, you can
open the door.
3. Press the button for some seconds to
deactivate the appliance.
The appliance drains and spins
automatically after approximately 18
hours (except for Wool programme).
12 www.zanussi.com

AUTO-OFF option
The AUTO-OFF stand-by option automatically
deactivates the appliance to decrease the
energy consumption. All the indicators go off
when :
• You do not use the appliance for 5 minutes
before you touch .
Press the button to activate the
appliance again.
• After 5 minutes from the end of the washing
programme.
Press the button to activate the
appliance again.
Touch the button if you want to set a new
cycle.
Hints and tips
The laundry load
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are on
the laundry care labels.
• Do not wash white and coloured items
together.
• Some coloured items can discolour with the
first wash. We recommend that you wash
them separately for the first times.
• Button up pillowcases, close zippers, hooks
and poppers. Tie up belts.
• Empty the pockets and unfold the items.
• Turn multilayered fabrics, wool and items
with painted illustrations inside out.
• Remove hard stains with a special detergent.
• Wash and pre-treat heavy soil stains before
putting items in drum
• Be careful with the curtains. Remove the
hooks and put the curtains in a washing bag
or pillowcase.
• Do not wash laundry without hems or with
cuts. Use a washing bag to wash small
and/or delicate items (e.g. underwired bras,
belts, tights, etc. ).
• A very small load can cause balance
problems with the spin phase. If this occurs,
adjust manually the items in the tub and start
the spin phase again.
Stubborn stains
For some stains, water and detergent is not
sufficient.
We recommend that you pre-treat these stains
before you put the items in the appliance.
Special stain removers are available. Use the
special stain remover that is applicable to the
type of stain and fabric.
Detergents and additives
• Only use detergents and additives specially
made for washing machines:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics
(40 °C max) and woollens,
– liquid detergents, preferably for low
temperature wash programmes (60 °C
max) for all types of fabric, or special for
woollens only.
• Do not mix different types of detergents.
• To help the environment, do not use more
than the correct quantity of detergent.
• Obey the instructions that you find on the on
packaging of these products.
• Use the correct products for the type and
colour of the fabric, the programme
temperature and the level of soil.
• If your appliance does not have the
detergent dispenser with the flap device,
add the liquid detergents with a dosing ball
(supplied by the detergent's manufacturer).
Ecological hints
• Always start a washing programme with the
maximum load of laundry allowed.
• If necessary, use a stain remover when you
set a programme with a low temperature.
• To use the correct quantity of detergent,
check the water hardness of your domestic
system. Refer to "Water hardness".
Water hardness
If the water hardness in your area is high or
moderate, we recommend that you use a water
softener for washing machines. In areas where
the water hardness is soft it is not necessary to
use a water softener.
www.zanussi.com 13

To know the water hardness in your area,
contact your local water authority. Use the correct quantity of the water softener. Obey the instructions that you find on the
packaging of the product.
Care and cleaning
WARNING!
Refer to Safety chapters.
External cleaning
Clean the appliance with soap and warm water
only. Fully dry all the surfaces.
CAUTION!
Do not use alcohol, solvents or
chemical products.
Descaling
If the water hardness in your area is high or
moderate, we recommend that you use a water
descaling product for washing machines.
Regularly examine the drum to prevent limescale
and rust particles.
To remove rust particles use only special
products for washing machines. Do this
separately from the laundry wash.
Always obey the instructions that
you find on the packaging of the
product.
Maintenance wash
With the low temperature programmes it is
possible that some detergent stays in the drum.
Perform a maintenance wash regularly. To do
this:
• Remove all laundry from the drum.
• Select the cotton programme with the
highest temperature with a small quantity of
detergent.
Door seal
Regularly examine the
seal and remove all
objects from the inner
part.
Cleaning the detergent dispenser
Cleaning the inlet hose and the valve
filter
1.
1
2
3
14 www.zanussi.com

2.
3.
4.
45°
20°

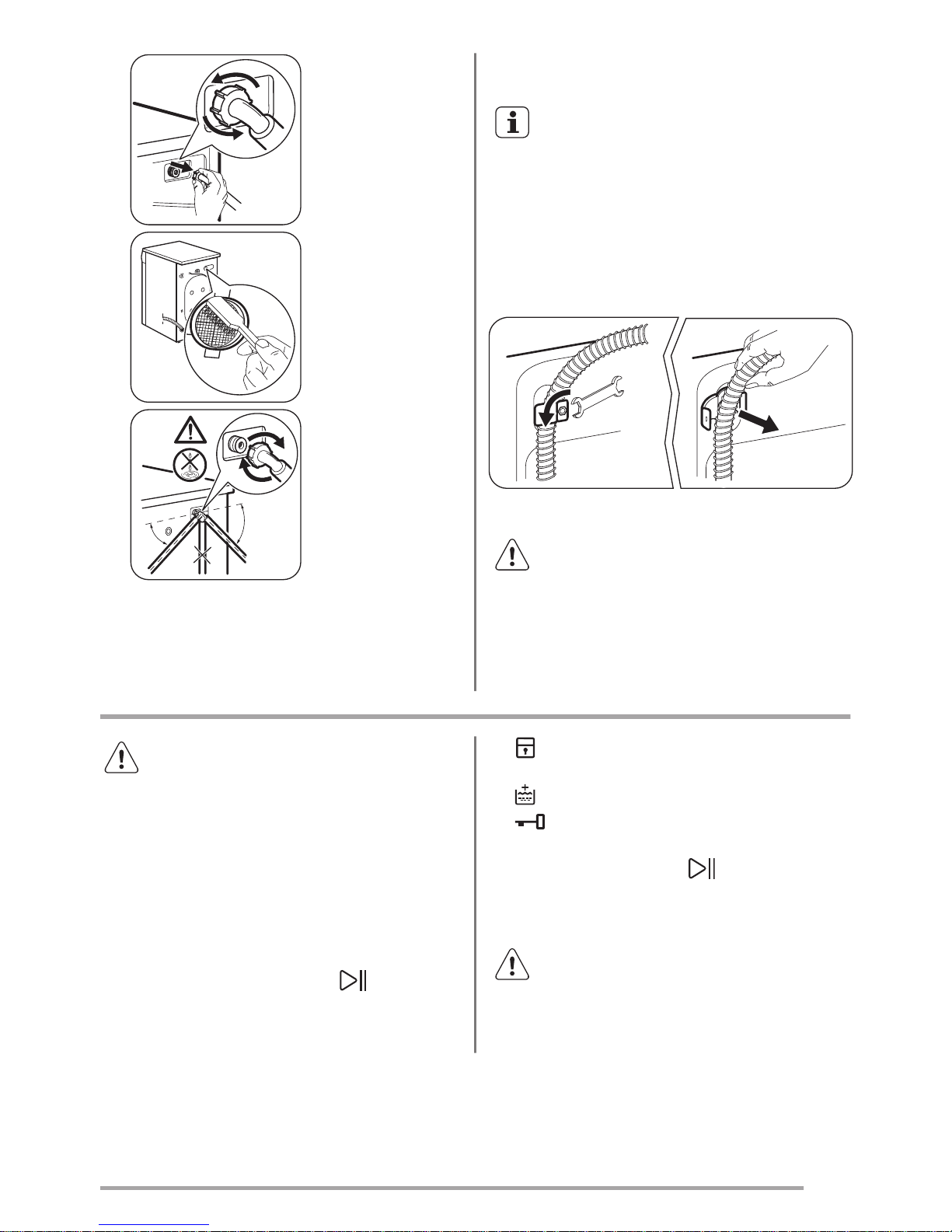

Frost precautions
If the appliance is installed in an area where the
temperature can be less than 0 °C, remove the
remaining water from the inlet hose and the
drain pump.
Do this procedure also when you
want to do the emergency drain.
1. Disconnect the mains plug from the mains
socket.
2. Remove the water inlet hose.
3. Remove the drain hose from the rear
support and unhook it from sink or spigot.
4. Put the ends of the drain and inlet hose in a
container. Let the water flow out of the
hoses.
5. When no more water flows, install the inlet
hose and the drain hose again.
WARNING!
Make sure that the temperature is
more than 0 °C before you use the
appliance again. The manufacturer is
not responsible for damages caused
by low temperatures.
Troubleshooting
WARNING!
Refer to Safety chapters.
Introduction
The start of the appliance does not occur or it
stops during operation.
First try to find a solution to the problem (refer
to the table). If not, contact the Authorised
Service Centre.
With some problems, the acoustic signals
operate. The indicator of button flashes in
red and one of the indicators comes on, to
show an alarm code:
• - The appliance does not fill with water
properly.
• - The appliance does not drain the water.
• - The appliance door is open or not
closed correctly. Please check the door!
• The indicator of button flashes in red 11
times and 1 (or 2 or 3) time(s) in yellow: The
mains supply is unstable. Wait until the
mains supply is stable.
WARNING!
Deactivate the appliance before you
do the checks.
www.zanussi.com 15

Possible failures
Problem Possible solution
The programme does not
start. • Make sure that the mains plug is connected to the mains socket.
• Make sure that the appliance door is closed.
• Make sure that there is not a damaged fuse in the fuse box.
• Make sure that the Start/Pause has been pressed.
• If the delay start is set, cancel the setting or wait for the end of count-
down.
• Deactivate the Child Lock function if it is on.
The appliance does not fill
with water properly. • Make sure that the water tap is open.
• Make sure that the pressure of the water supply is not too low. For
this information, contact your local water authority.
• Make sure that the water tap is not clogged.
• This problem may be caused by the filter of the inlet hose or the valve
drain filter which may be clogged. Refer to “Care and cleaning”. If
problem remains please contact the Authorised Service Centre.
• Make sure that the inlet hose has no kinks or bends.
• Make sure that the connection of the water inlet hose is correct.
The appliance does not drain
the water. • Make sure that the sink spigot is not clogged.
• Make sure that the drain hose has no kinks or bends.
• Make sure that the connection of the drain hose is correct.
• Set the drain option if you set a programme without drain phase.
• Set the drain option if you set an option which ends with water in the
drum.
• This problem may be caused by the clogged drain filter. Please con-
tact the Authorised Service Centre.
The spin phase does not op-
erate or the washing cycle
lasts longer than usually.
• Adjust manually the items in the tub and start the spin phase again.
This problem may be caused by balance problems.
• Set the spin option.
• Set the drain option if you set an option which ends with water in the
drum.
• This problem may be caused by the clogged drain filter. Please con-
tact the Authorised Service Centre.
There is water on the floor. • Make sure that the couplings of the water hoses are tight and there is
not water leakages.
• Make sure that the water inlet hose and the drain hose have no dam-
ages.
• Make sure you use the correct detergent and the correct quantity of
it.
You cannot open the appli-
ance door. • Make sure that the washing programme is finished.
• Set the drain or the spin option if there is water in the drum.
• Do the emergency drain procedure. See "Frost precautions" (in "Care
and Cleaning" chapter).
The appliance makes an un-
usual noise. • Make sure the levelling of the appliance is correct. Refer to 'Installa-
tion instruction'.
• Make sure that the packaging and/or the transit bolts are removed.
Refer to 'Installation instruction'.
• Add more laundry in the drum. The load may be too small.
16 www.zanussi.com

Problem Possible solution
The appliance fills with water
and drain immediately. • Make sure that the drain hose is in the correct position. The end of
the hose may be too low. Refer to 'Installation instruction'.
The washing results are not
satisfactory. • Increase the detergent quantity or use a different detergent.
• Use special products to remove the stubborn stains before you wash
the laundry.
• Make sure that you set the correct temperature.
• Decrease the laundry load.
You cannot set an option. • Make sure that you press only the wanted touch button(s).
After the check, activate the appliance. The
programme continues from the point of
interruption.
If the problem occurs again, contact the
Authorised Service Centre.
If the appliance shows other alarm codes (the
indicator of button flashes in red).
Deactivate and activate the appliance. If the
problem continues, contact the Authorised
Service Centre.
Service
We recommend the use of original spare parts.
When contacting the Authorised Service
Centre, make sure that these data are available.
You can find the information on the rating plate:
model, PNC and Serial Number. (Mod., Prod.
No., Ser. No.)
Technical Data
Dimension Width/ Height/ Depth/ Total
depth 600 mm/ 850 mm/ 520 mm/ 576 mm
Electrical connection Voltage
Overall power
Fuse
Frequency
220 - 240 V
2200 W
10 A
50 Hz
Level of protection against ingress of solid particles and
moisture ensured by the protective cover, except where the
low voltage equipment has no protection against moisture
IPX4
Water supply pressure Minimum
Maximum 0,5 bar (0,05 MPa) 8 bar (0,8 MPa)
Water supply 1) Cold water
Maximum Load Cotton 8 kg
Energy Efficiency Class A+++
Spin Speed Maximum 1400 rpm
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
www.zanussi.com 17

ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it.
Help protect the environment and human health
by recycling waste of electrical and electronic
appliances. Do not dispose of appliances
marked with the symbol with the household
waste. Return the product to your local
recycling facility or contact your municipal
office.
18 www.zanussi.com
*

www.zanussi.com 19

www.zanussi.com/shop
192975281-A-382017
