A-EON Crossland 400 User manual

FOREWORD
Thanks for choosing ATV own produces as your vehicle.
This user manual provides all the details to operate and necessary maintenance procedure to perform
in safety.
Please READ CAREFULLY this manual before operating the ATV.
Please also keep the following information in mind while operating the ATVs.
● PARENTS & ADULTS READ BEFORE OPERATION
Never exceed your riding capabilities.
ATV’s can be hazardous to operate, avoid excessive speed, paved surfaces, sharp turns, and uneven
terrain.
Always have your headlight turned on for improved daylight detection and visibility.
This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for anyone under 16 years of
age.

AN ATV IS NOTATOYAND CAN BE HAZARDOUS TO OPERATE. An ATV
handles differently from other vehicles including motorcycles and cars. A collision or
rollover can occur quickly, even during routine maneuvers such as turning and driving on hills
or over obstacles, if you fail to take proper precautions.
SEVERE INJURY OR DEATH can result if you do not follow these instructions:
● Read this manual and all labels carefully and follow the operating procedures described.
● Never operate an ATV without proper instruction. Take a training course. Beginners should
receive training from take training.
● Never allow anyone under 16 years of age to operate this ATV.
● Never permit a guest to operate this ATV unless the guest has read this manual and all product
labels, and has completed a certified training course.
● Always avoid operating an ATV on sidewalks, driveways, and parking lots.
● Never operate an ATV on a dirt road or gravel one.
● Never operate an ATV without wearing an approved helmet that fits properly. You should also
wear eye protection (goggles or face shield), gloves, boots, long sleeve shirt or jacket, and long
pants.

● Never consume alcohol or drugs before while operating this ATV.
● Never operate at excessive speeds. Always travel at a speed that is proper for the terrain,
visibility and operating conditions, and your experience.
● Never attempt wheelies, jumps or other stunts.
● Always inspect your ATV each time you use it and you make sure it is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in this
manual.
● Always keep both hands on the handlebars and both feet on the footrests of the ATV during
operation.
● Always go slowly and be extra careful when operating on unfamiliar terrain. Always be alert to
changing terrain conditions when operating the ATV.
● Never operate on excessively rough, slippery or loose terrain.
● Always follow proper procedures for turning as described in this manual. Practice turning at low
speeds before attempting to turn at faster speeds. Do not turn at excessive speed.
● Always have the ATV checked by an authorized dealer if it has been involved in an accident.
● Never operate the ATV on hills too steep for the ATV or for your abilities. Practice on smaller
hills before attempting larger hills.

● Always follows proper procedures for climbing hills as described in this manual. Check the
terrain carefully before you start up any hill. Never climb hills with excessively slippery or loose
surfaces. Shift your weight forward. Never open the throttle suddenly or make sudden gear
changes. Never go over the top of any hill at high speed.
● Always follows proper procedures for going down hills and for braking on hills as described in
this manual. Check the terrain carefully before you start down any hill. Shift your weight
backward. Never go down a hill at high speed. Avoid going down a hill at an angle that would
cause the vehicle to lean sharply to one side. Go straight down the hill where possible.
● Always follows proper procedures for crossing the side of a hill as described in this manual.
Avoid hills with excessively slippery or loose surfaces. Shift your weight to the uphill side of the
ATV. Never attempt to turn the ATV. Never attempt to turn the ATV around on any hill until you
have mastered the turning technique described in this manual on level ground. Avoid crossing the
side of a steep hill if possible.
● Always use proper procedures if you stall or roll backwards when climbing a hill. To avoid
stalling, maintain a steady speed when climbing a hill. If you stall or roll backwards, follow the
special procedure for braking described in this manual. Dismount on the uphill side or to either
side if pointed straight uphill. Turn the ATV around and remount, following the procedure
described in this manual.

● Always check for obstacles before operating in a new area. Never attempt to operate over large
obstacles, such as large rocks or fallen trees. Always follow proper procedures when operating
over obstacles as described in this manual.
● Always be careful of skidding or sliding. On slippery surfaces, such as ice, go slowly and be very
cautious in order to reduce the chance of skidding or sliding out of control.
● Avoid operating the ATV through deep or fast flowing water. If you can not avoid water which
exceeds the recommended maximum depth (below the footrest), go slowly, balance your weight
carefully avoiding sudden movements, maintain a slow and steady forward motion, do not make
sudden turns or stops, and do not make sudden throttle changes.
● Always be sure there are no obstacles or people behind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly. Avoid turning at sharp angles in reverse.
● Always use size and type tires specified in this manual. Always maintain proper tire pressure as
described in this manual.
● Never modify an ATV through improper installation or use accessories.
● Never exceed the stated load capacity for anATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow instructions in this manual for carrying cargo. Allow
greater distance for braking.

Contents
Contents Page
Contents Page
Specifications-atv 1
Seat
28
Periodical check & services 4
Spark plug
29
Know your atv 7
Rear gearcase lubrication
30
Vehicle identification numbers
7
Oil level change
31
Control and parts functions 8
Battery
32
Speedometer
10
Suspension
33
Left switch
12
Tires
34
Throttle lever
14
Recoil starter
15
Transmission gear selector operation
16 Operation warnings 35
Front and rear brakes
18 Daily pre-ride inspection 59
Auxiliary brake
19 Correct way driving 61
Parking brake
20 Troubleshooting 64
Engine fuel and oil system
23

1
SPECIFICATIONS
ITEM AT77
Rider Capacity 1(
OFF ROAD
)/ 2(
ON ROAD
)
Displacement 313 cc 346 cc
Bore (standard) / Stroke 78mm×65.6mm 82mm×65.6mm
Engine type 4 Stroke Shaft driven Simple Overhead Camshaft
Special feature Crankshaft driven Balancer Shaft
Cooling Water Cooled
Number of cylinder 1 Vertical position
Differential gear oil 230ml / (SEA 80W/90)
Final gear oil 150ml / (SEA 80W/90)
Engine Oil Capacity 1800ml / (SEA 0w/50)
Transmission Oil Capacity
1200ml / (SEA80W/90)
Fuel capacity 12.7L / (unleaded Gasoline)

2
SPECIFICATIONS
Starting Electric with recoil-start backup
Transmission Automatic (C.V.T system with E-Z shift L/F/N/R)
Spark plug NGK DPR7EA-9 NGK CR8E
Parking Brake Mechanical Lock
Front/Rear Brakes Disc /Disc
Brake Oil type DOT 4
Front tires/PSI 25×7-12 or 23×7-12/7psi
Rear tires/PSI 25×10-12 or 23×10-12/7psi
Front/Rear Suspension Double wishbone/Swing arm
Wheel Base 1200 ㎜
Dry Weight 278 kg
Length 2060 ㎜
Width 1050 ㎜
Height 1130 ㎜

3
SPECIFICATIONS
Battery 12V 12AH
MAX. Load 173kg
Right/left signal ass'y 12V/10W
Tail light /Brake light 12V 5W/21W
License bulb 12V/5W
Head light bulb 12V/5W
High /Low beam ass'y 12V 35W/35W

4
PERIODICAL CHECK & SERVICES
Maintenance Interval
(whichever comes first)
Item
Hours Calender Miles(Km)
Remarks
◆
Engine breather
filter (if equipped)
25H 6 M 250 (400) Inspect; replace if necessary
Engine breather hose 100H 3 M 1000 (1600)
Inspect
◆
General lubrication 50H 6 M 500 (800) Lubricate all fittings, pivots, cables, etc.
Shift Linkage 50H 6 M 500 (800) Inspect, lubricate, adjust
◆
■
Steering 50H 6 M 500 (800) Inspect daily, Lubricate
◆
Front suspension 50H 6 M 500 (800) Inspect, lubricate, Tighten Fasteners
◆
Rear suspension 50H 6 M 500 (800) Inspect, lubricate, Tighten Fasteners
Carburetor float bowel
50H 6 M 500 (800) Drain bowel periodically and prior to storage
■
Throttle Cable/ETC
Switch
50H 6 M 500 (800) Inspect; adjust; lubricate; replace if necessary
■
Choke cable 50H 6 M 500 (800) Inspect; adjust; lubricate; replace if necessary
Carburetor air intake
ducts/flange
50H 6 M 500 (800) Inspect ducts for proper sealing/air leaks
Drive belt 100H 12 M 1000 (1600)
Inspect; adjust; replace as needed
Cooling system
(if applicable)
50H 6 M 500 (800) Inspect coolant strength seasonally; pressure
test system yearly

5
PERIODICAL CHECK & SERVICES
◆
Engine oil change
*Severe Duty
**Normal Duty
25H
50H
6 M
12 M
500 (800)
1000 (1600)
Perform a break-in oil change at 25 hours/one
month, change more frequently during cold
weather
◆
Engine oil change
*Severe Duty
**Normal Duty
25H
50H
6 M
12 M
500 (800)
1000 (1600)
Replace at oil change
◆
Oil filter change 100H 6 M 1000 (1600)
Replace with oil change
◆
Valve clearance 100H 12 M 1000 (1600)
Inspect; adjust
■
Fuel system 100H 12 M 1000 (1600)
Check for leaks at tank cap, lines, fuel valve, filter,
pump, carburetor; replace lines every two years
■
Fuel filter 100H 12 M 1000 (1600)
Replace yearly
◆
Radiator
(if applicable)
100H 12 M 1000 (1600)
Inspect; clean external surfaces
◆
Cooling hoses
(if applicable)
100H 12 M 1000 (1600)
Inspect for leaks
◆
Engine mounts 100H 12 M 1000 (1600)
Inspect
Exhaust muffler/pipe 100H 12 M 1000 (1600)
Inspect
■
Spark plug 100H 12 M 1000 (1600)
Inspect; replace as needed

6
PERIODICAL CHECK & SERVICES
■
Ignition Timing 100H 12 M 1000 (1600)
Inspect
◆
Wiring 100H 12 M 1000 (1600)
Inspect for wear, routing, security; apply dielectric
grease to connectors subjected to wear, mud, etc.
■
Clutches (drive and
driven)
100H 12 M 1000 (1600)
Inspect; clean; replace worn parts
■
Front wheel bearings 100H 12 M 1000 (1600)
Inspect; replace as needed
■
Brake fluid 200H 24 M 2000 (3200)
Change every two years
Spark arrestor 300H 36 M 3000 (4800)
Clean out
Idle speed Adjust as needed
■
Toe adjustment Inspect periodically; adjust when parts are replaced
◆
■
Auxiliary brake Pre-Ride Inspect daily; adjust as needed
Headlight aim Adjust as needed
◆Perform these procedures more often for vehicles subjected to severe use.
■Have an authorized dealer perform these services.

7
KNOW YOUR ATV

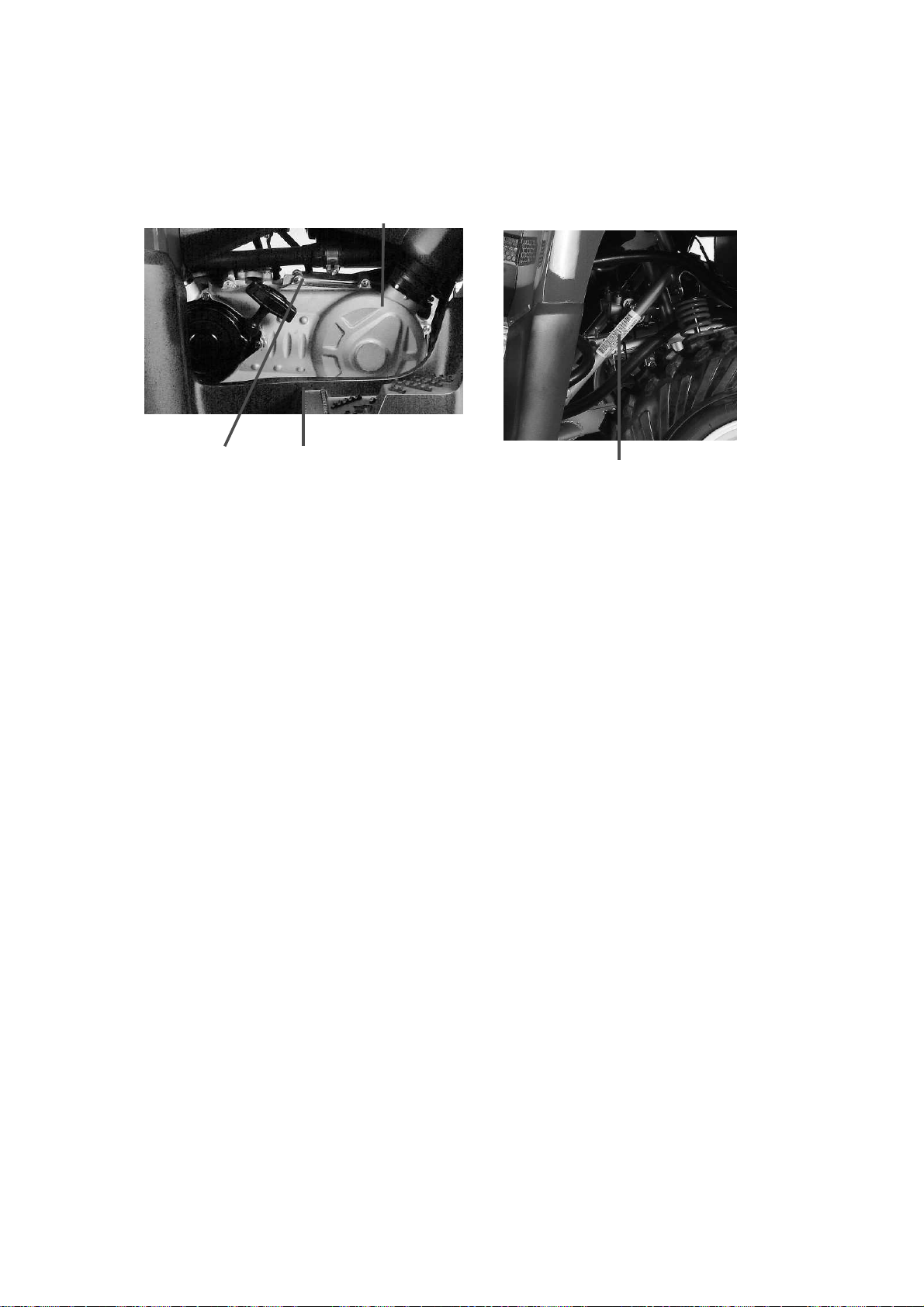

VEHICLE IDENTIFICATION NUMBERS
Record these numbers from your ATV in the spaces provided.
1. Engine service number (left side of
engine crankcase)
2. Frame VIN (found on the right of
frame below steering post)
3.
Engine case
Engine number
Foot floor
V.I.N

8
CONTROL AND PARTS FUNCTIONS
Left Brake Lever
Left Switch
Right Brake
Throttle Lever
Speedometer

9
CONTROL AND PARTS FUNCTIONS (ON ROAD)
L. Rearview R. Rearview
Mirror Mirror
Throttle Lever
Left Switch

10
CONTROL AND PARTS FUNCTIONS
SPEEDOMETER
(1). Switch button
(2). Left direction light
(3). L stick Instruction light
(4). N stick Instruction light
(5). Warning light
(6). Return zero button
(7). Right direction light
(8). High beam light
(9). LCD Display panel
(10). R stick Instruction light
(1) (6)
(2)
(8)
(3)
(5)
(7)
(9)(4)
(10)

11
CONTROL AND PARTS FUNCTIONS (ON ROAD VERSION)
Horn Button
● Turn on main switch and press the horn button.
It will sound.
Do not press the horn button in the “silent
zone”
Main Switch
● To start the engine
● The key can not be taken out
● To turn off the engine
● The key can be taken out
● To turn on the head light
● The key can not be taken out

12

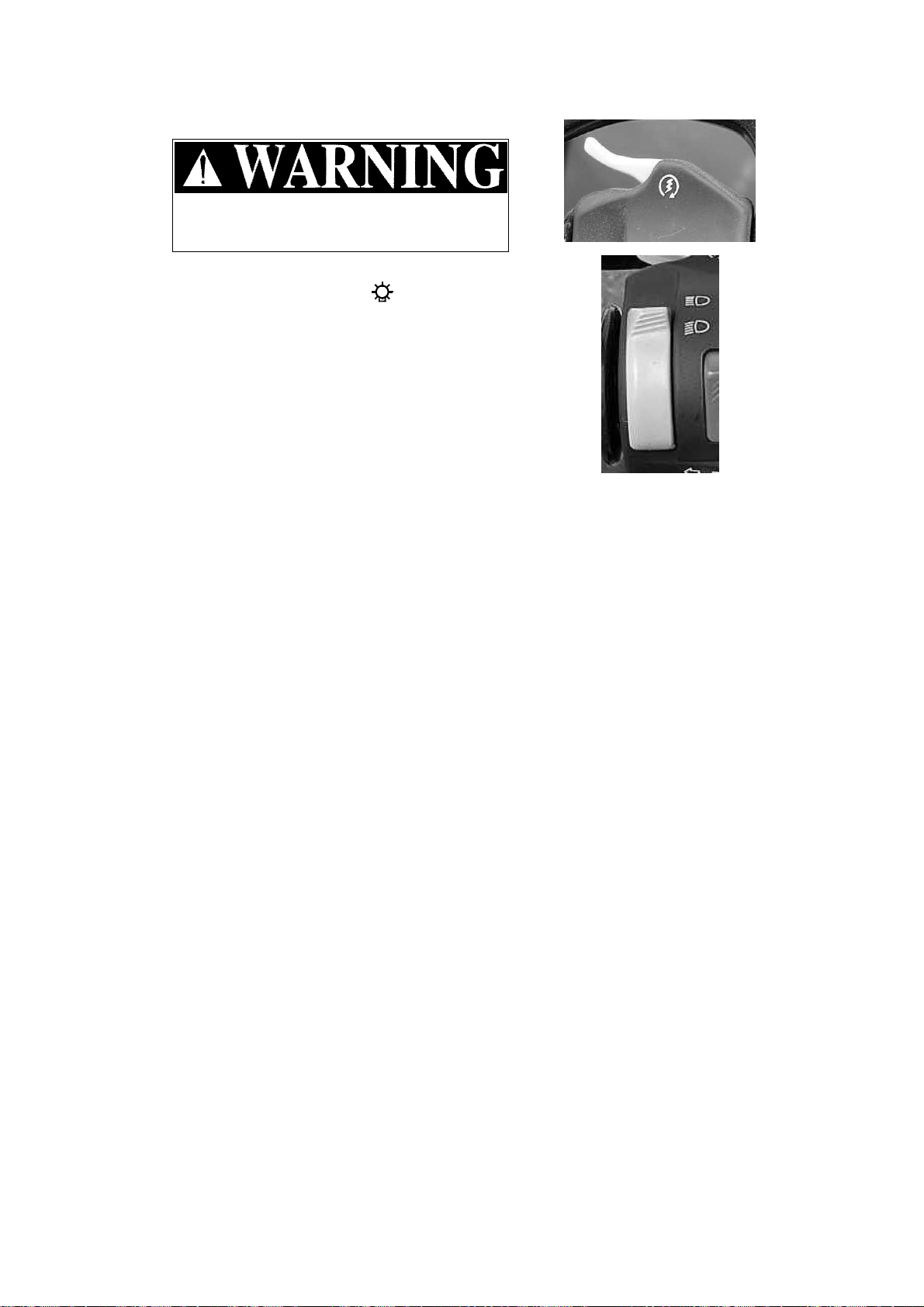

CONTROL AND PARTS FUNCTIONS (ON ROAD VERSION)
Left Switch
Electric Starter Switch
● Press the switch to start engine
Do not push the starter again when the
engine is already running.
High Beam and Low Beam Switch
Turn the main switch to position, and the
headlight will be on.

13
CONTROL AND PARTS FUNCTIONS (OPTION)
Emergency Switch
● When you operate the ATV and meet with
the emergent situation. You can turn on the
emergency light, and park the vehicle in
safe area.
Do not turn on the headlight when turn on
the emergency light.
Turn Signal Switch
● Turn on the turn signal before you want to
turn left or right.

14
CONTROL AND PARTS FUNCTIONS
2WD/4WD Selection Switch (4WD Only)
The 2WD/4WD selection switch is used for
changing the manner in which engine power is
supplied to the wheels. Select 2WD/4WD according
to surface conditions.
Throttle Lever
Accelerate:
Press the throttle lever for acceleration
Decelerate:
Release the throttle lever for deceleration
The spring of the lever will return to the position
prior pressing and the vehicle will stop accelerating
automatically.
There is a bolt on throttle box, which is designed to limit the throttle open degree. If the bolts are
tightened, the open degree of the throttle will be limited.
Always accelerate slowly; speed too quickly will be danger.
Accelerating
Throttle Lever
2WD/4WD Selection Switch
12 volt accessory outlet
Table of contents
Other A-EON Offroad Vehicle manuals
