Usage Notice
When the lamp
reaches the end
of its life, the
projector will
not turn back on
until the lamp
module has
been replaced.
To replace the
lamp, follow
the procedures
listed under
“Replacing the
Lamp” section
on pages 43-44.
Precautions
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
▀■Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt your eyes.
▀■Warning- To reduce the risk of  re or electric shock, do not
expose this projector to rain or moisture.
▀■Warning- Please do not open or disassemble the projector as
this may cause electric shock.
▀■Warning- When replacing the lamp, please allow the unit to
cool down. Follow instructions as described on pages
43-44.
▀■Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
▀■Warning- Reset the “Lamp Reset” function from the on-screen
display “Options|Lamp Settings” menu after replacing
the lamp module (refer to page 37).
▀■Warning- When switching the projector off, please ensure
the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the
projector to cool down.
▀■Warning- Do not use lens cap when projector is in operation.
▀■Warning- When the lamp is approaching the end of its lifetime,
the message “Lamp Warning: Lamp life exceeded.”
will show on the screen. Please contact your local
reseller or service center to change the lamp as soon
as possible.

3English
Usage Notice
Do:
Turn off and unplug the power plug from the AC outlet before
cleaning the product.
Use a soft dry cloth with mild detergent to clean the display
housing.
Disconnect the power plug from AC outlet if the product is
not being used for a long period of time.
Do not:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within
5 - 35°C.
Relative Humidity is 5 - 35°C, 80% (Max.),
non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.

4
English
Usage Notice
Product Features
▀■XGA (1024x768) / SVGA (800x600) Native resolution
▀■ One built-in speaker with 2 watt amplier
▀■HDTV compatible (720P, 1080i/p)
▀■VGA monitor Loop Through
(works on standby mode > 1W)
▀■BrilliantColorTM Technology
▀■Security Bar and Kensington Lock
▀■RS232 control
▀■Rapid shutdown

5English
Introduction
Power Cord 1.8m
IR Remote Control
Package Overview
Unpack and inspect the box contents to ensure
all parts listed below are in the box. If something
is missing, please contact your nearest customer
service center.
Documentation :

User’s Manual

Warranty Card

Quick Start Card

WEEE Card
(for EMEA only)
Due to different
applications in
each country,
some regions
may have
different
accessories.
2 × AAA Batteries
Projector with lens cap VGA Cable 1.8m
Carrying case
(Option)

6
English
Introduction
1. Control Panel
2. Zoom Ring
3. Focus Ring
4. Zoom Lens
5. IR Receiver
Main Unit
Product Overview
6. Tilt-Adjustment Feet
7. Security Bar
8. Input / Output Connections
9. Power Socket
2
VGA1- IN / SCART
S-VIDEO
VIDEO
RS232
AUDIO-OUT
AUDIO-IN
VGA-OUT
VGA2- IN
4
6
6
3
1
7
9
8
6
5

7English
Introduction

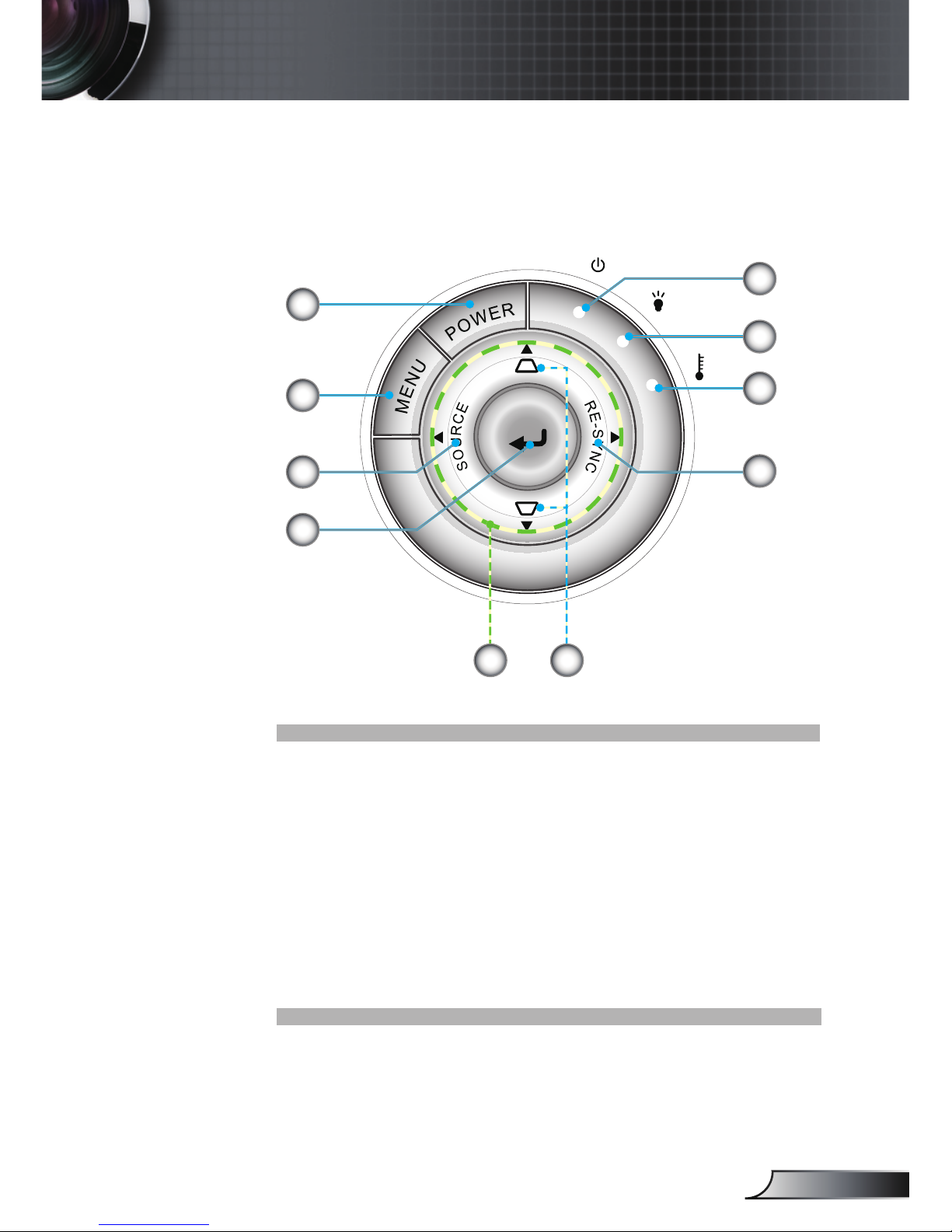

Control Panel
1. Power/Standby
2. Menu
3. Source
4. Enter
5. Re-Sync
6. Temp LED
7. Lamp Fail LED
8. Power LED
9. Four Directional Select Keys
10. Keystone Correction
2
1
6
7
8
5
10
3
4
9

8
English
Introduction
Input / Output Connections
1. VGA1-In/SCART Connector
(PC Analog Signal/Component Video Input/HDTV/SCART)
2. S-Video Input Connector
3. Composite Video Input Connector
4. RS-232 Connector (3-pin)
5. Audio Output Connector (3.5mm Mini Jack)
6. Power Socket
7. Audio Input Connector (3.5mm Mini Jack)
8. Security Bar
9. KensingtonTM Lock Port
10. VGA-Out Connector (Monitor Loop-through Output)
VGA1- IN / SCART S-VIDEO VIDEO
RS232
AUDIO-OUT
AUDIO-IN
VGA-OUT
VGA2- IN
4 5321
6 87 9
The items below are only for models that operate
with XGA model:
11. VGA2-In Connector
(PC Analog Signal/Component Video Input/HDTV)
11 10

9English
Introduction

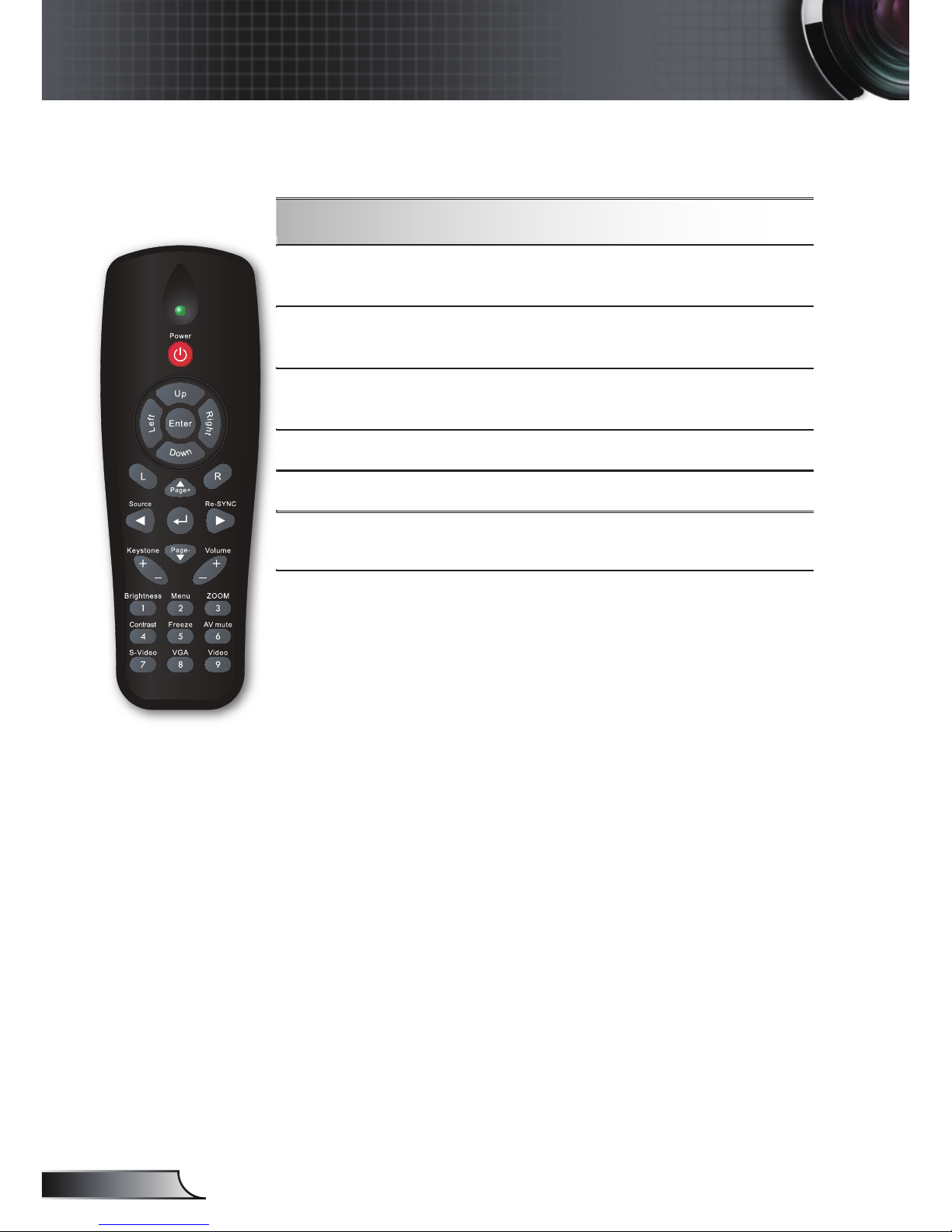

Remote Control
1. LED Indicator
2. Power On/Off
3. No Function on this model
4. No Function on this model
5. Four Directional
Select Keys
6. Re-Sync
7. No Function on this model
8. Volume +/-
9. Zoom
10. AV mute
11. Video
12. VGA
13. Freeze
14. S-Video
15. Contrast
16. Brightness
17. Menu
18. Keystone +/-
19. Source
20. Enter
21. No Function on this model
22. No Function on this model
23. Numbered keypad
(for password input)
1
9
10
1213
22
14
15
16
20
17 8
11
23
2
3
6
7
5
4
18
19
21

10
English
Installation
VGA1- IN / SCART S-VIDEO VIDEO
RS232
AUDIO-OUT
AUDIO-IN
VGA-OUT
VGA2- IN
E62405SP
R
Connecting the Projector
Due to the
difference in
applications
for each
country, some
regions may
have different
accessories.
(*) Optional
accessory
Connect to Computer/Notebook
1
3
1....................................................................................................Power Cord
2.....................................................................................................VGA Cable
3................................................................................................*RS232 Cable
4.........................................................................................*Audio Input Cable
5........................................................................................*VGA Output Cable
6......................................................................................*Audio Output Cable
4
2
Only present on
XGA models.
5
6
