GPS TRACKER USER
MANUAL
GT06
PREFACE
Thank you for purchasing GPS tracker. This manual shows how to operate the
device smoothly in details, please make sure to read this manual carefully before
using the device. Please be noted that any update of the manual is made without
prior notice. Each time the update of the manual will be released in the latest
product sales. The manufacturer won’t assume any legal responsibility for any
errors or omissions made in this manual.
1.Hardware Description
1) device face up the sky When install in car. if the windscreen glued by metal
thermal insulation layer or heating layer, it will reduce the GPS receive signal
and lead to GPS work disorder.
(The GPS tracker must be installed by professional personnel)

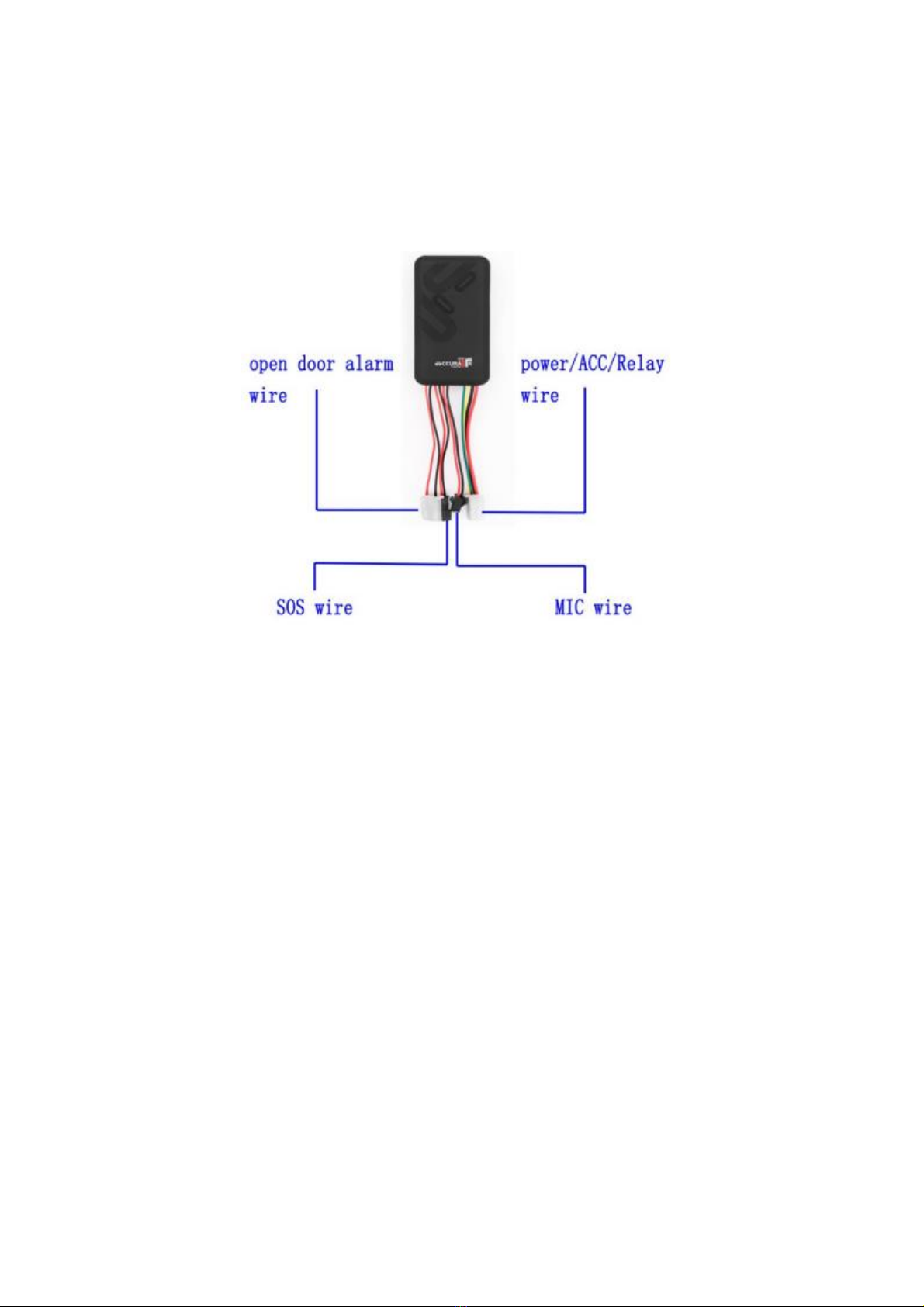

2. Device wiring diagram
Wires connection ,device power wire connection as above:
2.1 Red wire connects to vehicle power positive +
2.2 Black wire connects to vehicle power negative -
2.3 Yellow wire connects to relay yellow wire
2.4 Green wire connects to ACC wire
2.5 thin Red wire connects to the door control circuit if it is positive
2.6 thin black wire connects to the door control circuit if it is negative
Knowing about the type of the door trigger is positive or negative trigger
INDICATOR LIGHT STATUS
MEANING
green light -Solid
GSM signal connection
green light -Flash
NO GSM connection
Blue light -Solid
GPS signal connection
Blue light -Flash
searching gps signal
Red light- Solid
connection external power
Red light-Flash
disconnect external power
Note: All led will turn off after 10 minutes for best hide
Connect 12V-36 v voltage of the power supply
3. Notices:
1).GPS tracking can be worked outdoor. Must have mobile phone gsm signal and
have GPS signal, It can block GPS satellite signal when there are metal
or building above the GPS tracker
2).Pls make sure GSM 2g SIM card or4G/3G compatibility 2G GSM network sim
card, supports making calls, sending messages, GPRS network.have money.
Quick using
1) Open the rubber cover, insert the SIM card to the slot.
2) Put device outdoor ,connect to power supply 9V/36V ,
3) Must turn on small switch to “ON”place.
4) Use mobile phone call the device and hang up
or sending message “smslink123456”to sim card in tracker ,then send message
EXPLANATION OF PARAMETERS/CODES IN SMS MESSAGE

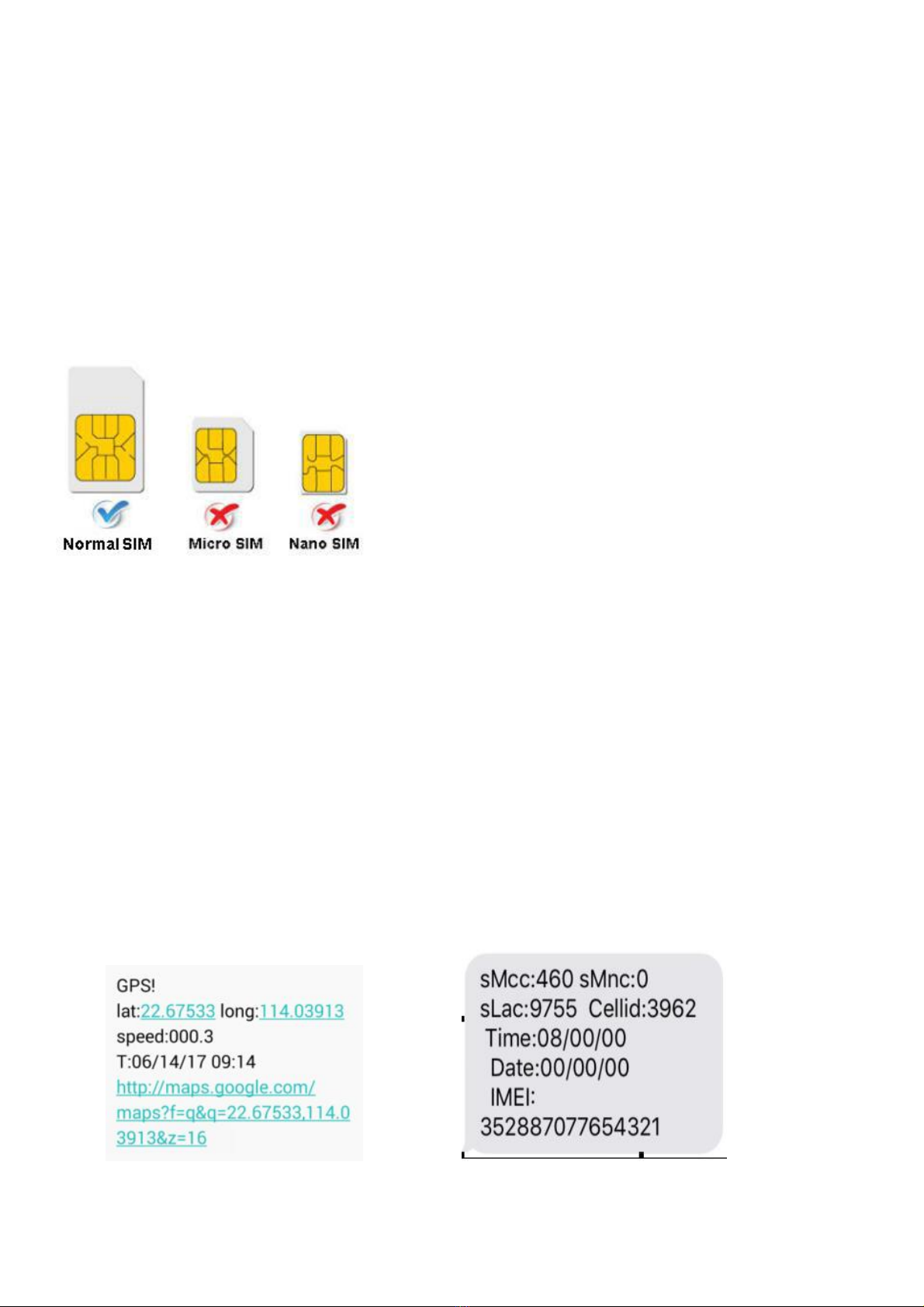

Pic（1）have gps signal Pic(2)no gps signal
Pic 1：Replied real-time tracking information under GPS satellites signal.
◆Lat:22.67533 lon:114.03913 Positioning of the latitude and longitude values.
◆Speed：000.3 device moving speed. The unit is km/h.
T:06/14/17 09:14 Real-tracking time, the Default is London time. You can
Set a time zone by sms command
Google Link: Google map showing the position of the device.
Pic 2：Replied LBS information without GPS satellites signal.
◆smcc:27a4 1223: Real-time LBS data.
◆Time:08/00/00 LBS positioning time.
If you received positioning information as picture 2, please take gps tracker go to
outdoor and Walking ,then you can receive the satellite signal.
4:Support Website tracking and APP tracking
4.1 Scan APP and Download APP
1)scan QR code---open with browser--- choose Android or
IPHONE---download-- installation app
PC login APP login
NOTE:If device online in platform, no need set apn commands
If you insert the correct SIM card and open GPRS, device in outdoor, still not
online.Please set the APN commands
we have two methods to find out apn content:ask sim card company or put sim card
into cell phone to find out APN
SMS1: APN123456+space+Apn name ( APN name pls ask the sim card
company ,for example tell you the apn name is ABC,so send APN123456 ABC)
If have the APN user name and password, need plus APN user name and password
behind the APN name)
Eg:APN123456+space+APNname+space+APNuser name+space+ APNpassword
If device online in platform, no need set apn commands
5. Set SMS Command
NOTE:
1) Device default password:123456,Note the space key in the command
2)use of mobile phone APP or send message to tracker about all set command
3)the default alarm way is SMS+platform
Send command “way123456 2”to sim card in gps tracker,device alarm to
SMS+platform+call.
INSTRUCTION
Example
REPLY
gprs mode(default app
tracking)
gprs123456(default no need set)
gprs ok
Cancel gprs(sms tracking)
sms tracking
sms123456(default no need set)
Sms ok
Smslink123456
Get address
Set admin number
admin123456 mobile number
admin ok
Cancel admin number
noadmin123456 mobile number
noadmin ok
Set time zone
time zone123456 1(default no need set)
(1 is east 1, -1 is west 1)
Time zone ok
Set time zone(half time zone)
Time zone123456 8 30
(8 30 is east 8.5 time zone)
time zone ok
set move alarm
move123456
move ok
Cancel move alarm
nomove123456
nomove ok
Cancel low battery alarm
Lowbattery123456 off
Low batter ok
Acc alarm(message inform)
acc123456
Acc ok
Cancel acc
Noacc123456
Noacc ok
Cut off oil or power
(If the car is driving at high
speed,more Safer by set stop
car)
Cut123456
(it will control stop the car when the
speed is less than 20KM/H)
Stop engine
success
Cut off oil or power
Stop123456(quick control stop car)
Stop ok
Resume cut off oil or power
resume123456
Resume engine
real-time tracking (default 10s)
fix030s***n123456(default no need set)
Every30s/1times positioning Can
change time interval
T n ok
6.FAQ and processing methods.
FAQ
Instructions/Solutions
Fail to turn it
on
Please check if connect to power 9V-36V and red light if Solid
No GSM signal
Please check if SIM card installed correctly and have money,have gprs
there a mobile phone GSM signal
Please check if SIM card is 2G or 4G/3G Compatible 2G GSM network.
Don’t turn on the PIN code and no calls can be diverted
⚫
⚫no calls can be diverted
⚫Please check if voltage of the power is normal
⚫
⚫Please check if voltage of the power is normal
电源电压是否正常
No GPS
A more open view of the sky is recommended to make sure the receive
the GPS signal normally.in outdoor and take device to walk around
No reply to
SMS
command
Password wrong or the format is wrong. restore factory settings send
messages begin123456
SMS position
OK, cannot the
APPposition
Pls check if APN is correctly set or check whether have GPRS in
sim card
Platform
position is
difference and
the actual
position.
position time don't update or no GPS signal: call the device SIM card
number and receive the position message. If it shows like Pic 2, pls
make sure the device can receive the GPS signal normally.in
outdoor,and take device to walk around, make sure sim normal
7 . Deaoke GT06 Specifications
Content
Specs.
Dim.
95*50*13mm
Weight
59g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz
GPS sensitivity
-159dBm
GPS accuracy
5m
Work voltage
12V-36v
Time To First Fix
Cold status 45s
Warm status 35s
Hot status 1s
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +55°C
Humidity
5%--95% non-condensing
8.If need registerAdministrator account and tracking multiple devices
operation ：point user registartion--- Fill in the APP---login in registered accounts
device list----add device---fill in --OK
If you add device more than two , continue to add IMEI number
9. If want use other platform ,pls set new ip and port.(No need to set by default)
SMS1: adminip123456+space+IP+space+port
Eg: Adminip123456 103.110.152.62 7018
