Acer RS700 User manual

AcerAltos RS700 EnclosureAcerAltos RS700 Enclosure
Installation GuideInstallation Guide

ii
CopyrightCopyright
Copyright 1998 by this company. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or
by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of this company.
DisclaimerDisclaimer
This company makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties, merchantability or fitness for any particular purpose. Any
software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not this
company, its distributor, or its dealer) assumes the entire cost of all
necessary servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Further, this company reserves the
right to revise this publication and to make changes from time to time in the
contents hereof without obligation to notify any person of such revision or
changes.
All brand and product names mentioned in this manual are trademarks and/or
registered trademarks of their respective holders.

iii
IMPORTANT SAFETYIMPORTANT SAFETY
INSTRUCTIONSINSTRUCTIONS
1. Read these instructions carefully. Save these instructions for future
reference.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water.
5. Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided
for ventilation; to ensure reliable operation of the product and to protect
it from overheating, these openings must not be blocked or covered.
The openings should never be blocked by placing the product on a bed,
sofa, rug, or other similar surface. This product should never be placed
near or over a radiator or heat register, or in a built-in installation unless
proper ventilation is provided.
7. This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
8. This product is equipped with a 3-wire grounding-type plug, a plug
having a third (grounding) pin. This plug will only fit into a grounding-
type power outlet. This is a safety feature. If you are unable to insert
the plug into the outlet, contact your electrician to replace your obsolete
outlet. Do not defeat the purpose of the grounding-type plug.
9. Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.

iv
10. If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does
not exceed the extension cord ampere rating. Also, make sure that the
total rating of all products plugged into the wall outlet does not exceed
15 amperes.
11. Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the
product.
12. Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks.
Refer all servicing to qualified service personnel.
13. Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed
b. If liquid has been spilled into the product
c. If the product has been exposed to rain or water
d. If the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are
covered by the operating instructions since improper adjustment of
other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to
normal condition.
e. If the product has been dropped or the cabinet has been damaged
f. If the product exhibits a distinct change in performance, indicating
a need for service
14. Replace battery with the same type as the product's battery we
recommend. Use of another battery may present a risk of fire or
explosion. Refer battery replacement to a qualified serviceman.
15. Warning! Battery may explode if not handled properly. Do not
recharge, disassemble or dispose of in fire. Keep away from children
and dispose of used battery promptly.

v
16. Use only the proper type of power supply cord set (provided in your
keyboard/manual accessories box) for this unit. It should be a
detachable type: UL listed/CSA certified, type SVT/SJT, rated 6A 125V
minimum, VDE approved or its equivalent. Maximum length is 15 feet
(4.6 meters).

vi
FCC Class B Radio FrequencyFCC Class B Radio Frequency
Interference StatementInterference Statement
Note:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/television technician for help.
Notice 1:
The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Notice 2:
Shielded interface cables, if any, must be used in order to comply with the
emission limits.

vii
About this ManualAbout this Manual
Purpose
This manual aims to give you all the information you need to install the
enclosure.
Conventions
The following conventions are used in this manual:
NOTE
Gives bits and pieces of additional
information related to the current topic.
CAUTION
Suggests precautionary measures to avoid
potential hardware or software problems.

viii

ix
Table of ContentsTable of Contents
Chapter 1 Introduction
Overview .......................................................................................1
Standard Configuration..................................................................1
Features .......................................................................................3

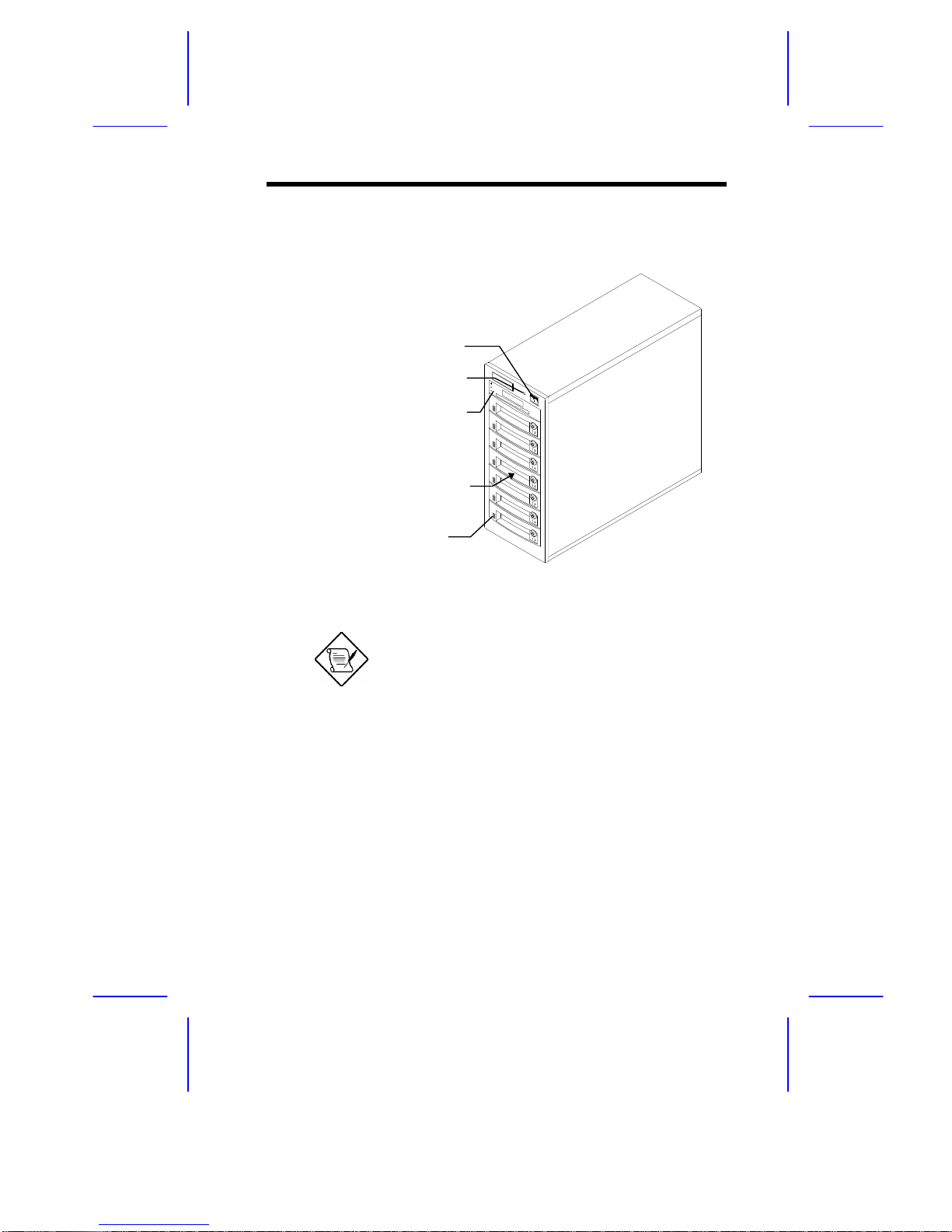

Front Panel..........................................................................5
Rear Panel..........................................................................6
Getting Started...............................................................................6
Chapter 2 Hardware Installation
Drive Tray and Back Plane Board .................................................8
Drive Tray ...........................................................................8
To install a hard disk drive:.................................................9
Back Plane Board .............................................................11
Removing and Installing the Redundant Power Supply...............12
Removing a Redundant Power Supply.............................13
Installing a Redundant Power Supply ...............................13
Installing the RS700-RM101/102 into the AcerAltos
Rack..................................................................................15
Vertical Mounting Hole Pattern .........................................15
Chapter 3 Setting Up the RS700
For RS700-TR101/RM101 Models..............................................18
For RS700-TR102/RM102 Models..............................................19
Connecting Two RS700s into a SCSI Channel (for
TR102/RM102 only)..........................................................20

x
Chapter 4 Removing and Installing the Enclosure
Panels
Removing the Left and Right Panel ............................................22
Installing the Enclosure Frame ...................................................23
Chapter 5 Cluster Server Connection
Introduction .................................................................................24
Cluster solution for AcerAltos Server ...............................25
Acer’s Cluster Solution................................................................26
Solutions ........................................................................26
The Architecture of Acer’s Cluster Server........................28
Two-node Cluster Cable Kits for Rackmount or Stand-
Alone.................................................................................29
System Requirements.................................................................30
Hardware Requirements ..................................................30
Software Requirements....................................................30
Hardware Installation and Configuration.....................................31
Hardware Installation........................................................31
Hardware Configuration....................................................31
Planning your Cluster Environment.............................................36
Windows NT Configuration...............................................36
Network Requirements.....................................................36
Software Installation and Configuration ......................................38
Install Windows NT server 4.0 on node1....................................39
Install Windows NT server 4.0 on node2....................................40
Check the Functions of Network Between Two Nodes...............41
Format the Shared Drives on the AcerAltos RS700 ...................42
Install MSCS (Microsoft Cluster Server) on node1.....................44

xi
Install MSCS (Microsoft Cluster Server) on node2......................54
How to Confirm Acer’s Cluster Server.........................................57
Chapter 6 Manageability
Acer RAID Manager ....................................................................58
Advanced Server Manager (ASM)...............................................58
Appendix A AcerAltos 3102RS RAID (Redundant Array
of Independent Drive) Controller
Basic Features.............................................................................59
Channel Connection Setup Table................................................61
Appendix B SCSI Expander
Features .....................................................................................62
Layout .....................................................................................63
SCSI Terminator Jumper..................................................64
Installing the SCSI Expander.......................................................64
Connecting the SCSI Expander...................................................65
Extending the Cable Length of SE Signals.......................65
Appendix C Troubleshooting ...................................... 67

1
Chapter 1 Introduction
Overview

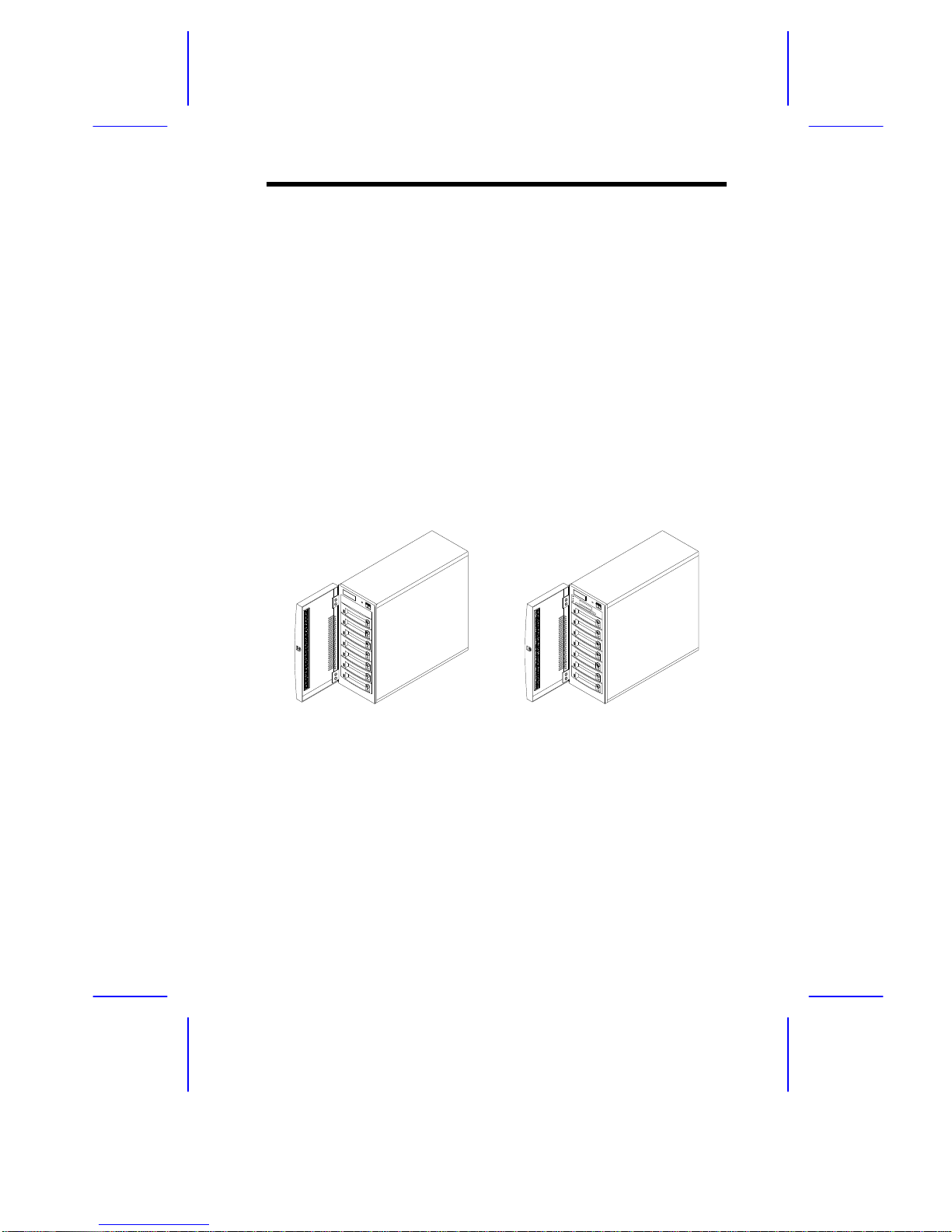

The AcerAltos RS700 RAID Enclosure series is designed to expand more
disk capacity and enhanced fault-tolerant RAID (Redundant Array of
Independent Disk) with Ultra-2 SCSI performance for PC servers. This
installation guide will show you how to install the basic system components
such as disk drives and power supplies. Descriptive illustrations accompany
the installation procedures.
Standard Configuration
RS700 comes in four models:
RS700-TR101
(Tower enclosure without RAID) RS700-TR102
(Tower enclosure with RAID)

2
For RS700-TR 101:
• Single SCSI Channel with 7 drive bays
Default SCSI ID is 8,9,10,11,12,13, and 14
• One internal Ultra-2 SCSI terminator
• One external Ultra-2 SCSI cable (1000mm)
For RS700-TR 102:
• Dual Internal SCSI channel:
• First SCSI channel with 3 drive bays. Default SCSI ID is 0, 1, and
2
• Second SCSI channel with 4 drive bays. Default SCSI ID is 0, 1,
2, and 3
• One external Ultra2 SCSI cable (1000mm)
• Two internal Ultra2 SCSI terminators
• One SCSI expander (SE to LVD converter)
• One AA-3102RS RAID Controller with 16 MB EDO RAM (Refer to
Appendix A for default setting)
RS700-RM101
(Rack Mount enclosure without RAID) RS700-RM102
(Rack Mount enclosure with RAID)

3
For RS700-RM 101:
• Single SCSI Channel with 7 drive bays
Default SCSI ID is 8,9,10,11,12,13, and 14
• One internal Ultra2 SCSI terminator
• One external Ultra2 SCSI cable (2500mm)
For RS700-RM 102:
• Dual Internal SCSI channel:
• First SCSI channel with 3 drive bays. Default SCSI ID is 0, 1, and
2
• Second SCSI channel with 4 drive bays. Default SCSI ID is 0, 1,
2, and 3
• One external Ultra2 SCSI cable (2500mm)
• Two internal Ultra2 SCSI terminators
• One SCSI expander (SE to LVD converter)
• One AA-3102RS RAID Controller with 16 MB EDO RAM (Refer to
Appendix A for default setting)
Features
RS700 supports the following features:
• Hard Drive Interface
• Supports up to seven 1” or 1.6” drives (Ultra-2)
• Supports 4 GB, 9 GB, and 18 GB hard drive
• 7,200 RPM and 10,000 RPM hard drive support
• Ultra-2 (80 MB/sec.) interface (for TR101/RM101 model only)
• Cooling fan for each hard disk drive tray
• Hot-swappable drive tray for on line maintenance

4
• Power Supply
• Supports up to two 300W power supplies
• Redundant and hot-swappable for on line maintenance
• Manageability (for RM102/TR102 models only)
• Components can be monitored with management utility (hard disk
drive, power supply, hard disk drive cooling fan and housing fan)
• Power and hard drive failure LED
• Easy-to-use GUI for configuring RAID system
• Capable of monitoring system events
• Key lock security
• Lock/unlock front bezel (for TR101/TR102 models only)
• Lock/unlock hard drive bays
• Lock/unlock power supplies
• External Ultra-2 SCSI round cable
• SCSI connection (68-pin to 68-pin) between RS700 and host
server
• AcerAltos 3102RS RAID controller (for RM102/TR102 models only)
• Ultra-SCSI to ultra-SCSI
• Supports RAID 0,1,3, and 5
• Front panel LCD
• Three SCSI channels (one for host channel)
• SCSI expander (for RM102/TR102 models only)
• Converter which changes single-ended electrical signal type to low
voltage differential (LVD) electrical signals
• Used when legacy Ultra Wide SCSI device is attached

5
Front Panel
The Power LED blinks if the power supply fails.
The ID number LED displays a “]” sign when the
fan of the SCSI hard disk drive tray fails.
Power Switch
Power LED
SCSI RAID Controller (for
TR102/RM102 models only)
Hot-swap Removable
Drive Bays
ID Number LED

6
Rear Panel
Getting Started
Before you turn on the storage enclosure do the following:
1. Make sure the power voltage switch (115 volts or 230 volts) is set
correctly to the right voltage before turning on the power.
2. Install the RS700 into the Rack (for RM101 and RM102 models only).
3. Install the SCA hard disk drives into the drive trays and check the hard
disk drive ID numbers.
4. Lock all drive trays.
SCSI Expansion
slots
Redundant Fans
Hot-swap
Redundant
Power Supplies
Disable Power
Alarm Button
(red)
Power Connector
Cooling Fan
COM Ports

7
5. Connect the external Ultra-2 SCSI cable between the host server and
RS700.
6. Power on the RS700.
7. Configure the Acer RAID controller on the RS700 (for TR/102 and
RM102 models only). Refer to the AcerAltos 3102RS and Acer RAID
Manager User’s Guides for more information.
8. Unlock the drive trays if they do not have a hard disk drive inside (for
TR102 and RM102 models only).
9. After unlocking the drive trays, the fan defect alarm will sound. Press the
“ENT” button on the Acer RAID controller for two seconds to disable the
error message (for TR102 and RM102 models only).
10. Power on the Host server.
11. Make sure that the SCSI adapter’s ID number does not conflict with the
host channel’s ID number with Acer RAID controller (default ID is “0”) (for
TR102 and RM102 models only).
12. The LUN function of the SCSI adapter must be enabled if users want to
configure multiple LUNs on the Acer RAID controller (for TR102 and
RM102 models only).

8
Chapter 2 Hardware Installation
Drive Tray and Back Plane Board
Before touching any electrical equipment, ground yourself by touching the
metal part of your computer chassis. This discharges any static electricity
and will prevent any damage to your computer.
Drive Tray
The LED display determines the status of the drive tray and the hard disk
drive. The key lock protects the drive tray from unauthorized use.
• The ID number LED has two functions: It displays the ID number
assigned to this particular drive tray and displays a ] symbol whenever
the fan fails to work.
• The HDD access LED blinks whenever the drive is being accessed.
• The HDD Power/Fail LED lights up (green) when the HDD is on and is
working fine. For the TR102 and the RM102 models, the HDD
Power/Fail LED has another function: It turns to orange (a) if the hard
disk drive tray is empty and (b) if the hard disk drive fails to operate
properly.
ID number LED
Display
HDD Access LED
HDD Power/Fail LED Key Lock
Drive Tray Cover
