Acer H5360 Series User manual

Acer Projector
H5360 Series
User's Guide
Downloaded From projector-manual.' i Acer Manuals

D<

Information for your safety and
comfort
Read these instructions carefully. Keep this document for future reference.
Follow all warnings and instructions marked on the product.
Turning the product off before cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Caution for plug as disconnecting device
Observe the following guidelines when connecting and disconnecting power to
the external power supply unit:
• Install the power supply unit before connecting the power cord to the AC
power outlet.
• Unplug the power cord before removing the power supply unit from the
projector.
• If the system has multiple sources of power, disconnect power from the
system by unplugging all power cords from the power supplies.
Caution for Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible
and located as close to the equipment operator as possible. When you need to
disconnect power to the equipment, be sure to unplug the power cord from the
electrical outlet.
0 .
Warnings!
• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. If the product
falls, it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable
operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should never be placed near or over a radiator or heat register, or
in a built-in installation unless proper ventilation is provided.
• Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind onto or into
the product.
Downloaded From proiector-manual.com Acer Manuals

Using electrical power
a

Product servicing
Do not attempt to service this product yourself, as opening or removing covers
may expose you to dangerous voltage points or other risks. Refer all servicing to
qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service
personnel when:
• the power cord or plug is damaged, cut or frayed
• liquid was spilled into the product
• the product was exposed to rain or water
• the product has been dropped or the case has been damaged
• the product exhibits a distinct change in performance, indicating a need
for service
• the product does not operate normally after following the operating
instructions, since improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to normal condition.
Your device and its enhancements may contain small parts. Keep them out of
the reach of small children.
Additional safety information
• Do not look into the projector's lens when the lamp is on. The bright may
hurt your eyes.
• Turn on the projector first and then signal sources
• Do not place the product in following environments:
• Space that is poorly ventilated or confined. At least 50cm clearance from walls
and free flow of air around the projector is necessary.
• Locations where temperatures may become excessively high, such as inside of a
car with all windows rolled up.
Unplug immediately if there is something wrong with your projector. Do
not operate if smoke, strange noise or odor comes out of your projector. It
Downloaded From proiector-manual.com Acer Manuals

III!!
a

Operating environment for using wireless function
(Optional)
0 .
Warning! For safety reasons, turn off all wireless or radio transmitting
devices may include, but are not limited to: wireless LAN (WLAN), Bluetooth
and/or 3G.
Remember to follow any special regulations in force in any area, and always
switch off your device when its use is prohibited or when it may cause
interference or danger. Use the device only in its normal operating positions.
This device meets RF exposure guidelines when used normally, and it and its
antenna are positioned at least 1.5 centimeters (5/8 inches) away from your
body. It should not contain metal and you should position the device the above-
stated distance from your body.
To successfully transmit data files or messages, this device requires a good
quality connection to the network. In some cases, transmission of data files or
messages may be delayed until such a connection is available.
Ensure that the above separation distance instructions are followed until the
transmission is completed.
Parts of the device are magnetic. Metallic materials may be attracted to the
device, and persons with hearing aids should not hold the device to the ear with
the hearing aid. Do not place credit cards or other magnetic storage media near
the device, because information stored on them may be erased.
Medical devices
Operation of any radio transmitting equipment, including wireless phones, may
interfere with the functionality of inadequately protected medical devices.
Consult a physician or the manufacturer of the medical device to determine if
they are adequately shielded from external RF energy or if you have any
questions. Switch off your device in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care facilities
may be using equipment that could be sensitive to external RF transmissions.
Pacemakers. Pacemaker manufacturers recommend that a minimum separation
of 15.3 centimeters (6 inches) be maintained between wireless devices and a
pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research. Persons with pacemakers
should do the following:
• Always keep the device more than 15.3 centimeters (6 inches) from the
pacemaker.
• Not carry the device near your pacemaker when the device is switched on.
If you suspect interference, switch off your device, and move it.
Downloaded From proiector-manual.com Acer Manuals

Potentially explosive environments
Caution for Listening
a

Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize
pollution and ensure utmost protection of the global environment, please
recycle. For more information on the Waste from Electrical and Electronics
Equipment (WEEE) regulations, visit http://www.acer-group.com/public/
Sustainabilitv/sustainabilitvOl.htm
Mercury advisory
For projectors or electronic products containing an LCD/CRT monitor or display:
“Lamp(s) contain Mercury,
Dispose Properly.”
Lamp(s) inside this product contain mercury and must be recycled or disposed of
according to local, state or federal laws. For more information, contact the
Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal
information, check
Downloaded From proiector-manual.com Acer Manuals

First thing first
Usage Notes
Precautions

Information for your safety and comfort
First thing first
Usage Notes
Precautions
Introduction
Product Features
Package Overview
Projector Overview
Projector Outlook
Remote Control and Control Panel Layout
Getting Started
Connecting the Projector
Turning the Projector On/Off
Turning on the Projector
Turning off the Projector
Adjusting the Projected Image
Adjusting the Height of Projected Image
How to optimize image size and distance
How to get a preferred image size by adjusting
distance and zoom
User Controls
Installation menu
Acer Empowering Technology
Onscreen Display (OSD) Menus
Management
Language
Appendices
Downloaded From proiector-manual.com Acer Manuals
iii
x
1
2
3
3
4
6
6
7
7
8
9
9
10
12
14
15
16
17
18
21
23
23
24
24
25
Contents

Troubleshooting 25
LED & Alarm Definition Listing 29
Replacing the Lamp 30
Ceiling Mount Installation 31
Specifications 34
Compatibility modes 36
Regulations and safety notices 40
Downloaded From proiector-manual.com Acer Manuals

Introduction
Product Features
This product is a single-chip DLP® projector. Outstanding features include:
• DLP® technology
• Native 1280 x 720 720p resolution
4:3 / 16:9 / L.Box aspect ratio supported
• Acer ColorBoost technology delivers nature's true colors for vivid, life-like
images
• High brightness and contrast ratio
• Versatile display modes (Bright, Standard, Movie, Dark Cinema, Game,
Sports, User) for optimum performance in any situation
• NTSC/PAL/SECAM compatible and HDTV (720p, 1080i, 1080p) supported
• Lower power consumption and economy (ECO) mode extends lamp life
• Acer EcoProjeciton Technology delivers Intelligent power management
approach and physical efficiency improvement.
• Empowering Key reveals Acer Empowering Technology utilities (Acer
eView, eTimer, ePower Management) for easy adjustment of settings
• Advanced digital keystone correction optimizes presentations
• Multi-language onscreen display (OSD) menus
• Manual focus projection lens zooms up to 1.1X
• 2X digital zoom and pan move function
• Microsoft® Windows® 2000, XP, Vista®, Macintosh® OS compliant
Downloaded From projector-manual.' i Acer Manuals

i

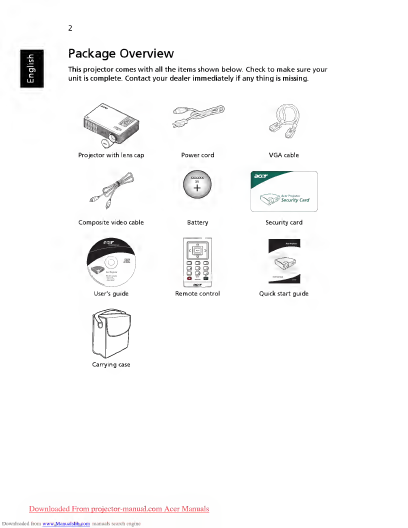

Package Overview
This projector comes with all the items shown below. Check to make sure your
unit is complete. Contact your dealer immediately if any thing is missing.
Carrying case
HI
Downloaded From projector-manual.' i Acer Manuals

Projector Overview
Projector Outlook
Front / upper side
Downloaded From proiector-manual.com Acer Manuals

1
Remote Control and Control Panel Layout
i H (E3
rk
2
cl
c (Q)
. V
Q Q Cl i
_!
_!
0\Q)
FREEZE ASPECT
3U
1 aoar
Remote control Receives signals from remote control.
2
(!)
POWER
Refer to the "Turning the Projector On/Off" section.
• Press "MENU" to launch the Onscreen display (OSD)
menu, back to the previous step for the OSD menu
operation or exit the OSD menu.
• Confirm your selection of items.
4
KeyPad 0~9 Press "0-9" to input a password in the "Security".
5 ASPECT RATIO To choose the desired aspect ratio (Auto/4:3/16:9/L.Box).
6
RESYNC Automatically synchronizes the projector to the input source.
7
FREEZE To pause the screen image.
8
a
KEYSTONE Adjusts the image to compensate for distortion caused by
tilting the projector (± 40 degrees).
9
Four directional
select keys
Use up, down, left, right buttons to select items or make
adjustments to your selection.
10 ZOOM Zooms the projector display in or out.
11
SOURCE Changes the active source.
12 HIDE Momentarily turns off the video. Press "HIDE" to hide the
image, press again to display the image.
Downloaded From proiector-manual.com Acer Manuals

Note:
Remote Control Placement
Downloaded From projector-manual.' i Acer Manuals

i
Getting Started
Connecting the Projector
@.
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Downloaded From projector-manual.' i Acer Manuals

Turning the Projector On/Off
Turning on the Projector
1 Remove the lens cap.(Illustration #1)
2 Ensure that the power cord and signal cable are securely connected. The
Power indicator LED will flash red.
3 Turn on the projector by pressing "Power" button on the control panel,
and the Power indicator LED will turn blue. (Illustration #2)
4 Turn on your source (computer, notebook, video player,etc.). The
projector will detect your source automatically.
• If the screen displays "Lock" and "Source” icons, it means the
projector is locked onto a specific source type and there is no such
type of input signal detected.
• If the screen displays "No Signal", please make sure the signal cables
are securely connected.
• If you connect to multiple sources at the same time, use the “Source"
button on the remote control to switch between inputs.
Downloaded From projector-manual.' i Acer Manuals

8
i
Turning off the Projector
1 To turn off the projector, press the "Power" button twice. The message
below will display onscreen for 5 seconds.
"Please press power button again to complete the shutdown process."
2 Immediately after powering off, the Power indicator LED will flash RED
rapidly and the fan(s) will continue to operate for about 120 seconds. This
is to ensure that the system cools correctly.
3 Once the system has finished cooling, the Power indicator LED will turn
solid RED which means projector enter standby mode.
4 It is now safe to unplug the power cord.
0 .
Warning: Do not turn on the projector immediately after
powering off.
@.
Note: If you wish to turn the projector back on, you must wait for
60 seconds at least to press the "Power" button to restart the
projector.
0 .
Warning indicators:
• If the projector automatically shuts down and the Power indicator
quick flashing RED and steady BLUE by returns, please contact your
local reseller or service center.
• If the projector automatically shuts down and the Power indicator
quick flashing RED and steady BLUE by returns, this indicates that the
projector has overheated. The message below will display onscreen if
this is about to happen:
"Projector Overheated. Lamp will automatically turn off soon."
• If the Power indicator quick flashing RED and steady BLUE by returns
and the message below is displayed onscreen, please contact your
local dealer or service center:
"Fan fail. Lamp will automatically turn off soon."
Downloaded From proiector-manual.com Acer Manuals
