ACOUSTIC SOLUTIONS SP 121 User manual

INTRODUCTION
Congratulations on purchasing this Acoustic Solutions’ CD player, it has been
developed following an extensive research and development program that has
culminated in what we regard as an exceptional mid range hi- product.
Our aim when designing this CD player was to produce a visually appealing
product which would look comparable to higher priced models, and give an
exceptional performance to match.
We trust that it will give you hours of listening pleasure, and provide years
of unparalleled performance. As with any new electrical product please
be patient and allow at least 36 hours use before all components have
acclimatised themselves with your surroundings, and found their optimum
working temperature.
CONTENTS PAGE No.
Introduction
Safety instructions
Front panel controls
Rear panel connections
Installation and position
Making the connections
Using the CD player
Care and maintenance
Trouble shooting
Speci cations
Contact details
1
2
3
4
5
5
6-8
9
9
10
10
1
SP 121 CD PLAYER

CAUTION: To reduce the risk of electric shock, do not remove any cover.
NO USER-SERVICEABLE PARTS INSIDE, REFER ANY SERVICING TO
QUALIFIED SERVICE PERSONNEL.
IMPORTANT SAFETY INSTRUCTIONS
• Read and keep these instructions available for future reference.
• For indoor use only.
• The unit must only be connected to a suitable mains power supply using the
mains power lead provided.
• To reduce the risk of re or electrical shock, do not expose this unit to rain
or moisture.
• The apparatus shall not be exposed to dripping or splashing.
• No objects lled with liquids, such as vases, shall be placed on the
apparatus.
• Unplug the unit from the wall socket during lightning storms and when it is
not going to be used for a long period of time.
• Take care that foreign objects do not enter, or liquids are not spilled, into the
enclosure through any openings. If this should happen, refer to qualied
service personnel before attempting to use.
• Ensure adequate ventilation - do not cover this unit with curtains, etc.
• Do not install near any heat source, such as radiators, or other equipment
that produces heat.
• Protect the mains power cable from being damaged.
• The SP 121 system is double insulated and does not require an earth
connection in the UK mains plug.
UK MAINS PLUG DETAILS
For your convenience a mains plug with a fuse (3 Amp) has been tted to this
appliance. For your safety please observe the following information.
• The SP 121 is designed to operate on AC mains supply between 220 and
240 volts, 50 Hz.
• The wires in the mains lead are coloured in accordance with the following
code:
BLUE - NEUTRAL
BROWN - LIVE
• Under no circumstances should the Neutral or Live wires be connected to
the ‘E’ (Earth) terminal.
CAUTION
RISK OF ELECTRIC SHOCK!
DO NOT OPEN!
SAFETY INSTRUCTIONS
This product complies with
European low voltage (73/23/
EEC) and electromagnetic
compatibility (89/336/EEC)
directives.
The lightning ash symbol with the arrowhead within an equilateral triangle is
intended to alert the user to the presence of uninsulated ‘dangerous voltage’
within the product’s enclosure that may be sufcient to constitute a risk of
electric shock to persons
The exclamation point within an equilateral triangle is intended to alert the user
to important operating and maintenance instructions in the service literature
relevant to this appliance.
2

FRONT PANEL CONTROLS
1. LCD DISPLAY. Provides information such as track number, track time,
play/pause indication, random and program features. Also provides a musical
calendar which provides an instant visualisation of the total number of tracks,
and which track is playing.
2. PROGRAM BUTTON. Allows all of the tracks on a CD to be programmed
into a playing sequence.
3. RANDOM BUTTON. Allows tracks to be played in no prede ned order.
4. SKIP DOWN/ FAST REV. Press once to advance one track backwards,
hold to skip backwards through current track.
5. SKIP UP/ FAST FWD. Press once to advance one track, hold to skip
through current track.
6. IR RECEPTOR. This can be used with the optional 3 in 1 remote control. This
controls the Hi-Fi ampli er. DAB tuner and CD player from one controller.
7. PLAY/PAUSE BUTTON. Press once to play a CD, press again to pause the
CD, press again to resume play.
8. STOP BUTTON. Stops CD from playing.
9. EJECT BUTTON. Allows CD drawer to be opened and closed.
10. CD DRAWER. Opens or closes when the eject button is pressed, place CD
into tray, label side uppermost.
12. LED POWER INDICATOR. Shows green to indicate that the SP121 is on.
It will show red if the SP121 is in stand-by mode as set by the optional remote
control.
13. POWER BUTTON. Switches mains power on/off to internal components,
however please note that mains power is still applied to this unit even though
this switch may be off.
3

REAR PANEL CONNECTIONS
1. WARNING LABELS. Please observe that this unit contains high voltages,
and should not be opened, please refer to page 2 of this manual.
2. MAINS CABLE INLET POSITION. Please ensure that this cable strain relief
bush is intact and has not been damaged.
4
3. ANALOGUE AUDIO OUTPUTS. For connection to line input sockets on an
amplier.
4. OPTICAL S/PDIF OUTPUT. For connection to an audio amplier with a
digital optical input.

INSTALLATION AND POSITION
This CD player should be positioned on a at stable surface. We would
recommend that the position of your hi- equipment should be chosen carefully
to provide adequate protection for this device, and also provide an attractive
showcase for your investment. Hi- equipment is not designed to be moved
often, therefore it is recommended that a permanent home for your hi- be
achieved as soon as possible.
This CD player contains sensitive electronic circuitry, it is not recommended
that audio equipment such as CD players, turntables or cassette decks be
placed immediately next to heavy electrical equipment which may interfere
with them. Do not place this product in areas of direct sunlight, nor place it
adjacent to a radiator or other heating appliances.
Like all electrical devices this tuner will generate a modest amount of heat.
The cooling of this device is reliant upon the ow of air through the case.
Care should be taken not to cover this unit with items such as rugs, covers or
curtains which will restrict this air ow, and may cause over heating.
Never allow the CD player to come into contact with water or liquids, and
ensure that small objects do not fall through the ventilation grilles. In the event
of this happening, disconnect the wall plug from the mains supply immediately,
and contact your local dealer for service advice.
Do not position the power cable where it can be walked upon, or damaged by
regular trafc. Ensure that all other interconnection cables are stowed safely
behind the unit, and cannot be easily snagged or kicked, thus causing damage
to the unit.
Ensure that all interconnection cables have been made correctly, and that
correct polarity has been maintained.
MAKING THE CONNECTIONS
It is necessary to connect this CD player to an external amplier and
loudspeaker set up, (it is not possible to connect loudspeakers directly to this
CD player). Connect a pair of phono cables (supplied) from the signal output
sockets on the rear of the SP 121 to the audio input sockets on the back of
your amplier.
Please see the following diagram which details the required connections:
5

USING THE CD PLAYER
Carefully unpack the SP121, retaining the protective packaging for future
transportation requirements.
Ensure that all connections have been made in accordance with the connection
diagram on page 5.
UNDERSTANDING THE LCD DISPLAY
TO LOAD A CD
Press Eject, this will open the CD drawer. Place a CD with the label uppermost
into the carriage. Press Eject again to shut the CD drawer.
The CD will automatically load, you will hear the CD spinning and the LCD
screen will ash “read”, the total number of tracks and total playing time will
be displayed on the LCD screen, The music calendar will also display the total
number of tracks.
If the number of tracks on the CD is 17 or over, the total number of tracks will
be displayed by the track number, but the musical calendar will only display
the rst 16 tracks. The musical calendar will resume normal display once a
Repeat; one/all, displays
when this function is
activated from optional
remote
Music calendar
instant track number.
indicator
Random play
indicator
Pause
symbol
Track
number.
Track
time
Play
symbol
Memory, displayed in
program mode
CD with 16 tracks or less is accessed.
If there is a problem loading the CD, or no CD is placed in the CD drawer, the
following display will be seen. Please check the integrity of the CD, or if the
problem persists, please contact your local dealer.
TO PLAY A CD
To commence playing the CD press play/pause button once. This will start
playing the CD at the rst available track.The LCD screen will show the
track number and time elapsed. The remaining tracks on the CD will also be
displayed on the musical calendar, the track playing will ash on the musical
calendar. The play symbol will also be illuminated on the LCD.
TO PAUSE A CD
To pause the CD press the play/pause button once while the CD is playing.
This will temporarily stop the CD at this point.The play symbol will disappear
from the display, and be replaced by the pause symbol, and the track time
will be displayed at the paused position. To recommence play, press the play/
pause button again.
6

TO STOP/CLEAR A CD
To stop the CD playing, press the stop button once. The LCD display will show
the total number of tracks on the CD, and will display the total playing time of
the CD. All previously set functions will be cancelled, to resume play from track
one press play/pause again.
TO SKIP THROUGH TRACKS ON A CD
It is possible to change the track which is being played, either forwards or
backwards through the CD. To move to the next track, press the >> button
once, to continue advancing press this button again until the desired track is
located. To move to a previous track press the << button once, this will return
the current track being played to the start, and pressing this button again will
move the CD back to the previous track. Continue this operation until the
desired track is located.
TO FAST SEARCH THROUGH A CD TRACK
It is possible to search through the current track being played in order to
nd a desired position. To search forward through the track hold down the
>> button, this will then activate a fast forward search, release this button to
stop this search when required. To reactivate this search hold down >> button
again. To search backward through the track hold down the << button, this will
then activate a fast backward search, release this button to stop this search
when required. To reactivate this search hold down the << button again. The
volume during search will be lower than the normal playing level. Search can
be activated in the pause mode, but no sound will be heard, to resume normal
play press play/pause.
TO ACTIVATE RANDOM PLAY
It is possible for the SP121 to select tracks to be played at random. There is
no predened sequence for this operation and it is not possible to program
tracks while in this mode. The CD will stop as normal once all tracks have been
played at random.
It is possible to activate random either while playing, or in the stop mode.
If in the stop mode, press the random button, and the LCD screen will indicate
that this mode is activated. Press play to activate random play.
Alternatively while in play mode, press the random button for this mode to
activate.
To stop and clear random play, press the stop button once. The LCD screen
will show the total number of tracks, and total amount of play time.
Random play can be disabled during play by pressing the random button
again, and normal play mode will resume from this point.
The random mode will be cancelled if the CD drawer is opened, or if the mains
power switch is turned off.
TO ACTIVATE A PROGRAMMING SEQUENCE
It is possible to program the SP121 to select tracks to be played in sequence.
Up to 20 tracks can be programmed, if you enter more tracks than 20 then
program 1 will be over-written.
7

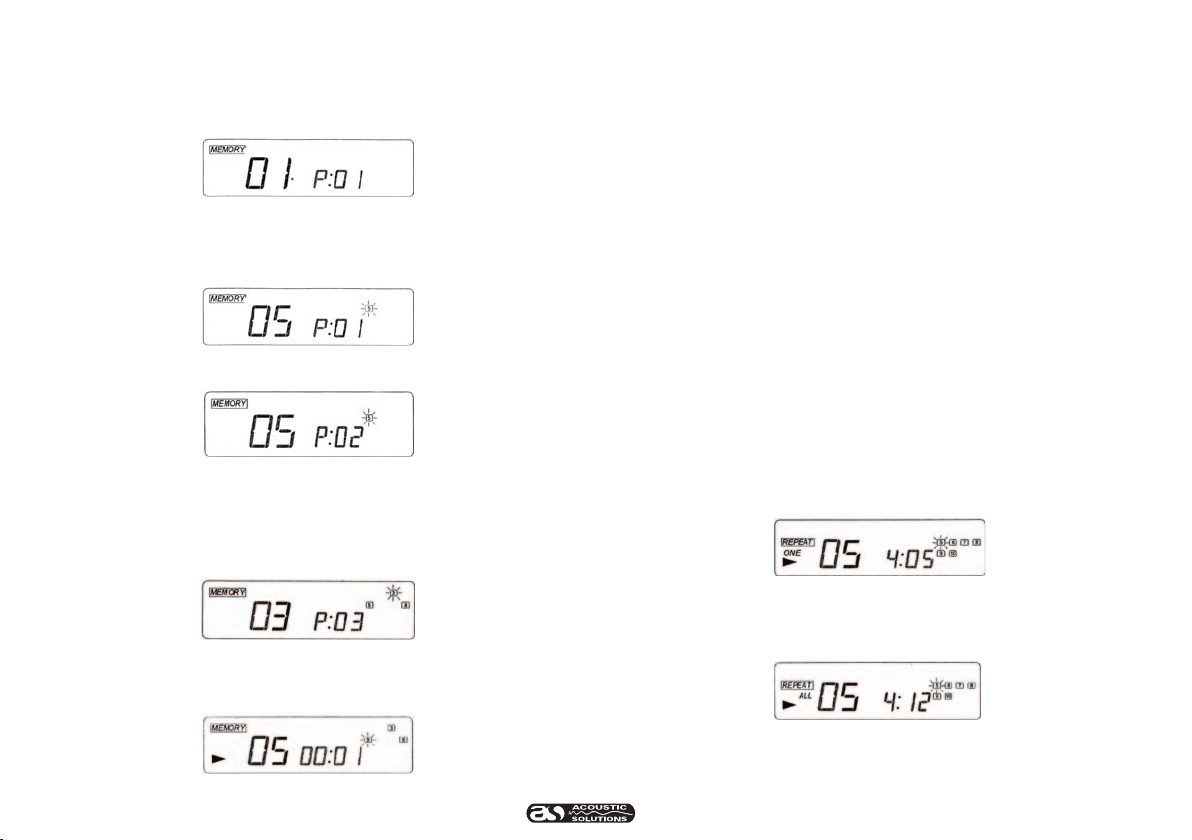

Press the program button whilst in the stop mode. The LCD display will indicate
memory and the track Number will read 01 P:01.
Press the << or >> button to select the required track to be programmed. The
track number will be displayed, and the music calendar will show the selected
track ashing.
Press the program button again to store this track in the memory list.
The display will show ‘XX’ P:02 where ‘XX’ indicates the previous track
selected, and requires the 2nd track to be selected. Press the << or >> button
to select the next required track to be programmed to be stored in position 2.
Press the program button again to store this track. Repeat this process until
you have completed your desired programmed sequence.
Once you are satised with your programmed sequence, press play/pause to
commence playing of the rst programmed track.
The music calendar will display a list of the tracks which have played during
the sequence.
To stop the programmed sequence press stop, the display will show the total
number of tracks on the disc, the total playing time and the music calendar
will show all of the programmed tracks in the memory. To resume playing from
program No.1, press play/pause again.
To cancel a program sequence press the stop button twice. The memory
indicator will go out, and the LCD display will show the total number of tracks
and time as in normal operation.
The program sequence will be cancelled if the CD drawer is opened.
TO USE THE REPEAT FUNCTION
(available using optional remote control only).
It is possible to repeat one or all of the tracks on a CD.
Using the remote control press the repeat button once to activate the repeat
one function. This will continue to play the current track continuously until the
stop button is pressed.
Press the repeat button again to activate repeat all, this will play all CD tracks
as normal and then will repeat them again. This will continue until the stop
button is pressed.
To cancel the repeat function, press the repeat button again to remove the
indication from LCD panel.
8

TROUBLE SHOOTING CARE AND MAINTENANCE
To clean this CD player, wipe the case with a slightly moist lint-free cloth. Do
not use any cleaning uids containing alcohol, ammonia or abrasives. Do not
spray an aerosol at, or near, the CD player.
Always use the original packaging if it is necessary to transport the unit at any
time.
If this unit is used in a dusty environment, it may be necessary to have the
unit serviced at your local dealer periodically. It is not advisable to allow
large deposits of dust to accumulate within this unit as this may prevent
correct cooling. Similarly dust deposits which become damp can sometimes
lead to electrical problems which may cause severe damage to the delicate
electronics within this unit.
PROBLEM POSSIBLE SOLUTION
No power when switched on • Mains socket not switched on, or faulty.
• Plug not fully inserted into wall socket.
• Mains fuse has blown in plug.
• Internal mains fuse has blown inside
unit, this will need to be replaced by a
qualied service technician.
• Power cord has become damaged, this
should be replaced immediately by a
qualied service technician.
• Power not turned on.
No sound • Amplier not set correctly.
• Signal cables not connected between
CD and amplier.
• No CD loaded into drawer.
The player will not load the
disc
• Check disc is not loaded upside down.
• Check disc is clean and not damaged.
The disk is skipping • Check that the disc is not scratched,
dirty or damaged.
• Ensure that the player is on a rm level
service.
Loud buzz or hum • Audio connect cables damaged or not
correctly connected.
• Audio cables have become tangled with
mains cables.
9

SPECIFICATIONS
OUTPUT VOLTAGE 0.7V ± 2dB
FREQUENCY RESPONSE
(Using 1kHz 0dB as reference ) 20 Hz 0dB -0.5dB ± 1dB
100 Hz 0dB 0dB ± 1dB
10 kHz 0dB -0.5dB ± 2dB
20 kHz 0dB - 3.0dB ± 2dB
DE-EMPHASIS RESPONSE 5 kHz 0dB -4.5dB ± 2dB
16 kHz 0dB -9.0dB ± 3dB
CHANNEL BALANCE Better than 2.0dB
SEPARATION More than 60dB
HARMONIC DISTORTION
T.H.D + Noise Less than 0.05%
S/N RATIO More than 90dB
PRODUCT PHYSICAL
SPECIFICATIONS
Dimensions in mm (WxDxH)
Nett weight
Shipping weight
430x230x80mm(+12mm feet )
4.30Kg
5.5Kg
CONTACT DETAILS
We trust you are completely satised with this product from Acoustic Solutions
Limited, however please feel free to contact us if you experience any difculties,
or if you would like to express your views regarding our products.
Please write to:
Acoustic Solutions Limited.
Grand Union Buildings
54 High Street
Weedon Bec
Northampton
NN7 4QD
United Kingdom
Telephone [phone]
Fax: [phone]
www.acousticsolutions.co.uk
email: [email protected]
Through the process of continuous improvement, Acoustic Solutions Limited
reserves the right to change or alter specications without prior notice. E&OE.
10
