Advanced Microwave Products VDR1 User manual

                     
                     
                  
                        
PO Box 1437
2465 Old Highway 40 West, Suite 200
Verdi, NV 89439
                           
                                      
                                    
                              
                         
   
   
   
   
   
   
                                 
                          
                                       
Note                                           
                                      
                                     
                

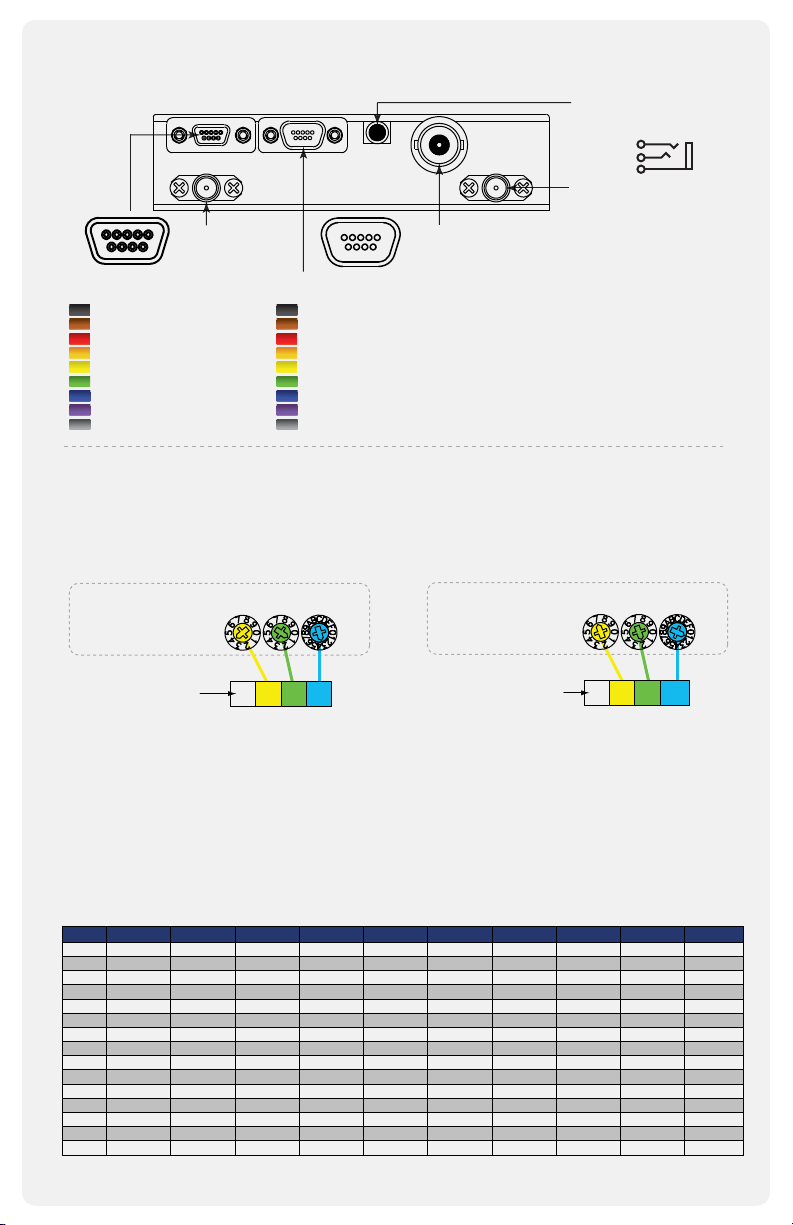

            Quick Start Guide

AQS-VDR1-F
                           
               
              
          
  
             
               
           
               
             
               
  
                                
               
             
          
  
             
               
           
               
             
               
  
                       
The VDR1 receiver has three modes for conguring the unit: Local Mode, Preset Mode, and Remote
Mode (see manual for details). Local Mode utilizes DIP switches for conguring equipped options
and rotary switches for frequency selection as shown below:
Pre-set Mode, selected when the two 10-position (BCD, 0-9) switches are set to zero and the 16-position
(binary, 0-F) is set to any position 1-F, allows local selection among 15 pre-set congurations. The VDR1
receiver ships from the factory with the 15 pre-sets congured with all options“ON” and set to their max
settings with the frequencies set per the table below. Pre-sets may be changed as outlined in the ICD
(Interface Control Document) via the communications port. Pre-sets are reprogrammable using Remote
Mode, selected when all three rotary switches are set to zero.“Remote Only” VDR1 receivers have no
rotary switches installed. See the product manual for more details.
          
              
                       
340 MHz 1435 MHz 1700 MHz 2200 MHz 2400 MHz 2200 MHz 4400 MHz 4900 MHz 4400 MHz
344 MHz 1442 MHz 1711 MHz 2214 MHz 2407 MHz 2221 MHz 4436 MHz 4907 MHz 4443 MHz
349 MHz 1449 MHz 1721 MHz 2228 MHz 2414 MHz 2243 MHz 4471 MHz 4914 MHz 4486 MHz
353 MHz 1456 MHz 1732 MHz 2243 MHz 2421 MHz 2264 MHz 4507 MHz 4921 MHz 4528 MHz
357 MHz 1464 MHz 1743 MHz 2257 MHz 2428 MHz 2285 MHz 4543 MHz 4928 MHz 4571 MHz
361 MHz 1471 MHz 1754 MHz 2271 MHz 2435 MHz 2307 MHz 4579 MHz 4935 MHz 4614 MHz
366 MHz 1478 MHz 1764 MHz 2285 MHz 2442 MHz 2328 MHz 4614 MHz 4942 MHz 4657 MHz
370 MHz 1485 MHz 1775 MHz 2300 MHz 2450 MHz 2350 MHz 4650 MHz 4950 MHz 4700 MHz
374 MHz 1492 MHz 1786 MHz 2314 MHz 2457 MHz 2371 MHz 4686 MHz 4957 MHz 4742 MHz
379 MHz 1499 MHz 1796 MHz 2328 MHz 2464 MHz 2392 MHz 4721 MHz 4964 MHz 4785 MHz
383 MHz 1506 MHz 1807 MHz 2342 MHz 2471 MHz 2414 MHz 4757 MHz 4971 MHz 4828 MHz
387 MHz 1514 MHz 1818 MHz 2356 MHz 2478 MHz 2435 MHz 4793 MHz 4978 MHz 4871 MHz
391 MHz 1521 MHz 1829 MHz 2371 MHz 2485 MHz 2456 MHz 4829 MHz 4985 MHz 4913 MHz
396 MHz 1528 MHz 1839 MHz 2385 MHz 2492 MHz 2478 MHz 4864 MHz 4992 MHz 4956 MHz
399.9 MHz 1535 MHz 1850 MHz 2399 MHz 2499 MHz 2499 MHz 4900 MHz 4999 MHz 4999 MHz
 
5725 MHz
5736 MHz
5746 MHz
5757 MHz
5768 MHz
5779 MHz
5789 MHz
5800 MHz
5811 MHz
5821 MHz
5832 MHz
5843 MHz
5854 MHz
5864 MHz
5875 MHz
                 
                                         
        
Video Output
(Connect to Monitor)
           
Audio/Data Out
        
RF Input 1
(Connect to Antenna)
        
RF Input 2
(Connect to Antenna)
Ground
Audio (L)
Audio (R)
     
              
1:
2:
3:
4:
5:
6:
7:
8:
9:
+11 to 16 VDC Input
Ground
Ground
Ground
12VDC Out
NC/TX Comm-
TX Comm+
RX Comm+
NC/RX Comm-
1 5
6 9
    
            
1:
2:
3:
4:
5:
6:
7:
8:
9:
Sub1 -10dBV/TTL
Sub1 +4dBu/RS232
Ground
Sub2 -10dBV/TTL
Sub2 +4dBu/RS232
Ground
NC
NC
Ground
15
69
            
