INTRODUCTION
Congratulations and thank you for choosing PaceMaster – your partner in achieving your fitness goals and mastering your well-being.
PaceMaster’s advanced digital technology allows your treadmill to process information instantly, anticipating and adjusting to meet your
needs. Think of it as your own personal trainer.
PaceMaster’s superior components and US manufacture ensure we produce treadmills of the highest quality while also offering excellent
value for your dollar. PaceMaster treadmills have consistently received praise from a wide range of nationally recognized publications.
To get the most from your PaceMaster, please read this owner’s manual carefully before starting to use the treadmill. The manual contains
important information about the assembly, operation and maintenance of the machine.
Please ensure you read and fully understand all safety information. DANGER, CAUTION, or WARNING indicates
important safety warnings throughout the manual. Failure to read and understand these warnings may result in personal injury or damage
to your treadmill.
Tip indicates a useful suggestion when installing, maintaining or using your treadmill.
Your PaceMaster treadmill is capable of varying your workout by changing speed, incline and time. It can also measure the effect of your
workout in a number of different ways. For example “Aerobic Points” (see page16) is a well tested method to set workout goals based on a
desired level of overall fitness. Your PaceMaster treadmill can automatically calculate Aerobic Points for you. In this way your treadmill acts
like your own personal trainer.
Please take the time to familiarize yourself with the range of functions available. This will help you work with your PaceMaster treadmill for
maximum efficiency to achieve your fitness goals and master your well-being.
We wish you an enjoyable and rewarding partnership with your PaceMaster treadmill.
This treadmill is in compliance with EN 957-2 class H.
The PaceMaster Gold Elite treadmill is designed for home use only.

4
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions before using your treadmill
CAUTION: Before starting any exercise program, contact your personal physician and have a complete physical. This is highly
recommended if you have not been on a regular exercise program within the last year, or are over 35 years of age, or are overweight.
CAUTION: If at any time during your exercise program you find the exercise abnormally difficult or you encounter dizziness, feel
faint, experience chest pains, feel as if your heart may be skipping beats, you experience forced heavy breathing after minimal exercise or
severe pain in your legs, ankles, knees, etc. STOP EXERCISING and consult your physician.
WARNING: To reduce the risk of burns, fire, electrical shock or injury:
•Never operate your PaceMaster treadmill without clipping the magnetic safety key to your clothing at waist level.
•Your PaceMaster treadmill is not designed for use by children under the age of 18 without strict parental supervision.
•Close supervision is necessary when the treadmill is used by or near children, disabled persons or pets.
•Use your PaceMaster treadmill only for its intended use as described in this manual. Do not use accessories or attachments not
recommended by Aerobics, Inc.
•Never operate your PaceMaster treadmill if it has a damaged cord or plug, if it is not operating properly, if it has been dropped or
damaged or if it has been immersed in water. Should any of these occur, contact your authorized PaceMaster retailer or service
center for examination or repair.
•Keep the cord away from heated surfaces.
•Never drop or insert any object into any opening on the treadmill.
•Do not use outdoors.
•Always unplug your PaceMaster treadmill during an electrical storm or during extended periods of non-use.
•Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
•Position the treadmill with a minimum of 4 feet (1219mm) of clearance between the rear of the treadmill and any wall or obstruction.
•Do not allow anyone to reach under or be too near your PaceMaster while it is in use.
•Do not attempt to mount or dismount the tread belt while it is running.
•Never allow more than one person on your PaceMaster treadmill at any time.
•Never move the treadmill while it is plugged into the electrical outlet.
•When you are finished exercising, leave your PaceMaster treadmill in a non-elevated position to avoid toys and other objects from
becoming trapped beneath.
•Wear appropriate running or walking shoes and attire while exercising.
•The treadmill should be turned off after each use by removing the safety magnetic key.
•Never apply lubricant to the belt and deck. It is permanently lubricated at the factory and is maintenance free.

5
ASSEMBLY INSTRUCTIONS
Installation Requirements
Your PaceMaster should be installed indoors on a flat, level surface near a 120Volt/ 15Amp outlet. PaceMaster requires a dedicated, non-
switched outlet that is not part of a GFI (Ground Fault Interrupter) circuit, preferably no more than 5 feet from the outlet to eliminate the
need for an extension cord. You must have a minimum of 4 feet of clearance between the rear of the treadmill and any wall or obstruction.
TIP: If you are installing your PaceMaster on a carpeted surface, use a treadmill mat or a scrap piece of carpet underneath the treadmill to
avoid soiling of the carpet. Deep pile carpet is not recommended.
Unpacking Your Treadmill
The PaceMaster treadmill is packed in five pieces:
•Frame assembly
•Front handlebar assembly with Control Panel
•Two side rails (1 Left, 1 Right)
•Motor cover
•Hardware package
•Polar Heart Rate Transmitter.
Before assembling your treadmill, open the hardware package and verify that the contents of the package match the hardware legend
included in the hardware package. NOTE: there will be an extra 3/16” Hex Wrench in the hardware package. If any parts are missing,
contact the authorized PaceMaster retailer where you purchased your PaceMaster treadmill.
Tools Required for Assembly
•3/16” T – handle Hex wrench (included)
•7/32” Hex wrench (included)
•Phillips screwdriver (# 2 tip)
•7/16” combination wrench
Grounding Instructions
DANGER: This product must be properly grounded. If it should malfunction or
become inoperable, grounding provides a path of least resistance for electric current to
reduce the risk of electric shock. This product is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. See example to the right.
WARNING: Improper connection of the equipment grounding-conductor can result in a risk of electrical shock. Check with a
qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with
the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This product is rated for more than 15
amperes and is for use on a circuit having a nominal rating of 120 volts. It is factory equipped with a specific electric cord and plug to
permit connection to a proper electric circuit. Make sure that the product is connected to an outlet having the same configuration as the
plug. No adapter should be used with this product. Attempting to bypass it with an adapter or in any way defeating its purpose can
result in a serious shock hazard.
As a safety precaution, unplug the treadmill during electrical storms or if the treadmill will not be in use for periods greater than one week.
CAUTION: If you need to use an extension cord it must be a 14 gauge, three wire cord, no longer than 12 feet.

6
AA
B
B
HANDLEBAR
SIDE RAIL
SIDE RAIL
ADAPTOR
HANDLE BAR
SUPPORT TUBE
H
I
G
J
SIDE RAIL
ASSEMBLY INSTRUCTIONS
Assembly
Step One: (see figure 1)
Carefully lower the handlebar on to its mounting brackets as
shown in figure 1. The mounting brackets must slide inside the
handle bar. With the handle bar in place install 2 screws (A) with
washers into both handlebar uprights as shown, do not tighten
these screws yet. Install 2 screws (B) with washers into both
handlebar uprights as shown; The following MUST be done in the
Order it is written.
Tighten the 4 screws (A) as shown in figure 1.
Tighten the 4 screws (B) as shown in figure 1.
Step Two: (see figure 2)
Slide the side rail adaptors all the way onto the square handle
bar support tube. The side rails are labled left and right, slide
the side rails over the side rail adaptors on their respective
sides. The grip on the side rail must slide inside the control
panel till it can go no more.
Step Three: (see figure 3)
Insert carriage bolt (G) through the hole in the bottom of the
side rail. Slide the side rail mounting bracket (H) on to the
bolt as shown. Push the carriage bolt through the frame rail
until it is protruding through the other side. Install the fender
washer (I) and the kep nut (J) on the threaded end of the
bolt. Tighten the 2 nuts (J) as shown in figure 3.
Figure 1
Figure 2
Figure 3

7
Figure 5
Purse Lock Clip
Shown Closed
Step Four: (see figure 4)
The grip on the side rail must slide inside the control panel till it can go no more. Install the set screws “K” #8 x ½” into the
predrilled hole on the bottom each side rail as shown in figure 4. You must drive the screw all of the way in.
CAUTION: The treadmill MUST be unplugged.
Step Five: (see figure 5)
With the handlebar bolted in place, plug the black wire harness (C) into the socket (D) on the power supply board.
Twist open the purse lock clip at (E), insert the wire harness (C), confirm the wire harness is positioned as shown at
point (D) and twist close the purse lock clip. Follow the same procedure for purse lock clip (F).
E D
C
F
Figure 4

8
Step Six: (see figure 6)
Remove the 2 Phillips head screws (L) from the right handle bar upright.
Install the water bottle cage using screws (L) as shown in figure 6.
Step Seven: (see figure 7)
Position the grey motor cover as shown in figure 7.
Use two #8 x 3/8 screws from the hardware kit to
secure the motor cover at the two points “M” in fig. 7.
Press down at both points “N” to secure the Velcro
pads.
Figure 7
Figure 6

9
Testing Your Treadmill
Your PaceMaster has been adjusted and tested at the factory. However, due to changes that can occur during shipment, it should be
tested prior to use. Once you have assembled your treadmill and it is located where it will be used, proceed as follows. (Do not make any
adjustments unless necessary.) For the purpose of this test, DO NOT stand on the tread belt. Once tested, always start and finish
on the tread belt.
Follow the steps below to confirm proper operation of your treadmill after assembly.
Step One:
After your treadmill is in place and plugged in to the wall outlet, insert the magnetic safety key into the recess on the control panel.
Step Two:
Press the Incline buttons to set your weight and the Speed buttons to set your age, then press the
(ENTER) button to store your personal information. You can now begin your desired program and the results; total Time, Distance,
Calories burned, Aerobic Points earned and Average Speed, for seven workouts will be stored.
Step Three:
Set the workout speed by pressing the SPEED button until the SPEED display shows 2.5 mph.
Step Four:
Press the START (QUICK) button. Within a few seconds, the tread belt will begin to move. The speed display will flash until the tread belt
has reached the set speed.
Step Five:
After the treadmill has reached 2.5 mph, observe the tread belt to make sure it is reasonably centered. If the tread belt is not reasonably
centered, press the STOP (RESET) button and refer to “Centering the Tread Belt” in the Care and Maintenance section of this manual.
Once the tread belt is reasonably centered, run the treadmill at 2.5 mph for 2 minutes to be sure it remains centered.
Step Six:
To test the elevation, the tread belt must be moving. Press the incline up button to raise the elevation to 5% incline. The elevation
will be displayed in the INCLINE display window. Once it reaches 5%, press the incline down button to reduce the incline to 0%. If
the treadmill does not elevate, or displays “Err” in the incline display consult the troubleshooting section of this manual.
Step Seven:
Press STOP (RESET) you are now ready to use your treadmill.

10

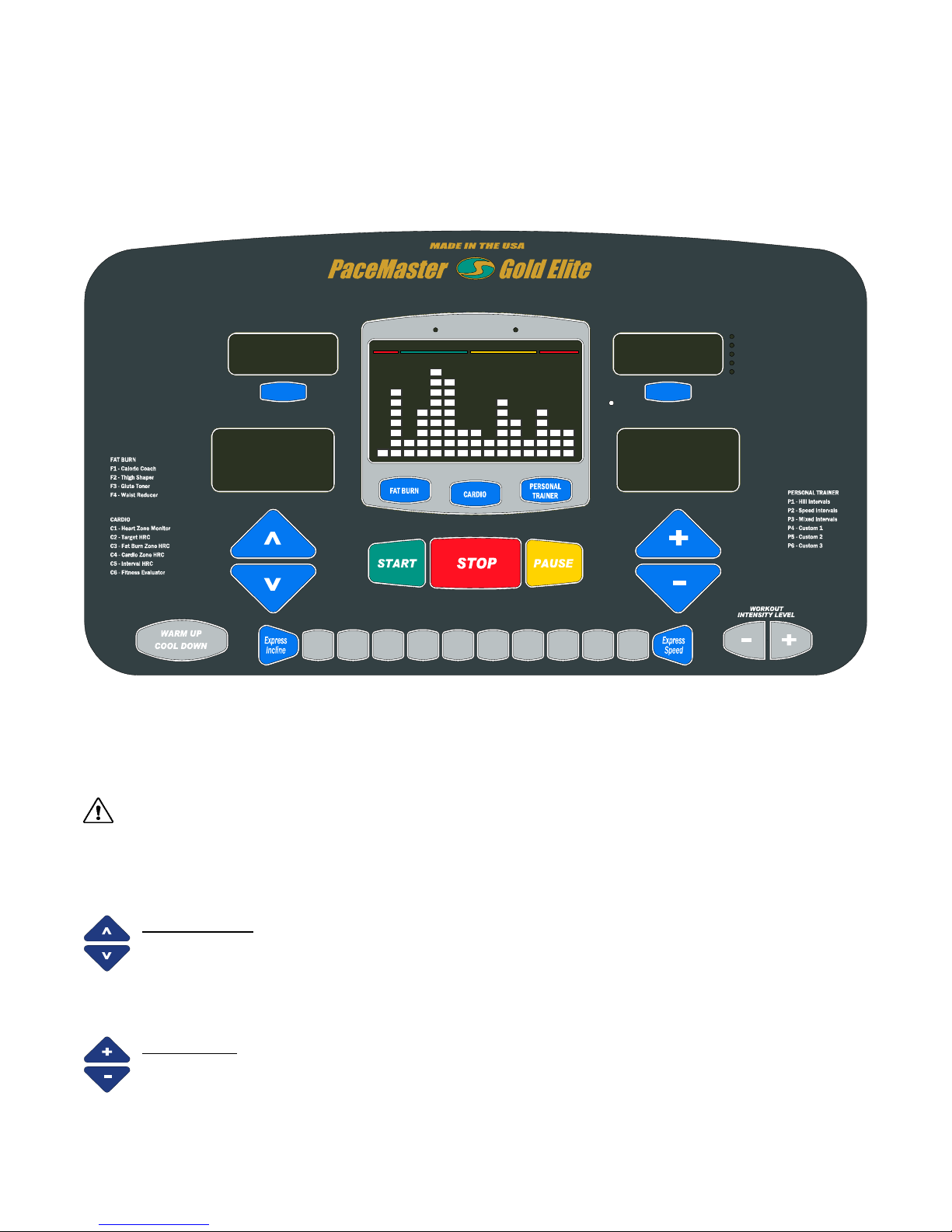

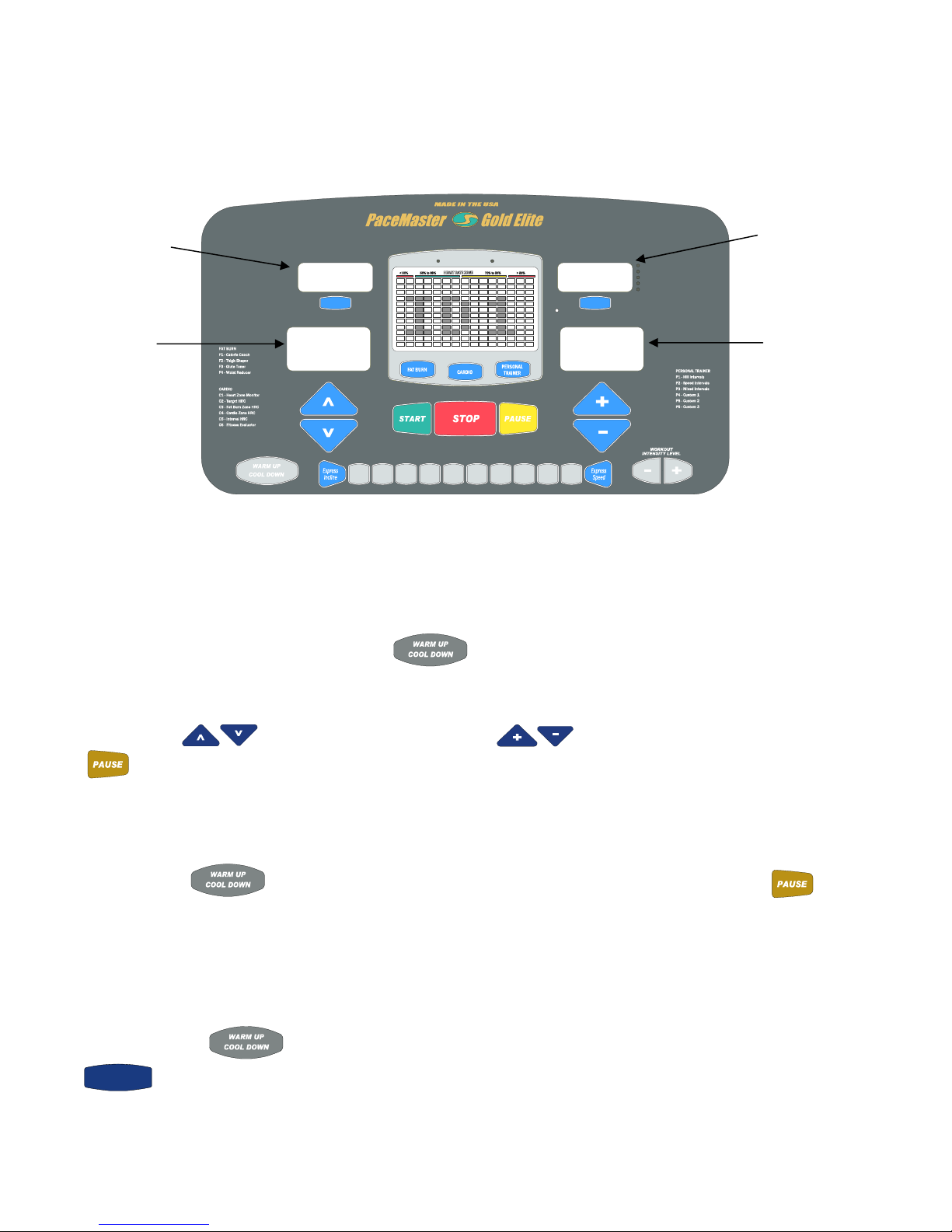

THE PACEMASTER GOLD ELITE CONTROL PANEL
Although your PaceMaster has many advanced features to provide versatility in meeting exercise needs, basic operation is extremely
easy. Basic operation involves setting your TIME and SPEED goals, then pressing the START button. Your PaceMaster will gradually
accelerate to the set speed, maintain that speed until the timer counts to zero and then gradually come to a complete stop. During your
exercise, your time remaining, current speed and incline, distance traveled, calories burned, Aerobic Points earned, heart rate and average
speed are displayed.
PACE
(TIMER)
SELECT
(ENTER)(RESET)
0123456789
(USER ID)
RESULTS
Heart Rate
Aerobic Pts
Calories
Avg Speed
Distance
TIMER
HEART RATE ZONE 70% to 85%< 55% 55% to 69% > 85%
PROFILE Cool DownWarm Up
Set Age
Max
SPEED
Max
Set Weight
INCLINE
(QUICK)
MAGNETIC SAFETY KEY - The MAGNETIC SAFETY KEY, with its red cord and garment clip, is an important safety feature. It is also the
ON/OFF switch. To power up your treadmill, first attach the garment clip to your clothing at waist level then insert the MAGNETIC
SAFETY KEY into the round recess on the control panel. This MAGNETIC SAFETY KEY provides a means of powering down the treadmill
in an emergency situation. This treadmill will not operate unless the MAGNETIC SAFETY KEY is engaged. During exercise, an
emergency stop can be made at any time by pulling on the cord to release the key from its slot.
CAUTION: Using the key to stop the treadmill is an emergency procedure only! To end your exercise routine normally, press
the STOP button or allow the timer to count down to zero. Once the belt has come to a complete stop, remove the MAGNETIC SAFETY
KEY to turn off the treadmill. When not in use, store the MAGNETIC SAFETY KEY in a safe place to prevent unauthorized use.
BUTTONS
INCLINE ▲and ▼– 1) When the safety magnetic key is inserted, the Set Weight LED light will flash, prompting you to set your
weight. Use these buttons to adjust weight, then press ENTER. 2) Once the user weight has been entered, use these buttons
to increase or decrease INCLINE in 0.5% increments to simulate exercising up hill. INCLINE can be changed at any time during
your workout. At the end of your workout, the INCLINE setting will automatically return to 0%.
Note: If the magnetic safety key is removed, the incline will not return to 0%. This automatic feature will only occur if the program time has
run out or if the STOP key is pressed.
SPEED + and −1) When the safety magnetic key is inserted, the Set Age LED light will flash, prompting you to set your age.
Use these buttons to adjust weight, then press ENTER. 2) Once the user age has been entered, use these buttons to increase
or decrease SPEED in 0.1 mph increments. SPEED can be adjusted at any time during your workout.
Note: Because the treadmill’s computer controls the SPEED during the warm up and cool down phases of your workout., these
buttons are inoperable in those modes.
40
0.3 uSA
150

11
(QUICK)
(RESET)
(ENTER)
(USER ID)
WORKOUT
INTENSITY LEVEL
(TIMER)
0123456789
PACE
THE PACEMASTER GOLD ELITE CONTROL PANEL (cont’d)
START (QUICK) – 1) Use this button to QUICK START your workout with the press of one button. 2) In all other program
modes, use this button to START your workout after the desired time, speed and incline have been entered.
STOP (RESET) – 1) Press this button to end your workout. 2) If pressed when the treadmill is stopped, it will RESET the
display.
PAUSE (ENTER) – 1) When you insert the magnetic safety key, use this button to ENTER your weight. 2) In all of the FAT
BURN, CARDIO, PERSONAL TRAINER or TIMED (MANUAL) workouts, press this key to ENTER the desired workout time.
For details, refer to the WORKOUTS section in this manual. 3) During a workout, pressing this button will PAUSE your workout, putting it
"on hold". The treadmill and the timer will stop but retains the distance, calories burned, Aerobic Points earned and Average Speed thus
far, as well as the speed and incline settings and remaining time. The symbol -P- flashes in the SPEED display to indicate the PAUSE
feature has been activated. To resume your workout where you left off, press START. the pause feature is not available in cool down or
heart rate control.
WARM UP COOL DOWN –1) When the magnetic safety key is inserted, press this button to select your User ID #, one
through 4, to retain your weight, age and accumulated workout data. 2) Prior to starting your program, this button allows
you to add or remove a 5-minute Warm Up and/or 5-minute Cool Down phases of your workout. The WARM UP and/or
COOL DOWN indicator LED lights will flash in the PROFILE display window when a WARM UP and/or COOL DOWN mode is selected. 3)
During WARM UP, pressing the WARM UP COOL DOWN button discards the remaining Warm Up time and advances you to the main
workout phase. During the main workout, pressing the WARM UP COOL DOWN button discards the remaining time and starts the Cool
Down phase. For details, refer to the USER ID and/or WARM UP and COOL DOWN section in this manual.
EXPRESS KEYS – As an alternative to continually pressing the INCLINE ▲or
▼buttons to increase or decrease incline or the SPEED + or - buttons to increase or decrease speed, press these buttons, then the
numbered button(s) 0-9 for express changes.
EXPRESS INCLINE –. For example, if you want to adjust the incline to 10%, press the EXPRESS INCLINE button, then 1, then
0. The incline will automatically increase to 10%. The EXPRESS INCLINE buttons adjusts incline in 1.0% increments. To
adjust the incline to 8.5%, press EXPRESS INCLINE, then 8. Then press the INCLINE ▲button to adjust in 0.5% increments.
EXPRESS SPEED – For example, if you choose to increase the speed to 5.0 mph, press the EXPRESS SPEED button, then 5,
then 0. The speed will automatically be increased to 5 mph. The EXPRESS SPEED buttons adjust speed in 0.1 mph
increments. To adjust speed to 5.3 mph, press EXPRESS SPEED, then 5, then 3.
WORKOUT INTENSITY LEVEL (TIMER) – 1) In a Timed Workout (Manual), press these buttons to select the desired
workout time, adjustable in 1 minute increments. 2) Once a Fat Burn, Cardio or Personal Trainer program has been
selected, first press these buttons to set the desired workout time from 20 to 60 minutes, adjustable in 5 minute increments,
then press ENTER. Once the time has been entered, use these buttons to select the desired workout intensity level (1 through
9), then press START to begin your workout. For details, refer to the TIMED WORKOUT (MANUAL), FAT BURN, CARDIO and
PERSONAL TRAINER sections in this manual.
FAT BURN – Press this button to choose one of the four FAT BURN programs, Calorie Coach, Thigh Shaper, Glute Toner
or Waist Reducer. For details, refer to the FAT BURN WORKOUT section in this manual.
CARDIO – Press this button to choose one of the six CARDIO workouts; Heart Zone Monitor, Target HRC,
Fat Burn Zone HRC, Cardio Zone HRC, Interval HRC or Fitness Evaluator. For details, refer to the CARDIO WORKOUT
section in this manual. Note: The included chest strap must be worn and a heart rate signal must be detected in order for these programs
to be operational.
PERSONAL TRAINER – Press this button to choose one of the six PERSONAL TRAINER workouts; Hill Intervals, Speed
Intervals, Mixed Intervals, Custom 1, Custom 2 or Custom 3. For details, refer to the PERSONAL TRAINER WORKOUTS
section in this manual.
PACE - Press this button to display speed in minutes per mile or minutes per kilometer when in Metric mode. When the PACE
button is pressed, the current PACE will be displayed for 5 seconds in the TIME display window, then the display will revert
back to elapsed or remaining time.

12
SELECT
THE PACEMASTER GOLD ELITE CONTROL PANEL (cont’d)
SELECT – 1) Prior to beginning your workout, press this button to see the predicted distance, caloric expenditure, Aerobic
Points and average speed for the workout you have chosen. 2) During workout, press this button to lock onto the desired
feedback you want displayed; Distance, Calories, Aerobic Points, Heart Rate (if the included chest strap is worn) or Average Speed. 3) To
scan your workout results while exercising, press and hold this button until the word “SCAn” appears in the RESULTS display window.
Each value will be displayed for 3 seconds. 4) Press this button to change between English units and Metric units. For details, refer to the
METRIC UNITS section in this manual.
DISPLAYS
TIMER – This window displays the chosen workout time in minutes and seconds (mm:ss) up to 59 minutes and 59 seconds. Times of 1
hour to a maximum of 4 hours are displayed as hours and minutes (– h: mm), with the dash as the first digit. For example, one hour and 15
minutes is displayed as -1:15. In QUICK START, the TIMER will count up, displaying the elapsed time. In all other program modes, the
TIMER will count down, displaying the remaining time. If a Warm Up and/or Cool Down mode is chosen, the TIMER will display as a 5-
minute countdown for the warm up phase, a countdown for the main exercise phase and then a 5-minute countdown for the cool down
phase.
PROFILE – This window displays the program PROFILE of the chosen Fat Burn, Cardio, Personal Trainer program. In Quick Start, the
PROFILE displays a quarter mile track. In a Timed (Manual) program, the PROFILE displays a OneLap track. For details, refer to the
OneLap Track section in this manual.
RESULTS –1) Prior to pressing the START button, the RESULTS window will display the predict results of that workout, based on the
chosen time and intensity (level). 2) During the workout, this window displays the current distance, caloric expenditure, Aerobic Points,
heart rate (if the included chest strap is being worn) and the average speed. The current result displayed in the RESULTS window will be
indicated by an illuminated LED light.
SPEED –This window displays SPEED from 0.5 mph to 12.0 mph. Prior to beginning a workout, the starting SPEED is displayed. Once
your workout has begun, the current SPEED is displayed.
INCLINE – This window displays INCLINE from 0% to 15.0%. Prior to beginning a workout, the starting INCLINE is displayed. Once your
workout has begun, the current INCLINE is displayed.
INDICATOR LED LIGHTS
Set Weight – Within seconds of the magnetic safety key being inserted, the SET WEIGHT LED indicator light flashes and the last entered
weight appears in the INCLINE display window. Weight can be adjusted by pressing the INCLINE ▲or ▼buttons. Once your weight is
displayed, press PAUSE (ENTER).
Set Age – Within seconds of the magnetic safety key being inserted, the SET AGE LED indicator light flashes and the last entered age
appears in the SPEED display window. Age can be adjusted by pressing the SPEED + or - buttons. Once your age is displayed, press
PAUSE (ENTER).
INCLINE Max – The INCLINE Max LED indicator light is illuminated when a Fat Burn, Cardio, Personal Trainer workout is selected. The
number displayed in the INCLINE display window is the maximum incline that will be encountered for the program and level chosen.
SPEED Max – The SPEED Max LED indicator light is illuminated when a Fat Burn, Cardio, Personal Trainer workout is selected. The
number displayed in the SPEED display window is the maximum speed that will be encountered for the program and level chosen.
WARM UP and COOL DOWN – The WARM UP and/or COOL DOWN indicator LED lights will flash in the PROFILE display window when
a WARM UP and/or COOL DOWN mode is selected.
RESULTS – The specific result, Distance, Calories, Aerobic Points, Heart Rate (it the included chest strap is worn) and Average Speed
being displayed in the RESULTS display window will be indicated by an illuminated LED light.

13
OPERATING INSTRUCTIONS
Initially, you may want to keep both hands on the side rails until you feel comfortable walking on your PaceMaster. Once you feel
comfortable, try removing your hands to let them swing naturally, as you would when walking outdoors. Always hold on to the side rail or
front handle bar with one hand when operating the buttons of the control panel.
THE FIRST STEP
Stand on the center of the treadmill belt. Attach the garment clip on the end of the magnetic safety key to your clothing at waist level.
Insert the safety key into the recess on the control panel keyboard.
METRIC UNITS
PaceMaster treadmills can be configured to operate in English (lbs, mph, and miles) or Metric units (kg, kph, and kilometers) of measure.
To determine the present configuration of your PaceMaster insert the magnetic key, if “USA” is displayed in the “RESULTS” window it is
configured in English, if “Eur” is displayed in the “RESULTS” window, it is configured in Metric. To change between English and Metric
insert the magnetic key, as soon as the current setting (USA or EUR) is displayed in the Results window, press and hold the SELECT
(PREVIEW) button until the setting changes. Press PAUSE (ENTER) to confirm the selection.
SETTING YOUR WEIGHT AND AGE
Your PaceMaster calculates caloric expenditure based on the formula developed by the American College of Sports Medicine. To ensure
accuracy, your weight is required. Once the magnetic key has been inserted, the default weight of 150 lbs. (68 kg.) is shown in the
INCLINE display and the SET WEIGHT indicator will be blinking. By pressing the INCLINE up or down buttons, you will increase or
decrease the weight value, press PAUSE (ENTER) when done.
WARM UP AND COOL DOWN
By warming up prior to beginning the aerobic phase of your workout, you accomplish 2 goals; you stretch and warm up the muscles of the
back and extremities and create a slight acceleration of the heart rate so that the body can move gradually into the higher heart rate of the
aerobic phase. The aerobic phase should be followed by a minimum 5-minute cool down in which you keep moving at a slower pace. This
allows your heart rate to gradually decline and your body to gently adjust to the end of a workout instead of abruptly stopping. The cool
down phase also allows blood to be pumped from the lower extremities back to the central circulatory system. Simply put, the function of
warming up and cooling down is to ease you from a resting state into an active state and back to a resting state.
The treadmill’s computer, based on your main exercise starting and finishing speeds respectively, automatically calculates warm up and
cool down speeds.
When in the warm up mode, the TIME display window counts down from 5 minutes and the Warm Up indicator light will blink. When in the
Cool Down mode, the TIME display window counts down from 5 minutes and the Cool Down indicator light will blink.
To add warm up and/or cool down to a TIMED workout press the Warm Up / Cool Down button. The indicator light will blink, indicating that
the desired mode has been added to your workout. You will also notice that the workout time increases by 5 minutes for each addition.
To shorten the warm up mode, press the Warm Up / Cool Down button once. Warm up will be ended and you will advance into the main
exercise. To shorten the main exercise, press the Warm Up / Cool Down button and you will automatically begin the cool down phase. To
end the cool down, press STOP and your session will come to a close.
A cool down phase can be added to any workout (even if it wasn’t chosen prior to beginning the workout) by pressing the Warm Up / Cool
Down button.
Now you are ready to choose your workout mode. Whether it is Quick Start, Timed Workout (Manual), or one of the four Variable Intensity
Workouts, the following pages give you step-by-step instructions on how to use each workout.

14
CONFIGURING USER ID’S
The four USER ID positions give you the ability to view the results from your last seven workouts. They can be recalled as a cumulative
total or as individual workouts.
Selecting and setting a USER ID
Step One:
Stand on the running belt and attach the garment clip on the end of the magnetic safety key to your clothing. Insert the safety key into its
recess on the control panel.
Step Two: Select a USER ID number by pressing the
(USER ID)
button. The default settings for all USER ID positions are 150 lbs. for
the weight and 40 years for the age.
Step Three:
Press the Incline buttons to set your weight and the Speed buttons to set your age, then press the
(ENTER) button to store your personal information. You can now begin your desired program and the results; total Time, Distance,
Calories burned, Aerobic Points earned and Average Speed, for seven workouts will be stored.
Step Four:
Prior to beginning each workout, you must remove and re-insert the magnetic safety key as described in Step One for the results will be
stored. Press the
(USER ID)
until your USER ID number is displayed in the PROFILE display window, then press the (ENTER) button.
Recalling the cumulative summary of your last seven workouts
Step One:
Stand on the running belt and attach the garment clip on the end of the magnetic safety key to your clothing. Insert the safety key into its
recess on the control panel.
Step Two: Press the
(USER ID)
button until the your USER ID number is displayed in the PROFILE display window. Press the
SELECT button to scroll through a cumulative summary of the results from your last seven workouts.
PACE
(TIMER)
SELECT
(ENTER)(RESET)
0123456789
(USER ID)
RESULTS
Heart Rate
Aerobic Pts
Calories
Avg Speed
Distance
TIMER PROFILE Cool DownWarm Up
Set Age
Max
SPEED
Max
Set Weight
INCLINE
(QUICK)
0:26 1.32
150 40
USER 1 cumulative
workout time for the
last seven
workouts.
USER 1 weight
USER 1 cumulative results for
the last seven workouts.
USER 1 age

15
Recalling the individual workout results from your last seven workouts:
Step One:
Stand on the running belt and attach the garment clip on the end of the magnetic safety key to your clothing. Insert the safety key into its
recess on the control panel.
Step Two:
Press the
(USER ID)
button until your USER ID number is displayed in the PROFILE display window.
Step Three:
Use
WORKOUT
INTENSITY LEVEL
buttons to scroll through the summaries for your last seven workouts. Press
(USER ID)
button to get back to the
USER ID display or press (ENTER) button to begin the desired program.
To recall and use your last workout settings:
Step One:
Stand on the running belt and attach the garment clip on the end of the magnetic safety key to your clothing. Insert the safety key into its
recess on the control panel.
Step Two:
Press the
(USER ID)
button until your USER ID number appears in the PROFILE display window, then press the Pause (ENTER)
button. Your last workout settings will be displayed. Press the (QUICK) to begin that program.
Resetting your cumulative data:
Step One:
Stand on the running belt and attach the garment clip on the end of the magnetic safety key to your clothing. Insert the safety key into its
recess on the control panel.
Step Two:
Press the
(USER ID)
button until your USER ID number appears in the PROFILE display window. Press and hold the (RESET)
button until 0:00 appears in the TIMER display window and 0.00 appears in the RESULTS display window.

16
QUICK START
Quick Start allows you to begin your workout by pressing one button. You control the speed, incline and time.
Step One:
Stand on the running belt and attach the garment clip on the end of the magnetic safety key to your clothing. Insert the safety key into its
recess on the control panel.
TIP: If you have selected your user ID, go to Step Three.
Step Two:
Press the Incline buttons to set your weight and the Speed buttons to set your age, then press the
(ENTER) button to store your personal information. You can now begin your desired program and the results; total Time, Distance,
Calories burned, Aerobic Points earned and Average Speed, for seven workouts will be stored.
NOTE: If you are wearing your Heart Rate chest strap and would like to use the Heart Zone Monitor feature Press the button,
C1 will appear in the results window, this activates the Heart Rate receiver.
Step Three:
Press the (QUICK) button. Within a few seconds, the tread belt will begin to move. The speed display will flash until the tread belt has
reached the set speed.
During your Workout:
•Adjust the speed at any time during your workout by pressing the Speed buttons. Speed will adjust in 0.1 mph increments
•Add incline at any time during your workout by pressing the Incline buttons. Elevation will adjust in 0.5% increments.
•Add a 5 minute Cool Down to the end of your workout by pressing the
(USER ID)
button when you are ready.
TIP: You can pause your workout by pressing the PAUSE (ENTER) button. This feature is not available in cool down or heart rate control.
To resume, press the START (QUICK) button.
TIP: During your workout you can press and hold the SELECT button until the word “SCAn” appears, each value (distance, calories,
Aerobic Points, Heart Rate, and Average Speed) will now be displayed for 3 seconds on a rotating cycle.
Step Four:
To end your workout, press the (RESET) button. The treadmill will display the total time, calories, Aerobic Points, distance and average
speed.
If a problem should occur, your PaceMaster can be stopped quickly by pulling on the magnetic safety cord to dislodge the key from the
control panel. The treadmill will stop a bit more abruptly, but still gently enough to prevent you from being injured. This is an emergency
procedure only and should not be used as the normal stopping procedure.

17
TIMED WORKOUT (MANUAL)
Timed Workout allows you to choose the length of time and the degree of intensity for your workout. You can make speed and incline
adjustments at any time during the workout.
Step One:
Stand on the running belt and attach the garment clip on the end of the magnetic safety key to your clothing. Insert the safety key into its
recess on the control panel.
TIP: If you have selected your user ID, go to Step Three.
Step Two:
Press the Incline buttons to set your weight and the Speed buttons to set your age, then press the
(ENTER) button to store your personal information. You can now begin your desired program and the results; total Time, Distance,
Calories burned, Aerobic Points earned and Average Speed, for seven workouts will be stored.
NOTE: If you are wearing your Heart Rate chest strap and would like to use the Heart Zone Monitor feature Press the button,
C1 will appear in the results window, this activates the Heart Rate receiver, now press (RESET) and continue below.
Step Three:
Enter the starting speed by press the Speed button until the desired speed appears in the SPEED display window. Speed can be
adjusted at any time during your workout.
Step Four:
Enter the workout time using the
WORKOUT
INTENSITY LEVEL
buttons until the desired workout time appears. If you hold either of the buttons down the
time scrolls quickly.
•If you wish to include warm up and/or cool down to your workout, press the
(USER ID)
button until the indicator light next to
the desired mode is illuminated. You will notice that your workout time will automatically increase by 5 minutes for each addition.
For details, refer to the WARM UP AND COOL DOWN section in this manual.
•Adjust incline by pressing the Incline buttons. Elevation is adjusted in 0.5% increments.
Step Five:
Press (QUICK) and your PaceMaster will gradually accelerate until it reaches the entered speed.
Step Six:
To end your workout, either allow the timer to count down to zero or press the (RESET) button. The treadmill will display the total time,
calories, Aerobic Points, distance and average speed.
TIP: You can pause your workout by pressing the PAUSE (ENTER) button. This feature is not available in cool down or heart rate control.
To resume, press the START (QUICK) button.
TIP: During your workout you can press and hold the SELECT button until the word “SCAn” appears in the RESULTS display, each
value (distance, calories, Aerobic Points, Heart Rate, and Average Speed) will now be displayed for 3 seconds on a rotating cycle.

18
FAT BURN WORKOUTS
To assist you in reaching your fitness goals, your PaceMaster comes with 4 Fat Burn Workouts- F1 Calorie Coach, F2 Thigh Shaper, F3
Glute Toner, and F4 Waist Reducer. F2, F3, and F4 each offer 9 different levels of intensity, giving you 27 different workout possibilities.
Additionally, each Fat Burn workout is time adjustable from 20 to 60 minutes During your workout, you will be alerted to all speed and/or
elevation changes in the workout with 4 audible chirps and a flashing speed and/or incline display.
F1 CALORIE COACH
The Calorie Coach program enables you to select the number of calories you want to burn. Then, based on the speed and incline you
enter, the treadmill’s computer will determine the time required to achieve your calorie expenditure goal.
USING F1 CALORIE COACH:
Step One:
Stand on the running belt and attach the garment clip on the end of the magnetic safety key to your clothing. Insert the safety key into its
recess on the control panel.
TIP: If you have selected your user ID, go to Step Three.
Step Two:
Press the Incline buttons to set your weight and the Speed buttons to set your age, then press the
(ENTER) button to store your personal information. You can now begin your desired program and the results; total Time, Distance,
Calories burned, Aerobic Points earned and Average Speed, for seven workouts will be stored.
Step Three:
If you are wearing your Heart Rate chest strap and would like to use the Heart Zone Monitor feature Press the button, C1 will
appear in the results window, this activates the Heart Rate receiver.
Step Four:
Press the button once and F1 will appear in the RESULTS window. A mug will appear in the Profile display window and number
(example: C100) will appear in the RESULTS display window. C100 represents 100 calories. This number will vary with user selected
variables.
Step Five:
Use the
WORKOUT
INTENSITY LEVEL
buttons set the number of calories you want to burn; this is displayed in the RESULTS window.
Step Six:
Set the speed and incline you desire. The treadmill will automatically calculate the amount of exercise time necessary to achieve the
selected caloric expenditure.
Step Seven:
Press (QUICK) , you will be in the warm-up phase, you will see the warm-up steps in the PROFILE display window. . Following the warm up
phase, you will see the OneLap™ Track in the PROFILE display window. The RESULTS window will show a count up of the calories
burned thus far.
TIP: You can pause your workout by pressing the PAUSE (ENTER) button. This feature is not available in cool down or heart rate control.
To resume, press the START (QUICK) button.

19
USING F2, F3, and F4:
Step One:
Stand on the running belt and attach the garment clip on the end of the magnetic safety key to your clothing. Insert the safety key into its
recess on the control panel.
TIP: If you have selected your user ID, go to Step Three.
Step Two:
Press the Incline buttons to set your weight and the Speed buttons to set your age, then press the
(ENTER) button to store your personal information. You can now begin your desired program and the results; total Time, Distance,
Calories burned, Aerobic Points earned and Average Speed, for seven workouts will be stored.
Step Three:
If you are wearing your Heart Rate chest strap and would like to use the Heart Zone Monitor feature Press the button, C1 will
appear in the results window, this activates the Heart Rate receiver.
Step Four:
In the PROFILE window press the button to select F2 Thigh Shaper, F3 Glute Toner, or F4 Waist Reducer, the program number
(F2, F3, or F4) will be displayed in the RESULTS window.
Step Five:
The default workout time of 30:00 minutes will be flashing in the TIMER display. Use the
WORKOUT
INTENSITY LEVEL
buttons to adjust your total workout
time. Total workout time can be set from 20 to 60 minutes, in 5 minute increments; this includes a warm up & cool down.
TIP: Warm up and cool down periods are automatically added to all the Variable Intensity Workouts. If you wish to remove the warm up
and/or cool down phases, press the warm up/cool down button
(USER ID)
until the corresponding indicator light is no longer illuminated.
Step Eight:
Press the (ENTER) button to enter your workout time.
Step Nine:
Press the
WORKOUT
INTENSITY LEVEL
button to adjust the level of intensity. The level will be displayed in the RESULTS display window preceded with
the letter “L”. The maximum incline for that level will be displayed in the INCLINE display and the maximum speed for that level will be
displayed in the SPEED display and the MAX indicator lights will also be illuminated. You can adjust the level of intensity at any time
during your workout by pressing the
WORKOUT
INTENSITY LEVEL
buttons.
Step Ten:
Press the (QUICK) button to begin your workout.
TIP: You can pause your workout by pressing the PAUSE (ENTER) button. This feature is not available in cool down or heart rate control.
To resume, press the START (QUICK) button.

20
FAT BURN WORKOUT PROFILES
F2 THIGH SHAPER
Level Speed Incline
Min Max Min Max
1 1.4 2.2 0 1.5
2 2.0 2.8 0 2.0
3 2.6 3.4 0 2.5
4 3.2 4.0 0 3.0
5 3.8 4.6 0 3.5
6 4.4 5.2 0 4.0
7 5.0 5.8 0 4.5
8 5.6 6.4 0 5.0
9 6.2 7.0 0 5.5
HEART RATE ZONE 70% to 85%< 55% 55% to 69% > 85%
PROFILE Cool DownWarm Up
F3L4
F3 GLUTE TONER
Level Speed Incline
Min Max Min Max
1 1.2 2.8 0 12.5
2 1.6 3.2 0 12.5
3 2.0 3.6 0 12.5
4 2.4 4.0 0 12.5
5 2.8 4.4 0 12.5
6 3.2 4.8 0 12.5
7 3.6 5.2 0 12.5
8 4.0 5.6 0 12.5
9 4.4 6.0 0 12.5
F4 WAIST REDUCER
Level Speed Incline
Min Max Min Max
1 1.4 2.6 0 6.0
2 2.0 3.2 0 6.0
3 2.6 3.8 0 6.0
4 3.2 4.4 0 6.0
5 3.8 5.0 0 6.0
6 4.4 5.6 0 6.0
7 5.0 6.2 0 6.0
8 5.6 6.8 0 6.0
9 6.2 7.4 0 6.0
HEART RATE ZONE 70% to 85%< 55% 55% to 69% > 85%
PROFILE Cool DownWarm Up
F4L4
NOTE: Your individual workout may differ slightly from the ones printed above, based on variables chosen by you, such as workout time
and intensity level.
HEART RATE ZONE 70% to 85%< 55% 55% to 69% > 85%
PROFILE Cool DownWarm Up
F2L4
