Aiphone IS-SOFT User manual

Thank you for selecting Aiphone for your communication and security needs. Please read this manual and the separate “SETTING
MANUAL” carefully before setting and using the PC master station.
Please note that images and illustrations depicted in this manual may differ from the actual ones.

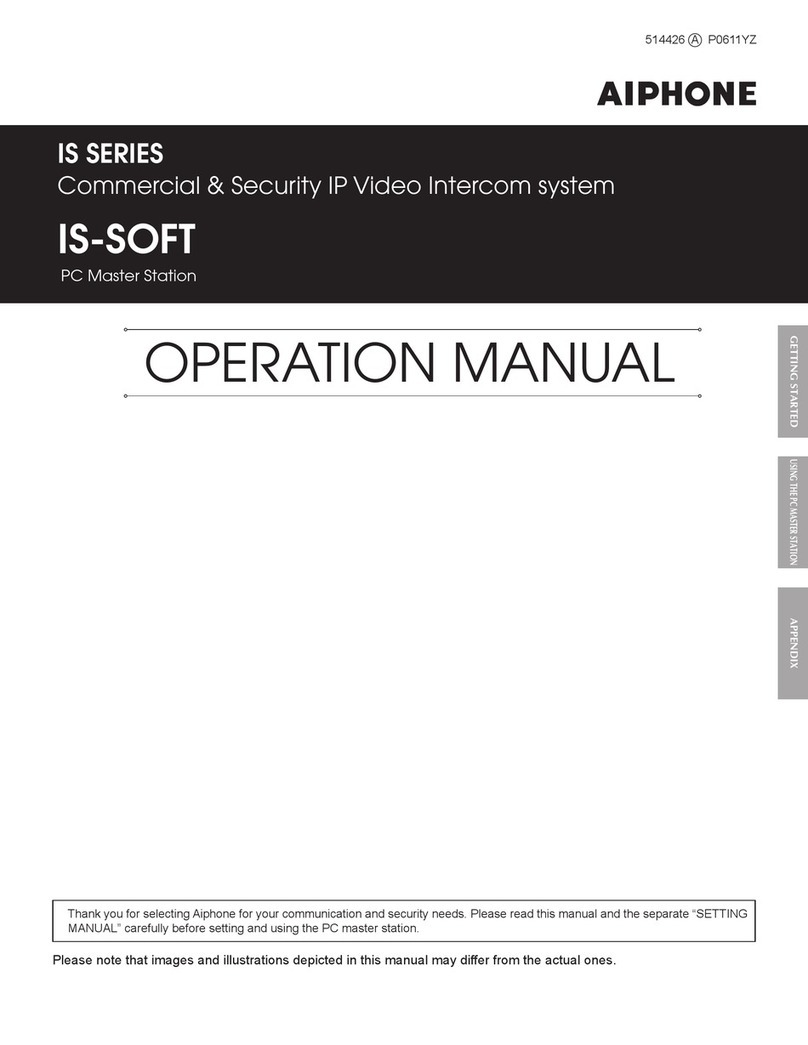

IS SERIES
Commercial & Security IP Video Intercom system
IS-SOFT
OPERATION MANUAL
PC Master Station
GETTING STARTED APPENDIX
USING THE PC MASTER STATION
514426 A P0611YZ

2
CONTENTS
INTRODUCTION.......................... 4
PRECAUTIONS ........................... 4
General precautions ..................... 4
Notes on using this product ........ 4
Notes on communication............. 4
Notices........................................... 4
GETTING STARTED ....................... 5
PART NAMES AND THEIR
FUNCTIONS ................................ 5
Main window ................................. 5
Volume control window................ 7
Dial keys window .......................... 7
Speed dial window........................ 8
Play window .................................. 8
OUTLINE OF OPERATIONS ....... 9
Communication............................. 9
Transferring................................... 9
Paging.......................................... 10
Monitoring ................................... 10
Door release ................................ 10
USING THE PC MASTER STATION ... 12
RECEIVING AND ANSWERING
A CALL ON THE PC MASTER
STATION .................................... 12
Receiving a call........................... 12
Answering a call ......................... 13
■Communication in the hands-free
mode ..................................................13
■Communication in the press-to-talk
mode ..................................................13
Viewing video images at a
video door station....................... 15
■Switching Zoom/Wide.........................15
■Pan & Tilt ............................................15
■Adjusting images ................................16
Transferring to another (PC)
master station ............................ 17
■Communication transferring ...............17
■Call transferring ..................................17
Door release ................................ 18
Using the PRIVACY function...... 18
■While receiving a call..........................18
■To communicate with the caller ..........18
PERFORMING CALLING,
MONITORING, PAGING AND
CHIME PAGING ON THE PC
MASTER STATION.................... 19
Searching for a station, zone or
remote site .................................. 19
Searching for a station, zone or remote
site from the list......................................21
Searching for a station or zone by
number using the dial keys ....................23
Searching for a station, zone or
remote site from the placed call or
received call list......................................24
Selecting a station, zone or remote
site by using the speed dial
buttons ...................................................24
Calling another station
(direct voice call) ........................ 25
Monitoring ................................... 26
■Monitoring...........................................26
■Scan-monitoring .................................26
Viewing video images at the
target station ............................... 26
Paging ......................................... 27
Chime paging ............................. 27
RECORDING ............................. 28
Auto recording ............................ 29
Manual recording........................ 29
■How to perform manual recording .....29

3
PLAY .......................................... 30
Playing recorded image
(and/or sound)............................. 30
Deleting a recorded file .............. 31
APPENDIX..................................... 32
TECHNICAL PRECAUTIONS ... 32
AVAILABLE CHARACTER
LIST ........................................... 32
SPECIFICATIONS ..................... 32
PREPARATION
Connecting a headset or handset to the PC
To talk, listen, etc. by using the PC master station, connect a commercially available headset or handset to the PC on which the PC
master station will run.
When a talk cannot be switched properly between you and the target side, adjust the microphone volume and/or speaker volume
*
on the PC master station. If the adjustment is insufficient, also adjust volume on the headset or handset.
Headset Handset

4
INTRODUCTION
The IS system is a video security communication system especially designed for applications in facilities such as office buildings,
factories, schools, hospitals, and prisons. This product is an application to be installed in a PC to use it as a PC master station in the
IS system. The PC master station can be used almost as the same as other IP master stations adding some unique functions.
PRECAUTIONS
General precautions
1. For wiring, specify CAT5e straight cable.
2. Due to the environmental sound around the unit, it may hinder
smooth communication, but this is not a malfunction.
3. The outline of video images displayed by video door station may
differ from that of the actual person(s) or background, but this is
not a malfunction.
4. Aiphone assumes no responsibility for corruption of saved
information (such as changes to or deletion of saved information).
Please be aware of this in advance.
5. Warm-color lighting shining on the door station may change the
tint of the picture on the monitor.
Notes on using this product
Lip-sync is not performed for audio and video in the PC master
•
station.
Depending on the network environment and computer, it may not be
•
useable.
There are times when audio and video may be delayed in the PC
•
master station due to encoding, decoding, or the network.
Depending on the network environment or the computer's
•
performance, operations may not be carried out normally, such as
interrupted audio or video, and delayed frame rate decrease.
When operating PC master station in succession, the operation may
•
become invalid.
The times for the system and the PC master station are not
•
synchronized.
We recommend a 100BASE-TX wired LAN network.
•
Notes on communication
When communicating via the PC master station, use a commercially
•
available headset or commercially available handset to prevent
feedback. When using a headset or handset, the call tone does not
sound from the computer's speaker. Confirm the call by the headset
(or handset) or the screen display.
During communication, if you speak before the other person
•
has finished talking, your voice may not come through clearly.
Communication will proceed smoothly if you wait until the other
person has finished before speaking.
If there are loud noises (such as children crying, music playing, or
•
strong winds) around the computer or the door station, the sound
may break up and be difficult to hear.
A hands-free (VOX) system has been implemented for
•
communication. Even if you use a headset or handset with the PC
master station, you cannot carry out simultaneous conversations.
(Communication is not full duplex.)
The talk and call tone volumes vary depending on the PC master
•
station settings, computer settings, and headset or handset volume.
Pay careful attention to the volume when monitoring or talking.
Notices
We will under no conditions be liable for damage that occurs due
•
to failures in network equipment; failures due to internet providers
and cell phone companies; failures such as disconnected lines and
other losses in communication, which render it impossible to provide
this service or in any way delay this service due to causes outside
of our responsibility; or if an error or missing data occurs during
transmission.
We will under no conditions be liable for damage caused if a
•
customer's password or transmitted information are leaked through
bugging or unlawful computer access over Internet communication.
We will under no conditions be liable for damage that occurs due
•
to the inability to communicate due to malfunctions, problems, or
operational errors in this product.
We will under no conditions be liable for any damages or losses
•
resulting from this product's contents or specifications.
This manual was created by Aiphone Co., Ltd., all rights reserved.
•
Copying a part of or this entire manual without prior permission from
Aiphone Co., Ltd. is strictly forbidden.
Please note that images depicted in this manual may differ from the
•
actual images.
Please note that this manual may be revised or changed without
•
prior notice.
Please note that product specifications may be changed for the sake
•
of improvement without prior notice.
Please be aware that it is the customer's responsibility to ensure that
•
their computer is secure. We will under no conditions be liable for
security failures.
This system is not intended for life support or crime prevention. It is
•
just a supplementary means of conveying information. Aiphone will
under no conditions be liable for loss of life or property which occurs
while the system is being operated.
When the PC master station is initialized, all the registrations are
•
returned to factory default settings. Follow the setup procedure for
the PC master station again.

5
GETTING STARTED APPENDIX
USING THE PC MASTER STATION
PART NAMES AND THEIR FUNCTIONS
NOTE:
Confirm the icon on the task bar at the bottom-right of the PC screen is blue. If the icon is gray, the settings have not been made correctly.
(→“SETTING MANUAL”)
Main window
Minimize button
Minimizes the main window.
Status display
icons
(Refer to the next
page for details.)
Video x1, x2, x3
buttons
Change the size of
the main window.
* “x3” may not
appear depending
on the PC.
Volume control
window button (→P. 7)
Opens the Volume
control window.
Dial keys window button
(→P. 21)
Opens the Dial keys window.
Speed dial window button
(→P. 24)
Opens the Speed dial window.
SETTING button
Opens the Setting window. (Refer to
the SETTING MANUAL for details.)
LIST button (→P. 20)
Click to display the registered stations,
zones or remote sites in the list area.
OFF button (→P. 13)
Click to finish communication,
monitoring or calling.
TALK button (→P. 13)
Click to answer a call or call the selected station.
(ZOOM/WIDE button) (→P. 15)
Switches the display mode between
zoom and wide. (This button is also
used for determining the selection.)
ADD/RMV (Add/Remove) button (→P. 21)
Adds or removes stations and/or zones in
the list.
BACK button
Returns to the
previous status.
List area
The list of the
stations, zones and/
or remote sites you
searched for is shown
here. Stations, zones
and/or remote sites
are displayed either
by number and/or
name depending
on the setting in the
Setting window.
List page no.
When the list of
stations, zones
and/or remote
sites, or setting
items consist of
two or more pages,
the current page
no. is shown here.
Message area
Displays the number(s)
(or name(s)) of the
selected station(s),
zone(s) or remote
site, and the station
number of this PC
master station.
PRIVACY button (→P. 18)
Click so that the button
lights up to turn on the
privacy function.
Record/Stop button (→P. 29)
Records the displayed image
on the PC.
TRANSFER button (→P. 17)
Click so that the button
lights up to transfer a call to
another master station, etc.
(Pan & Tilt control button) (→P. 15)
Moves the images on the video display area from
right to left or up and down.
Play window button (→P. 30)
Opens the Play window.
Door release button (→P. 18)
Click so that the button lights up to unlock the
door connected to the received door station.
ADJUST button (→P. 16)
Click so that the button lights up to adjust the
image on the video display area when it is hard
to see in the daytime or darkness.
MONITOR button (→P. 26)
Click to monitor the selected
station or start scan-monitoring.
Close button
Closes the PC main window.
Video display area
Displays station type
images and images from
a video door station.
Time and date display
Displays the time and date.
GETTING STARTED

6
Status display icons
The following icons are displayed here depending on the status of the
PC master station.
The color of an icon changes according to the priority level.*
Normal: green
Priority: yellow
Urgent: red
List of the mainly-used icons
Icons The status when the icon appears
Appears while talking to the target station, being called
from another (PC) master station, etc.
Appears while being called.
Appears when paging.
Appears when the microphone volume is set to OFF, or
the PRIVACY function is activated.
Appears while transferring is suspended.
Appears while receiving a call from a station transferred
by another one.
* This icon also appears on the station that performs
transferring.
Appears while searching for a station, zone or remote
site.
Appears while monitoring.
Appears during scan-monitoring.
Appears when an error message is displayed.
Appears while performing chime paging.
Shows it is a waiting time for shifting to the next
performance, etc.
Displaying call and/or (chime) paging record and
reception record
Call and/or (chime) paging record and reception record can be
displayed on the monitor for each up to 20 items.
When no answer was returned to an incoming call from this
*
PC master station, it is displayed in the reception record list.
In the records, unanswered incoming calls are marked with
☆(outlined in yellow) or .
: Unanswered calls that have not been confirmed on the
list yet
☆
: Unanswered calls that have already been confirmed on
the list
NOTES:
The calls that are not received at the PC master station are not
•
recorded. (A PC master station cannot receive two or more calls at
a time.)
The record of unanswered incoming calls can also be automatically
•
displayed by the setting in the Setting window. ( →“ SETTING
MANUAL”)
The reception of chime is not recorded.
•
A monitoring operation is not recorded. If monitoring is shifted to
•
talking, it will be recorded.
How to select items in the list area
1. Highlight the desired item by clicking repeatedly, or
pointing to it with the cursor.
2. Double-click the highlighted item with the cursor to go on to
the next selection list.
* If there is no additional selection list, perform the
corresponding action (calling, monitoring, paging, etc.).
This manual mainly describes operation methods by using .
You can also use the cursor if you prefer.

7
GETTING STARTED APPENDIX
USING THE PC MASTER STATION
Volume control window
NOTE:
Sudden rise of the tone volume and speaker volume may damage your eardrum(s). Be sure to lower the volume first, and then rise the volume little
by little to adjust it.
Dial keys window
Close button
Closes the Volume control
window.
Minimize button
Minimizes the Volume control
window.
Minimize button
Minimizes the Dial keys
window.
Close button
Closes the Dial keys
window.
Dial keys (→P. 21)
Used to enter the number or
name of a station or zone you
want to search for.
Microphone volume
adjusting slider
Tone volume adjusting
slider
Speaker volume adjusting
slider
Audio transmit level indicator
Shows the volume level of talking
sound.
* Adjust the volume so that the level
does not reach the red zone of the
indicator.

8
Speed dial window
Play window
Station Select tab
Selects the target station type
or remote site for searching for
recorded files.
Prior file button
Displays the previous files in the
file display area.
Stop button
Stops play.
Play button
Plays a selected file.
Pause button
Temporarily stops play.
Slow button
Makes play in slow motion.
Fast forward button
Fast-forwards play.
Start Date selection tab (and calendar)
Designates the start date of the period
of time to search for files recorded in the
period.
End Date selection tab (and calendar)
Designates the end date of the period of time.
Minimize button
Minimizes the Play window.
Close button
Closes the Play window.
File display area
Displays the recorded files
here.
Delete button
Deletes the selected file.
Next file button
Displays the next files in the
file display area.
Close button
Closes the Speed dial
window.
Speed dial buttons (→P. 24)
Register stations, zones and/or
remote sites you call or select
frequently to each of these
buttons. You can select a station,
zone or remote site simply by
clicking the corresponding button.
(→P. 30-31)
Minimize button
Minimizes the Speed dial
window.

9
GETTING STARTED APPENDIX
USING THE PC MASTER STATION
OUTLINE OF OPERATIONS
The following describes the outline of operations you can perform with a PC master station.
Communication
On a sub station (door station or room sub station), you can call up to 20 preset (PC) master stations in your site at the same time.
•
Or you can call up to19 (PC) master stations in your site and a remote site (up to 20 (PC) master stations at the remote site).
On a PC master station, the communication method can be selected from the hands-free mode or the press-to-talk mode.
•
(→P. 13)
You can also communicate with a remote site (a pilot station registered in the site).
•
Transferring
When communicating with a received call on a PC master station, you can transfer it to another (PC) master station in your site.
(→P. 17)
You can also make a transfer setting for transferring calls to a designated (PC) master station automatically.
*
For a call from another (PC) master station, you can transfer it only when you are communicating with it (not to the remote site).
*
You can also transfer a call to a remote site. (However, you cannot transfer a call received from a remote site to another remote
*
site.)
Room sub station
Door station
Communication
Communication
Hands-free
Press-to-talk
PC master station
Room sub station
Door station
Call Transfer
PC master station
PC master station
Master station
Master stationPC master station
or
or
or
or
Click and hold the
(TALK) button.

10
Paging
On a PC master station, you can initiate paging or chime paging to the selected zone(s). All the stations previously registered to the
zone(s) receive the paging or chime. (→P. 27)
You can also call another (PC) master station or a sub station individually by direct voice call. The receiver can reply in the hands-
*
free mode.
You can also make paging or chime paging to the registered external speaker(s).
*
You can also make paging or chime paging to a specified zone in a remote site when the site has chime sources. (When the site
*
does not have a central control unit, the chime paging does not initiate.)
Monitoring
On a (PC) master station, you can monitor a sub station in your site.
You can also initiate the scan-monitoring (monitoring multiple preset stations sequentially).
For an audio door station or room sub station, you can monitor sounds only.
(→P. 26)
You cannot monitor or scan-monitor a remote site.
*
PC master station
PC master stations
Master stations
Room sub stations
Door stations
Paging or chime paging
Room sub station
or or
Door station (video) Door station (audio)
PC master station
Monitoring

11
GETTING STARTED APPENDIX
USING THE PC MASTER STATION
Door release
On a PC master station, you can unlock the door associated with a sub station call in which a door release device is connected.
(→P. 18)
You can also unlock the door (door release device) connected to a sub station in a remote site depending on the setting.
*
NOTE:
If the door station does not have a camera, you cannot view the image of the visitor. Confirm the visitor securely.
or Call
Electric door strike PC master station
Door release
Room sub station
Door station

12
RECEIVING AND ANSWERING A CALL ON THE PC MASTER STATION
The following describes the communication method using a PC master station.
When receiving a call from a remote site, the operation methods are the same as described below, however it may take a longer
*
time for some operations and their responses. For example, there may be a time difference between a call starting at a remote site
and the call tone ringing on the target (PC) master station in your site.
Receiving a call
The call tone rings, and the corresponding display appears.
1
The call tone from a sub station differs from the setting in the Setting window. (→"SETTING MANUAL")
*
e.g.) When called from a video door station
When an audio door station, room sub station or another (PC) master station calls in, the station type image is displayed. (The
*
image differs from the calling station type.) When called from a remote site, the remote site symbol image is displayed.
An incoming call from a (PC) master station will be a direct voice call. (However, when the PRIVACY mode is set to “Privacy 2”,
*
you will be notified of an incoming call by the display information and call tone.)
NOTES:
A PC master station cannot receive two or more calls at a time.
•
A call or talk may not be possible when the communication path is fully occupied.
•
Video images at the target video door station may not appear on the monitor when the video path is fully occupied even though a call or talk
•
is possible.
Door station
(in your site or a remote site)
Press Press
or
Lift the
handset.
Room sub station
(in your site or a remote site)
Master station
(in your site or a remote site)
Another PC master station
(in your site or a remote site)
(See page 25 for
how to call from a
PC master station.)
(See the “OPERATION
MANUAL” for the standard
(IP) system or network
direct system.
or or
or
USING THE PC MASTER STATION
The video image at the calling station is
displayed following the symbol image.
* It may take long until a video image appears.
The station no. and station name are displayed.
(For a remote site, the number and name of the site are displayed.
The station name will not be displayed.)

13
GETTING STARTED APPENDIX
USING THE PC MASTER STATION
Answering a call
The maximum duration of communication is preset in the
System setting. (It can be set to a maximum of 10 minutes.)
Answer the call in one of the following ways.
1
■Communication in the hands-free mode
(Available when “Communication method” is set to
“Hands-free” in the Setting window.)
<When called in from a sub station>
Click
1) .
After a beep, you can communicate in the hands-
free mode.
*
1: When talking: Lit
When listening to the caller: Off
When you have finished the communication,
2) click .
Communication will end.
You can communicate in the press-to-talk mode by the
*
following operation even when "Hands-free" is set (e.g.,
when it is noisy around you).
Click and hold
• for more than one second while
communicating. (Beeps once.)
<When you received a direct voice call from
another (PC) master station>
You can talk back to it. If you click and hold for
more than one second, it changes to the press-to-talk
mode. (Beeps once.)
■Communication in the press-to-talk mode
(Available when “Communication method” is set to
“Press to talk” in the Setting window.)
<When called in from a sub station>
Click
1) momentarily.
After a beep, you can communicate in the press-to-
talk mode.
Click and hold
2) to talk and release to listen to
the caller.
When you have finished the communication,
3) click .
<When you received a direct voice call from
another (PC) master station>
Click and hold to talk with and release to listen to
the caller.
[OFF]
[TALK]*1[OFF]
[TALK]
Click and hold.
(When talking) (When listening to the
caller)
Release.

14
About the priority
The order of priority for actions (communication, calling,
paging, monitoring, etc.) is as follows, depending on the
priority setting.
Priority Setting Action
1 (high) [URGENT], [BROADCAST]*1Communication,
calling, paging,
chime paging.
2[PRIORITY]
3[NORMAL]
4 (low) - Monitoring, scan-
monitoring
Earlier call has priority over later call if the priority setting
*
is the same.
Communication takes priority over calling.
*
However, when a call with higher priority comes in, the
communication will be forcibly stopped.
*1: [BROADCAST]:
This can be selected only when you perform paging.
When [BROADCAST] is selected, you can perform
paging while interrupting all the other communications of
lower priority. In that case, no receiver can answer you.
For IP units that are in communication, calling or being
called when paging with [BROADCAST] is performed,
they will turn into the standby mode after paging.

15
GETTING STARTED APPENDIX
USING THE PC MASTER STATION
Wide
Zoom
Viewing video images at a video door
station
You can view video images at the target station when receiving
a call from or communicating with a video door station, or
monitoring a video door station in your site. The video images
can be adjusted as necessary by using the following functions
on the PC master station.
■Switching Zoom/Wide
The display mode on the monitor can be switched between
zoom and wide by each click of .
NOTES:
The preset position of zoom image is set in the System setting on a
•
PC.
When the display mode switches from wide to zoom, the zoom
•
image from the preset position is displayed.
Depending on the properties of the video door station camera, the
•
wide image may appear more distorted than the zoom image but
this is not a malfunction.
In the zoom mode, the image can be moved from right to left or up
•
and down.
■Pan & Tilt
When a zoom image is displayed, clicking moves the
image as shown below.
NOTES:
The image range of the zoom mode and wide mode differs. The
•
edge of wide image will not be displayed with the zoom mode.
At night, the object image may be blurred and less-visible when
•
moving the image from right to left or up and down because
illumination to the object is reduced. The same applies to a moving
object.
[ZOOM/WIDE]
Up
Down
Left Right

16
■Adjusting images
If the image on the monitor is difficult to see, you can adjust the
image.
Click
1 when the image is difficult to see.
The backlight or night sensitivity is automatically adjusted.
The button stays lit during adjustment.
*
The discrimination between day and night is performed
*
automatically by the door station.
The adjustment result may vary depending on the System
*
setting on a PC.
To restore the image before adjustment
Click again.
The lighting of button turns off and the image before adjustment
is restored.
NOTE:
Clicking at night may make visitors' faces easier to see, but may
also make moving objects more difficult to see.
<Day> <Night>
[Before adjustment]
[After adjustment] [After adjustment]
[Before adjustment]
Click.

17
GETTING STARTED APPENDIX
USING THE PC MASTER STATION
Transferring to another (PC) master station
You can transfer a call received from a sub station to another
(PC) master station while communicating with it (communication
transferring), as well as setting calls to be automatically
transferred in the “Setting window”.
For a call from another (PC) master station, you can transfer
*
it only when you are communicating with it. (However, you
cannot transfer the communication to a remote site.)
■Communication transferring
Receive a call and communicate with it. (→P. 12)
1
Click
2 .
Click
3 to select the (PC) master station (in your
site) to which you want to transfer the call (so that it
is highlighted) from the list.
Press
4 or .
While transferring, a sound rings at the source station to
*
indicate a transfer.
Click
5 to enable the communication between the
station that called you and the transfer target station.
■Call transferring
You can transfer a call to the designated (PC) master station
(in your site or a remote site) or the telephone registered to the
system automatically (without answering it) by the “Transfer”
setting in the Setting window.
This function is useful when you are absent or you cannot
*
receive and answer a call.
When transferring to a remote site, a (PC) master station in
*
the site should have been registered as the pilot station of
the site.
A call from a sub station (except IS-IPDV and IS-IPDVF) can
*
be transferred to telephone.
The following settings can be made in the Setting window.
(Refer to the SETTING MANUAL for details.)
1Transferring a call to the designated (PC) master station or
remote site automatically ([Transfer], [Transfer destination])
2Setting the delay time of triggering transferring after a call is
received ([Transfer delay])
3Setting a schedule for call transferring in the System setting
on a PC ([Schedule transfer], [Scheduled destination])
4Transferring a call to telephone automatically (when
[Telephone transfer] is set to ON)
5Transferring a call to telephone automatically in the period
of time on the day of the week set in the System setting on a
PC (when [Schedule tel transfer] is set to ON)
* When both 1and 3are set, 1takes priority.
NOTES:
You can also make a transfer setting for calls at when you are
•
absent. Make the setting in the Setting window. (→“SETTING
MANUAL”)
A call from a remote site can be transferred to a (PC) master
•
station in your site, but not to another remote site.
A call can be transferred to a remote site, but not to two or more
•
remote sites.

18
Door release
You can release the door while being called from,
communicating with, or monitoring a sub station if a door
release device is connected to the station.
Click while being called from, communicating with, or
monitoring the sub station.
The door is released for the time set in the System setting on a
PC.
* is lit while the door is released.
If the set release time is “0”, it can be released while the
*
button is clicked and held.
CAUTION:
Be sure to confirm the visitor securely before releasing the door if the
sub station has no camera.
NOTE:
This function is disabled during scan-monitoring. ( →P. 26)
Using the PRIVACY function
The PRIVACY function of a PC master station prevents you from
being heard by other (PC) master stations in your site or remote
sites that call you.
To activate the PRIVACY function
Set “Privacy” to “Privacy 1” or “Privacy 2” in the Setting window.
If you will not use the PRIVACY function, set it to “OFF”.
(→“SETTING MANUAL”)
When set to “Privacy 1” or “Privacy 2”, the PRIVACY
*
button lights up.
■While receiving a call
When the PRIVACY function is activated•
The microphone of your PC master station is muted, so the
sounds at your side are not heard by the caller.
When the PRIVACY function is off•
The microphone of your PC master station is enabled, so the
sounds at your side are heard by the caller.
■To communicate with the caller
When th• e PRIVACY function is activated
Click , and the microphone is enabled. Then you can
communicate with the caller.
When the PRIVACY function is off•
You can communicate with the caller without clicking .
To mute the microp
* hone temporarily:
Click and hold , and the microphone is muted. Release
to enable the microphone.
The status of PC master station depending on the
PRIVACY mode
PRIVACY
mode
PRIVACY
LED
When receiving a call from
another (PC) master station
in your site or remote site
When communicating
with a sub station
1Lit
The microphone is muted.
•
When you click
•
to answer the call, the
microphone is enabled.
Microphone is enabled.
•
The microphone is
• muted while clicking
.
2Lit
The microphone is muted.
•
When you receive a call from a
• (PC) master station or remote
site, the caller and you are
notified by a tone that you are
in the PRIVACY mode. When
you click to answer the
call, the microphone is enabled.
OFF Off
The microphone is enabled.
• Communication starts when a
direct voice call arrives from a (PC)
master station or remote site.
The micr
• ophone is muted
while clicking .
NOTE:
When "Communication method" is set to "Press to talk" in the Setting
window, you do not have to activate the PRIVACY function.

19
GETTING STARTED APPENDIX
USING THE PC MASTER STATION
Searching for a station, zone or remote site
Read this section before you perform calling, monitoring, paging or chime paging on a PC master station for the first time to learn how
to search for stations, zones or remote sites. The search can be performed in the following search methods by using the search items,
dial keys or speed dial buttons to suit your needs.
PERFORMING CALLING, MONITORING, PAGING AND
CHIME PAGING ON THE PC MASTER STATION
The following describes how to operate the PC master station to perform calling, monitoring, paging and chime paging.
Searching for a station, zone or remote site
from the list (→P. 21)
Search items:
A
,
B
,
C
,
D
,
E
,
F
(
F
is for a remote site.)
Searching for a station or zone by number
using the dial keys (→P. 23)
Searching for a station, zone or remote site
from the placed call or received call list (→P. 24)
Search items: G, H
Selecting a station, zone or remote site by
using the speed dial buttons (→P. 24)
■Basic procedure for selecting the search items
The search items A– Hcan be selected from the standby mode or the SEARCH LIST.
* The items Aand Bcan be selected from both the standby mode and the SEARCH LIST.
* A remote site can be selected by using the search item F, G, H, or the speeds dial buttons.
[In the standby mode]
Press the corresponding button on to select the target search item A, B, Gor Hshown below.
Search items
ANAME SEARCH (→P. 21)
BSTATIONS BY AREA (→P. 22)
GPlaced calls (→P. 24)
HReceived calls (→P. 24)
Press to display the SEARCH LIST.

20
[In the SEARCH LIST]
The search items are shown in the SEARCH LIST.
Click
1 in the standby mode.
The search items are shown in the list area.
Click
2 repeatedly to select the target search item Ato F(so that it is highlighted).
Click
3 to decide on the selected one.
SEARCH LIST (page 1/2)
(Click
◄
or
►
.)(Click
◄
or
►
.)
SEARCH LIST (page 2/2)
BSTATIONS BY AREA (→P. 22)
ANAME SEARCH (→P. 21)
SEARCH LIST
CSTATIONS BY TYPE (→P. 22)
DPAGING ZONE (→P. 22)
ECHIME ZONE (→P. 22)
FREMOTE SITE (→P. 23)
