Introduction
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Contents

Dry Cooler Condensers
4
Introduction
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
General Specication
Unit Identication
DR 12 H
DR Dry Cooler – Water / Glycol
10 - 95 Model Size (expressed as Total Heat Rejection in kW)
HHorizontal Air Discharge
VVertical Air Discharge
Introduction This range comprises of 14 air cooled dry cooler models with total heat rejection 10 – 95
kW
Custom designed for a small footprint, low sound level, slimline and aesthetically
pleasing appearance.
Available in either horizontal or vertical air discharge orientation, please specify at
order.
All units are dispatched following extensive leak and pressure testing and carry a
holding charge of inert gas.
CE Directive
Airedale certify that the equipment detailed in this manual conforms with the following
EC Directives:
Electromagnetic Compatibility Directive (EMC) 2014/30/EU
Low Voltage Directive (LVD) 2014/35/EU
Machinery Directive (MD) 89/392/EEC in the
version 2006/42/EC
Pressure Equipment Directive (PED) 97/23/EC
Article 13 of 2014/68/EU
To comply with these directives appropriate national & harmonised standards have been
applied. These are listed on the Declaration of Conformity, supplied with each product.
Maximum and Minimum Operation Temperature (TS) and Pressure (PS)
Operating Temperature (TS), TS = Min -20°C to Max 120°C *
Maximum Operating Pressure (PS) PS = High Side 10 Barg
*Based upon the maximum machine running temperatures.

Condensers
Dry Coolers
5
Introduction
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Standard Features
Construction Unit cabinets shall be manufactured from galvanised sheet steel coated with epoxy
baked powder paint to provide a durable nish.
Standard unit colour shall be Light Grey (RAL 7035).
Dual position xing legs shall be supplied attached to the unit via captive bolts and
shake proof washers.
Horizontal Air
Discharge
As standard, unit legs are attached and delivered in the horizontal air discharge mode as
are the isolator and fan speed controller.
The legs attached to the top of the unit are for lifting and stacking and shall be removed
and stored safely if not required.
Fan & Motor Assembly
All Models
The external rotor AC motor shall allow the use of a low power output, single phase,
and speed controllable motor to power the fan.
The motor shall have inbuilt thermal overload protection and the assembly shall be
supplied complete with a nger guard for protection.
Shall be available in either horizontal or vertical air discharge orientation, please
specify at order.
Electrical All electrical components shall be rated for all year round outdoor use.
All wiring shall be colour coded and numbered for identication. All units shall be wired
in accordance with current local and European standards.
Main Electric Isolator A weatherproof mains isolator shall be tted to ensure complete unit isolation of the
electrical panel during adjustment and maintenance.
IMPORTANT
IMPORTANT
Only 2 units may be stacked together.
Vertical Air Discharge As standard, unit legs shall be attached and delivered in the horizontal air discharge
mode and shall be repositioned on site to offer vertical air discharge mode, refer to
Dimensions / Weights / Positioning, for details.
To ensure the unit isolator and fan speed controller are in the correct orientation for vertical air
discharge please specify at order.

Dry Cooler Condensers
6
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Optional Extras - Energy
Saving
Electronically
Commutated (EC) Fan
Motor
Shall incorporate external EC rotor motor technology to provide highly accurate
discreet speed control. The fans offer maximum air ow performance while keeping
sound levels to a minimum.
Each fan shall incorporate electronically commutated DC motor control using semi-
conductor modules responding to a signal from the Airedale indoor unit.
EC motors are DC motors with integrated AC to DC conversion; this gives the
exibility of connecting to AC mains with the efciency and simple speed control of
a DC motor. The EC fan shall offer signicant power reduction in comparison with
equivalent AC fan at both full and modulated fan speeds. The inbuilt EC fan control
module shall allow for fan speed modulation from 0-100%, the modulating range of a
standard AC fan is typically 40-100% of full fan speed.
Optional Extras – General
Short Case Axial Fans
(SCAF)
Short case axial fans shall be supplied for indoor installations where discharge air
requires to be ducted to an outdoor location. The fans shall meet duty plus nominal
75Pa of external static pressure.
Corrosion Resistant Coated
Coils
For aggressive atmospheres a corrosion resistant coating shall be applied to the
aluminium ns.
Shut Off Valves Where unit isolation for easier maintenance is required, shut off valves shall be
supplied loose for on site tment.
Coil Guards Protective mesh guards can be tted to each of the outer coils to protect against
damage.

Condensers
Dry Coolers
7
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation
Outdoor Unit
CR12H-0 DR10H-0
CR16H-0 DR12H-0
CR22H-0 DR15H-0
CR26H-0 DR20H-0
CR30H-0 DR25H-0
CR35H-0 DR30H-0
CR50H-0 DR35H-0
CR60H-0 DR45H-0
CR65H-0 DR40H-0
CR75H-0 DR50H-0
CR80H-0 DR55H-0
CR95H-0 DR75H-0
CR105H-0 DR70H-0
CR130H-0 DR95H-0
CR140H-0 -
CR165H-0 -
Installation data
Case Sizes
A
B
B
C
C
D
D
E
E
The range of condensers and dry coolers are grouped together for easier identication.
Case sizes 1-5 (16 Condensers, 14 Dry coolers)

Dry Cooler Condensers
8
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation
Ambient Temperature Sensor Location
Horizontal Airow
In the case of a unit with a horizontal airow specied, the location shown in gure 1 will be the nal position of the
ambient temperature sensor, tted in house before shipment.
Figure 1: Ambient Sensor Location

Condensers
Dry Coolers
9
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation
Vertical Airow
For units selected with a vertical airow, the ambient temperature sensor should be mounted where shown in gure 1.
This will be for transport purposes only. Once the unit has been installed the bracket is to be removed from this location
and fastened to the bracket attached to the coil, shown in gures 3-5.

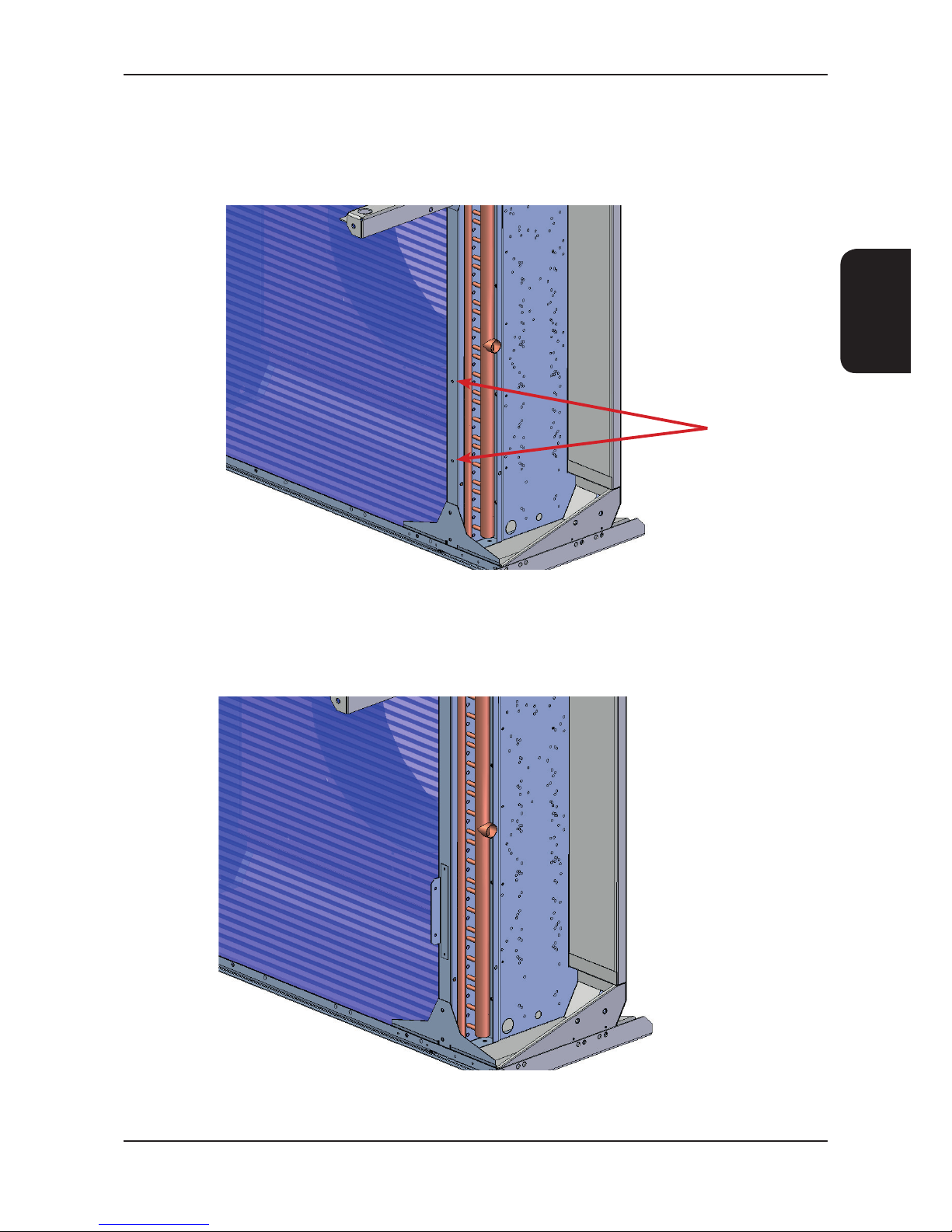

Figure 2: Sensor Mounting Location
Figure 3: New Sensor Bracket
2 OFF M5 NUTSERTS

Dry Cooler Condensers
10
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation
Figure 4: Existing Bracket Mounting Position
Figure 5: Sensor Location Overview

Condensers
Dry Coolers
11
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation
Dimensions/Weights/Positioning

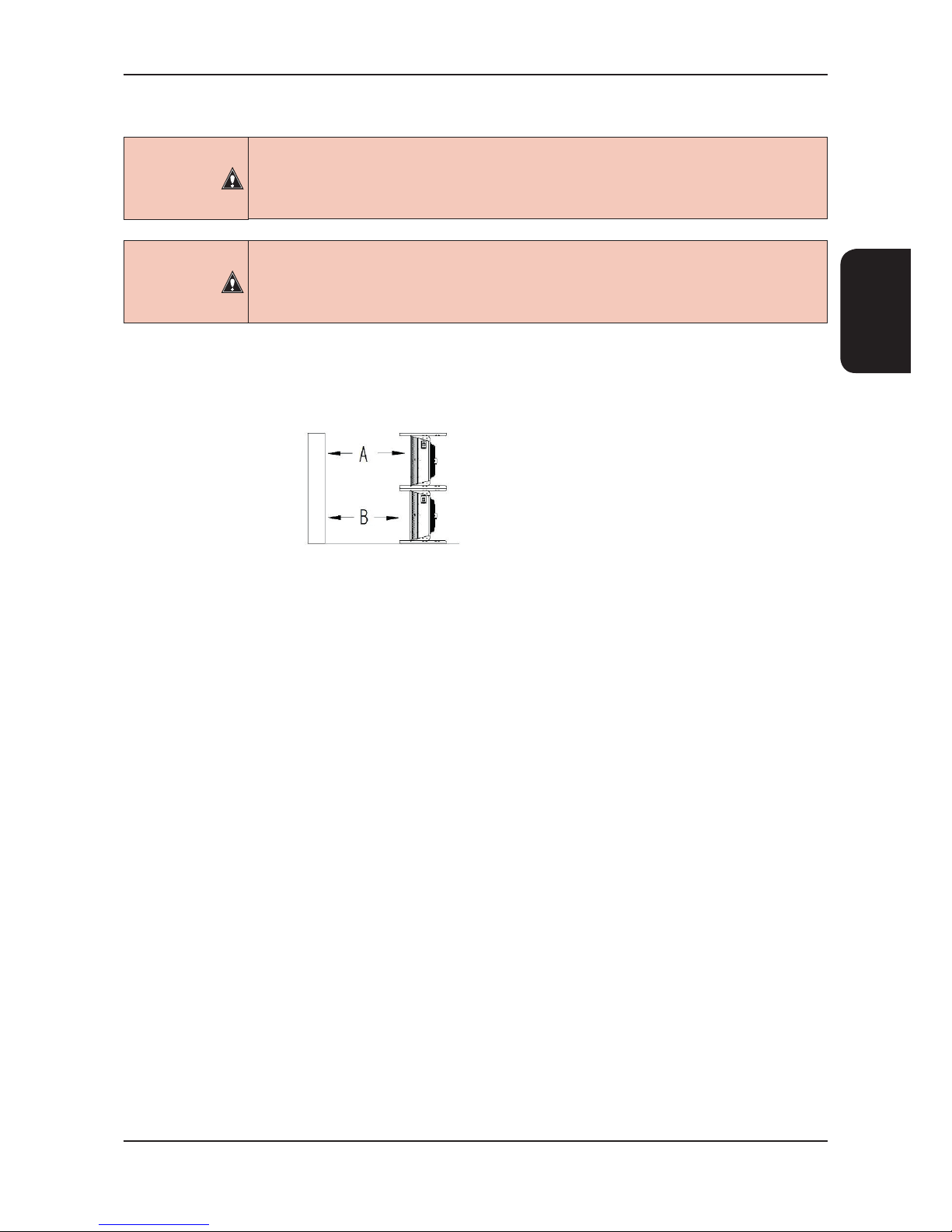

Stacking units Only 2 units may be stacked together. In addition to the standard minimum clearances
around the unit further space is required.
Positioning dry coolers on top of each other can cause the bottom unit to be starved of air.
A= 1.5m (Two stacked units)
B= 0.5m (For single unit)
IMPORTANT
IMPORTANT
Unit diagrams can be supplied on request.The following illustrations show the unit following xing
leg re-orientation, instructions are provided for this at delivery.
The legs attached to the top of the unit are for lifting and stacking and may be removed and stored
safely if not required.

Dry Cooler Condensers
12
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation
Horizontal case size 1 and 2 (1 fan)
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan Standard AC
Fan
Optional EC
Fan Optional SCAF
A B C D E
DR10 1102 1167 1000 1040 700 77 83 88
DR12 1102 1167 1000 1040 700 93 105 90
DR15 1102 1167 1000 1040 700 90 96 101
DR20 1102 1167 1000 1040 700 106 118 103
Diagram illustrated in mm
(1) Airow
(2) Minimum clearances
(3) 12.7mm xing hole
(4) Mains electric isolator
(5a) Inlet water connections
(5b) Outlet water connections
(6) Top brackets may be used to secure
unit of similar size on top, using, 2 x
12.7mm xing holes
(7) 40mm lifting holes
LIFTING CENTERS
FIXING CENTERS
( VERTICAL )
A
B
1107.4
1107.4
FIXING CTRS
11
5a
5b
4
C
ED
B
A
3
150150
A
B
1000
500
500
3
0
0
0
5
0
0
1
1
2
2
2
2
7
6

Condensers
Dry Coolers
13
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation

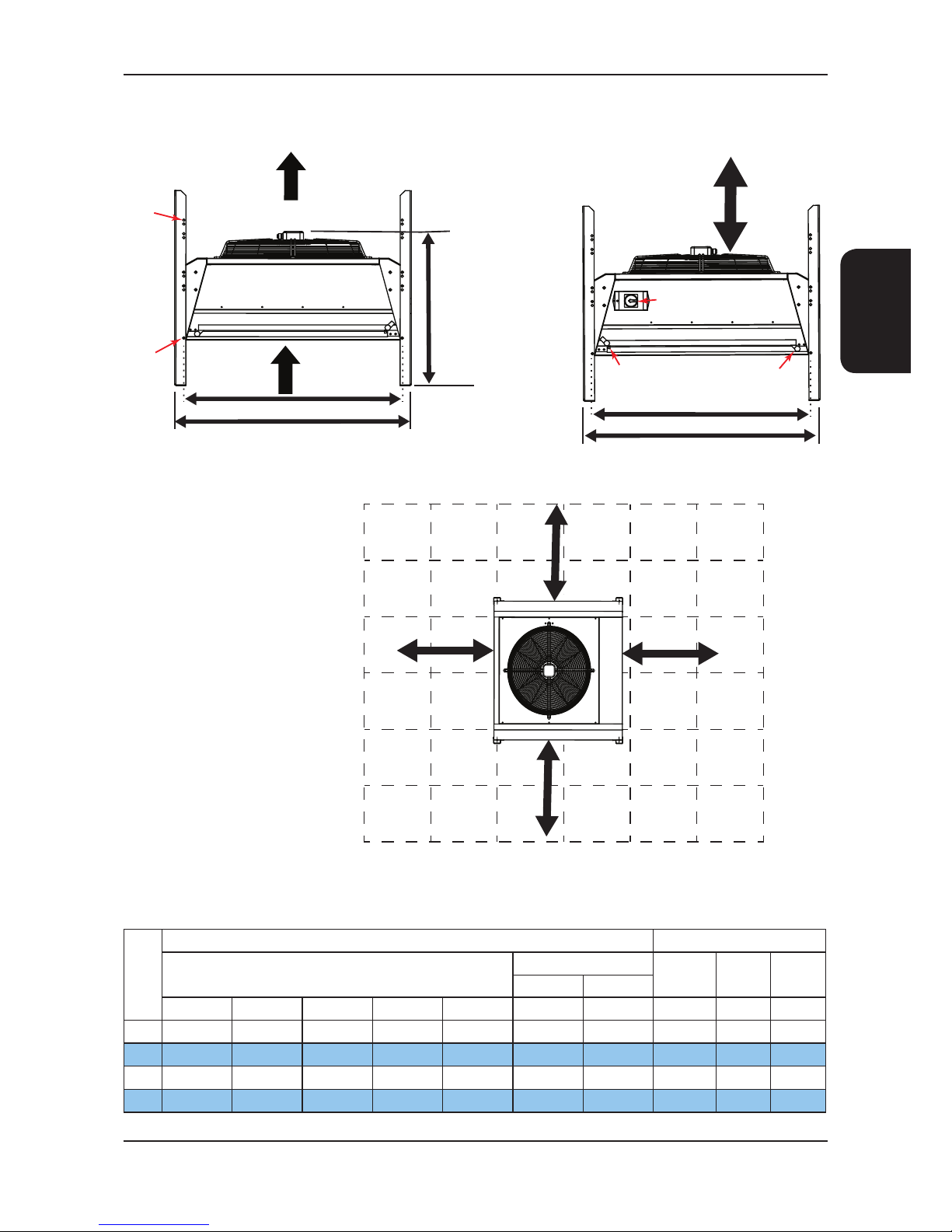

Vertical case size 1 and 2 (1 fan)
Diagram illustrated in mm
(1) Airow
(2) Minimum clearances
(3) 12.7mm xing hole
(4) Mains electric isolator
(5a) Outlet water connections
(5b) Inlet water connections
(6) 40mm lifting holes
A
B
B
D
A
1
1
6
3
A
B
3
0
0
0
E
C
4
5b 5a
2
500
500
5
0
0
5
0
0
2
2
2
2
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan Fan Options Standard
AC Fan
Optional
EC Fan
Optional
SCAF
SCAF EC
A B C D E B B
DR10 1102 1090 1167 1042 1107 1130 1127 77 83 88
DR12 1102 1155 1167 1042 1107 1140 1170 93 105 90
DR15 1102 1090 1167 1042 1107 1130 1127 90 96 101
DR20 1102 1155 1167 1042 1107 1140 1170 106 118 103

Dry Cooler Condensers
14
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation

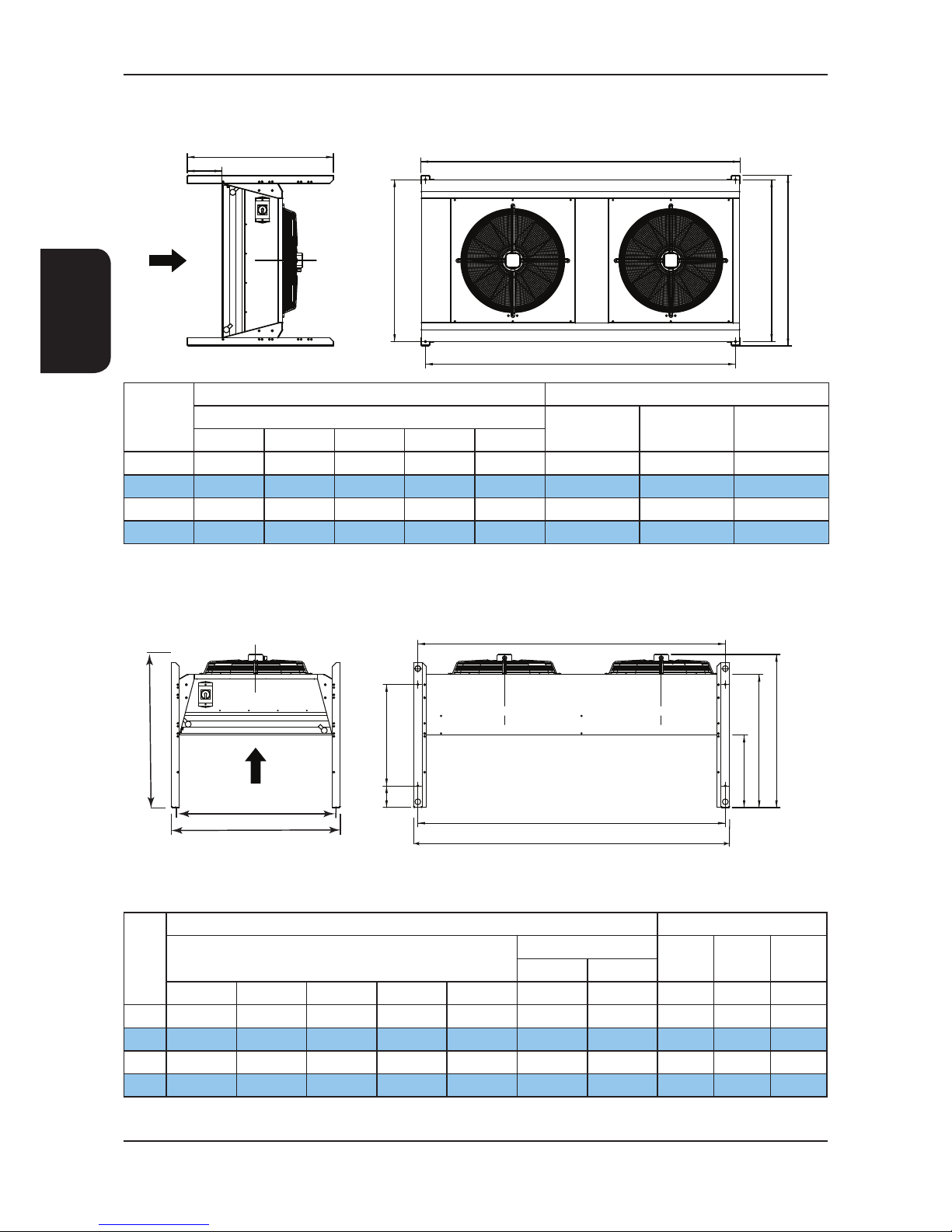

Horizontal case size 3 (2 Fans)
A
B
AIR FLOW
(VERTICAL)
O12.7mm
LIFTING CENTERS
1107.4 1107.4
FIXING CENTERS
FIXING CENTERS
236.7
C
B
D
A
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan Standard AC
Fan
Optional EC
Fan Optional SCAF
A B C D E
DR25 2184 1167 1000 2121 700 132 145 154
DR30 2184 1167 1000 2121 700 165 188 159
DR35 2184 1167 1000 2121 700 162 175 184
DR45 2184 1167 1000 2121 700 195 218 189
Vertical case size 3 (2 Fans)
AB
AIR FLOW
(HORIZONTAL)
O12.7mm
920
FIXING CENTERS
700
FIXING CENTERS
LIFTING CENTERS
150
500
B
C
E
B
D
D
A
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan
Fan Options Standard
AC Fan
Optional
EC Fan
Optional
SCAF
SCAF EC
A B C D E B B
DR25 2184 1090 1167 2124 1107 1130 1127 132 145 154
DR30 2184 1155 1167 2124 1107 1140 1170 165 188 159
DR35 2184 1090 1167 2124 1107 1130 1127 162 175 184
DR45 2184 1155 1167 2124 1107 1140 1170 195 218 189

Condensers
Dry Coolers
15
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation

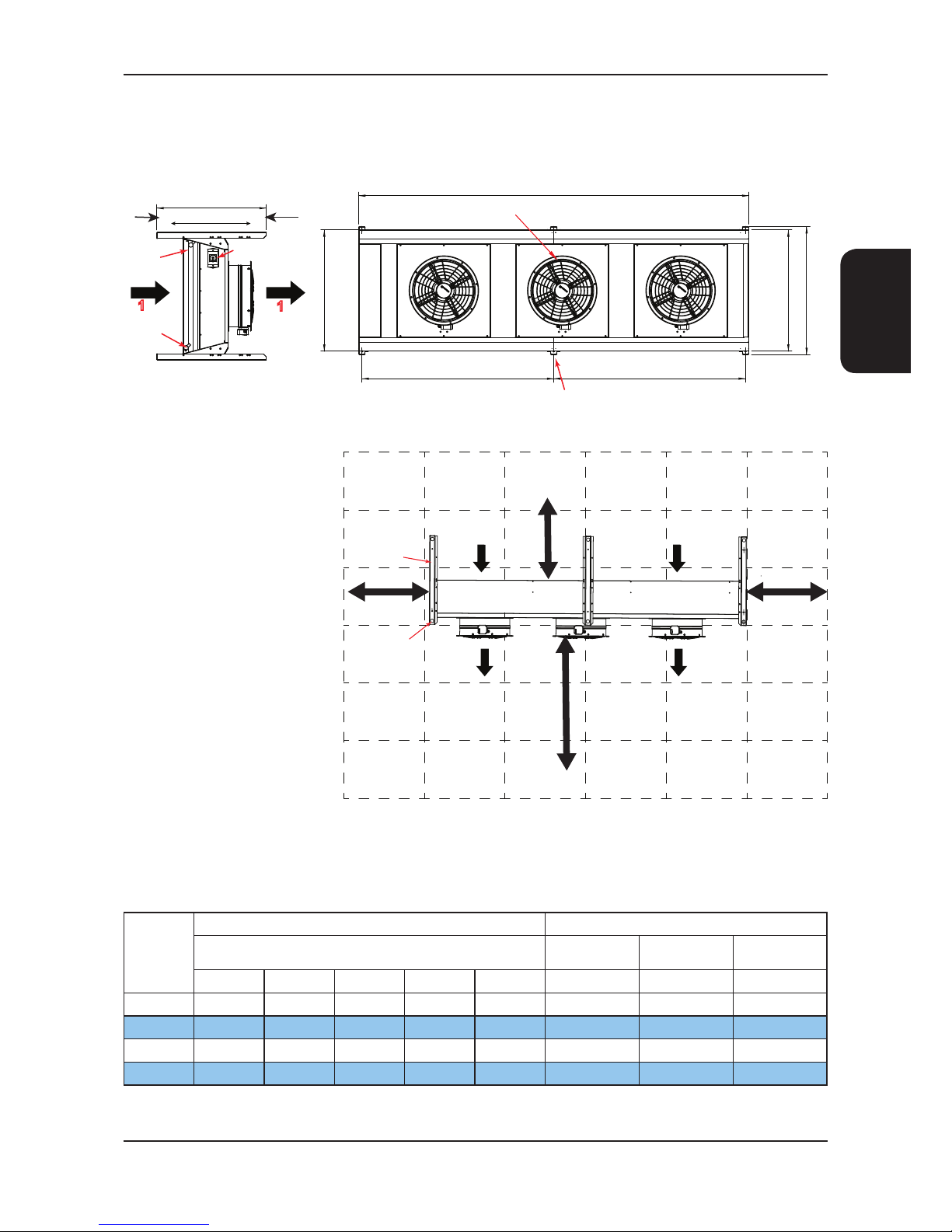

Horizontal case size 4 (3 Fans)
Optional Short Case Axial Fan (SCAF)
A
B
150
150 C
E
11
4
5a
5b
3
LIFTING CENTERS
FIXING CENTERS
(VERTICAL)
O12.7mm
1107.4 1107.4
FIXING CENTERS FIXING CENTERS
8
A
B
D D
1 1
1
1
500500
5
0
0
3
0
0
0
2
2
2
2
7
6
Diagram illustrated in mm
(1) Airow
(2) Minimum clearances
(3) 12.7mm xing hole
(4) Mains electric isolator
(5a) Inlet water connections
(5b) Outlet water connections
(6) Top brackets may be used to secure
unit of similar size on top, using, 2 x
12.7mm xing holes
(7) 40mm lifting holes
(8) Optional Short Case Axial Fan with
integral duct xing holes
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan Standard AC
Fan
Optional EC
Fan Optional SCAF
A B C D E
DR40 3565 1167 1000 1752 700 208 228 242
DR50 3565 1167 1000 1752 700 258 293 249
DR55 3565 1167 1000 1752 700 260 280 294
DR75 3565 1140 1167 1752 1107 310 345 301
The SCAF fans in the horizontal mode do not obtrude past the mounting feet.

Dry Cooler Condensers
16
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation
Vertical case size 4 (3 fans)
Optional Short Case Axial Fan (SCAF)
FIXING CENTERS
(HORIZONTAL)
O12.7mm
920
500
700
150
FIXING CENTERS FIXING CENTERS
B
D D
A
1
1 1
1
3
6
AB
3
0
0
0
4
5b 5a
2
E
C
7
5
0
0
500
500
5
0
0
Diagram illustrated in mm
(1) Airow
(2) Minimum clearances
(3) 12.7mm xing hole
(4) Mains electric isolator
(5a) Outlet water connections
(5b) Inlet water connections
(6) 40mm lifting holes
(7) Optional short case axial fan with
integral duct xing holes
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan
Fan Options Standard
AC Fan
Optional
EC Fan
Optional
SCAF
SCAF EC
A B C D E B B
DR40 3565 1090 1167 1753 1107 1130 1127 208 228 242
DR50 3565 1155 1167 1753 1107 1140 1170 258 293 249
DR60 3565 1090 1167 1753 1107 1130 1127 260 280 294
DR75 3565 1155 1167 1753 1107 1140 1170 310 345 301

Condensers
Dry Coolers
17
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation

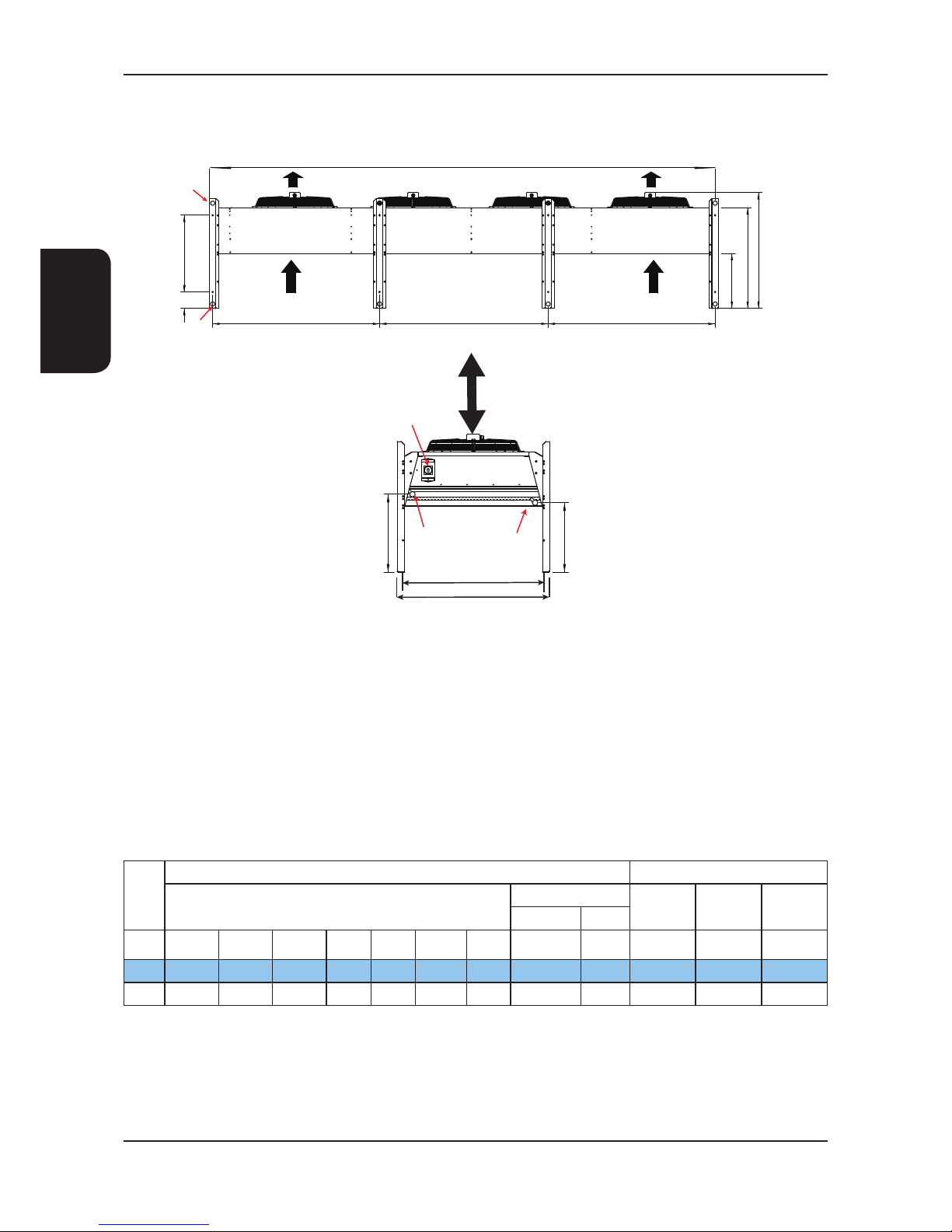

Horizontal case size 5 (4 fans)
FIXING CENTERS
(VERTICAL)
O12.7mm
LIFTING CENTERS`
FIXING CENTERS FIXING CENTERS FIXING CENTERS
1107.4 1107.4
150
150
A
D(a) D(b) D(c)
B
3
C
11
4
5a
5b
E
For Minimum Clearances (2) - see previous outdoor units in horizontal conguration
Diagram illustrated in mm
(1) Airow
(2) Minimum clearances
(3) 12.7mm xing hole
(4) Mains electric isolator
(5a) Inlet water connections
(5b) Outlet water connections
(5) Top brackets may be used to secure unit of similar size on top, using, 2 x 12.7mm xing
holes
(6) 40mm lifting holes
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan Standard AC
Fan
Optional EC
Fan
Optional
SCAF
A B C D(a) D(b) D(c) E
DR70 4641 1167 1000 1524 1539 1524 700 349 375 394
DR95 4641 1167 1000 1524 1539 1524 700 415 462 404
CAUTION
A vertical air discharge unit is recommended for installation in windy locations or wherever a
horizontal airow would be obstructed.

Dry Cooler Condensers
18
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation
Vertical case size 5 (4 fans)
FIXING CENTERS
(HORIZONTAL)
O12.7mm
FIXING CENTERS FIXING CENTERS LIFTING CENTERS
700150
500
920
A
D(a) D(b) D(c)
B
1
1
1
1
3
6
AB
597.1
532.1
3
0
0
0
4
5b 5a
C
E
For minimum clearances (2) - see previous outdoor units in vertical conguration
Diagram illustrated in mm
(1) Air ow
(2) Minimum clearances
(3) 12.7mm xing hole
(4) Mains electric isolator
(5) 40mm lifting holes
(6) Optional short case axial fan with integral duct xing holes
DIMENSIONS (mm) WEIGHTS (kg)
Standard Fan
Fan Options Standard
AC Fan
Optional
EC Fan
Optional
SCAF
SCAF EC
A B C D(a) D(b) D(c) E B B
DR70 4641 1090 1167 1524 1539 1524 1107 1130 1127 349 375 394
DR95 4641 1155 1167 1524 1539 1524 1107 1140 1170 415 462 404

Condensers
Dry Coolers
19
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Installation
Unit Lifting
General • Employ lifting specialists
• Local codes and regulations relating to the lifting of this type of equipment
should be observed
• Each chain/sling must be capable of lifting the whole unit
• Lift the unit slowly and evenly
IMPORTANT
CAUTION
CAUTION
Only use lifting points provided. Do not use 1 chain between 2 lifting points to avoid load shift.
Ensure that chains/slings DO NOT crush the casework, coil or fan assemblies.
If the unit is dropped it should immediately be checked for damage and reported to Airedale.
Airedale will accept no responsibility for mishandling during the positioning of the equipment.
Horizontal Air Discharge The unit is delivered in horizontal air discharge conguration secured to a pallet.
Where possible the unit should be moved with the pallet in place.
Use 4 lifting eyes attached to 4 individual slings/chains (supplied by others) and
attach 2 to each top leg using the holes provided as illustrated.
Vertical Air Discharge The unit is delivered in horizontal air discharge conguration (with the mains isolator
and fan speed controller already congured for vertical air discharge) secured to a
pallet. Where possible the unit should be moved with the pallet in place.
Before lifting into nal position, the unit legs should be re-orientated, refer to
instructions provided at delivery.
Check the unit is as ordered, discrepancies or transit damage should be reported to Airedale
immediately.
Care should be taken to ensure the unit does not sustain damage before it is lifted into nal
position.
Use 4 lifting eyes attached to 4 individual slings/chains (supplied by others)
and attach 1 to the top of each of the 4 corner legs using the holes provided as
illustrated.

Dry Cooler Condensers
20
Dry Coolers Technical Manual 9308503 V1.8.0_04_2016
Technical
Performance Data – Dry Coolers
Standard Dry Cooler Fan
Water Entering / Leaving Ambient
Temperature °C 25°C 30°C 35°C 40°C 45°C
Output Output Output Output Output
(kW) (kW) (kW) (kW) (kW)
DR10
35°C/30°C 11 ----
40°C/35°C 19.6 11 ---
45°C/40°C 28.1 19.6 11.1 - -
50°C/45°C 36.6 28 19.6 11.1 -
55°C/50°C 45 36.4 27.9 19.5 11.1
DR12
35°C/30°C 13.6 - - - -
40°C/35°C 24.5 13.7 - - -
45°C/40°C 35.2 24.5 13.7 - -
50°C/45°C 45.9 35.1 24.5 13.8 -
55°C/50°C 56.6 45.7 35.05 4.4 13.8
DR15
35°C/30°C 15..4 - - - -
40°C/35°C 25.6 15.3 - - -
45°C/40°C 35.6 25.4 15.3 - -
50°C/45°C 45.4 35.2 25.2 15.2 -
55°C/50°C 55.2 44.9 34.9 25 15.1
DR20
35°C/30°C 18.3 - - - -
40°C/35°C 31.9 18.3 ---
45°C/40°C 45.1 31.7 18.3 - -
50°C/45°C 58.1 44.8 31.6 18.3 -
55°C/50°C 71.5 57.7 44.4 31.4 18.3
DR25
35°C/30°C 24.4 - - - -
40°C/35°C 43.1 24.5 - - -
45°C/40°C 61.5 43 24.5 - -
50°C/45°C 79.7 61.2 42.9 24.5 -
55°C/50°C 98 79.3 60.9 42.8 24.6
DR30
35°C/30°C 30.6 - - - -
40°C/35°C 54.5 30.7 - - -
45°C/40°C 78 54.5 30.8 - -
50°C/45°C 101.4 77.8 54.4 30.9 -
55°C/50°C 124.9 101 77.5 54.3 30.9
DR35
35°C/30°C 34.8 - - - -
40°C/35°C 57.4 34.6 - - -
45°C/40°C 79.5 56.9 34.3 - -
50°C/45°C 101.4 78.7 56.4 34.1 -
55°C/50°C 123.3 100.4 77.9 55.9 33.9
DR40
35°C/30°C 42 - - - -
40°C/35°C 72 41.9 - - -
45°C/40°C 101.5 71.7 41.8 - -
50°C/45°C 130.8 101 71.4 41.8 -
55°C/50°C 160.2 130 100.3 71 41.6
Standard Variable Speed Head Pressure Control
Minimum Ambient Air DB °C -20°C
Maximum Ambient Air DB °C +48
Optional On/Off Head Pressure Control
Minimum Ambient Air DB °C -0°C
Maximum Ambient Air DB °C +48
(1) For conditions outside those quoted, please contact Airedale.
Operating Limits
