akira PTV-43H08 User manual

Projection TV
Service Manual

-2-
Model No.: PTV-43H08
Version: 1.0
MODEL:
PTV-43H08

-3-
Model No.: PTV-43H08
Version: 1.0
CONTENTS
SAFE NOTICE......................................................................................................................................... 4
SPECIFICATION..................................................................................................................................... 7
TV SET OVERVIEW............................................................................................................................... 8
MAINTENANCE ADJUSTEMENT ....................................................................................................... 9
NOTICE FOR MAINTENANCE .......................................................................................................... 21
CIRCUIT DIAGRAM............................................................................................................................ 35

-4-
Model No.: PTV-43H08
Version: 1.0
SAFETY NOTICE
Use an insolating transformer during maintenance.
In this manual and the parts list of its annexed tables as well as the schematic circuit diagram, those
components with special safety functions are marked with “ ! ” need paying special attention upon
maintenance. Maintainers shall carefully read the “Safety Notices” and “Safety Precautions” in the
manual before maintaining the TV set core.
Important: In case the projection tube is replaced, only the same model or an equivalent model certified
by “CB” shall be used to ensure the protection function to the X-ray.
The maintenance of this product is only applicable to the qualified maintenance technicians, which
means that unauthorized maintenances are forbidden. The qualified technicians shall have necessary test
equipment and special tools, and shall have been trained with those complicated products said in this
manual to have the ability to maintain safely such complicated products as the projection TV set said in
this manual.
Improper maintenance may affect the safety and reliability of the product. If you are not qualified to
maintain the product, never take a risk trying to maintain it, find a qualified maintainer to maintain it
instead.
W a r n i n g
When maintain or handles the circuit plank to imply with the other a piece that soldering lead feet,
should avoid the soldering getting in touch with skin directly. At the same time, notice and do not
inhale welding a creation any smoke or airs.
Safety Precautions
1 Check and test the complete TV set maintained for safety before handing it to the costumer. The
items to be checked and tested are as follows:
a. Make sure that the safeguard devices and parts are in good condition, and not removed during
the maintenance.
i. The safeguard devices and parts of this TV set core for protecting the technicians and
costumers shall be all reinstalled properly, including those removed for maintenance
convenience.
ii. Always operate the TV set with all the safeguard devices and parts reinstalled properly
after the reassembly of the TV set core and other assemblies.
iii. Any maintenance negligent of the safety precautions or without safety check and test
may cause dangers.

-5-
Model No.: PTV-43H08
Version: 1.0
b. Make sure there are no gaps with the shell so as to prevent adults and children from putting
fingers inside and touching the dangerous voltage. The gaps include but not limited in:
i. Gaps with the front frame are too large.
ii. The back cover is not installed properly or correctly.
c. Test of antenna cold junction: Connect the two pins of the TV set plug with a piece of
conductor, with the TV set switched on. Connect one end of the ohmmeter to the pin of the plug,
and the other end to the antenna input terminal of the tuner or the bare screw. Connect to the
coaxial cable if possible. If the resistance is less than 8 ohms or greater than 11 ohms,
abnormalities must exist, which shall be removed before the TV set is submitted to the
costumer. Repeat the above test with the TV set switched off.
d. Leakage current test: After the reassembly, insert the mains plug of the TV set into a 40Vsocket
(Do not use an insolating transformer during the test. The test connection is shown in Fig.1.).
Test with a leakage current meter or test system first with the switch on, then with the switch
off. Test the leakage current of the known groundings (metal pipes) to each of the bare metal
parts (the antenna, the knob supports, the metal front frames, the screw ends, the metal covers,
the control buttons, etc.) of the TV set, especially the bare metal parts connected to the core.
None of the currents shall be more than 0.7mA. Repeat the same tests with the polarity of the
plug exchanged. Any leakage current values beyond the limits may cause electric shocks, which
shall be tackled before returning the TV set to the costumer or connecting antenna or
accessories to it.
e. A high voltage limiting circuit (HVLC)is equipped with the TV set to control the high voltage
under the set value. Upon maintenance, do as specified in all the notes of the maintenance
manual, and the HVLC will function properly.
f. Maintenance warnings: At the largest contrast ratio, the high voltage of the TV set is lower than
31.0kV. In case parts affecting the high voltage are replaced, verify whether the high voltage of
the TV set is lower than 31.0kV at the largest contrast ratio. Use a voltage meter with a large
resistance and anti high voltage, to measure the high voltage. Connect the negative pole to the
grounding of the TV set core, and the positive pole to the high voltage connector. the connection
of the high voltage meter is shown in Fig. 2.
Note: Always turn off the powers of the TV set and the high voltage meter before connecting the positive
pole.
g. The X-rays (projection tube): The X-rays generated by the TV set are mainly from the
projection tube. Therefore the TV set takes use of the above said functions to reduce the
radiation hazard of the X-rays. In case the projection tube is replaced, only the same model or an
equivalent model certified by “CB” shall be used to ensure the protection function to the X-ray.
While troubleshooting or testing the TV set, avoid getting close to the projection tube and the
high voltage parts. Never run the TV set core for a very long time when troubleshooting the
causes of over high voltage.

Fig.1 Fig.2
-6-
Model No.: PTV-43H08
Version: 1.0
2 Carefully read and follow the warnings and safety precautions on the receiver shell, the core and the
projection tube.
3 Warnings on design modification: Never modify or supplement the mechanical or circuit design of
the TV set. Circuit modification and suc h supplement as the assistant audio/video output adapter
may alter the safety performance of the TV set and injure the users.
4 Warnings on anti-explosion of the projection tube: the projection tube of the TV set uses a complete
explosion protection design; use the same model of projection tube upon replacement. Always wear
a pair of goggles when moving, installing or handling the projection tube. While handling the
projection tube, keep persons without goggles away from it. Put the projection tube at a place away
from people. Never handle the projection tube by the tube neck.
5 Warnings on the hot core: usually maintain a hot core with an isolating transformer connected to
assure safety. The energized end of the mains circuit of a cold core is connected to the AC mains,
therefore maintenance shall also be made with an isolating transformer connected for better safety.
6 Pay attention to the original lead covers, especially those in the following areas, to assure proper lead
covers:
a. The area near to sharp edges.
b. The area near to hot parts. Make sure that the leads do not touch the hot parts.
c. The AC mains.
d. The high voltage.
e. The antenna cable.
Check all the areas for the pressed, pulled or injured cables; don not alter the space between every
two components and printed circuits; check the AC mains cable for damage.
7 Replace over heated or damaged components, parts or cables with new ones of the original
specifications. In addition, find the causes to be over heated or damaged, and if necessary, take
proper measures to eliminate any hidden dangers.
8 Safety precautions to the parts: many electronic and mechanical parts of the TV set have special
safety functions, some of which cannot be observed from their appearances. Although other parts
with high voltages or greater power can be used instead, the safety performances of those parts still
cannot be assured. The components marked with “ ! ” have special safety functions. Always Replace
these parts with those recommended in the replacement part list to avoid such dangers as electric
shocks and fires.

-7-
Model No.: PTV-43H08
Version: 1.0
SPECIFICATION
Screen size 43”
Projection tube 7” (P16LXL00 / P16LSG03)
Lens D250 (R/G/B)
Anode high voltage 30.2kV
Mains voltage 175 – 250VAC; 50/60Hz
Power consumption 250W
Receiving system PAL D/K, B/G, I; SECAM D/K, B/G, L/L
Frequency ranges E2 – E9, S10 – S41, S38 – DS57
Antenna input 75 Ωimbalanced input
Number of channels 200
Audio output 12WX2
Comb filter 3D digital comb filter; PAL/NTSC system
Digital convergence Yes
NICAM receiving Yes
Teletext Yes
BBE Yes
SRS Yes
S-VIDEO input terminals One side set and one back set
Video input terminals One side set and two back sets
Chromatic deviation input
(YprPb/YcrCb)
One back set
Audio (L/R) input terminal One site set and two back sets
Earphone output jack One on side
Video output terminal One back set
Weight 57kg
Dimension W x H x D 1055mm x 1380mm x 745mm
Screen shielding Yes
Protector
Protector Specification Circuit protected Chassis with the protector
F908 RT1-20-4A AC mains circuit Secondary mains board
FP01 RT1-20-3. 15A Primary mains circuit Mains deflexion board
F902 RT1-20-3. 15A Secondary mains circuit Secondary mains board

-8-
Model No.: PTV-43H08
Version: 1.0
TV SET OVERVIEW

-9-
Model No.: PTV-43H08
Version: 1.0
MAINTENANCE ADJUSTMENT
Adjustment Methods
1 How to enter the “M” status: with the MENU key pressed, press keys MUTE and TXT on the
remote controller successively
How to leave the “M” status: press the channel plus key on the front panel.
2 How to enter the aging status: At the “M” status, press Key Recall on the remote controller to enter
the aging status; now the “M” sign shows red.
How to leave the aging status: press Key Recall on the remote controller for more than two seconds
to leave the aging status; now the “M” sign shows green again.
3 How to enter the status of a bright line: At the “M” status, press Key Still on the remote controller to
enter the status of a bright line, and press Key Still on the remote controller once more to leave the
status of a bright line.
4 How to enter the status of geometry linearity adjustment: In the TV mode, with Key SK01 pressed,
press Key MUTE on the remote controller to enter the status of geometry linearity adjustment; press
Key SK01 to leave the status of geometry linearity adjustment.
5 How to enter the status of under convergence adjustment: Turn on the TV set with Key SK01
pressed to enter the status of under convergence adjustment, now the three-color squares displayed
on the screen. Press SK01 or Key CONV on the side panel to exit.
6 How to enter the status of convergence adjustment:
Method One: In the TV mode, press SK01 to enter the status of convergence adjustment.
Method Two: In the TV mode, press Key CONV on the side panel together with Key TV/AV on the
remote controller to enter the status of convergence adjustment.
Press Key SK01 or CONV to exit.
7 How to select the color in the status of convergence adjustment: In the status of convergence
adjustment, press Key picture on the remote controller to switch between colors. The switching
order is: Single green (adjust the green), red + green (adjust the red) and red + blue + green (adjust
the blue); press Key Audio to select the display color.
8 How to select the mode of convergence adjustment: In the status of convergence adjustment, press
Key TXT on the remote controller to select between Modes 13X16 and 5X5.
9 How to move the cursor during the convergence adjustment: Press digital Keys 2 , 4 , 5 , 6 and 8 ,
and the cursor moves as follows:
Digital Key 2-------- cursor up
Digital Key 8--------cursor down
Digital Key 4--------cursor left
Digital Key 6--------cursor right
Digital Key 5--------cursor back to the original center

3
2
5
4
4
4
5
1

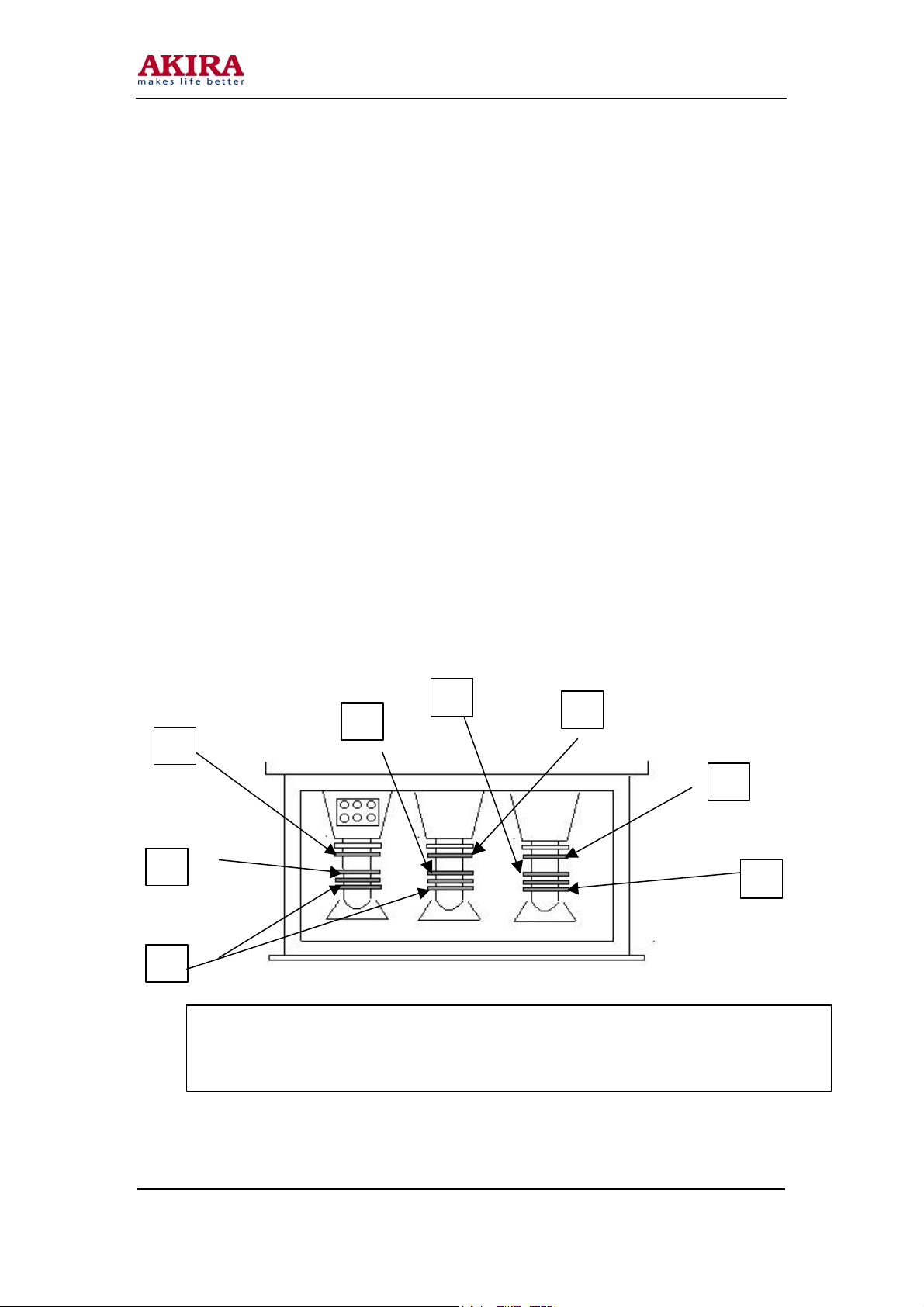

1.Central Magnetic Sheet of Red Tube 2. Central Magnetic Sheet of Green Tube
3.Central Magnetic Sheet of Blue Tube 4. Four Magnetic Sheets for Beam Shape Adjustment
5. Magnetic Sheet for Beam Alignment Adjustment 6. Focusing Case Assembly
-10 -
Model No.: PTV-43H08
Version: 1.0
10 Data adjustment is the status of convergence adjustment:
Remote controller: Key Channel Plus -------- Data increasing (up)
Key Channel Minus -------- Data reducing (down)
Key Sound Plus >--------- Data increasing (right)
Key sound Minus <---------Data Reducing left
11 Switch between the fine adjustment and the coarse adjustment: In the status of convergence
adjustment, press Key i on the remote controller to switch between the fine adjustment and the
coarse adjustment, with the default mode being the coarse adjustment, and with additional line
adjustment function in the 13X16 mode.
12 How to write the data of convergence adjustment: In the status of convergence adjustment, press
Key Write and confirm the action (press Key Sound to confirm, and Key Mix to quit) to write the
data of the current system into the E2PROM, which will not be lost after power off.
13 How to read the data of convergence adjustment: In the status of convergence adjustment, press Key
Read and confirm the action (press Key Sound to confirm, and Key Mix to quit) to read out the data
of the current system.
14 How to clear the data of convergence adjustment: In the status of convergence adjustment, press Key
Reset and confirm the action (press Key Sound to confirm, and Key Mix to quit) to clear the current
system and the convergence data.
15 Diagram of Adjustment Spots
a. Projection Tube

Focusing Case
cut-off G
cut-off Rcut-off B
Focus B
Focus G
Focus R
-11 -
Model No.: PTV-43H08
Version: 1.0
b. The Focusing Case
Adjustment procedure
Screen Control (CUT OFF) Adjustment (I2 BUS)
Preparation of Adjustment:
1 The pre-aging has been finished.
2 Turn shield grid potentiometers R, G and B respectively counterclockwise slowly to the status with a
dark picture. (Avoiding the burn of projection tube)
Adjustment Procedure:
1 Enter the “M” status with the remote controller: press Key Still on the remote controller to enter the
status of a bright line.
2 Adjust Clockwise slowly the red, green and blue screen control potentiometers on the focusing
assembly respectively until corresponding bright red, green and blue lines are emerging slightly on
the screen.
3 Press Still to exit the status of a bright line.
4 Press the channel plus key on the front panel to exit the “M” status.
Adjustment on Raster Inclination
Preparation of Adjustment:
1 Place the TV set with its face to the east or west.
2 Let the TV set receive the pane signal of PAL system.
3 Set the contrast to maximum with others medium.
4 Turn on the TV set with Key SK01 pressed to enter the status of under convergence and display the
convergence mesh.

Green
Geometry center of the screen
Red
Blue
L
Fig.1 Fig.2 L1
L
Green Red or Blue
L2
-12 -
Model No.: PTV-43H08
Version: 1.0
Adjustment Procedure:
1 Cover the red and the blue projection tubes with the lens covers of the projection tubes to remain
only the green raster on the screen.
2 Adjust the deflecting coil of the green projection tube to let the raster inclination degree on the
screen as shown in Fig. (1: L ≤±2mm).
3 Remove the lens cover of the red projection tube or the blue one to make the screen to display both
the red and the green raster or the blue and the green raster.
4 Adjust the deflecting coils of the red and the blue projection tubes on the TV set to make the red and
the blue raster inclination degrees as shown in Fig 2.: (L1, L2 ≤±2mm).
5 After the adjustment, fix the deflecting coils of red, green and blue projection tubes with a screw
driver. The torque exerted is 1.18N. m.
Rough adjustment of the raster position
At first, adjust and fix the position of green raster and make it as a bench. Revolve respectively the central
adjustment magnetic sheets of the red and the blue projection tubes. Move the center of the red square or
the blue one to make the center of the red raster or the blue one as shown in the following
figure.
L1 L2

a
b
Projection tube screen side
Projection tube electron gun side
4-pole
magnetic shee ｔ
for electric beam shap ｅ
2-pole
magnetic for
electron
beams
Specification:
0.9 a/b 1.1
-13 -
Model No.: PTV-43H08
Version: 1.0
DCU Phase Data Setting
Preparation of Adjustment:
1 The screen control CUT OFF adjustment has been finished.
2 Receive the PAL signal 100I, the NTSC signal 60P and the YPRPB component signal.
Adjustment Procedure:
1 Press Key SK01 on the focus and convergence plate to enter the status of convergence adjustment.
2 Press Key L-CH on the remote controller to enter the status of phase determination mode, see
Annexed tables 1, 2 and 3.
3 Alter the phase data according to those in the tables. (Annexed tables 1, 2 and 3).
4 Press Key L-CH to exit the status of phase determining mode.
Adjustment of Beam Alignment
Preparation of Adjustment:
1 Turn on the TV set and age for more than 30 minutes.
2 The adjustment of raster inclination being finished, adjust the lens focusing roughly.
3 The contrast is set to maximum, and others to medium.
4 Receive the PAL video dot signal or the square signal.
Adjustment Procedure:

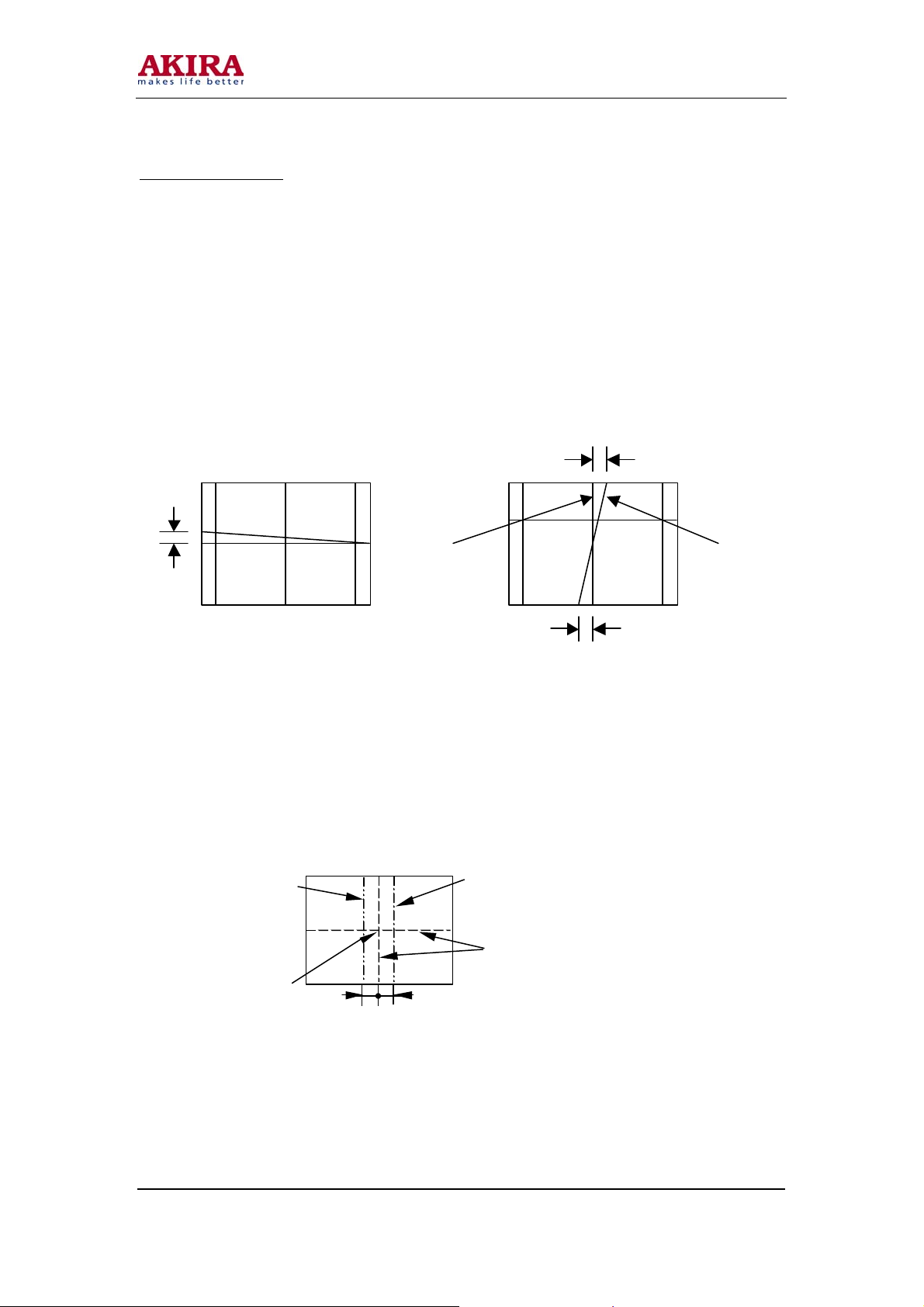

1 Cover the red and the blue projection tubes with lens covers to display the green raster only on the
screen.
2 Revolve the magnetic sheet of green projection tube for aligning the electric beam to the invalid
position as shown below.
3 Return the focusing potentiometer of the green projection tube on the focusing case
counterclockwise to the end, and confirm the central position of the defocused dot raster or the
square crossing dot raster on the screen as a standard position.
4 Turn the focusing potentiometer clockwise to maximum.
5 Revolve the two magnetic sheets for electric beam alignment to make the crossing center coincident
with the standard position confirmed in step (3).
6 Turn the focusing potentiometer counterclockwise to check if the center of the picture moves.
7 Repeat Steps 3 6 until the picture center does not move in step (6).
8 Adjust the electric beam alignment of the red tube and the blue tube with the same method as above.

Green
Geometric Center of
the Screen
Red Blue
L1 L2
-14 -
Model No.: PTV-43H08
Version: 1.0
Adjust the Shape of Electron beam
Preparation of adjustment:
1. Press Key SK01 on the convergence plate once to exit the convergence mesh.
2. Output the video dot signal from the signal generator to AV3, and set the TV set in AV3 status, the
scanning mode to 60P.
3. Cover the lenses of the red and the blue projection tubes to allow the green light only to project to the
screen.
Adjustment Procedure:
1. Turn the green static focusing potentiometer on the focusing case clockwise to maximum.
2. Adjust the 4-pole magnetic sheet of the green tube to make the circle round, as shown in the
following figure. Adjust mainly the screen center and meanwhile give attention to the whole screen
so as to make the beam shape of the whole screen best.
3. Adjust the electron beam shape of the red and the blue tubes with the same method as above.
4. After finishing the adjustment, turn the red, green and the blue static focusing potentiometers to
make the focusing optimum.
Fine adjustment of the Raster Position
Preparation of Adjustment:
Turn on the TV set with Key SK01 pressed to enter the under convergence status, the under convergence
mesh displayed on the screen.
Adjustment Procedure:
1. Revolve the center adjustment magnetic sheets of the red, the green and the blue tubes respectively
to move the centers of the squares as specified below:
2. Requirement in the horizontal direction:
Screen Size (feet) L1 L2
43 25mm 30mm
50 25mm 25mm
Red: L1 is the deviation distance of the screen center to the left, L1 2mm.
Blue: L2 is the deviation distance of the screen center to the right, L2 2mm.
Green: Coincident with the geometric center of the screen.

L1
L2
-15 -
Model No.: PTV-43H08
Version: 1.0
3. Exit the status of under convergence.
Press the convergence key conv on the side panel to exit the convergence mesh.
Adjustment of Geometric Linearity
Adjustment of Geometric Linearity for Scanning Mode 60P
Preparation of Adjustment:
1. Set the scanning mode to 60P.
2. Set the picture contrast to maximum, other controlling items to medium.
3. Press Key SK01 on the convergence plate together with Key MUTE on the remote controller and
confirm to display the green convergence mesh signal.
4. Press Key MENU on the front panel together with Keys MUTE and TXT on the remoter controller
in sequence to enter the “M” status.
Adjustment procedure:

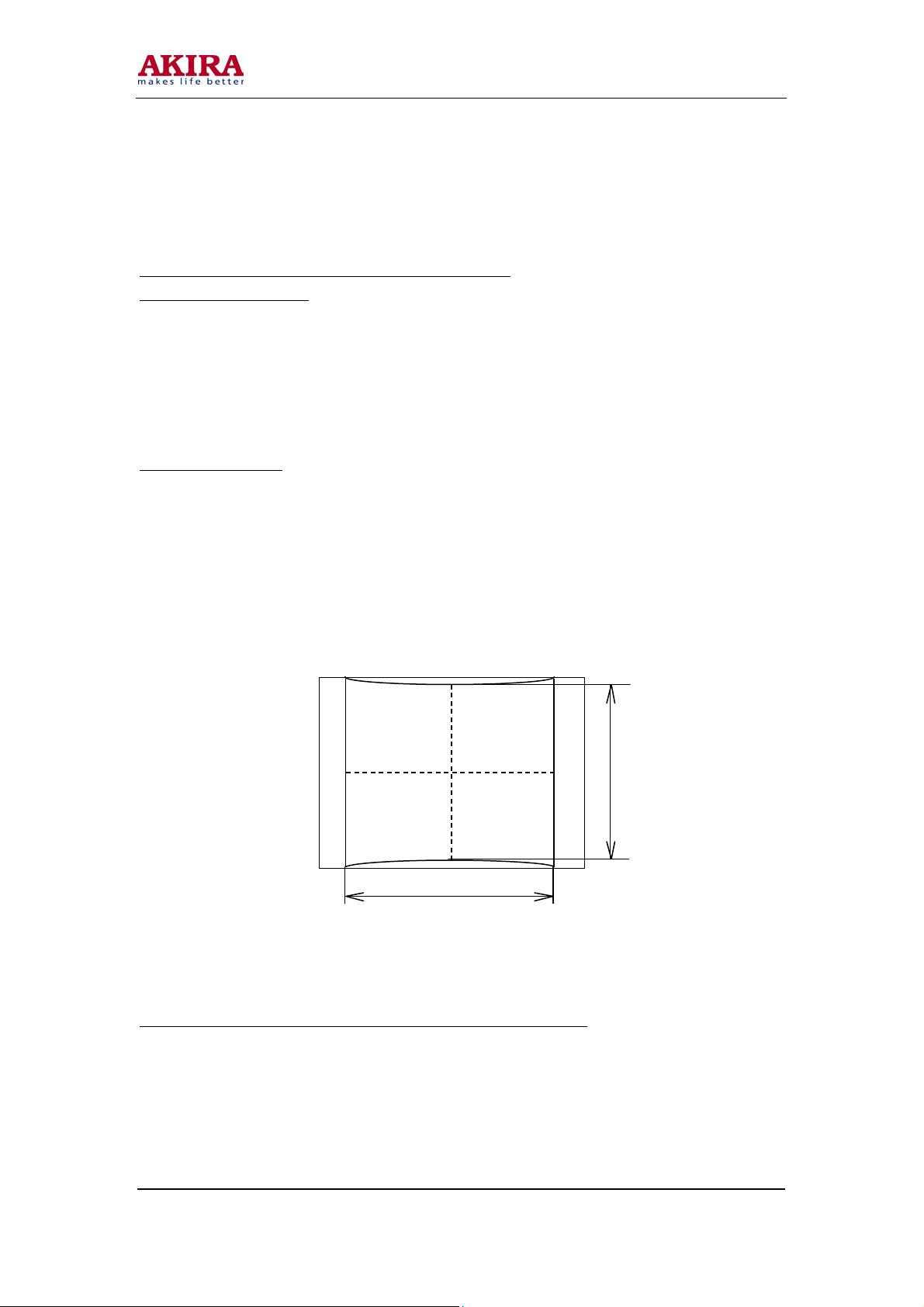

Adjust the field breadth HIT, the row breadth WID, the pincushion DPC, the echelon KEY, the upper
corner UCNR and the lower corner so as to make the side lines of the convergence mesh straight and
parallel to each other, the distance between the centers of the upper and the lower edges of the
convergence mesh is: L1=550 5mm(43 ) / L1=640 5mm(50 ), and the distance between the centers of the
left and the right edges of the Geometric Center of the Screen Blue convergence mesh is: L2=850 ±5mm
(43” )/ L2=990 5mm(50” ).
Adjustment of Geometric Linearity for Scanning Modes 100I and 1250I
Receive PAL 100I and YPRPB 1250I signals. Adjust the geometric linearity of 100I and1250I with the
same method as that of the 60P.

L1 L2
IO
Mesh
Aberrant color
-16 -
Model No.: PTV-43H08
Version: 1.0
Optical Adjustment
Adjustment of the Electronic Focusing
Preparation of Adjustment:
1. Receive the PAL dot square signal with the scanning mode of 60P.
2. Set the contrast to maximum, and the brightness to medium.
Adjustment Procedure:
1. Adjust the red, the green and the blue lens separately (in any order). Cover the other two lenses while
adjusting one of the three to allow the light of single color to project to the screen.
2. Adjust the red, the green and the blue convergence potentiometer separately to get an optimum
convergence.
Adjustment of Lens Focusing
Preparation of Adjustment:
1. Receive the PAL dot square signal with the scanning mode of 60P.
2. Set the contrast to medium, and the brightness to minimum.

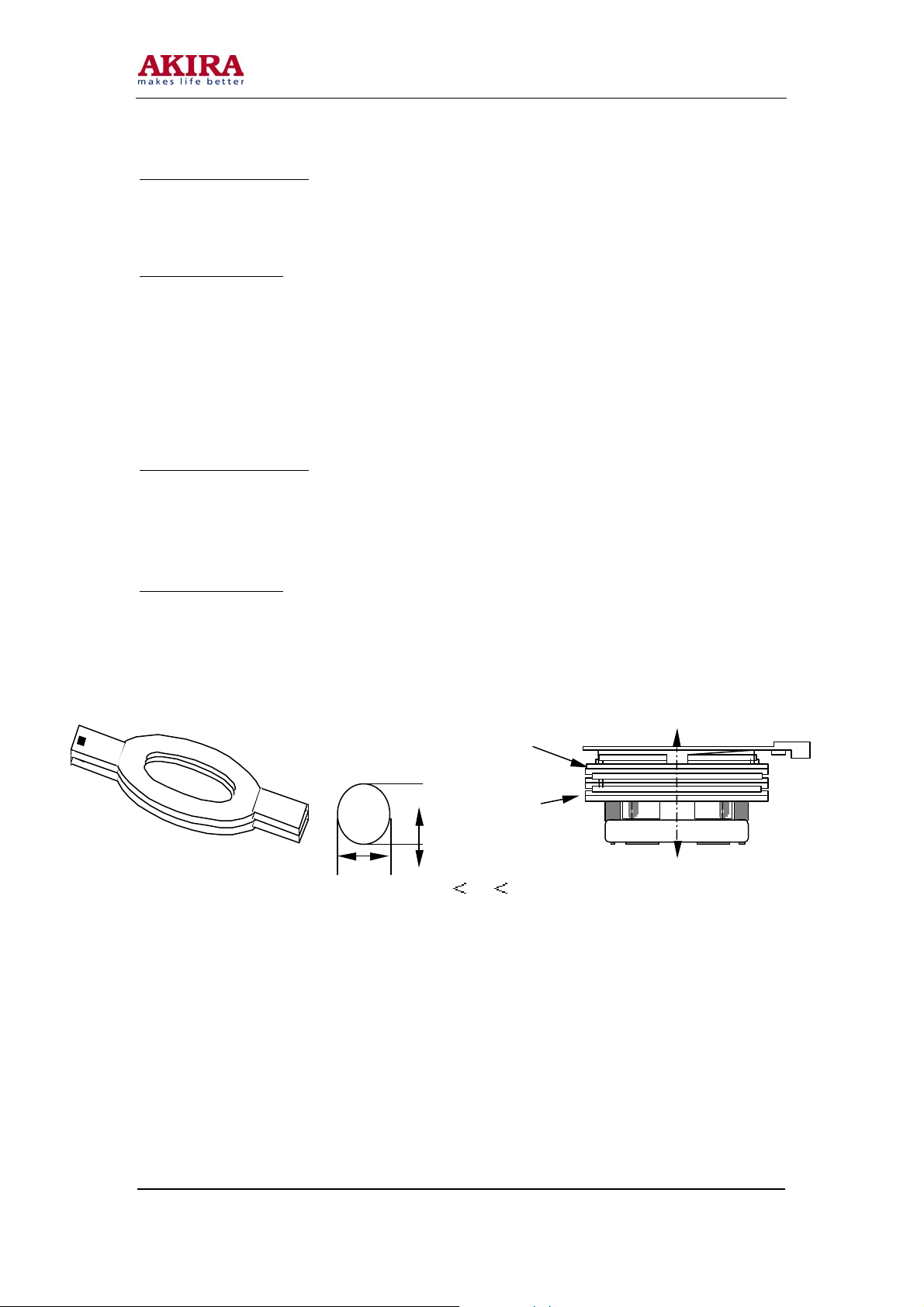

3. Loosen the bolt or the butterfly nut on the lens support to allow the lens support to turn (Note: do not
over loosen). The torque to screw the bolt or the butterfly screw is 1.18N·m (12kgf·cm) 1.67N·m
(17kgf·cm).
4. Adjust the red, the green and the blue lens separately (in any order). Cover the other two lenses while
adjusting one of the three to allow the light of single color to project to the screen.
5. Observe the screen. When turning the knob clockwise, the color distortion will change as follows:
Change of Color Distortion Lens
Lens
Short Focus Long Focus
Red Orange Dark red
Green Blue Red
Blue Purple Green
Adjustment Procedure:
1. Adjust the focusing of the green lens.
While adjusting the position of the color distortion from blue to red, if the color distortion of the
whole screen is different, observe and adjust the focusing of the straight bright line according to the
specifications in the following figure and table. If the red distortions of the straight lines at both sides
are different, observe and adjust the side with larger distortion.

IO
L
Lens Specification Unit
-17 -
Model No.: PTV-43H08
Version: 1.0
2. Focusing of the red Lens
While adjusting the position of the color distortion from orange to dark red, observe and adjust the
focusing of the straight bright line according to the following figure. The inner and the exterior
distortion of orange or dark red tally with the specifications in the following table: (reference
value:1~ 3mm)
Lens Specification Unit
Screen size 43 50 Feet
Square 5.0 3.0 Square of the mesh
At the edge * *
I (inner side) * (max 2mm) * (max 2mm)
Color
distortion
O (external side) ** (max 2mm) ** (max 2mm)
Note
Note: * slight orange or colorless
** slight dark red or colorless
3. Focusing of the Blue Lens

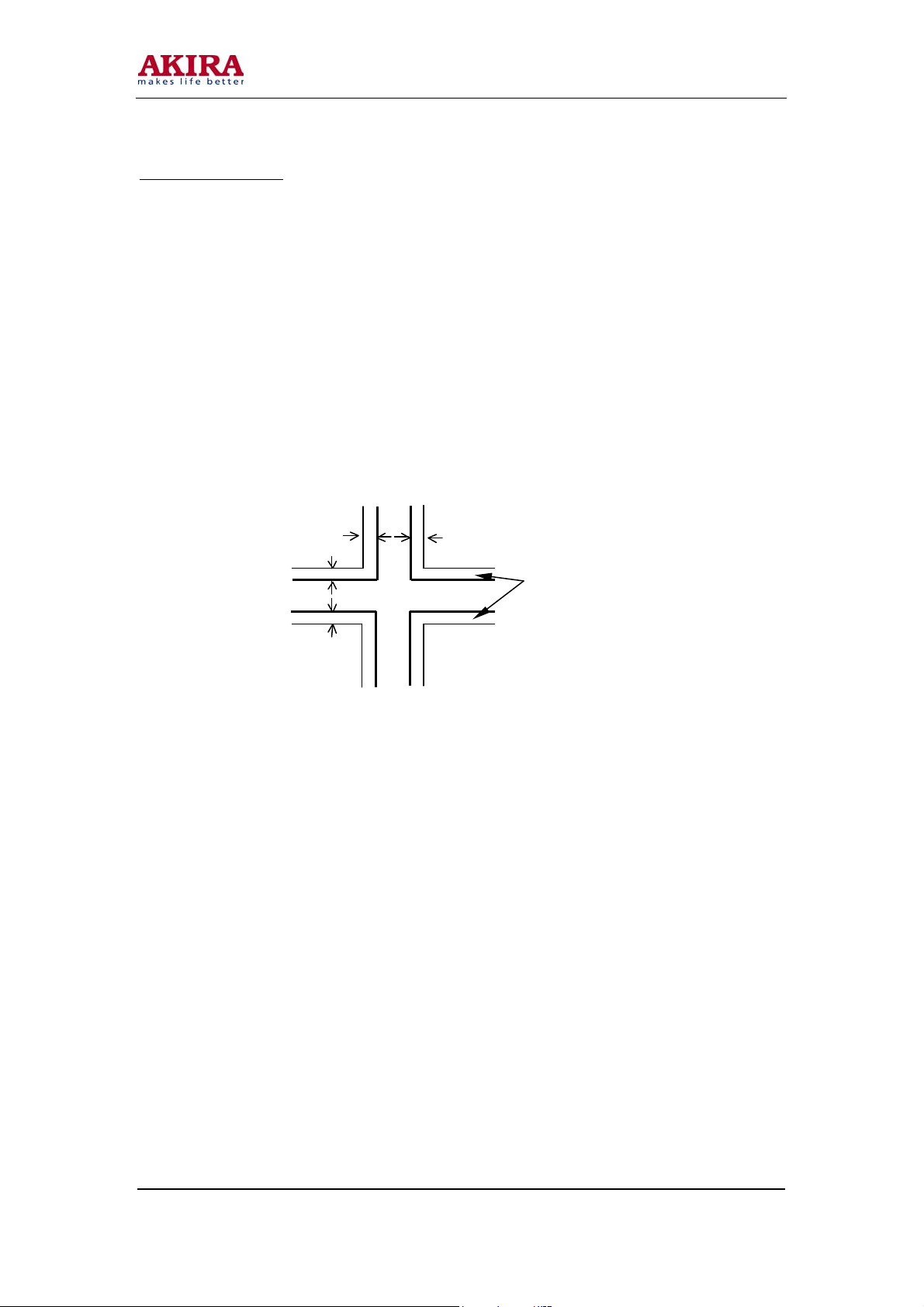

While adjusting the position of the color distortion from purple to green, observe and adjust the
focusing of the straight bright line according to the following figure. The inner and the exterior
distortion of purple or green tally with the specifications in the following table: (reference value:1~
3mm)
O
Note: * slight purple or colorless
** slight green or colorless
1.2.10 Overall Check of Focusing
Receive the signals of the digital card and confirm the normality of the overall focusing.
1.2.11Manual Adjustment of digital convergence.
Preparation of Adjustment:
(1) Receive the PH graphic card signal of the PAL system, and make the following adjustment in the
scanning modes of 60P, 100I and 1250I
I
L

-18 -
Model No.: PTV-43H08
Version: 1.0
Lens Specification Unit
Screen size 43 50 Feet
Square 5.0 3.0 Square of the mesh
At the edge * *
I (inner side) * (max 2mm) * (max 2mm)
Color
distortion
O (exterior side) ** (max 2mm) ** (max 2mm)
Note
Note: * slight purple or colorless
** slight green or colorless
Overall Check of Focusing
Receive the signals of the digital card and confirm the normality of the overall focusing.
Manual Adjustment of digital convergence.
Preparation of Adjustment:
1. Receive the PH graphic card signal of the PAL system, and make the following adjustment in the
scanning modes of 60P, 100I and 1250I YPRPB signal respectively.

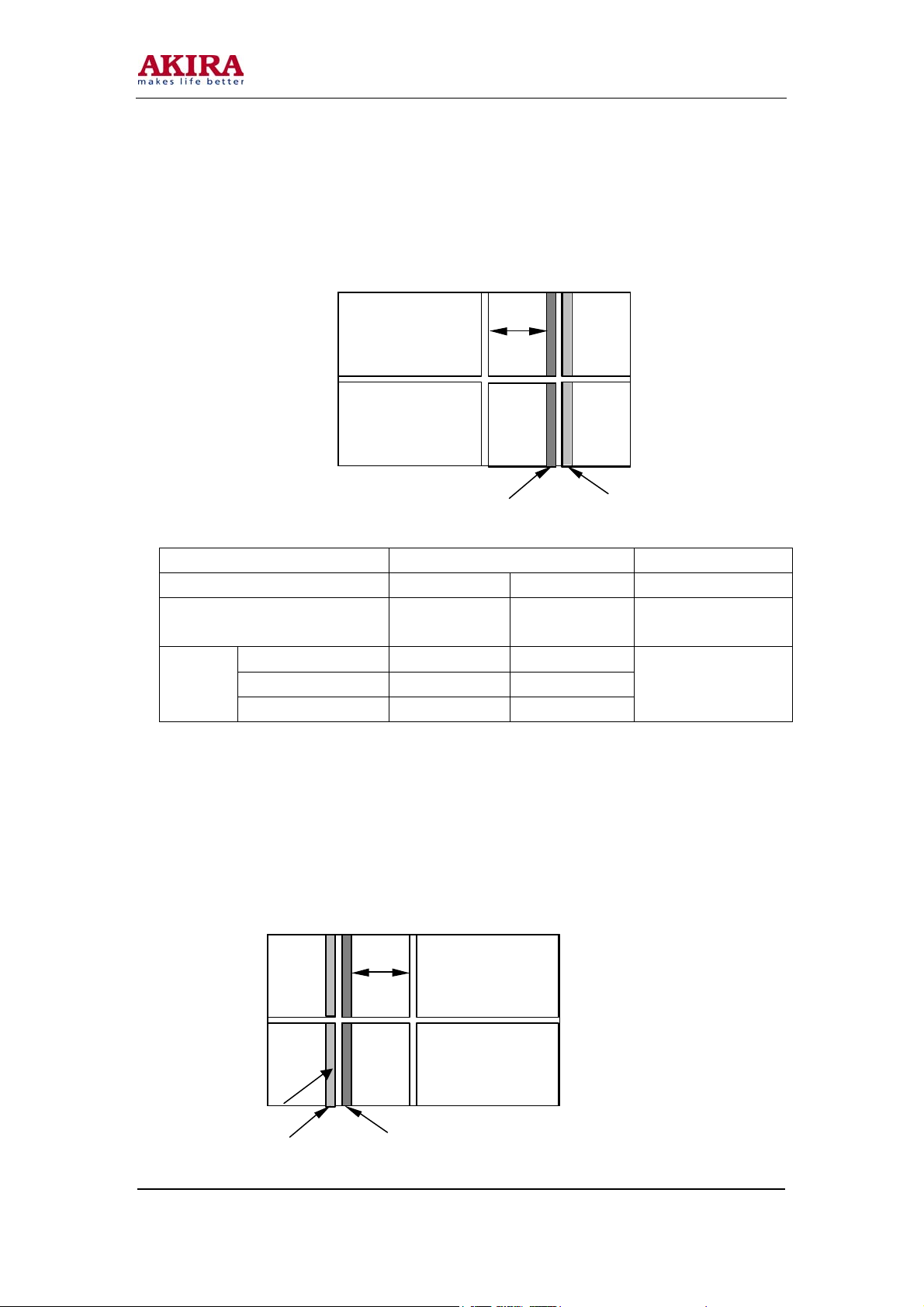

2. Press Key SK01 on the convergence plate and confirm to enter the status of digital convergence. (In
addition, press Key CONV on the side panel together with Key TV/AV on the remote controller to
enter the status of digital convergence.)
3. 208 adjustment dots 16×13 in total. Change the dot (cursor) position with Keys 2, 4, 5, 6 and 8 on the
remote controller.

Blue protrusion
-19 -
Model No.: PTV-43H08
Version: 1.0
Adjustment Procedure:
1. Select the mesh to be adjusted with key picture on the remote controller, and select the mesh to be
displayed with key sound on the remote controller.
2. Adjust the deviations of blue and red based on green to make it less than 1mm.
3. Write: Press Key Write on the remote controller and confirm the write with Key Sound (press Key
Mix to cancel the write). Return to the adjustment status after the write. Readjust if the convergence
deviation exceeds 1mm.
4. Press Key SK01 on the convergence plate, Key CONV on the front panel or Key Exit on the remote
controller to exit the convergence status.
5. Adjustment on Blue Defocusing
a. Receive the PAL dot square signal.
b. Turn the blue focusing potentiometer clockwise to maximum.
c. Turn the blue focusing potentiometer counterclockwise to protrude the blue focusing
in the screen center a distance of less than 1 mm, as shown in the following figure.
Nine-dot Convergence Adjustment for Users: adjust with three scanning modes of
60P, 100I and 1250I YPRPB signal respectively.
1 Enter Nine-dot Convergence Adjustment for Users:
In the TV mode, press Key CONV on the side panel to enter the adjustment status, and the nine dots
distributed on the screen.
2 Exit Nine-dot Convergence Adjustment for Users:
i. Wait for 60 seconds with no adjustment to automatically exit the adjustment status.
ii. At the nine-dot convergence status, press Key ESC on the remote controller to exit
without saving data; press Key CONV on the side panel to exit with data saved.
iii. Press Key CONV on the side panel to exit with data saved.
3 Position Selecting in Nine-dot Convergence Adjustment for Users:
Press Keys 1 to 9 on the remote controller to move the cursor onto the position to be adjusted.
4 Color Selecting in Nine-dot Convergence Adjustment for Users:
Press Key i on the remote controller to alter the color.
5 Data Resetting in Nine-dot Convergence Adjustment for Users:
Method one: In the status of Nine-dot Convergence Adjustment for Users, press Key Reset on the
remote controller.
Method two: Power up the TV set with Key CONV on the side panel being pressed.

-20 -
Model No.: PTV-43H08
Version: 1.0
Adjustment of High Voltage
Adjustment Procedure
1. Power off the TV set, pull the high voltage cable of the blue tube out of the high voltage distribution
box and put it aside, with its pin away from the TV set core.
2. Connect the ground wire of the high voltage meter to the ground of the green tube, and insert the
probe into the high voltage distribution box with a good touch.
3. Power up the TV set, and regulate the high voltage potentiometer RH17 to get a voltage of 30.2 ±
0.2kV indicated on the high voltage meter.
4. Power off and remove the probe and the ground wire of the high voltage meter.
5. Insert the high voltage cable of the blue tube back into the high voltage distribution box and make
sure to be well inserted and sealed.
6. Drop 0.1gram of silica gel 708 onto RH17. Try not to change the value of the potentiometer.
7. Power up and switch on the TV set and check if there is any abnormity.
