InFocus TD61 User manual

TD
™61
USER’S GUIDE

Warning: The power cord and cables associated with this product contain lead, a chemical known to the state of California
to cause birth defects or other reproductive harm Wash hands after handling.
Warning: This product has a lamp which contains a very small amount of mercury. Dispose of it as required by local, state,
or federal ordinances and regulations. For more information, see www.elae.org

1
Contents
1Introduction…3
1.1 About the TD61 … 4
1.2 Accessories for TD61 … 6
1.3 Using the Remote Control … 8
1.4 Your Safety is Important … 10
2Installation…13
2.1 What You Will Do … 14
2.2 Unpacking the TD61 … 16
2.3 Installing the TD61 … 18
2.4 Connecting Source Cables … 20
2.5 Connecting RS232/RS485 Cables … 22
3Adjusting…23
3.1 Aligning the Image … 24
3.2 Adjusting TD61 To Its Source … 28
3.3 What Does Colorspace Mean? … 34
3.4 Color Balancing TD61 … 36
3.5 Scaling and Cropping … 38
3.6 Saving Your Work and Recalling a Memory … 40
4Operating…43
4.1 Normal Start Up … 44

2
4.2 Reading the Alpha Numeric Display … 46
4.3 Controlling TD61 with Remote … 48
4.4 Controlling TD61 with RS232/RS485 … 50
5 Maintenance … 51
5.1 Changing a Lamp … 52
5.2 Changing the Air Filter … 54
6 Reference Section … 55
6.1 Remote Control Functions … 56
6.2 Menus Structures: … 60
6.3 TD61 Drawings … 84
6.4 Connector Wiring … 86
6.5 Regulatory Information … 88
6.6 Specifications for TD61 … 90

3
1Introduction
1.1 About the TD61 … 4
1.2 Accessories for TD61 … 6
1.3 Using the Remote Control … 8
1.4 Your Safety is Important … 10

4
1.1 About the TD61
The InFocus TD61 is a 61" rear-projection display in a native 16x9 format, designed to outperform large
format plasma displays. It combines ultra-thin (6.5" deep) rear projection, DLP technology and rugged
reliable design for outstanding performance in digital signage applications.
Scale
TD61 will up sample resolutions up to a resolu-
tion of 1280 x 720 (720p), and will downsample reso-
lutions up to 1600 x 1200.
Video inputs
A standard 15-pin VGA connector accepts com-
puter pictures up to 1600 X 1200. It also accepts
video RGB with separate H&V Sync, composite sync
and sync on green.
An M1 connector accepts computer images as well
as Digital Video.
An S-Video input is available using a standard 4-
pin Din connector.
A component video input is available as Y, Pb, Pr
on three RCA connectors color coded green, blue and
red.
A composite video input is available on a yellow
RCA connector.
Audio
There are three stereo audio inputs using RCA
connectors. There is an output connection for exter-
nal stereo speakers as well as a line out to be used as
an input to an external stereo amplifier.
Communication
Communicating with the TD61 will be done via
an RJ45 RS232 input or an RJ45 RS485 input. Loop
through from either source will be via an RJ45 RS485
output.
Display Technology
The display technology is single chip DLP.
Service
The TD61 is completely serviceable from the
front. All parts replacement should be performed at
the module level by a qualified service technician.

5

6
1.2 Accessories for TD61
The accessory kit for the TD61 contains the following items.
Each TD61 comes with (quantity)
•ACpowercable(1)
•VGAcable(1)
• 8-32x3/8 Pan Head Phillips #2 screw (4)
• Wall Mounting Bar (1)
• Lower Retaining Bracket(1)
• Remote Control with batteries(1)
• Quick Start Card
•T25L-KeyTorxWrench
• R e m o v a b l e I / O c o v e r
Customer furnished parts
If you will be controlling the TD61 via RS232 or
RS485, you will need CAT-5 cables with straight
through wiring and RJ45 connectors on each end.
.

7
Power Cable
Remote Control
T-25 L-Key Torx Wrench
VGA Cable
Lower Retaining Bracket
Wall Mounting Bracket
Removable I/O Cover
DB9-RJ45 Adapter
8-32x3/8 pan head screws

8
1.3 Using the Remote Control
Most original setup operations are performed with the remote control. Later, RS232 control may be
used.
The remote control, shown below, lets you control
the TD61 and get it setup and adjusted initially.
For a complete description of remote control func-
tions. See 6.1 “Remote Control Functions” on
page 56.

9

10

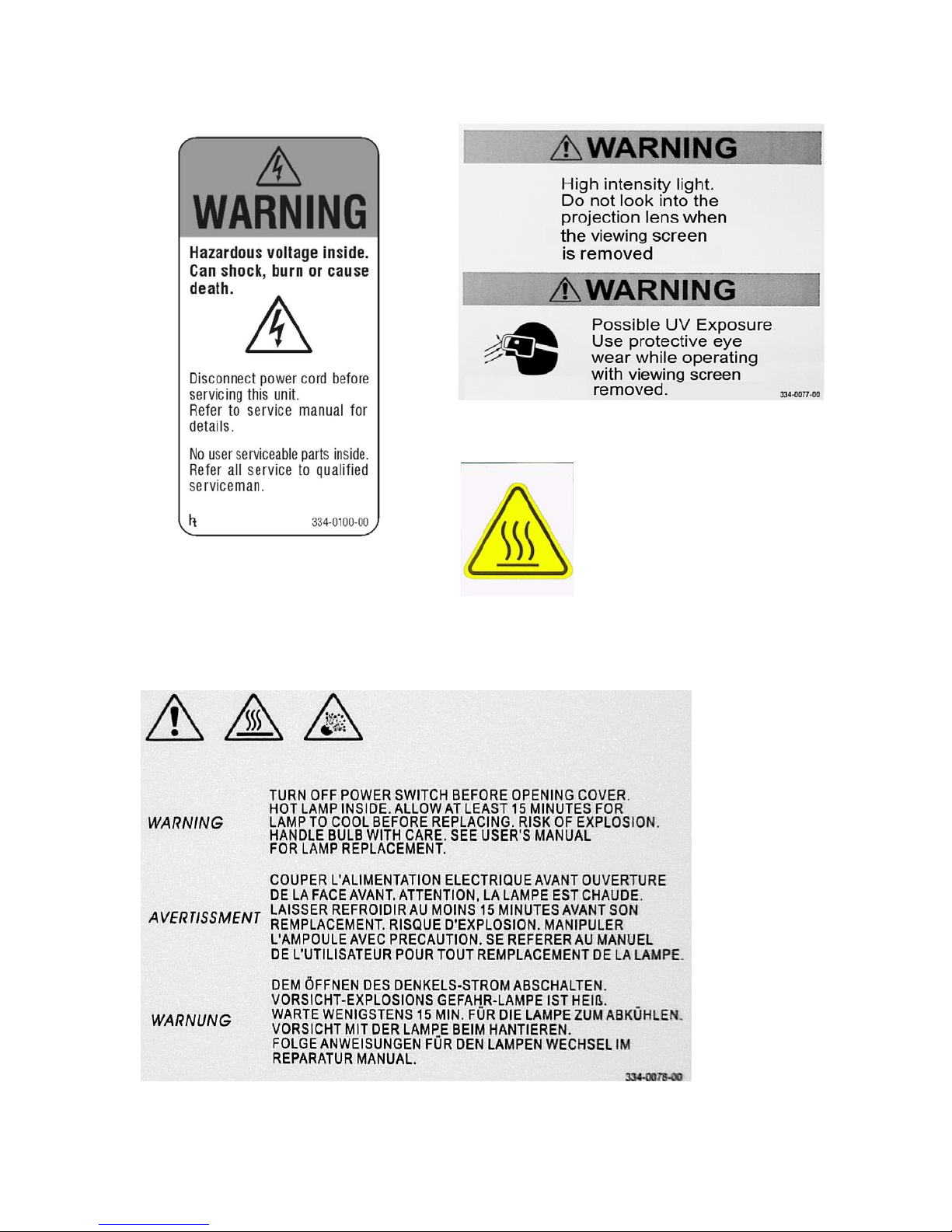

1.4 Your Safety is Important
The TD61 produces UV (ultra-violet) radiation (internally), and some parts are very hot. For your con-
tinued health and safety we strongly suggest you read this section carefully.
The fully assembled display weighs about 106 lb.
(48.08kg). When unpacking and installing the TD61,
you will need two people to handle it.
WARNING
The lamp gets very hot. Allow it to cool for 15
minutes before removing it.
WARNING
Hot surface located behind the TD61, on the
lower right side next to the exhaust vent. Do
not touch during operation.
WARNING
There is no electrical interlock on the screen.
Removing the screen does
not turn off the
high voltage to the lamp.
WARNING
Possible UV exposure. Use protective eye
wear while operating with viewing screen
removed.
CAUTION
There are no user serviceable parts inside.
Refer all repair and maintenance to a qualified
service technician.
WARNING
There are protective electrical interlocks
behind the left and right access panels.
Removing the access panels will cause the
lamp to turn off. Defeating these interlocks will
risk exposure to UV.
Static electricity can damage sensitive electronic com-
ponents.
• Always use a grounding strap when handling the
electronics module or the optical engine if there
are exposed components.
• When shipping these parts, do not use styrofoam
“peanuts.” These carry static electricity and can
damage the parts. Use an anti-static bag, or, if
that is not available, wrap the electronics module
in aluminum foil.

11
Hot Surface

12

13
2 Installation
2.1 What You Will Do … 14
2.2 Unpacking the TD61 … 16
2.3 Installing the TD61 … 18
2.4 Connecting Source Cables … 20
2.5 Connecting RS232/RS485 Cables … 22

14
2.1 What You Will Do
This is an overview of the entire installation and setup process. The numbers in parentheses are page
numbers in this User Guide where more detailed information is available.
Installation
1. Unpack the TD61 carefully (16).
2. Hang the TD61 on a wall or optional stand (16).
DO NOT lay the TD61 on its back or face.
3. Connect the source cables (Data, Video, Audio)
(20).
4. Connect control cables if needed (RS232,RS485)
(22).
5. Connect Power (20).
6. Turn on power switch (24).
7. Press the on button on the remote control (44).
8. Press the source button to select source (56).
Configuration
1. Align the image (24).
2. Adjust data input levels (30).
3. Adjust frequency and phase (31).
4. Adjust for video source (32).
5. Adjust the image size (38).
6. Save your settings (40).

15

16
2.2 Unpacking the TD61
To avoid damaging the TD61 during unpacking, it is advisable to read this section carefully.
1. Remove the plastic plugs on either
side of the bottom of the box. 2. Open the box top and find the accessories
inside. Remove the accessories and the car-
board accessory holder. You may want to
install the wall mounting bracket, from the
accessory kit , on a wall or optional stand
before unpacking the rest of the way. This
would provide a safe place for the TD61 once
3. Remove the three foam pieces
from the top of the TD61.
4. Slide the box sleeve up and off of the TD61
5. Lift the TD61 out of the box
and remove the plastic.
Be sure that you have a safe
place to stand the unit up. It
cannot be placed on its back or
on its face.

17

18
2.3 Installing the TD61
The TD61 is meant to be installed on a wall or on an optional stand. It is not designed to sit on its own.
Introduction
The TD61 can be attached to a wall or to an
optional stand. Hardware for mounting is provided in
the accessory kit. Included in the accessory kit are
two mounting bars. The larger of the two is the main
wall mounting bracket. The smaller one is used as a
spacer to keep the TD61 vertical when mounted on a
wall or attached to a stand.
Mounting on a wall
The TD61 weighs about 106 pounds (48.08kg).
The mounting method that you use must be able to
support five times this weight (530lbs., 240.4kg).
Make sure that the wall can support it. Dry wall may
not be sufficient to handle the weight.
The illustration on the right shows the wall
mounting bracket installed on a wall. The wall
mounting bracket is firmly attached to the studs in
the wall. To prevent the wall mounting bracket from
bending, due to the weight of the TD61, there must
be bolts placed within 7.5 inches from each end.
The inset on the illustration highlights a pin on
the main wall mounting bracket that mates with a
hole in the slot on the back of the TD61.
CAUTION
Do not lay the TD61 on its face or on its back.
It must be kept upright at all times.
Mounting TD61 on a wall.
1. Install wall mounting bracket bar on wall. Make
sure the wall mounting bracket is straight and
level. If the wall is uneven, use shims to insure
the wall mounting bracket is straight. Be sure to
attach to studs in the wall.
2. Hang the TD61 on the wall mounting bracket bar.
Make sure the holes in the TD61 wall mounting
bracket slot mate with the pins on the hangar bar.
Wall mounting bracket installed. Inset shows one of
the two pins that mate with the holes in the slot in the
back of the TD61.
Back of TD61 showing wall mounting bracket slot.
Inset shows one of the two holes that mate with the
pins on the wall mounting bracket.
TD61 being lifted in to place on the wall. The slot fits
over the wall mounting bracket and is fitted onto the
mating pins.
Wall mounting
bracket on wall
