ALERA ALE-RF616B ALE-RF616W
(UR-BC50A-S)说明书
50200104C272

Thank you for purchasing this Alera refrigerator.
Warning: Please read and understand all instructions before using this
product. Save these instructions for later use, and follow all warnings and
instructions marked on product.
Please read thoroughly before operating this equipment
• Beforeusingtherefrigerator,readthismanualandbecomefamiliarwiththesafetyinformation,
operatinginstructions,andmaintenancerequirements.
• Followallwarningsandinstructionsinthismanualandasmarkedontherefrigerator
• Donotattempttoservicethisunitbyyourself.Doingsowillvoidthemanufacturer’swarranty
andmayexposeyoutosharpcuttingbladesand/orhighvoltageelectricshockthatcouldcause
seriousinjury.Anyrepairsmustbeperformedbyqualiedservicepersonnel.
10-15/1
CUSTOMER SERVICE INFORMATION
IF YOU NEED ASSISTANCE, PLEASE CALL
[phone]
Model ALE-RF616B
 ALE-RF616W
1.6 cu.ft. Compact
Refrigerator
Instruction manual

1
IMPORTANT SAFETY INSTRUCTIONS
WARNING To reduce the risk of electrical shock or injury when using your
refrigerator, follow these precautions
• Read all instructions before using the
refrigerator
• Child entrapment and suffocation – Never allow
children to operate, play with or crawl inside the
refrigerator
• Unplug the refrigerator after use and
before carrying out user maintenance
• Dispose of/recycle your refrigerator safely and re-
sponsibly according to local
regulations.
• Remove door and shelves to avoid
accidents of children entering and playing in the
refrigerator.
• Never clean the refrigerator with
The fumes can create a hazard or explosion
• FOR YOUR SAFETY: DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
THE FUMES CAN CREATE A FIRE HAZARD OR
EXPLOSION

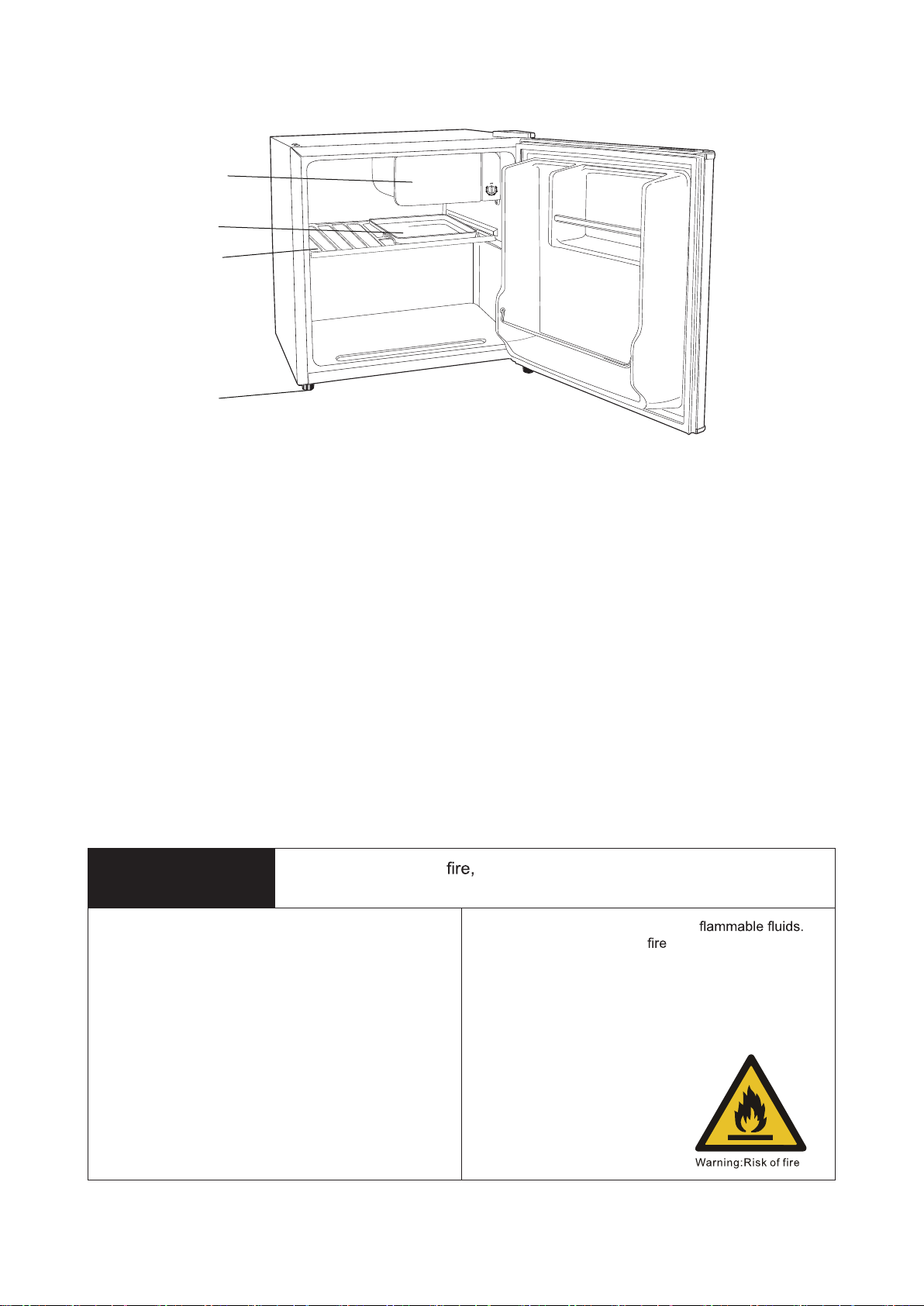

1. Chiller compartment
2. Drip Tray
3. Wire self
4. Leveling glides
*All images in this instruction manual are for indication only;
please refer to your individual unit for details.
1
2
3
4

2
ELECTRICAL CONNECTION
• Do not pull the power cord when removing the power plug. Firmly grasp the plug and pull it from
the socket.
• Do not use the appliance if the power cord is damaged or the plug is worn
• Use a dedicated three hole power socket (10A or more).
• Use of extension cord is not recommended. Do not have other appliances connected to the same
socket through extension cord.
• Pull out the plug in case of power failure or for cleaning the unit.
• The refrigerator uses 115/60Hz AC power. Voltage over the range of 115 ± 10% V will
cause malfunction or even damage and would require installation of a 750W automatic voltage
regulator.
• For safety reasons, it is not recommended to place rice cookers, microwave ovens and other
appliances on top of the refrigerator.
SET UP
• Always have repairs and maintenance conducted by professional service personnel.
• For any damages to the power cord or other parts, please contact Alera Customer Service at
1-800-733-4000
• Place the refrigerator in a location allowing adequate ventilation and away from heat sources
like stove, heater or radiator. Avoid installation in humid places.
• Do not wash down the refrigerator or place in moist environment. This could harm the electrical
insulation properties of the unit.
• Do not place items near the refrigerator to avoid
LEVELING
• Place your refrigerator on a strong enough to support it when fully loaded
• Adjust the leveling glides in case of uneven

3
THERMOSTAT
MAINTENANCE OF REFRIGERATOR
CLEANING
WARNING: Unplug the refrigerator before cleaning and defrost.
• The refrigerator should be cleaned regularly (recommended about once a month) to prevent
odor build-up.
• To clean your refrigerator, turn the temperature control to “OFF”, unplug the unit and take out all
removable parts.
• Remove dust behind the refrigerator and on the ground to improve the cooling effect and energy savings.
• Use soft towels or sponge with water and non-corrosive neutral detergents
• Clean the chiller compartment with clean water and dry cloth
• Keep the door open for air drying before turning the unit back on
• Do not use hard or wire brushes, abrasives, organic solvents
(alcohol, acetone, etc), boiling water, acid or alkaline items to clean the refrigerator. This may dam-
age the surface and interior.
• Do not rinse with water. This will damage the electrical
insulation properties.
• Use a dry cloth when cleaning light bulb, temperature control knob and electrical components.
DEFROST
WARNING: Do not use metal objects or electric heater (blow dryer) to defrost.
This will damage the appliance. Remove all foods before defrosting
• Defrost the chiller compartment whenever the layer of frost on the surface of the evaporator
reaches ¼ inch.
• When defrosting, remove all food and set the thermostat to “OFF”.
• Put a drip tray under the evaporator to collect melted water
• Dry up refrigerator and restart by turning the temperature knob to the desired setting.

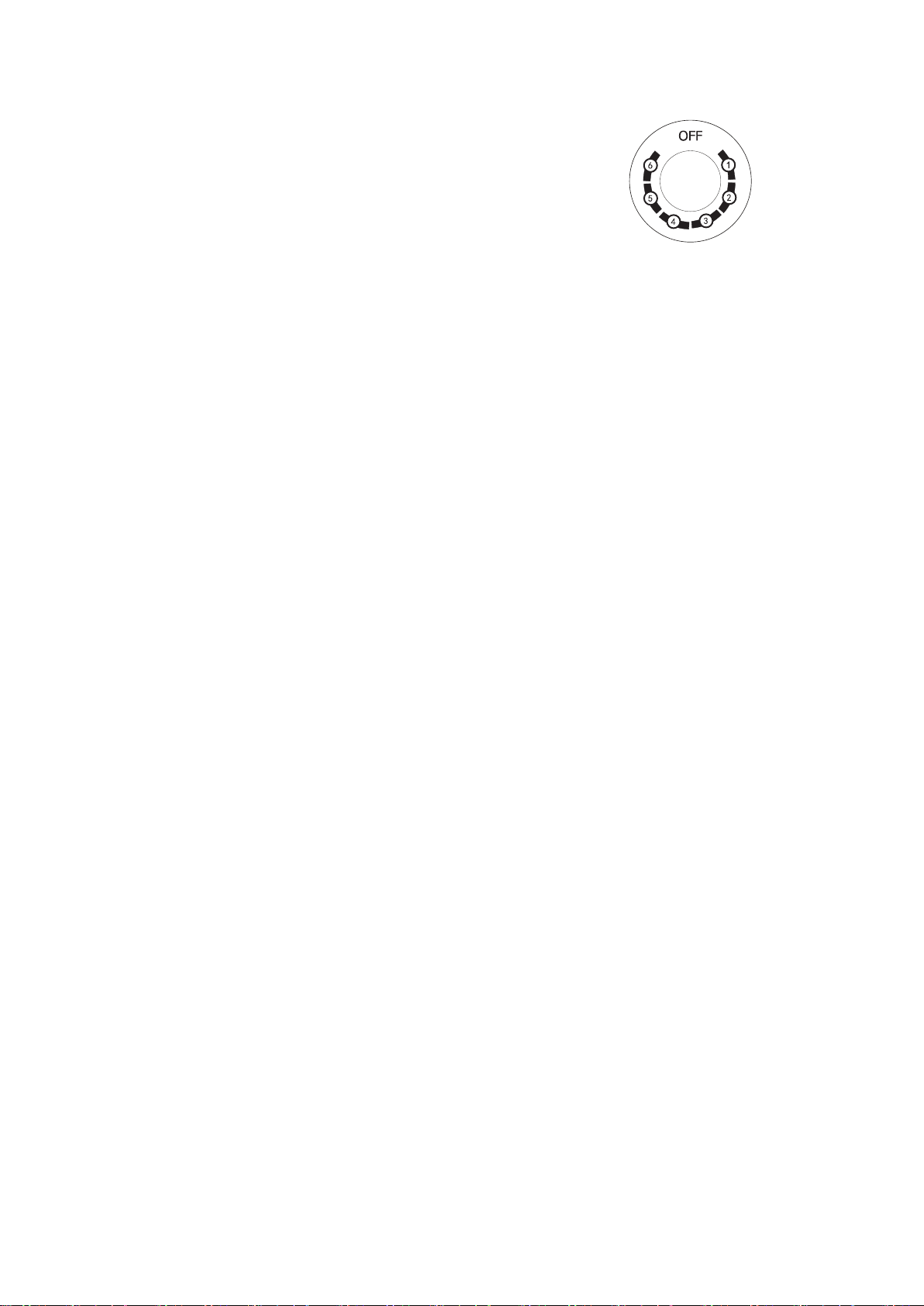

Your refrigerator has one control for regulating the
temperature. The temperature control is located on the
upper right hand corner of the interior compartment.
The first time you turn the unit on, adjust the
temperature control knob to “4” and run for at least 2
hours before putting foods inside. This will ensure the
cabinet is thoroughly chilled before food is put in.
The range of the refrigerator temperature control is
from position "1" ( cold) to "6" (coldest). Adjust the temperature control to the setting that best
suits your needs. The setting of “4” should be appropriate for home or office refrigerator use.
Turning the temperature control knob to “OFF” position stops the cooling cycle but does not shut
off the power to the unit.
•
•
•
•

4
CHANGING REVERSIBLE DOOR
Unplug and empty the refrigerator
Adjust the two leveling feet to their highest position
Tools Required: Phillips Screw Driver
NOTE:
• Tilt the appliance backward to remove the door.
• Rest the refrigerator on a solid surface e.g. chair just below the top panel in order to access the
bottom of the refrigerator.
• DO NOT lay the appliance completely as this may damage the coolant system
Remove the plastic cover from the top door hinge
Unscrew the two screws from the bottom bracket.
Remove the foot glide from othe opposite side
Set parts aside
Slide the refrigerator door downward about 6 inches and
off the top hinge pin
Remove the two screws from the top bracket and replace
on the other side. You will need to remove the plastic
caps from the other side
Slide the refrigerator door back onto the top hinge. Ensure
it is the “right way up”
Screw the bottom hinge into place on the new side.
Replace the foot glide on the other side.
Place the plastic cover by clicking back into position on the
door hinge
Check that the door is aligned horizontally and vertically
and that the seals are closed on all sides before
tightening the bottom hinge. Readjust the leveling feet
1
3
5
6
2
4
7

5
FREQENTLY ASKED QUESTIONS
Ifthefollowingtroubleshootingguidedoesnotresolvetheissues,pleasecontactEssendant
customerserviceat1-800-733-4000
Refrigeratordoesnotturnon • Checkifpowercordispluggedintoalivecircuit
withpropervoltage
• Checkforblownhouseholdfuseortrippedcircuit
breaker
• Checkifrefrigeratorcontroliscorrectlyset
Odor • Checkforrottenorspoiledfood
• Cleaninteriorifnecessary
Foodsintherefrigeratingchamberare
frozen
• Checkifthermostatisoveradjusted
• Checkiffoodscontainingwaterareinsidetheglass
partition
Long-termcompressoroperation • Onhotdaysorifroomistoowarm,thecompressor
willrunlonger
• Checkifhotfoodswereplacedintherefrigerator
• Checkforthickfrostlayer(defrostisneeded)
• Checkifchillercompartmentisoverstocked
Refrigeratordoordoesnotproperly
close
• Checkifchillercompartmentdoorisstuckbyfood
packages
• Checkiftoomuchfood
• Checkifrefrigeratorisproperlyleveled
Loudnoises • Removeitemsfromtoporbehindtherefrigerator
• Compressorrunningwhenstartinguporshutting
down
• Electricswitchvalvemayrattleduringnormal
operation
Condensation Condensationmaycollectontheexteriorsurfaceand
doorsealsofthechillercompartmentduringhigh
humidity.Wipeawaywithdrycloth.
Waterdropsgeneratedonthebackof
the refrigerator
Therefrigeratingchamberwillperiodicallyfrostand
defrost.Thisisnormal.
