arcelik 2061 DY User manual

2061 DY
Refrigerator

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you an
effective service.
Therefore, read this entire user manual carefully before using the product and keep
it as a reference. If you handover the product to someone else, give the user manual
as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
3
1 Your Freezer 4
2 Important Safety Warnings 5
Intended use .....................................5
General safety ..................................5
For products with a water dispenser;.9
Child safety......................................10
Compliance with WEEE Directive and
Disposing of the Waste Product: .....10
Package information........................10
HC warning .....................................10
Things to be done for energy saving 11
3 Installation 12
Points to be paid attention to when the
relocation of the refrigerator .............12
Before you start the refrigerator,.......12
Electrical connection........................12
Disposing of the packaging .............13
Disposing of your old refrigerator .....13
Placing and Installation ....................13
4 Preparation 14
Adjusting the legs ............................15
Door Open Warning.........................15
5 Using your refrigerator 17
Setting the operating temperature ...17
Freezing...........................................18
Freezing fresh food ..........................20
Recommendations for preservation of
frozen food ......................................20
Placing the food ..............................21
Deep-freeze information ..................21
6 Maintenance and cleaning 22
Protection of plastic surfaces ..........22
7 Troubleshooting 23
CONTENTS

EN
4
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

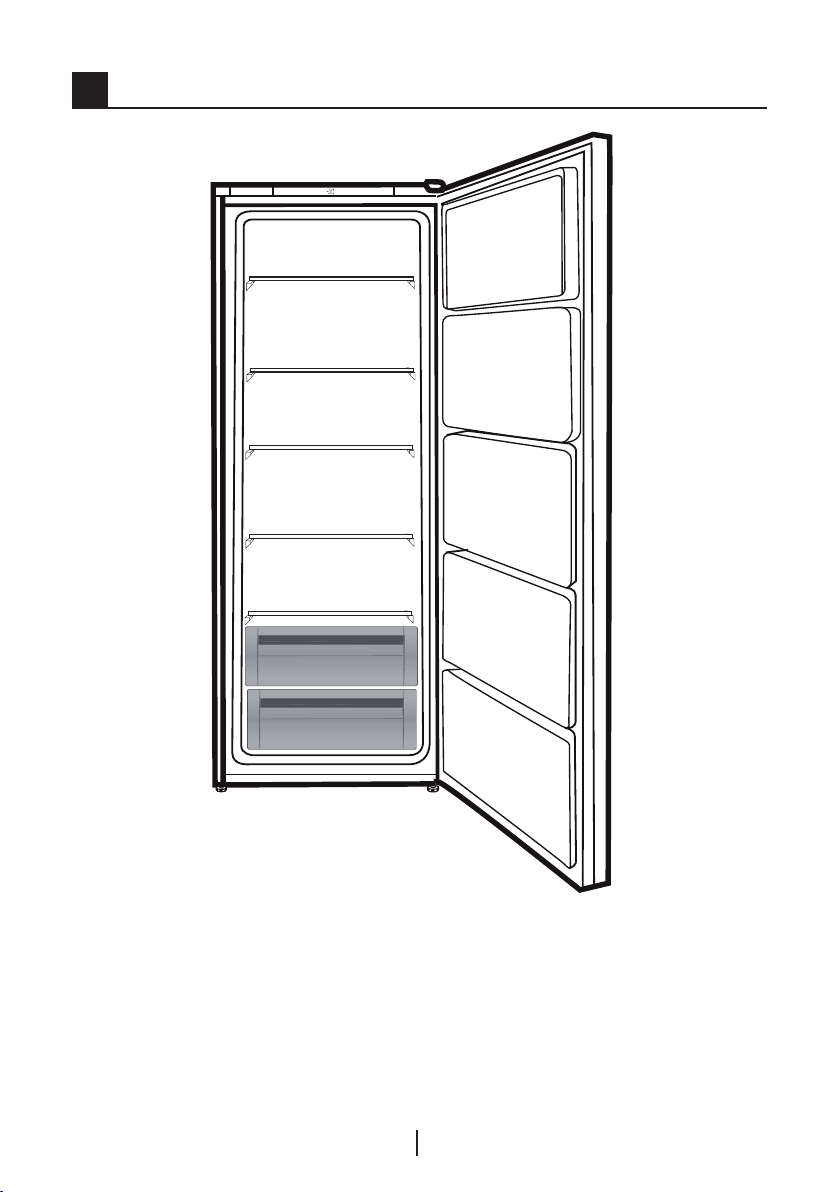

1. Control Panel
2. Glass shelves
3. Drawers
4. Adjustable front feet
1Your Freezer
1
2
3
4
MAX.
1
2
34

EN
5
2Important Safety Warnings
Please review the
following information.
Failure to observe this
information may cause
injuries or material
damage. Otherwise, all
warranty and reliability
commitments will become
invalid.
The service life of your
product is 10 years. During
this period, original spare
parts will be available
to operate the product
properly.
Intended use
This product is intended
to be used
• indoors and in closed
areas such as homes;
• in closed working
environments such as
stores and offices;
• in closed
accommodation areas
such as farm houses,
hotels, pensions.
• It should not be used
outdoors.
General safety
• When you want to
dispose/scrap the
product, we recommend
you to consult the
authorized service
in order to learn the
required information and
authorized bodies.
• Consult your authorized
service for all your
questions and problems
related to the refrigerator.
Do not intervene or let
someone intervene to
the refrigerator without
notifying the authorised
services.
• For products with a
freezer compartment;
Do not eat cone ice
cream and ice cubes
immediately after you
take them out of the
freezer compartment!
(This may cause frostbite
in your mouth.)
• For products with a
freezer compartment;
Do not put bottled
and canned liquid
beverages in the
freezer compartment.

EN
6
Otherwise, these may
burst.
• Do not touch frozen food
by hand; they may stick
to your hand.
• Unplug your refrigerator
before cleaning or
defrosting.
• Vapor and vaporized
cleaning materials
should never be used in
cleaning and defrosting
processes of your
refrigerator. In such
cases, the vapor may
get in contact with the
electrical parts and
cause short circuit or
electric shock.
• Never use the parts on
your refrigerator such as
the door as a means of
support or step.
• Do not use electrical
devices inside the
refrigerator.
• Do not damage the
parts, where the
refrigerant is circulating,
with drilling or cutting
tools. The refrigerant
that might blow out
when the gas channels
of the evaporator, pipe
extensions or surface
coatings are punctured
causes skin irritations
and eye injuries.
• Do not cover or block
the ventilation holes on
your refrigerator with any
material.
• Electrical devices must
be repaired by only
authorised persons.
Repairs performed by
incompetent persons
create a risk for the user.
• In case of any failure or
during a maintenance or
repair work, disconnect
your refrigerator’s mains
supply by either turning
off the relevant fuse
or unplugging your
appliance.
• Do not pull by the cable
when pulling off the plug.
• Place the beverage with
higher proofs tightly
closed and vertically.
• Never store spray
cans containing
flammable and explosive
substances in the
refrigerator.
• Do not use mechanical
devices or other means

EN
7
to accelerate the
defrosting process,
other than those
recommended by the
manufacturer.
• This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced people
(including children)
unless they are attended
by a person who will
be responsible for their
safety or who will instruct
them accordingly for use
of the product
• Do not operate a
damaged refrigerator.
Consult with the service
agent if you have any
concerns.
• Electrical safety of your
refrigerator shall be
guaranteed only if the
earth system in your
house complies with
standards.
• Exposing the product
to rain, snow, sun and
wind is dangerous with
respect to electrical
safety.
• Contact authorized
service when there is a
power cable damage to
avoid danger.
• Never plug the
refrigerator into the wall
outlet during installation.
Otherwise, risk of death
or serious injury may
arise.
• This refrigerator is
intended for only storing
food items. It must not
be used for any other
purpose.
• Label of technical
specifications is located
on the left wall inside the
refrigerator.
• Never connect your
refrigerator to electricity-
saving systems; they
may damage the
refrigerator.
• If there is a blue light on
the refrigerator, do not
look at the blue light with
optical tools.
• For manually controlled
refrigerators, wait for at
least 5 minutes to start
the refrigerator after
power failure.

EN
8
• This operation manual
should be handed in to
the new owner of the
product when it is given
to others.
• Avoid causing damage
on power cable when
transporting the
refrigerator. Bending
cable may cause fire.
Never place heavy
objects on power cable.
• Do not touch the plug
with wet hands when
plugging the product.
• Do not plug the
refrigerator if the wall
outlet is loose.
• Water should not be
sprayed on inner or outer
parts of the product for
safety purposes.
• Do not spray substances
containing inflammable
gases such as propane
gas near the refrigerator
to avoid fire and
explosion risk.
• Never place containers
filled with water on top
of the refrigerator; in
the event of spillages,
this may cause electric
shock or fire.
• Do not overload the
refrigerator with food.
If overloaded, the food
items may fall down and
hurt you and damage
refrigerator when you
open the door.
• Never place objects on
top of the refrigerator;
otherwise, these objects
may fall down when
you open or close the
refrigerator's door.
• As they require a precise
temperature, vaccines,
heat-sensitive medicine
and scientific materials
and etc. should not be
kept in the refrigerator.
• If not to be used for a
long time, refrigerator
should be unplugged.
A possible problem in
power cable may cause
fire.
• The plug's tip should be
cleaned regularly with a
dry cloth; otherwise, it
may cause fire.

EN
9
• Refrigerator may move
if adjustable legs are not
properly secured on the
floor. Properly securing
adjustable legs on the
floor can prevent the
refrigerator to move.
• When carrying the
refrigerator, do not hold
it from door handle.
Otherwise, it may be
snapped.
• When you have to place
your product next to
another refrigerator or
freezer, the distance
between devices
should be at least 8cm.
Otherwise, adjacent side
walls may be humidified.
• The product shall never
be used while the
compartment which is
located at the top or
back of your product
and in which electronic
boards are available
(electronic board box
cover) (1) is open.
1
1
For products with a
water dispenser;
• In order to operate
the water circuit
of the refrigerator
smoothly, the water
mains pressure must
be between 1-8 bars.
For conditions where
water mains pressure
exceeds 5 bars a
pressure regulator
should be used. If the
water mains pressure
exceeds 8 bars then
the refrigerator’s water
circuit should not be
connected to the water
mains. If you lack the
knowledge of how to
measure the water
mains pressure, please

EN
10
seek a professional
support.Use drinking
water only.
• Use only potable water.
Child safety
• If the door has a lock,
the key should be kept
away from reach of
children.
• Children must be
supervised to prevent
them from tampering
with the product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic
waste at the end of its service life. Take
it to a collection point for the recycling
of electrical and electronic equipment.
Please consult your local authorities
to learn the nearest collection point.
Help protect the environment and
natural resources by recycling used
products. For children's safety, cut
the power cable and break the locking
mechanism of the door, if any, so that it
will be non-functional before disposing
of the product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and our
national asset wealth.
If you want to contribute to the re-
evaluation of the packaging materials,
you can consult to your environmentalist
organizations or the municipalities
where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.

EN
11
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
12
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer will
not assume any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged,
shelves, accessories, crisper, etc.
inside your refrigerator should be
fixed with adhesive tape and secured
against impacts. Package should
be bound with a thick tape or sound
ropes and the transportation rules
on the package should be strictly
observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the
refrigerator,
Check the following before you start
to use your refrigerator:
1. Attach 2 plastic wedges as
illustrated below. Plastic wedges are
intended to keep the distance which
will ensure the air circulation between
your refrigerator and the wall. (The
picture is drawn up as a representation
and it is not identical with your
product.)
2. Clean the interior of the
refrigerator as recommended in the
“Maintenance and cleaning” section.
3. Connect the plug of the
refrigerator to the wall socket. When
the fridge door is opened, fridge
internal lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is not
running and this is quite normal.
5. Front edges of the refrigerator
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily
accessible after installation.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.

EN
13
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
• Extension cables and multi plugs
must not be used for connection.

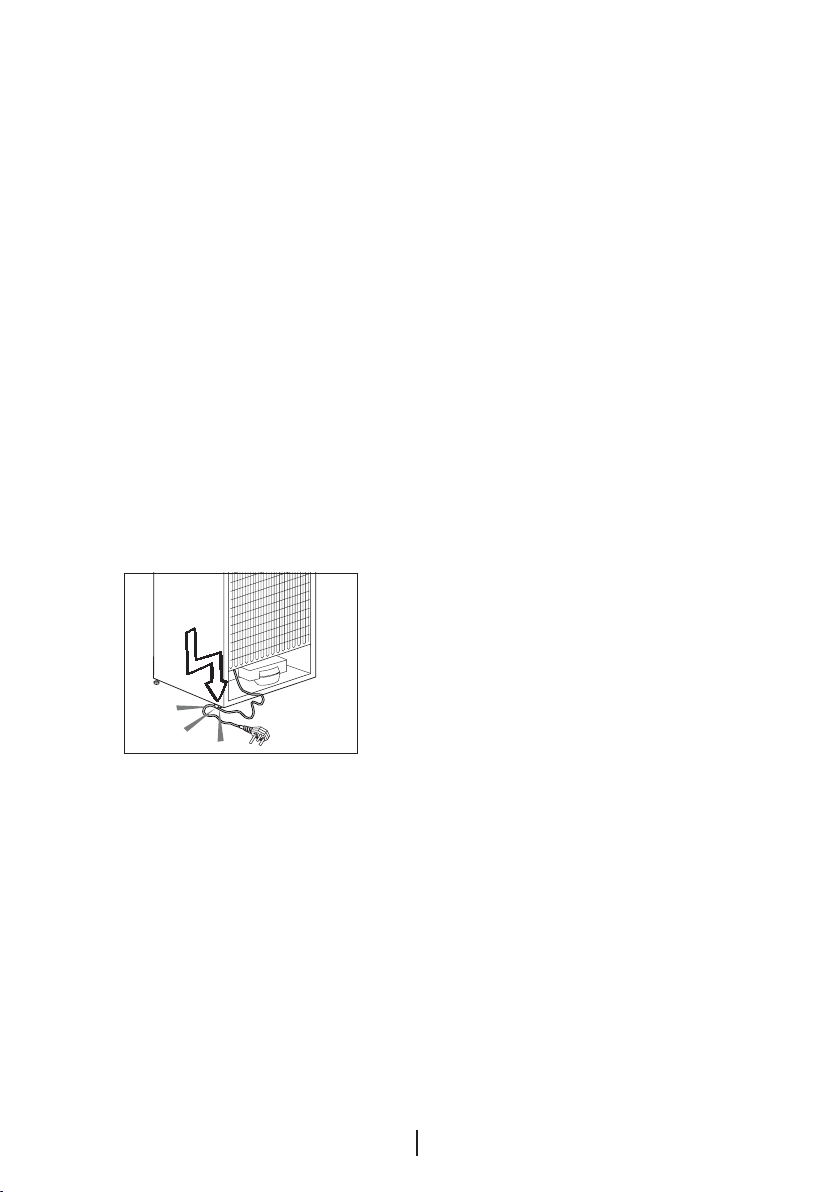

BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated by
the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the doors
of your refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a
place that allows ease of use.
2. Keep your refrigerator away
from heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance with the ceiling
and at least 5 cm with the wall. Do not
place your product on the materials
such as rug or carpet.
4. Place your refrigerator on an
even floor surface to prevent jolts.

EN
14
4Preparation
• Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
• It ‘s recommended to place ice-
acumulator directly on the food at the
top compartment for energy saving.
• Please make sure that the interior
of your refrigerator is cleaned
thoroughly.
• If two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
• When you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
• The door should not be opened
frequently.
• It must be operated empty without
any food in it.
• Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• Original packaging and foam
materials should be kept for future
transportations or moving.
• This appliance is designed to operate
at temperatures specified in the table
below is equipped with Advanced
Electronic Temperature Control
System [AETCS] which ensures
that at the advised setting [4 - four
on the knob] the frozen food in the
freezer will not defrost even if the
ambient temperature falls as low
as -15 °C. When first installed the
product MUST NOT be placed in low
ambient temperatures because the
freezer will not reduce to it’s standard
operating temperature. Once it has
reached its steady operating state it
can be re-located. So you may then
install your appliance in a garage or
an unheated room without having to
worry about frozen food in the freezer
being spoilt. However at low ambient
temperatures mentioned above,
fridge contents are likely to freeze,
so check and consume food in the
fridge accordingly. When the ambient
temperature returns to normal, you
may change the knob setting to suit
your needs.
• If the ambient temperature is
below 0°C, the food in the fridge
compartment will freeze.So, we
recommend you don’t use the fridge
compartment in such low ambient
conditions. You can continue using
the freezer compartment as usual.

EN
15
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning its front legs as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction
of black arrow and raised when you
turn in the opposite direction. Taking
help from someone to slightly lift the
refrigerator will facilitate this process.
Door Open Warning
(This feature is optional)
An audio warning signal will be given
when the door of your product is left
open for at least 1 minute. This warning
will be muted when the door is closed
or any of the display buttons (if any) are
pressed.

EN
16
Reversing the doors
Proceed in numerical order .
7
45 °
180°
3
2
1
5
4
8
6
9
10
13
11
15
15
12
14

EN
17
5Using your refrigerator

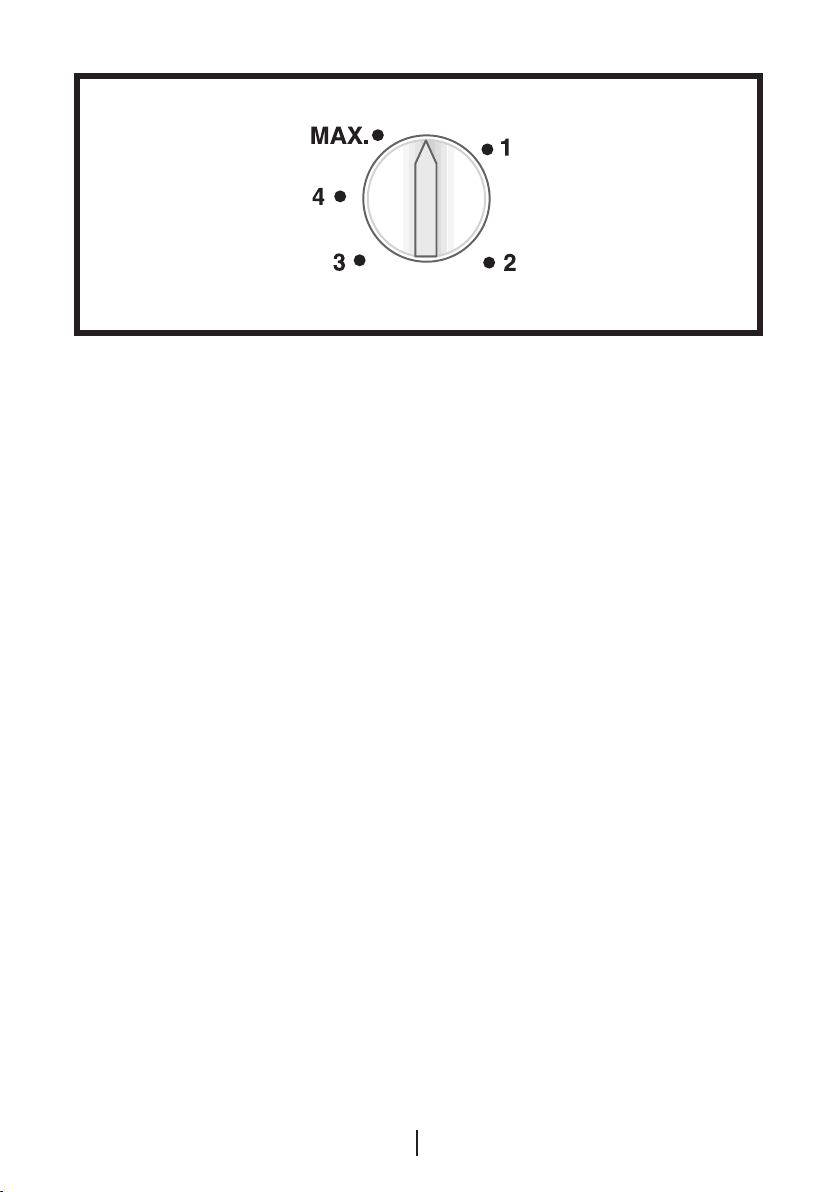

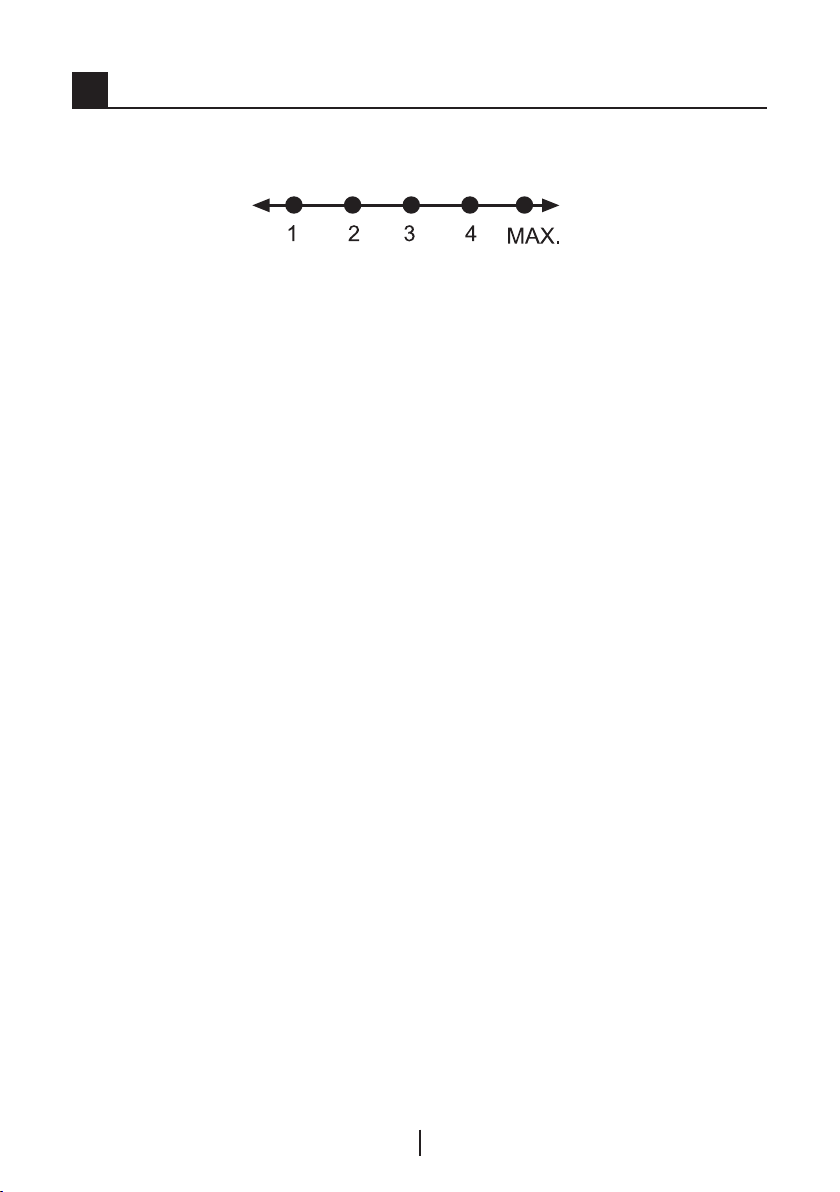

Setting the operating temperature
Warm Cold
The operating temperature is regulated
by the temperature control.
1 = Lowest cooling setting (Warmest
setting)
MAX. = Highest cooling setting
(Coldest setting)
* Additionaly activities quıck fridge
function .
Please choose the setting according
to the desired temperature.
The interior temperature also depends
on ambient temperature, the frequency
with which the door is opened and the
amount of foods kept inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
The normal storage temperature of
your appliance should be -18 °C (0 °F).
Lower temperatures can be obtained
by adjusting the thermostat knob
towards Position MAX.
We recommend checking the
temperature with a thermometer to
ensure that the storage compartments
are kept to the desired temperature.
Remember to take the reading
immediately since the thermometer
temperature will rise very rapidly after
you remove it from the freezer.

EN
18
Thermostat knob
The thermostat knob is located on the
top trim.
Important:
When you press the fast-freeze switch
or adjust the set temperature, there may
be a short delay before the compressor
starts to operate. This is normal and not
a compressor fault.
Freezing
Freezing food
You can use the appliance for freezing
fresh food as well as for storing pre-
frozen food.
Please refer to the recommendations
given on the packaging of your food.
• Attention
Do not freeze fizzy drinks, as the bottle
may burst when the liquid in it is frozen.
Be careful with frozen products such
as coloured ice-cubes.
Do not exceed the freezing capacity
of your appliance in 24 hours. See the
rating label.
In order to maintain the quality of the
food, the freezing must be effected as
rapidly as possible.
Thus, the freezing capacity will not be
exceeded, and the temperature inside
the freezer will not rise.
• Attention
Keep the already deep-frozen food
always separated with freshly placed
food.
When deep-freezing hot food, the
cooling compressor will work until the
food is completely frozen. This can
temporarily cause excessive cooling of
the refrigeration compartment.
If you find the freezer door difficult
to open just after you have closed it,
don’t worry. This is due to the pressure
difference which will equalize and allow
the door to open normally after a few
minutes.
You will hear a vacuum sound just after
closing the door. This is quite normal.

EN
19
Fast freeze
If large amounts of fresh food are going
to be frozen, adjust the control knob to
max. 24 hours before putting the fresh
food in the fast freeze compartment.
It is strongly recommended to
keep the knob at MAX. position at least
24 hours to freeze maximum amount
of fresh food declared as freezing
capacity. Take special care not to mix
frozen food and fresh food.
Remember to turn the thermostat
knob back to its previous position once
food has frozen.
You can freeze the amount of fresh
food whıch is indicated on rating label
of your freezer, by following below steps

EN
20
Freezing fresh food
• It must be preferred to wrap or cover
the food before placing them in the
refrigerator.
• Hot food must cool down to the
room temperature before putting
them in the refrigerator.
• The foodstuff that you want to freeze
must be fresh and in good quality.
• Foodstuff must be divided into
portions according to the family’s
daily or meal based consumption
needs.
• The foodstuff must be packaged in
an airtight manner to prevent them
from drying even if they are going to
be kept for a short time.
• Materials to be used for packaging
must be tear-proof and resistant to
cold, humidity, odor, oils and acids
and they must also be airtight.
Moreover, they must be well closed
and they must be made from easy-
to-use materials that are suitable for
deep freeze usage.
• Frozen food must be used
immediately after they are thawed
and they should never be re-frozen.
• Please observe the following
instructions to obtain the best results.
1. Do not freeze too large quantities
of food at one time. The quality of
the food is best preserved when it
is frozen right through to the core as
quickly as possible.
2. Placing warm food into the freezer
compartment causes the cooling
system to operate continuously until
the food is frozen solid.
3. Take special care not to mix already
frozen food and fresh food.
Recommendations for
preservation of frozen food
• Prepacked commercially frozen food
should be stored in accordance
with the frozen food manufacturer's
instructions for a ( 4 star)
frozen food storage compartment.
• To ensure that the high quality
achieved by the frozen food
manufacturer and the food retailer is
maintained, the following should be
remembered:
1. Put packages in the freezer as quickly
as possible after purchase.
2. Ensure that contents are labeled and
dated.
3. Do not exceed "Use By", "Best
Before" dates on the packaging.
Defrosting
The freezer compartment defrosts
automatically.
