Product Manual
ASW-518
PN 106511-518-4A0001
Aircraft Cabin Subwoofer
Alto Aviation
86 Leominster Rd
PO Box 399
Sterling, MA 01564
Phone: [phone]
800.814.0123
Fax: [phone]
E-mail: [email protected]
www.altoaviation.com

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
2
of
15
Revisions
Rev #
Date
Description
1
06/20/10
Initial Release
2
07/23/10
Fixed p/n typo in 1.1, 1.4 & Title
3
07/30/10
ECN07100006, edits
4
06/03/11
ECN0611001 Dimensions for reference only, added environmental categories
5
09/05/12
E1208011 Mating Pin PN, removed AWG reference
6
01/26/15
E1501005 Updated address
Copyright/Proprietary Notice
Alto products are continually improved and all specifications are subject to change without notice. Information
and data in this document is confidential and proprietary. Reproduction or disclosure of the information contained
in this publication or any portion thereof, by any means, without the express written permission of
Alto Technologies Corporation is prohibited.
Copyright © Alto Technologies Corporation. All rights reserved

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
3
of
15
Service Bulletin List
Service
Bulletin
Number
Subject
Manual
Revision
Number
Manual
Revision
Date

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
4
of
15
Table of Contents
1.0 GENERAL INFORMATION............................................................................................ 6
1.1 INTRODUCTION........................................................................................................................ 6
1.2 PURPOSE OF EQUIPMENT......................................................................................................6
1.3 DESIGN FEATURES ................................................................................................................. 6
1.4 TECHNICAL SPECIFICATIONS ................................................................................................ 7
1.5 OUTLINE DRAWING ................................................................................................................. 8
2.0 INSTALLATION............................................................................................................ 10
2.1 GENERAL................................................................................................................................ 10
2.2 UNPACKING AND INSPECTION............................................................................................. 10
2.3 MOUNTING BRACKETS ......................................................................................................... 11
2.3.1 L500 OPTION .......................................................................................................................... 11
2.3.1.1 PROCEDURE ...................................................................................................................... 11
2.3.2 L600 OPTION .......................................................................................................................... 12
2.3.2.1 PROCEDURE ...................................................................................................................... 12
2.4 WIRING REQUIREMENTS...................................................................................................... 12
2.5 CONNECTOR PINOUTS ......................................................................................................... 13
3.0 INSTRUCTIONS FOR CONTINUED AIRWORTHINESS............................................. 13
3.1 PERIODIC MAINTENANCE..................................................................................................... 13
4.0 TROUBLESHOOTING ................................................................................................. 14
4.1 BASIC TROUBLESHOOTING.................................................................................................. 14
5.0 ENVIRONMENTAL CATEGORIES.............................................................................. 15

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
5
of
15
List of Illustrations
Figure 1: ASW-518 Photo (w/ L600 Mounting Option).......................................................................... 7
Figure 2: ASW-518 Outline Drawing ....................................................................................................8
Figure 3: L500 Mounting Option...........................................................................................................9
Figure 4: L600 Mounting Option...........................................................................................................9
Figure 5: Connector Pinouts .............................................................................................................. 13
Figure 6: Basic Troubleshooting ........................................................................................................ 14
Figure 7: Environmental Categories................................................................................................... 15

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
6
of
15
1.0 GENERAL INFORMATION
1.1 Introduction
This manual contains information for the installation and operation of Model ASW-518,
P/N 106511-518-4A0001, Aircraft Cabin Subwoofer.
This document includes product information such as mechanical, acoustic, and electrical
characteristics.
1.2 Purpose of Equipment
The ASW-518 is a lightweight, high power, bass reflex subwoofer module designed for
placement under B/E Aerospace luxury seat bases. The high excursion 5.25” driver is
precisely matched to the acoustically tuned enclosure resulting in high output and lower
frequency bass roll off. The motor structure of the driver is designed to be lightweight
and have low magnetic leakage compared to conventional designs. The acoustic
settings for this subwoofer are based on aircraft type and cabin configuration to provide
the finest audio available.
1.3 Design Features
The ASW-518 is designed to be as small and lightweight as possible without sacrificing
audio performance. It is only 3.5” deep. The small package allows for easy installation.
The speaker has a maximum music power rating of 50 Watt RMS (40Hz –200Hz).
The bass reflex design allows for lower frequency bass roll off. The integrated grills
protect speakers during installation. The speaker has a high efficiency driver with low
magnetic leakage precisely matched to the enclosure.
The Subwoofer is Integral part of the Alto Aviation Entertainment System (AES).

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
7
of
15

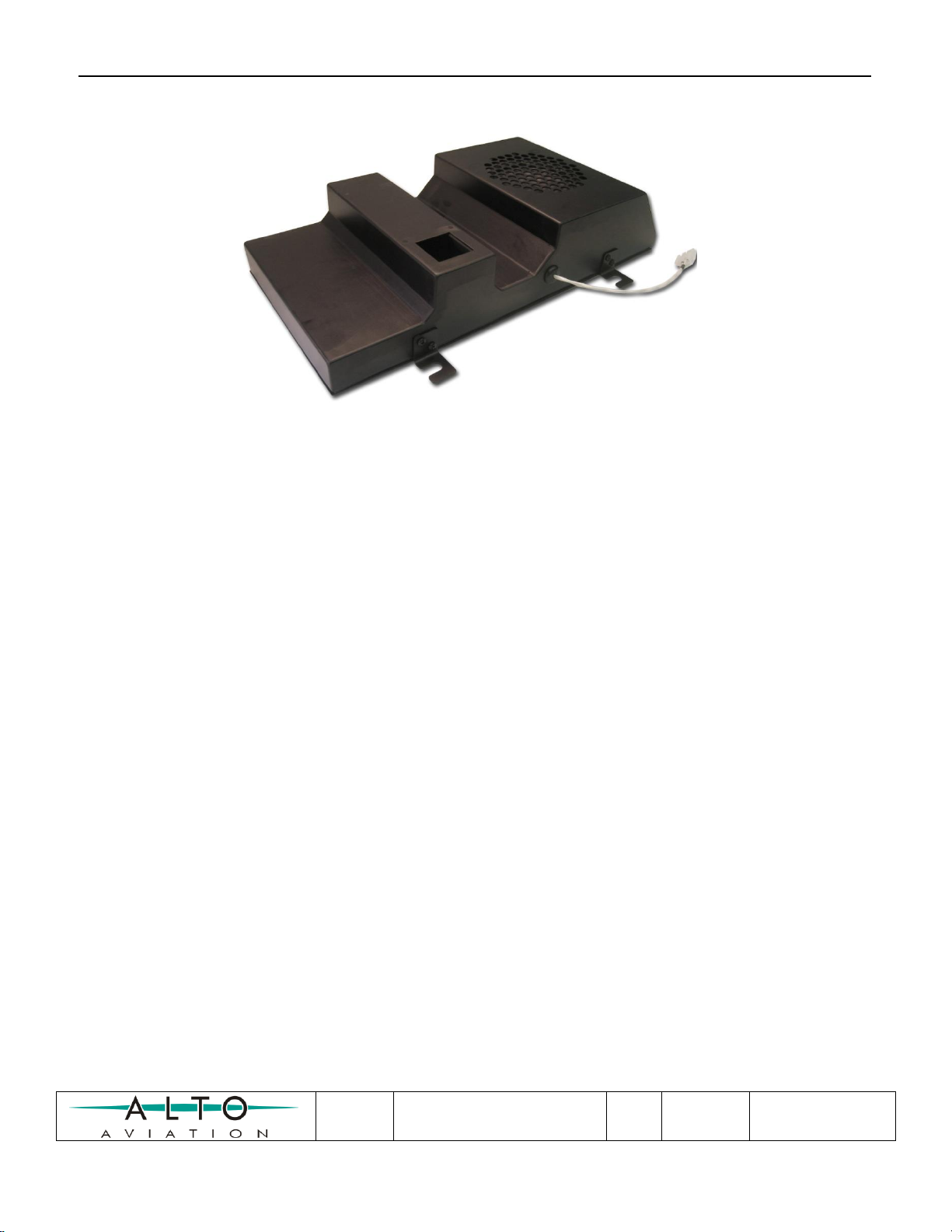

Figure 1: ASW-518 Photo (w/ L600 Mounting Option)
1.4 Technical Specifications
Drivers 5.25” high excursion, low magnetic leakage,
high force design
Frequency Response: 40Hz - 200Hz
Impedance 4 Ohm nominal ALTO PN 106511-518-4A0001
Continuous Power Rating 25 Watt RMS
Max Music Power 50 Watt RMS
Sensitivity 87 dB @ 1W/1m @ 75Hz
DO-160F Env. Cat.
[A2X]CAB[(SC)(HR)]XXXXXXBXXXXXX[XXXXX]XXXX
Connector
Mating connector See Connector Pinout Section
Physical Specifications
Weight <3.96 lbs (<1.8 kg)
Dimensions 8.6”W X 17.25”H X 3.5”D
(218.6mm W X 438.2mm H X 88.9mm D)

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
8
of
15
1.5 Outline Drawing
Note: Dimensions are for reference only. See DA (Delivered Assembly) drawing for exact dimensions.

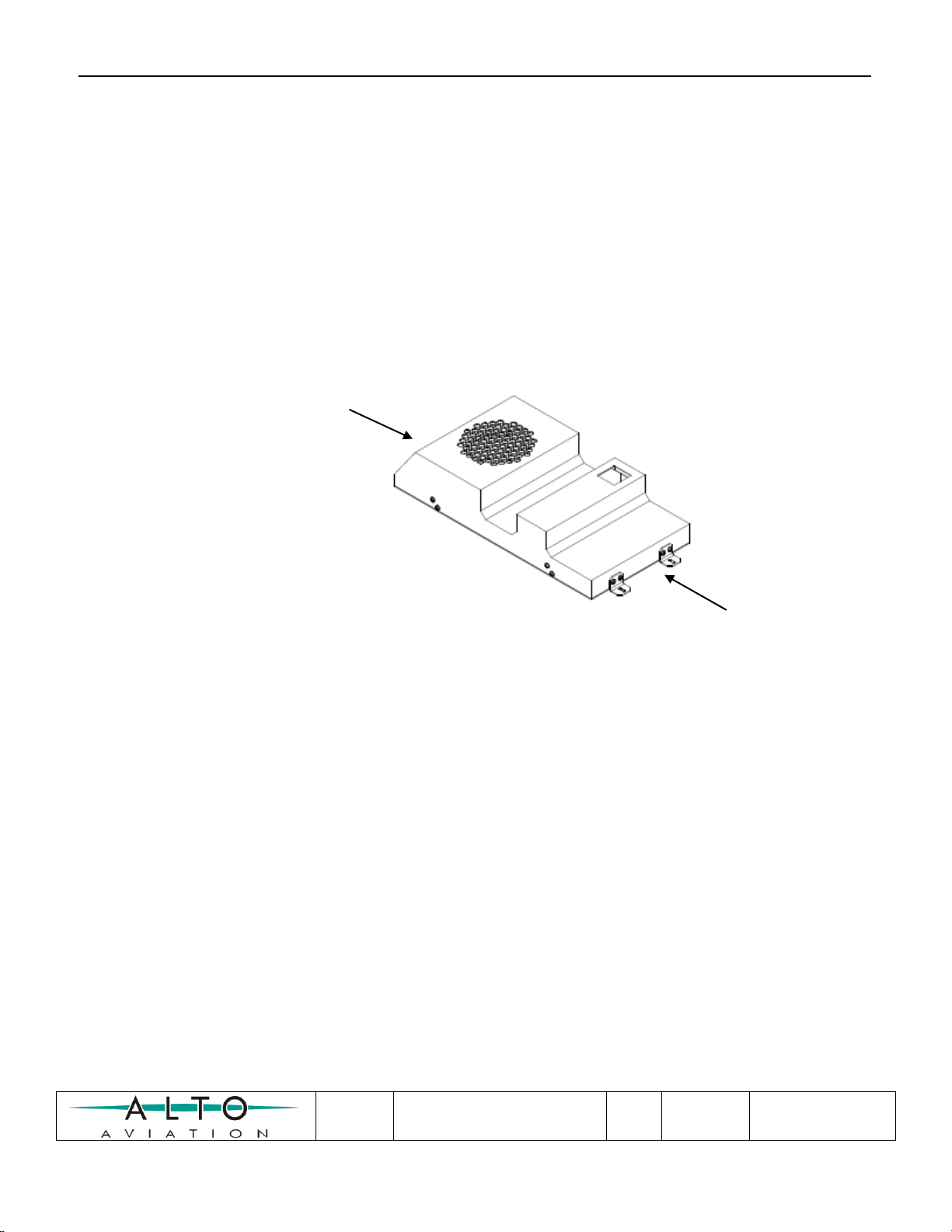

Figure 2: ASW-518 Outline Drawing

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
9
of
15
Figure 3: L500 Mounting Option
Figure 4: L600 Mounting Option

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
10
of
15
2.0 INSTALLATION
2.1 General
The information in this section assists the installer of the unit. Conformity to the electrical
wiring and mechanical mounting guidelines will help to ensure proper operation of the
unit.
Review all information in this section before proceeding with the installation of the unit.
For assistance during installation please contact Alto using the following contact
information:
Alto Aviation
86 Leominster Rd
PO Box 399
Sterling, MA 01564
Phone: [phone]
800.814.0123
Fax: [phone]
E-mail: [email protected]
www.altoaviation.com
When connecting this unit to another manufacturer’s product, consult the manufacturer’s
specifications and installation instructions pertaining to their equipment.
The conditions and tests for TSO approval of this article are minimum performance
standards. Those installing this article, on or in a specific type or class of aircraft, must
determine that the aircraft installation conditions are within the TSO standards. The
article may be installed only following 14 CFR part 43 or the applicable airworthiness
requirements.
2.2 Unpacking and Inspection
Carefully open the packaging and remove the product. Visually inspect the unit for
evidence of physical damage during shipment. Retain the packing materials and all
documentation received with the unit. Verify that all components on the packing list have
been received.
If the unit has been damaged during shipment, call Alto at 800.814.0123. A claim must
be filed with Alto immediately after unpacking. Alto will assign a RMA Number (Returned
Material Authorization) and give instructions for shipment. Please use the original carton
and packing materials for shipping back to Alto.

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
11
of
15
2.3 Mounting Brackets
Prior to installation, the mounting brackets must be attached to the subwoofer enclosure.
There are two options for brackets depending on which type of aircraft they are being
installed in.
2.3.1 L500 Option
This option will use (4) of the PN 200290 brackets (included with product).
2.3.1.1 Procedure
Remove the 8 screws located on the two ends (4 at each end) of the enclosure
as shown below.
Install brackets (2 at each end) using the screws that were just removed. Align all
brackets in the same orientation as shown above using a #2 Philips screw bit.
Tighten all 8 screws to 12 inch-lbs of torque.

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
12
of
15
2.3.2 L600 Option
This option will use (2) of the PN 105991-1 brackets (included with product) and (2) of
the 105991-2 brackets (included with product).
2.3.2.1 Procedure
Remove the 8 screws located on the two sides (4 on each side) of the enclosure
as shown below.
Install brackets (2 on each side) using the screws that were just removed. Align
all brackets with the open end of the mounting brackets facing the shallow end of
the enclosure as shown above using a #2 Philips screw bit.
Tighten all 8 screws to 12 inch-lbs of torque.
2.4 Wiring Requirements
Loudspeaker wiring should use twisted pair or twisted shielded pair wire. If twisted
shielded pair is used, the shield should be grounded at the amplifier end only.
Speaker wires that are too small will attenuate the signal to the speakers. Loudspeaker
wires must be sufficient so that the maximum harness resistance between the unit and
each speaker should be < .25 ohm. Harness resistance can be measured by:
Disconnect the amplifier and speaker.
Short the harness pins together at the speaker end.
Measure resistance across the speaker output pins at the amplifier end of the
harness.

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
13
of
15
Avoid parallel runs or installation of audio signal cables in close proximity of transmitter
coax cables, high current DC power wiring, AC power wiring, or other high current
wiring.
Avoid installation in close proximity to any device with a strong alternating magnetic field
such as an inverter or electrical motor.
Wire size, type, and installation should comply with all industry regulations pertaining to
the actual installation.
2.5 Connector Pinouts
2 pin Amp Universal MATE-N-LOK
Mating Connector
Amp PN 350778-1
Mating Pin
Pin 2- Amp PN 350550-1
Pin 1+
Figure 5: Connector Pinouts
3.0 INSTRUCTIONS FOR CONTINUED AIRWORTHINESS
3.1 Periodic Maintenance
No periodic scheduled maintenance or calibration is required for continued airworthiness
of this product. If the unit fails to perform to specifications, it must be removed and
serviced by a qualified service facility.

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
14
of
15
4.0 TROUBLESHOOTING
4.1 Basic Troubleshooting
Problem
Possible Cause
Possible Solution
No Sound
No output from Audio Amplifier
Wiring / connection problem
Insure Audio amplifier is
providing audio signal to
loudspeaker
Insure continuity between
amplifier and loudspeaker on
both terminals
Distorted Sound
Audio output from source unit is
distorted
Loudspeaker Membrane Damage
Verify that the source unit output
has a clean undistorted signal
Inspect the Loudspeaker
membrane to insure there is no
damage and no debris is lodged
in front of the membrane
Poor Audio Quality
Audio source unit controls are
improperly adjusted
Speakers are improperly installed
Adjust controls on audio source
unit for desired sound
Verify installation of speakers to
manufacturer specifications
Noise in Audio System
Vibration in aircraft fixture, grill, or
panel
Identify loose panel or hardware
that might be rattling and secure.
Figure 6: Basic Troubleshooting

PRODUCT MANUAL
ASW-518
Doc Type
Drawing Number
Rev #
Date
Page
PM
106511-518-4A0001PM
6
01/26/15
15
of
15
5.0 ENVIRONMENTAL CATEGORIES
Environmental Tests
RTCA/DO-
160F Section
Conducted Test Category
Temperature and Altitude
4
Low Temp
4.5.1 & 4.5.2
Qualified by similarity to Category A2
High Temp
4.5.3 & 4.5.4
Qualified by similarity to Category A2
In-Flight Loss of Cooling
4.5.5
Identified as Category X Not applicable, cooling not required
Altitude
4.6.1
Identified as Category X no test performed
Decompression
4.6.2
Qualified by similarity to Category A2
Overpressure
4.6.3
Identified as Category X , no test performed
Temperature Variation
5
Qualified by similarity to Category C
Humidity
6
Qualified by similarity to Category A
Operational Shocks & Crash
Safety
7
Qualified by similarity to Category B
Vibration
8
Qualified by similarity to Category S , H, Curve(s) C, R
Explosion Proofness
9
Identified as Category X , no test performed
Waterproofness
10
Identified as Category X , no test performed
Fluids Susceptibility
11
Identified as Category X , no test performed
Sand and Dust
12
Identified as Category X , no test performed
Fungus Resistance
13
Identified as Category X , no test performed
Salt Spray
14
Identified as Category X , no test performed
Magnetic Effects
15
Qualified by similarity to Category B
Power Input
16
Identified as Category X , no test performed
Voltage Spike
17
Identified as Category X , no test performed
Audio Frequency Conducted
Susceptibility
18
Identified as Category X , no test performed
Induced Signal Susceptibility
19
Identified as Category X , no test performed
Radio Frequency Susceptibility
20
Identified as Category XX , no test performed
Emission of Radio Frequency
Energy
21
Identified as Category X , no test performed
Lightning Induced Transient
Susceptibility
22
Identified as Category XXXXX , no test performed
Lightning Direct Effects
23
Identified as Category X , no test performed
Icing
24
Identified as Category X , no test performed
Electrostatic Discharge
25
Identified as Category X , no test performed
Fire, Flammability
26
Identified as Category X , by analysis of materials
Figure 7: Environmental Categories
