American Products FREEDOM User manual

AP FREEDOM
™
Telecommunications Enclosure
Owner’s Manual
Turn-Key Enclosure Solutions
Form 36-0061-08
Ver. 07/07/2023
597 Evergreen Road
Straord MO 65757
4177362135
Toll Free: 8557362135
Web: www.amprod.us

2
AP FREEDOM
™
THIS PAGE INTENTIONALLY LEFT BLANK
Page: 2

3
Page: 3
AP FREEDOM
™
Table of Contents
Contacting Us & Technical Support ............................................................................................................................ 4
Safety First .................................................................................................................................................................... 5
Labeling Information .................................................................................................................................................. 6
Product Overview ......................................................................................................................................................... 7
Product Specications ................................................................................................................................................ 8
Lifting Provisions ......................................................................................................................................................... 9
Installation .................................................................................................................................................................... 10
Door Latches ............................................................................................................................................................... 11
Quarter Turn 3-Point Locking Door Latches ........................................................................................................... 12
Clearance Requirements ............................................................................................................................................ 13
Grounding ................................................................................................................................................................... 14
Warranty Policy ........................................................................................................................................................... 15

4
AP FREEDOM
™
Contacting Us
American Products can be contacted for any issues that arise with the
supplied product.
Technical assistance is available 9am to 4pm central standard time.
• Toll Free: (855) 736-2135
• Phone: (417) 736-2135
• Fax: (417) 736-9535
• Email: Sales@amprod.us
• Web: www.amprod.us
When calling, please have available, or if faxing or emailing, be sure to
provide:
• Part Number
• Serial Number
• Date of Purchase
• Date of Installation
Page: 4

5
Page: 5
AP FREEDOM
™
DANGER Indicates a hazardous situation that, if not avoided, will result
in death or serious injury. This signal word is to be limited to
the most extreme situations.
WARNING Indicates a hazardous situation that, if not avoided, could result
in death or serious injury.
CAUTION Indicates a hazardous situation that, if not avoided, could result
in minor or moderate injury.
NOTICE:
Indicates information considered important, but not hazard-
related (e.g. messages relating to property damage). The safety
alert symbol shall not be used with this signal word. When a
signal word is used for messages relating to property damage,
NOTICE is the choice of signal word.
Safety First
This publication provides a description of the American Products AP FREEDOM™ Enclosure.
The mechanical descriptions, typical applications, installation instructions, safety guidelines,
grounding and bonding are included.
Four types of messages may appear throughout this manual, identied by the following
icons and signal words:
Read equipment manufacturer’s manual and this
material before using this product. Failure to do so
can result in serious injury or death.
NO JOB IS
SO IMPORTANT,
NO SERVICE
SO URGENT
THAT WE CANNOT
TAKE TIME
TO PERFORM
ALL WORK
SAFELY!

6
AP FREEDOM
™
Important Labeling Information
Serial Number Label
Accepted Label
Inspected Label
AP FREEDOM™ Enclosure for Type 4
American Products
Label
Page: 6

7
Page: 7
AP FREEDOM
™
Product Overview
• The cabinet is constructed of Aluminum\Galvanized or Stainless Steel with optional
powder coat painted nish for reduced weight and superior corrosion resistance. The
front door is equipped with three point pad-lockable door latches. The top of the cabinet
has a double wall construction to reduce the eects of solar radiation and for structural
integrity.
• The equipment-mounting bay has a 16RU to 42RU of vertical 19”or 23” rack space in the
front of the equipment bay. The 19” or 23” rack is also adjustable from front to rear.
• The cabinet utilizes stainless steel hardware, UL recognized EPDM edge gasketing (temp
range of - 40F to +212 F.
• When installing cabling or equipment that enters the cabinet, Type 4 entrances, ttings or
equipment is to be used to maintain the integrity of the enclosure.
• No live equipment or components are to be installed below the lowest RU rack mounting
provision or on the oor of the enclosure.
• The Cabinet is designed to allow various accessories to be mounted on the enclosure
to meet customer requirements. For part number structure for Parent enclosure and
accessories see diagram below:
PART NUMBERING EXAMPLE
AM 47 F - 6036 - 84RU
Cabinets
AM 47 P - FP - 115
Accessories
American Products
American Products
Cabinet Height
Cabinet Height for Accessory
Series
Exterior Finish
Cabinet Width & Depth
Accessory Designation
Cabinet Rack Unity Capacity
Accessory Size and/or Style

8
AP FREEDOM
™

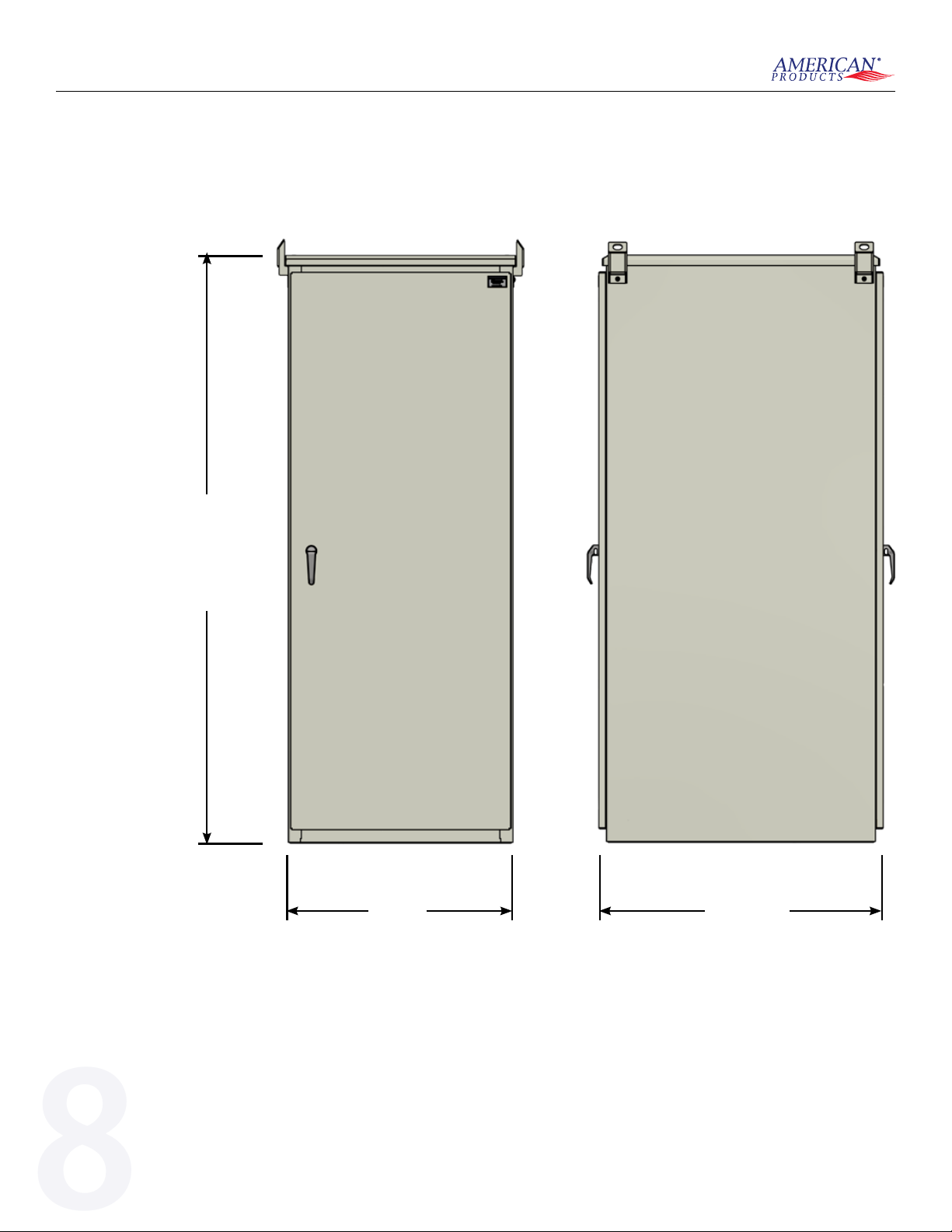

Product Specications
32” Min
47”
58”
68”
78” Max
30”
Available
Cabinet
Dept
30” Min
36” Max
Available
Cabinet
Depth
Available
Cabinet
Heights
Page: 8

9
Page: 9
AP FREEDOM
™
NOT TO SCALE
Drawing for Reference only!
Constructing a New Pad
• Use only concrete for new pad construction. Do not use substitute materials since they lack the rigidity
for enclosure placement.
• Observe local building practices for pad construction. American Products recommends that the pad
should extend a minimum of 8” beyond the enclosure base on all sides.
• Use a minimum of 6” of sand or gravel as a base for the pad for leveling purposes.
WARNING
When pad mounting, the compression strength of the pad must be at
least 4000 psi as determined by ASTM C39 test of compression strength
of concrete cylinders. The slump of the concrete shall be 2” to 4”as
determined by ASTM C143 test method.
Lifting Provisions 30”

10
AP FREEDOM
™

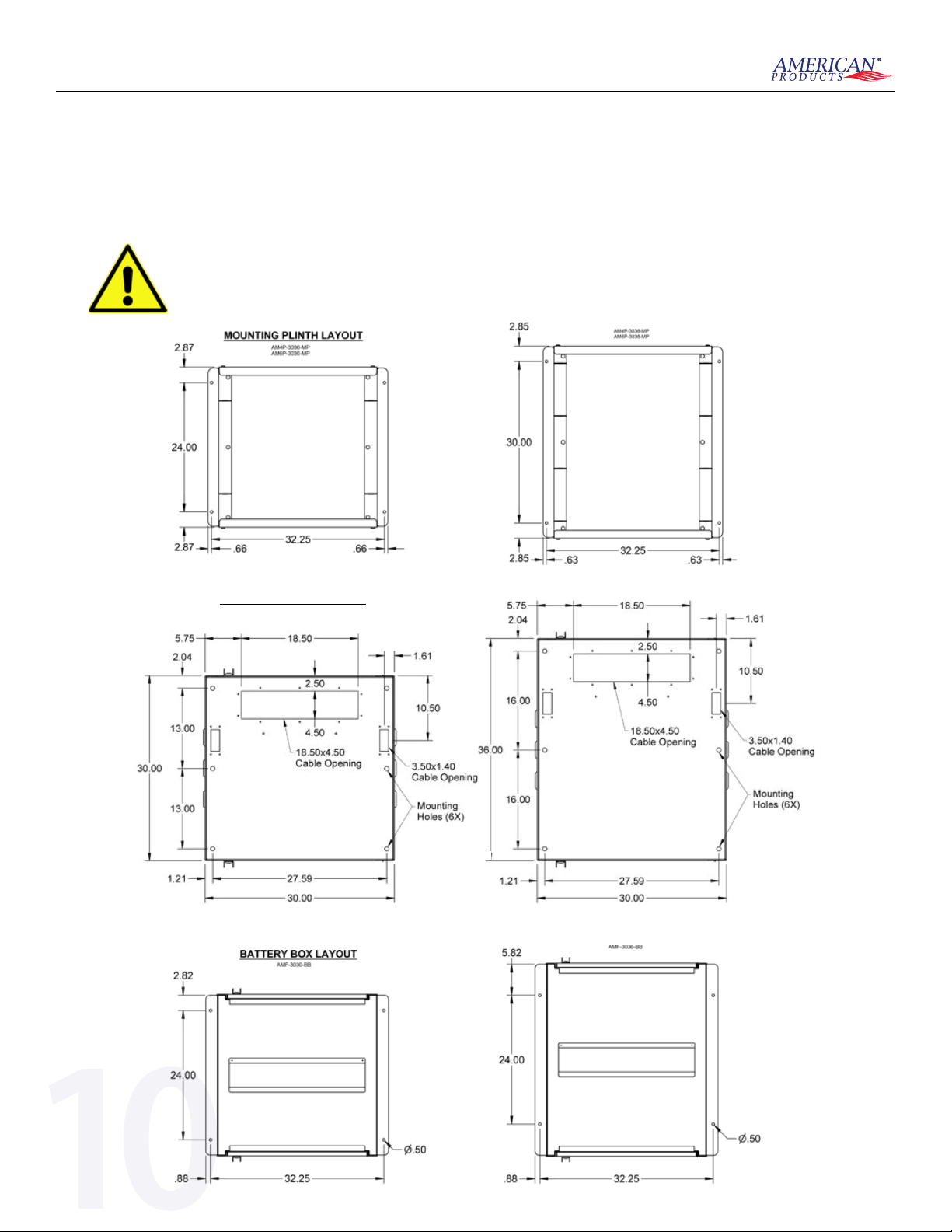

Installation
The AP FREEDOM™ cabinet should be mounted on a concrete pad. See the gure below for
pad mounting hole patterns.
During cabinet mounting, xture the cabinet securely
to avoid personal injury or cabinet damage.
WARNING
CABINET MOUNTING LAYOUT
FRONT OF CABINET
FRONT OF CABINET
FRONT OF CABINET
REAR OF CABINET
REAR OF CABINET
REAR OF CABINET
Page: 10

11
Page: 11
AP FREEDOM
™
Mounting Hardware
When securing the American Products AP FREEDOM™ enclosure to a concrete pad, we
recommend utilizing a minimum of a 3/8”nominal diameter expansion anchor for maximum
stability. Specications below are for the Truebolt brand wedge type expansion anchor (or
equivelant).
Symbol Units Nominal Anchor Diameter (in)
Anchor outer diameter dOin .375
Nominal carbide bit diameter dbit in 3/8
Effective embedment depth hef in 1-3/4 2-5/8
Min hole depth hOin 2-1/2 3-3/8
Min slab thickness hmin in 4 5
Installation torque Tinst ft-lb 25
Min hole diameter in fixture dhin 7/16

12
AP FREEDOM
™
Quarter Turn 3-Point Locking Door Latches
The cabinet doors are equipped with quarter-turn 3-point padlock-able door latches. The
latches are secured by turning the handle a quarter turn clockwise until the stop is reached.
Convenient security padlock hole to allow for a standard Master lock (or equivalent) to be
installed. With a padlock on the latch, access door cannot be opened protecting the cabinet
from undesired intrusion.
Quarter Turn 3-point Padlock-able Door Latch
Page: 12

13
Page: 13
AP FREEDOM
™

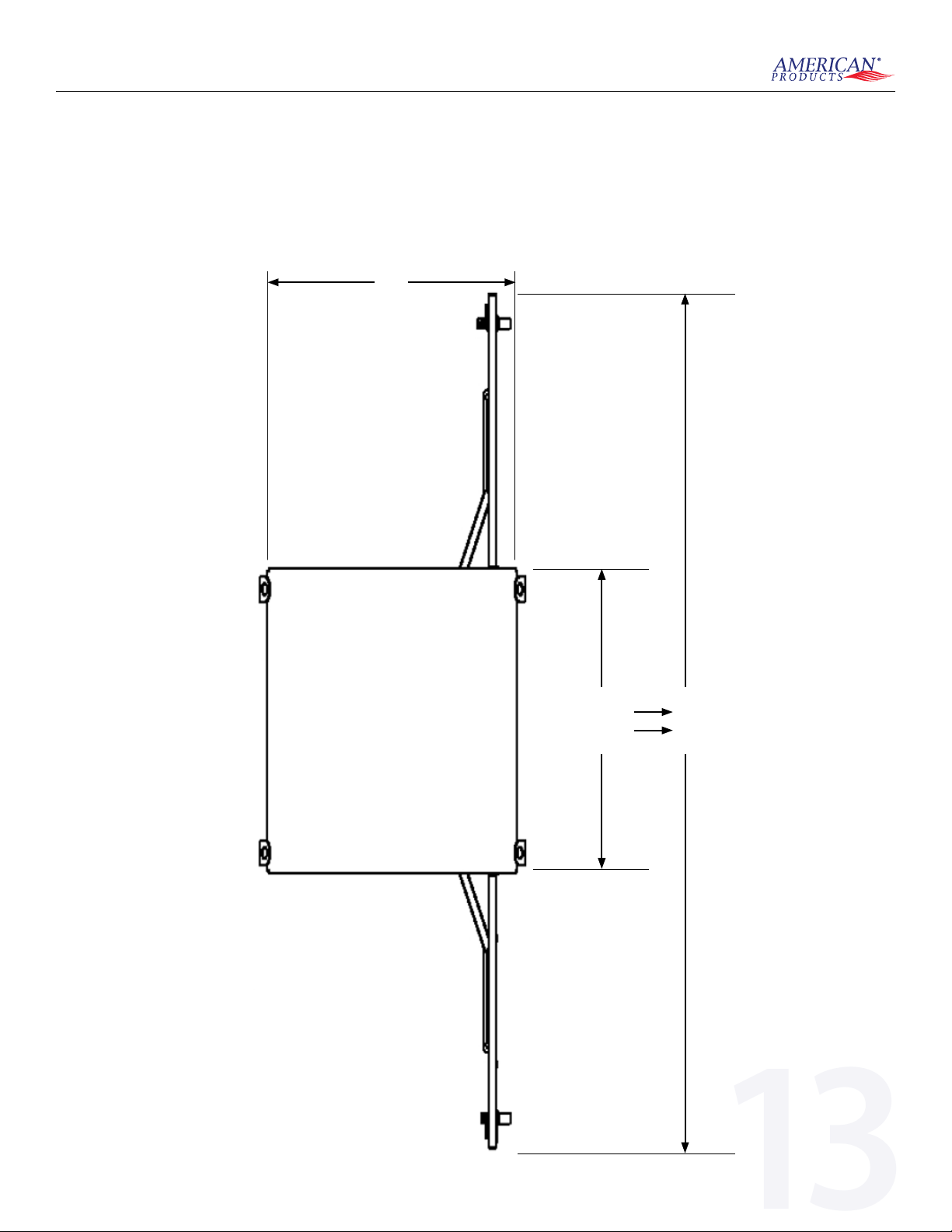

Clearance Requirements
When selecting a location to mount the cabinet, ensure that proper clearance is available to
allow the cabinet door to open fully.
Top View
36” DEPTH
30” DEPTH
96”
90”
30”

14
AP FREEDOM
™
Grounding Information
Bonding and grounding should be done in accordance with industry standard procedures
and comply with local electrical codes. The main cabinet ground bar is located in the rear of
the cabinet as shown below.
Page: 14

15
Page: 15
AP FREEDOM
™
Warranty Policy
Enclosures designed and manufactured by American Products shall be warranted to be free
of defects in material or workmanship for a period of 5 years (U.S. & Canada) and 3 years for
International deployments from the date of shipment. Should the product be proven to be
defective, American Products will have the option to repair or replace the product. Items included
with the enclosures, not manufactured by American Products, will carry the original manufacturer’s
warranty.
It is the responsibility of the buyer to communicate any special environmental concerns in which
the enclosures will be utilized. Special materials may be required to allow for proper corrosion
resistance for harsh environments. The warranty does not cover enclosures used in applications and
environments for which they were not designed. Warranty does not cover abuse, modications by
others or reimbursement for unauthorized rework. At no time will American Products reimburse
purchaser for unauthorized rework on any product.
Under no circumstances is American Products liable for any consequential damages, liquidated
damages, loss in prots or revenues, costs of capital, downtime costs or damages related to our
product performance.
Warranty Claims
Enclosures found to be defective will be repaired or replaced with the same or comparable product.
All warranty claims must be communicated to our customer service (855) 736-2135 department to
obtain an RMA number. For warranty claims in the USA and Canada, freight will be managed and
paid by American Products. For warranty claims outside of the USA and Canada, the customer will
be responsible for managing the freight and freight expenses. Products being returned from other
than US or Canada are to be returned to the factory in Straord, MO to receive warranty resolution,
once approved with an RMA.
Except for the express warranty stated above, American Products makes no other warranties with
respect to the product, expressed or implied, including but not limited to merchantability or tness
for a particular purpose.
