AMT DB-23A User manual

Programing & Operating Manual
___________________________________________________________________________
I
DB/DC–23A
DB/DC–28A
Machine type: AMT______________
Machine Serial no.: _____________________
Ahire Machine Tools Pvt.Ltd. Sales Phone: [phone]
D1/18, MIDC Ambad Nashik. [phone]
422010, Maharashtra, India. [phone]
Email: [email protected]
Website: www.amtplindia.com

Table of Content
___________________________________________________________________________
II
INDIA www.amtplindia.com
FRONT PAGE
I
CONTENT
II
WARRENTY………………………………………………………………………………………………..
III
TEST CHART
1-3
TECHNICAL DATA
DB/DC-23/28A
4
SAFETY INSTRUCTION
5-8
UNPACKING & INSTALLATION
TRANSPORTING & UNPACKING
9
INSTALLATION SITE
9
MACHINE MOUNTING & TOOL HOLDING……………………………………………………
10
SPEED CHART………………………………………………………………………………………………
11
ELECTRICAL INSTALLATION
PROGRAMING
12
13-17
CHECK LIST FOR STARTUP
18
OPERATION
MOUNTING & REMOVING TOOL
19-20
ADJUST DISTANCE BETWEEN DRILLING BIT AND WORKPIECE-----------
21
TYPES OF OPERATION…………………………………………………………………………………
22
MAINTENANCE
LUBRICATION INSTRUCTIONS
23-25
BELT REPLACE
26
TROUBLESHOOTING
MALFUNCTION TABLE
27-28
REPLACEMENT
REPLACEMENT OF PARTS
29
APPENDIX
MECHANICAL DIAGRAM………………………………………………………………………….……
30
ELECTRICAL DRAWINGS
31-32

Warranty
_____________________________________________________________________________________________
III
WARRANTY
The machine is warranted against poor material / workman ship for a period of fifteen
months from the date of dispatch OR twelve months from the date of installation,
whichever is earlier.
(On single shift usage of machine) (For std. M/CS separate commissioning is not done)
If any material / manufacturing defects is/are detected and brought to our notice
during this period, we guarantee to repair and / or replace these defective part/s
FREE –OF –COST.
(Subject to receipt of such item/s, sent prepaid to our factory for our inspection / evaluation)
All consumable Electric / Electronic / Pneumatic / Hydraulic / Mechanical items such as …
A.C / D.C. coils, HRC / Glass fuses, piston and valve seals, rubber parts, semi –
conductor devices, wear pads, guide bushes etc… are EXCLUDED from this warranty
clause.
This warranty is also NOT applicable for any parts, equipment or items, which has /
have inherently shorter life than above mentioned warranty period.
Please note, our warranty will be valid ONLY if, machine / equipment is used /
operated as per guidelines of instruction manual and necessary preventative
maintenance schedule is maintained.
Evaluation of defects / parts done by our technical team will be final.
IMPORTANT INFO
The operating manual and various pictures / diagrams / circuits shown there in are
exclusive property of M/S AHIRE MACHINE TOOLS PVT. LTD., all rights are reserved.
Unauthorized duplication and / or use, in any forms is not permitted, unless
confirmed with us.
DO NOT OVER LOAD AND / OR TAMPER THE MACHINE / EQUIPMENT!
ENSURE OPERATOR SAFETY. DO NOT OPERATE MACHINE WITH GUARDS REMOVED.
FIRM+MULTIPLE EARTHING CONNECTION OF MACHINE / EQUIPMENT IS MANDATO

Technical Details
___________________________________________________________________________
Pg. 4
TECHNICAL DETAILS
Description DB/DC-23A DB/DC-28A
Standard Drilling capacity in mild steel :23 mm :28 mm
Direct Drilling capacity in mild steel :15 mm :20 mm
Spindle taper :MT 2 :MT 3
Spindle Travel :120 mm :120 mm
Spindle to column :240 mm :240 mm
Spindle to Work table :308/600 mm :308/600 mm
Spindle to Base Plate :600/1170 mm :600/1170 mm
Table surface :240x240 mm :240 x240 mm
T-slot width :12 mm :12 mm
Column Diameter :80 mm :80 mm
Total height :1130/1700 mm :1130/1700mm
Weight :165/180 kg :165/180 kg
Induction Motor :1 Hp :2 Hp
8-Spindle Speed :112 –2800 rpm :112 -2800 rpm
Operating voltage :415VAC :415VAC
Frequency :50HZ :50Hz
Power Fuse :5Amp :5Amp

Safety
_____________________________________________________________________________________
Pg.5

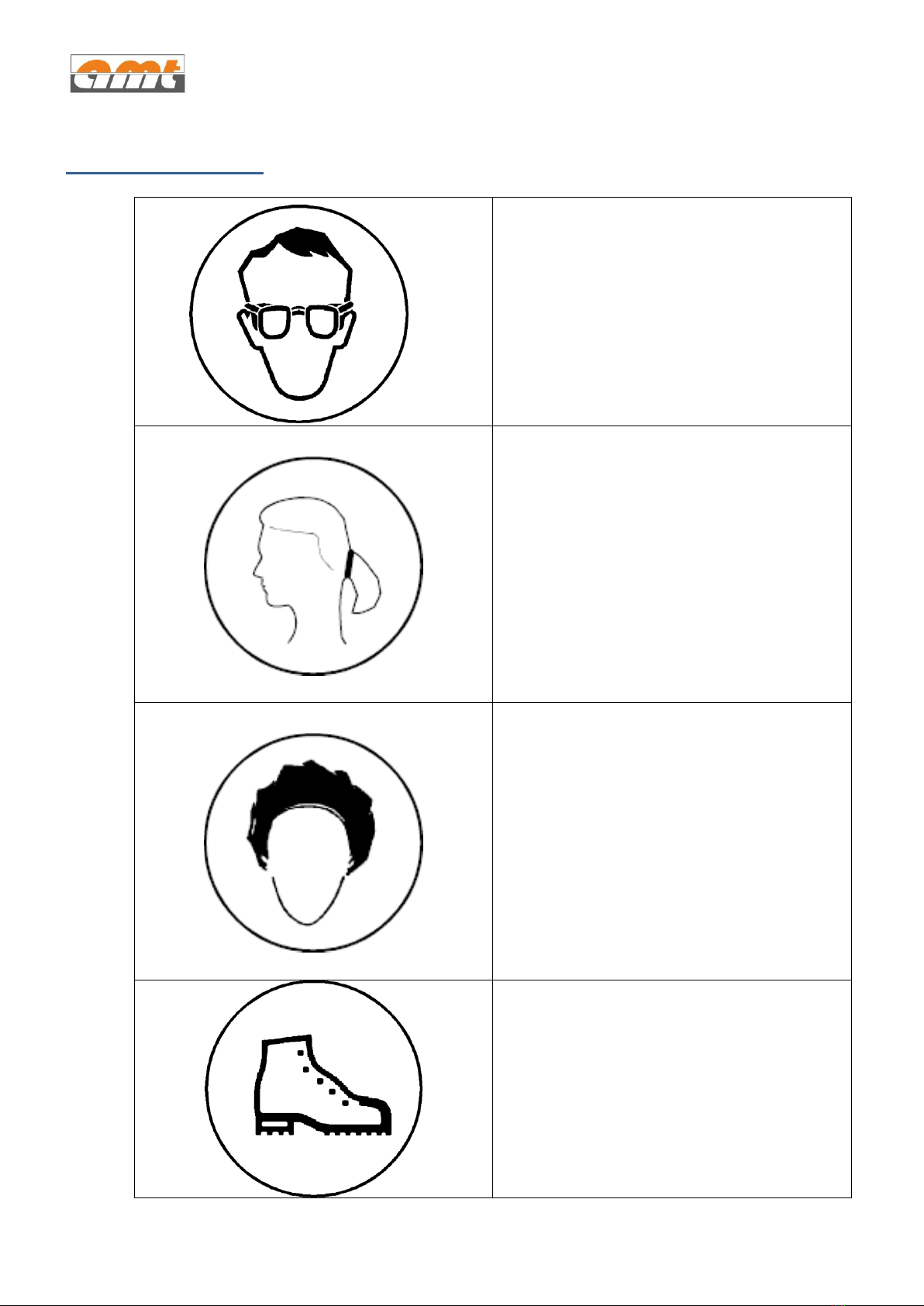

SAFETY INSTRUCTION
Wear eye Protection.
 Tie long hair together.
Wear hairnet if hair is very
long.
Wear safety Shoe/Boots.

Safety
_____________________________________________________________________________________
Pg.6

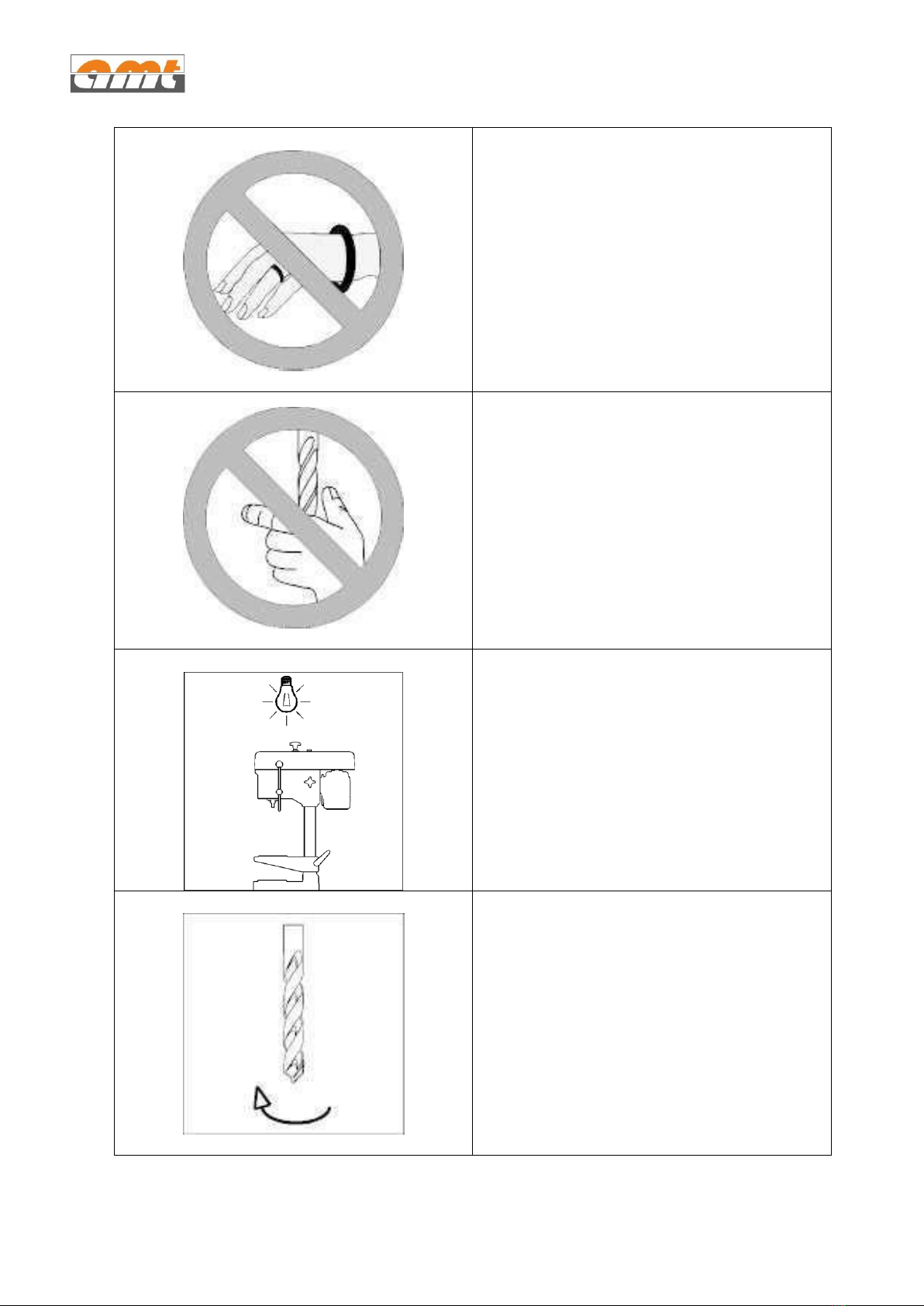

Remove jewelry prior to
commencing work.
Do not touches spindle in
motion!
Ensure sufficient lighting
Operating elements must
be easily accessible.
Rotation right-hand.

Safety
_____________________________________________________________________________________
Pg.7
Never switch on machine
without protective hood.
Do not deposit tools or
measuring equipment in
work area.
Adjust table clamp
prior to commencing
work.
Secure component.

Safety
_____________________________________________________________________________________
Pg.8
Feed lever returns
automatically.
While maintenance /
servicing time please turn
off the MCB switch which is
placed in panel box.
Remove drift prior to
switching machine ON.
Never carry out tool
change by driving up
the quill with drill drift
Only strike at drill drift
with fiber hammer.
Drill to maximal ᴓ
employs 20 mm for
continuous operation.

Unpacking & Installation
_______________________________________________________________________________________________
Pg.9
UNPACKING & INSTALLATION
Unpacking and transporting:
Compare the items on the
delivery bill with the actual
delivery.
Observe the safety
regulations for moving
loads.
Unless otherwise specified,
Machine is supplied in
commercial, non- reusable
Wooden Box Packing.
Ensure that Box is kept in
Up-right position, as
marked, on Box, before
unpacking.
 Due care should be taken
while un- loading.
For transporting use a crane.
Fasten the ropes as shown in
the picture. Land it carefully
on assigned position of the
floor.
Before tying rope remove
delicate parts like handles
and which is made by non-
metallic material.
Installation site:
All service components
must be within easy
reach
Watch for horizontal
mounting surface.
Install the machine only on
a stable foundation, and
anchor it securely.
Arrange for an adequate
working height

Unpacking & Installation
_______________________________________________________________________________________________
Pg.10
Machine mounting:
Tool holding:
mark and drill &
anchor for M12
screws on the
concrete ground
Drill pattern for
machine as per
model.
Use two spring
washers for each
screw.
Compensate for
floor unevenness
with sheet steel.
Do not bend sub- structure.
If you use insulating
boards, it will add
for noise reduction &
oscillation damping.
 Insert drill chuck with easy jerk
 Test fixed fit
 MT-2 Taper for DB/DC-23A
 MT-3 Taper for DB/DC-28A

Unpacking & Installation
_______________________________________________________________________________________________
Pg.11

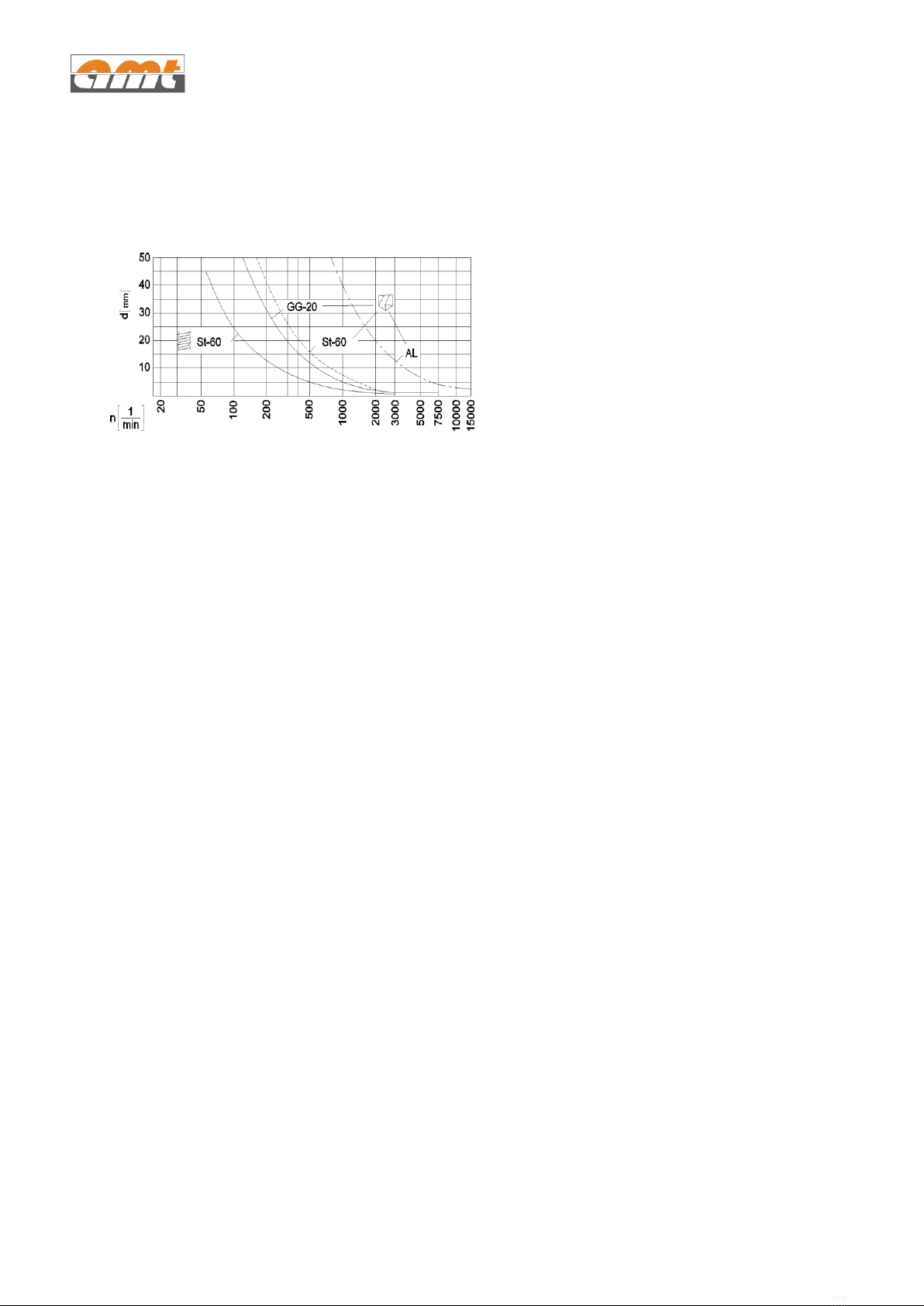

Speed Chart
Adjust the rotating
speed of spindle
according to material of
work piece and drill size
Speed is in RPM

Unpacking & Installation
_______________________________________________________________________________________________
Pg.12
ELECTRICAL INSTALLATION
Note:
Make sure Incoming Supply is three Phase supply 415VAC Proper.
R, Y, B connection is connected as per sequence.
Neutral and earth is compulsory.
Insure the panel box is away from the water Leakage.
Do not touch live wire with hand.
For installation use Tester and Hand Gloves.
POWER –UP:
INSTALLATION
After installation and checking all above check points, machine
can be powered up for checking basic machine operations.
Switch on the incoming electrical power isolator.
Check if machine lamp is working ok. (Via. Lamp ON/OFF switch on
from panel box.)
Start machine motor via. Start signal of motor ON switch.
CHECK DIRECTION OF SPINDLE ROTATION!
Spindle to run clockwise when viewed from operator position.
{Inter –change any two in –coming phase lines, if direction needs to
be changed.}
[IF –IN –DOUBT]
Please contact M/S Ahire Machine Tools PVT. Ltd. personnel
and / or its authorized representative in your
Area. Commissioning at site by M/S Ahire Machine Tools PVT.
Ltd. personnel can be provided at extra cost.
(If required.)

Programing
________________________________________________________________________________________
Pg.13
Manual of POWER FEEDER machine
INDEX
1. Control panel
2. HMI Screen and User Input/Programming
3. Precautions.
1. CONTROL PANEL
POWER FEEDFER unit is powered and controlled by components fitted in
control panel box. There are two switches & two led lights on front side
of panel functioning described as below-
Red switch - ON/OFF
Black switch - for Manual & Auto mode Red
Light - Auto mode is ON
Green light - Manual mode is ON
2. HMI Screen
A. HOME
1
2
3

Programing
________________________________________________________________________________________
Pg.14
1. Date (dd.mm.yy)
2. Time (24 hr)
3. Menu button
B. MENU
1.MANUAL MODE- Click for manual mode for setting spindle up-
down direction.
2. AUTO MODE- Click for automatic mode.
3.Home button- Click home button to go back to main menu.
C. Manual Mode
Number 1,2,3,4 to move the spindle up or down manually with
required speed.
1
2
3
4
5
1
2
3

Programing
________________________________________________________________________________________
Pg.15

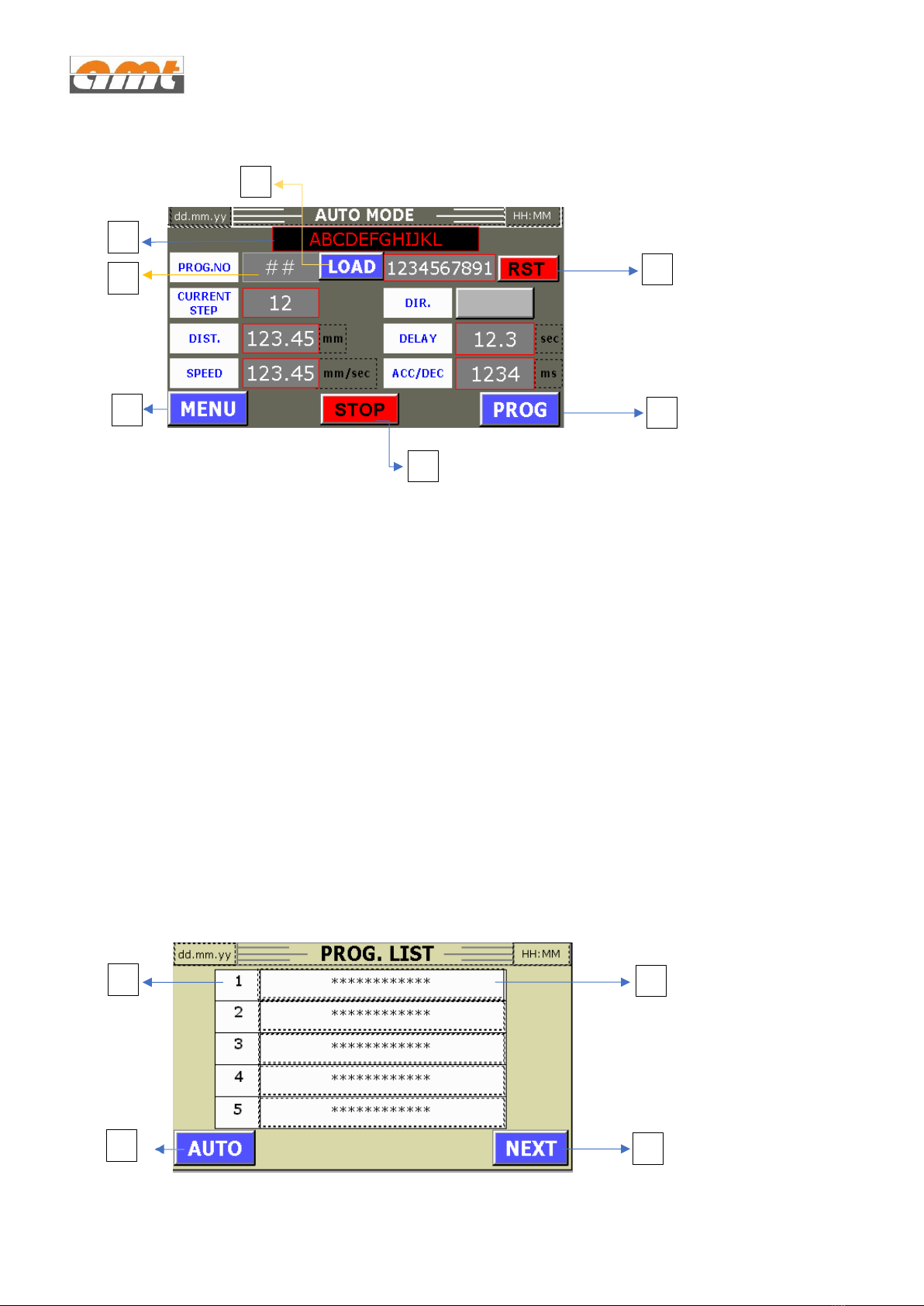

D. Auto Mode
1.Shows name of the program.
2.Load desired program.
3.Change/selection of the program.
4. Reset cycle counter to zero.
5. Go back to Menu
6. To stop the cycle and set the spindle at start/home position.
7. Program list.
E. Program List
2
1
3
4
5
7
6
1
2
4
3

Programing
________________________________________________________________________________________
Pg.16
1. No of program
2.Shows name of program and can input/edit program
3. Next program list
4.Auto mode
F. Program
1. Total number of steps is number of movements of spindle that will run
on Auto mode.
2. Distance travel of spindle (L.C. 0.01mm)
3.Speed of Spindle (mm per second)
4.Up & Down direction of Spindle (1 for Down & 2 for Up)
5.Type the name of program
6.Delay time to stop the spindle after current step (in Second)
7.Acceleration & deacceleration of spindle speed (in micro second)
8.Go back to Program List.
9.To save the program.
9
10
1
2
3
4
5
6
7
8

Programing
_______________________________________________________________________________________________________
Pg. 17
10. Next step
3. Precautions:
1. Do not load any type of material on control panel box.
2. Control panel box, screen, motor & push button box should be oil &
water free. It should be clean & dry.
3. Make sure that spindle is freely moving up & down direction.
4. Make sure that all electrical wiring is unstretched
****************************************************

Check List for Start-up
_______________________________________________________________________________________________________
Pg. 18
CHECK LIST FOR START-UP
After successful erection of DB/DC–23/28A machine and necessary
provision of electrical power connections, following points MUST be
ensured for initial START –UP of machine.
No
Description
Area
Check
mark
1
Leveling of machine completed and leveling screw
locked
General
2
All necessary machine parts cleaned and oiled
General
3
Work table / head stock moved to normal position
(If required)
General
4
Safety rings / head stock / work table clamped on
column
General
5
Electrical input connected to machine
through isolator and
checked ok
General
6
Earthing connection provided to machine / panel
checked ok
General
7
All machine wiring checked for any damage and
rectified (if any)
General
8
R/Y/B/N connections to junction box checked and
sequenced ok
General
9
Tool holder and tool REMOVED from spindle. ( if
applicable)
General
10
Top cover / front safety guarding position(if
applicable)
General
11
Belt tension checked ok manual movement of
spindle ok
General
Please note, above check list points are given as starting reference.
This list is NOT a full / final list and many routine checks as per
individual customer policy and statutory requirements may be
necessary to follow, during initial start –up for machine.

Operation
_______________________________________________________________________________________________
Pg. 19
OPERATION
MOUNT/REMOVING TOOLING
Mounting straight shank tools
Straight shank tools
(Drill/Reamers/Spot facing) can be
mounted in spindle using drill
chuck, collet chuck and MT-2 shank
arbor.
Clean spindle nose (MT-2 taper
bore) / tool holder.
Select correct size tool holder and arbor.
Fix arbor and tool holder together.
(Taper fixing)
Mount arbor + tool holder
assembly into spindle by firmly
pushing arbor against spindle in
one quick action. (Ensure correct
tang orientation of arbor).
Check true running of mounted tool
holder.
Insert tool shank and firmly grip it
in chuck.
CHECK TRUE RUNNING TOOL
BEFORE USE.
Mounting taper shank tools
Tools with MT-2 taper can be
mounted directly into spindle
nose.
For tools with MT-1 taper, suitable
MT-2 to MT-1 reduction sleeve is
necessary.
Clean spindle nose (MT-2 taper
bore) / tool holder.
Select correct size tool and sleeve
(if required)
Fix sleeve & tool together. (Taper
fixing if required)
Mount tool assembly into spindle
by firmly pushing MT-2 taper
portion against spindle in one quick
action.(Ensure correct tang
orientation)
CHECK TRUE RUNNING OF TOOL
BEFOR USE.
*Switch-Off power supply & ensure spindle has
stopped
*Clean hands, Use cotton cloth for cleaning parts.
*Take necessary care during removal & risk of tool
falling!

Operation
_______________________________________________________________________________________________
Pg. 20
Removal of tools/ holders from
spindle
Tools / holders mounted
into machine spindle can be
removed easily using a
taper drift / wedge.
(Supplied with machine).
STOP SPINDLE AND SWITCH
- OFF SUPPLY
Lower spindle and insert it
from small drift slot with
sleeve drift slot.
Use provided drift / wedge and
insert it from small side into
drift slots (of sleeve & spindle)
Lightly hammer / tap open end
of drift to drive it into slot, to
cause tool
/ arbor to slip-out from taper
holding.
USE GLOVES TO PROTECT
HANDS
* NEVER ATTEMPT removing tool / arbor etc. by moving
spindle / sleeve against head stock, while drift / wedge is in
slot. This will damage sleeve / drift / spindle.
* Take care! Tool / Arbor/ Chuck etc. may slip –out during
mounting / removal and may cause injury.
* Take care! While lowering head stock / work table, safety
ring must be positioned + locked in desired position, before
loosening head- stock / work table on column.
* Take care! When changing tools, installing pulley belt, Changing
speeds.
