Andersson SmartTV-HDMI2.0 User manual

SmartTV-HDMI2.0
User Manual
Before operating the unit, please read through this manual.
The manual contains important security information and tutorials about the product.

FEATURES................................................................................................................................................................4
PRODUCT&ACCESSORIES....................................................................................................................................4
QUICK INSTALL GUIDE............................................................................................................................................5
Install Information...............................................................................................................................................5
INTERFACE .......................................................................................................................................................6

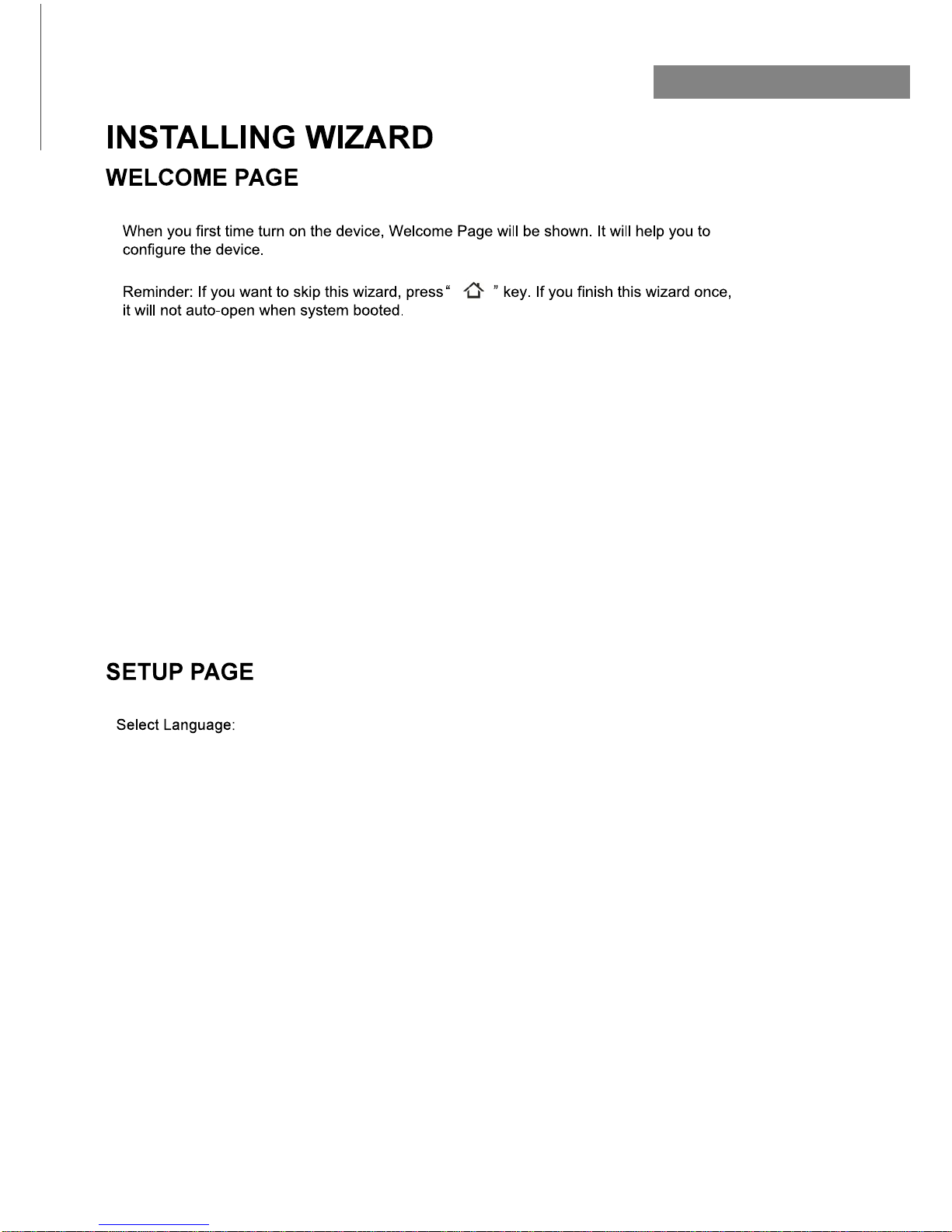

INSTALLING WIZARD...............................................................................................................................................7
WELCOME PAGE..............................................................................................................................................7
SETUP PAGE ....................................................................................................................................................7
MAIN LAUNCHER .................................................................................................................................................. 10
LAUNCHER INTRODUCTION ........................................................................................................................ 11
MEDIA PLAYER .............................................................................................................................................. 13
INTERNET ...................................................................................................................................................... 13
Site navigation ...................................................................................................................... 14
Install from U-disk .... ......................... .... ........................................................................................... 19
Install from Browser ......................................................................................................................... 19
Install from .................................................................................................................. 19
Remove Applications ........................................................................................................................ 19
SETTINGS ..................................................................................................................................................... 24
Over-the-Air Technology.......................................................................................................................................... 26
Contents
SAFETY WARNING ..................................................................................................................................................3
SmartTV-HDMI2.0
............

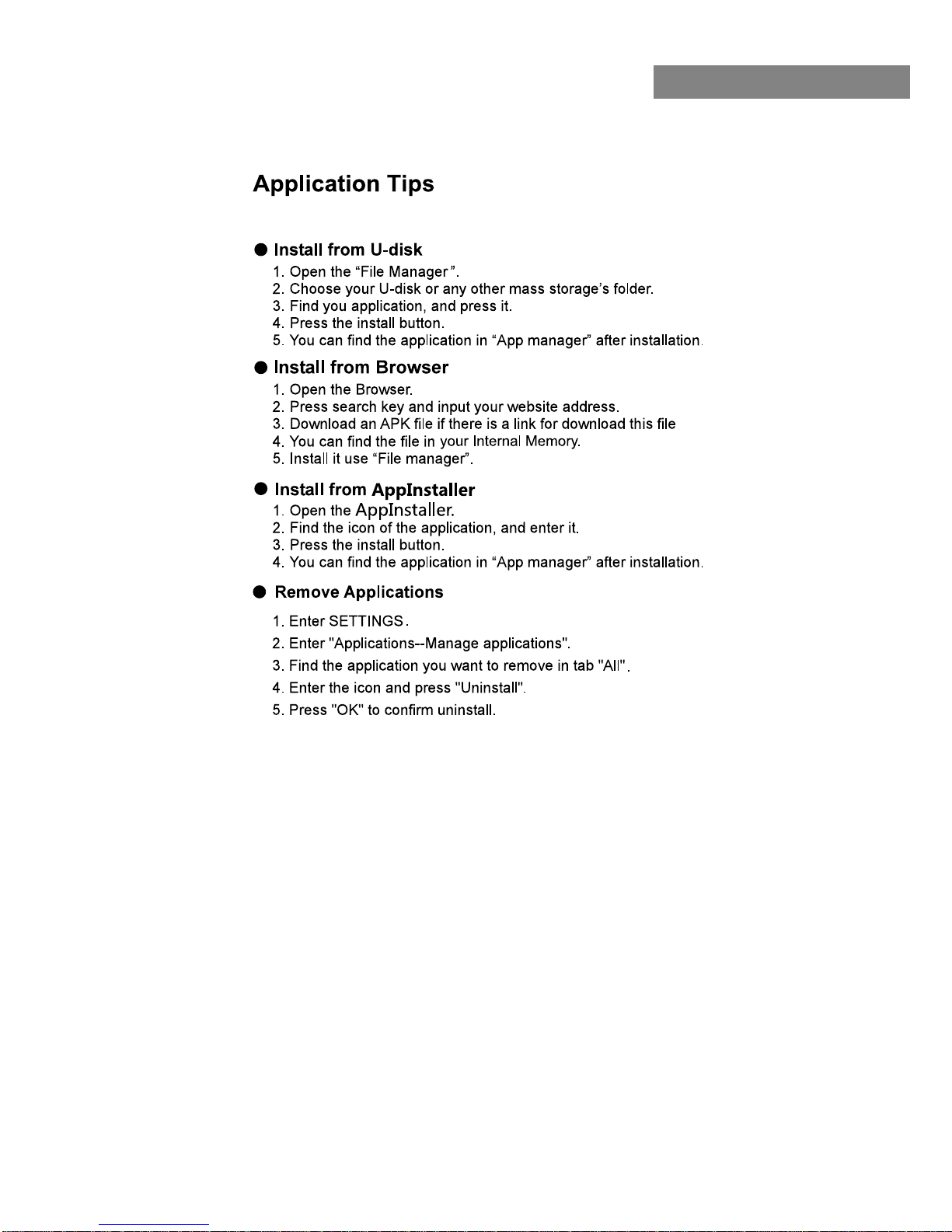

APPLICATION TIPS ..................................................................................................................................... 19
TOOLS ..................................................................................................................................................... 20
General Outline ...................................................................................................................................................... 28
AppInstaller
2

PLACEMENT
Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf.
Do not expose the unit to direct sun-light and other sources of heat.
Do not handle liquids near or on the unit.
Never spill liquid of any kind into the unit
Do not put the unit near appliances that create magnetic fields.
Do not put heavy objects on top of the unit
POWER SUPPLY
Make sure the USB power supply can offer 5V/1.5A.If not, please use a 5V/1.5A output AC adapter instead.
Please unplug power supply and aerial plug when the weather is thunder-storm or lightning.
Please unplug power supply, when there is nobody at home or didn’t use over a long period of time.
Please keep power cord from physical or mechanical damage.
Please use exclusive power cord, don’t modify or lengthen it.
Please check and ensure AC source is connected with the ground.
TEMPERATURE
Do not place the unit near or over a radiator or a heater register.
If your unit is suddenly moved from a cold to a warm place, unplug the power cord for at least two hours so
that moisture that may have formed inside the unit can dry completely
HUMIDITY
Do not expose machine in rain, damp or place near water.
Ensure the indoor drying, cool.
VENTILATION
Keep the ventilation openings clear.
Ensure that the unit has enough space for ventilation around
BATTERY
Accurate transaction and recall scrap battery after using.
Please don’t let kid touch battery, in case of dangerous don’t throw battery into fire.
!SAFETY WARNING
Before operating the unit, please read this manual thoroughly.
SOFTWARE
Some softwares for smart phones or unique CPU solutions may not suit for this product.
Some softwares need unique peripherals to support, like G-sensor, may not suit for this product.
3
SmartTV-HDMI2.0

FEATURES
Android Dongle is a brand new product that based on Android OS.
You can use it:
Surf the Internet via Wi-Fi
Communicate with your friends via SNS applications
Enjoy movies, music and photos via media player
PRODUCT&ACCESSORIES
USB Power Supply
Wire
Mini Keyboard
User Manual
HDMI extention
Adaptor
SmartTV-HDMI2.0
4
SmartTV-HDMI2.0

QUICK INSTALL GUIDE

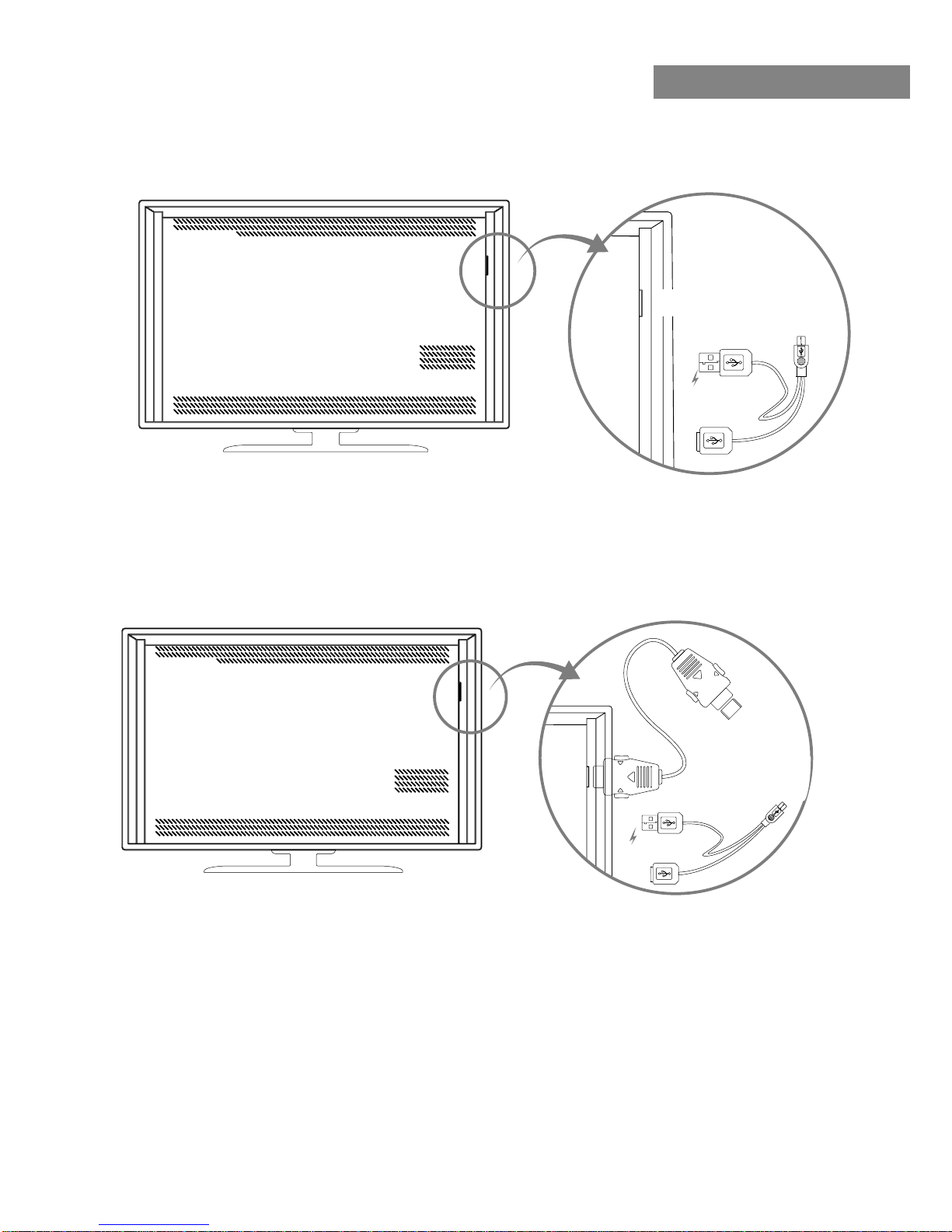

Install Information
•Normal Condition:
Insert into TV's HDMI input interface.
Connect 's mini USB port to TV's USB port via USB supply line for power supply.
(*ATTENTION: Make sure the USB power supply can offer 5V/1.5A. If not, please use a 5V/1.5 A output
AC adapter instead!)
•Special Condition (NO ENOUGH ROOM FOR AROUND THE TV'S HDMI
INPUT INTERFACE):
Connect to TV's input interface through HDMI extended line.
Power supply as above.
SmartTV-HDMI2.0
SmartTV-HDMI2.0
SmartTV-HDMI2.0
SmartTV-HDMI2.0
5
SmartTV-HDMI2.0
5V/1.5A
5V/1.5A
HDMI
HDMI

INTERFACE
Number Features
HDMI output
Signal light(Light on during running,light
off when shut down)
Micro USB port (OTG & Power supply)
Y-USB Cable Power supply (5V)
Y-USB Cable OTG (USB 2.0)
6
SmartTV-HDMI2.0
Menu Toggles the menu available in certain applications, such as
the Internet browser, for more available options.
Search Perform a quick Google search using the Internet browser.
Back Takes you back to previous screen or, if in browser, previous
Internet browser window.
Home Takes you back to the home screen, regardless of where you
are or which application you are currently running.
Zoom In Press to zoom in on a web page when using the Internet browser
.
Zoom Out Press to zoom out on a web page when using the Internet
browser.
Notification Display the notification page.
Standby
key
Press and keep standby mode or wake up.

7
SmartTV-HDMI2.0

8
SmartTV-HDMI2.0
Select network type:
Wireless network(Wi-Fi), please select a Wi-Fi Access Point:

Configuration Result:
Set TV display position：
9
SmartTV-HDMI2.0

10
SmartTV-HDMI2.0
