anko AFLW60G User manual

Model no: AFLW60G & AFLW75G
Rev: 03
To ensure proper operation of this device, please
read this instruction manual carefully before using
the device and keep it for future reference.
Instruction Manual
Front Load Drum-type
Washing Machine 6kg & 7.5kg

2
For future reference, please record the following information which can be found on the rating
plate and the date of purchase which can be found on your sales invoice.
STORE DETAILS
STORE NAME
|
ADDRESS
|
TELEPHONE
|
PURCHASE DATE
|
PRODUCT DETAILS
MODEL NO.
|
SERIAL NO.*
|
Purchase Details

3
Contents 2 Purchase Details
4 Safety Instructions
6 Installation
8 Your Washing Machine
10 Quick Start Guide
11 Operating Instructions
16 Cleaning & Maintenance
19 Troubleshooting
20 Technical Specifications
21 Testing Notes
22 Warranty

4
Safety Instructions
CONDITIONS OF USE
• This appliance is intended to be used in
household and similar applications such as
farm houses or by customers in serviced
apartments, holiday apartments and other
residential type environments.
SAFETY INSTRUCTIONS
• Before the installation and use of the
appliance, carefully read the supplied
instructions.
• The manufacturer is not responsible if an
incorrect installation and use causes injuries
and damages.
• Always keep the instructions with your
appliance for future reference.
WARNING: To prevent any damages to your
and others’ life or property, you have to
follow the safety notes.
WARNING: Caution, risk of fire!
CHILDREN & VULNERABLE PEOPLE SAFETY
WARNING: Risk of suocation, injury or
permanent disability.
• This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction for the operation
of the appliance by a person who is
responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the
appliance door when it is open.
• Cleaning and user maintenance shall not be
made by children without supervision.
INSTALLATION
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Make sure that the floor where you install
the appliance is flat, stable, heat resistant
and clean.
• Always remove the plug and turn o the
water supply to the appliance after every
use.
• Sharp and rigid items such as coins, nails
and screws may cause serious damage to
this appliance- always ensure pockets of
clothing are empty.
• Always ensure that the drum has drained all
water before opening the appliance door. If
water is visible, do not open the appliance
door.
• Do not install the appliance behind a
lockable door, a sliding door or a door with
a hinge on the opposite side, where the
appliance door cannot be fully opened.
• Always be careful when you move the
appliance because it is heavy. Always wear
safety gloves.
• Always move the appliance vertically.
• The rear surface of the appliance must be
put against the wall.
• This appliance should not be installed in a
bathroom or similar wet rooms, as well as
rooms with explosive or caustic gases.
• Washing machines with a single water inlet
and should only be connected to the cold
water supply outlet. Models featuring two
inlet valves can be connected to both the
hot and cold water outlets.
• The appliance can be installed as
freestanding or below the kitchen counter
with correct space.
• When the appliance is put in its permanent
position, check if it is fully level with the aid
of a spirit level. If it is not, adjust the feet
until it is.
ELECTRICAL CONNECTION
WARNING: Caution, risk of fire and
electrical shock!
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and
extension cables.

5
• Make sure not to cause damage to the
mains plug and to the mains cable. Should
the appliance power supply cable need to
be replaced, this must be carried out by our
Service Centre.
• Connect the mains plug to the mains socket
only at the end of the installation. Make
sure that there is access to the mains plug
after the installation. Do not connect the
appliance plug with a power connection
board.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains
plug with wet hands.
• This appliance complies with the E.E.C.
Directives.
CARE & CLEANING
WARNING: Risk of injury or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug.
• Do not use water spray and steam to clean
the appliance.
• Clean the appliance with a moist soft cloth.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
PRODUCT DISPOSAL
• Disconnect the appliance from the mains
supply.
• Cut o the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
APPLIANCE USE
WARNING: Risk of fire, explosion, electric
shock or damage to the appliance.
• Use this appliance in a household only.
• Before operating this appliance, ensure that
all packaging and transport bolts have been
removed. Otherwise, serious damage can
occur to the appliance.
• Before washing any clothes for the first
time, the washing machine should be
operated for one whole cycle without any
clothes inside.
• Do not climb up or sit on top of the
appliance.
• Do not change the specification of this
appliance.
• If you use fabric softener or similar
products, obey the instructions on the
packaging.
• Do not sit or stand on the open door.
• Obey the maximum load volume of 7.5 kg
(refer to the “Program chart” chapter).
• Ensure all objects are removed from
clothing pockets such as lighters and
matches.
• Please only use front load washing machine
detergents. Flammable and explosive or
toxic solvents are forbidden for use with this
appliance. Gasoline and alcohol should not
be used as a detergent.
• Never wash carpets or rugs within the
appliance.
• Be careful to avoid burns when the machine
drains hot washing water.
• After a wash program completes, please
wait two minutes before opening the door.
• If a tumble dryer is installed on top of the
washing machine, use the suitable stacking
kit. The stacking kit, available from your
authorized vendor, can be used only with
the appliance specified in the instructions,
supplied with the accessory. Read it
carefully before installation (Refer to the
Installation leaflet).
• Never lean against the machine door.
• Please do not close the machine door with
excessive force and if you find it dicult to
close the door, ensure that the clothing load
isn’t excessive.
• Glass door may become hot during
operating.
TRANSPORT
• Always move the appliance cautiously. Do
not use the machine door or the handle of
the detergent dispenser, to lift the appliance.
• Transportation bolts should be reinstalled
within the machine by a specialised person,
prior to transporting the appliance.
• Ensure that all accumulated water is drained
from the appliance before moving.
Safety Instructions (Continued)

6
Installation
INSTALLATION POSITIONING
• Ensure that your appliance is installed on solid and flat ground, in a
level position.
• Please do not place the appliance on a slope, soft carpet or wooden
floor.
• Your appliance should only be installed within an internal environment.
Do not install the appliance outdoors.
REMOVING THE TRANSPORTATION BOLTS
Before using this washing machine, transport bolts must be removed from
the backside of this machine. Please take the following steps to remove
the bolts:
• Loosen all bolts with a spanner and then remove them.
• Use the plugs (supplied) to plug the holes.
• Keep the transport bolts for future use.
LEVEL ADJUSTING
• If the floor is obviously uneven, your appliance feet need to be
adjusted. If your appliance isn’t level, it will cause your appliance to
vibrate, and potentially move from its position.
• Once you’ve positioned your washing machine, press down from
the top in all four corners to ensure that it’s completely stable (i.e.
not rocking in any direction). Also use a spirit level to ensure that it is
completely level in all directions.
• Should you need to make adjustments, use a spanner to turn the
appliance legs until it makes contact with the floor. Turn the leg using
one hand and then fasten the nut up against the appliance cabinet, to
lock the leg in place.
• After making any adjustments to the appliance legs,
re-check to ensure it is level and no rocking occurring.
CONNECT THE INLET PIPE
• Connect the hose elbow to the cold water outlet, screwing in a
clockwise direction.
• Connect the other end of the inlet hose to the water inlet valve on the
rear of the washing machine.
• After installation, if there are any leaks detected, remove the hose and
re-install using the steps above. The hose is designed to be used on a
standard washing machine cock outlet.
POSITION THE OUTLET HOSE
• The outlet hose (used to drain the discharged water) is to be ideally
connected to the relevant waste pipe, although it can also be
positioned to drain into a sink/trough. Note that the outlet hose has a
minimum outlet position of 60cm and a maximum position of 100cm
(as illustrated below).
Note: If you are positioning the outlet hose to drain into a sink or
trough, please ensure that it is fixed in place and that the sink remains
unblocked at all times.

7
This page is intentionally left blank

8
Your Washing Machine
THE APPLIANCE
Water supply hose
Top cover
Control panel
Service filter
Power supply cord
Drain hose
Drum
Detergent dispenser
Door
CONTROL PANEL
Control Panel
OPERATIONS
Off
Product is switched off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
1
1
3
1
2
4
4321
Note!
The chart is for reference only, Please refer to real product as standard.•
14
1
3
2
4
4 2 13

9
DETERGENT DISPENSER
The detergent drawer of your
washing machine is split into
three compartments:
WARNING: Detergent only need to be added in “case I” after selecting pre-washing for machines
with this function.
Required
Optional
Your Washing Machine (Continued)
Option
OPERATIONS
Extra Rinse: The laundry will undergo extra rinse once after you select it.
Delay:
Delay function can be set with this button, the delaying time is 0-24H.
It can be set the spin speed to press the button repeatedly
Speed:
The Prewash function can get an extra wash before main wash,it is suitable for
washing the dust rises to surface of the clothes;You need to put detergent into the
Case (I) when select it.
Pre Wash:
Programme Option Programme Option
Extra
Rinse
○ Means optional(Some models have intelligent weighing function, please refer to the actual product)
Pre
Wash Pre
Wash
Extra
Rinse
Delay
Delay
Cotton(Cold)
Cotton (20℃)
Cotton (40℃)
Cotton( 60℃)
Jeans
Delicate
Cotton ECO
Spin Only
Rinse&Spin
Heat Wash 90℃
Mix( 60℃)
Mix( 40℃)
Mix( 20℃)
Rapid 45’
Quick 15’
15

10
Quick Start Guide
QUICK START:
Follow the procedure below to operate your washing machine.
1. Install your washing machine.
2. Turn on the water supply.
3. Plug in the power supply.
4. Open the door and load in the laundry.
5. Close the machine door.
6. Measure the detergent and pour in the appropriate amount.
7. Select the desired program.
8. Select any additional functions if required.
9. Press the Start/Pause button to begin.
10. Completion of the washing cycle.
• At the completion of a wash program, the washing machine will make an audible tone.
11. Turn o the water supply
• Although the washing machine would be switched o, the power
outlet should be switched o and the plug should be pulled out for safety reasons.
OPTIONAL FUNCTIONS
SPEED
Speed can be set by pressing the speed button repeatedly to select your desired speed
EXTRA RINSE
Provides an extra rinse at the end of your selected cycle.
PRE WASH
The Prewash function provides an extra wash before main wash,it is suitable for washing the dust
that rises to surface of the clothes;You need to put detergent into Case (I) when selecting it.
D EL AY S TA RT
Delays the start of your washing load for 0-24 hours.
OPERATIONS
Child Lock
To avoid mis operation by children.
Start Press [Delay] and
3 sec. till buzzer beep.
[Function]
Delay
Choose the
Programme
Caution!
Function
Speed
:The speed is
1000: 0-400-600-800-1000 1200: 0-400-600-800-1000-1200
1400: 0-400-600-800-1000-1200-1400
Programme Default Speed(rpm)
Cotton(Cold)
Cotton (20℃)
Cotton (40℃)
Cotton( 60℃)
Jeans
Delicate
Cotton ECO
Spin Only
Programme
Rinse&Spin
Heat Wash 90℃
Mix( 60℃)
Mix( 40℃)
Mix( 20℃)
Rapid 45’
Quick 15’
Default Speed(rpm)
1400
1000
1000
1000
1000
1000
600
1000
1400
1000
1000
1000
1000
1000
800
800
1400
1000
1000
1000
1000
1000
1000
600
1000
1000
1000
1000
1000
1000
1000
800
800
1000
Other Functions
800
1000
1000
1000
1000
1000
600
1000
1200
1000
1000
1000
1000
1000
800
800
1200
16
When the program finished "END" and "CL" flashed alternately on the screen.
• During the “Child Lock”function is activing, the buzzer will beep 3 times,
When the buttons are pressed.
• Press the two button 3sec. also to be released the function.
• The “Child Lock” will lock all buttons except Power button.
• ,

11
Operating Instructions
PREPARATION BEFORE WASHING CLOTHES
Please follow these steps carefully to avoid trouble with your washing machine and damaging
your clothing.
Washing Considerations
• New clothes in particular, can leach colour
onto other clothing items, particularly
whites.
• Consider washing these and bright colours
separately.
• Stained clothing should be treated with a
stain remover, prior to washing.
• Temperature sensitive clothes should be
washed in accordance with their care
direction label. Otherwise distortion and/or
changes in colour could occur.
• Never allow washing to sit in the machine
for a long period of time- particularly when
wet. Clothes can become mouldy and
develop an odour.
• Certain clothing cannot be washed in a
washing machine and their care directions
may state dry cleaning or hand washing
required.
• Wrinkle style clothes, embossed clothes,
resin clothes, etc may become distorted
when immersed in water.
• Avoid washing clothes without care
direction labels within the appliance, to be
safe.
• Always remove all items from clothing
pockets, as hard items can cause damage
to the appliance.
• Try to wash clothing colours and sizes in like
loads, as this will improve the eectiveness
of the washing and results.
• Close all clothing zips and ensure all buttons
are fastened securely.
• Delicate items such as bras, handkerchiefs
and ties should be washed within a special
washing bag, to prevent damage to
themselves and other clothes.
• When washing a large single item that
could become heavy (i.e. a towel or jacket),
it can cause the appliance to become
unbalance during its spin cycle. Therefore
it’s recommended to add one or two more
clothing items to help the machine balance.
• Try to remove any pet hair, dust and stains
from clothing prior to washing.
• Baby clothing should be washed separately.
• Clothing that gets easily “fuzzed” or loses
fibres easily, should be washed separately.
• Black clothing items should be washed
separately.
• Do not wash waterproof materials within the
washing machine.
• The working condition of the washer should
be(0-40)°C.If used under 0°C,the inlet valve
and draining system may be damaged. If
the machine is placed under condition of
0°C or less, then it should be transferred to
normal ambient temperature to ensure the
water supply hose and drain hose are not
frozen before use.
Pay Attention to Detergents
• Only use suitable front load washing
machine detergents with this appliance.
Powders and liquid detergents only.
• Only ever use the recommended quantity
of detergent, as per the manufacturer’s
guidelines, as an excessive quantity can
cause excessive bubbles and overflow to
occur.
• It can also result in detergent residue
remaining on the clothing after completion
of the wash cycle.
• Please check the labels and the explanation
of using detergent before wash. Use non-
foaming or less-foaming detergent suitable
for machine washing properly.
WARNING: Always keep detergents and
additives out of reach from children.
Clothing Classifications
The symbol types on care labels are typically
classified into the following textiles: Cotton,
Blended Fiber, Synthetic Fiber, Silk, Wool and
Artificial Fiber.
Confirm the Washing Capacity
Never load the machine with excessive weights,
as it will aect your washing results.

12
WASHING CLOTHES FOR THE FIRST TIME
Before washing any clothes, please perform
one cycle without clothes inside as follows:
• Connect the power source and water.
• Insert a small amount of detergent into
Compartment II of the detergent drawer
and close it.
• Select the desired program.
• Press the “Start/Pause” button on the
appliance.
• Allow the program to complete and your
washing machine is now ready for use.
SELECTING A PROCEDURE
You should select you washing program
based on the type of clothing, quantity and
dirtiness level, in combination with the following
temperature table.
Temperature
Mode Application
90ºC
Seriously soiled clothing, pure white
cotton (I.e. bed linen, towels, table
cloths, etc)
60ºC
Moderately soiled clothing, cotton
and synthetic articles with certain
decolourising degree (I.e. shirts,
pyjamas, etc)
40ºC, 30ºC,
20ºC, Cold
Water
Lightly soiled clothing, synthetics and
wool
TO SELECT A PROGRAM:
• First turn the Program Selection Dial to the
corresponding wash program, according to
the type of textiles being washed.
• Secondly, select the desired temperature
based on the level of dirtiness.
Note: Generally the higher the temperature,
the more power that’s consumed.
• Finally, select your desired spin speed. The
higher the spin speed, the drier the textiles
will be at completion, however more delicate
textiles will be more wrinkled. Delicate
textiles should be set with a lower spin
speed.
Selecting the main washing program depend
on the types of clothing to be washed, as
follows:
Cotton Eco
This procedure saves energy and limits the
washing temperature to 40°C or 60°C. Use
with a small quantity of clothes which are only
lightly dirty.
Cotton
To increase the washing results, the main
washing time is increased. It is recommended
for washing clothes for babies or worn by the
persons with skin allergies. It is recommended
for washing durable cotton articles, for
example: bed sheets, quilt covers, pillowcases,
gowns, underwear, etc.
Heat Wash 90°C
Rapid 45’
Washing few and lightly soiled clothes quickly.
Mix
For loads with mixed textiles made of cottons
and synthetics.
Jeans
This reduces the wear and tear on your jeans.
Quick 15’
Extra short program suitable for lightly soiled
washing and small amounts of laundry.
Spin Only
This procedure provides a spin only option.
Residual soapy water shall be drained out
before spinning.
Rinse & Spin
This procedure provides a short rinse cycle
followed by a spin cycle.
Delicate
For delicate, washable textiles, e.g. made of silk,
satin, synthetic fibres or blended fabrics.
Operating Instructions (Continued)

13
Operating Instructions (Continued)
SETTING THE DELAY FUNCTION
To set the delay function:
• Select a program by turning the Program dial
• Press the Delay button to choose a time (The delaying time is 0-24H)
• Press the Start/Pause button to being your cycle
To cancel the delay function, press the Delay button until the display is back to 0H.
The delay function should be activated before starting the program.
If the program has already started, turning o the machine will reset the delay function.
CHILD LOCK
To set the child lock function:
• Select a program by turning the Program dial
• Press the Start/Pause button to begin your cycle
• Press the Temperature & Function buttons at the same time for 3 seconds until an audible tone
is heard.
When the Child Lock function is on, a indicator light will switch on and the Child Lock and
Remaining Time on the display will alternate in display.
Child Lock will lock all buttons except the Power and the Child Lock button combinations.
To release the Child Lock, press the Temperature & Function buttons at the same time for
3 seconds until an audible tone is heard.
Make sure the program is selected and the cycle has started before using
the Child Lock function.
6KG MACHINE WASHING PROGRAMS TABLE
Washing Programmes Table
OPERATIONS
maybe different with the parameters in above mentioned table.
• The parameters in this table are only for user's reference. The actual parameters
Note!
Speed: the highest speed;Other as the default.
•
Half load for 6.0Kg machine:3.0Kg.
• “Cotton ECO” is the standard washing programs to which the information in the
label and the fiche relates,
Energy test program: Cotton ECO.
and they are suitable to clean normally soiled
cotton laundry and that they are the most efficient programmes in terms of combined
energy and water consumptions for washing that type of cotton laundry,that the
actual watertemperature may differ from the declared cycle temperature.
Programme
Load(kg) Default Time
Cotton(Cold)
Cotton (20℃)
Cotton (40℃)
Cotton( 60℃)
Jeans
Delicate
Cotton ECO
Spin Only
Rinse&Spin
Heat Wash 90℃
Mix( 60℃)
Mix( 40℃)
Mix( 20℃)
Rapid 45’
Quick 15’
Default
Temp. ( °C )
Cold
20
40
60
60
30
30
--
--
90
60
40
20
40
--
Model:MFE60-JU1212/C31E-AU(25)
6.0
2:20
2:20
2:40
2:45
1:45
0:50
0:59
0:12
0:20
2:17
1:30
1:20
1:00
0:45
0:15
6.0
6.0
6.0
6.0
6.0
6.0
3.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
2.0
2.0
19
NOTE: The parameters in this table are only for user's reference. The actual parameters may be
dierent with the parameters in the above mentioned table.

14
Operating Instructions (Continued)
7.5KG MACHINE WASHING PROGRAMS TABLE
ENERGY TESTING NOTES
Energy test program: Cotton ECO.
Speed: the highest speed;Other as the default.
Half load for 6.0kg machine is 3.0kg.
Half load for 7.0kg machine is 3.75kg.
“Cotton ECO” is the standard washing programs to which the information in the label and the
fiche relates,and they are suitable to clean normally soiled cotton laundry and that they are the
most ecient programmes in terms of combined energy and water consumptions for washing
that type of cotton laundry,that the actual water temperature may dier from the declared cycle
temperature.
Washing Programmes Table
OPERATIONS
maybe different with the parameters in above mentioned table.
• The parameters in this table are only for user's reference. The actual parameters
Note!
Speed: the highest speed; Other as the default.
•
Half load for 7.5Kg machine:3.75Kg.
• “Cotton ECO” is the standard washing programs to which the information in the
label and the fiche relates,
Energy test program: Cotton ECO.
and they are suitable to clean normally soiled
cotton laundry and that they are the most efficient programmes in terms of combined
energy and water consumptions for washing that type of cotton laundry,that the
actual watertemperature may differ from the declared cycle temperature.
Programme
Load(kg) Default Time
Cotton(Cold)
Cotton (20℃)
Cotton (40℃)
Cotton( 60℃)
Jeans
Delicate
Cotton ECO
Spin Only
Rinse&Spin
Heat Wash 90℃
Mix( 60℃)
Mix( 40℃)
Mix( 20℃)
Rapid 45’
Quick 15’
Default
Temp.(°C)
Cold
20
40
60
60
30
60
--
--
90
60
40
20
40
--
Model:MFE75-JS1412/C31E-AU(25)
7.5
2:20
2:20
2:40
2:45
1:45
0:50
5:57
0:12
0:20
2:17
1:30
1:20
1:00
0:45
0:15
7.5
7.5
7.5
7.5
7.5
7.5
2.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
2.0
2.0
20
NOTE: The parameters in this table are only for user's reference. The actual parameters may be
dierent with the parameters in the above mentioned table.

15
This page is intentionally left blank

16
Cleaning & Maintenance
CLEANING PROCEDURES
WARNING: Before beginning any cleaning or maintenance, always ensure the appliance is
switched o, the power plug is removed from the power outlet and the water supply has been
closed.
CLEANING THE WASHING MACHINE
Proper maintenance of your washing machine will keep it looking as new and extend its working
life.
• The exterior surface can be cleaned with household cleaners and a soft damp cleaning cloth.
• If there is any residual water at the completion of a washing program, please use a cloth to
wipe it o immediately.
Note: Never use solvents or harsh cleaning chemicals on your washing machine’s exterior.
CLEANING THE INTERNAL DRUM
Should any rust form on the inside drum (i.e. water was left to sit for an extended period of time),
please remove immediately using a chlorine free detergent. Never use
steel wool or a harsh abrasive.
CLEANING THE DOOR SEAL AND GLASS
Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause
leaks. Remove any coins, buttons and other objects from the seal after each wash.
CLEANING THE DETERGENT DRAWER
You should periodically follow these steps to ensure the detergent drawer remains clean.
• Press down on the arrow, located on the cover for the fabric softener compartment of the
detergent drawer.
• Clean the dispenser drawer under warm water.
• Wash all grooves with warm water.
• Re-install the fabric softener compartment cover into the detergent drawer, and push the
drawer back into position.
Washing the filter in the tap
1.Close the tap.
2.Remove the water supply hose from the tap.
3.clean the filter.
4.Reconnect the .water supply hose
Cleaning The Inlet Filter
• Inlet filter must be cleaned if there is less water.
• If the brush is not clean, you can pull out the filter washed separately;
• Reconnect, turn on the tap.
Washing the filter in washing machine:
1.Screw off the inlet pipe from the backside
of the machine.
2.Pull out the filter with long nose pliers
and reinstall it back after being washed.
3.Use to clean the filter.
4.Reconnect the inlet pipe.
the brush
Clean The Detergent Dispenser
Do not use alcohol,solvents or chemical products to clean the machine.•
A
Pull out the dispenser
drawer with press the A
Clean the dispenser
drawer under water
Clean inside the recess
with an old toothbrush
Insert the dispenser
drawer
1234
Note!
Note!
Note!
1.Press down the arrow location on softener cover inside the dispenser drawer.
2.Lift the clip up and take out softener cover and wash all grooves with water.
3.Restore the softener cover and push the drawer into position.
MAINTENANCES
22

17
CLEANING THE INLET FILTER
You should clean the inlet filter periodically, or if you find that insucient water is being supplied
to your washing machine when the supply tap is open.
To clean the inlet filter:
• Close the water supply tap.
• Select any wash program (except for Spin Only or Drain Only) and press the Start/Pause
button. Allow the program to run for about 40 seconds.
• Remove the inlet pipe from the closed tap and use water to wash the filter.
• Reconnect the inlet pipe to the tap.
To clean the washing machine filter:
• Screw o the inlet pipe from the rear of the washing machine.
• Pull out the filter with long nose pliers, wash it thoroughly with water and re-install the filter.
• Reconnect the inlet pipe to the rear of the washing machine.
• Open the water supply at the tap and ensure there is no water leakage.
• Once finished, close the water supply tap.
Note: Generally the tap inlet filter is washed first followed by the washing machine filter. If only
the washing machine filter is washed, then you should still follow steps 1-3 for cleaning the inlet
filter first.
CLEANING THE DRUM PUMP FILTER
WARNING: To avoid the risk of an electric shock, always remove the power plug from the power
outlet before cleaning the Drain Pump filter.
Periodically you should clean the drain pump filter to ensure normal operation of your washing
machine. The type of washing, frequency and soil level of your washing cycles will alter how
often this procedure needs to be undertaken, however you should inspect the filter regularly.
Should your washing machine not empty and/or spin, or your machine makes unusual noises
during operation, your Drain Pump filter could be blocked. Follow this procedure to check or
remove any foreign objects.
• After disconnecting the power, open the filter cover at the front base of your washing
machine.
• Unscrew the filter in an anti-clockwise direction and remove any foreign objects.
• Re-install the filter and close the service panel
WARNING: Never remove the pump cover when the washing machine is in operation, always
wait until the appliance has finished and the internal drum is empty. There can be hot water
within the pump, so be careful to avoid burns, should it have operated recently. When replacing
the cover, be careful to ensure it is closed securely.
Cleaning & Maintenance (Continued)

18
CLEANING THE DRUM PUMP FILTER
WARNING:
• Be careful of the hot water!
• Allow detergent solution to cool down.
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure the normal operation of washing machine.
• To avoid the risk of an electric shock, always remove the power plug from the power outlet
before cleaning the Drain Pump filter.
Periodically you should clean the drain pump filter to ensure normal operation of your washing
machine. The type of washing, frequency and soil level of your washing cycles will alter how
often this procedure needs to be undertaken, however you should inspect the filter regularly.
Should your washing machine not empty and/or spin, or your machine makes unusual noises
during operation, your Drain Pump filter could be blocked. Follow this procedure to check or
remove any foreign objects.
CAUTION:
• Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates
should be inserted aligning to hole plates otherwise water may leak.
• Some machines don’t have emergency drain hose, so step 2 and step 3 can be skipped.
Rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the programme selected there can be hot
water in the pump. Never remove the pump cover during a wash cycle, always wait until the
appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely
re-tightened.
Cleaning & Maintenance (Continued)
• Make sure that valve cap and emergency drain hose are reinstalled properly, cap
plates should be inserted aligning to hole plates otherwise water may leak.
• Some machines don’t have emergency drain hose, so step 2 and step 3 can be skipped.
Rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the programme selected there can
be hot water in the pump. Never remove the pump cover during a wash cycle, always
wait until the appliance has finished the cycle, and is empty. When replacing the
cover, ensure it is securely re-tightened.

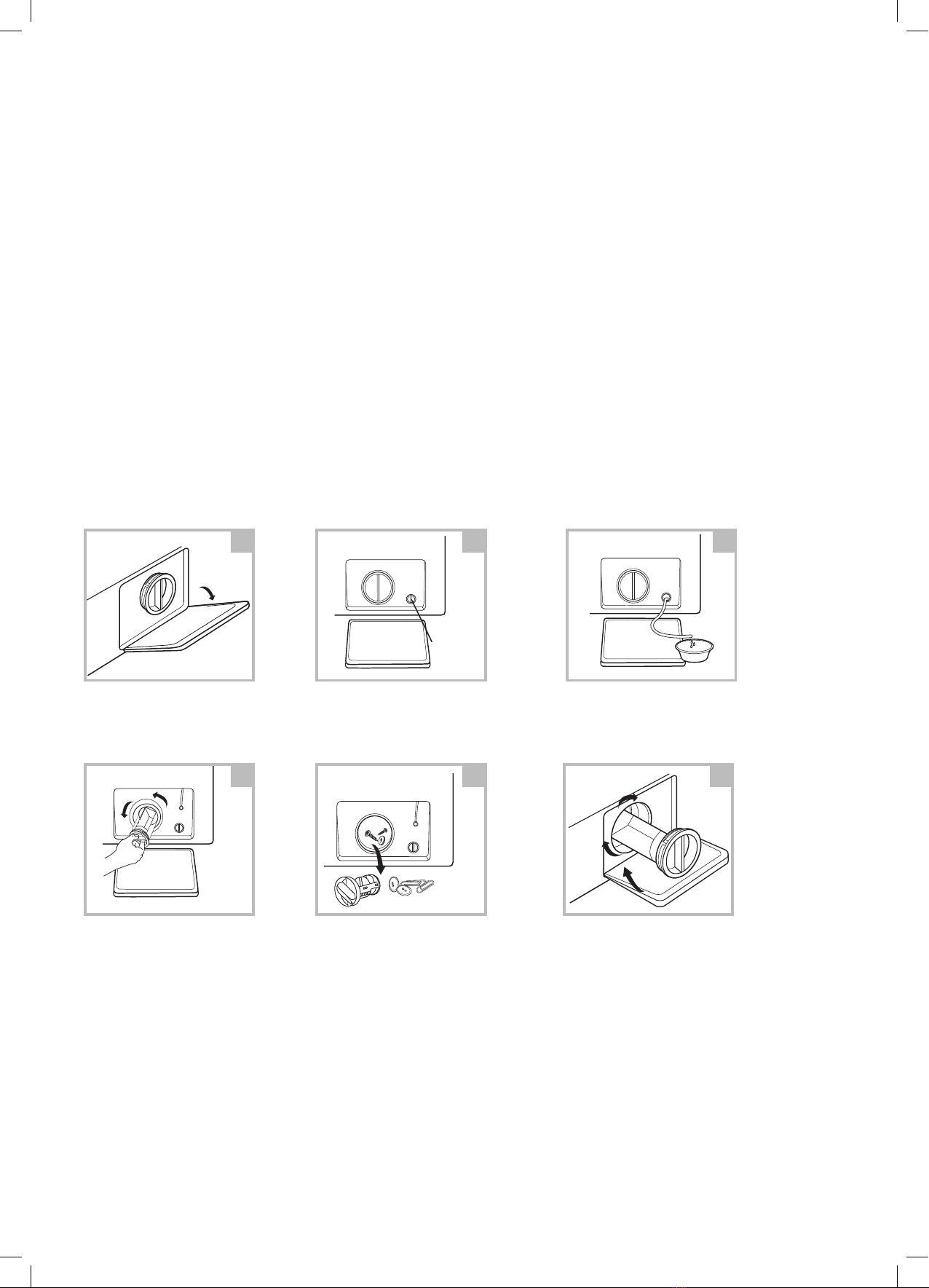

Cleaning The Drain Pump Filter
Be careful of the hot water!
Allow detergent solution to cool down.
•
•
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the
washing.
• Clean the filter periodically to ensure the normal operation of washing
machine.
Open the lower cover cap Rotate 90°C and pull out
the emergency drain hose,
and take off the hose cap
Open the filter by turning
to the counter clockwise
Remove extraneous matter
123
Close the lower cover cap
6
5
4
Emergency
drain hose
After water runs out,reset
the drain hose
Warning!
！！
Caution!
MAINTENANCES
23

19
Troubleshooting
WARNING: Only authorised technicians should carry out repairs.
Before contacting our customer service team, please refer to the table below to see if your fault
can be fixed by yourself. Should a service technician visit be arranged and its found there are no
faults with the appliance, a call out charge will apply.
PROBLEM SOLUTION
Washing Machine
won’t start-up
• Check that the mains plug is inserted and switched on at the power point.
• Check that the door is closed securely.
• Check that the relevant fuse hasn’t blown.
• Check that the On/O button has been pressed.
• Check that the water supply tap has been opened.
Door won’t open • The machine’s safety protection is working. Disconnect the power and
reconnect the power.
Heating fault
• The NTC is damaged and/or the heating pipe is aging. You should be able to
wash the clothes normally however without the water heating. Please contact
our customer service team.
Water is leaking
• The drainage waste pipe may be blocked.
• Check and fasten all water connection pipes.
• Inlet or Outlet hoses may be damaged. Please check.
Water is overflowing from
the base of the machine
• Check that the inlet pipes are connected firmly at the rear of the machine.
• Check that the outlet hose hasn’t been damaged.
Display isn’t lighting up • Check that the power isn’t disconnected.
• PC board may have issues. Please contact our customer service team.
Detergent residues
remain in the detergent
drawer
• Ensure you are using a correct amount of detergent.
• Follow the cleaning steps to remove any damp residual detergent from the
drawer.
Washing results aren’t
to expectations
• Ensure you are using a sucient amount of detergent.
• Ensure the correct quantity of clothes are being used depending on the wash
program selected.
• Ensure you are using the correct wash program to suit the clothing and level
of dirtiness.
• Try using an alternative detergent.
Washing machine is
making an abnormal
noise or vibrating
• Ensure the washing machine is level.
• Ensure that all transportation bolts have been removed.
• Ensure the appliance has been installed on a solid and level floor.
• Ensure that all legs are making contact with the floor and adjust as required.
• Follow the Drain Pump cleaning procedure and ensure there are no foreign
objects.
Note: If the above steps don’t resolve your issue or you cannot resolve the fault by yourself:
• Press the “On/O” button.
• Switch o the appliance at the power outlet and remove the plug.
• Call our customer service team.

20
Technical Specifications
INDICATION PROBLEM SOLUTION
E30 Door is not closed
properly
• Restart after the door is closed
• Check if there are clothes or washing articles
stuck
E10 Water injecting problem
while washing
• Check if the water pressure is too low
• Straighten the water pipe
• Check if the inlet valve filter is blocked
E21 Overtime water draining • Check if the drain hose is blocked
E12 Water overflow • Restart the washer
Note: If the above steps don’t resolve your issue or you cannot resolve the fault by yourself:
• Press the “On/O” button.
• Switch o the appliance at the power outlet and remove the plug.
• Call Kmart Customer Service Centre on 1800 124 125 (Australia)
Below outlines the technical specifications for your Washing Machine.
Model AFLW60G AFLW75G
Washing Capacity 6.0kg 7.5kg
Dimensions (W x D x H mm) 595 x 400 x 850 mm 595 x 565 x 850 mm
Net Weight 55kg 68kg
Rated Power 2050W 2050W
Power Supply 220-240V, ~50Hz 220-240V, ~50Hz
Standard Water Pressure 0.05MPa~1.0MPa 0.05MPa~1.0MPa
Troubleshooting (Continued)
