-ARW03 1/17-
AnyWire Address Writer
AnyWire System Products Guide
ARW-03
The Products Guide describes individual products. Refer to the Guide as necessary.
[Features]
[Type]
Infrared non-contact type Remote head wearable
AnyWire is a registered trademark of Anywire Corporation.
ARW-03 Infrared non-contact address writer (Ver. 2.10)
ARW-RH
Also available is a set of ARW-03 and ARW-RH.
Model: ARW-03-RH
Remote head for narrow space and small part
(sold separately)
POKAYOKETERMINAL
Dust-proof, small-sized,
door type
Ver. 1.00 or lower
Category Type Firmware Version
Adaptable
Equipment
All models
Ver. 2.10 or higher
AnyWire ASLINK TERMINAL ○
○○
×
READER/WRITER
ARW-03 Ver.2.10 LotNo.***
MADE IN JAPAN
A “Ver. *.*.*” is
described on
this label.
The version is
displayed when
POWER is on.
Front Back
○: available, ×: unavailable
■Warranty period
The warranty on the delivered Product shall continue to be effective for
one (1) year after the delivery thereof to a location as designated by the
original owner.
■Scope of warranty
Should a defect occur in any part of the Product during the foregoing
warranty period when it is used normally in acordance with the specica-
tions described in this User's Manual, the Company shall replace or
repair the defect free of charge, except when it arises as a result of:
[1] Misuse or abuse of the Product by the owner;
[2] Fault caused by other than the delivered Product;
[3] The unauthorized modication or repair of the Product by any person
other than the Company's personnel;
[4] Any unusual force of nature, disaster or other cause beyond the Com-
pany's control.
The term "warranty," as used herein, refers to the warranty applicable to
the delivered product alone. The Company shall not be liable for conse-
quential or incidental damages resulting from any malfunction.
■Repair at cost
After the expiration of the warranty period, the owner shall be respon-
sible for all costs and expenses incurred for the troubleshooting and
repair of the Product. Even during the warranty term, the Company shall
repair any defects arising from causes other than within the scope of the
warranty as specied above, at the owner's cost.
-This is a unit of the AnyWire system. It is used for setting addresses and oper-
ating specications of units with an infrared writing port.
This writer enables addresses and parameters to be set by the non-contact
method.
- Writing and reading can be performed.
- As the body is small-sized and driven by battery, it has no power code and
can be taken anywhere.
- As address values are displayed at a 7-segment display unit and can be used
directly at the decimal scale, this eliminates inconveniences that it is hard to
see the switch in a dark place and the set value must be calculated.
- A remote head (ARW-RH) to make writing in a narrow space or small-sized
unit easier is prepared (separately sold).
- The writer has an automatic shutout function to protect the battery even when
the power is left on. (The condition in the middle of the setting operation
returns to the content before setting.)
[Warranty]
[Notes on Safety]
Precautions that must be observed in order to use this system safely are indicated as shown below.
You must observe these precautions.
WARNING CAUTION
A WARNING indicates a potentially hazardous
situation which, if not handled correctly, could
result in death or serious injury.
ACAUTION indicates a potentially hazardous situation
which, if not handled correctly, may result in personal
injury or property damage.
WARNING
○System Safety
○Always turn off the power before attempting to mount or replace.
This system is intended for general industrial applications. It does not have functions for supporting applications requiring higher
levels of safety such as safety-related devices or accident prevention systems. The product must not be used for these purposes.
○
For change of setting in the direct mode, values are updated to the changed values when they are written. Please note that direct
changes of addresses and others may result in unexpected operation.
○Use the AnyWire System within the range of the specications and conditions shown below.
○System power supply
○Separately route high-voltage and power cables
○Connectors and terminals
○Do not impose any external loads on the units. Doing so may cause a failure.
○Do not disconnect or reconnect between the transmission line and slave units. A malfunction may occur.
Use a stable, 24V DC power supply. Use of an unstable power supply may cause problems with the system.
Although the AnyWire System has a high noise margin, keep the transmission line and I/O cables away from high-voltage and
power cables.
*
Pay careful attention to the length and installation of cable wiring to ensure that connectors and cables are neither overloaded nor disconnected.
* Make sure to prevent any metal objects from getting inside the connectors or the terminal blocks.
* Short-circuits caused by metal objects or mis-wiring are likely to damage the device.
CAUTION

[Overview]
-ARW03 2/17-
Infrared ray
Address setting port
on the terminal side
Light emitting
and receiving part
Light emitting
and receiving part
Infrared ray
Address setting port
on the terminal side
■Image of address writing ■Image of operation
■Image of address reading
■Image with a remote head connected
Address setting port
POWER
Remote head for narrow space/small part
(ARW-RH)
ARW-03 can write addresses in a unit and read the addresses written in a terminal using infrared ray.
As the infrared ray emitting and receiving part is less influenced by ambient light, the writer can be used almost
anywhere indoors.
And the writer works well only by visual adjustment of the address writer optical axis at the time of transmission and
reception by the diffusion-type light emitting and receiving system with weak-directivity.
It is convenient to connect a remote head for a narrow space difficult to
move close to the body of ARW-03 or for a small-sized terminal and
small infrared port.
For ARW-RH, refer to ARW-RH instruction manual.
The infrared ray irradiation direction and
position of ARW-03 are not strictly specified.
When the light emitting and receiving
part of ARW-03 and the address
setting port of a unit to be set are in
strong ambient light such as direct sunlight, it may be
impossible to write and read addresses.
In such cases, please shade the light by your hands, etc.
CAUTION

[Position during operation]
-ARW03 3/17-
■Guideline for positions in writing and reading addresses
Up to approximately 50mm Note)
Address setting port
Approximately 60°
Approximately 60°
Light emitting
and receiving part
Light emitting
and receiving part
Address setting port
The vertical directions are not specified
for the front of ARW-03.
[Front]
[Seen from the top] [Seen from the side]
Operation is based on the assumption of operation within a range of some distance. The guideline for light emitting
and receiving distance is as follows:
Note) The distance from the terminal varies depending on
the terminal size.
In the case of a small terminal, it is necessary to
move the writer close to the terminal.

[Name of each part]
-ARW03 4/17-
POWER switch
CLEAR switch
RH connection connector
UP/DOWN buttons
Comment display
POWER indicator lamp
Light emitting and receiving part (in yellow)
Operating mode indicator lamp
SELECT switch
Ring for strap
SET switch
(for remote head connection)

[Type of operation]
-ARW03 5/17-
The following operations are available for the ARW-03.
Address reading
ARW-03 Initial check
Purposes
Parameter reading
Teaching
Address writing Power reset renewal
Measures Mode to be selected Ver.1.00
or lower
Direct renewal
Direct reading
Press the POWER
switch pressing
the SELECT switch.
Select the maximum address
Select the maximum
number of parameters
Direct reading
Power reset renewal
Direct renewal
WRITE mode
READ mode
READ mode
DIRECT WRITE mode
WRITE mode
DIRECT WRITE mode
Parameter writing
○
○
△
○
○
△
△
Direct renewal EX mode ×
○
○
○
○
○
○
○
○
Ver. 2.10
or higher
Version Explanation
page
6
8
13
10
11
14
15
7
○: available, △: conditioned, ×: unavailable

[Precautions for use]
It is necessary to check the internal setting of the ARW-03 depending on the reading/writing unit.
Check the content of the setting memorized in this unit to match it with the target unit before use.
The contents to be checked are the “maximum number of parameters to be selected” and “maximum points setting mode.”
“Maximum number of parameters to be selected” is the number of parameters that can be set and is registered within
the range of “1 – 6.”
For “maximum points setting mode,” the maximum of address “256” or “512” that can be set is switched according to
the type of unit.
The following operations are necessary for correct setting in the target unit.
When using the address writer the first time, make sure to conduct the operations and check the content set in the writer.
If the matching of the address writer and unit is not correct and reading and writing operations are performed, it may cause the unit to
incorrectly operate. (If the setting is correctly adjusted again, that is not a problem.)
-ARW03 6/17-
Turn ON the POWER switch
pressing SELECT switch.
■Contents to be checked
■Setting operation
Turn OFF the POWER switch.
Press the UP switch once.
Display the number to be set
by the UP/DOWN switches
to press the SET switch.
Display the number to be set
by the UP/DOWN switches
to press the SET switch.
Press the DOWN switch once.
Press the L switch.
or
Press the SET switch.
In the case of setting the maximum
address to 256
In the case of setting the maximum
address to 512
In the case of setting
the maximum number of
parameters to 19
Press the SET switch.
Any number from 0 to 19
is displayed.
～
Dot flashing movement
Dot flashing movement
The display returns to that
of Operation No.1.
Dot flashing movement
After “SEt” is displayed,
the set value is
displayed again.
After “SEt” is displayed,
the set value is
displayed again.
～
Open Terminal Series
Bitty Brdge
EZwire
POKAYOKETERMINAL
A20 Series Master
256 mode
Terminal connection
targets
Use mode
○
ー
●Maximum points setting mode ●Maximum number of parameters to be selected
or
or
How to operate Display
If moving to the address setting etc., turn ON the POWER switch again.
1
2
3
4
5
6
7
8
9
Example)
CAUTION
The maximum number of parameters is expressed as “Pn” and any number of 0 -
19 can be selected.
For example, if the maximum number is set to “4,” 4 types (01 – 04) can be
selected in the parameter mode.
This parameter is selected based on the setting target unit and its necessary
setting function.
Normally, set the number to “19 (maximum).”
However, the parameters to be used vary depending on the slave unit.
Set only the parameter number to be used.
If unnecessary parameters are written, it may result in a malfunction.
CAUTION
512 mode
○
ー

-ARW03 7/17-
■Setting operation
Make sure to perform ON/OFF setting.
If not, it may result in abnormal operation.
CAUTION
！
Turn ON the POWER switch.
Press the SELECT switch
several times to light the EX display.
To clear “Err” once,
press the CLEAR switch.
EX (red)
READ (green)
WRITE (yellow)
DIRECT WRITE (orange)
Press the SELECT switch.
Press the SET switch.
If moving to the next setting,
press the SELECT switch.
Correctly completed
Err display
During the setting
operation
During the setting
operation
Setting is completed
After using ARW-03, keep the POWER switch
pressed to turn OFF the power.
If SEton setting is not correctly set,
“SEt Err” is displayed.
Readjust the light emitting and
receiving part to press the SET switch
again until Operation No.6 is completed.
Err display
If SEton setting is not correctly set,
“SEt Err” is displayed.
Readjust the light emitting and
receiving part to press the SET switch
again until Operation No.8 is completed.
5
6
7
10
9
11
12
13
After approximately
2 seconds,
“SELECt” flashes.
----Flashing
SEt on mode
How to operate Display
1
2
3
4
After SEton setting is completed,
press the UP or DOWN switch once. SEt oFF mode
8
Set SEton in the condition where
the appropriate terminal detects a work.
When SEton setting is correctly set,
“Good” is displayed and then
“Seton” is displayed again.
And then remove the work from
the appropriate terminal to set SEtoFF.
Correctly completed
Setting is completed
When SEtoFF setting is correctly set,
“Good” is displayed and then
“SEtoFF” is displayed again.
EX must be lighted
Light emitting and
receiving part (yellow frame)
[EX Mode]
If using ASLINKAMP and ASLINKSENSOR, it is necessary to register the initial setting of ON/OFF operations with
respect to these terminals before using them.
It is “EX Mode” to perform this setting.

[Address reading…READ Mode]
-ARW03 8/17-
Turn ON the POWER switch.
Press the SELECT switch
several times to
light the READ display.
Press the SELECT switch
several times to light the display of
a desired mode.
READ (green)
READ (green)
WRITE (yellow)
DIRECT WRITE (orange)
Press the SELECT switch.
Press the SET switch.
Press the SET switch.
Address values read
Err display
During the reading
operation
Readjust the light emitting and
receiving part and
press the SET switch again.
- Clear the Err display.
- Switch the mode to another mode.
Press the CLEAR switch.
After using ARW-03, keep the POWER switch
pressed to turn OFF the power.
When moving to the next unit
to read addresses,
directly move to the next
address setting port to press
the SET switch and repeat reading.
In the case of failure in reading
Address values read
During the reading
operation
5
6
7
8
9
10
11
■Address reading operation
After approximately
2 seconds,
“SELECt” flashes.
----Flashing
The reading mode is
determined.
Return to the reading
mode display
1
2
3
4
Example)
Example)
Address values read
During the reading
operation
Example)
Point the light emitting and
receiving part (yellow frame)
at the address setting port of
the unit to be written and
then press the SET switch.
READ must be lighted.
Light emitting and
receiving part (yellow frame)
This is the mode to read the addresses written in a unit.
Check that power (in the case of 2-wire type, transmission signal) is supplied to the reading target unit.
How to operate Display

-ARW03 9/17-
WRITE
DIRECT WRITE
Mode Details
WRITE
DIRECT WRITE
Light emitting and receiving part
(yellow frame)
[Writing of addresses…Notes]
There are two writing modes as follows. Understand it to select the mode.
If using a branching/disconnection function, set all the addresses and then register the connection ID on the
master side by performing “automatic address recognition operation.”
If “automatic address recognition operation” is performed on the master side, when connection ID is registered to
change an address, it will cause a disconnection error.
In this case, perform “automatic address recognition operation” and then register the connection ID again.
When the power of the terminal and transmission
signals are turned off after the writing operation and
turned on again, the written values become available.
In consideration of safety of the system, writing in
this mode is recommended normally.
The written values become available at the time when
addresses are written.
As addresses can be updated with the power on, this is
an easy method. However, it requires careful attention
to operation so that unexpected terminal movement
may not cause an accident.

-ARW03 10/17-
Turn ON the POWER switch.
Press the SELECT switch several
times to light the WRITE display.
Press the SELECT switch
several times to light the display of
a desired mode.
WRITE (yellow)
READ (green)
WRITE (yellow)
DIRECT WRITE (orange)
Press the SELECT switch.
Press the SET switch.
Press the SET switch.
Press the SET switch.
Return to Operation No.6
for rewriting operation.
Press the L switch.
Err display
Dot flashing movement
Dot flashing movement
Dot flashing movement
Display the set
address values
Readjust the light emitting and
receiving part and
press the SET switch again.
- Clear the Err display.
-
Switch the mode to another mode.
Press the CLEAR switch.
After using ARW-03, keep the POWER switch pressed to turn OFF the power.
In the case of failure in writing
5
6
7
8
9
10
11
12
13
14
15
■Address writing operation
After approximately
2 seconds, “SELECt” flashes.
Flashing
The writing mode is
determined.
Return to the WRITE mode
display.
How to operate Display
1
2
3
4
Example)
Written address values
During the writing operation
Example)
Written address values
During the writing operation
Example)
Written address values
During the writing operation
Example)
Point the light emitting and receiving
part (yellow frame) at the address
setting port of the unit to be written
and then press the SET switch.
[Writing of addresses…WRITE Mode]
This is the mode to enable renewal by turning on the transmission signals and power again.
Check that power (in the case of 2-wire type, transmission signal) is supplied to the target unit in writing addresses.
And after writing all the addresses, confirm the safety and reset the power (in the case of 2-wire type, transmission
signal) of the target unit to update the result of writing.
Display the address value to be written by
using the UP/DOWN switches.
If the R switch is operated, 50 addresses are
added. And if the number of addresses
added exceeds the maximum number of 250
or 500 (initial setting), it returns to 0 (zero).
If moving to the next terminal to write
addresses, change the value by using
the UP/DOWN switches and repeat
writing operation with the SET switch.

-ARW03 11/17-
Point the light emitting and receiving
part (yellow frame) at the address
setting port of the unit to be written
and then press the SET switch.
Turn ON the POWER switch.
Press the SELECT switch several
times to light the DIRECT WRITE display.
Press the SELECT switch
several times to light the display of
a desired mode.
DIRECT WRITE (yellow)
READ (green)
WRITE (yellow)
DIRECT WRITE (orange)
Press the SELECT switch.
Press the SET switch.
Press the SET switch.
Press the SET switch.
Return to Operation No.6
for rewriting operation.
Press the L switch.
Err display
Dot flashing movement
Dot flashing movement
Dot flashing movement
Display the set
address values
Readjust the light emitting and
receiving part and
press the SET switch again.
- Clear the Err display.
-
Switch the mode to another mode.
Press the CLEAR switch.
After using ARW-03, keep the POWER switch pressed to turn OFF the power.
In the case of failure in writing
5
6
7
8
9
10
11
12
13
14
15
■Address writing operation
After approximately
2 seconds, “SELECt” flashes.
Flashing
The writing mode is
determined.
Return to the WRITE mode
display.
How to operate Display
1
2
3
4
Example)
Written address values
During the writing operation
Example)
Written address values
During the writing operation
Example)
Written address values
During the writing operation
Example)
[Direct writing of addresses…DIRECT WRITE Mode]
The values become available at the time when addresses are written.
Check that power (in the case of 2-wire type, transmission signal) is supplied to the target unit in writing addresses.
In this mode, the values are updated at the time when addresses are written. Please carry out the operation
carefully because the address response changes and it may result in unexpected movement.
Display the address value to be written by
using the UP/DOWN switches.
If the R switch is operated, 50 addresses are
added. And if the number of addresses
added exceeds the maximum number of 250
or 500 (initial setting), it returns to 0 (zero).
If moving to the next terminal to write
addresses, change the value by using
the UP/DOWN switches and repeat
writing operation with the SET switch.

[Parameters]
-ARW03 12/17-
■Parameters of representative models
Door type
fall-proof
Door upper position
Door lower position
Timer
Display colors
Display colors
Reserve
Reserve
A027XB-F02□-P
A227XB-F02□-P
01
02
03
04
05
06
ModelType Details of parameter
1, 2, 3, 4, 5, 6, 7
1, 2, 3, 4, 5, 6, 7
0 (green), 1 (red), 2 (blue), 3 (yellow), 4 (sky-blue),
5 (purple) and 6 (white) *7 or more cannot be set.
1, 2, 3, 4, 5, 6, 7, 8, 9, 10
Small-sized
fall-proof
Reserve
Reserve
Reserve
Reserve
Reserve
A027XB-K02VN-P
A027XB-K02V-P
A227XB-K02VN-P
A227XB-K02V-P
01
02
03
04
05
06
0 (green), 1 (red), 2 (blue), 3 (yellow), 4 (sky-blue),
5 (purple) and 6 (white) *7 or more cannot be set.
－
－
－
－
－
－
－
Function
Selection
ASLINKER
ASLINKAMP
B280SB-02U□-C1220
B280PB-02U□-C1220 01
01
01
02
03
04
05
06
07
08
0 (I/O disconnection, 24VL short-circuit detection: OFF)
1 (I/O disconnection, 24VL short-circuit detection: ON)
0 (I/O disconnection, 24VL short-circuit detection: OFF)
1 (I/O disconnection, 24VL short-circuit detection: ON)
Function
Selection
Function
Selection
B281□B-02U□-CC20
B289SB-01AF-CAM20
B289SB-01AF-CAS
B289SB-01AP-CAM20
B289SB-01AP-CAS
Setting of sensor sensitivity (threshold)
Adjustment range: 0 – 100 (Before shipment: 50)
Hysteresis setting for sensor sensitivity
Adjustment range: 0 – 100 (Before shipment: 5)
Setting of upper limit of alarm judgment value
Adjustment range: 0 – 100 (Before shipment: 80)
Setting of lower limit of alarm judgment value
Adjustment range: 0 – 100 (Before shipment: 20)
Setting of monitoring time in alarm judgment value
Adjustment range: 3 – 255 (Before shipment: 50) (Unit: 0.1 sec)
Function
Selection
Function
Selection
Function
Selection
Function
Selection
*This value is used for setting before shipment.
If changing this value, consult our Sales Division.
Function
Selection
Function
Selection
Function
Selection
Switching of Dark ON and Light ON, Before shipment: 0
Internal setting for photoelectric head
Variable: 0-3, Before shipment: 0
Setting of operating mode
Dark (shielding) ON: 0
Light (Transmission) ON: 1
Dark (without reflection) ON: 0
Light (with reflection) ON: 1
0 (Diagnosis function: OFF)
1 (Diagnosis function: ON)
For details of the parameter, also refer to the instruction manual of each unit.
Transmission-
type
Reflection-
type
*ASLINKAMP-side display interlock
Parameter consists of the movement element and the
variable built in a unit.
For a type of unit to select parameters, select and set the
movement specification in ARW-03.
The following parameters are available depending on models.
Do not operate the writer with a value that
exceeds the following parameters or
variable values. This may cause the writer to malfunction.
If you try to set a value that exceeds the parameters and
variable values, “E-303” is displayed in the display portion
of ARW-03.
CAUTION
！

[Parameters (sequel)]
[Reading of parameters]
-ARW03 13/17-
Turn ON the POWER switch.
Press the SELECT switch several
times to light the READ display.
If returning to the address setting mode,
press the DOWN switch once.
If reading parameters from
another unit, return to Operation No.6
to repeat the operations.
READ (green)
Press the SELECT switch.
Press the SET switch.
Err display
Readjust the light emitting and
receiving part and
press the SET switch again.
- Clear the Err display.
-
Switch the mode to another mode.
Press the CLEAR switch.
After using ARW-03, keep the POWER switch
pressed to turn OFF the power.
In the case of failure in reading
Parameter value read
Parameter value read
During the reading operation
Select parameter 1.
5
6
7
8
9
11
10
■Parameter reading operation
After approximately
2 seconds, “SELECt” flashes.
Flashing
The reading mode is
determined.
Change to the Ad display.
Return to the reading
mode display
How to operate Display
1
2
3
4
During the reading operation
Check that power (in the case of 2-wire type, transmission signal) is supplied to the reading target unit.
READ must be lighted.
Light emitting and
receiving part
(yellow frame)
Press the UP switch to display
the P number of the parameter type
to be read from the target terminal.
Example)
Example)
Example)
Point the light emitting and
receiving part (Yellow frame) at
the unit to press the SET switch.
■Parameters of representative models
AnyWireASLINK
Mapping terminal
Sensitivity
Sensitivity setting mode
of B232SB-SX100-STP
Error sensor unit
monitoring
function
B232SB-MX100-STP
B232SB-SX100-STP
01
02
03
ModelType Details of parameter
0, 1, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
0 (Collective setting of sensitivity), 1 (Individual setting of sensitivity)
Before shipment: 0
Before shipment: 10
Before shipment: 0
0 (with error sensor unit monitoring function)
1 (without error sensor unit monitoring function)

-ARW03 14/17-
Turn ON the POWER switch.
Press the SELECT switch several
times to light the WRITE display.
If returning to the address setting mode,
press the DOWN switch once.
If writing parameters from another
unit, return back to Operation
No.6 to repeat the operations.
WRITE (yellow)
Press the SELECT switch.
Press the SET switch.
Press the SET switch.
Err display
Readjust the light emitting and
receiving part and
press the SET switch again.
- Clear the Err display.
-
Switch the mode to another mode.
Press the CLEAR switch.
After using ARW-03, keep the POWER switch
pressed to turn OFF the power.
In the case of failure in writing
Written parameter values
In the case of selecting
variable “1” in parameter 1
Written parameter values
Dot flashing movement
5
6
7
8
9
12
11
10
■Parameter writing operation
After approximately
2 seconds, “SELECt” flashes.
Flashing
The writing mode is
determined.
Change to the Ad display.
Return to the writing
mode display
How to operate Display
1
2
3
4
During the writing operation
During the writing operation
WRITE must be lighted. Light emitting and
receiving part
(yellow frame)
Press the UP switch once to change
the display to parameter writing.
Example)
Example)
Example)
Press the L switch. Dot flashing movement
Display the parameter value to be
written by using the UP/DOWN switches.
Point the light emitting and receiving
part (yellow frame) at the address
setting port of the unit to be written
and then press the SET switch.
[Writing of parameters]
This is the mode to enable renewal by turning on the transmission signals and power again.
Check that power (in the case of 2-wire type, transmission signal) is supplied to the target unit in writing addresses.
And after writing all the addresses, confirm the safety and reset the power (in the case of 2-wire type, transmission
signal) of the target unit to update the result of writing.

-ARW03 15/17-

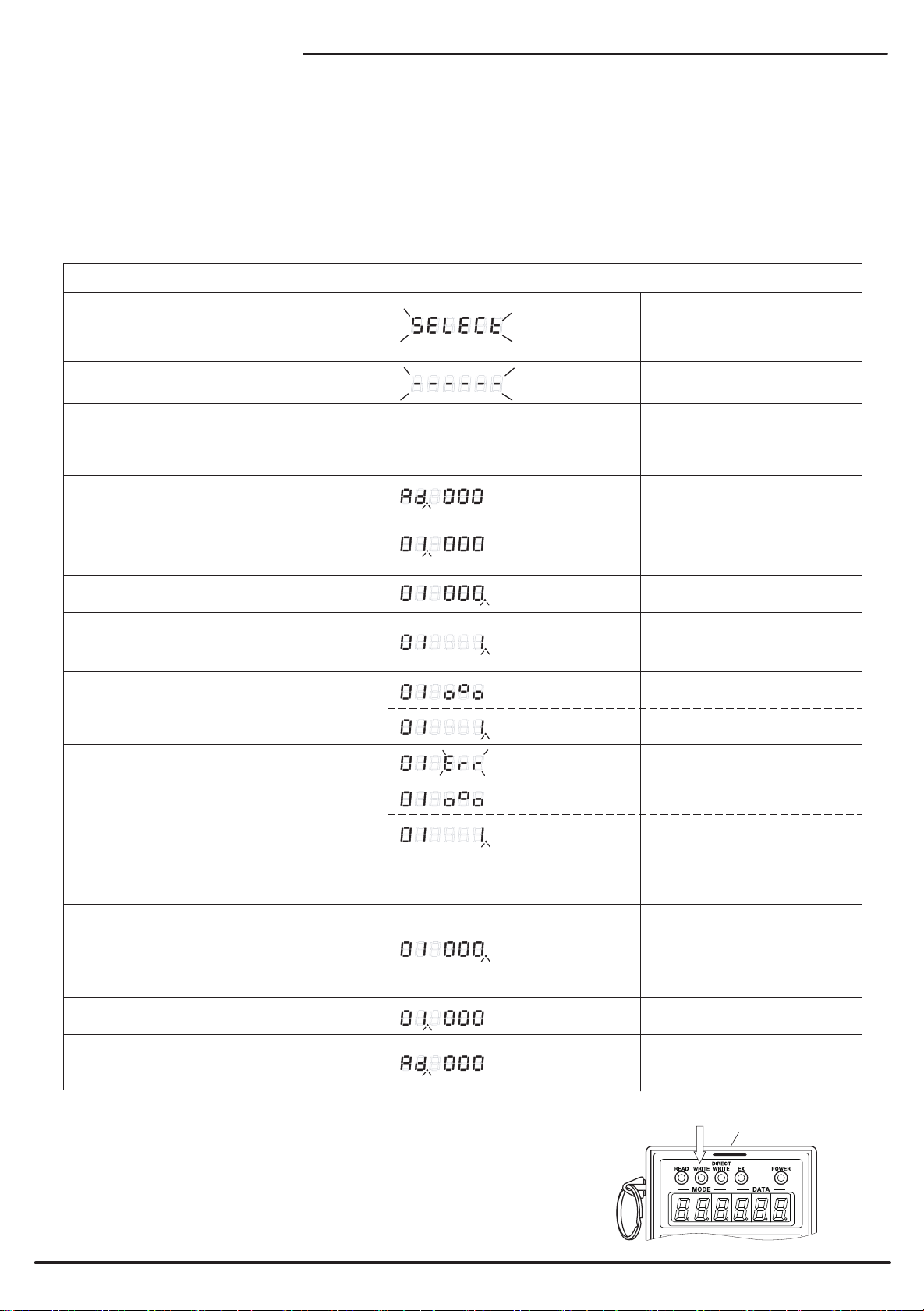

■Parameter direct writing operation
DIRECT WRITE (orange)
5
6
7
8
9
12
11
10
1
2
3
4
Example)
Example)
Example)
[Direct writing of parameters]
The values become available at the time when addresses are written.
Check that power (in the case of 2-wire type, transmission signal) is supplied to the target unit in writing addresses.
In this mode, the values are updated at the time when addresses are written. Please carry out the operation
carefully because the characteristics and movement change and it may result in unexpected operation.
How to operate Display
Turn ON the POWER switch.
Press the SELECT switch several
times to light the DIRECT WRITE
display.
Err display
Written parameter values
In the case of selecting
variable “1” in parameter 1
Written parameter values
Dot flashing movement
After approximately
2 seconds, “SELECt” flashes.
Flashing
The writing mode is
determined.
Change to the Ad display.
Return to the writing
mode display
During the writing operation
During the writing operation
Dot flashing movement
If returning to the address setting mode,
press the DOWN switch once.
Press the SELECT switch.
Press the SET switch.
Press the SET switch.
- Clear the Err display.
-
Switch the mode to another mode.
Press the CLEAR switch.
After using ARW-03, keep the POWER switch
pressed to turn OFF the power.
In the case of failure in writing
Press the UP switch once to change
the display to parameter writing.
Press the L switch.
Display the parameter value to be
written by using the UP/DOWN switches.
Point the light emitting and receiving
part (yellow frame) at the address
setting port of the unit to be written
and then press the SET switch.
WRITE must be lighted. Light emitting and
receiving part
(yellow frame)
If writing parameters from another
unit, return back to Operation
No.6 to repeat the operations.
Readjust the light emitting and
receiving part and
press the SET switch again.

-ARW03 16/17-
Power switch
Comment display
POWER indicator lamp
2 AAA dry batteries
Battery case cover
Battery case
Please pull the cover in the arrow direction.
+-
+-
POWER switch ON
POWER switch OFF
POWER indicator lamp flashes
■Battery replacement
Batter is almost dead.
Battery replacement
Condition Display
1
2
[Battery replacement]
If the POWER indicator lamp flashes, the battery is almost dead. Please replace it with new one.
*Dry batteries are separately packed to be attached to the writer.
The attached batteries are monitor batteries for operation check.
Therefore, the batteries may run down sooner than commercially
available batteries.
In such cases, purchase 2 “AAA dry batteries” separately.
Rechargeable batteries are not recommended.
Put batteries in the correct directions (+ and -). If not
put in the correct directions, it may cause a failure,
breakage, etc.
Properly dispose of used batteries in accordance with
the regulations of each local government.
CAUTION

[Outer dimensions]
-ARW03 17/17-
Printed in Japan 2011, 2013 UMA-08321F-EN
100
61
Unit: mm
19
[Address]
Anywire Corporation
Headquarters :1 Babazusho, Nagaokakyo-shi, Kyoto 617-8550 JAPAN
:Contact by mailContact [email protected]
:Contact by website http://www.anywire.jp
