ARTHUR HOLM AHSSR42W User manual

User manual
AHSSR42W
››DynamicSpeaker.›Motorised›loudspeaker›for›integration›in›desks.

2
User manual About us
The›company
Arthur› Holm› has› its› origins› in› the› Danish› furniture› designer› Jorgen› Alex› Jensen,› who› was› active› during› the› sixties› and› the›
seventies.›His›design› inspiration›and› his›concept› of›ergonomics› have›been›continued› by›his›family,›the›design›force›behind›
Arthur›Holm›product›range.›The›result›of›combining›Scandinavian›design›tradition›with›Mediterranean›creativity,›flexibility›and›
emotion›is›a›wide›product›range›built›on›more›than›20›years›of›craftsmanship.
Arthur› Holm› offers› a› professional› product› range› where› tomorrow’s› technology› is› shaped› into› valued› materials› with› design›
flexibility› and› customisation,› specially› created› to› enhance› communication› and› collaboration› in› reception,› conference› and›
meeting›areas.
The›art›of›customisation
Arthur› Holm› offers› a› range› of› ingenious› products› whose› designs› are› based› on› quality› materials› and› the› latest› technology.›
Products›which›endow›meeting›and›conference›rooms›with›silent,›ergonomic,›innovative›and›aesthetic›solutions›that›integrate›
into›the›furniture,›hang›from›the›walls›as›works›of›art›or›are›used›as›interactive›points›of›information.
The›world›of›Arthur›Holm
Arthur›Holm›offers›a›selection›of›unique,›elegant,›versatile,›flexible›and›ergonomic›products›that›are›being›used›in›meeting›and›
conference›rooms,›reception›areas,›auditoriums›and›public›zones›of›leading›companies›throughout›the›world.›
The›numbers›speak›for›themselves!›We›currently›own›27›product›patents,›have›presence›in›over›45›countries›with›products›and›
solutions›in›more›than›20,000›installations.›
It›will›be›our›pleasure›to›work›with›you,›designing›your›unique›environment.›Our›broadcast›electronic›engineers›will›provide›the›
latest›technology›while›our›design›team›will›offer›you›the›most›exclusive›appearance.
Our›team›puts›its›heart,›passion›and›pride›in›all›our›designs.
Technology››serving›Design

3
User manual Welcome
Thank›you›for›purchasing›an›ARTHUR›HOLM›product.
Our›product›range›has›been›designed›to›create›the›perfect›meeting›room,›where›the›screens›are›a›part›of›the›interior›design›
as›well›as›essential›communication›tools.
Please›read›these›installation›and›operation›instructions›carefully›and›keep›them›in›a›safe›place›for›future›reference.
We›remain›at›your›disposal›if›you›have›any›suggestions›that›would›help›us›improve›our›products.
Henrik›Holm
General›Manager

4
User manual Table of contents
EC›Normative›and›Security›Norms 5
Features 7
Connections 8
Controls›and›Audio›Features 9
AHnet›Protocol 10
AHlink 12
Disposal›Information 16
Warranty 17

5
User manual EC Normative and Security Norms
Safety Instructions
PLUGS
Do›not›dismantle›any›part›of›the›monitor›power›connector.
Disconnect›the›power›plug›from›the›AC›outlet›when›the›monitor›is›not›going›to›be›used›for›an›indefinite›period.
POWER AND EXTENSION CORDS
Use›the›appropriate›power›cord›with›the›correct›plug›type.
Do›not›overload›wall›outlets›or›power›cords.
Make›sure›the›total›ampere›passed›through›an›extension›cord›does›not›exceed›the›maximum›allowed›by›the›cable›used.
Do›not›place›anything›on›the›power›cord.
Do›not›locate›this›product›where›a›person›may›trip›or›walk›over›the›cord.
ATTENTION: Do not disassemble or modify the device in any way
This›symbol›warns›of›the›presence›of›dangerous›non-insulated›voltages›inside›some›
of›the›components,›which›are›powerful›enough›for›risk›of›electric›shock.
This›symbol›draws›attention›to›important›use›and›maintenance›instructions›in›the›
manual›that›accompanies›the›unit.
This›symbol›indicates›that›the›equipment›conforms›to›the›norms›established›by›the›
European›Community.

6
User manual EC Normative and Security Norms
ENVIRONMENT
Install›the›equipment›on›an›elevated›flat›surface.
Install›the›equipment›in›a›ventilated›area.
Avoid›exposing›the›equipment›to:
››Rain›or›water
››Excessive›heat,›cold›or›humidity
››Areas›exposed›to›direct›sunlight
››Dirty›areas
››Equipment›generating›strong›magnetic›fields
Avoid›placing›open›containers›of›liquid›near›the›equipment.
Keep›a›minimum›distance›of›30mm›to›ensure›good›ventilation.
Never›place›any›sources›of›flames,›such›as›lighted›candles,›etc,›above›the›device.
If›you›are›using›the›device›in›extreme›weather›conditions›and›/›or›tropical›climates,›the›equipment›should›be›installed›in›a›
room›which›ensures›a›reasonable›level›of›temperature›and›humidity.
To›prevent›any›damage,›the›equipment›must›be›firmly›anchored›to›the›surface›as›the›installation›instructions›state.
Wiring connected to hazardous voltage requires installation by qualified
personnel or the use of ready-made flexible cables
For your security, your equipment must be connected to an electrical
outlet with grounding connection protection
The›operating›electrical›outlet›must›be›in›an›easily›accessible›place.

7
User manual Features
››Motorised›loudspeaker›for›integration›in›desks
››Compact,›omnidirectional›360›degrees›Class-D›active›speaker,›two›way›coaxial›driver,›integrated›DSP›technology
››System›controlled›through›AHnet›and›also›through›AHlink:›a›new›wireless›app›for›control›and›set-up
››Designed›to›be›hidden›when›not›in›use›with›a›smooth,›elegant›and›silent›movement
››360›degrees›loudspeaker›
››Near›field›audio›reproduction›
››Horizontal›surfaces›
››High›gain›before›feedback›
››Speech›intelligibility›enhancement
››Active›speaker›
››Remotely›controllable›
››Balanced›sound›level›distribution›
››Limited›audio›pollution›
››Low›ambient›acoustic›influence›
››Marching›surface,›ready›for›veneering›
››No›building›work›required
››Open›and›close›functions›controlled›by›touch›button›on›upper›cover›plate›and›external›ethernet›control›by›RS422›AHnet›
protocol›(RJ45).›
Features

8
User manual Connections

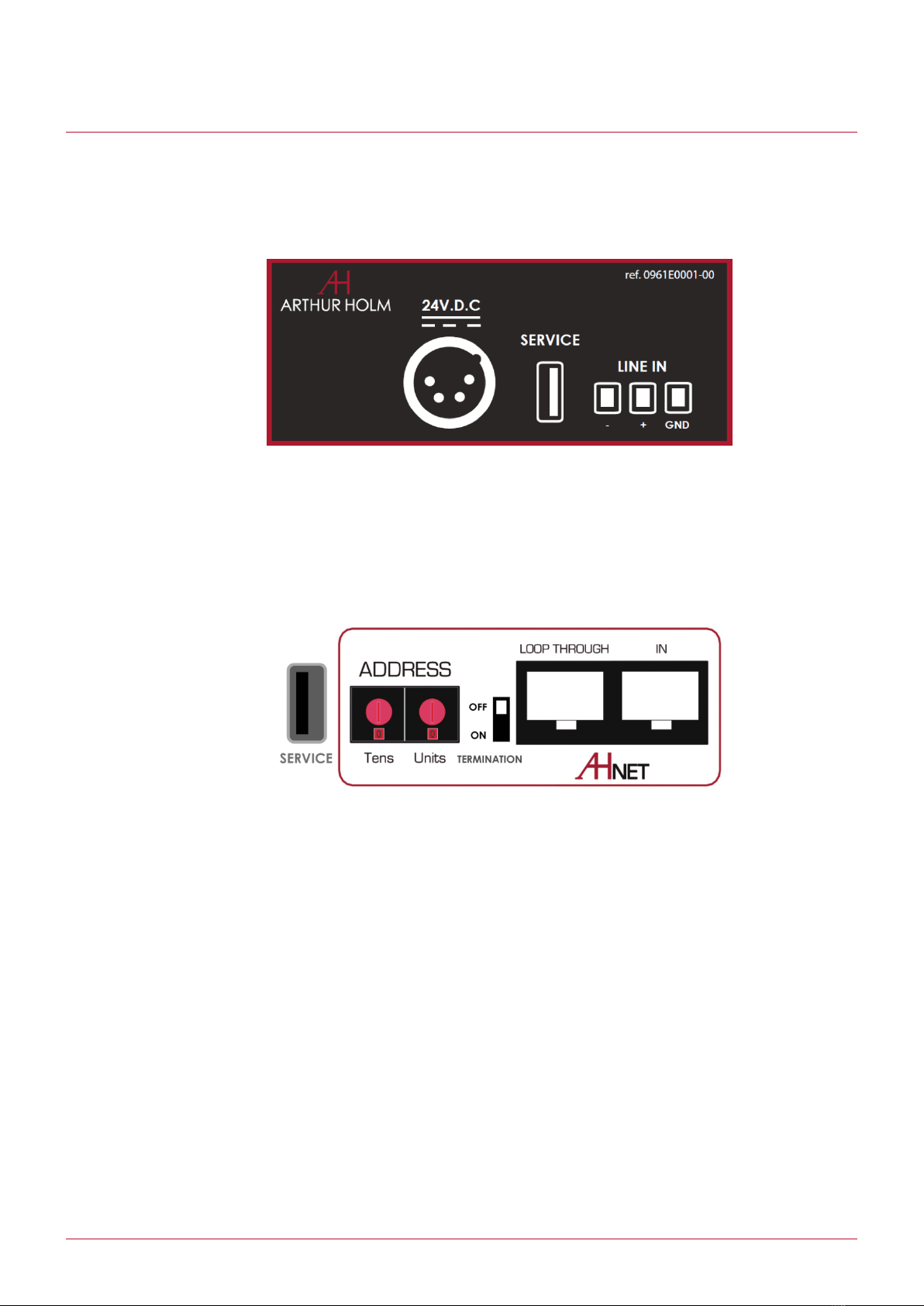

Connections
››24Vdc›power›input
››SERVICE:›USB›to›be›used›only›for›service
››LINE›IN:›Audio›input
››AHnet:›RJ45› CAT5›connector›for›addressable›RS422›control.›There›is›a›loop›through›connector›to›use›as›RS422›signal›
output.›Up›to›30›monitors›can›be›connected›to›the›same›RS422›bus
››Termination:›Activate›(ON)›the›termination›ONLY›on›the›last›monitor›of›the›RS422›bus
››ADDRESS:›AHNet›address›for›the›addressable›AHNet›command›protocol.›Address›00›is›reserved›for›service
››SERVICE:›USB›to›be›used›only›for›service

9
User manual Controls and Audio Features
Controls
Audio Features
1.› Touch›button›to›open›and›close›the›unit
››4’’›coaxial›loudspeaker
››Class-D›2›way›bi-amplified
››RMS›power›2›x›36.5W
››360º›dispersion
››Balanced›analogue›audio›input.›Level›line›+4dB
››Internal›DSP
››Frequency›response›:›70Hz›–›20KHz›(-10dB)

10
User manual AHnet Protocol
››Communication›type›:›RS422
››Connection›type›:›RJ45
››Wiring›type›:›CAT-5
››Speed›and›configuration›:
›–Baud›Rate›=›38400
›–Data›Bits›=›8
›–Parity›=›None
›–Stop›Bits›=›1
WIRING›DIAGRAM
Pins 1&2:›the›units››respond
Pins 3&6:›the›units›receive›instructions
Protocol›to›control›the›monitor›by›addressable›RS422›bus.›Up›to›30›monitors›can›be›connected›to›the›same›RS422›bus.›
It›is›possible›to›use›a›AH›Interface›Ethernet›to›control›the›RS422›bus.›The›units›should›have›set›an›address›and›the›address›
must›start›by›1.›Maximum›cable›length›between›ends›is›500m.
1.› Data›TX+
2.› Data›TX-
3.› Data›RX+
4.› NC
5.› NC
6.› Data›RX-
7. › NC
8.› NC
AHnet Protocol
AHnet›PROTOCOL
Using›5›bytes›communication:
BYTE 0 START›BYTE
BYTE 1 ADDRESS›BYTE
BYTE 2 COMMAND›BYTE
BYTE 3 VALUE›1
BYTE 4 VALUE›2

11
User manual AHnet Protocol
AHnet›commands:
XX:›Number›of›the›DynamicTalk›address.›Up›to›30›units›for›each›RS422›bus.
CB1:›Response›in›8›bites›of›the›device›status
CB2:›Response›in›8›bites›of›the›device›status
CB1:
To›send›an›order›to›all›devices›use›the›address:
› F7›Hex.›(Byte1)
In›this›case,›the›units›will›not›respond.

12
User manual AHlink
AHlink›is›used›to›control›and›configure›the›unit.
Activate›the›AHlink›function›by›pressing›the›open/close›button›on›the›cover›plate›during›3›seconds.

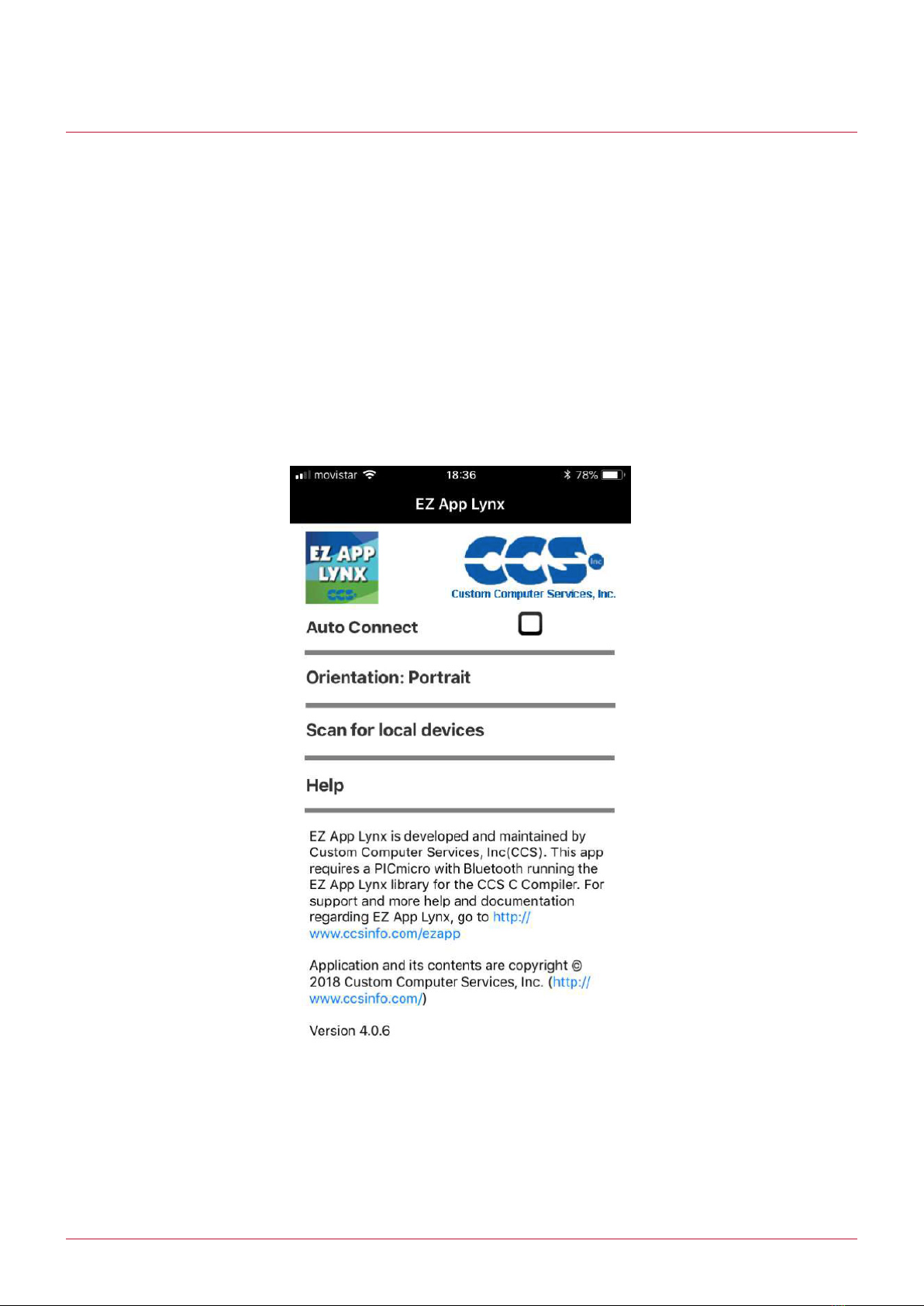

Using›a›mobile›phone,›download›the›“EZ›App›Lynx”›app›from›the›App›Store›(IOS›system)›or››Google›Play›(Android›system).›This›
App›is›cost›free.›Execute›the›“EZ›App›Lynx”›on›your›mobile›phone.
AHlink

13
User manual AHlink

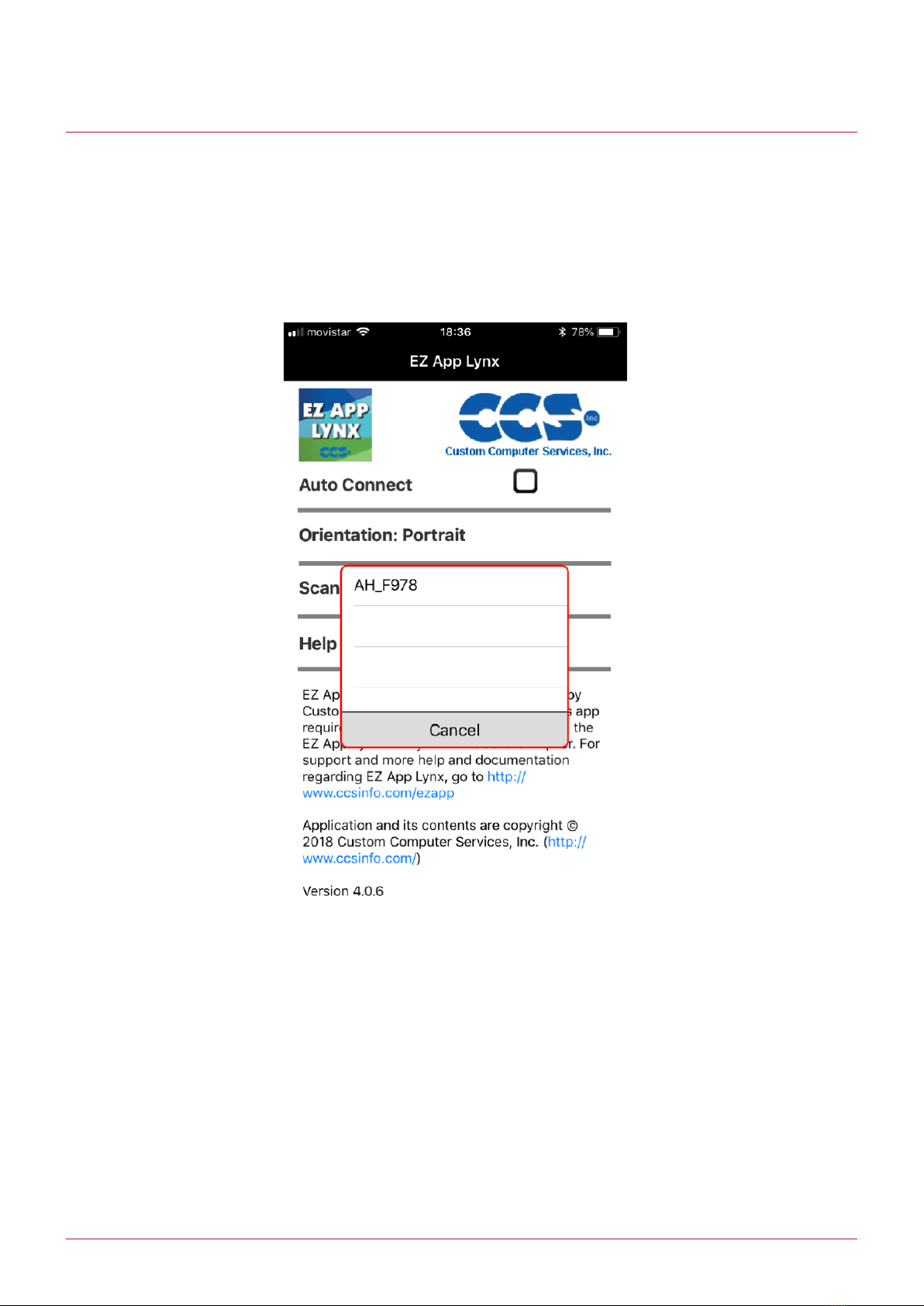

Select›the›“Scan›for›local›devices”›option›and›your›AH›device›will›appear›on›screen.
The›name›of›the›device›is›“AH”›+›4›character›Bluetooth›MAC›address›

14
User manual AHlink
After›selecting›the›device,›the›page›shown›below›appears›on›screen.
›Serial:›Serial›number›of›the›unit
›Ver:›Firmware›version
›MOV:›Control›for›the›open/close›mechanical›functions
›AHNetRx: Last›AHnet›command›received
›Sensor status: Sensor›status›information
–S1, S2:›Not›used
–S3:›Open/Close›sensor›switch.›The›sensor›is›Off›while›
pressing›the›Open/Close›button››on›the›cover›plate
–S4:›Mechanical›close›sensor.›The›sensor›is›On›when›the›
device›is››››››closed
›AHnet Address:››Shows›the›AHNet›address›configured
›Position:›Current›position›of›the›mechanics
›PSW Configuration:› Use› “4002”› password› to› change› the›
unit›settings.›Be›aware›to›modify›the›unit›parameters

15
User manual AHlink

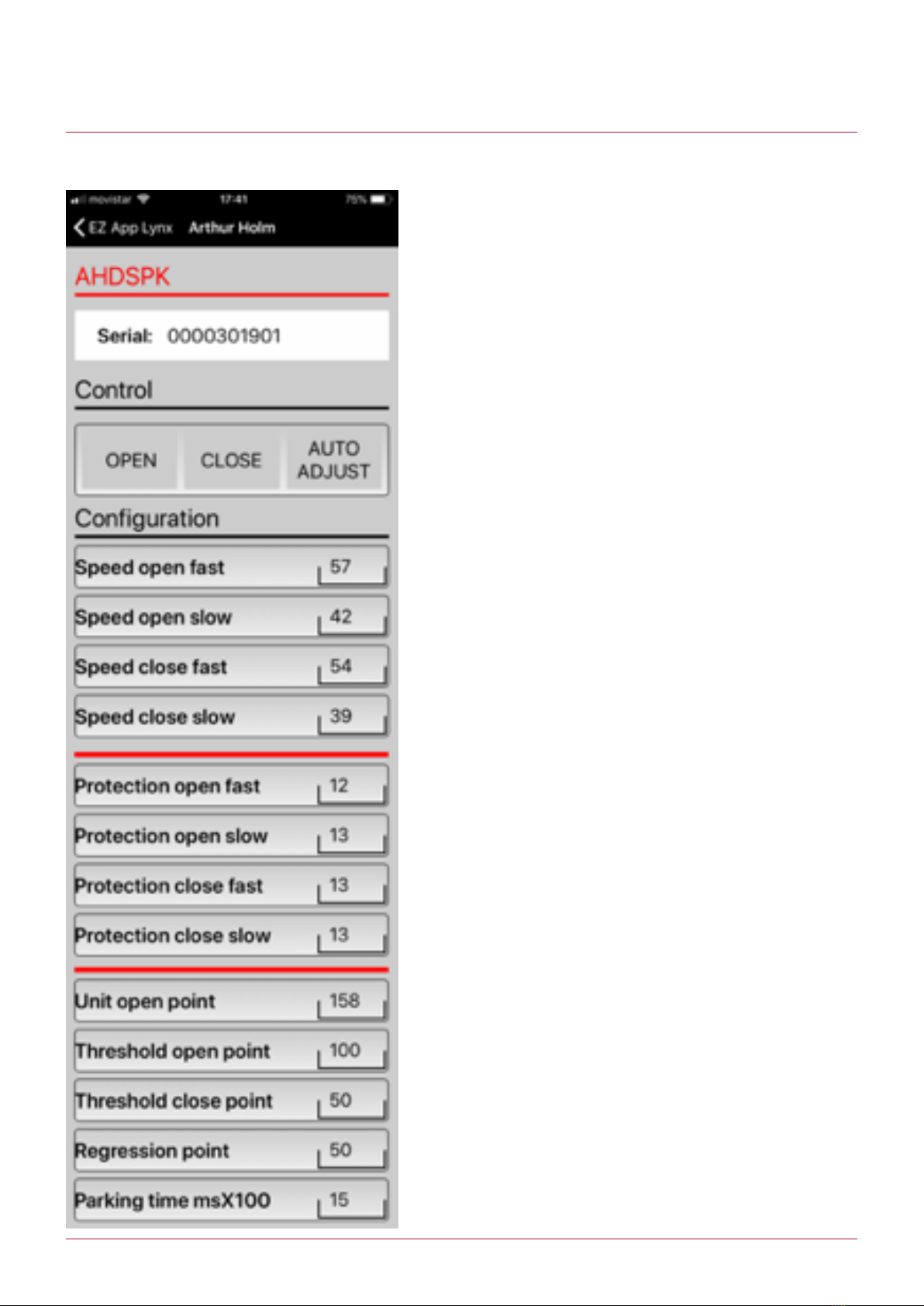

›Serial: Serial›number›information›of›the›device
›OPEN: Opens›the›unit
›CLOSE: Closes›the›unit
›AUTO ADJUST: Auto› adjusts› the› speed› and› protection›
parameters.›On›selecting›this›button›the›unit›will›open›and›
close› several› times› and› adjust› the› speed› and› protection›
parameters›automatically
›Speed open fast: Speed›open›fast›value
›Speed open slow: Speed›open›slow›value
›Speed close fast: Speed›close›fast›values
›Speed close slow: Speed›close›slow›value
›Protection open fast: Protection›open›fast›value
›Protection open slow: Protection›open›slow›value
›Protection close fast: Protection›close›fast›values
›Protection close slow: Protection›close›slow›value
Never›change›the›following›parameters.›They›are›set›by›default›
by›manufacturer.
›Unit open point: Open›unit›position
›Threshold open point: Second› position› where› the› speed›
changes
›Threshold close point: First› position› where› the› speed›
changes
›Regression point: Steps›that›the›unit›moves›in›the›opposite›
direction›when›the›mechanical›is›blocked
›Parking time msx100: Time› for› close› park› unit.› Time› the›
unit›takes›to›close›after›detecting›the›closing›sensor

16
User manual Disposal Information
This›symbol›on›the›products›and/or›accompanying›documents›means›that›used›
electrical› and› electronic› products› should› not› be› mixed› with› general› household›
waste.
For›proper›treatment,›recovery›and›recycling,›please›take›these›products›to›designated›collection›points,›where›they›will›be›
accepted›on›a›free›of›charge›basis.›Alternatively,›in›some›countries›you›may›be›able›to›return›your›products›to›your›local›retailer›
upon›the›purchase›of›an›equivalent›new›product.
Disposing›of›this›product›correctly›will›help›to›save›valuable›resources›and›prevent›any›potential›negative›effects›on›human›
health›and›the›environment›which›could›otherwise›arise›from›inappropriate›waste›handling.›Please›contact›your›local›authority›
for›further›details›of›your›nearest›collection›point.
In›accordance›with›national›legislation›penalties›may›be›applicable›for›incorrect›disposal›of›this›waste.
FOR BUSINESS USERS IN THE EUROPEAN UNION
If›you›wish›to›discard›electrical›and›electronic›equipment,›please›contact›your›dealer›or›supplier›for›further›information.
INFORMATION ON DISPOSAL IN OTHER COUNTRIES OUTSIDE THE EUROPEAN UNION
This›symbol›is›only›valid›in›the›European›Union.
If›you›wish›to›discard›this›product,›please›contact›your›local›authorities›or›dealer›and›ask›for›the›correct›method›of›disposal.
INFORMATION ON DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENTS WASTE

17
User manual Warranty
ALBIRAL DISPLAY SOLUTIONS S.L. WARRANTY
Valid from January 2016
ARTHUR›HOLM›/›ALBIRAL›VERTICAL›RETRACABLE›MONITORS›WARRANTY›TERMS:
LIMITED›5-YEAR›WARRANTY›ENGINE›AND›MECHANICAL›LIFTING›PARTS
The›engine›and›mechanical›lifting›parts›and›any›of›their›parts›other›than›those›covered›by›either›the›separate›warranties›below›
or›those›subject›to›normal›wear›and›tear›are›guaranteed›to›be›free›from›manufacturing›defects›for›a›period›of›5›years›from›the›
date›of›purchase.›If›any›manufacturing›defect›appears›in›the›engine›and›mechanical›lifting›parts›or›in›their›parts›other›than›those›
parts›covered›below›or›those›subject›to›normal›wear›and›tear›within›5›years›of›purchase.
LIMITED›2-YEAR›WARRANTY
LCD›PANEL,›LCD›PANEL›INVERTER,›LCD›CONTROLER›AND›POWER›SUPPLY›
The›electric›parts›of›this›Arthur›Holm›product›are›guaranteed›to›be›free›from›manufacturing›defects›for›a›period›of›2›years›from›
the›date›of›purchase.›
GENERAL›WARRANTY›TERMS
a)› Parts:›
During›the›warranty›period›mentioned›above›(LIMITED›5-YEAR›WARRANTY:›ENGINE›AND›MECHANICAL›LIFTING›PARTS›
and›LIMITED›2-YEAR›WARRANTY:›LCD›PANEL,›LCD›PANEL› INVERTER,›LCD›CONTROLER› AND›POWER›SUPPLY),›the›
replacement› of› any› electronic› and› mechanical› parts› against› any› defects› in› manufacturing.›› Panels› that› have› more›
than› 3› defective› pixels› (15-18”),› more› than› 4› defective› pixels› (20-23”)› and› more› than› 5› defective› pixels› (30-40”),›
will›be›replaced›under›warranty.›The›warranty›does›not›cover›any›faulty›electronic›and/or›mechanical›components›
arising›from›incorrect›installation,›non-authorised›modification›and›inadequate›transport›or›as›a›result›of›atmospheric›
phenomenon.
b)› Labour:›
Albiral›Display›Solutions›S.L.›covers›labour›costs›for›replacement›of›any›defective›parts›(in›accordance›to›paragraph›
a)›during›the›validity›of›this›warranty.›
c)› Transport›costs:›
I)››In›the›case›that›a›manufacturing›defect›occurs›within›30›days›after›the›purchase›date,›both›freight›and›insurance›will›››
be›paid›by›Albiral›Display›Solutions,›S.L.
Although›Albiral›Display›Solutions›S.L›pays›for›transport›and›insurance›costs,›Albiral›Display›Solutions,›S.L.›will›not›be›
responsible›for›the›damages›caused›by›transport›if›the›customer›does›not›inform›in›writing›when›receiving›the›goods.
II)›After›180›days›of›the›purchase›date,›both›freight›and›insurance›costs›will›be›paid›by›the›customer.
d)› Albiral›Display›Solutions›S.L.›will›not›be›responsible›for›the›damages›caused›by›transport›when›this›is›paid›by›customer.
e)› This›warranty›is›not›valid›if›persons›other›than›an›authorised›service›centre›have›handled›the›product›and›if›the›› ›
› product›has›been›manipulated›or›warranty›seals›are›removed›or›manipulated.
f)› The›beneficiary›of›the›warranty›will›have›to›send›the›devices›with›the›original›packaging›or›an›appropriate›one›to›› ›
› ensure›there›are›no›damages›during›transport.
g)› This›warranty›is›not›valid›if›the›customer›does›not›include›RMA›form›and›copy›of›the›purchasing›invoice.
Albiral›Display›Solutions›S.L.›recognises›all›guaranteed›user›rights›by›all›legal›rules›from›its›region›and›in›the›absence›of›them,›
all›established›consumer›rights›by›general›law›26/84.
Albiral›Display›Solutions›S.L.

18
User manual Notes

19
User manual Notes

Our Product Patents
›MU 1996 ES00
›MU 16997 ES00
›MU 17180 ES00
›MU 17301 ES00
›MU 17322 ES00
›MU 17376 ES00
›MU 1741 ES00
›MU 17445 ES00
›P 248121 DEEP
›P 24821 ESEP
›P 24821 FREP
›P 24821 GBEP
›P 24821 ITEP
›P 24821 RUPC
›P 24821 USPC
›P 27178 EPPC
›P 27178 RUPC
›P 27178 USPC
›P 2784 EPPC
›P 2784 RUPC
›P 2784 USPC
›P 27715 EPPC
›P 28089 EP00
›P 28089 PCEP
›P 28090 EP00
›P 28090PCEP
›P 28495 ES00
ARTHUR›HOLM
Albiral›Display›Solutions›S.L.
Fàtima,›25›
Sant›Hipòlit›de›Voltregà
08512›Barcelona›-›Spain
Tel.:›+34›93›850›23›76›/›23›83
Fax:›+34›93›850›25›50
www.arthurholm.com
[e-mail]
This›manual›can›be›modified›without›previous›notice
Arthur›Holm›is›a›registered›brand›by›Albiral›Display›Solutions›S.L.
