AS MOTOR AS-53-2T-4WD-RB User manual

Operating Instructions
Four wheel driven mower
AS 53 2T 4WD RB + AS 53 2T 4WD
From serial number: 020910020001+020808020001
Issued: 11 February 2015, V11.0
EN-Translation of the Original Operating Instructions

2
dummy
Preface
Please fill in all data referring to your device.
When ordering spare parts, provide your deal-
er with the device and engine number.
Serial number:
Pleases adhere the sticker from the warranty
card here.
Engine number:
Date of purchase:
Address of dealer:
Dear customer:
Congratulations on your purchase. You have
acquired a reliable quality product by “AS-
Motor Germany”.
This product has been manufactured according
to modern manufacturing methods and com-
prehensive quality assurance measures. Only
when you are satisfied with your device, we
have attained our goal.
Read these operating instructions carefully and
attentively so that your device operates
smoothly and you and others are safe from any
hazards. If you have questions concerning
your device, please contact your dealer or call
our customer service (tele-
phone [phone]). For international
AS partners, please see:
www.as-motor.de/worldwide.
“AS-Motor Germany” wishes you much joy with
your new device.
Intended use
The device is exclusively intended for mowing
well maintained grassed lawn areas.
Only use attachments and cutting tools author-
ised by “AS-Motor Germany”.
Any use exceeding this purpose is inadmissi-
ble. The manufacturer is not responsible for
any damage resulting from this. Observe the
required maintenance and repair measures.
The user of the device is responsible for acci-
dents or damage to other persons or their
property!
The device must not be used:
–To cut hard objects, rocks, rubble, or pieces
of wood.
–To trim bushes, hedges, and shrubbery.
–To cut plants in flower pots or planters or on
rooftops.
–To clean (vacuum) footpaths.
–As shredder for shredding tree and hedge
cuttings.
–As drive unit for work tools and any type of
tool sets that are not authorised by “AS-
Motor Germany”.

3
Contents
dummy
2
Preface.....................................................
2
Intended use............................................
2
dummy Inhalts verzeichnis
4
Explanation of the symbols ....................
4
Symbols in the instructions ....................
4
Symbols on the device...........................
4
Type overview..........................................
5
Safety instructions ..................................
6
Get informed!.........................................
6
User restrictions and hours of operation.
6
Safe handling of fuel..............................
6
Check the device prior to use.................
7
Use caution during operation .................
7
Prior to mowing......................................
7
Use caution when mowing.....................
7
When work is completed........................
8
Use caution during maintenance and
repair.....................................................
9
Device description...................................
10
Control elements.....................................
11
Assembly .................................................
12
Scope of delivery...................................
12
Unpacking..............................................
12
Guide bar and handlebar .......................
12
Inserting the starter rope........................
13
Impact protection...................................
13
Transport..................................................
13
Information on mowing...........................
14
Prior to starting........................................
14
Fuel .......................................................
14
Tanking up.............................................
15
Adjusting cutting height..........................
15
Starting.....................................................
16
Starting the device.................................
16
Driving......................................................
16
Driving...................................................
16
Driving in reverse...................................
17
Turning..................................................
17
Switching off and parking.......................
17
Maintenance and cleaning......................
18
Preparations ..........................................
20
Cleaning the device ...............................
20
General inspection.................................
20
Maintaining the engine...........................
20
Checking the spark plugs.......................
20
Maintaining the air filter..........................
21
Checking rear brake...............................
21
Checking the drive.................................
21
Checking the reverse gear.....................
22
Checking the blade................................
22
Storage.....................................................
23
Storing the device..................................
23
Longer storage.......................................
23
Restarting ..............................................
23
Spare parts...............................................
24
Wear parts................................................
24
Disposal ...................................................
24
Warranty...................................................
24
Troubleshooting ......................................
25
Accessories .............................................
27
Mixing ratios fuel.....................................
27
Technical data..........................................
28
Declaration of conformity........................
29
Marketing
32

4
dummy Inhalts verzeichnis

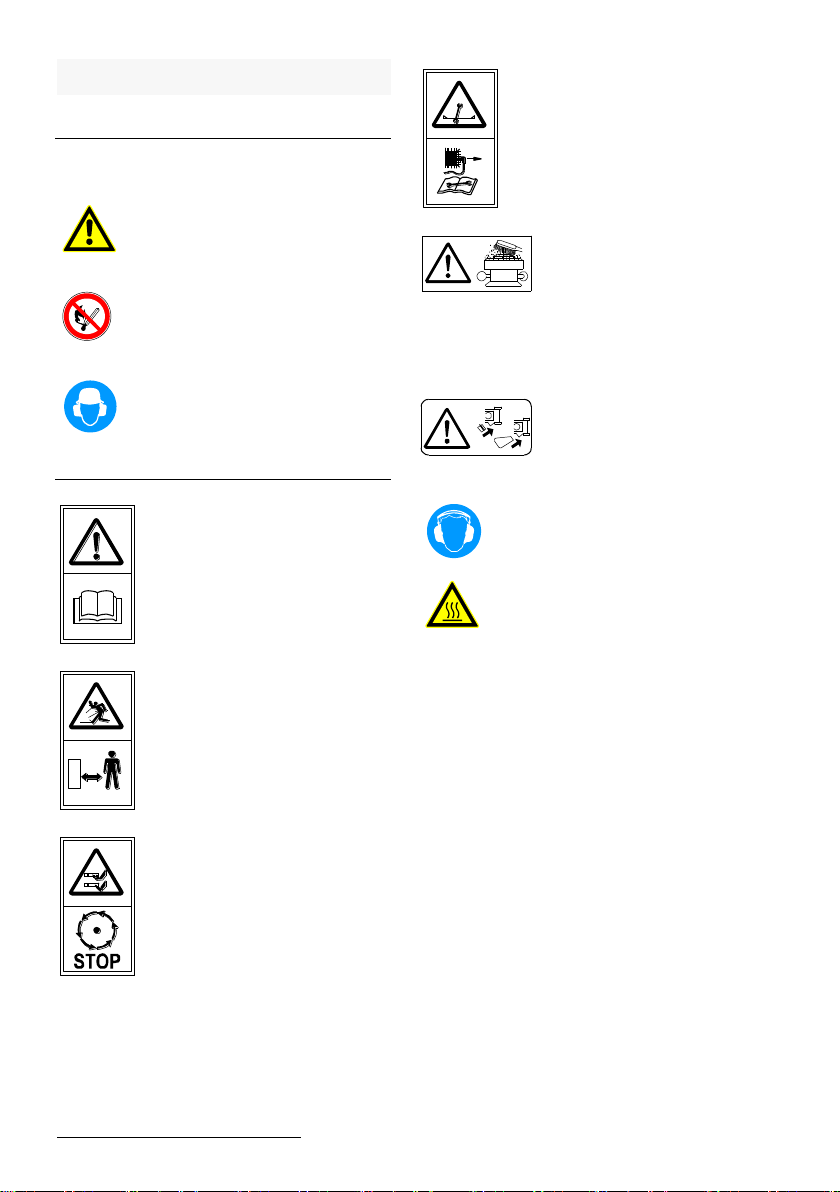

Explanation of the symbols
Symbols in the instructions
In these operating instructions, the following
symbols are used to denote special dangers.
Warning.
These symbols denote special
dangers.
Prohibition sign.
These symbols denote inadmis-
sible procedures.
Directive sign.
These symbols denote required
protective measures.
Symbols on the device
Working with the device requires
extreme cautiousness.
Read the operating instructions
before you use the device.
Risk of injury!
Make sure that no one is within
the danger zone of the device.
Objects may be ejected.
The quickly rotating blade can
cause life threatening injuries or
immense property damage! Be
especially careful to keep your
hands and feet away from the
blade when the device is put into
operation.
Prior to any repair and mainte-
nance work, pull off the spark
plug connector.
Clean the ventilation grid!
The cooling air of the
motor is sucked in through
the ventilation grid of the
engine cover. Always keep
the entire surface open
and free!
Operate the device only
when grass collection bag
or impact protection is
fitted.
Noise is causing health prob-
lems. Use personal ear protec-
tion to avoid hearing damage.
Hot surface. Do not touch the
engine or the silencer. They
become very hot during opera-
tion and you can get burned.

5
Type plate
The type plate on the device provides you
with information on the device type and
the technical data.
1
Name and address of the manufac-
turer
2
Device designation
3
Type designation
4
Rated power output in kW / engine
speed
5
Weight
6
Year of manufacture
7
Serial number
8
CE marking
9
Sound level LWA
leerer Absatz
Type overview
In this operating manual, the following device
types are described.
Depending on their equipment, the corre-
sponding descriptions of this operating manual
apply.
Type-dependent
equipment
AS 53 2T
4WD RB
AS 53 2T
4WD
Rear wheel brake
X
Accesso-
ries
Reverse gear
X
-

6
Safety instructions
Get informed!
For your safety, read these operating instruc-
tions with care. Familiarize yourself with the
control elements and the proper use of the
device. Share these operating instructions with
other users of the device.
Before you use the device for the first time, let
the dealer instruct you regarding safe use.
Get familiar with the device in a wide, open
and flat terrain first.
User restrictions and hours of
operation
Never allow children or persons who are not
familiar with the operating instructions to use
the device. Persons under 18 years of age
may operate the device only under proper
supervision. Local regulations determine the
minimum age of the operator und the operating
times.
Unsuitable for operation of the device are
persons who
–are under the influence of alcohol, drugs or
reaction retarding medicines.
–have physical and mental/emotional impair-
ments.
–are tired or sick.
People fitted with pace makers
are not allowed to touch any
current carrying parts of the
ignition system.
Safe handling of fuel
Danger!
Fuel is toxic and highly inflamma-
ble.
Danger of fire and explosion!
Keep the fuel away from ignition
sources and do not smoke while
handling the device.
Do not inhale fuel vapours; they are
dangerous to your health.
Use gloves and avoid skin
contact with the fuel.
Fuel up outdoors only when the engine is cool
and not running. Use a filler or funnel.
Do not spill any fuel and do not let the fuel get
into the canalisation or ground water.
If you spilled fuel, do not start the device until
the fuel vapours have evaporated (wipe dry).
Move the device away from the area where the
fuel was spilled.
Always close the tank cap securely and do not
open it while the engine is running or the de-
vice is still hot.
Drain the fuel tank only when outdoors. Use a
suitable container or run the tank empty.
Keep the fuel away from children and store it in
a suitable container in a dark, cool, and dry
location.
Never park the device with fuel in the tank
inside a building where fuel vapours could
come in contact with open fire or sparks.
Immediately replace a damaged fuel tank or
tank cap (authorised dealership).
First aid
When swallowing fuel or inhaling fuel vapours,
do not force vomiting and immediately consult
a doctor.

7
In case of skin contact, immediately wash with
water and soap. Change your soiled clothing
as soon as you can.
Measures in case of a fire
In case of a fire, use foam, dry powder extin-
guisher, or carbon dioxide (CO2). Never douse
with water!
Check the device prior to use
Prior to use, check the knife, drive and fas-
tening parts for proper working condition and
firm seating by visual inspection.
Never use the device with defective or missing
covers or impact protection.
Do not remove, change or override any safety
devices or control elements.
Observe the maintenance instructions and
replace damaged or worn parts immediately.
Have an authorised service centre check your
device if the blade does not stop within
3 seconds.
Use caution during operation
Do not start the engine
–if fuel was spilled.
–in closed or poorly ventilated rooms (danger
of poisoning!).
–if there are other persons nearby.
Only start the device when your feet are at a
safe distance to the blade.
During startup of the engine, do not tilt the
device.
Do not touch the engine or the silencer. They
become very hot during operation and you can
get burned. Resulting unintentional movements
constitute an additional injury hazard.
Switch off the engine and wait until the blade
comes to a standstill
–before you tilt or transport the device.
–if you step away from the device, even for
just a short time.
–when you drive on surfaces other than
grass.
–before you adjust the cutting height.
–before you refuel.
Switch off the engine and wait until the blade
comes to a standstill, and pull off the spark
plug connector
–before you clean or check the device or
before you carry out work on the device.
–before you unblock or unclog the discharge
area.
Prior to mowing

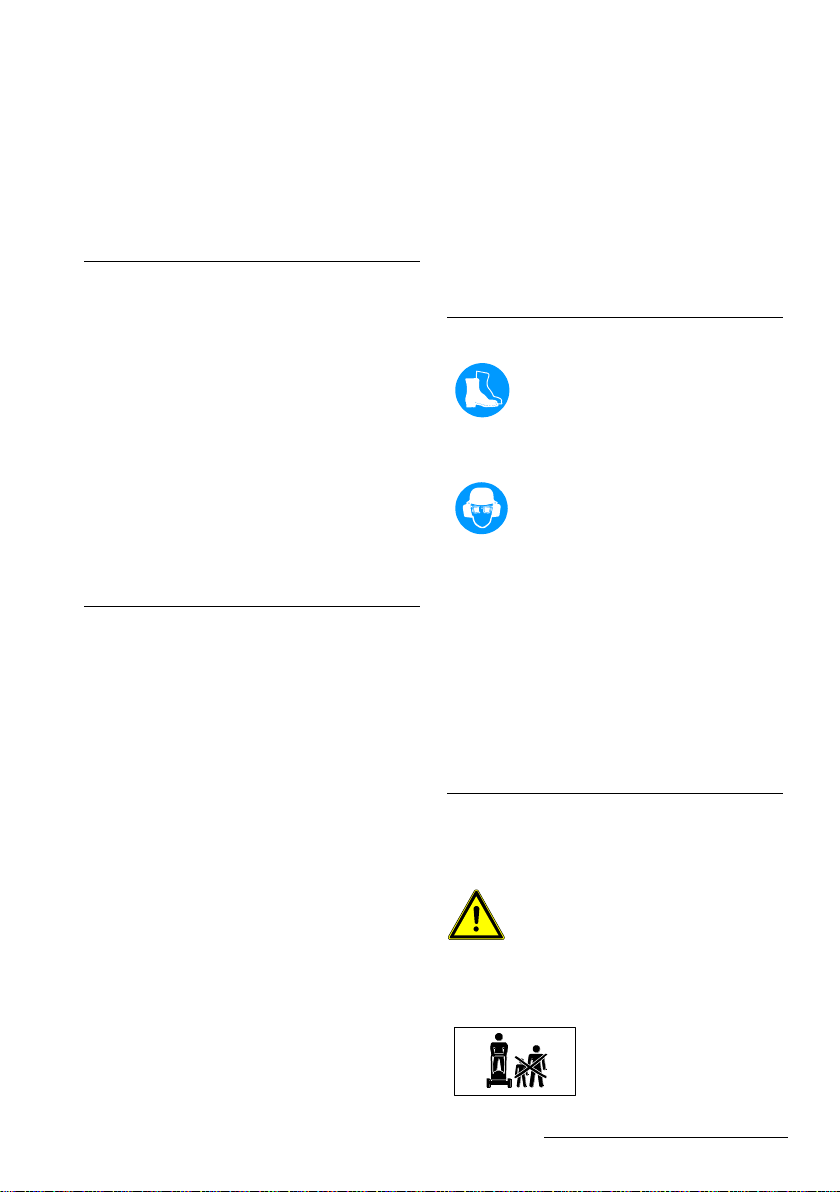

Personal protective measures
While mowing, always wear
sturdy footwear with good grip,
long trousers, and gloves. Do
not mow in open sandals or
bare feet.
Noise is causing health prob-
lems. Use personal ear protec-
tion to avoid hearing damage.
Wear safety glasses and head-
gear.
Ask your specialised dealer about suitable
protective equipment.
Preparing the mowing area
Prior to mowing, carefully check the perimeter
of the lawn. Remove rocks, pieces of wood,
bones, wires, and other objects that could be
picked up and thrown out by the device.
Use caution when mowing
Risk of injury
Stay within shouting distance to other people
who can help you in case of an emergency.
Danger!
Risk of injury caused by thrown out
objects.
Never mow while persons, children,
pets, or property are in the vicinity.

8
The area in front of and to the right of the
device is especially dangerous.
Keep your hands and feet away from the
rotating parts. Keep a distance to the ejection
area while working with the device.
Never remove the impact protection. The
rotating knife can cause injuries and objects
can be thrown out.
Only mow during daylight or with adequate
artificial lighting. Never mow in the event of
uncertain weather conditions and risk of light-
ning.
Be especially carefully when mowing on soft
ground, nearby landfills, ditches and dikes.
Avoid mowing wet grass -
slipping hazard!
Be extremely cautious when turning the device
round or pulling it toward you and when mov-
ing in reverse.
Always walk slowly!
Never lift or carry the device when the engine
is running.
When using the device over a longer period of
time, vibrations can cause disturbances in the
blood supply of the hands. A generally accept-
ed usage time cannot be determined. Use
gloves.
Take breaks on time.
Have an authorised service centre check the
device immediately
–if the blade hit an object.
–if the device starts to vibrate unusually
severely.
Caution when mowing slopes
When mowing slopes,
there is a risk of slipping
and tilting!
–Only mow steep slopes when safe operation
assured.
–Do not mow excessively steep slopes.
–When mowing steep slopes, meet the ap-
propriate safety measures, e.g. use step
irons.
–Always mow in horizontal directions, never
up- or downwards.
–Sure footing is essential for your safety,
always wear skid proof safety shoes.
–Be extremely careful when changing the
direction.
–Only mow when the surface is dry and non-
slip.
The device can roll away when you mow
downhill. Put the device down on even surfac-
es only and prevent inadvertent rolling.
Mowing surfaces with fire hazard
–Carry a sufficient amount of suitable extin-
guishing agent.
–If side inclination is too great, fuel may leak
from the carburetor or the tank. This poses a
fire hazard!
–Observe the mowed surface also after mov-
ing is completed to ensure that no fire will
start.
To avoid risk of fire, keep the following compo-
nents free of dirt, grass, hay, leaking oil,
grease, etc.:
–Engine
–Silencer (manifold, guard, clearances)
–Area around the fuel tank
When work is completed
After mowing, always close the fuel valve and
the tank ventilation.
Prior to leaving the device, wait until the engine
comes to a standstill and pull off the spark plug
connector.
After switching it off, let the device cool down
for at least 20 minutes before you store it in a
dry, closed, sufficiently ventilated room.
Never store the device when there is fuel in the
tank inside a building where fuel vapours might
come into contact with open fire or sparks.

9
Use caution during maintenance
and repair
Only carry out maintenance work as described
in these operating instructions. Have an au-
thorised service centre carry out all other work.
Only use the knives and spare parts authorized
by “AS-Motor Germany”. Unauthorized knives
and spare parts can cause severe injuries.
Prior to all maintenance work, wait until the
engine comes to a standstill and pull off the
spark plug connector.
We explicitly point out that, in accordance with
the Product Liability Act, we are not liable for
damages that were caused by our devices if
–worn or damaged parts were not repaired or
replaced on time.
–these damages were caused by improper
repair.
–when changing a part, our original parts or
parts authorised by use were not used.
–the repair work was not carried out by an
authorised service station.
The same applies for spare parts and accesso-
ries.

10
Device description
1
2
3
4
5
6
789
11
12
13
14
10
15 16
1
Impact protection
2
Choke
3
Height adjustment rear
4
Starter grip
5
Tank filler spout
6
Tank ventilation
7
Handle bar with control elements
8
Fuel valve
9
Bar locking
10
Spark plug connector
11
Ventilation grid
12
Silencer
13
Air filter
14
Cutting height adjustment front
15
Type plate
16
Cover

11

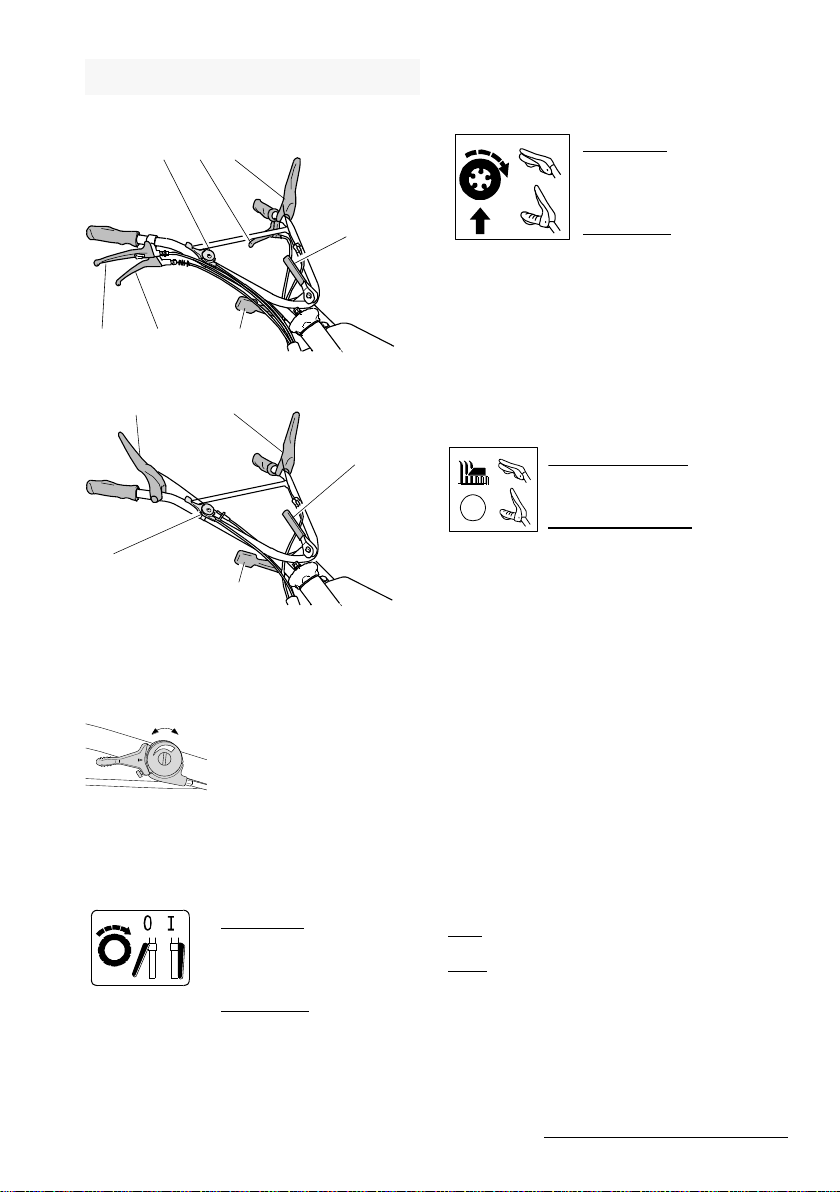

Control elements
Handlebar AS 53 2T 4WD RB
1
4
526
7 3
Handlebar AS 53 2T 4WD
1
23
4
5
Throttle lever (1)
With the accelerator lever, you change the
engine speed and thus control the engine
output.
1 2
1: Neutral position
2: Full throttle
Drive lever (2 - AS 53 2T 4WD RB)
With the drive lever, you switch the drive on
and off.
Drive on (I):
Press the lever towards
the handlebar and contin-
ue to hold.
Drive off (0):
Release the lever.
Drive lever (2 - AS 53 2T 4WD )
With the drive lever, you switch the drive on
and off.
I
0
Drive on (I):
Press the lever towards
the handlebar and contin-
ue to hold.
Drive off (0):
Release the lever.
Engine brake lever (3)
The engine brake lever is a protection device.
When you release the lever, the engine shuts
down immediately, the blade comes to a
standstill within 3 seconds.
M
I
0
Blade/engine on (I):
Press the lever towards the
handlebar and continue to hold.
Blade/engine off (0):
Release the lever.
Lever for lateral adjustment of handlebar (4)
1. Release the eccentric tension lever.
2. Attention: Do not crush the Bowden cables
when pivoting the handlebar.
Swivel the handlebar to the side to the de-
sired position.
3. Clamp the handlebar with the eccentric
tension lever.
Vario lever (5)
With the vario lever, you can continuously
adjust the speed of the device while the
engine is running.
MIN: slow
MAX: fast

12
Rear wheel brake lever (6)
You need brakes when going downhill and
when you switch off the device. To brake you
must release the drive lever.
1
Brake on (I):
Press the lever towards the
handlebar and continue to hold.
Brake off (0):
Release the lever.
Parking brake on (I):
Press the lever towards the
handlebar and press the
catch (1).
Reverse gear (7)
To switch on the reverse gear, you must
release the drive lever. Reverse speed is half
of the forward speed.
0
I
Reverse gear on:
Press the lever towards
the handlebar and contin-
ue to hold.
Reverse gear off:
Release the lever.
Carburetor with choke and tickler
The choke (1) and the tickler (2) are required
for the cold engine start.
Opening the choke:
Turn clockwise to the
stop.
Closing the choke:
Turn anti-clockwise to the
stop.
2
1
Filling carburetor with
fuel:
Press the tickler briefly
until the fuel flow starts.
Fuel valve
12
1: Open
2: Closed
Assembly
Scope of delivery
The device is delivered in a carton.
The scope of delivery includes:
–The device.
–These operating instructions.
–Warranty card.
–Impact protection.
–Tool bag with small items.
Unpacking
1. Remove the loose parts from the box.
2. Cut open the front side of the box.
3. Push the device out of the box
Guide bar and handlebar
2
1
1. Flip the guide bar (1) backwards and en-
gage it with the bar fixing (2).

13
3
1 2 4
Attention: Do not crush the Bowden cables (1)
when fixing the handlebar.
1. Slacken the hexagon nut (2) at the eccen-
tric lever (3) and remove the eccentric nut
and the washer (4).
2. Apply the handlebar to the bar and re-insert
the washer.
3. Turn the hexagon nut (2) until the eccentric
lever can be tensioned with normal force
and is positioned parallel to the bar.
4. Clamp the handlebar down with the eccen-
tric lever.
Inserting the starter rope
1
1. Press and continue to hold the engine
brake bar.
2. Slowly pull the starter rope at the starter
grip (1) backwards and insert it into the
guide.
Impact protection
21
1. Insert the attached 3 cup square bolts with
a big washer from the inside of the device
housing into the holes (1).
2. Thread the impact protection (2) and screw
it down with 3 small washers and 3 nuts.
leerer Absatz
Transport
Switch off the engine and wait until the blade
comes to a standstill before you lift the device.
Two people should lift the device.
Switch off the device before every transport
and let it cool down for at least 20 minutes.
Close the tank ventilation and the fuel valve.
For transport, you can fold up the handlebar
and the guide bar.
When transporting by vehicle, secure the
device against rolling, sliding, tilting, and fuel
and oil leakage.

14
Use tension belts to secure the device.
Beware: To avoid damage to the device,
fasten the tension belts exclusively as shown
in the illustration. Do not overtighten the ten-
sion belts.
leerer Absatz
Information on mowing
Prior to mowing, check your device for com-
pleteness, proper functioning, and cleanliness.
A dirty ventilation grid causes overheating of
the engine, this can damage the engine. A dirty
protective grid at the silencer poses a fire
hazard.
To keep the area well maintained, mow fre-
quently and keep the grass short. Do not mow
your lawn too low in dry and hot conditions
because the lawn is susceptible to sun and
heat damage and will look unsightly!
Only mow with a sharp and undamaged blade.
Have the blade sharpened and balanced
regularly (by authorised service centre).
Do not mow when the grass is wet or when it is
raining. The turf may be damaged and there is
a danger of slipping!
Turn the device around only in already mown
sections. Do not leave the device unattended
while the engine is running
For mowing, always turn the accelerator lever
to full throttle to achieve the best mowing
performance.
To avoid blockage during the ejection of grass,
we recommend, for flat terrain, to proceed
according to the mowing patterns. Mulch is
shredded into much smaller pieces when you
mow the terrain once again in the opposite
direction.
If the grass is extremely high, mow twice at
different cutting height settings.
leerer Absatz
Prior to starting
Fuel
The engine must be run on a mixture of petrol
and two-stroke oil.
For possible mixing ratios, see chapter Mixing
ratios fuel.
Use unleaded petrol (octane rating at least
ROZ 91). You can use E10 petrol. Do not store
E10 petrol longer than 30 days.
Always use synthetic or, even better, fully
synthetic two-stroke oil. Mineral two-stroke oil
is not recommended.
AS-Motor recommendation:
Fully synthetic two-stroke oil TITAN 2T 100S in
ratio 1:100.
Your benefits:
–Halve oil consumption compared to 1:50-
therefore more environmentally and cost
friendly.
–Optimum protection of the engine for a long
service life.
–Low engine wear.
–Maximum engine performance.
You can buy Fuchs “TITAN 2T 100S“ from
your AS-dealer:

15
Container
ET no.
1 litres
(resealable bottle)
E06830
G00041042
100 ml
(disposable container)
E10286
G00041056
40 * 100 ml
(disposable containers in
box)
E10561
G00041058
Notice: You can find on the market ready
mixed two-stroke fuels. Based on our experi-
ence, the ready mixed fuels “STIHL Motomix
1:50” and “ASPEN 2-stroke” can be used. No
guarantee can be given for operation of the
device with other fuels and oils!
Do not use mixtures with more oil than 1:50
(e.g. 1:35).
Too much oil results in carbon deposits and
reduces the service life of the engine.
Only use the synthetic two-stroke oils explicitly
intended for mixing.
Use of engine oils or even waste oil results in
engine damage.
No warranty is given in these cases.
Storing fuel mixture
The fuel mixture ages and can cause engine
damages. Only mix as much fuel as you are
going to use up during the next mowing.
Tanking up
Danger!
Fuel is ignited by hot engine parts.
Prior to filling up, switch off the
engine and wait for at least
20 minutes until the engine has
cooled down. Observe the safety
instructions regarding the fuel!
Filling in the fuel:
1. For filling, use a canister with a filler spout
or use as funnel.
2. Open the canister carefully so that the
existing overpressure is discharged slowly
and no fuel spurts out.
3. Open the tank cap carefully so that the
existing overpressure is discharged slowly
and no fuel spurts out.
4. Fill the fuel tank.
5. Screw the tank cap on tightly.
Adjusting cutting height
Adjust the cutting height setting only when the
engine is switched off.
Set the cutting height so that the blade does
not touch the ground even in case of terrain
unevenness. If the cutting height is set too
high, objects can be ejected and the “clean cut
appearance” can be destroyed.
1
The cutting height can be adjusted on each
axle in 6 levels of 30 mm up to 100 mm.
1. Switch off the engine and wait until the
blade has come to a standstill.
2. Unlock the grip bar at the front axle by
pressing the touch handle (1).
3. Swivel the grip bar to the desired position.
4. Set the cutting height at the rear axle in the
same way.

16
Starting
Danger!
During startup, there is a risk of
injury caused by the rotating blade.
Make sure that no one is within the
danger zone of the blade. Do not tip
the device over to one side during
startup.
Danger!
If after startup the carburetor does
not close properly, fuel will overflow
and a fire hazard occurs.
Close the fuel valve and contact an
authorised service centre.
Starting the device
1. Place the device onto a flat surface, not in
high grass.
2. Open the fuel valve and the tank ventila-
tion.
3. Plug on the spark plug connector.
4. Only for cold start: Close the choke at the
carburetor (turn anti-clockwise).
5. Press the tickler at the carburetor until the
fuel is seen to drip.
6. Put the accelerator lever to lowest engine
speed position.
7. Actuate and hold the engine brake lever.
8. Pull the starter point slowly out until you
feel resistance then pull out quickly –en-
gine starts to run.
9. Let the starter rope retract slowly.
10.Put the accelerator lever to medium engine
speed position.
11.Reopen the choke (turn clockwise).
12.For mowing, set the accelerator lever to the
maximum speed.
Driving
Danger!
Risk of injury due to tripping or
slipping when driving in reverse,
pulling backwards and turning.
Make sure that your path is free of
obstacles and ensure safe footing.
Caution!
Driving when the drive and brake
are simultaneously pressed can
damage the brake.
Release the drive lever when you
brake.
Driving
In case of a dangerous situation, switch off the
blade by releasing the engine brake lever.
While driving forward, all four wheels are
driven.
Drive on
1. Use the varioshift lever to set the desired
speed.
2. Release the brake.
3. Press the drive lever towards the handlebar
–device starts moving.
Drive off:
1. Release the drive lever.
Adjusting speed
With the varioshift lever, you can continuously
adjust the speed of the device.
Only adjust the driving speed when the engine
is running; otherwise, the vario drive can be
damaged.
The front axis is equipped with a permanent
differential lock. This improves traction and the
driving stability of the device. The danger of
slipping is reduced.

17
Driving in reverse
During driving in reverse, only the two front
wheels are driven. The speed is half as fast as
when driving forward.
Drive reverse on:
1. Release the brake.
2. Release the drive lever.
3. Press the lever for the reverse gear to the
handlebar –drive moves in reverse.
Drive reverse off:
1. Release the lever for the reverse.
Turning
Turn the device round only where the grass
has been mowed already.
Turning round on an even surface:
1. Switch off the drive.
2. Turn the device to the desired side.
3. Switch the drive back on.
Turning round on a sloping area:
1. Keep the drive switched on.
2. Turn the device upslope.
3. Hold back the handlebar and the inner
wheel.
The drive prevents sliding and supports the
turn manoeuvre.
leerer Absatz
Switching off and parking
Caution!
On a slope, the device can roll
away.
Put the device on even ground only
or secure it against rolling away.
1. Release the drive lever.
2. Engage the parking brake.
3. Turn the accelerator lever to the lowest
engine speed.
4. Release the engine brake lever.
5. Wait for the engine to stop completely
before you step away from the device.
6. Close the fuel valve and the tank ventila-
tion.
7. Pull off the plug connector.

18
Maintenance and cleaning
Regular maintenance keeps your device ready
for use.
If you do not observe the maintenance notices,
faults may occur that are not covered by the
warranty. Operational safety is endangered as
well.
Contact your authorised service centre for
checkup if you detect problems during mainte-
nance.
Component
Action
Maintenance
interval
A
B
Device
Check for safe working condition (basic inspection).
■
▲
Clean.
■
Customer service.
▲
Fuel
Check fuel level.
■
Is the tank cap closed?
■
Tank, fuel valve,
and fuel line
Check parts for leaks and check for good condition.
■
▲
Carburetor
Does the carburetor close again after starting?
■
▲
Ventilation grid
Clean.
■
▲
Engine cooling
Clean.
▲
Spark plug
Check/replace.
▲
Air filter
Maintain.
■
■▲
Blade and fas-
tening components
Check for wear and damage. See chapter Checking the
blade.
■
▲
Change.
▲
Motor brake
Does the knife stop within 3 seconds?
□
▲
Drive lever
Does the device stop when the lever is in zero position?
□
▲
V-belt
Are the belts tensioned correctly, without fissures, and in
good condition?
▲
Bowden cables
Check for proper function and ease of movement.
■
▲
Acceleration lever
Check for proper function.
□
▲
Chassis and im-
Check for rust and fissures and check the welding seams.
■
▲

19
pact protection
Are all protective devices and covers in place, fastened
correctly and properly functioning?
■
▲
Label
Condition of the labels.
■
▲
Rear wheel brake
Check.
■
▲
Parking brake
Check.
■
▲
Flammable materi-
al
Remove easily flammable debris buildup from the engine
and the device.
■
▲
Tyres
Check tyres and, if necessary, the tyre pressure.
■
▲
A
B
■
□
▲
Before and after each use.
Annually or every 50 h.
By the user when the engine is not running.
By the user when the engine is running.
By the authorised service centre.

20
Preparations
Prior to all maintenance and cleaning work:
1. Let the device cool down for at least
20 minutes.
2. Pull off the spark plug connector.
3. Close the fuel valve and the tank ventila-
tion.
4. For work on the bottom of the device, tilt
the device to the silencer side.

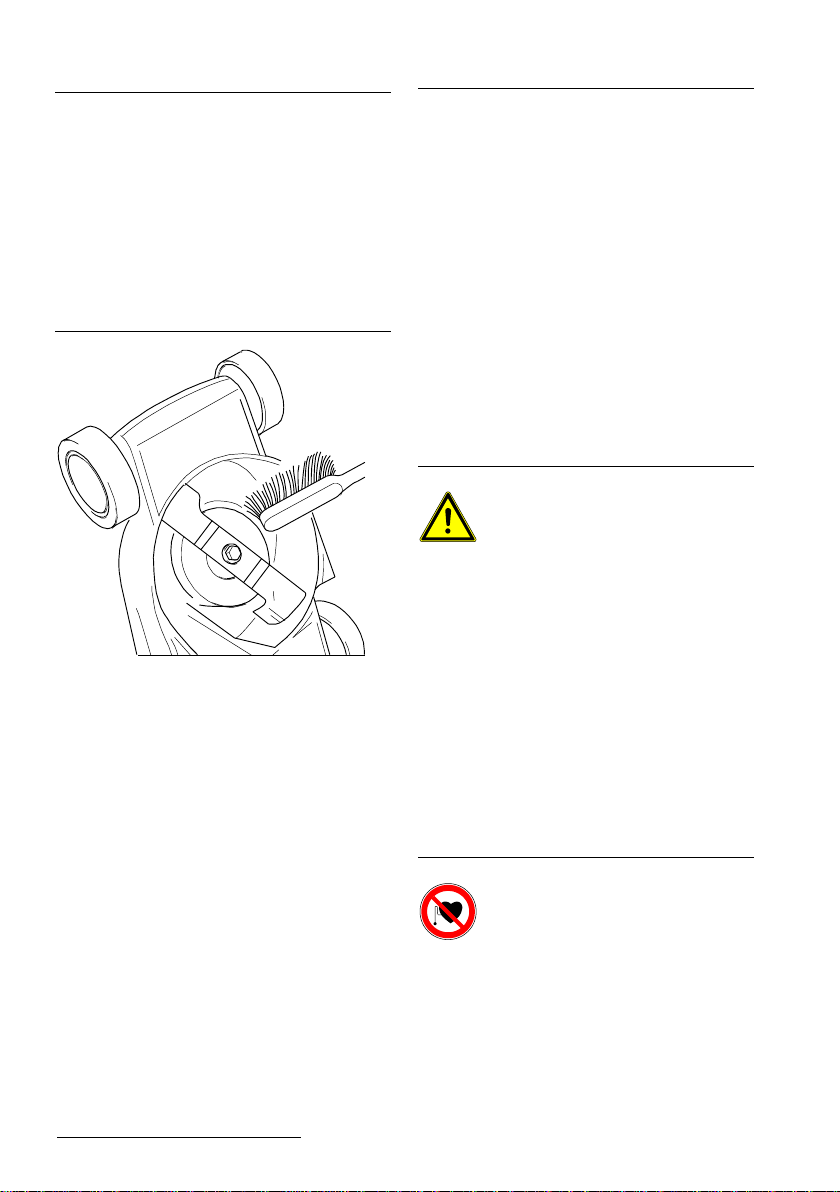

Cleaning the device
Depending on use, clean the device thorough-
ly, especially the bottom and the knife.
Grass cuttings and dirt that are stuck interfere
with the grass ejection and impair the cutting
quality. To sufficiently cool the engine, keep
the engine cover, ventilation grid and engine
clean.
Fire hazard! Take particular care that the
components at the silencer are clean.
For cleaning, use a hand brush. Remove
stubborn dirt with a wooden or plastic spatula.
Clean the outside housing parts with a cloth.
Do not clean the device with water spray or
high-pressure cleaner! Do not use any aggres-
sive cleaning agents.
General inspection
To ensure proper working order of the device,
regularly check all nuts, bolts, screws, fuel line
connections, air filters, etc. for firm seating.
Check the ignition cable and the spark plug
connectors for damages.
Immediately replace damaged or worn parts,
especially covers, impact protection, silencer,
or fuel tank (authorised service centre).
Check all parts that contain fluids for leaks and
proper condition. These can be: Fuel tank, fuel
valve, fuel lines, carburetor, engine, gears,
battery, hydraulic system.
In case of leaks, contact an authorised service
centre.
Maintaining the engine
Danger!
If the speed of rotation is set too
high, objects can be ejected. The
engine can be damaged and noise
pollution increases.
Do not change the basic setting of
the carburetor or the speed control.
To ensure a long service life of the engine,
sufficient engine cooling is required.
Keep the
- engine cover (ventilation grid),
- silencer (protective grid) and
- cooling fins of the engine
clean at all times.
Checking the spark plugs
Danger!
The ignition system generates an
electromagnetic field.
Wearers of pacemakers must not
work on live parts.
Soiled spark plugs reduce the engine output.
Clean the electrode of the spark plug with a
brass wire brush. Check the electrode gap
(see “Technical data”). Make sure that the
