Autoleads ADI-100 User manual

1
ADI-100
In-Car add-on DAB Receiver
User Manual

2
Contents
Introduction 3
Contents 4
INSTALLATION 4
OPERATIONAL CONTROLS 9
STARTING THE SYSTEM 12
USING REMOTE CONTROL KEYS 13
To Turn On or Off ADI-100 13
To Scan for the DAB Stations 13
To Listen to the DAB Stations 13
To Display Station’s Information 14
To Set a DAB Preset mode 15
To Save a DAB Memory Preset 15
To Recall a DAB Memory Preset 15
To Set the Auxiliary Input mode 16
To Recall the Last Listened DAB station 16
FM TRANSMITTING FREQUENCY SETTINGS 17
To Display the current FM Transmitting Frequency 17
To Set FM Transmitting Frequency in AFC mode 17
To Set FM Transmitting Frequency in AutoScan mode 17
To Set FM Transmitting Frequency Manually 18
To Save a Desired FM Transmitting Frequency in Memory 19
To Recall FM Transmitting Frequency Saved in Memory 19
To Force Immediate FM Trasnmitting Frequency Change 20
To Set FM Transmitting Frequency Setting to Preset F1 21
MENU SETTINGS 22
To Reset FM Transmitting Frequency Setting 22
To Enable DLS/DL+ Display 22
To Enable AFC (Automatic Frequency Change) 23
To Enable AutoScan 24
To Enable RC Beep Tone 25
To Set Antenna Power 25
To Perform DAB Reset 26
To Restore to Factory Settings 26
To Display Software Version 26
To Upgrade Software 27
Troubleshooting 27
Technical Specications 29
Information on Waste Disposal 29

3
Introduction
The ADI-100 is an in-car audio adapter that offers a exible and cost effective way to ap-
ply modern digital audio technology to your existing analogue in-car audio system.
The existing analogue system can be easily upgraded to receive DAB/DAB+ digital radio
services. ADI-100 uses FM-RDS micro-transmitter and no complex cabling to your car au-
dio system. The ADI-100 DAB receiver is operated using a remote controller, while all mes-
sages related to the system’s operations, such as service name, memory preset, etc., are
converted to RDS text and displayed on the LCD screen of your in-car audio system. The
exible conguration options of the ADI-100 makes it easy to install in different car makes
and models.
Furthermore, ADI-100 has an AFC (Automatic Frequency Change) function that allows
you to continuously listen to your favorite DAB programs through your car radio system
without the need to frequently change the FM frequency manually when you drive into
a metropolitan area where FM stations are highly crowded. Without AFC, the manual
frequency change can be hazardous and inconvenient as the driver will have to nd an
unused FM frequency by tuning the car radio, change FM transmitter to use the same
unused frequency, and repeat the process each time the FM transmit frequency is inter-
fered by an FM station. Consult your car radio manual or the car dealer if your car radio
has AF (alternative frequency) function, and how to enable AF function before using this
AFC function.
If AF function is not built in your car radio, you can use ADI-100 AutoScan function to au-
tomatically scan for 3 useable FM frequencies; you will need to choose a new frequency
from the scanned frequencies to set and synchronize it between the car radio and the
ADI-100 manually. Alternately, you can use ADI-100 to set a new FM transmitting frequen-
cy manually or set a frequency from one of the FM transmitting frequency presets which
have been previously saved, and then set the car radio’s FM frequency to match.
Note:
ADI-100 needs to operate with an RDS car radio in order to properly display the relevant
system message of ADI-100 via the in-car radio display.
This radio is future-ready because it contains
DAB, FM and DAB+ which is a future technology
standard being adopted across Europe

4
Contents

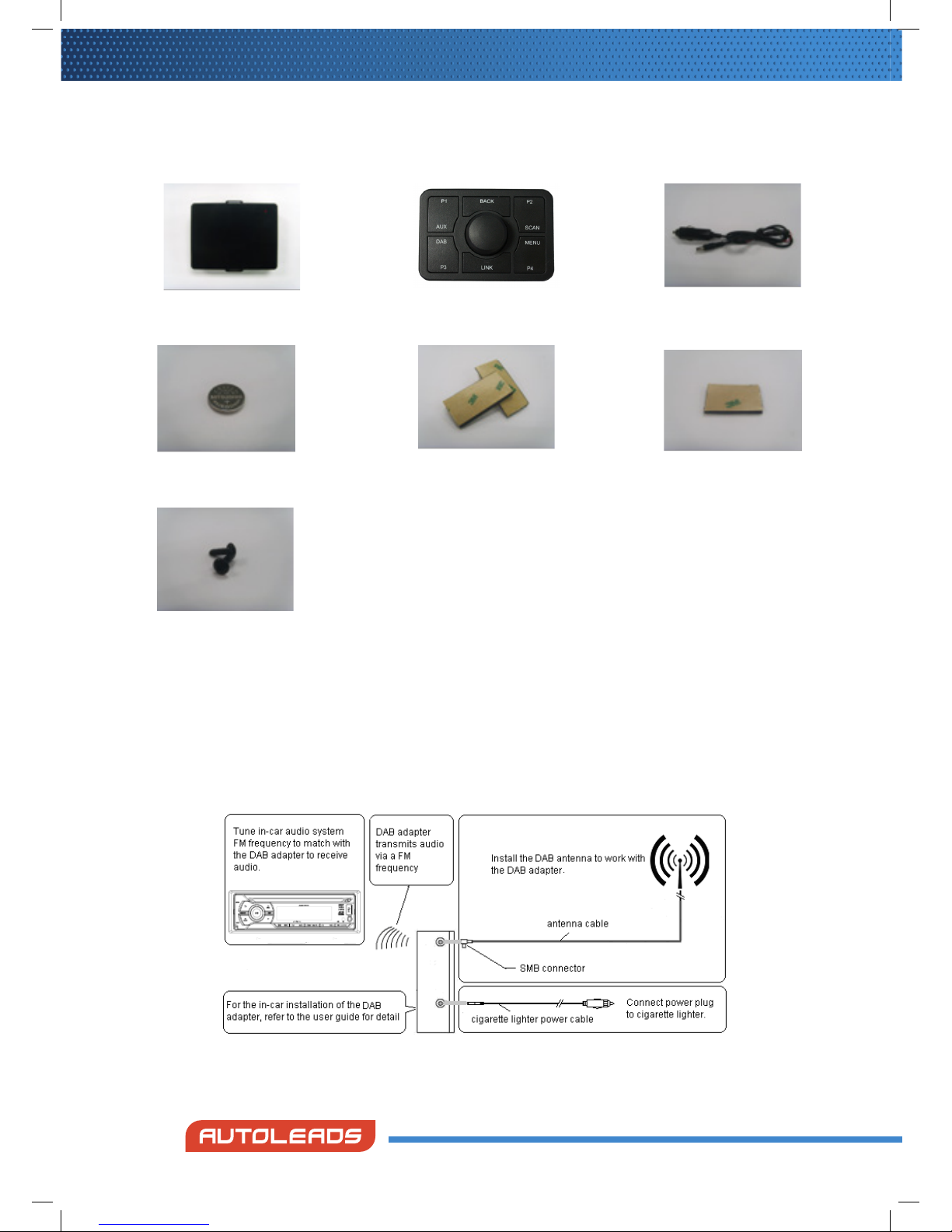

ADI-100 Control Unit Rotary Knob Remote Control Power Cable
(with Cigarette Lighter)
CR2032 Battery Dual Lock Tapes x2
25mm x 55mm
Dual Lock Tape x 1
25mm x 35mm
Screw x 2
INSTALLATION

5
Connectors

❷
❶
➌
1. SMB Connector, for DAB antenna
2. 3.5mm stereo audio jack, for aux cable
3. Power jack, for power Cable
(with Cigarette Lighter Plug)
Installation Procedure
1. Please read the installation procedure carefully prior to the actual installation.
Consult a professional installer if you have any issues or concerns with the
installation.
Attention
1. We recommend that if you are going to use the cigarette lighter as the power
source for ADI-100, the lighter socket needs to connect to the ignition.
2. Otherwise, you may have the following condition, after the car engine is turned off:
u ADI-100 will continue to draw minimal power from the battery.
u For many intelligent new cars, ADI-100 may be detected as device not
disconnected.
u Car radio and ADI-100 may become out of sync when you resume to listening to
ADI-100. In this case, please read the troubleshooting section for the solution.
2. Select a location to store ADI-100. For the best
performance, please store it in the middle and under
the car’s glove compartment. For other locations,
please store it away from metal objects and in an
open area.
3. Store ADI-100 with the bottom cover up and
the cables and connectors to the back.

6
Installation Procedure (continued)
4. Secure ADI-100 with the supplied dual lock tapes and screws.
Please refer to the section on Securing ADI-100, Step by Step.
5. Minimize coiling loops of excessive power cable and antenna cable, and do not
secure them on ADI-100. Please refer to section on Installation do and don’t.
6. Plug one end of the power cable to ADI-100, and the cigarette-lighter plug into
car’s cigarette lighter. There is a lock mechanism on the plug of Power Cable
to ADI-100. First, plug the power cable into the 12V DC jack (1), and then you need
to turn the power plug 90 degree clockwise (2) as illustrated below. This is to ensure
that the power cable will be rmly connected to the ADI-100 at all time.
Attention
1. Anytime you need to disconnect/connect the antenna from ADI-100, please unplug
ADI-100 from the cigarette lighter rst to avoid possible damage to the antenna.
2. Damage resulted from incorrect installation of the antenna is not covered by the
warranty.
7. Start using ADI-100 with the remote
control, please refer to the sections
on OPERATION CONTROLS and
STARTING UP THE SYSTEM.

7
7. Start using ADI-100 with the remote
control, please refer to the sections
on OPERATION CONTROLS and
STARTING UP THE SYSTEM.
Securing ADI-100, Step by Step
To secure ADI-100 on a chosen store location using the supplied dual lock tapes and/or
screws, do the following:
1. Locate the positions on the back of ADI-100 and the chosen mounting location
(e.g. in the middle and under the car’s glove compartment) where you want to
apply the dual lock tapes.
2. Clean both surfaces with alcohol if
avaiable and wipe dry before you start.
Afx the tape on the ADI-100 and the
chose mounting location
3. Remove one side of the backing from
each of the two pieces of dual lock
tapes, and adhere the tapes onto the
back of ADI-100 on the marked positions
in 1.
4. Remove the other side of the backing
and adhere ADI-100 to the chosen store
location with ADI-100’s cables and
connectors to the back.
5. Carefully, remove ADI-100 from the store
location with dual lock tapes separated,
so that ADI-100 and store location each
has 2 half pieces of the tapes.
6. Apply the pressure evenly to all 4 half pieces on ADI-100 and the store location,
so that the tapes adhere to both surfaces securely.
7. Wait 8 hours, and then adhere ADI-100 to the mounting location by joining the 4
half pieces of the tapes together.
8. Alternatively, or in addition, secure ADI-100 with the supplied screws.
Installation ‘Do’s & Don’t’s’
As ADI-100 has internal antenna and FM Transmitter, it is important to avoid signal
interference from excessive cable coiling.
The next page illustrates the do’s and don’t when coiling and storing ADI-100’s excessive
antenna cable and power cable.

8
Installation ‘Do’s & Don’t’s’ - continued

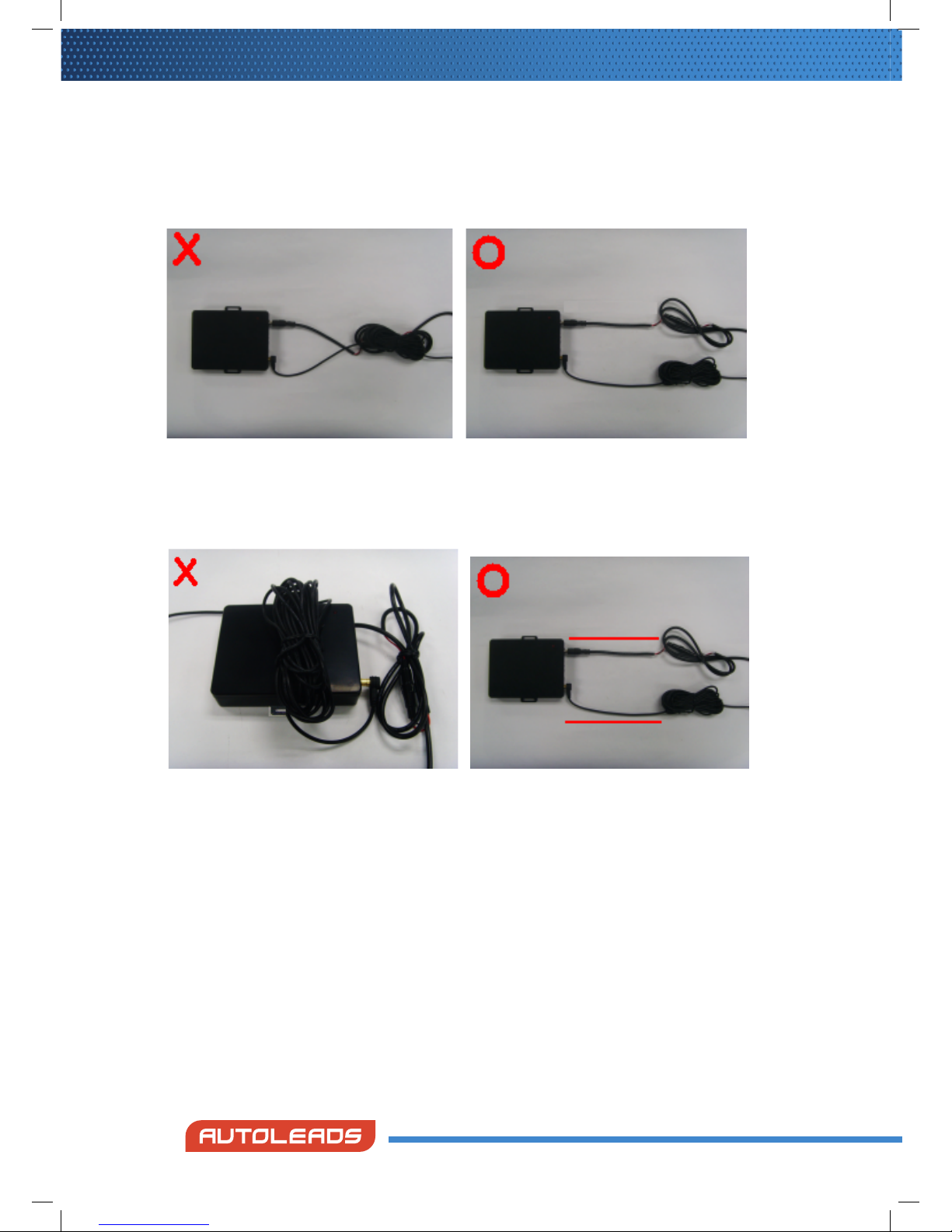

1. Do not tangle the antenna and power cables together.
2. Minimize coiling loops of excessive power cable or antenna cable, and do not
secure them on or besides ADI-100. The coiling loops of excessive power or antenna
cables should start at about 10 cm away from the ADI-100



9
OPERATIONAL CONTROLS
In-Car Audio System LCD Display
The ADI-100 unit is operated by using a remote controller; the system messages from the
remote control operation are converted to RDS text and displayed as 8 characters display
on the LCD screen of your in-car audio system.
Below is a list of ADI-100 system messages displayed on the in-car audio system LCD
display, while operating with the remote control:
Messages Description
DABRADIO Display after ADI-100 is powered on.
DAB station. Display the 8-character short service name of the
DAB station.
TUNING Indicate tuning a DAB station is in progress.
RESETING Indicate performing a DAB reset or factory reset is in
progress.
DONE Conrm completion for certain system operation,
i.e., set a DAB preset mode.
RETUNING Indicate FM transmitting frequency is being retuned
to a new frequency.
TO frequency Indicate ADI-100 is changing FM transmitting fre-
quency to a new frequency from a manual setting.
Other than the power key, any remote control keys
pressed is ignored before the change is completed.
AF frequency Indicate ADI-100 is changing FM transmitting fre-
quency to a new frequency from the AFC function.
Other than the power key, any remote control keys
pressed is ignored before the change is completed.
POWEROFF Display after ADI-100 is turned off (into the standby
mode).
RC LOW Indicate remote control’s battery is low, battery
change is due.

10
Remote Control
Please refer to next sections, USING REMOTE CONTROL KEYS, MENU SETTINGS, and FM
TRANSMITTING FREQUENCY SETTINGS for detail description of each operation.
Control Key General Operation
Rotary Knob
Press
u Turn on ADI-100 while it is off.
u Conrm a selection.
u Change station information while listening
to a DAB station.
u Press and followed by AUX, DAB, SCAN, or MENU to enter the selected function
mode.
Press and Hold
u Turn off ADI-100 while it is on.
Rotate (t)/ (u)
u Step tune to select a DAB station.
u Navigate to items, sub items, and settings after MENU is pressed.
u Adjust FM transmitting frequency by 100 KHz after LINK is pressed.
Accelerate Rotation (t)/ (u)
u Quick tune to select a DAB station.
u Adjust FM transmitting frequency by 2MHz after LINK is pressed
P1 AUX
Press
u Recall memory preset P1
Press and Hold
u Program memory preset P1 while listening to a DAB station
Function AUX
u Set ADI-100 to AUX mode to listen to an external audio source

11
Control Key General Operation
P2 SCAN
Press
u Recall memory preset P2.
Press and Hold
u Program memory preset P2 while listening to a DAB station.
Function SCAN
u Perform a full scan for DAB stations.
P3 DAB
Press
u Recall memory preset P3.
Press and Hold
u Program memory preset P3 while listening to a DAB station.
Function DAB
u Set ADI-100 to one of the 3 DAB preset modes to listen to DAB.
P4 MENU
Press
u Recall memory preset P4.
Press and Hold
u Program memory preset P4 while listening to a DAB station.
Function MENU
u 87.6MHz – Default FM transmitting Frequency.
u RADIOTXT – enable/disable display of DLS/DL+ information from the station.
u LINKMODE – select operating mode (AFC_H/AFC_L/AutoScan).
u RC BEEP – enable/disable beep tone in response to remote control operation
u ANTENNA – set ON for a certied active DAB antenna, set OFF for all other
antennas.
u DABRESET – erase the station list but keep the memory presets for all DAB Presets,
and then perform a full scan of DAB stations automatically after the DAB has
reset.
u FACTORY – return all system settings to defaults.
u UPGRADE – upgrade the module software to a new version.
u VERSION – display the current software version.
LINK
Press
u Display adaptor’s current FM transmitting frequency.
u Select and set the FM transmitting frequency from a manual setting or from
one of the four memory presets.
u Save the FM transmitting frequency setting to one of the four memory presets.
u In AutoScan mode, select and set the FM transmitting frequency from one of the
three AutoScan frequencies.
Press and Hold
u Perform an immediate FM transmitting frequency change.
BACK
Press
u Recall the last listened DAB station.
Press and Hold
u Reset FM transmitting frequency to the frequency saved in FM preset 1.
Within 30 seconds, press and hold again to return the frequency to 87.6MHz.

12
STARTING UP THE SYSTEM
1. Turn on your in-car audio system.
2. Enable the AF function on your car radio if it is equipped (Consult your car radio
manual or the car dealer if your car radio has AF feature, and how to enable AF
feature).
3. Tune the car radio’s FM frequency to FM 87.6MHz, which is the same as ADI-100
default FM TX frequency.
4. Start ADI-100 by plugging the cigarette-lighter power plug into the cigarette lighter,
the audio system display will show ( DABRADIO ).
5. ADI-100 will perform a Scan of DAB stations automatically.
6. If FM 87.6MHz is already used by a FM broadcaster or the station is noisy, change
the initial FM TX frequency as below:
Operating on ADI-100
u Press and hold LINK for 3 seconds, ADI-100 will set a new and
clear frequency to transmit the FM signal.
Operating on Car Radio
u Use auto scan function of your car radio to search for an FM
broadcast having program service name ( DABRADIO ).
Stay tuned on this FM frequency, your ADI-100 and car radio are
now synchronised.
7. If your car radio does not have AF feature, do the following to change ADI-100’s
FMTX mode to AutoScan instead of the default AFC.
7.1 Press the Rotary Knob and then MENU to enter the menu function.
7.2 Rotate the Rotary Knob (t)/ (u)until the screen shows ( LINKMODE ).
7.3 Press the Rotary Knob, and then rotate the Rotary Knob (t)/ (u)until the
screen shows ( AUTOSCAN ).
7.4 Press the Rotary Knob, the function of AutoScan is now enabled and
the ADI-100 is operating in the AutoScan mode.
8. Listen to the DAB stations. Please refer to USING REMOTE CONTROL KEYS section for
the system operation.
9. While you are using AutoScan function and you are experiencing noise on the
listening DAB station, please refer to To Set FM Transmitting Frequency in AutoScan
Mode to select a auto scanned FM frequency, or To Set FM Transmitting Frequency
Manually to manually switch to another FM frequency.
10. To avoid unnecessary draining of the car battery when ADI-100 is idle, after 4 hours
of idling from the user’s last action, ADI-100 will be automatically turned off.
While in the standby mode, press the Rotary Knob to return ADI-100 back to the
operating mode.

13
To Turn On or Off ADI-100
The ADI-100 operating mode can be turned off or turned on by the following:
1. Press and hold the Rotary Knob to turn it off, while ADI-100 is in the operating mode.
2. Press the Rotary Knob to return it to the operating mode, while ADI-100 is off.
To Scan for the DAB Stations
This function searches for all DAB stations in Band III from channel frequency 5A to channel
frequency 13F that are available in the area where your car is presently located. Stations
found as a result of the search are added to the station list in the alphabetical order. To
scan for the DAB stations, do the following:
1. Press the Rotary Knob then SCAN to do a full scan of DAB stations, the screen will
show ( SCANNING ).
USING REMOTE CONTROL KEYS
Note:
Each time you start ADI-100, if the station list is empty, it will perform a Full Scan
of DAB stations automatically. You may also need to perform a Scan function
if you drive your car to a new area where the broadcasting DAB stations are
not on the current station list.
While the Scan operation is in process, you can press the Rotary Knob at any
time to stop Scan function and revert to listening to the currently selected
station.
If the DAB Station List is not empty before scanning then after completion of
DAB Scan, the ADI-100 will revert to playing the last DAB station automatically.
If the DAB Station List is empty before scanning, the ADI-100 will tune in the rst
station of the new DAB Station List resulted from this DAB Scan.
If the DAB Station List is empty before scanning, and there is no station
detected by DAB Scan, the screen will show ( EMPTY ). There are no DAB
stations available in the area where you performed DAB Scan function.
To Listen to the DAB Stations
There are two options available for you to select and listen to a DAB station: Quick Tune
and Step Tune. Step Tune is used when you want to step through the list of stations one by
one and in alphabetical order. Quick Tune allows you to move more quickly through the
list of stations by advancing to the rst station in the previous/next alphabet character in
the station list. Once you have reached the desired initial alphabet character; you can
then use Step Tune to rene move to the desired station.

14
Step Tune
1. Rotate the Rotary Knob (t)/ (u)to step through the stations, one by one, until the
screen shows the desired station: ( station name ). ADI-100 will start tuning to the
selected station immediately.
Quick Tune
1. Accelerate Rotating the Rotary Knob (t)/ (u) to quickly tune to the rst station in
the previous/next alphabet. Repeat the action, one alphabet at a time, until the
screen shows the DAB station with desired initial alphabet.
2. Perform the Step Tune to step thru the stations, one by one, until the screen shows
the desired station: ( station name ). ADI-100 will start tuning to the selected station
immediately.
Note:
When the DAB station you have selected is not available, the screen will
show ( UNAVAIL ). There will be no audio output from the ADI-100.
When the signal strength of the DAB station you have selected is too weak,
the screen will show ( POOR SIG ).
Each time you start ADI-100, if the channel list is empty, it will perform a Full
Scan of DAB stations automatically.
To Display Station’s information
The ADI-100 provides certain information about the current listening station; this informa-
tion can be displayed thru repeatedly pressing the Rotary Knob key.
1. Each time you press the Rotary Knob while listening to a DAB station, the screen will
cycle through station’s information below:
( station name ) where station name is name of the DAB station.
( DLS/DL+ info ) when DLS/DL+ is enabled thru menu settings, it displays real time
Dynamic Label Segment (DLS) station information such as song titles,
music type and news or trafc updates, or Dynamic Label Plus (DL+
extended information for song track and song artist.
( SIG xx% ) where xx is the signal quality value.
Note:
The default DLS/DL+ setting is ON. If the feature is OFF, the screen will show
( TEXT OFF ).

15
To set a DAB Preset Mode
The ADI-100 provides individual memory settings for up to three sets of DAB Preset Modes:
DAB1, DAB2, and DAB3. Each DAB Preset Mode has its own Memory Presets of DAB
stations; please refer to To Save a DAB Memory Preset and To Recall a DAB Memory Preset
sections below. This allows user to setup three DAB Presets for different users (driver or
passengers) or different group of stations to enjoy the favorite programs based on the
individual settings.
1. Press the Rotary Knob and then DAB to enter the DAB Preset selection mode
function, the screen will display the current DAB preset mode.
2. Rotate the Rotary Knob (t)/ (u)to select a particular DAB Preset Mode.
3. Press the Rotary Knob or after a 3 seconds timeout, the system will tune to the
selected Preset mode. The screen will then show ( DONE ).
To Save a DAB Memory Preset
You can save your favorite stations in the Memory Preset List. There are 4 memory presets
to store 4 DAB stations in the Memory Preset List for each DAB Preset Mode.
1. Rotate the Rotary Knob (t)/ (u)to select a desired station.
2. Press and hold a PXbutton (where X is from 1 to 4) to save the current selected DAB
station into Memory Preset PXof the present DAB Preset mode.
3. The screen will display a short message of ( PX SAVED ).
To Recall a DAB Memory Preset
This function allows you to recall a favorite preset DAB station from the Memory Preset List.
1. Press a PXbutton (where Xis from 1 to 4) to select the memory preset.
2. If there is no DAB station saved in Memory Preset X, the screen will show
( PXEMPTY ). Otherwise, the screen will show ( * station name ) where station name
is the name of the DAB station saved in Memory Preset X.
Note:
When you switch to a different DAB Preset Mode, the Memory Preset list of the
selected DAB Preset will be loaded into the internal operating system of the
ADI-100 automatically. The ADI-100 will then perform all functions based on
the settings of this DAB Preset Mode.
The system default is DAB1
Note: This new setting will overwrite a previous setting in Memory Preset X.

16
Note:
This function only recalls the stations saved in the Memory Preset List of the
particular DAB Preset Mode
(please refer to To Set a DAB Preset Mode section).
To Set the Auxiliary Input mode
The ADI-100 provides the capability to play audio device such as MP3 or iPod® etc.
through your car radio.
1. Press the Rotary Knob then AUX to set the listening mode to auxiliary input mode
and start listening to the audio device. The screen will then show ( DONE ), and
then ( AUXMODE )
To Recall the Last Listened DAB Station
The ADI-100 automatically remembers the station that is last listened to. This allows you to
go back to last listened DAB station quickly; even it is not in the Memory Preset List.
1. Press BACK to recall the station that was most recently listened to. The screen will
show ( LS EMPTY ) if the last listened station has not memorized a station name yet
or ( station name ) if it has.
2. Press the Rotary Knob or after a 3 seconds timeout to switch to the last listened
station.
Note:
While in Auxiliary Input mode, to listen to the last listened DAB station, you
must press the Rotary Knob and then press DAB to tune to the last listened
DAB station and return to the DAB preset mode that was last listened to.
While in Auxiliary Input mode, to recall a preset DAB station, you must press
a PX button directly (where X is from 1 to 4) to return to the DAB preset mode
that was last listened to and tune to the DAB station saved in the memory
preset PX. If the memory preset PX pressed is empty then ADI-100 will tune to
the last listened DAB station instead.

17
FM TRANSMITTING FREQUENCY SETTINGS
The FM transmitting frequency is used by ADI-100 to transmit the audio and for car radio to
receive the audio.
The FM transmitting frequency can be changed by the following:
1. Set FM transmitting frequency in AFC mode
2. Set FM transmitting frequency in AutoScan mode
3. Set FM transmitting frequency manually
4. Recall FM transmitting frequency saved in the memory
5. Force immediate FM transmitting frequency change
6. Set FM transmitting frequency to memory preset F1
7. Reset FM transmitting frequency to default 87.6MHz (refer to MENU SETTINGS)
To Display the current FM Transmitting Frequency
1. Press LINK, and the screen will show ( Frequency ) where Frequency is the current
FM Transmitting Frequency.
To Set FM Transmitting Frequency in AFC mode
When your ADI-100 identies a need to switch FM transmission frequency this will usually
force the car radio to change FM frequency automatically in most cases and the car
radio display will show ( AF Frequency ) where Frequency is the new frequency ADI-100 is
transmitting. Refer to To Enable AFC in the MENU SETTINGS section to enable AFC mode
To Set FM Transmitting Frequency in AutoScan Mode
While in the AutoScan mode, ADI-100 will automatically search for three unused FM
frequencies and save them into the memory in sequence (from frequency 1 to frequency
3). When you are using ADI-100 to listen to a DAB service and experience constant
interference from other source, which means that you are driving into an area where the
present FM frequency is used by an FM broadcaster. When this happens, you need to nd
an unused FM frequency for transmitting the DAB service to your car radio. Refer to To
Enable AutoScan in the MENU SETTINGS section to enable AutoScan mode.
The enabled AutoScan feature can help you to do FM frequency change quickly by the
following steps:
Operating on ADI-100
1. Press LINK and the screen will show the current FM Transmitting Frequency.
2. Keep pressing LINK and it will go thru from frequency 1 to frequency 3 for each
time your press, and the display will show ( SX Frequency ) where X ranges from 1 to
3 and Frequency is the auto scanned frequency. Stay at the frequency you prefer,
which will be the new FM frequency for transmitting.

18
3. Press the Rotary Knob or after a 10 seconds timeout, the FM transmitter will set and
transmit FM signal at the new frequency. Now you can listen to DAB stations via this
FM frequency.
Operating on Car Radio
1. Manually change your car radio’s FM frequency to match the new ADI-100
transmitting frequency setup.
To set FM Transmitting Frequency Manually
If you wish to change the setting and use your own selected FM transmitting frequency
manually, do the following:
1. Press LINK, and the screen will show the current FM Transmitting Frequency
( Frequency ).
2. Then you can accelerate rotating the Rotary Knob (t)/ (u)to step up or down FM
frequency by 2MHz, or just rotate the Rotary Knob (t)/ (u)to step up or down FM
frequency by 100KHz, to choose a frequency until the desired FM frequency is
displayed (e.g. 106.7MHz). Make a note of that frequency number.
3. Press the Rotary Knob or after 10 seconds timeout, the ADI-100 will set and transmit
FM signal at this new frequency and the screen will show ( TO Frequency ).
4. Press FM preset of your car radio corresponding to the same frequency from step
2 if you have previously saved for DAB reception. Otherwise, tune the car radio to
the same FM frequency.
5. Now you can listen to DAB stations via this new FM Frequency.
Note:
It is recommended to set the selected FM frequency as one of the memory
presets of your car radio, selecting this particular preset FM frequency and
together with setting the ADI-100’s FM transmitting frequency will quickly
enable you to start listening to DAB stations.
While setting a new transmit frequency operation is in process and
( TO Frequency ) is displayed, other than the power key, and key pressed
is ignored by the system.

19
To Save a Desired FM Transmitting Frequency in Memory
As unused FM frequency may vary from one area to another, it is suggested to save a
few frequencies (up to 4 frequencies) in ADI-100 so that you can switch to a new FM
transmitting frequency instantly when you drive into an area where the original FM
frequency for DAB is no longer available.
1. Press LINK, and the screen will show the current FM Transmitting Frequency
( Frequency ).
2. Then you can rotate the Rotary Knob (t)/ (u)to step up or down FM frequency
by 100KHz, to choose a frequency, and the screen will show ( Frequency ). where
Frequency is the chosen frequency.
3. Press and hold a PX button (where Xis from 1 to 4) to save the current selected FM
frequency into the corresponding preset memory FX.
4. The screen will display a short message of ( FX SAVED ).
To Recall FM Transmitting Frequency Saved in Memory
You may drive into an area where the FM frequency transmitted by ADI-100 is used by an
FM broadcaster. When this happens, your reception of DAB station will be getting worse
with increasing interference from another FM program. Switch to a free FM frequency
will ensure continuous and clear reception of the DAB station to which you are currently
listening.
1. Press LINK, and the screen will show the current FM Transmitting Frequency.
2. Press a PX button (where Xis from 1 to 4) to select a corresponding memory preset
FX and the screen will show the FM frequency saved in memory, make a note of
that frequency number.
3. Press the Rotary Knob or after 10 seconds timeout, the ADI-100 will set and transmit
FM signal at this new frequency and the screen will show ( TO Frequency ). where
Frequency is the frequency saved in the preset FX.
Note:
The default FM frequencies saved in presets F1 to F4 are 87.6MHz, 92.5MHz,
102.5MHz and 107.9MHz, respectively.
It is suggested to set those FM frequencies saved in ADI-100 into FM preset of
your car radio. Selecting the FM preset of your car radio and the matching FM
preset of ADI-100 will switch the FM transmission frequency instantly for a clear
reception of the DAB station.
Saving the frequency in memory does not affect the current FM transmitting
frequency; it remains the same as before saving the frequency.

20
4. Press FM preset of your car radio corresponds to the same frequency from step 2 if
you have previously saved for DAB reception. Otherwise, tune the car radio to the
same FM frequency.
5. Now you can listen to DAB stations via this new FM Frequency.
To Force Immediate FM Transmitting Frequency Change
This function can be used in either AFC or AutoScan mode to force a FM transmission fre-
quency change immediately.
In AFC_H or AFC_L Mode
While listening to a DAB station, if you hear static noise or a FM program and before
AFC tunes to a clear frequency you can force an immediate frequency change by:
1. Press and hold LINK, the screen will show ( AF Frequency ) where Frequency is the
new frequency that ADI-100 will set and use to transmit FM signal and force radio to
tune to the same frequency automatically.
2. Now you can listen to DAB stations via this new FM Frequency.
In AutoScan Mode
If you notice your current listening DAB program is being interfered with, you can force an
immediate frequency change. ADI-100 will automatically choose and set a new frequen-
cy but you must tune the car radio to match ADI-100 new frequency manually. Do the
following:
Note:
While setting a new transmit frequency operation is in process and
( TO Frequency ) is displayed, other than the power key, any key pressed is
ignored by the system.
Note:
While setting a new transmit frequency operation is in process and
( AF Frequency ) is displayed, other than the power key, any key pressed is
ignored by the system.
