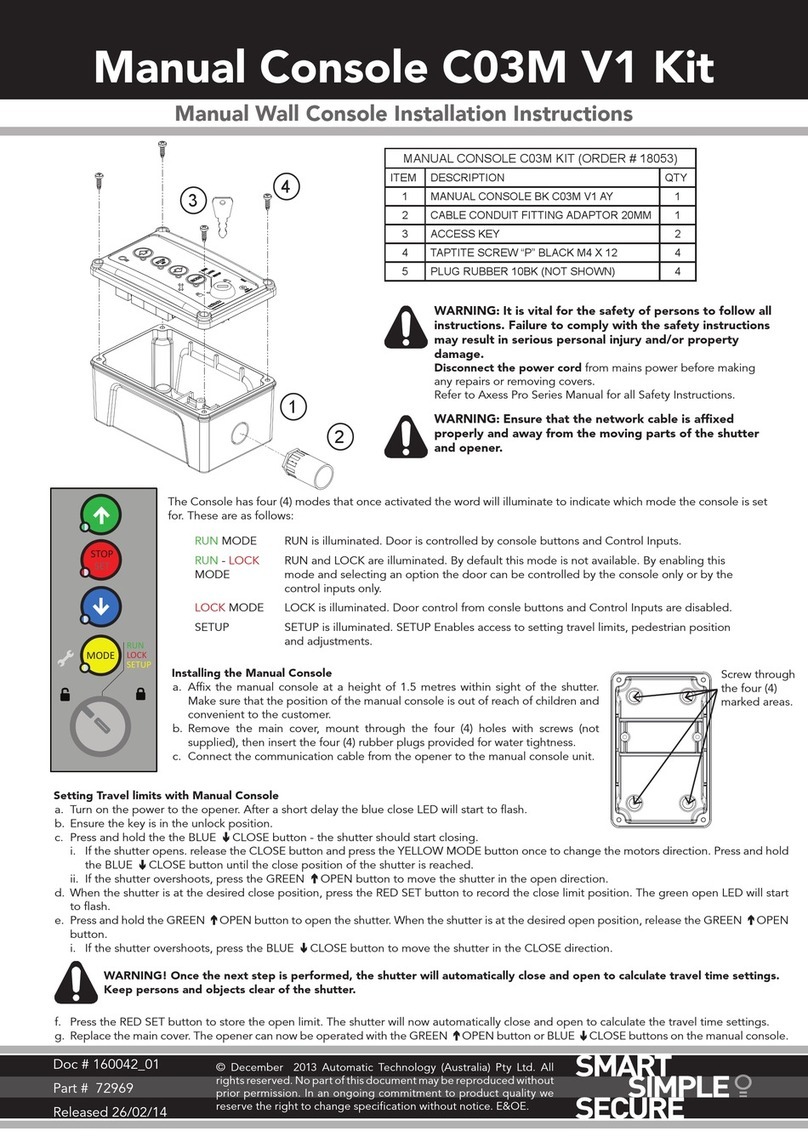

MANUAL CONSOLE C03M KIT (ORDER # 18053)
ITEM DESCRIPTION QTY
MANUAL CONSOLE BK CO3M V1 AY 1
2CABLE CONDUIT FITTING ADAPTOR 2OMM 1
?ACCESS KEY 2
4TAPTITE SCREW'P" BLACK M4 X 12 4
PLUG RUBBER lOBK (NOT SHOWN) 4
e
)I-@ A
qo
WARNING: lt is vital for the safety of persons to follow all
instructions. Failure to comply with the safetlr instructions
may result in serious personal injury and/or property
damage.
Disconnect the power cord from mains power before making
any repairs or removing covers.
Refer to Axess Pro Series Manua for al1 Safety lnstructions.
WARNING: Ensure that the network cable is affixed
properly and away from the moving parts of the shutter
and opener.
The Console has four (4) modes that once activated the word wil illuminate to indicate which mode the console is set
for. These are as follows:
RUN is illuminated. Door is controlled by console buttons and Control lnputs.
RUN and LOCK are illuminated. By default this mode is not available. By enabling this
mode and selecting an optron the door can be controlled bythe console only or by the
control inputs only.
LOCK is illuminated. Doorcontroi from consle buttons and Control Lnputs are disabled.
SETUP is illuminated. SETUP Enables access to setting travel limits, pedestrian position
and ad1ustments.
Screw through
the four (4)
marked areas.
Setting Travel limits with Manual Console
a. Turn on the power to the opener. After a shon delay the blue close LED will start to flash
b. Ensure the key is in the unlock position.
c. Press and holi the the BLUE { CLOSE button - the shutter should start closing.
@e P@
'r t'
',")
R,\, I\4ODE
R.-,\ - LOCK
I\IODE
LOCK N4ODE
SETUP
lnstalling the Manual Console
a. Affix the manual console at a height of 1.5 metres within sight of the shutter.
Make sure that the position of the manual console is out of reach of children and
convenient to the customer.
b. Remove the main cover, mount through the four (4) holes with screws (not
supplied), then inselc the four (4) rubber plugs provided for water tightness.
c. Connect the communication cable from the openerto the manual console unrt.
i. lftheshutteropens.releasetheCLOSEbuttonandpresstheYELLOWMODEbuttononcetochangethemotorsdirection.Pressandhold
the BLUE 0 CLOSE button until the ciose position of the shutter is reached.
ii. lftheshutterovershoots,presstheGREEN tOPENbuttontomovetheshutterintheopendirection.
d. When the shutter is at the desired c ose position, press the RED SET button to record the c ose limit posrtion. The green open LED will starl
to flash.
e. PressandholdtheGREEN tOPENbuttontoopentheshutter.Whentheshutterisatthedesiredopenposition,releasetheGREEN TOPEN
button.
i. lftheshutterovershoots,presstheBLUE 0CLOSEbuttontomovetheshutterintheCLOSEdirection.
WARNINGI Once the next step is performed, the shutter will automatically close and open to calculate travel time settings.
Keep persons and objects clear of the shutter.

Clearing Travel Limits with the Manual Console
a. Ensure the key is in the unlock position.
b. Press and hold the YELLOW MODE button for 2 seconds to enter into setup mode.
c. The word "SETUP" wiil iliuminate nextto the MODE button and the green, red and blue LEDi willflash sequentiallyto indicate the console
is in Setup mode.
d. PressandholdtheBLUECLOSEbuttonfortwo(2) seconds(thewordSETUPandBLUECLOSELEDwil startflashing).
e. Release the BLUE CLOSE button. The limits are now cleared. Ensure you set the limits before proceeding.
Setting the Pedestrian Position.
a. Ensure the key is in the un ock position and the travel limits have been set.
b. Drive the shutter using the BLUE 0 CLOSE button or the GREEN i OPEN button to the required pedestrian position.
c. Press and hold the YELLOW Mode button for 2 seconds to enter into setup mode.
d. The word "SETUP" wil illuminate next to the MODE button and the green, red and blue LEDi will flash sequentially to indicate the console
is in Setup mode.
e. Press and ho d the GREEN f OPEN button for 2 seconds (GREEN and BLUE LED's will i luminate to confirm the pedestrian position).
Recalling the Factory Default,
a. Ensure the key is in the un ock position.
b. Press and hold the YELLOW MODE button for 2 seconds to enter into setup mode.
c. The word "SETUP" wi I il uminate nextto the MODE button and the green, red and blue LED's willflash alternativelyto indicate the console
is rn Setup mode.
d. PressandhodtheREDSTOPbuttonfor'l Oseconds(RUNandBLUELEDtwrll flash).
Setting Adjustment.
a. Ensure the key is in the un ock position.
b. Press and hold the YELLOW MODE button for2 seconds to enter into setup mode.
c. The word "SETUP" will illuminate nextto the MODE button and the green, red and b ue LED's willflash alternativelyto indicate the console
is in Setup mode.
d. Press and hold the RED STOP button for 2 seconds (the word SETUP will be f ashing).
SELECTION PATTERN and SETTING
ouTl @ ouT2 $ ourr s:
! euxhrut ,s
a
&Mode button response
in I position s
cLii\]I-GCK Mode
z
ol
llJ
o-
UI
:)
CLOSED STATUS*1 CLOSE IGNORED* NOT AVAILABLE*
STOPPED STATUS &sToP* *i-ji'j + ;:i,ir l-*Ci( + L0CK I *CONSOLE BUTTONS only *
oPEN STATUS*2 !OPEN ;tt
@CONTROL INPUTS only 3
a
cLosrNG STATUS aLIGHT .s
G
@
s
I LoeKe LOCK e
OPENING STATUS a
@PEDESTRIAN 6
&
!-n
MOVING STATUS*3 O
LIGHT STATUS *Default Setti
Pressthe GREEN f OPEN orthe BLUE 0CLOSE buttonsto change the pattern.
Press the RED SET button to enter edit mode (the spanner wili start i ashing), the setting! va ue pattern rs now flashed, refer to the table
above to obtain the corresponding value.
g. UsetheGREEN f OPENorthe BLUE !CLOSEbuttonstochangethevaluepatternofthatoftherequiredvalue.
h. Press the RED SET button to save the new value or press MODE to cance without saving.
i. Continue from step e to edit another setting or press MODE to exit back to SETUP N/lODE.
OUT1, OUT2 or OUT3
VarioLrs status signals listed in the table above can be used from OUTI , Olf 2 and OUT3 to contro other devices such as alarm, dock eve er and
relays etc. A transistor controlled outputs can sink 100 \lA MAX.
NOTE: An Optional Re ay Module (RLM-O1) with three (3) relays suitable for the Manual Conso e C03M is avai ab e from ATA.
AUX lnput
A normally open push button can be connected across 0V and AUX input. By default it will act as STOP button. AUX input can be programmed
to act as any of the following: close, stop, open, light or pedestrian push button.
MODE Button reponse in key lock position
The MODE switch can be programmed according to the requirements to act differently when the key is in the lock position. Referto the column
"Mode button response in lock position" in the table above.
