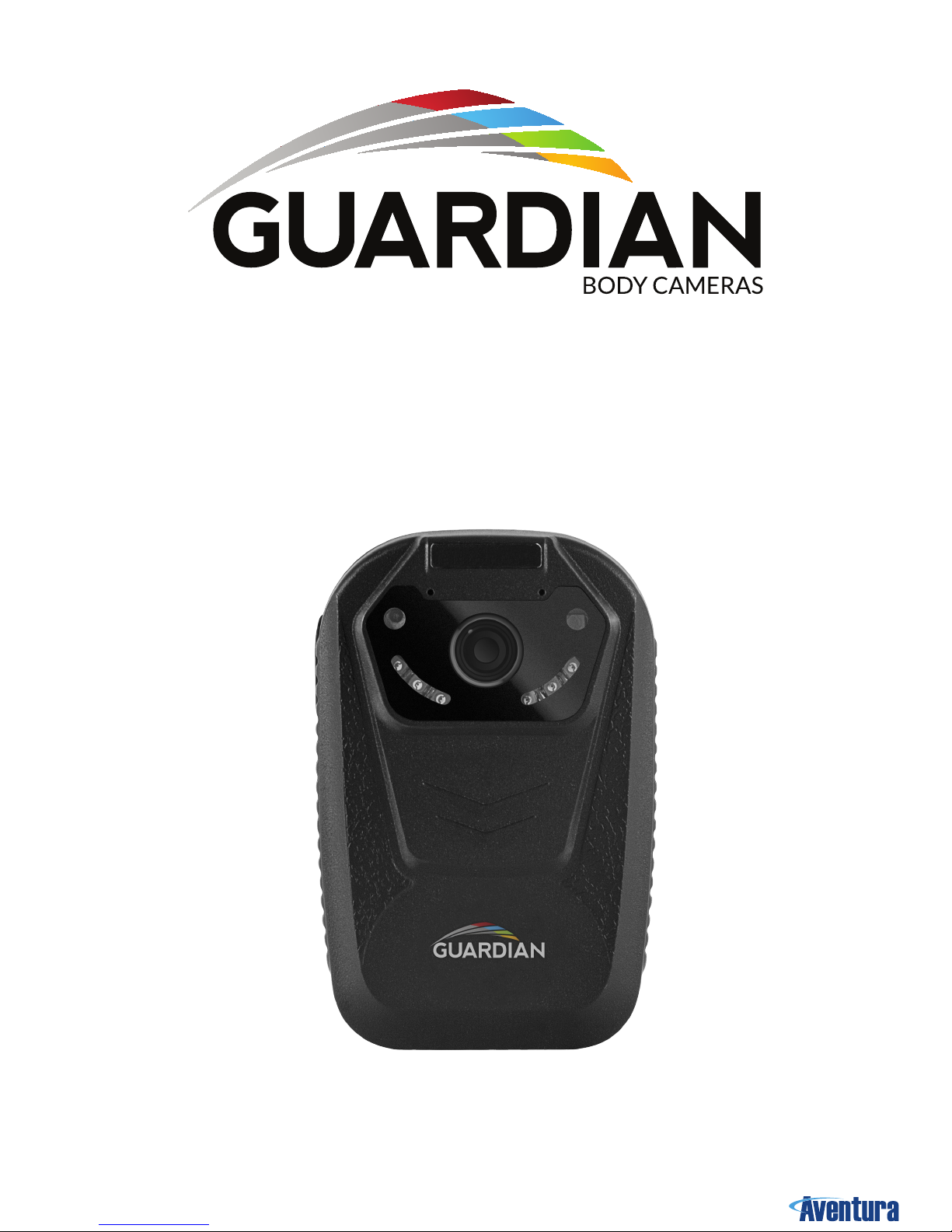

Aventura Guardian User manual
Aventura Technologies, Inc. 48 Mall Drive, Commack, NY 11725 U.S.A. P:631.300.4000 / F:631.434.7000 / aventuracctv.com
User Manual
Aventura Technologies, Inc. 48 Mall Drive, Commack, NY 11725 U.S.A. P:631.300.4000 / F:631.434.7000 / aventuracctv.com
User Manual
Content
vDevice operation user manual ..................................................................... 3
1. Structure....................................................................................................... 3
2. Instruction marks on the LCD ................................................................ 3
3. Charging....................................................................................................... 4
1. Turn on.......................................................................................................... 5
2. Turn o ......................................................................................................... 5
3. Standby ........................................................................................................ 5
4. System settings .......................................................................................... 5
5. Video recording.......................................................................................... 6
5.1 Video recording................................................................................... 6
5.2 Snapshot ............................................................................................... 6
6. Taking pictures........................................................................................... 6
7. Separate sound recording ...................................................................... 6
8. Infra-Red mode .......................................................................................... 7
9. File deletion and le protection mode ............................................... 7
10. Check out / Playback Video/camera/audio........................................ 7
11. Restart ........................................................................................................... 7
12. Indicator instruction ................................................................................. 8
13. Laser light and white light operation .................................................. 8
14. AV output/HDMI output .......................................................................... 8
14.1 AV output............................................................................................ 8
14.2 HDMI output...................................................................................... 8
15. Connected to computer .......................................................................... 8
III Specication ......................................................................................................... 9
IV Accessories .........................................................................................................10
V Troubleshooting and handling......................................................................10
Aventura Technologies, Inc. 48 Mall Drive, Commack, NY 11725 U.S.A. P:631.300.4000 / F:631.434.7000 / aventuracctv.com
vDevice operation user manual
I Guide for beginners
1. Structure
GPS interface
USB interface
HDMI interface
AV IN
External lens interface
Laser light White light
HD lens
Infra-red lights
Speaker
Indicator light
Walkie-Talkie
Video key
Photo key
360°ratatable clip
Audio key
HD 2’ LCD
Power key
Up/Infrared
Down/Laser light key
Restart
Back key
Menu
Playback key
White light/screen over key
Aventura Technologies, Inc. 48 Mall Drive, Commack, NY 11725 U.S.A. P:631.300.4000 / F:631.434.7000 / aventuracctv.com
2. Instruction marks on the LCD
Memory card recording time remaining
State mark. In video preview state, it is lm mark; in video state, it is a red dot; in photo preview state, it is a
camera mark.
The ID number of the device and the police ocer’s.
Display the memory card identication.
Battery level icon.
Display the system date and time.
Display the remaining storage of the memory card.
3. Charging
Low battery indication: when the battery voltage is too low, the battery icon in the top right corner of the LCD will turn red
and ash, warning tone will be“di…di…”from the buzzer, and the device will automatically shut down in ve minutes. Please
charge in time in order to avoid bringing you inconvenience. Two kinds of charging methods:
As the position instructed, connecting the device with a computer through the USB port. The state of charge can be
reected by the icon on the LCD (charging while it is power on) or by the LED (charging while it is power o). Red light
indicator is on while charging. Red light indicator will turn o when fully charged.
As the position instructed, connecting the device to the charge station matched when it is produced through the USB
port. The state of charge can be reected by the icon on the LCD (charging while it is power on) or by the LED (charging
while it is power o). Red light indicator is on while charging. Red light indicator will turn o when fully charged.
Aventura Technologies, Inc. 48 Mall Drive, Commack, NY 11725 U.S.A. P:631.300.4000 / F:631.434.7000 / aventuracctv.com
II Basic operation
1. Turn on
In shutdown state, short press power key to power on, LED shows red and the preview scene will appear. If there is no
operation in three minutes, the device enters the self-protection mode automatically.
2. Turn o
In boot state, long press power key for two seconds to power o, the LCD shuts down, all light indicators are power o.
3. Standby
In boot state, if there is no operation in three minutes, the device will enter self-protection mode automatically, the LCD
shuts down automatically, the LED light indicator turns red. Press the screen key to light the screen or make the screen
dark.
4. System settings
Press “Menu”key enter“System Setting”option, the LCD will display as following.
Resolution: press“OK”key, this item inverses, press“Up” key or“Down”key to select resolution, press“OK”key to conrm the
resolution selected.
Date/Time: Press “OK” key, this item inverses, press “Up” key or “Down”key to select date/time, press“OK” key to conrm the
date/time selected.
Video segmentation: Press “OK” key, this item inverses, press “Up” key or “Down”key to select the length of the video, press
“OK” key to conrm the video segmentation selected.
Photo resolution: press “OK” key, this item inverses, press “Up” key or “Down” key to select photo resolution, press “OK” key
to conrm the photo resolution selected.
ID: Press “OK” key, this item inverses, press “Up” key or “Down” key to select ID, press “OK”key to conrm the ID selected.
Prerecord: Press “OK” key, this item inverses, press “Up” key or “Down” key to select switch, press “OK” key to conrm the
switch selected.
Delay record: Press “OK” key, this item inverses, press “Up” key or “Down” key to select switch, press “OK” key to conrm the
switch selected.
After setting nished, short press “BACK” key to boot state, preview it.
SYSTEM
1920 X1080 16:9
2014-12-18
11:30
SPLIT SMIN
3.0m(2048 X 1536 4:3)
PHOTO NUMBER 1
Aventura Technologies, Inc. 48 Mall Drive, Commack, NY 11725 U.S.A. P:631.300.4000 / F:631.434.7000 / aventuracctv.com
5. Video recording
5.1 Video recording
In boot state, in the preview scene, press the“Video” key to start recording. In recording mode, the top left corner shows a red
dot, LED light indicator shows red and begins to ash slowly. Press the“video” key again to stop recording. LED light indicator
returns to be green, the video les are saved automatically toTF memory card. The screen is back to preview scene of shooting
video automatically, the name of the video is consist of the date and time with a“MP4”as sux saved in memory card. Refer to
the“Check out/Play back” part to check the video. If the video takes a long time, the device will cycle recording automatically,
5/ 10/15/30 minutes as a cycle.
5.2 Snapshot
During shooting video, press “Photo” key will take photos and save automatically after which the device will be back to
video scene. Snapshot will not interrupt shooting video.
6. Taking pictures
In boot state, in the preview scene, press“Photo” key to take a photo, save automatically, the device gets back to photo
preview scene. There is a sound “kacha” when taking a photo. Press “Photo” key once will take a photo. The name of the
photo consists of the date and time with a “JPG” as sux saved in memory card. Refer to the “Check out/Play back” part to
check the photo.
7. Separate sound recording
In boot state, in preview scene, press “Audio” to start separate sound recording, the screen is blue with a word “recording” in
the middle. The LED light indicator is yellow. Press “Audio” again to stop separate sound recording. The LED light indicator is
back to green. The audio le is saved in TF memory card automatically. The screen is back to preview scene automatically.
8. Infra-Red mode
The infrared night vision light is o by default when turning on the device. The lter switcher is color lm which is suitable for
use during the day. As for use in the night, long press the Infra-Red switch to turn on the infra-red lights. The lter will switch
to white which is suitable for night use. Long press the Infra-Red switch can switch between day work mode and night work
mode. In boot state, in preview scene, long press the Infra-Red switch to enter the infra-red mode, six infra-red lights are on,
red, the picture in the preview scene or video scene turns black-and-white. Pressing again to shut down the infra-red mode,
six infra-red lights are o. The picture in the preview scene or video scene is back to be colorized. Photo resistor light sensors
will be automatically power on or the device will turn o the infrared mode.
9. File deletion and le protection mode
Any audio and video les saved on the memory card cannot be deleted without connecting the device to computer. You
should log in the backstage management software to delete the les. As for operation instruction, please refer to the CD.
File protection mode refers to protect le from changing, le attributes are“read only.”When you delete the le, dialog box
will pop up to remind computer users whether the le you want to keep or not.
A. There are two ways to set le protection mode.
While the device is in video/audio mode, press “BACK” key to enter/exit “SOS” mode, a yellow lock icon will show up or
Aventura Technologies, Inc. 48 Mall Drive, Commack, NY 11725 U.S.A. P:631.300.4000 / F:631.434.7000 / aventuracctv.com
disappear on the right of the device.
In playback preview scene, choose videos or pictures which you want to protect, press“MENU”key to enter/exit“SOS”mode,
the les get/lose protection.
10. Check out / Playback Video/camera/audio
With the power on, the preview screen, short press “playback” key to enter the checkout/playback menu.
In this display, press the “Up” or the “Down” key to select the desired option (Video / Photo/Audio)(Highlight the selected
item with green frame).
Press once“OK”key to display all les (Video / Photo/Audio), under display press“up”or the“down”key to select the required
query or playback les (Highlight the selected item with green frame)
Press once “OK” key to display all les (Video / Photo/Audio), During playing, press “OK” key once to stop playing, and then
press the key again to continue playing. Play after pressing “OK”key repeat.
In the above process, short press “BACK” key to return a stage, until the normal display.
11. Restart
Because of improper operation or other special reasons caused the equipment to crash or stop responding, can available nibs,
toothpick or similar items press the restart key (be careful not to use too much force) are reset. After the restart key is pressed,
the device will automatically shut down, then reboot, it can save what you set before the shutting down.
12. Indicator instruction
With the power on, the preview screen LED is red, long bright
With the power on, the video mode LED is red, blinking slowly
With the power on, the audio mode is yellow, blinking slowly
In the data connection state, LED indicator is blue
In state of charge, the LED indicator is blue, after charging the LED indicator light goes out.
With the power on, each pressing of“Photo” key can take one photo, LED indicator ashes red.
13. Laser light and white light operation
With the device power on, press “Up/Laser light” button to turn on/o the laser light, the device will transmitter red laser
beam which can locate shooting direction.
With the device power on, press “White light” button to turn on/o the white light, the device will transmitter white light
which can provide light in the dark.
14. AV output/HDMI output
14.1 AV output
The device is equipped with AV output function, a dedicated AV output cable connector can connect the monitor to the TV,
audio and video will play audio and video playback when access / playback video on the display when, in this play mode the
device’s display is blank state.
14.2 HDMI output
The device is equipped with HDMI output function, a dedicated HDMI output cable connector can connect the monitor to the
Aventura Technologies, Inc. 48 Mall Drive, Commack, NY 11725 U.S.A. P:631.300.4000 / F:631.434.7000 / aventuracctv.com
TV, audio and video will play audio and video playback when access / playback video on the display when, in this play mode
the device’s display is blank state.
15. Connected to computer
The software is divided into the following two versions:
(For Unlocked device) Install the U disk version software equipment: Connect the device to the computer with the
matched USB cable, do not have to install any drivers.
(For locked device) Install the police version software equipment: It needs to install the driver, and driver installation
method and software refer to CD software instructions.
16. GPS Location Function (optional)
The device can locate with the GPS location function. After connect the device with GPS via the GPS antenna, it will generate
GPS location les while shooting video. Using a dedicated player to play the le, you can preview the device location
information and trajectory on the map. (For more information about the operation instruction, please refer to the CD.)
Use Instruction: Turn on the device after connecting it to GPS via GPS antenna, in the lower right corner of the screen shows
a red radar symbol indicates a normal antenna connection, then began shooting video, the device automatically starts
searching location; radar symbol turns green, indicating successfully locating.
III Specication
Video Input Body Built-in Camera resolution 1920*1080
Display 2.0 inch 16:9 TFT LCD 960*240
Lens angle Built-in Len: 120degree wide angle
Focus range 0.3~∞
CMOS 1/2” Color CMOS Sensor
Body Size 95mm×60mm×30mm (length × width × height)
Photo JPG le format up to 1600 million pixel camera
Video Camera Video Format: H.264 compressed format
1920x1080@30fps, 1440x1080@30fps, 1280x720@30fps, 848x480@60fps, 640x480@30fps
Video Format MP4
Exposure Mode Auto Exposure
IR night vision Built-in 6 high-power infrared light, night photography and video support, can identify faces in 8 meters
Audio Built-in microphone / speaker
Pickup 64KHZ
Memory Body memory: 32M, Standard 16GB TF memory
Shutter / Shutter Speed Electronic Shutter/1/2-1/2000s
Filter Switch Switchable lens lter, suitable for both daytime and night use
White Balance Automatic
USB Interface Mini USB Interface/USB 2.0
Lithium Battery High-capacity polymer battery; 3.7V 2500mAh
Operating Temperature/
Humidity -30°C 65°C /<90%
Operating Current Power of about 270mA, video is about 370mA, screen saver about 230mA, 420mA IR to open
Waterproof IP56
Certication CE
Aventura Technologies, Inc. 48 Mall Drive, Commack, NY 11725 U.S.A. P:631.300.4000 / F:631.434.7000 / aventuracctv.com
IV Accessories
TF card (Customer specic card capacity) *1pcs
220V Charger *1pcs
USB cable *1pcs
CD *1pcs (optional)
Manual *1pcs
Bracket (Optional)
GPS((optional)
V Troubleshooting and handling
Device cannot boot, not respond
1.Please connect the charger to equipment, charging 2 hours later ,then check the problem;
2. Please check the charger and the connecting line is normal;
3. Please press the reset key to restore the device to factory settings, and then check to the problem;
4. If it does not resolve the problem, please contact customer service sta to return the factory repair.
Device failed to connect computer, and the failure to enter upload mode
Please contact customer service sta resolved.
Forgot Password
Please contact customer service sta resolved.
Time cannot be synchronized
Please use the single version software ”SOFTWARE” which is in CD to synchronize the time of the device, if it cannot change
the time, please contact customer service sta remote networking solution.
Red equipment image
The device uses relay control infrared lter lens. When it has been hit in the course of transportation or fall could lead to
an infrared lter lens stuck, the magnetic force cannot be reset after the relay is energized. At this time, please repeatedly
pressing the infrared switch, recovery relay control infrared lter lens. If not, please shut down after the inverted device, to
beat in a surface is relatively soft place (Arm of the chair, mouse pad etc.). Boot and check is normal, if not, please contact
customer service sta to return the factory repair.
Cannot connect to external camera
Take down the Webcam, and sandpaper or something rough friction copper in the joint part of webcam. Then connect the
Webcam on the host test again, if it does not display an image, please contact customer service sta to return the factory repair.
Table of contents
Other Aventura Action Camera manuals
