AVI AVI61006 User manual

MHZ
AVI61006

- 1 -
Table of Contents
Table of Contents-------------------------------------------------------------------------------------
Important Safety Instruction----------------------------------------------------------------------
Characteristic Features ----------------------------------------------------------------------------
Disc Information --------------------------------------------------------------------------------------
Front Panel ---------------------------------------------------------------------------------------------
Rear Panel and Display Panel--------------------------------------------------------------------
Remote Control ---------------------------------------------------------------------------------------
System Connections --------------------------------------------------------------------------------
Connecting To External AV Signal Source -----------------------------------------------------
Connecting To TV Signal Input Source---------------------------------------------------------
Connecting To Antenna -------------------------------------------------------------------------------------

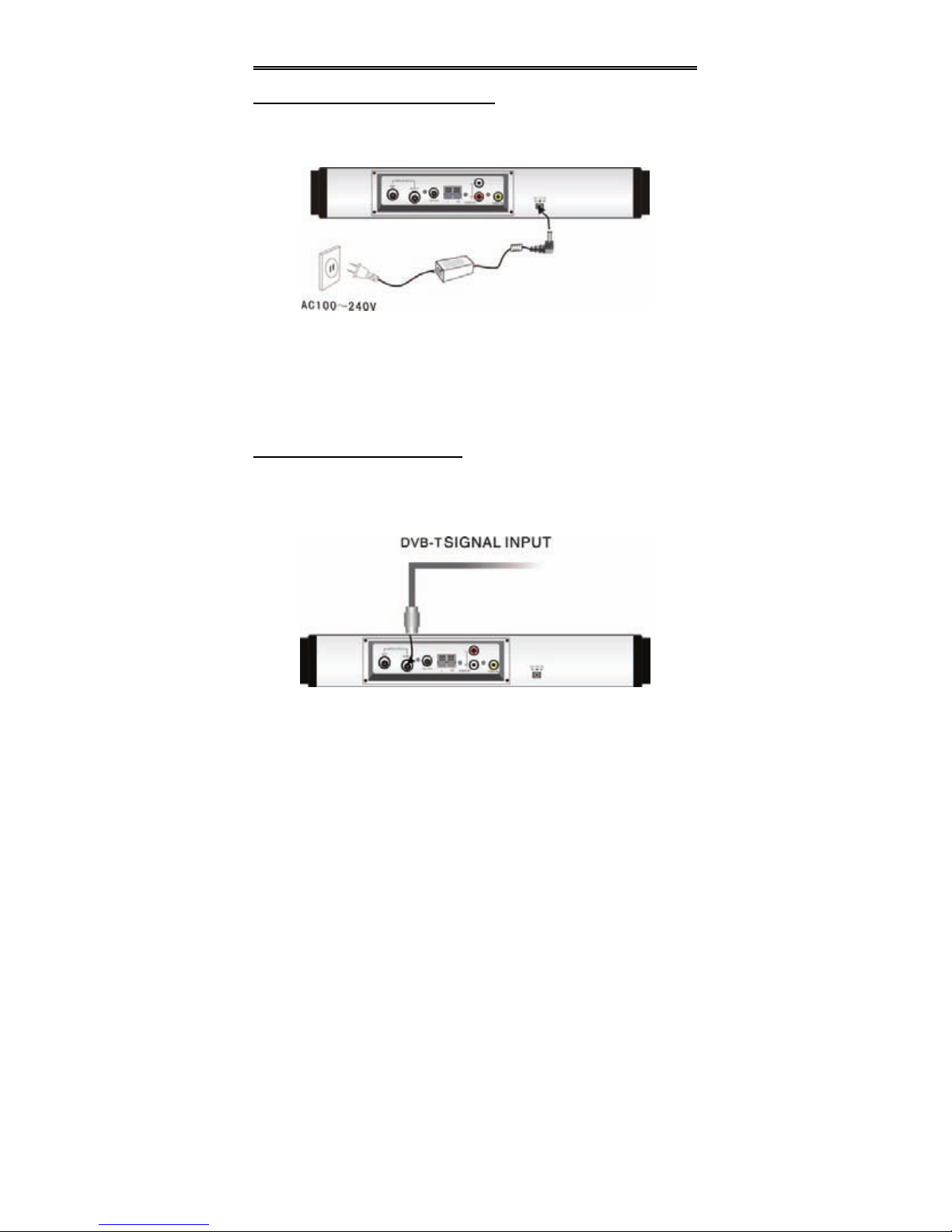

Connecting To the Power Adapter ------------------------------------------------------------------------
Connecting to DVB-T Antenna-------------------------------------------------------------------------------
DVD Playback ------------------------------------------------------------------------------------------
DVD System Setup -----------------------------------------------------------------------------------
LCD Setup -----------------------------------------------------------------------------------------------
TV Function --------------------------------------------------------------------------------------------
Clock and Alarm Function---------------------------------------------------------------------------------
AV Function --------------------------------------------------------------------------------------------
Radio Function------------------------------------------------------------------------------------------
DVB-T Setup--------------------------------------------------------------------------------------------
Installing the Unit in Kitchen----------------------------------------------------------------------
Troubleshooting --------------------------------------------------------------------------------------
Specifications ------------------------------------------------------------------------------------------
1
2
4
5
6
8
9
14
14
14
15
16
16
17
23
27
28
30
31
32
33
38
39
41

- 2 -
Important Safety Instructions
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE
CAUTION
1. The product contains a low-power laser device. In order to ensure the safety of
the laser device, do not remove any cover and attempt to repair the unit. If any
service is needed, please contact the distributor or its authorized service center.
2. To reduce the risk of electric shock, do not remove the cover (or back). No user-
serviceable parts inside. Refer servicing to qualified service personnel. Unplug
the product from the wall outlet before servicing or when it is unused for a long
period of time.
3. The manufacturer should not hold responsibility for the damage caused by any
substitutions and modifications of the product without authorization from the
manufacturer or authorized unit.
WARNING
The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of un-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
CAUTION: Laser radiation when open. Do not stare into
beam.

- 3 -
Important Safety Instructions
NOTES
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus
near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Maintain well ventilated conditions around
the product. Do not put product on bed, sofa or anything that blocks ventilation.
Install according to the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatus (including amplifiers) that produce heat.
9. Read, heed and follow all instructions to ensure correct and safe installation and
interconnection of the apparatus;
10. The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus;
11. The mains socket-outlet shall be installed near the apparatus and the mains plug
shall remain readily operable;
12. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
13. Only use attachments/accessories specified by the manufacturer.
14. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
15. Unplug the apparatus during lightning storms or when unused for long periods of
time.
16. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
17. The apparatus shall be connected to a mains socket outlet with a protective
earthing connection.
Note: Do not touch the color TFT LCD screen by hand directly.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to
beam.
3. CAUTION: Do not open the top cover. There are no
user serviceable parts inside the unit. Leave all
servicing to qualified service personnel.

- 4 -
Characteristic Features
This product incorporates a DVD
player, LCD display, TV receiver,
Radio function and DVB-T function in
one system. It is designed for
convenient use in the kitchen. Please
refer to page 38 for the installation
instructions.
Multiple Mode
x DVD
x TV
x Radio
x External Audio & Video Input
Mode
x DVB-T
High Quality Property
Video Screen
Supports normal screen (4:3) and wide
screen (16:9) aspect ratios.
AV Input
External Audio ǃVideo input can be
connected to most external AV sources.
LCD (Liquid Crystal Display) Screen
Color video screen designed with LCD
technology clearly shows video data.
Amplifier Function
Built-in 2x5w stereo amplifier with left
and right speakers.
Switching Power Adapter
Automatically adapts to the voltage
required.
Special Functions
Supports Multi-language.
Advanced Playing Function
Compatibility
Plays: DVD, CD, and JPEG discs.
On-Screen Display
Display you choices of English, German,
French, Spanish and Italian.
Fast Search Function
Multi-speed, fast forward, fast reverse,
slow play and repeat playback.
Zoom Function
Allows the viewer to enlarge or reduce
the picture.
Search By Time
Search for a certain time on a disc.
TV Functions
¾ Clear TV signal reception.
¾ Search for TV channels
automatically.
¾ Automatically memorize the
channels.
Radio Functions
¾ Clear AM/FM signal reception.
¾ Search for radio stations
automatically.
¾ Store radio stations easily.
¾ Search for radio stations in high or
low frequency range.

- 5 -
DiscInformation
Disc Formats Supported By This Player
DISC LOGO DIAMETER PLAYBACK TIME/
PLAYABLE SIDES
133 min (SS-SL)
242 min (SS-DL)
266 min (DS-SL)
12cm
484 min (DS-DL)
41 min (SS-SL)
75 min (SS-DL)
82 min (DS-SL)
DVD
8cm
150 min (DS-DL)
12cm 74 min
CD
8cm 20 min
JPEG 12cm
The disc maker specifies the operation of some DVD discs. Please refer to the
instruction manual with the disc.
Care of Discs
Do not touch the playing surface of the
disc.
Do not stick paper or labels on the disc.
Storage of Discs
Do not expose discs to direct sunlight or
excessive temperatures.
Cleaning of Discs
If a disc has fingerprints or dust on it,
lightly wipe the disc with soft cloth from
the center of the disc outward.
Never use record cleaning sprays, or
any other solvents to clean your discs.

- 6 -
FrontPanel
Front Panel Drawing
1. POWER Button
Press to enter or exit the
STANDBY mode.
2. EJECT Button
Press to open or close the disc
tray.
3. (PLAY/PAUSE) Button
Press to start or pause playback
under DVD mode.
4. Disc Tray
Used to load disc.
5.

(STOP) Button
Press to stop playback under DVD
mode.
6.

Button
Press once to go to the beginning
of current track/chapter when
playing a DVD disc. Press twice to
go to the previous track/chapter.
7.

Button
Press to go to the next track under
DVD mode.
8.

Button
Under radio mode, press to fine
tune radio frequency backward.
Press for about 1.5 seconds to
search radio stations backward
automatically.
Under DVD mode, press to
activate fast backward playback.

- 7 -
FrontPanel
9.

FWD SCAN Button
Press to fine tune radio frequency
forward under radio mode.
Press for about 1.5 seconds to
search radio stations forward
automatically.
Press to activate fast forward
playback under DVD mode.
10. Remote Sensor
11. SOURCE Button
Press to shift among DVD, TV, AV,
FM, AM and DVB-T mode.
12.
T
CH- Button
Press to select items in the setup
menu.
Press to select the channels or
radio stations backward under TV
or radio mode.
Press to select the editing position
of hour or minute when setting the
time on the display panel.
13.
S
/CH+ Button
Press to select items in the setup
menu.
Press to select channels or radio
stations forward under TV or radio
mode.
Press to select the editing position
of hour or minute when setting the
time on the display panel.
14. Display Panel
Displays the time, status, radio
frequency and radio station
number.
When adjusting volume, the VOL
and volume level will be displayed
on the display panel for several
seconds.
15. Ż/-VOL Button
Press to select items in the setup
menu.
Press for about 1.5 seconds to
decrease the volume.
Press to decrease the value in the
picture setup menu.
Press to decrease value of the
hour or minute when setting the
time on the display panel.
16. Ź/VOL+ Button
Press to select items in the setup
menu.
Press to for about 1.5 seconds
increase the volume.
Press to increase the value in the
picture setup menu.
Press to increase value of the hour
or minute when setting the time on
the display panel.
17. TIME/ ENT Button
Press it once to confirm selections
in the setup menu. Press for about
1.5 seconds to set the time on the
display panel.
Use the direction buttons to
select the editing position of hour
or minute, and then use
thedirection buttons to adjust
the value of the hour or minute
upward and downward.
In standby status, the time is still
displayed on the display panel.
18. TV/LCD SETUP Button
Press once to enter the LCD setup
menu. Then press Xbutton to
enter the TV Setup menu in the TV
mode.
19. IR RECEIVER
20. LCD Screen

- 8 -

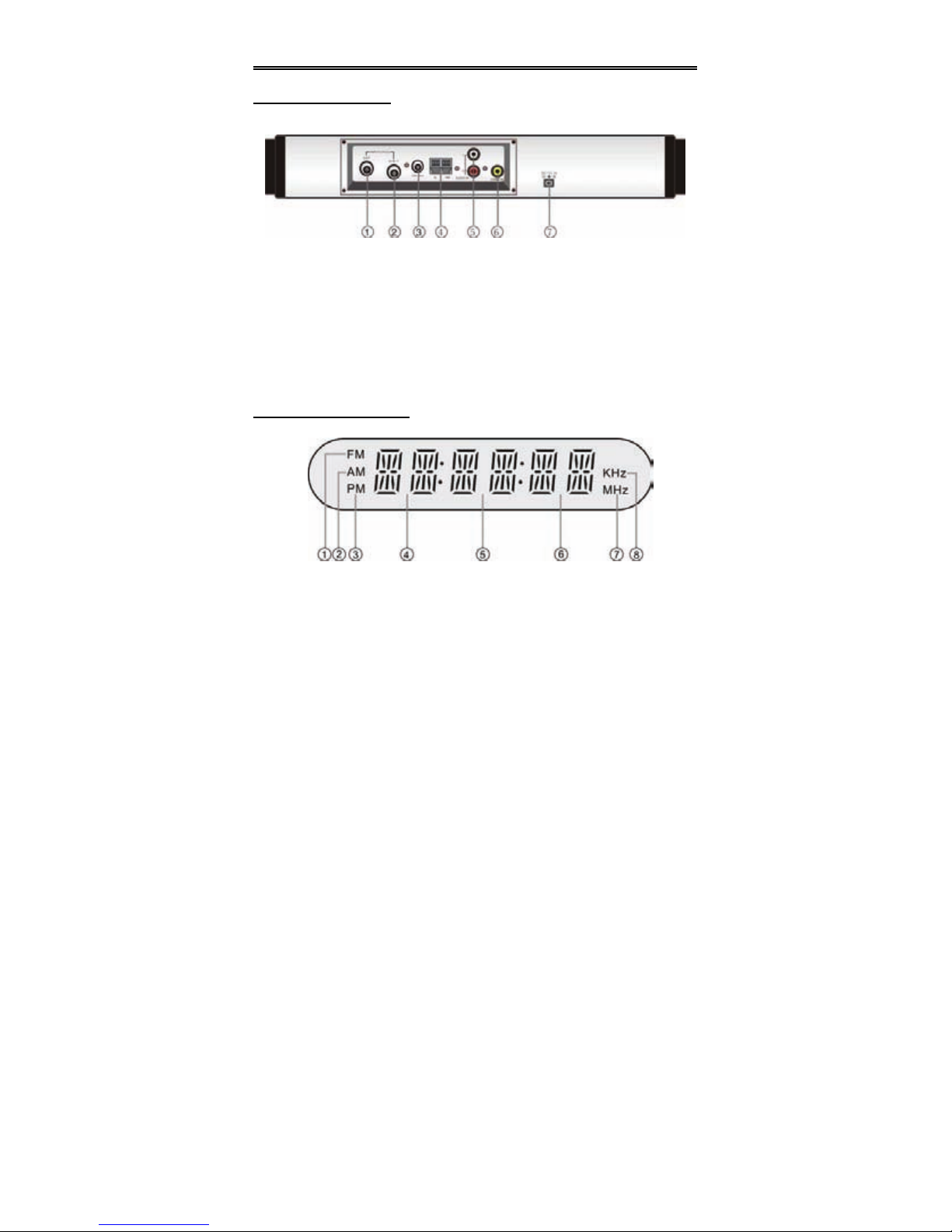

RearPanelandDisplaypanel
Rear Panel Drawing
1. ANT INPUT Jack
Connect external antenna to
receive the TV program in TV
mode.
2. DVB-T Antenna Jack
3. FM 75
¡
Coaxial Antenna Jack
4. AM Antenna Jack
5. Left/Right AUDIO Input Jack
Connect the audio input.
6. VIDEO Input Jack
Connect the video input.
7. DC 12V Input Jack
Connect the supplied power.
Display Panel Drawing
1. FM radio status indicator
2. AM radio status indicator
AM time indicator
3. PM time indicator
4. Hour or character indicators
5. Minute or character indicators
6. Character indicators
7. FM frequency unit of MHz
indicator
8. AM frequency unit of KHz
indicator

- 9 -
RemoteControl

Preparation
Refer to the drawing and remove the
empty battery receptacle.
Insert the battery into the receptacle.
Make sure the polarity matches the
marks inside the component.
Insert the receptacle into the remote
control.
Using Of Remote Control
Point the remote control towards the
main unit when operating. The r/c
works best at a distance less than 7m
and at an angle of up to 60eto the front
of the unit. No obstacles may stand in
the way between r/c and infrared
sensor.
The battery normally lasts for about six
months. This depends on how often and
for what operations the remote control is
used.
If the remote control unit fails to work
even when it is operated near the
player, replace the battery.
If the r/c is not used for a long period of
time, please remove the battery from
the compartment, to prevent damage
by leakage.

- 10 -
RemoteControl
Remote Control Drawing
1. POWER Button
Press to access to or exit the
STANDBY mode.
2. SUBTITLE Button
Press to select a subtitle language
or to turn subtitles off when a DVD
with multi-subtitles is playing.
3. DVD Button
Press to enter DVD mode.
4. TV Button
Press to enter TV mode.
5. AV Button
Press to shift to external AV input
mode.
6. FM/AM Button
Press to shift to FM/AM signal
input mode.

- 11 -
RemoteControl
7. DVB-T Button
Press to shift to DVB-T mode.
8. OK Button
Press to confirm selections.
9.

,

,

/CH+,

/CH- Buttons
Press to select menu items or
settings.
Press  buttons to adjust value
in the picture setup menu, or
during setting time on the display
panel.
Pressbuttons to select
channels or radio stations forward
and backward in TV and radio
mode. Press to select the editing
position of hour or minute when
setting the time on the display
panel.
10. SET Button
Press to enter and exit the ALARM
SET menu. Press to memorize the
radio stations under AM/FM status.
11.

/SEEK – Button
Under radio mode, press once to
fine tune frequency backward.
Press for about 1.5 seconds to
search radio stations backward
automatically.
Press to activate fast backward
playback under DVD mode.
Press it when the function can be
displayed by the RED button
according to the indication on the
menu under the DVB mode.
12.

/SEEK + Button
Under radio mode, press once to
fine tune frequency forward. Press
for about 1.5 seconds to search
radio stations forward
automatically.
Press to activate fast forward
playback under DVD mode.
Press it when the function can be
displayed by the GREEN button
according to the indication on the
menu under the DVB mode.
13.
X
(PLAY) Button
Press to start playback under DVD
mode.
14.

(STOP) Button
Press to stop playback under DVD
mode.
15. TITLE/EPG Button
Press to display titles if present on
the disc under DVD mode.
Press to enter the channel
schedule in the DVB-T mode.
16. MENU/FAV Button
Press to access the disc menu
under DVD mode.
In the DVB-T mode, press to enter
the favorite list, then use the ,
direction button to select items,
press the OK button to confirm
and start playback.
17. REPEAT/EXIT Button
Press to repeat a title, chapter or
the entire disc under DVD mode.
Press to return to the previous
menu in the DVB-T setup menu.
18. SLOW/LANG Button
Press to activate slow playback in
DVD mode.
Press to select audio language in
DVB mode.
Press to shift between PCM and
AC3 function under DVB-T mode.

- 12 -
RemoteControl
Remote Control Drawing
19. EJECT Button
Press to open or close the disc tray.
20. AUDIO Button
Press to shift between the different
audio tracks under DVD and DVB
modes.
21. 0-9 number Buttons
Select numbers by pressing these
buttons.
22. GOTO Button
Press to select the desired disc
starting Time, Track or Title under
DVD mode.

- 13 -
RemoteControl
23. +10 Button
Select numbers greater than 9 by
pressing the (+10) button first, and
then additional number buttons are
needed.
24. TIME Button
In standby status, the time is still
displayed on the panel.
Press it to set the time on the
display panel. Use the ,buttons
to select the editing position of hour
or minute, and then use the ,
buttons to adjust the value of the
hour or minute downward and
upward.
25. SETUP Button
Press to enter the DVD setup menu
in the DVD mode
Or press to enter the DVB-T system
setup menu in DVB-T mode.
26. INFO Button
Press to display detailed playback
information under DVD or DVB-T
mode.
Press repeatedly to display
additional information or to turn the
information display off.
27. LCD ON/OFF Button
Press to turn the LCD screen
display On or Off.
28. LCD SETUP Button
Press once to enter the PICTURE
setup menu. Then press the
Xbutton to enter the TV SETUP
menu in TV mode.
29.

NEXT Button
Press to go to the next track under
DVD mode.
Press it when the function can be
displayed by the BLUE button
according to the indication on the
menu under the DVB mode.
30.

PREV Button
When a DVD disc is playing, press
once to go to beginning of current
track/ chapter. Press twice
repeatedly to go to beginning of
previous track or chapter.
Press it when the function can be
displayed by the YELLOW button
according to the indication on the
menu under the DVB mode.
31. MUTE Button
Press to turn on/off the speaker
output. The corresponding
information will be displayed on the
display panel.
32.

(PAUSE) Button
Press to pause playback in DVD
mode.
33. ZOOM/P+ Button
Press to enter and cycle through
zoom functions when playing DVD
disc, use the direction buttons to
pan around the screen when
zoomed in.
Press to select the channel forward
in the EPG setup.
34. VOL+/ - Buttons
Press to increase or decrease the
speaker volume level.
35. A-B/P- Button
Used to play a section of the DVD
disc from point “A” to point “B”.
Press once to select the starting
point (A), press again to select the
end point (B). Press the third time
to stop the A-B repeat mode.
Press to select the channel
backward in the EPG setup.

- 14 -
System Connections

x Do not connect the power cord until all other connections have been made.
x Each time you restart the unit, it remembers the last function used.
x Please make all the connections before installing the unit in the kitchen.
Connecting To External AV Signal Source
Connections should be made as follows:
Connect the L/R audio cables according to the marks on the rear panel of the unit:
Left audio cable is plugged into the upper jack; the right audio cable is plugged into
the lower jack.










Connecting To TV Signal Input Source
Connect the TV aerial via the ANT jack on the rear panel.
After connection, turn on the power of the unit. Then press the TV button to shift to TV
mode.

- 15 -
System Connections
Connecting To Antenna
Connect the supplied AM/FM antennas to listen to the radio.
x In order to improve the signal, move AM loop antenna away from system and
other equipment.
x Extend FM antenna fully.
x Keep the FM antenna as horizontal as possible after connection.
x When connecting the supplied AM loop antenna, connect two black cords to AM
and ground jacks as shown below.
x If the FM reception is poor, use a 75¡coaxial cable (not supplied) to connect
system to an outdoor FM antenna as above.
x If you connect the system with outdoor FM antenna, you should earth the system
in order to avoid lightning strike.
x Do not connect the earth wire to gas pipe to prevent gas explosion.
OUT DOOR
FM ANTENNA

- 16 -
System Connections
Connecting To the Power Adapter
This unit is powered through the switching power adapter (supplied). See the below
figure for connection:
1. Connect the AC adapter to jack marked with “DC 12V IN” on the rear panel of
the unit.
2. Plug the two-prong end of the power cord to the grounded electrical socket.
3. When not using the unit, turn off the power of the unit first, and then unplug the
power supply to prevent malfunctions.
Connecting to DVB-T Antenna
The unit is designed with an antenna input jack. Plug the DVB-T antenna into the
DVB-T jack on the rear panel of the unit to receive TV signal, then press DVB-T
button on the remote control to switch to the DVB mode, see the below figure:

- 17 -
DVDPlayOperation
Preparation
1. Install the unit in the kitchen; refer to page 38 for details.
2. After connecting the unit to the AC power, turn on the unit’s power by pressing
the POWER button on the front panel or the remote control.
3. Press the DVD button on the remote control or the SOURCE button on the front
panel to shift to DVD mode.
4. Press the EJECT button on the front panel or the remote control to open the
disc tray.
5. Load the disc with the labeled side facing up.
6. Press the EJECT button again to close the disc tray. The player will
automatically search for the disc and start playback.
DVD disc Playback
Region Code
DVD players and discs are coded by region. These regional codes must match the
played discs. If the codes don’t match, the disc cannot be played. This player’s default
code is region 2.
Play
Press the PLAY button to start playback.

Stop
During playback, press the ŶSTOP button once to stop playback and press the

PLAY button to resume normal playback. Press the ŶSTOP button twice to stop
playback completely.

Pause
Press the

PAUSE button once on remote control or PLAY/PAUSE button on the
front panel to pause playback. Press the

PLAY button to resume normal playback.
Previous

and Next

Press the button to go to the next chapter. Press the button once to return to the
beginning of the current chapter or track; press it twice to go to the previous chapter.
Fast Playback
During playback, press the button to activate fast backward or forward playback.
During fast playback, press thePLAY button to resume normal playback.

- 18 -
DVDPlayOperation
Repeat
Use the REPEAT button repeatedly to repeat a chapter, title or all.
 Some discs do not support the repeat function.
A-B
You can temporarily select a section of a DVD that you would like to play repeatedly.
You do this by marking the start and the end of the section using the A-B button.
During playback press the A-B button on the remote control at the beginning of the
segment (point A) you wish to play repeatedly. Press the A-B button again to mark the
end of the segment (point B).
The DVD player will automatically return to point A and repeat playback of the
selected segment (A-B). To resume normal playback, press the A-B button again.
Menu
Normally there is a selecting menu for DVD discs. You can press the MENU button
(under DVD mode) to enter the menu, and use the direction buttons to highlight an
item. Then press the OK button to confirm.
Title & Chapter
Normally there are several titles in a DVD disc, and several chapters (sections) in a
title. You can select any title or chapter quickly by entering the relevant number.
 Some discs do not support the function by pressing the number button but the
direction button.
Language (Audio)
There can be up to 8 audio languages on a DVD disc. When you play a multi-
language DVD disc you can use press the AUDIO button on the remote control to
select a language.
z This function is only available for discs that have several audio bit streams
recorded onto it.

- 19 -
DVD Playback Functions
Subtitle
The DVD player can support multiple kinds of subtitles. When you play a multi-subtitle
disc you can press the SUBTITLE button on the remote control to select different
subtitles.
 Some discs do not support the shifting subtitles function.
GOTO
During DVD disc playback, press the GOTO button on the remote control once, there
will be a menu displayed on the screen. You can set or select items for your
preference. Use the  direction buttons to select items and press the OK button to
enter and use the  direction buttons to select the desired item. Press the
direction button to return. When select the Title/Chapter, TT Time/CH Time, use
number buttons to input desired title/chapter number time.
 Some DVD discs do not support the search function.
Zoom
Press the ZOOM button on the remote control to cycle through the different zoom
settings.
